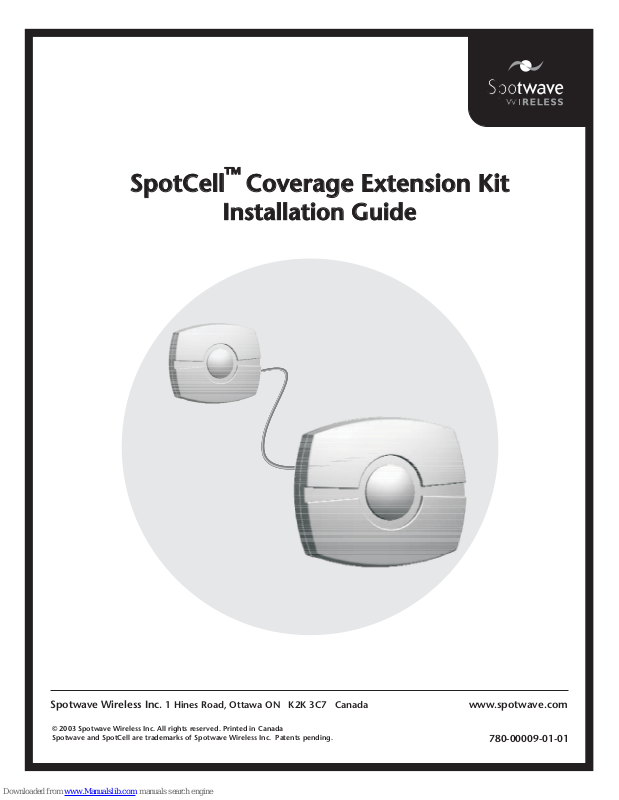

SpotCell Coverage Extension Kit
SpotCell Coverage Extension Kit
Installation Guide
Installation Guide
Spotwave Wireless Inc. 1 Hines Road, Ottawa ON K2K 3C7 Canada
© 2003 Spotwave Wireless Inc. All rights reserved. Printed in Canada
Spotwave and SpotCell are trademarks of Spotwave Wireless Inc. Patents pending.
www.spotwave.com
780-00009-01-01
The SpotCell Coverage Extension kit extends SpotCell
system coverage into hard to reach places that are blocked
by obstructions such as dense walls or shadowed by
elevator shafts or duct work.
DU
Auxiliary
Antenna
CU
1. Parts List
!
Coverage Extension antenna
!
Adapter cable
!
coax connector
!
25m RG6 cable
Coverage
Extension
antenna
Extension Antenna Characteristics
·
Gain +3 dBi
·
Elevation Beamwidth 180°
·
Azimuth Beamwidth 175°
·
Front-to-Back 12 dB
·
Horizontally Polarized
RG6 cable
Adapter
cable
2. Coverage Extension antenna location
WARNING: The extended coverage antenna should
be mounted in locations where people will not
approach within 20 cm in front of the antenna.
> 20 cm
Antenna
The main CU and the auxillary antennas should never be co-located
side by side and facing in the same direction. The two antennas must
have a minimum of 10cm of separation when facing in opposite
direction.
The SpotCell Coverage Extension should be connected to the Coverage
Unit (CU) only after the SpotCell 100 or SpotCell 200 system has been
properly installed.
> 10 cm
CU
4. Adapter cable to RG6
Join the other end of the adapter cable to one end of the
provided RG6 cable with the supplied connector.
3. CU connection
Connect the Adapter cable to the Coverage Extension
antenna (MCX) connector on the back of the CU. The
CU can be powered and operational while connecting the
Coverage Extension antenna.
Coverage Extension
antenna connector
Adapter
cable
5. Connect RG6 to Coverage Extension Antenna
Connect the other end of the RG6 cable to the
F-connector on the Coverage Extension antenna.
Adapter
cable
Spotwave Wireless Inc. warrants to the original Purchaser that the Spotwave SpotCell Coverage Extension is free from defects in material and
workmanship under normal use and service for a period of 12 months from the date of shipment from Spotwave (the "Limited Warranty Period").
Connector
RG6 cable
Finally, mount the Coverage Extension antenna in a
suitable location on the wall or ceiling.
LIMITED WARRANTY
