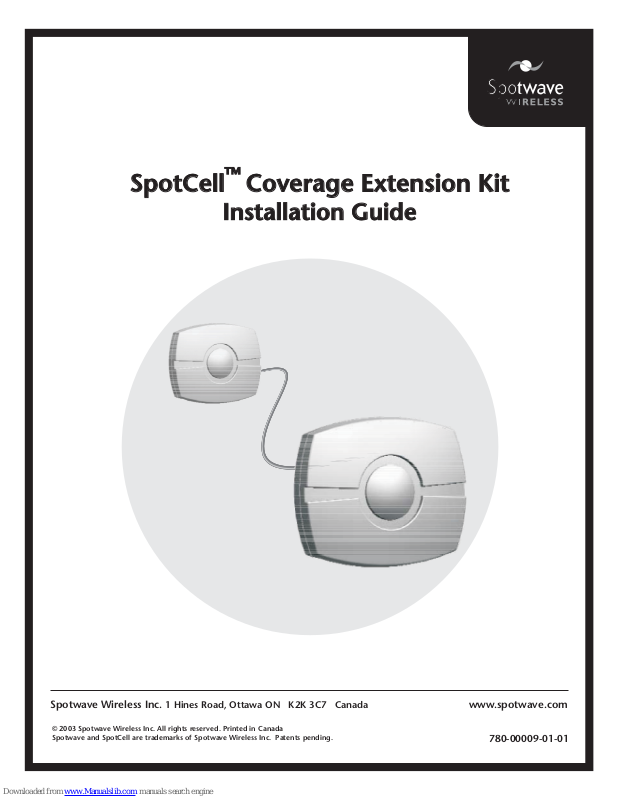

Spotwave SpotCell Coverage Extension Kit Installation Manual
™
SpotCell Coverage Extension Kit
SpotCell Coverage Extension Kit
Installation Guide
Installation Guide
Spotwave Wireless Inc. 1 Hines Road, Ottawa ON K2K 3C7 Canada
© 2003 Spotwave Wireless Inc. All rights reserved. Printed in Canada
Spotwave and SpotCell are trademarks of Spotwave Wireless Inc. Patents pending.
www.spotwave.com
780-00009-01-01
The SpotCell Coverage Extension kit extends SpotCell
system coverage into hard to reach places that are blocked
by obstructions such as dense walls or shadowed by
elevator shafts or duct work.
1. Parts List
!
Extension antenna
!
Adapter cable
!
coax connector
!
25m RG6 cable
DU
Auxiliary
Antenna
CU
2. Extension antenna location
The only limitations to mounting the extension antenna
are the length of the RG6 cable and the minimum
required distance (10 cm) separating the Auxiliary antenna
and CU.
greater
than 10 cm
CU
Aux. Antenna
The SpotCell Coverage Extension should be connected to
the Coverage Unit (CU) only after the SpotCell 100 or
SpotCell 200 system has been properly installed.
Extension
Antenna
3. CU connection
Connect the Adapter cable to the auxiliary antenna
(MCX) connector on the back of the CU. The CU can be
powered and operational while connecting the auxiliary
antenna.
Aux. Antenna
connector
Adapter
cable
4. Adapter cable to RG6
Join the other end of the adapter cable to one end of the
provided RG6 cable with the supplied connector.
RG6 cable
Adapter
cable
Connector
5. Connect RG6 to Auxiliary Antenna
Connect the other end of the RG6 cable to the Fconnector on the auxiliary antenna.
Finally, mount the antenna in a suitable location on the
wall or ceiling.
LIMITED WARRANTY
Spotwave Wireless Inc. warrants to the original Purchaser that the Spotwave SpotCell Coverage Extension is free from defects in material and
workmanship under normal use and service for a period of 12 months from the date of shipment from Spotwave (the "Limited Warranty Period").
