SPOT xp 575 User Manual

CAUTION!

Contents

Features

Description of the appearance

Inspection.

Safety instructions

Lamp Installation

Rigging

Connection with the mains

Linking

, QVWUXFWLRQI RUJ RERUHSODFHP HQW

DMX Channel Chart

1

2

3

4

5

6

7

7

8

9

Control Board

Maintenance

Replacing the Fuse

Appendix A

Product Specifications

14

15

16

16

17

Features

Great effect variety

! Smooth and silent revolving of a big range of 570-degree in X axis

and 270-degree in Y axis, automatic electronic sensor to zero.

! Two separated 11-dichroic color + white wheels, creating moving

colors as beautiful as the rainbow.

!

9+1 fixed gobos and 6+1 rotating gobos allocated in two different
gobo wheels; and all gobos are easily changed.

! Various kinds of glass gobos are available for clients' choices.
! Rotating three facet prism.

! 10,000K and 6500K Temperature correction filter.
! 3200K temperature correction filter.

! 1-7Hz fast flashing and 0-100% linear dimmer.

! IRIS linear adjustment.
! Remote-controlled focus.
! Remote-controlled lamp switch ON/OFF.

Sophisticated appearance and structure design

!

Stylish, high impact resistant polymer shell, which is lighter than
anyone else of the same class in the market.

! Solid square base is convenient set on the TRUSS, or directly stand

on the ground or stage for uses.

! Systematic modular construction design has all inner function wheels

and PCBs modularized, which allows version update or customization
more convenient.

! Sophisticated optical system makes light output more bright and

sharp.

Simple and easy operation

! Standard USITT DMX512 protocol, 16 or 14 DMX Channel.
! High-torque stepper motors, smooth and precise micro-stepping

control.

! LED screen controls DMX coding and built-in functions' election, as

well as also display lamp's time usage.

1

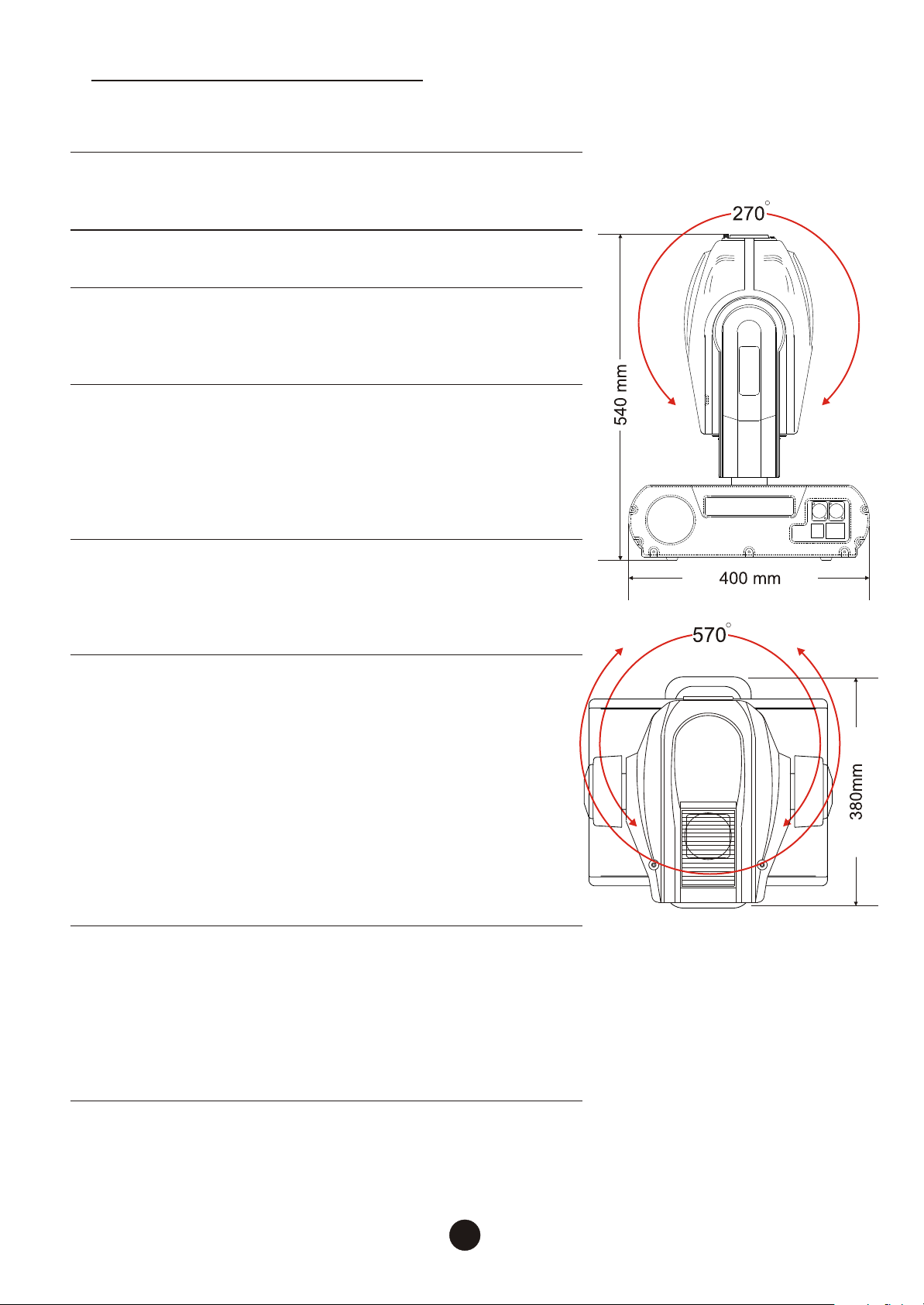

Description of the appearance

Filter

2

Inspection

Carefully unpack the carton, and make sure if any damage or loss
caused by transportation.

Contact your PROLIGHTS dealer to assure your right by telephone or
facsimile immediately if damage has occurred or if something is
missing.

Packing List:

A. XP SPOT 575 Moving Head
B.Operating Manual

Bracket

C.
D.GOBO
E. Lamps (Optional)

3

Safety instructions

This appliance must be earthed (grounded).

Disconnect power before removing covers or servicing.

Keep case closed while operating.

XP SPOT 575 contains no user serviceable parts. Refer servicing to
qualified technicians only.

Lamp and components become hot during operation. Allow time to
cool before handling.

Keep flammable material at least one meter away from unit.

Do not operate in wet conditions or near liquids.

Keep air vents clear to avoid overheating.

Lamp produces hazardous UV light. Do not look directly at lamp
when lit.

Replace any blown or damaged fuses only with those of identical
values.

4

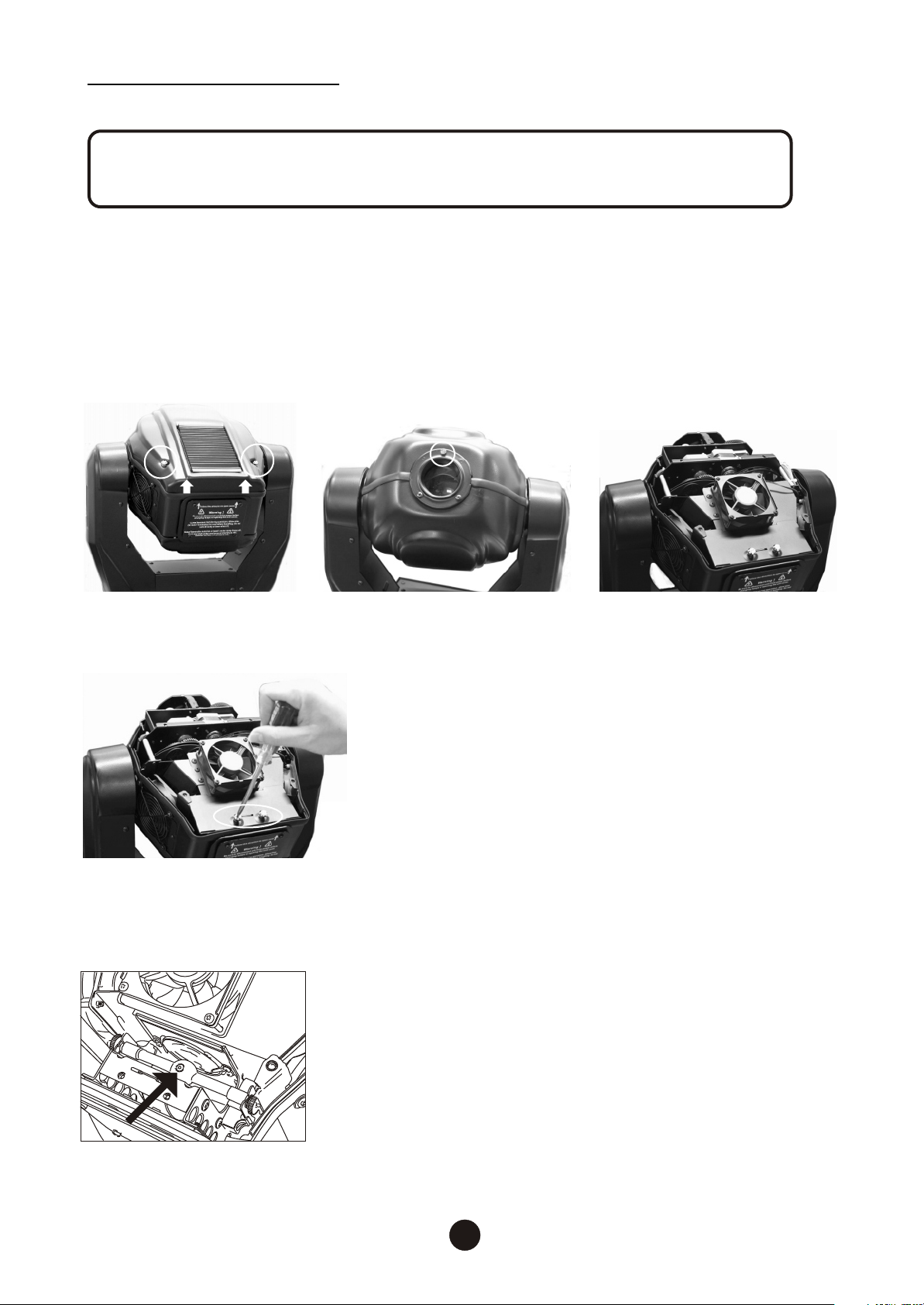

Lamp Installation

WARNING!

Remove the power cord before installing the lamp.

Keep projector-head upward (See Figure below.) and loosen three
screws on the cover with appropriate tool then open the top cover
and put it aside.

Loosen and grab the screws on the
shutter cover with appropriate tool.

Wear the gloves and extract the lamp from
the package, loosen the screws on both sides of
the lamp, then slide the lamp paralleled into the
lamp socket. Adjust the round point of the
lamp upward (See Figure.) and fasten the
screws snugly.
Reverse the above-mentioned processes for
the complete installation.

5

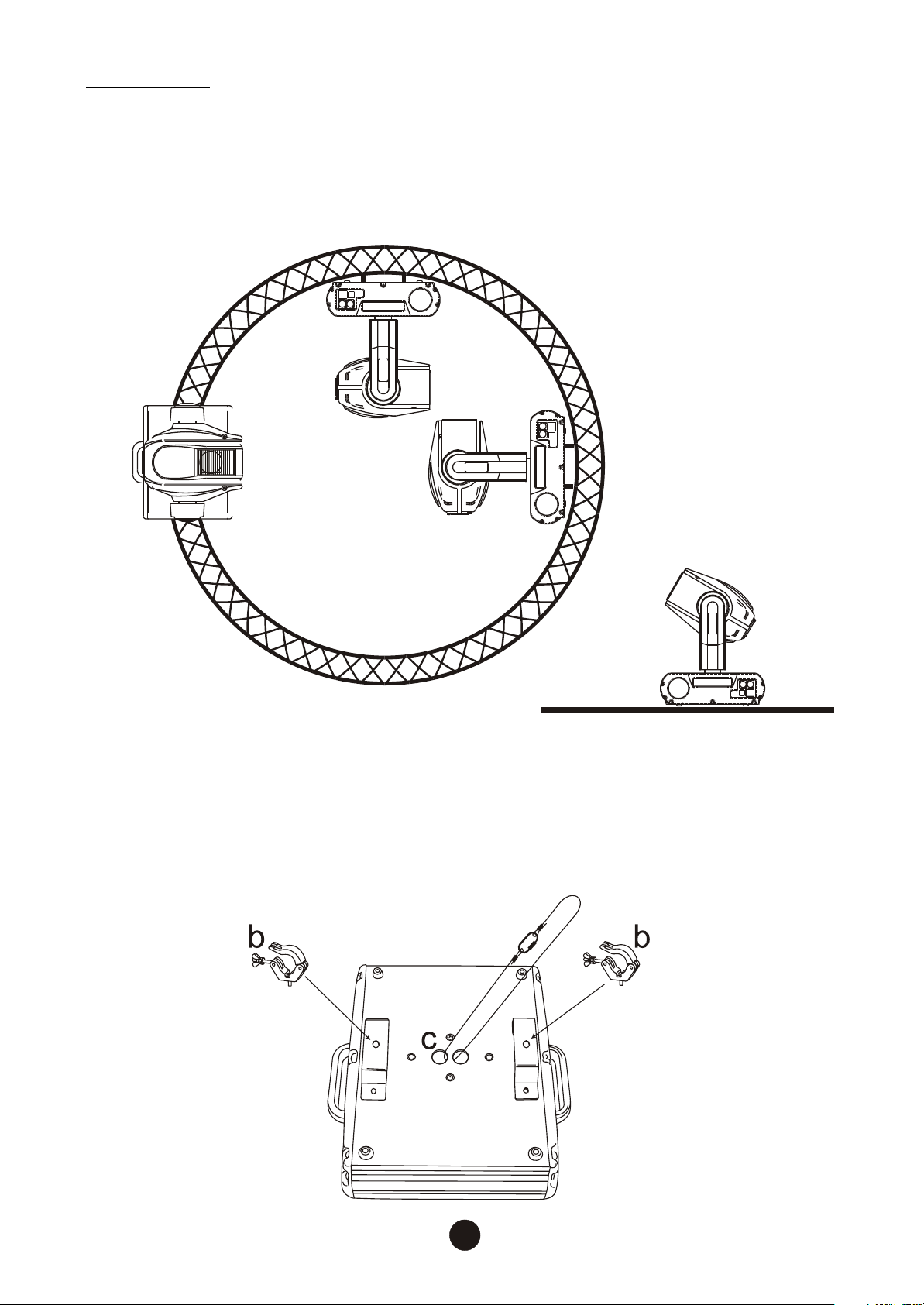

Rigging:

XP SPOT 575 can be set on the flat stage floor directly or use clamp to
mount on any kinds of trusses for fitting the mobility of various venues.

Mount two attached brackets(a) on the bottom (See Figure), and
collocate the appropriate clamps(b) to rig with trusses. Must use the
safety ropes that can hold the ten times as heavy as the fixture through
the eye bolts(c) on the bottom of the base and trusses; then join the
safety ropes with screw-on carabines(d).

d

a a

6

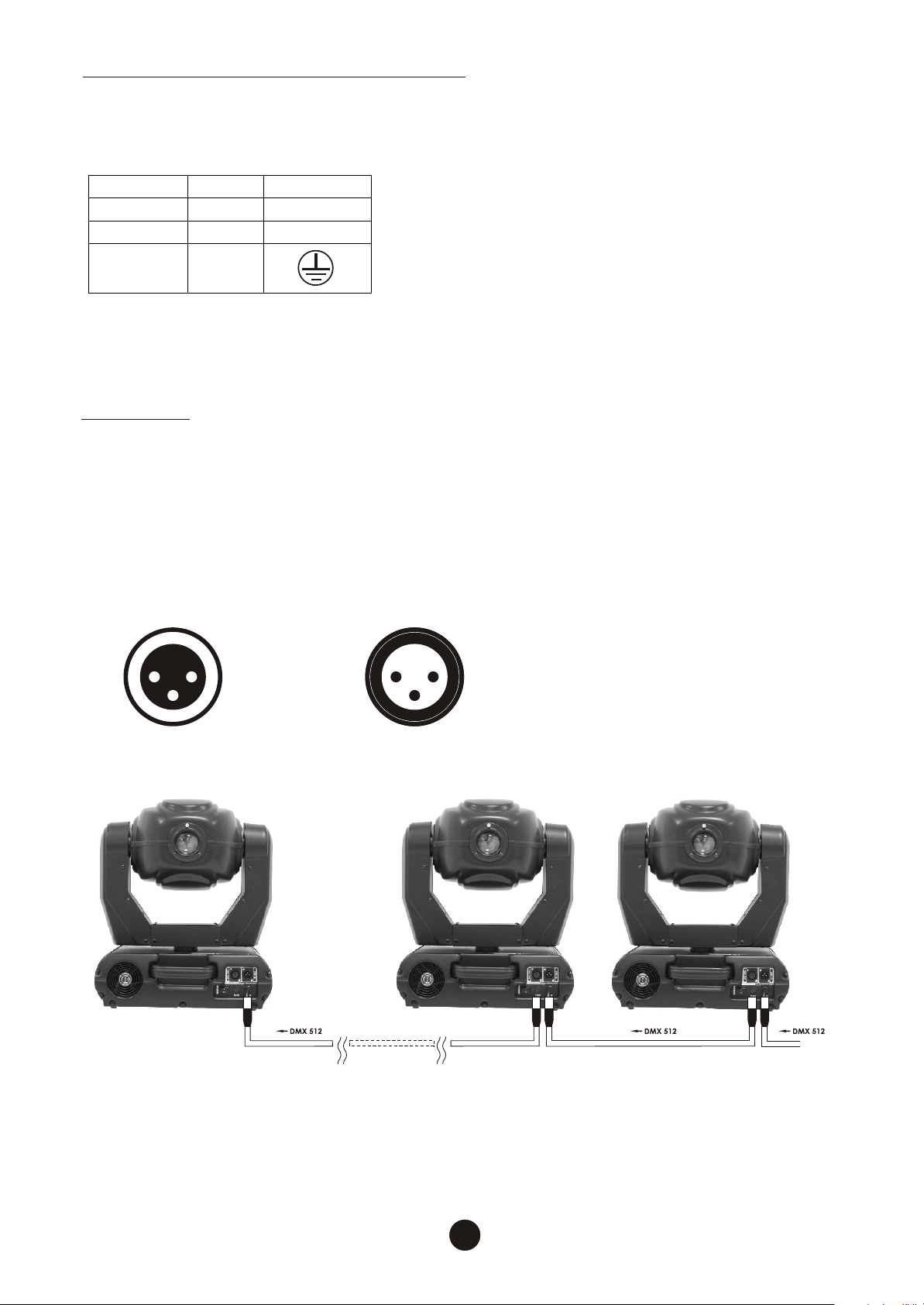

Connection with the mains

Cable Pin International

Brown Live L

Blue Neutral N

Yellow/Green Earth

Connect the device to the mains with the power-plug.

The occupation of the connection-cables is as follows:

The earth has to be connected! In general, lighting effects should not
be connected to dimming-packs.

Linking

Use 3-pin XLR data cables to link the controller to DMX lighting
equipment.

3-pin XLR connectors are follows:

' 0 ; RXWSXW

; / 5 P RX QWLQJ VRF NHW

12

3

1:Ground
2:Signal(-)

3.Signal(+)

' 0 ; LQSXW 

; / 5  P RXQWL QJSOXJ 

1 2

3

Building a serial DMX-chain:

1:Ground
2:Signal(-)

3.Signal(+)

Connect the DMX output of the first fixture with the DMX input of the
next fixture. And execute all the setups following the above­mentioned instruction.
Flip the DIP SWITCH #3 of last fixture to ON position for terminal
confirmation.

7

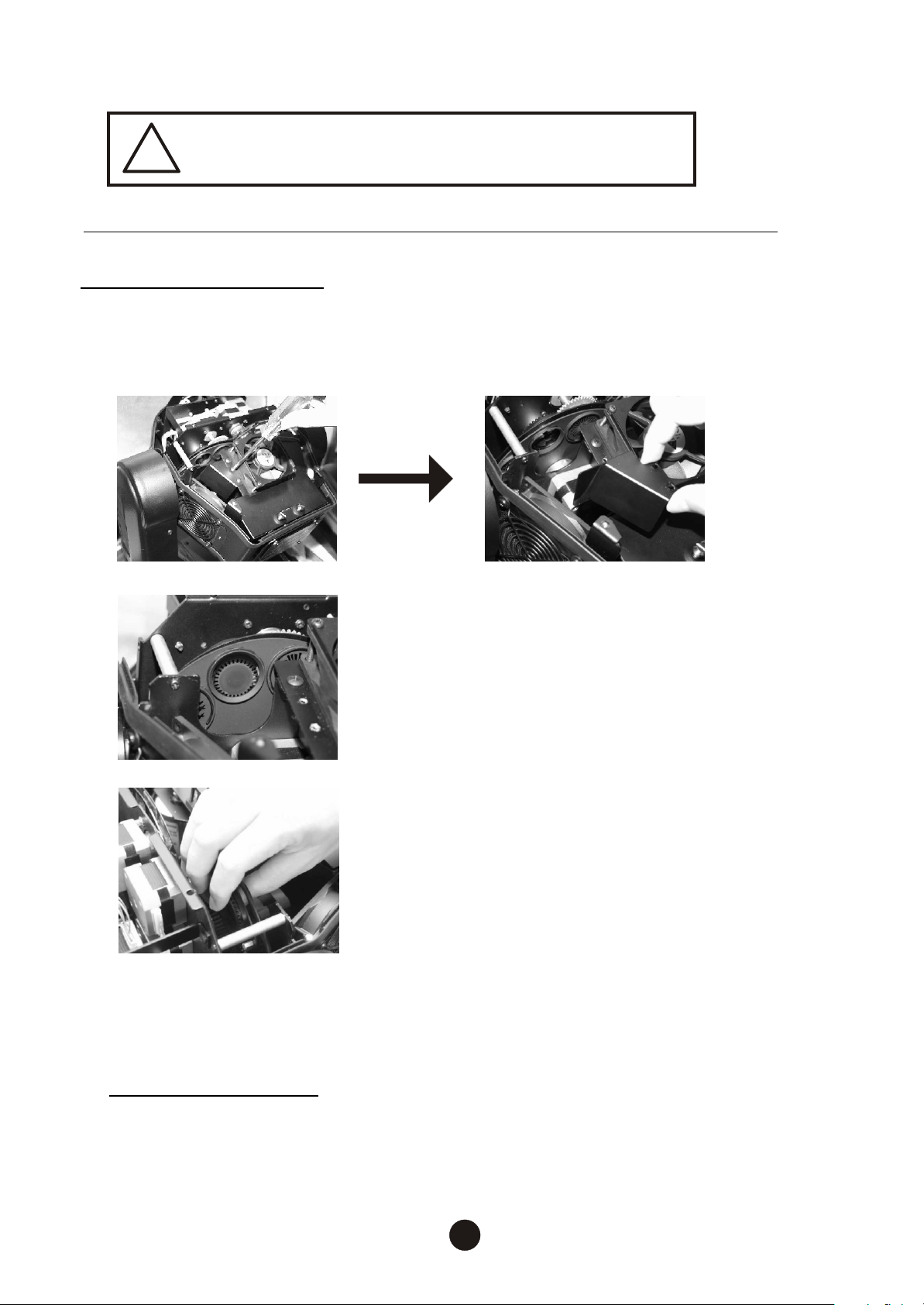

, QVWUXFWLRQVI RUJ RERUHSODFHP HQW

' $1* ( 5

!

Please choose the suitable gobo dimensions of this fixture. (Appendix A)

Rotating GOBO wheel

1.Open the top cover (*Refer to the steps of lamp installation.), and
loosen the screws with appropriate tools then extract A . (See the
figures below.)

, QVWDOOWKHJ RERVZ LWKWKHG HYLFHVZ LWFKHG
RIIRQO\  8 QSOXJ I URP P DLQVEHI RUH

A

2.Turn the open (circle) of the GOBO wheel to
"U" shape gap in order to extract the rotating
GOBO easily.

3.Push GOBO & the spring ring out with the
fingers carefully. (*Caution: Avoid falling
the spring ring into the fixture.)

4.Insert the new GOBO and the spring ring (*Press the spring ring
tight with the appropriate tools in order to keep GOBO compact),
put A back and screw up the top cover.

Fixed GOBO wheel

The instructions are the same as changing the rotating GOBO; only
winkle the spring ring out with appropriate flat screw driver before
push GOBO out.

8

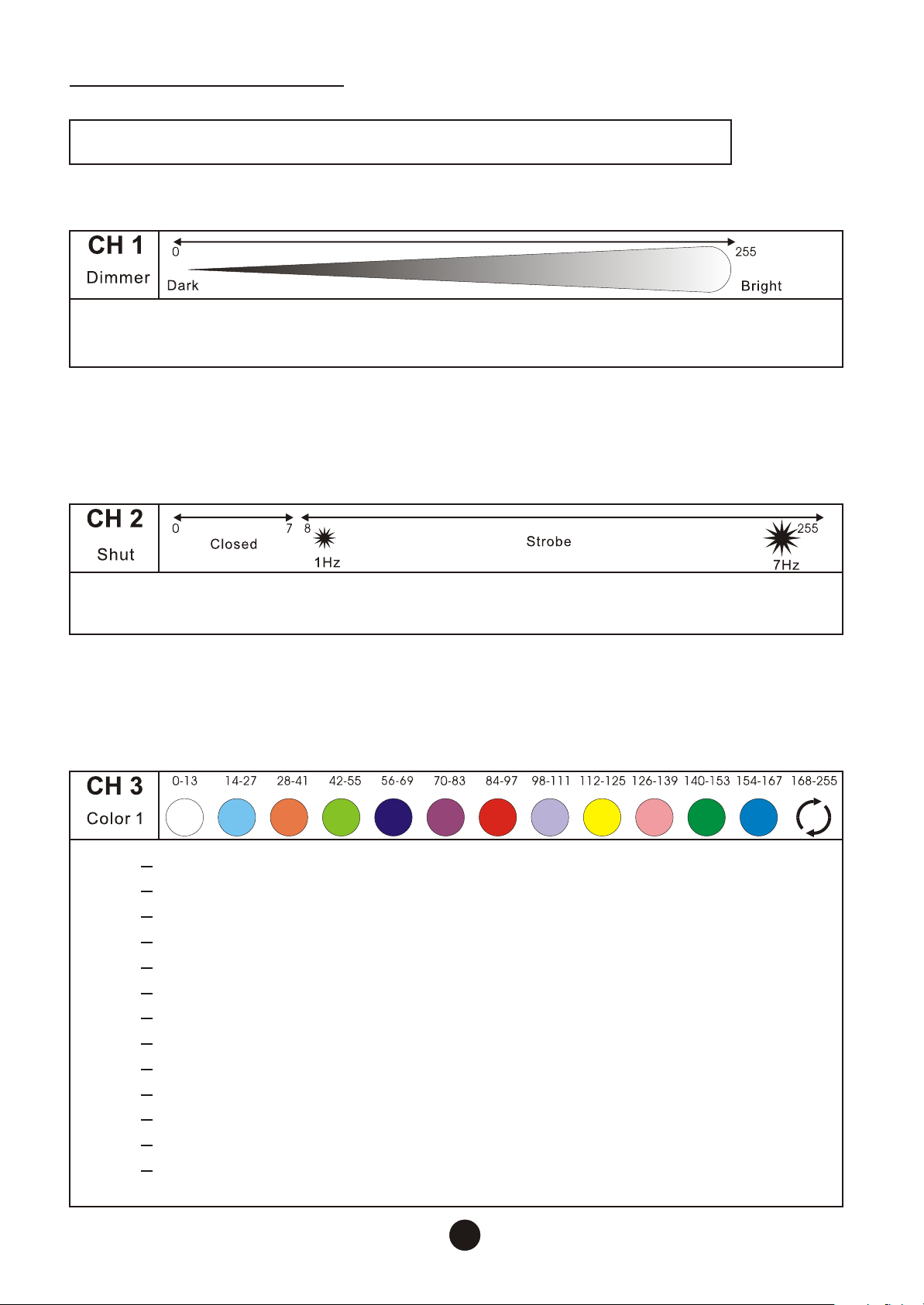

DMX Channel chart

Function of the control channels - 16 bit protocol

Channel 1 - Dimmer intensity

0-255

Gradual adjustment of the dimmer intensity from 0 to 100 %

Channel 2 - Shutter, Strobe

0-7
8-255 Strobe-effect from slow to fast (max. 7 flashes/second)

Shutter closed

Channel 3 - Color wheel 1

14

28

42
56
70
84

98

112
126
140
154
168

0

13
27
41
55
69
83
97
111
125
139
153
167
255

Open/white
Steel Blue
Orange
Green Blue
Bright Blue
Bright Pink
Red
Deep Blue
Yellow
Dark Pink
Moss Green
Light Blue
Color wheel rotation slow to fast

9

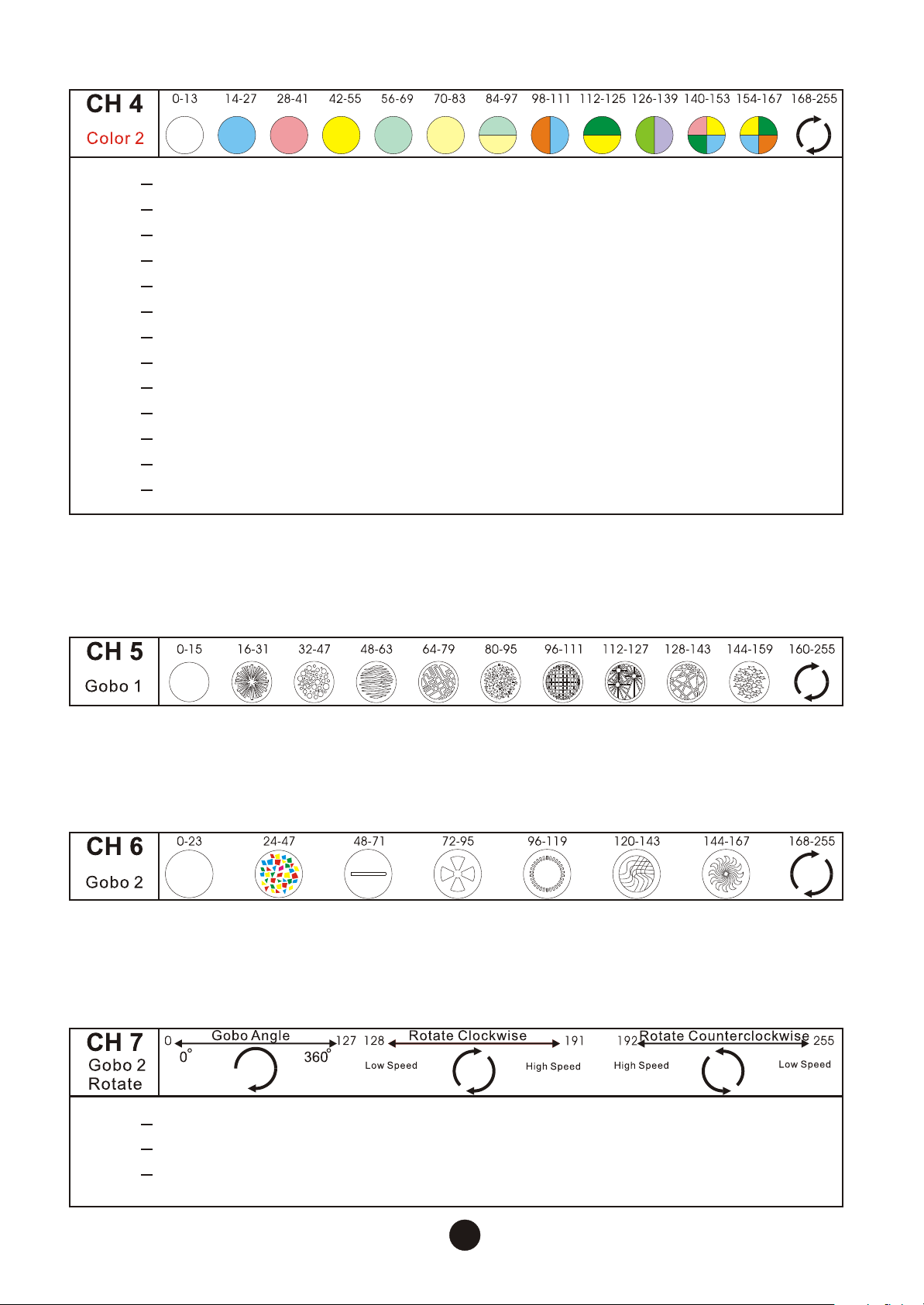

Channel 4 - Color wheel 2

Open/white
Steel Blue
Rose Pink
Yellow
Pale Blue
C.T Orange
Pale Blue- C.T Orange
Steel Blue-Orange
Green­Rose Pink-Moss Green
Rose Pink­Yellow-Moss Green-Orange-Steel Blue
Color wheel rotation slow to fast

Yellow

Yellow-

Steel Blue-Green

14

28

42
56
70
84

98

112
126
140
154
168

0

13
27
41
55
69
83
97
111
125
139
153
167
255

Channel 5 - Fixed gobo wheel

Channel 6 - Rotating gobo wheel

Channel 7 - Indexing & Rotating gobo rotation

Rotating gobo angle zero to 360 degrees. adjustment from

Forwards gobo rotation from fast to slow
Backwards gobo rotation from slow to fast

10

128
192

0

127
191
255

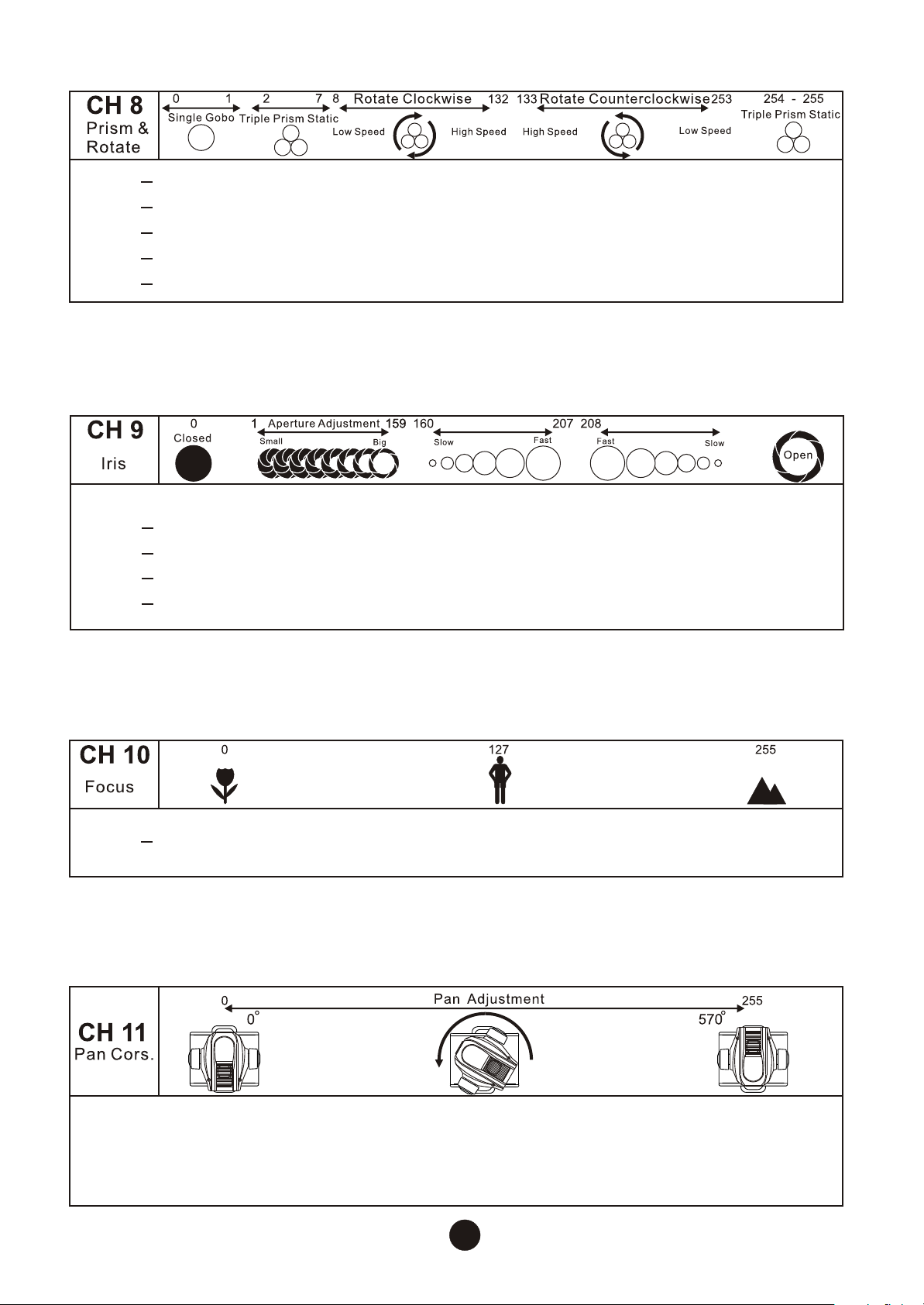

Channel 8 - Prism-wheel

Open position
Triple prism static
Triple prism forwards rotation from fast to slow
Triple prism backwards rotation from slow to fast
Triple prism static

133
254

0
2
8

1
7
132
253
255

Channel 9 - Iris

Closed

Min. Diameter to max. diameter
Iris-in from slow to fast
Iris-out from fast to slow

Open

1
160
208
254

0

159
207
253
255

Iris-in Iris-out

253

254-255

Channel 10 - Focus

0

255

Focus adjustment from far to near

Channel 11 - Pan regulation

The head of the unit is allowed to turn horizontally from zero
to 570 degrees

11

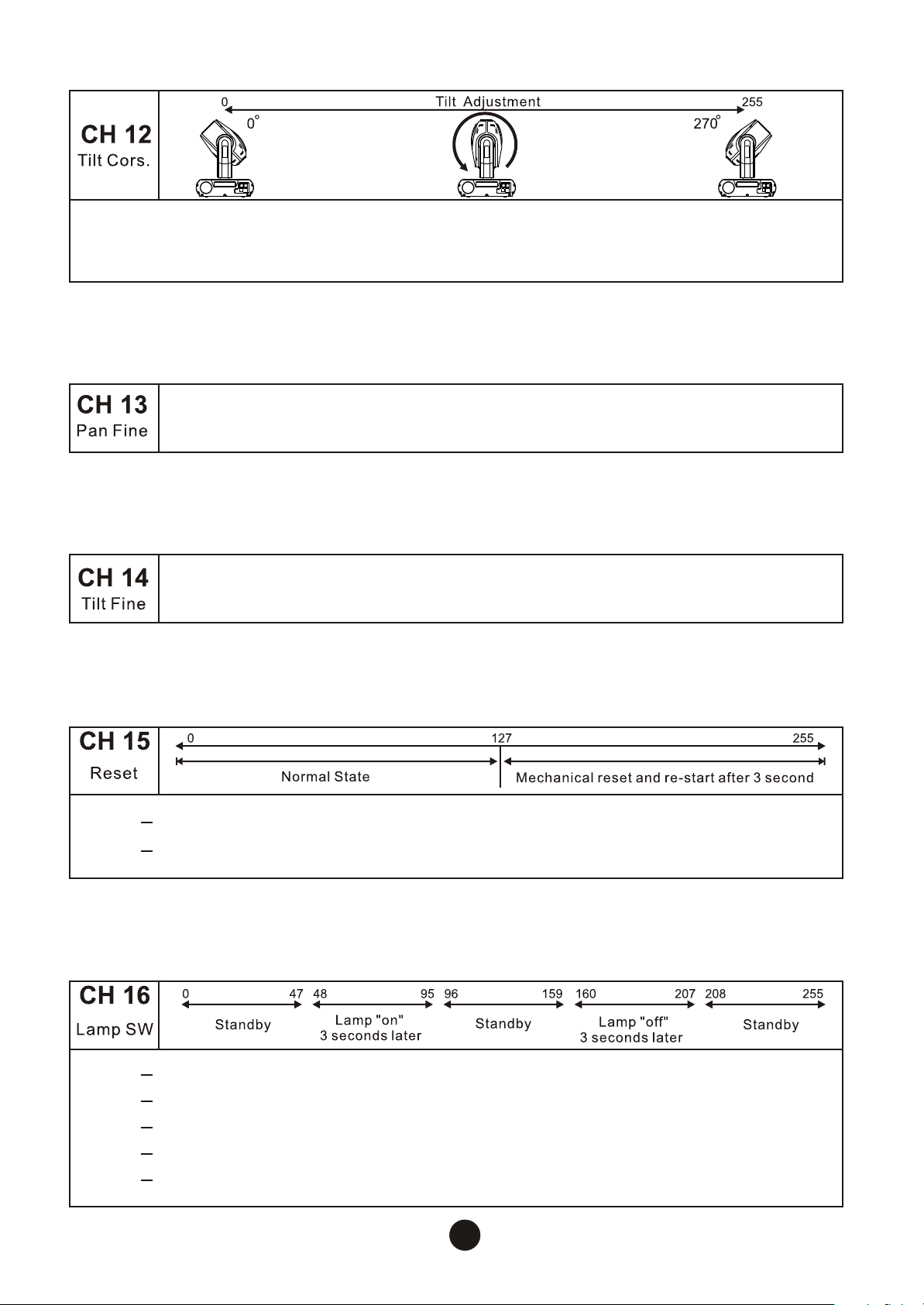

Channel 12 - Tilt regulation

The head of the unit is allowed to turn vertically from zero
to 270 degrees

Channel 13 - Pan fine-tune

While rotating horizontally the head is allowed to be fine
tuned from zero to 2.2 degree

Channel 14 - Tilt fine-tune

While rotating vertically the head is allowed to be fine
tuned from zero to 1 degree

Channel 15 - Reset

Normal state
Mechanical reset and re-start after 3 seconds

127

0

127
255

Channel 16 - Lamp switch

48

96
160
208

0

47
95
159
207
255

Standby
Lamp "on" 3 seconds later
Standby
Lamp "off" 3 seconds later
Standby

12

Function of the control channels - 8 bit protocol

DMX

Channel

Function

1 DIMMER

2 SHUT

3 COLOR 1

4 COLOR 2

5 GOBO 1

6 GOBO 2

7 GOBO 2 ROTATE

8 PRISM AND ROTATE

9 IRIS

10 FOCUS

11 PAN COARSE

12 TILT COARSE

13 AUTO RESET

14 LAMP ON/OFF

13

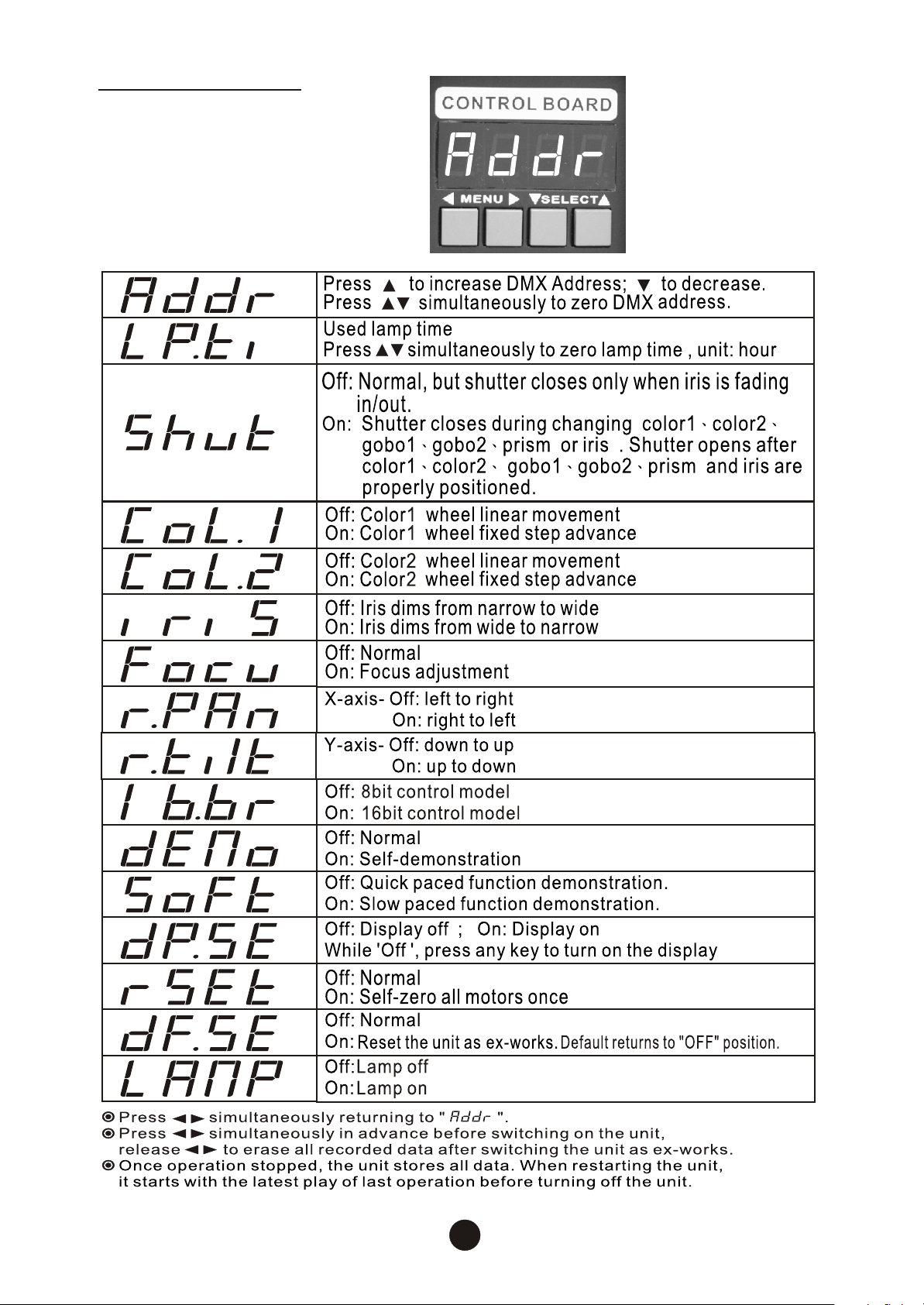

Control Board

14

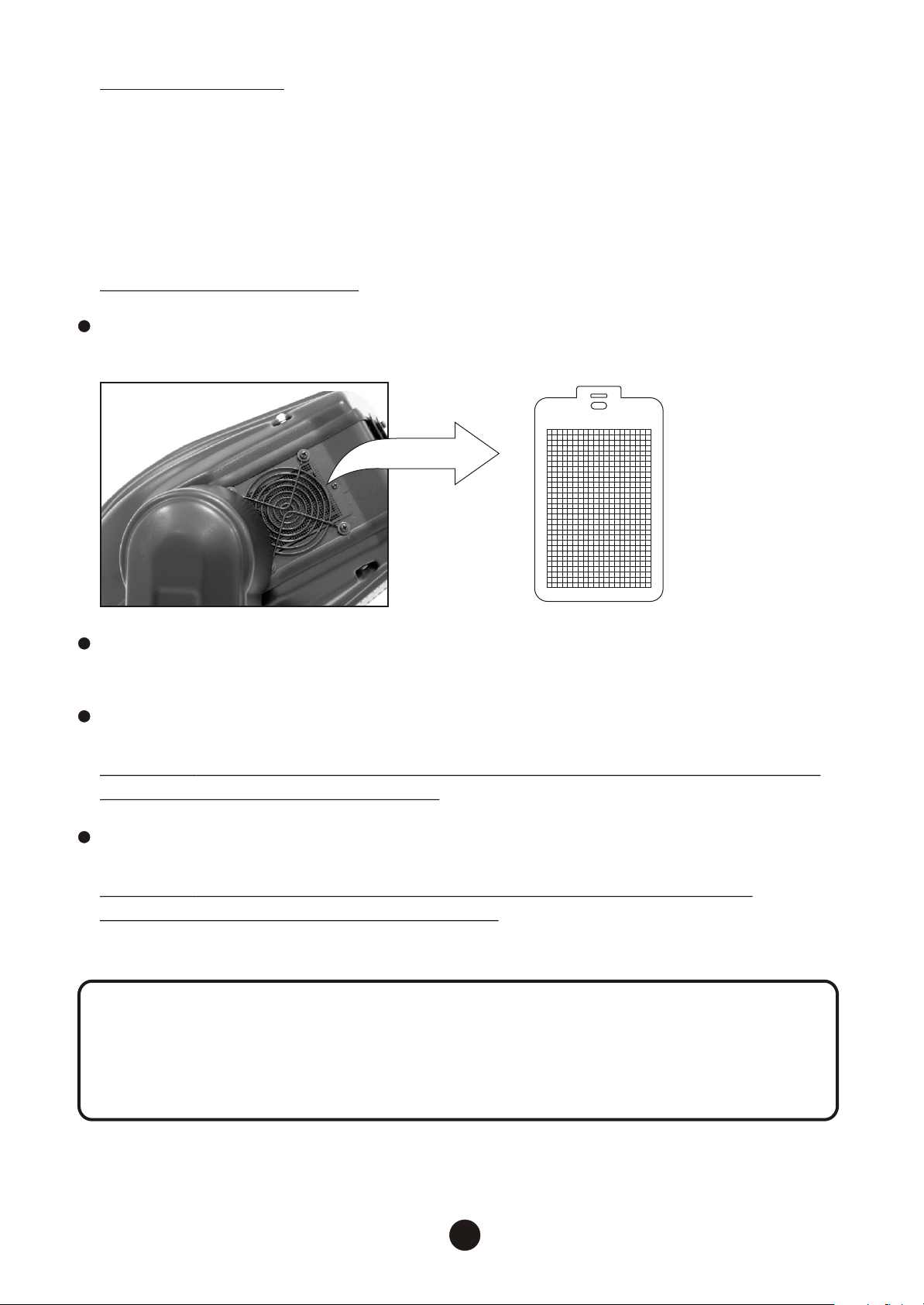

Maintenance

Refer maintenance to qualified technicians. Please disconnect power
and signal wire before maintaining fixtures.

In order to preserve XP SPOT 575 in good condition, keep the routine
maintenance by following date.

The steps are as follows:

Take the filter out (See Figure.) and clean it every two weeks.

Filter

The dichroic colour-filters, the metal gobo-wheel, the internal lenses
and cooling fans should be cleaned with soft brush monthly.

The interior of the fixture should be cleaned at least half-yearly using
a vacuum-cleaner or an air-jet.
Caution: Be careful not to damage the interior mechanical structures
or circuits when using the air-jet.

To ensure a proper function and smooth rotation of the gobo-wheel,
we recommend lubrication in six-month intervals.
Caution: Avoid the damage of interior structures when fixtures
rotated, do not use excess lubrication.

Due to emit fog frequently, the optical lens and gobos would be oily;
thus luminosity would be weak. We recommend using moist cloth or a
trace of detergents to wipe them every two weeks. (Prohibit using the
detergents consisted of alcohol and solvents.)

15

Replacing the Fuse

If the fixture does not function, that may be the fuse was burned out. It
may be time to replace the fuse of same type and specification for
eliminating this fault.

Remove the electric power and flip the switch to " off " position before
replacing the fuse.

Replace the fuse as follows:

Step 1: Unscrew the screw of the fuse holder on the housing

counterclockwise with appropriate tools.

Step 2: Remove the broken fuse and then replace the new fuse.

Step 3: Reinsert and tighten the screw on the fuse-holder.

Step 4: Turn the power on for test.

Please contact with the dealer if the fixture still cannot work or the fuse

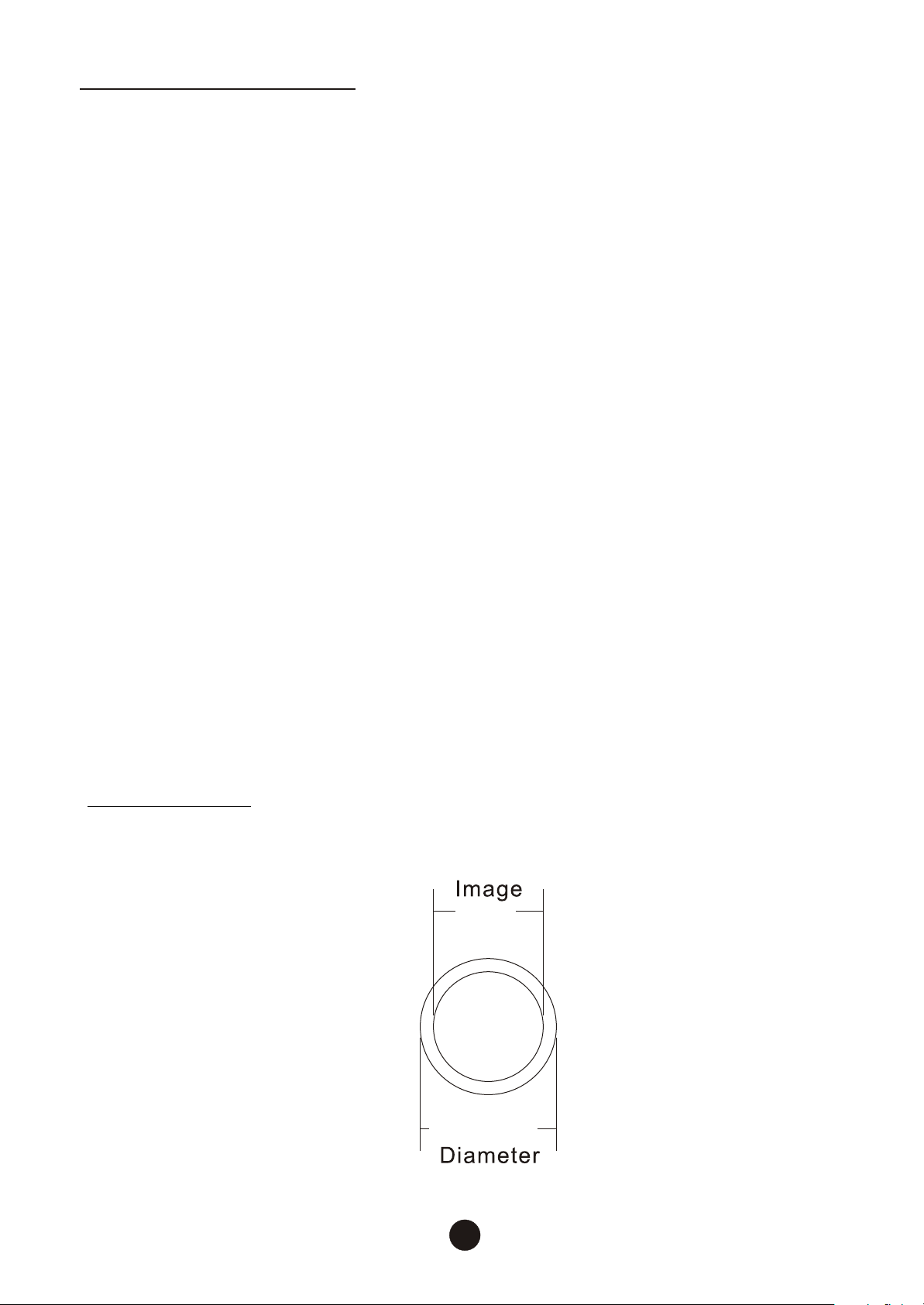

Appendix A

GOBO Size

25 mm

31 mm31 mm

16

Product Specifications

& RQVWUXFWLRQ

Housing: High impact resistant polymer cover
Colors: Black or white
Metal finish: Electrostatic powder coating

3 K\ VLFDO

Dimensions(L x W x H) 400 x 380 x 540mm
Weight: 26kg

$ &VXSSO\

AC input: Certified power cord with plug or without plug
Voltage: 220V, 230, 240V 50/60Hz: 100V,120V 50/60Hz
Fuse: AC 230V: 7A/250V AC 100V~120V:15A/250V
Power Consumption: 800W

& RQWURODQGSURJ UDP P LQJ

Signal pinout: pin 1 shield, pin 2 (-), pin 3 (+)
Setting and addressing: LED control panel
Protocol: USITT DMX-512
Pan/tilt resolution: 8 or 16 bit
DMX channels: 14-16
Signal input: 3-pin XLR male
Signal output: 3-pin XLR female

6 RXUFH

Lamp: 575W discharge
Base: SFC10-4
Approved models: Philips MSI-575/HR (1000 hr; 6000K)

Philips MSI-575/2 (1000 hr; 6500K)

Control: Automatic and DMX remote on/off

( OHFWURP HFKD QLFDOHI I HFWV

Color wheel 1: 11 dichroic colors+white
Color wheel 2: 11 dichroic colors+white
Fixed gobo wheel: 9 replaceable gobos+white
Rotating gobo wheel: 6 replaceable gobos+white
Gobo rotation: adjustable speed and position direction
Dimmer: 0-100% linear dimmer
Strobe: 1-7Hz fast flashing
Rotating 3-facet prism: in/out variable speed and direction
Focus: 2m-infinity
Iris: Mini 4° - Max 15°
Pan: 0°-570°

Tilt: 0°-270°
Wheel control: auto-electronic reset

* RERV

Metal gobo: Diameter: 31 mm
Maximum image diameter: 25 mm

Metal type: white iron

Glass gobo: Diameter: 31 mm
Maximum image diameter:25 mm
Glass type: heat-resistant and intensify glass
Glass coating: dichroic

17
