INSIGHT GIGABIT HARDWARE GUIDE
Page 2
INTRODUC T IO N
Thank you for purchasing a SPOT Insight Gigabit camera.
This hardware guide is designed to help you set up your camera. For detailed information about the software functions, please consult the software manual on the SPOT software CD.
MINIMUM SYSTEM
REQUIREMENTS
Minimum system requirements can be found on the camera’s specification sheet, which is available for download on our website at
www.spotimaging.com/literature.
Page 6
Page 3
WHAT IS IN THE BOX
• Camera head with dust cap

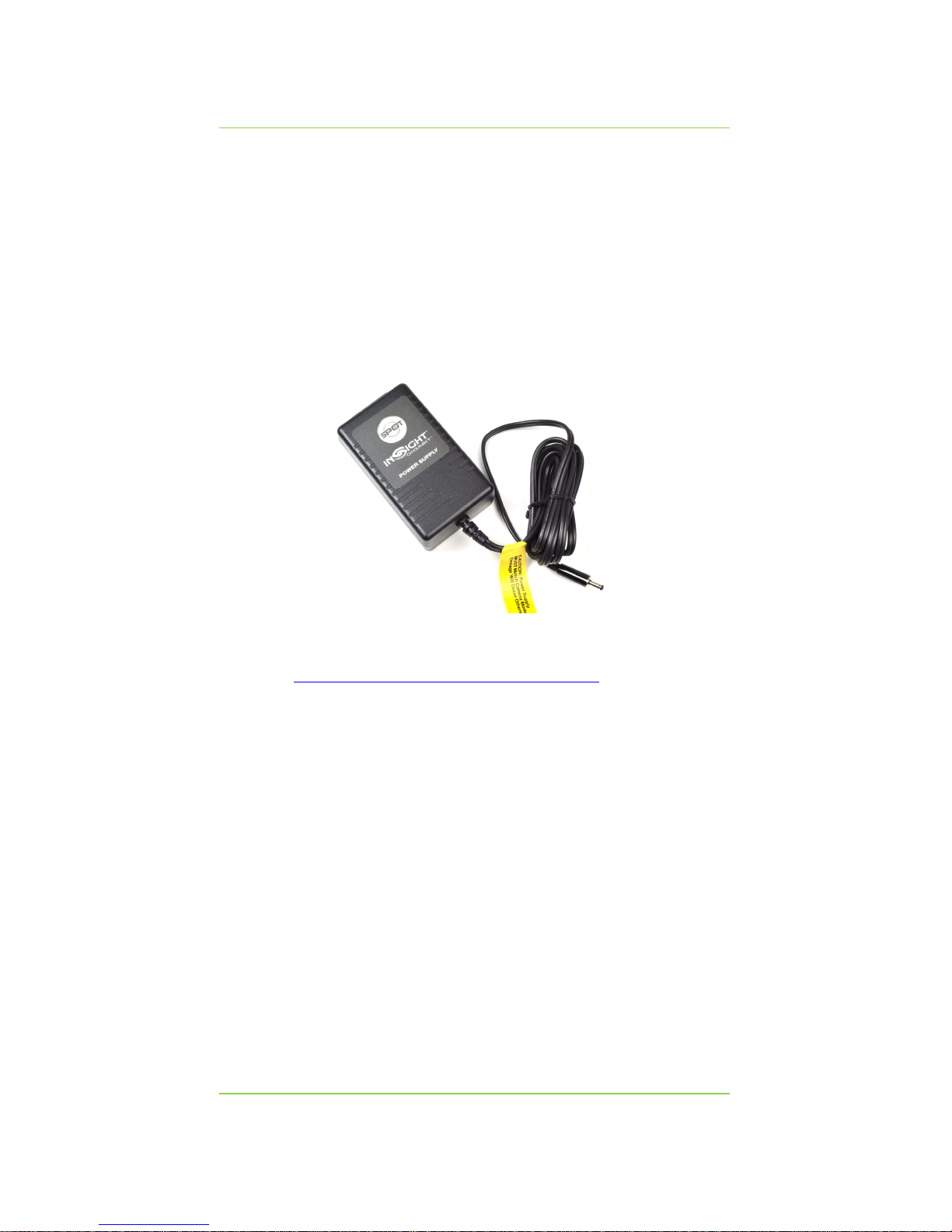

• Power supply with cable
• Registration card to register your camera and
software. You may also register at
www.spotimaging.com/registration.
• 2 year limited hardware warranty statement
• Ethernet cable
• One CD-ROM that contains:
o SPOT Basic Software Installer (for
camera operation)
o PDF version of the Software User Guide
• Gigabit Ethernet switch with cable and power supply (supplied with Insight Gigabit Camera catalog numbers IN3500-GSW and IN3520GSW only)
Page 7
INSIGHT GIGABIT HARDWARE GUIDE
Page 4
Note: Computer interface adapters are available to connect the Insight Gigabit to laptops and other computers that don’t have an available Ethernet port. If one of these adapters was ordered with your camera, it will also be in the box.
CAMERA BODY
Underside

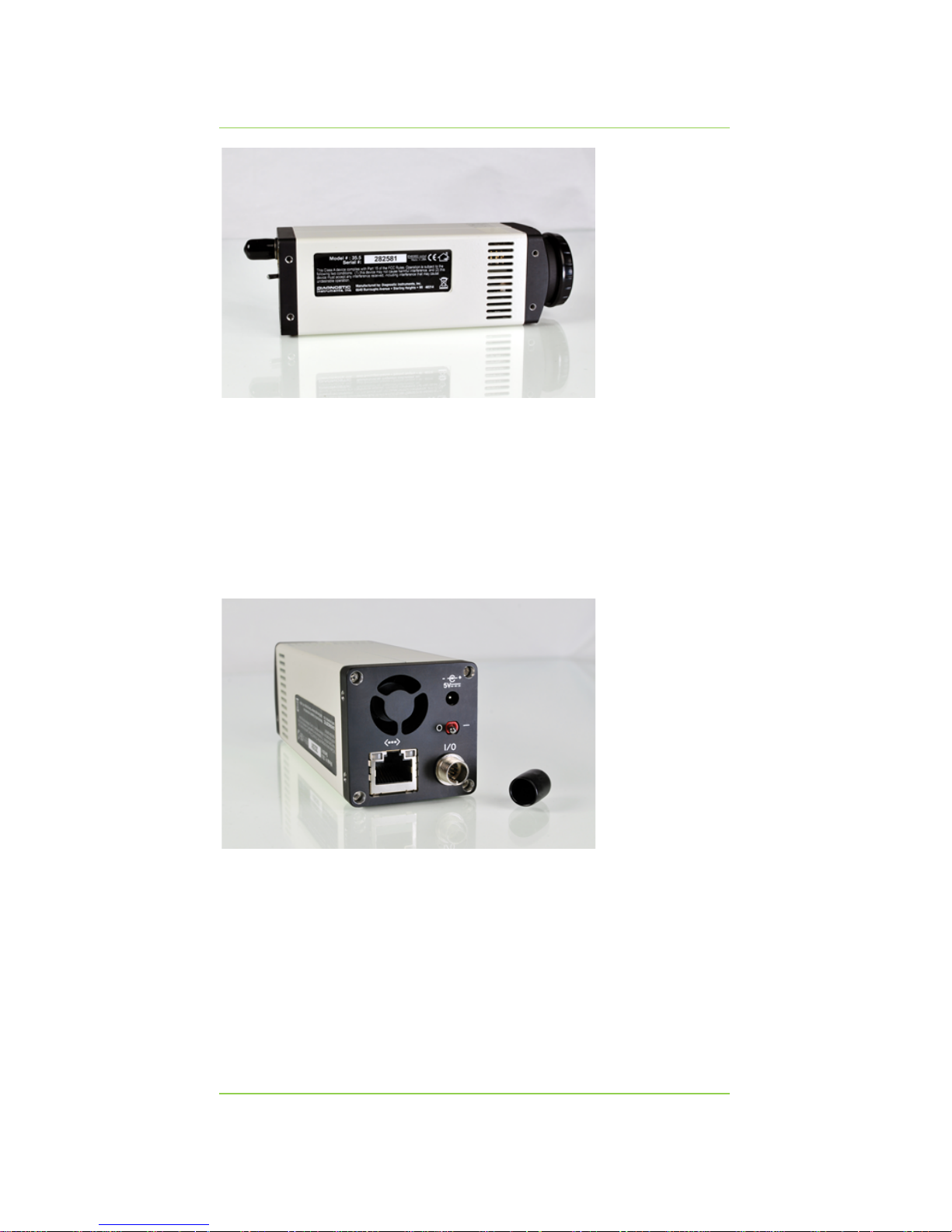

The underside of the camera has the label with the camera’s serial number on it. It also has four mounting holes for securing a ¼”-20 mounting plate. The mounting plate is available separately.
Page 8
Page 5
Rear Panel
The rear panel includes the power switch, Ethernet port, power outlet, and I/O cable. An I/O cable is available separately for triggering the camera remotely or for triggering other devices with exposures.
Page 9
INSIGHT GIGABIT HARDWARE GUIDE
Page 6
INSTALLING THE HARDWARE
Adapting the camera to the microscope
1. Follow the instructions for assembling your microscope to camera optical adapter.
2. Attach the microscope to camera optical adapter to the camera.
3. Attach the camera/adapter to the appropriate photo port on your microscope.
Connecting the camera to the computer
1. Turn your computer on.

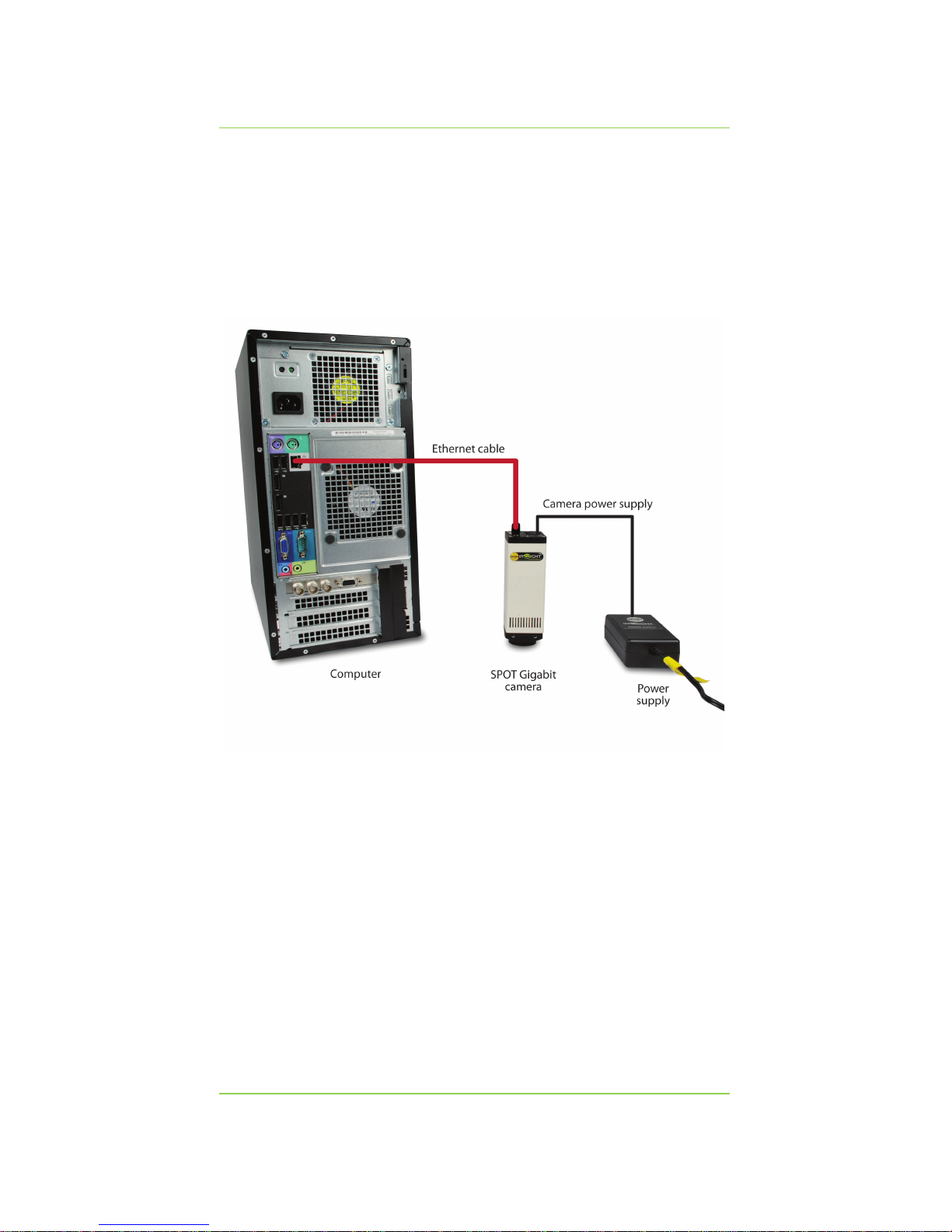

2. Ensure the camera’s power switch is in the off position. Connect the power cable to the back of the camera and plug in the power supply to a wall outlet.
Page 10
Page 7
3. Connect the Ethernet cable to the camera. If you have an available Ethernet port on your computer, connect the other end to an Ethernet port on your computer.
If your computer’s Ethernet port is already in use, you will need to use a Gigabit Ethernet switch or another Gigabit Ethernet adapter to connect the camera. These are available from SPOT Imaging Solutions if one wasn’t ordered with your camera. To connect to a Gigabit Ethernet switch:
Page 11
INSIGHT GIGABIT HARDWARE GUIDE
Page 8

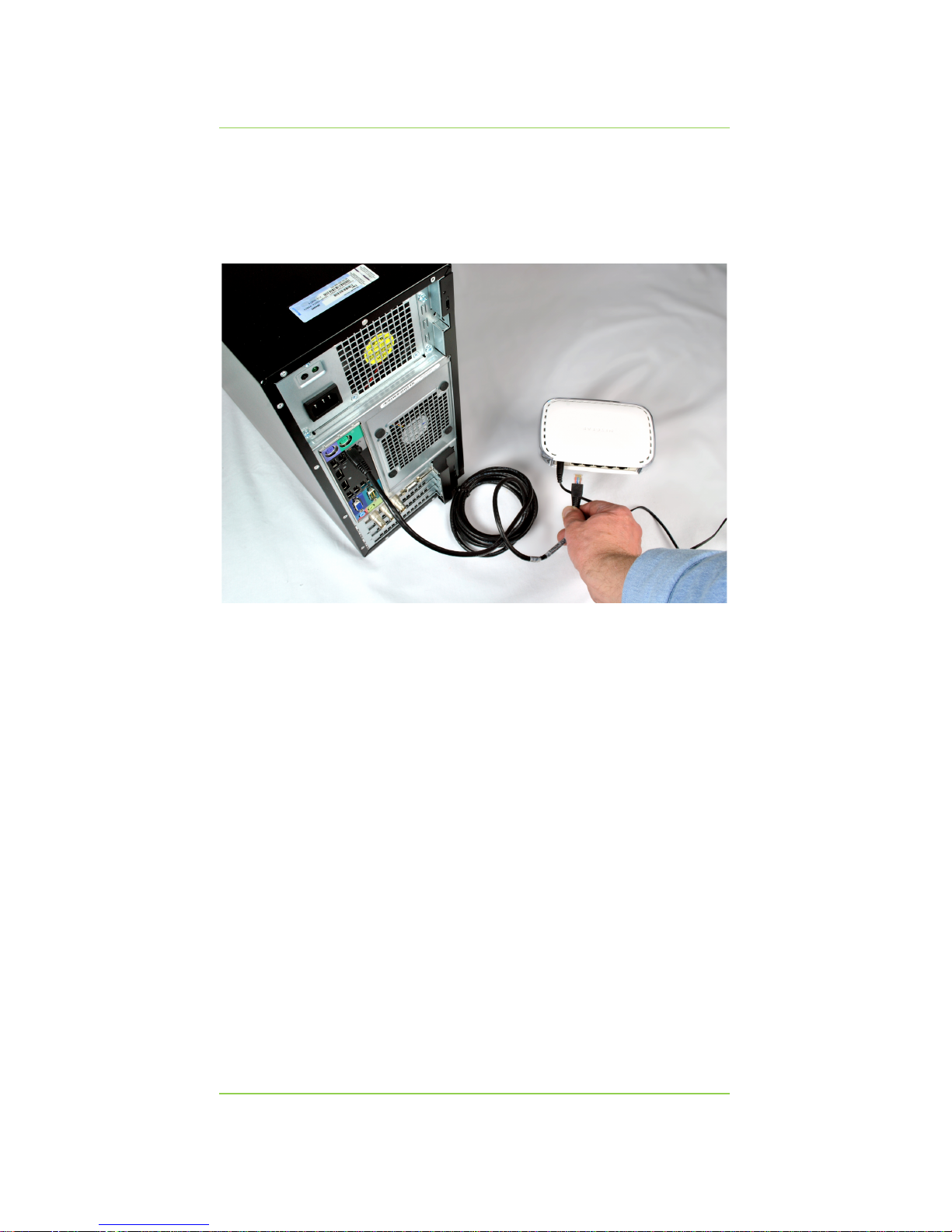

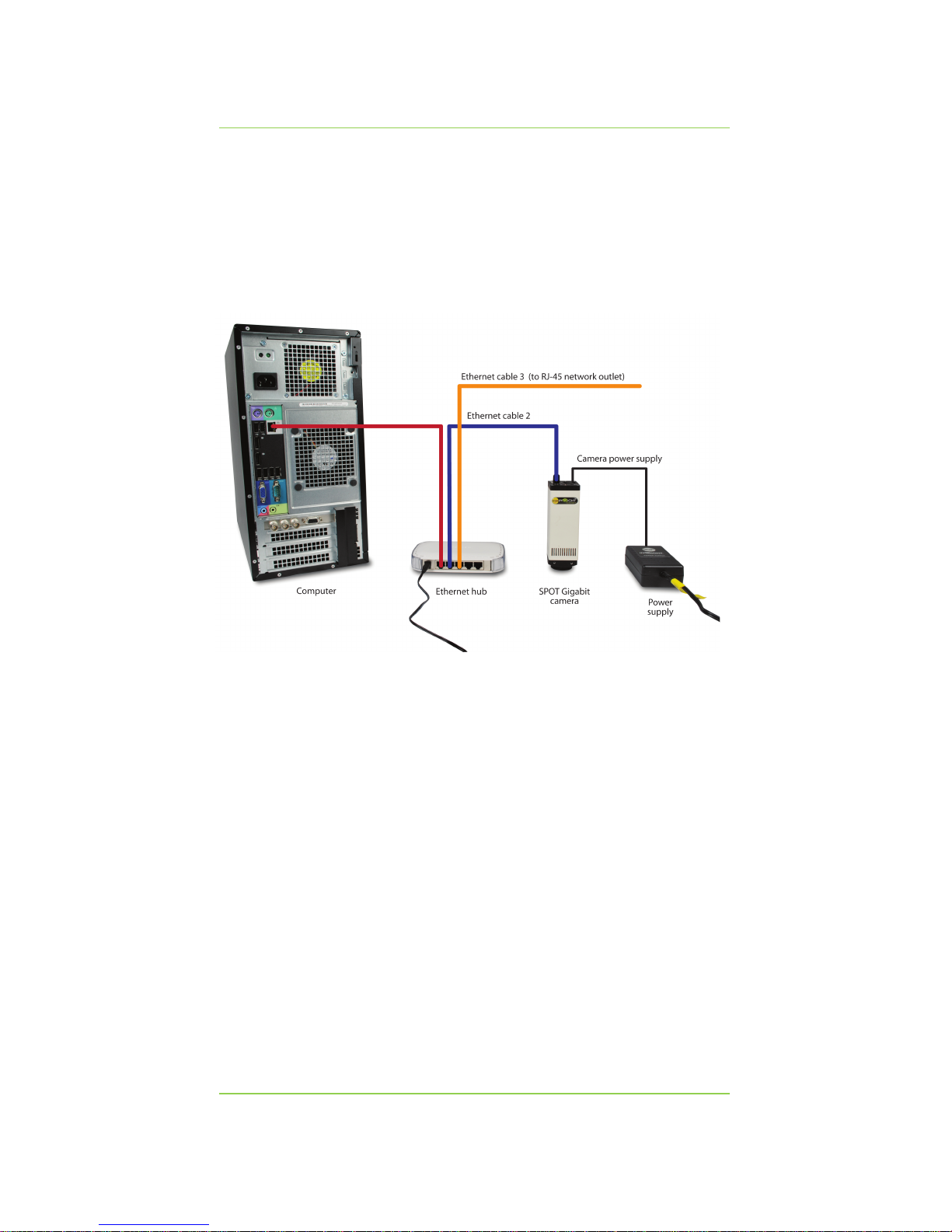

a) Connect the camera’s Ethernet cable to one
of the ports on the Gigabit Ethernet switch.
b) Unplug the cable that is currently using your
computer’s Ethernet port and connect it to another port on the Gigabit Ethernet switch.
c) Connect the Gigabit Ethernet switch power
cord to the switch and to your power outlet.
Page 12
Page 9
d) Connect the Gigabit Ethernet switch’s
Ethernet cable to one of its remaining available ports, and connect the other end to your computer’s Ethernet port.
4. Push the power switch on the rear panel of the
camera to the on position to turn it on.
Page 13
INSIGHT GIGABIT HARDWARE GUIDE
Page 10

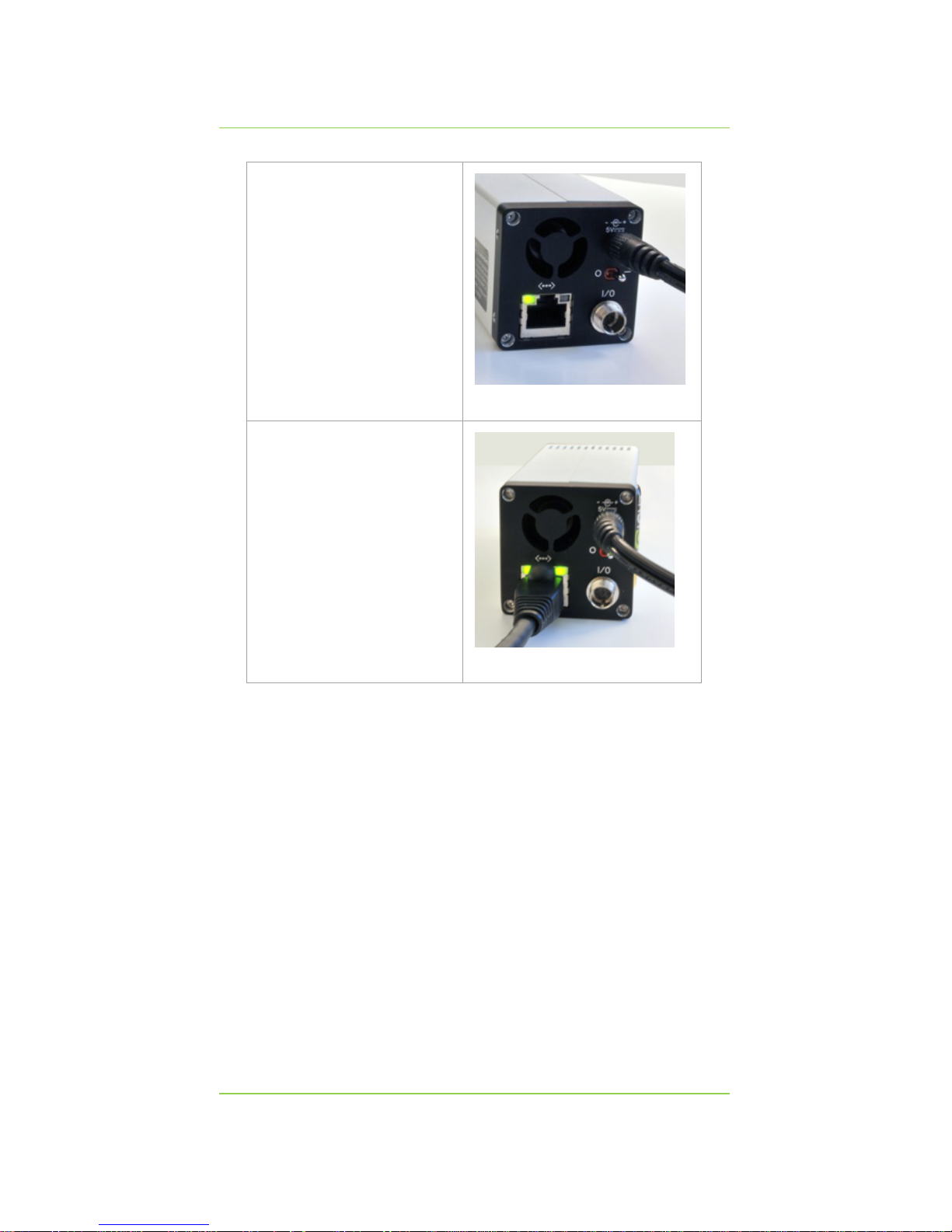

When there is communication between the camera and the computer, the left LED light will flash intermittently.
INSTALLING THE SOFTWARE
While the camera is powered on, follow the instructions included with the SPOT Software CD for installing the
SPOT Software. The camera power should be left on When the camera is powered on, the green LED light on the top left of the Ethernet port will be on, indicating the camera has power.
When the Ethernet cable is properly connected between the computer and the camera, the green LED light on the top right of the Ethernet port will be on.
Page 14
Page 11
while the software is being installed to prevent camera
initialization delays.
Once the software installation has completed, you can
now launch the SPOT software. If your camera is
connected directly to a dedicated Ethernet port on your
computer, you can begin capturing images immediately.
If your Insight Gigabit camera is connected to an
Ethernet switch, pairing will be required before you can
begin using the camera.
Pairing
Pairing is a process which creates a one-to-one
relationship between the camera and a computer. If
your camera is connected to an Ethernet switch, you will

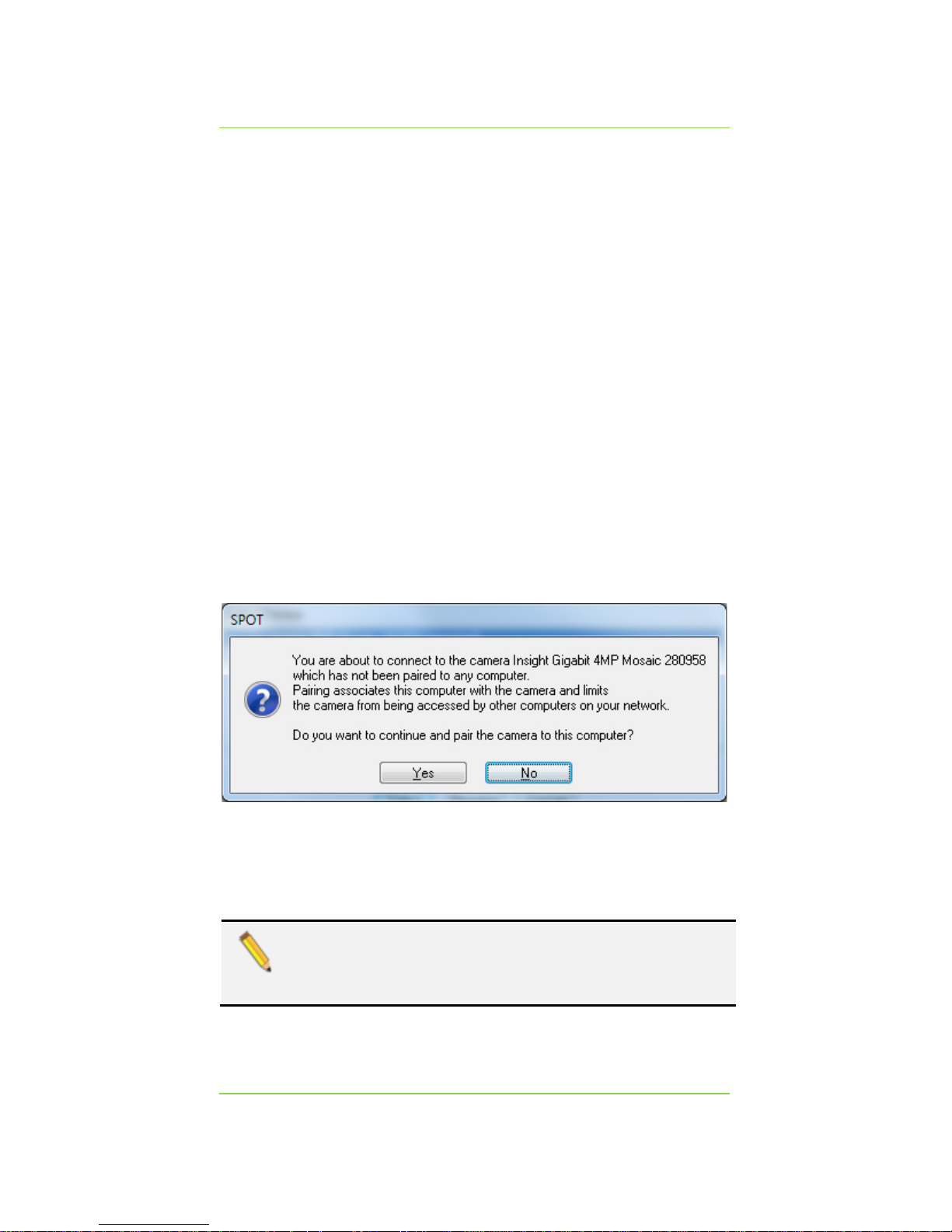

see the following dialog box upon starting the software
the first time.
After you select Yes at this prompt, the camera will then
be paired to your computer. The setup is complete and
you can now begin using the camera.
Note: For detailed information about the software functions, please consult the software manual on the SPOT software CD.
Page 15
INSIGHT GIGABIT HARDWARE GUIDE
Page 12
TROUBLESHOOTING
No cameras or interface cards found

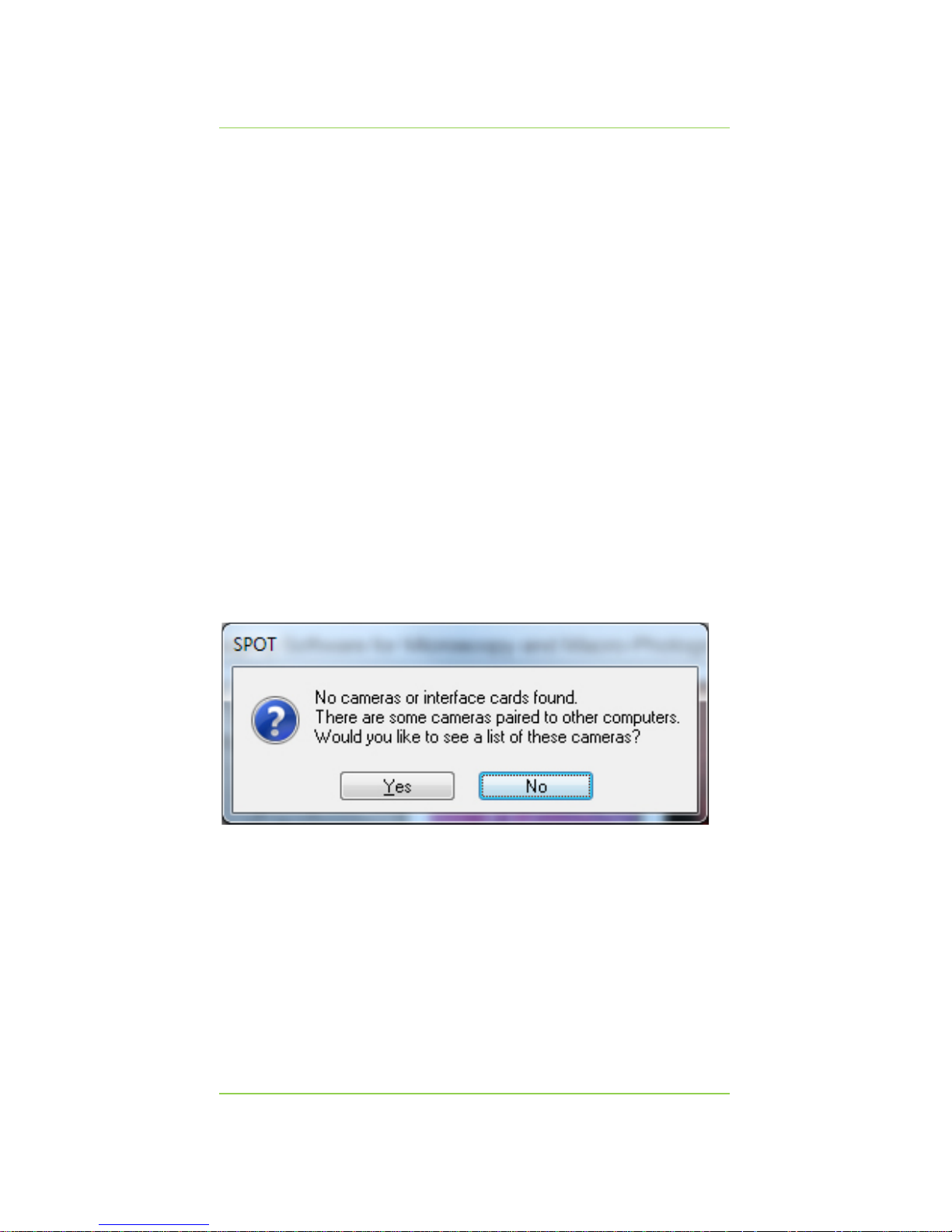

As illustrated in the figures below, there are two different
errors of this type depending on whether or not the
camera has been paired to a computer. Follow the
instructions underneath the error you’re receiving to
resolve your specific issue.

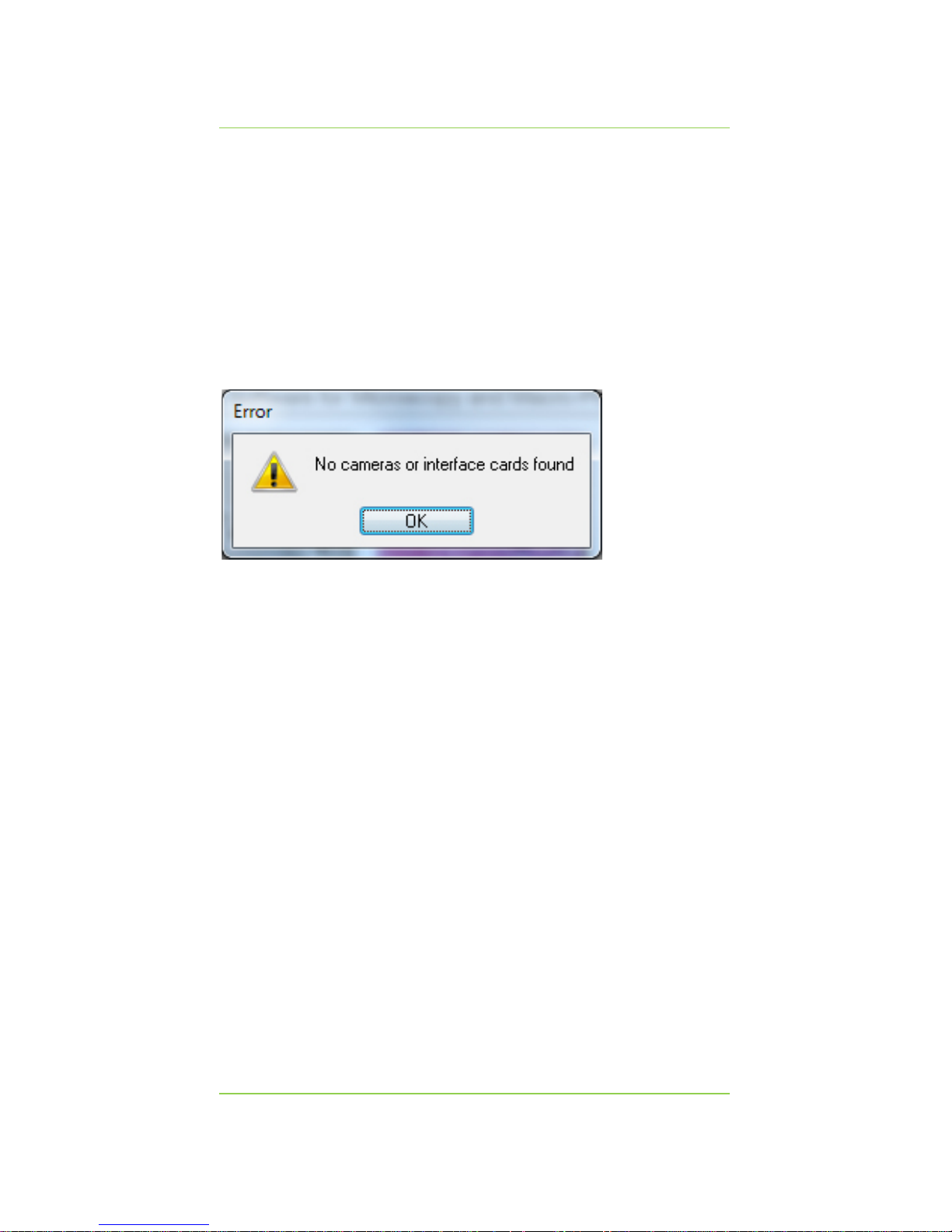

Figure 1
If you receive the error in Figure 1, the computer has not
detected the camera yet, and the camera hasn’t been
paired to a computer. The Insight Gigabit camera can
take more than a minute to initialize. Shut down the
SPOT Software, wait a minute and try again. If you still
receive the error, check the cable connections and
ensure the power is on.
Page 16
Page 13
Figure 2
If you receive the error in Figure 2, your computer has
not detected your camera yet, and there is at least one
Insight Gigabit camera paired to another computer. The
Insight Gigabit camera can take more than a minute to
initialize. Shut down the SPOT Software, wait a minute
and try again. If you still receive the error, check the
cable connections and ensure the power is on.

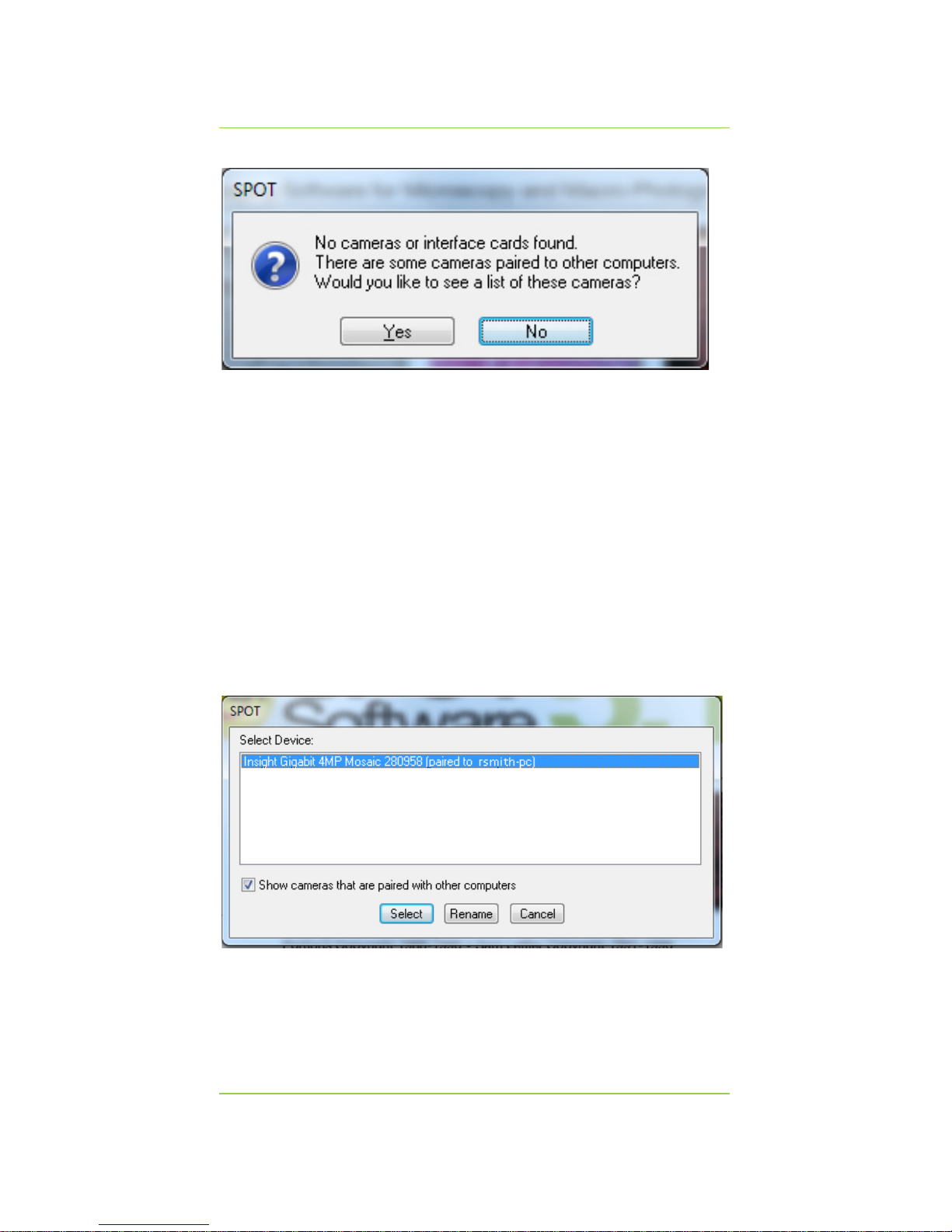

If the camera may have been paired to another
computer, click Yes to view all of the cameras paired to
other computers.

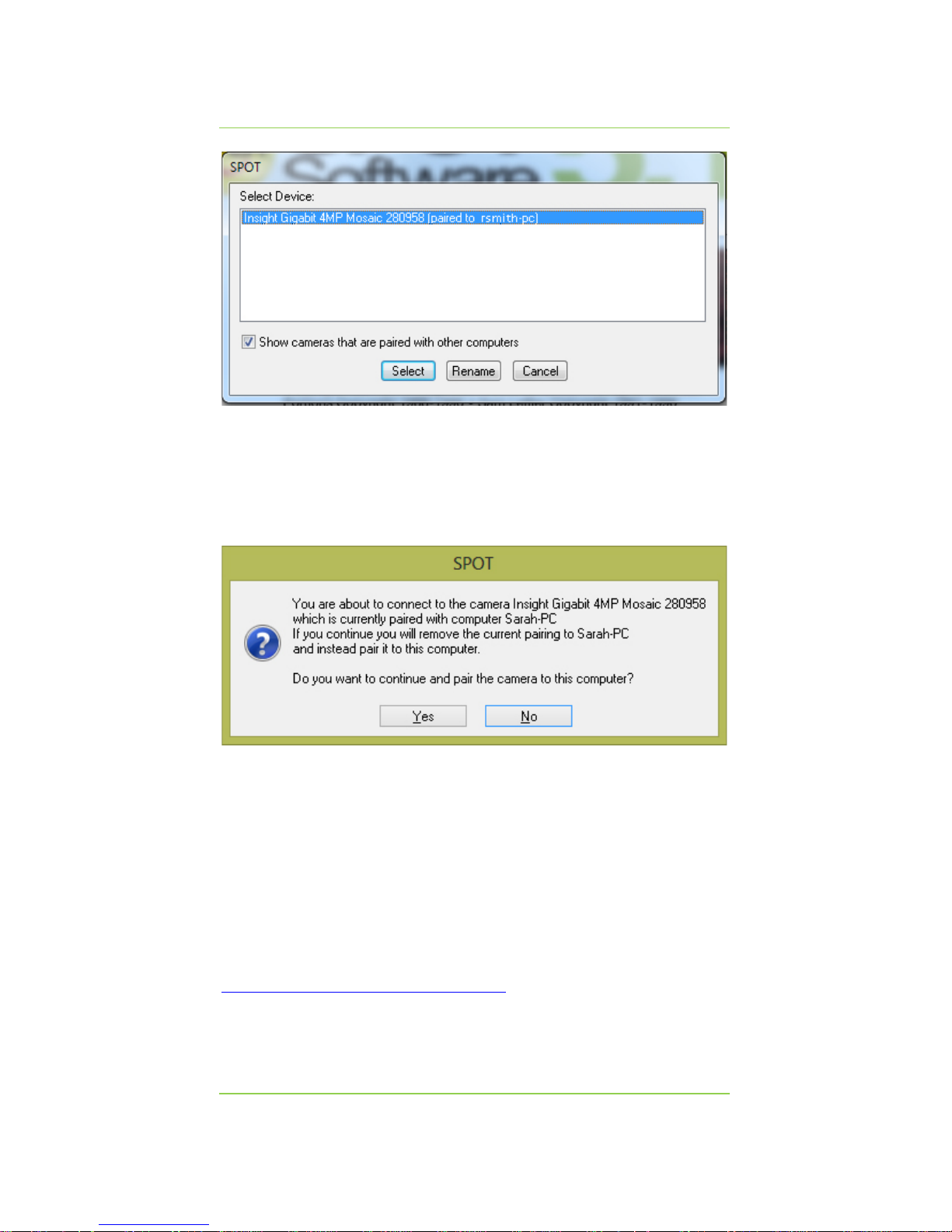

If your camera appears in the list, select it. You will then
be prompted with a dialog box confirming that you would
like to remove the current pairing and pair the camera
with your computer instead.
Page 17
INSIGHT GIGABIT HARDWARE GUIDE
Page 14
After you choose Yes, the software will attempt to pair
the camera to your computer. If the camera is not
currently in use, it will be paired to your computer and
you will be able to use it. If the camera is currently in
use, you will receive the error below.

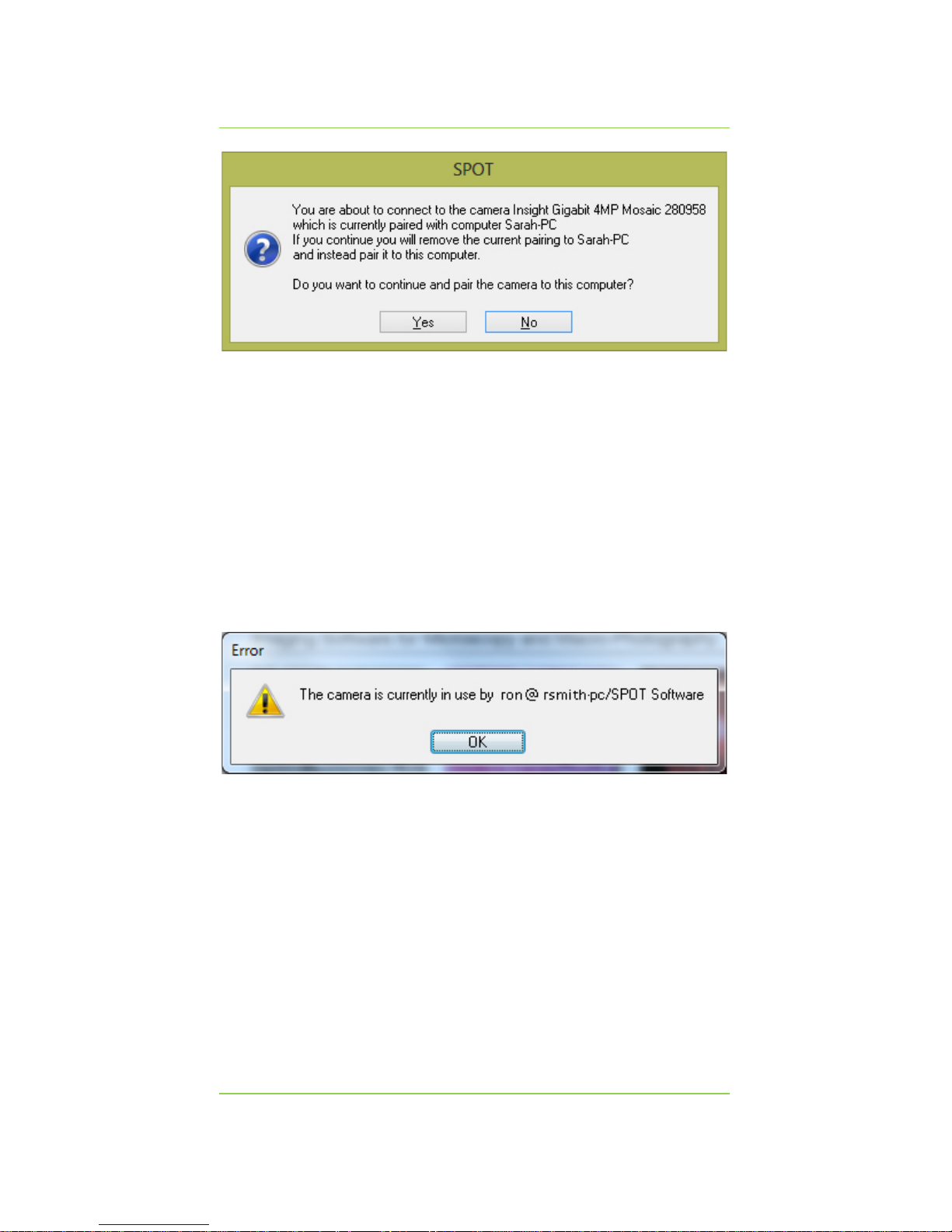

The camera is currently in use
If you receive this error, the camera is currently in use by
the person referenced in the error message. In order for
you to use the camera, the other person will need to
disconnect from the camera by selecting
Page 18
Page 15
Disconnect from the Camera menu in the SPOT
Software. The SPOT Software can still be used for
editing existing images when disconnected from a
camera. Once the other person has disconnected from
the camera, you can pair it to your computer and begin
using it.
INSTAL L IN G YOUR CAMERA ON
ANOTHER COMPUTER
If the camera is moved from one computer to another, it
will need to be paired to the new computer before it can
be used. Install the hardware and software as described
in the previous pages. You will receive the below error
when you launch the software for the first time on the
new computer.
Since the camera was paired to another computer, click
Yes to view all of the cameras paired to other
computers.
Page 19
INSIGHT GIGABIT HARDWARE GUIDE
Page 16
Select your camera from the list. You will then be
prompted with a dialog box confirming that you would
like to remove the current pairing and pair the camera
with your computer instead.
After you choose Yes, the software will pair the camera
to your computer and you can begin using it.
CAMERA SPECIFICATI ONS
Below are general specifications for the Insight Gigabit
Camera line. Model-specific camera specifications can
be downloaded from our website at
www.spotimaging.com/literature.
Page 20
Page 17
Models: IN3500, IN3520
Lens Mount
4/3” format-C-mount
Sensor Format
4/3”
Sensor Size
15.16mm x 15.16mm (21.43mm diagonal)
Weight
9.7oz (275g)
Size
1.73” x 1.73” x 5.26” (44mm x 44m x 134mm)
Power Requirements
100 – 240 VAC, 50/60 Hz
Power Consumption
9 watts max, 7 watts average
Operating Environment
0˚C to +50˚C , 0% - 95% relative humidity, non-condensing
Storage Temperature
-20˚C to +60˚C
Certifications
CE EN60950, EN6100-6-3 :2001, EN55624 :1998, FCC Class A, RoHS
PR3440
Page 21
INSIGHT GIGABIT HARDWARE GUIDE
Page 18

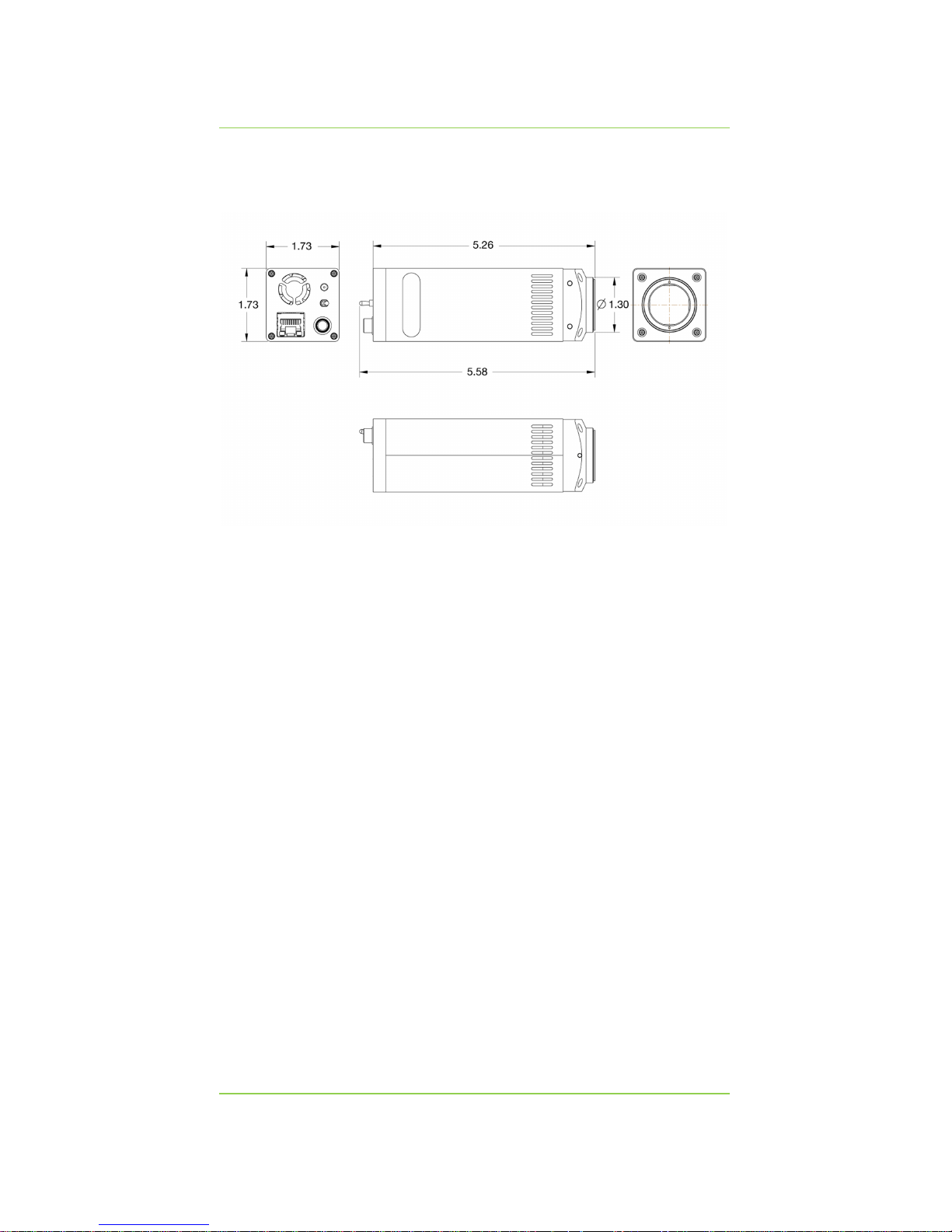

MECHANICAL DIMENSIONS
Page 22
Page 19
WARNINGS
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS PRODUCT TO RAIN OR EXCESSIVE
MOISTURE.
Regulatory and Safety Compliance Notes
This equipment complies with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial environment.
The equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will
be required to correct the interference at his own
expense.
This product complies with the CE EN 6100-6-3:2001,
EN55624:1998 and EN60950 standards.
This camera is designed for research and industrial
applications including the imaging of macroscopic or
microscopic specimens. It is the responsibility of the
user to qualify that this product meets the requirements
for their application. In no event and under no
circumstances shall the manufacturer be liable to an
individual or entity for any indirect, special,
consequential or incidental losses or damages, including
without limitation, lost profits.
Page 23
INSIGHT GIGABIT HARDWARE GUIDE
Page 20
SAFETY INSTRUCTIONS
Do not attempt to use this product in any manner not
specified by the manufacturer as the manufacturer will
not be held responsible.
This product is designed for indoor use only. Do not
expose to rain or excessive moisture.
Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus that produce
heat.
Do not defeat the safety purpose of the grounding-type
plug. The camera’s power supply uses a grounding type
plug which has two blades and a third grounding prong.
The third prong is provided for your safety. If the
provided plug does not fit your outlet, consult an
electrician for replacement of the obsolete outlet.
If this camera is going to be installed near running water,
this device must be plugged into a GFCI (ground fault
circuit interrupter) receptacle.
Only use the attachments/accessories specified by the
manufacturer.
Unplug this apparatus when it will be unused for long
periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug
Page 24
Page 21
is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been
exposed to rain or excessive moisture, does not operate
normally, or has been dropped.
Do not allow an impact shock or any objects to fall into
the product.
Do not connect too many devices to the same AC power
outlet as this could result in fire or electric shock.
Do not overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords, frayed
power cords, or damaged or cracked wire insulation are
dangerous. Any of these conditions could result in
electric shock or fire.
Periodically examine the cords of the camera system,
and if its appearance indicates damage or deterioration,
unplug it, discontinue use of the system, and have the
cord replaced with an exact replacement part by an
authorized servicer.
Be sure to grasp the plug when unplugging the power
cord. Do not pull on the power cord to unplug the
product.
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed in
a door, or walked upon. Pay particular attention to
plugs, wall outlets, and the point where the cord exits the
power supply.
Do not expose the vented openings of the camera to
dripping or splashing. Do not place objects filled with
liquids such as vases, cups, etc. on or over the camera
system (e.g. on shelves above the unit).
Page 25
INSIGHT GIGABIT HARDWARE GUIDE
Page 22
Disconnecting the device from the
main power source
The main plug is the disconnecting device. The plug
must remain readily accessible to be disconnected
during service or maintenance.
Be sure there is proper and adequate ventilation where
the camera and power supply are installed to minimize
the risk of fire when using flammable liquids.
Do not cover camera or power supply with cloth or other
materials like plastic while plugged in. Do not install in
excessively dusty places. Do not block any ventilation
openings.
If you smell smoke or other odors coming from the
camera or power supply or hear strange sounds, unplug
the power cord and contact customer service.
There are no consumable materials associated with the
camera system.
Page 26
SPOT Imaging Solutions
6540 Burroughs Ave.
Sterling Heights, MI 48314-2133 USA
Toll-Free: 866-604-SPOT
Phone: +1 (586) 731-6000
Fax: +1 (586) 731-6469
Email: info@spotimaging.com
Website: http://www.spotimaging.com
SPOT Insight Gigabit Camera Hardware Guide PN2800 Rev. C
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
