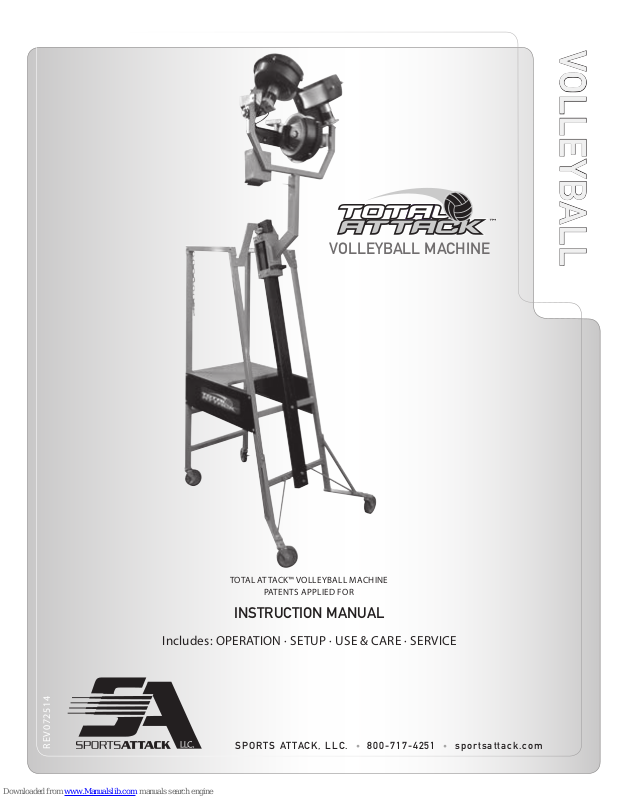

VOLLEYBALL MACHINE
VOLLEYBALLVOLLEYBALL
Includes: OPERATION · SETUP · USE & CARE · SERVICE
REV072514
TOTAL ATTACK™ VOLLEYBALL MACHINE
PATENTS APPLIED FOR
INSTRUCTION MANUAL
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
Page 2
WARRANTY STATEMENT
All sports training equipment manufactured by Sports Attack, LLC. is warranted against
defects in materials and workmanship for a period of five (5) years from the date of
original purchase, with the following exceptions:
Throwing Wheels are warranted for one (1) year;
Electronic Controller is warranted for one (1) year; and,
Throwing Wheel Motors are warranted for one (1) year.
To register the Warranty,
please return the Warranty
Registration Card to:
Sports Attack, LLC.
P. O. Box 1529
Verdi, NV 89439
Should such equipment be found to be defective, Sports Attack, LLC. will, at its option
and sole discretion provide at no cost to the purchaser new or rebuilt replacements for defective parts and will pay the pre-approved labor charge to repair the product for the duration of
the warranty period only.
THE FOREGOING OBLIGATION IS EXPRESSLY GIVEN IN LIEU OF ANY OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, WHICH ARE HEREBY EXCLUDED.
SPORTS AT TACK, LLC. SHALL NOT BE LIABLE FOR INDIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES OR LOSSES FROM ANY CAUSE WHATSOEVER.
This warranty is void if the equipment has been misused, misapplied, improperly assembled,
or modified without the express written permission of Sports Attack, LLC. In addition,
this warranty does not apply to damage in transit, in any accident unrelated to the direct
operation of the equipment, or by fire, flood or act of God.
To obtain warranty service during the warranty period:
1. Have the date of purchase and serial number ready (see page 4 for the location of
the serial number).
2. Call the Customer Service Department at 1-800-717-4251
3. Identify the product and describe the problem.
A Customer Service Representative will help you to correct the problem and send
replacement part(s) if necessary. An invoice will be sent if any parts need to be
exchanged. To clear the invoice, return, prepaid and within 30 days, the defective parts
as detailed on the invoice to:
Sports Attack, LLC.
2805 U.S. 40
Verdi, NV 89439
For repairs and service after the
Warranty period, please call:
Sports Attack
Customer Service Dept.
Ph 800-717-4251
Fx 775-345-2883
RETURNS
To return an item, please
contact our Customer Service
Department at 800-717-4251.
A 15% restocking fee will be
charged for any items accepted
for return. It is the customer’s
responsibility to handle the
repacking and shipment (as well
as all associated fees) back to
Sports Attack.
No returns will be accepted after
30 days of receiving product.
Warranty/Shipping
SHIPPING DAMAGE CLAIMS PROCEDURE
NOTE: For your protection, please note that equipment in this shipment was carefully
inspected and packaged by skilled personnel before leaving the factory.
Upon acceptance of this shipment, the transportation company assumes full responsibility
for its safe delivery.
IF SHIPMENT ARRIVES DAMAGED:
1. VISIBLE LOSS OR DAMAGE: Be certain that any visible loss or damage is noted on the
freight bill or express receipt, and that the note of loss or damage is signed by the
delivery person.
2. FILE CLAIM FOR DAMAGE IMMEDIATELY: Regardless of the extent of the damage.
3. CONCEALED LOSS OR DAMAGE: If damage is unnoticed until the merchandise is
unpacked, notify the transportation company or carrier immediately, and file
“CONCEALED DAMAGE” claim with them. This must be done within fifteen (15) days
from the date the delivery was made to you. Be sure to retain the container
for inspection.
Sports Attack, LLC. cannot assume liability for damage or loss incurred in transit. We will,
however, at your request, supply you with the necessary documents to support your claim.
TOTAL ATTACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
xi
Page 3
TABLE OF CONTENTS
Warranty Statement ...................................................................xi
Safety Instructions .................................................................... 2
TOTAL ATTACK VOLLEYBALL ASSEMBLY INSTRUCTIONS
Assembly Instructions .............................................................. 3

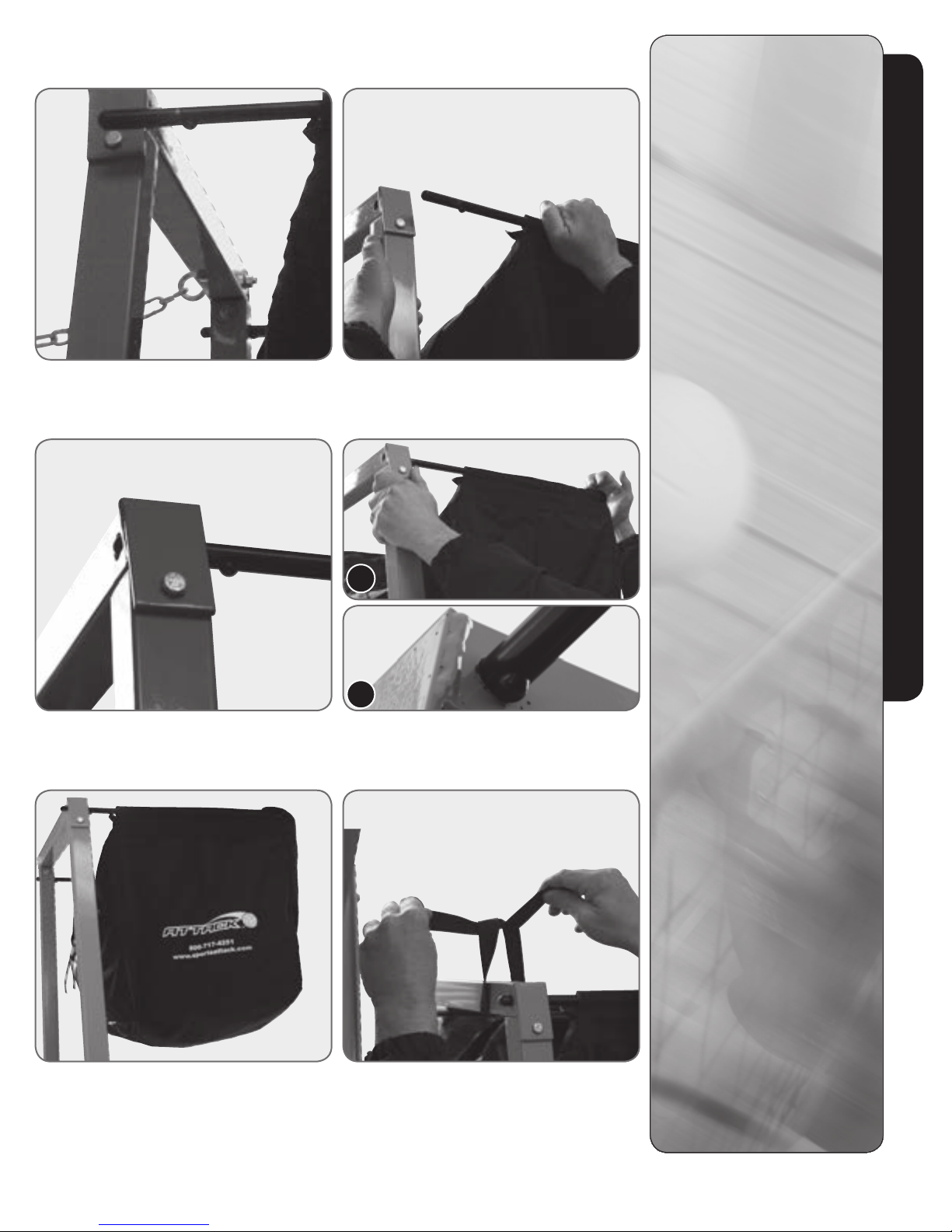

Installing Ball Bag .................................................................. 8
Operation ......................................................................... 9
Shutting Down.................................................................... 10
MAINTENANCE & SERVICE
Care, Cleaning & Maintenance......................................................11

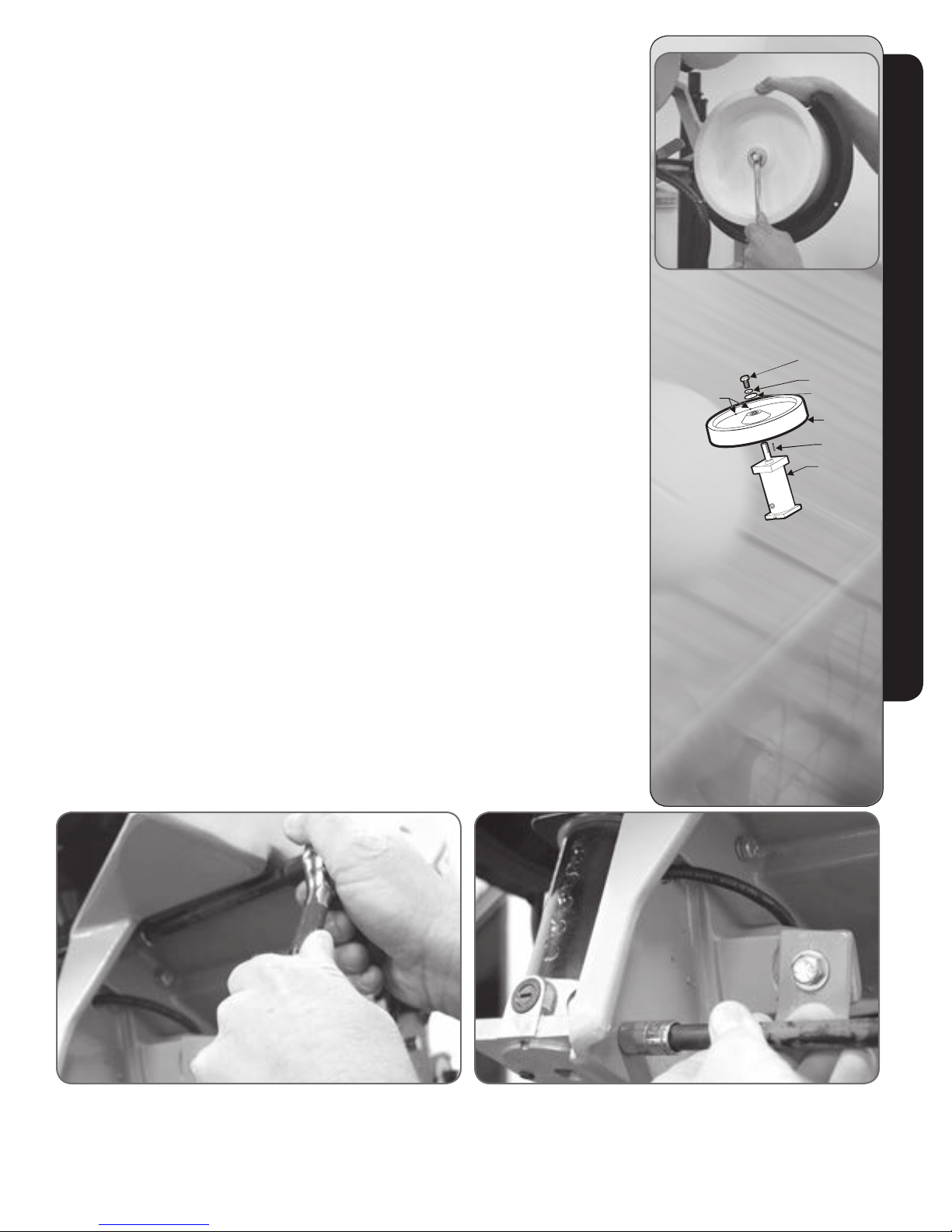

Component Replacement
Wheel........................................................................... 12
Motor ........................................................................... 12

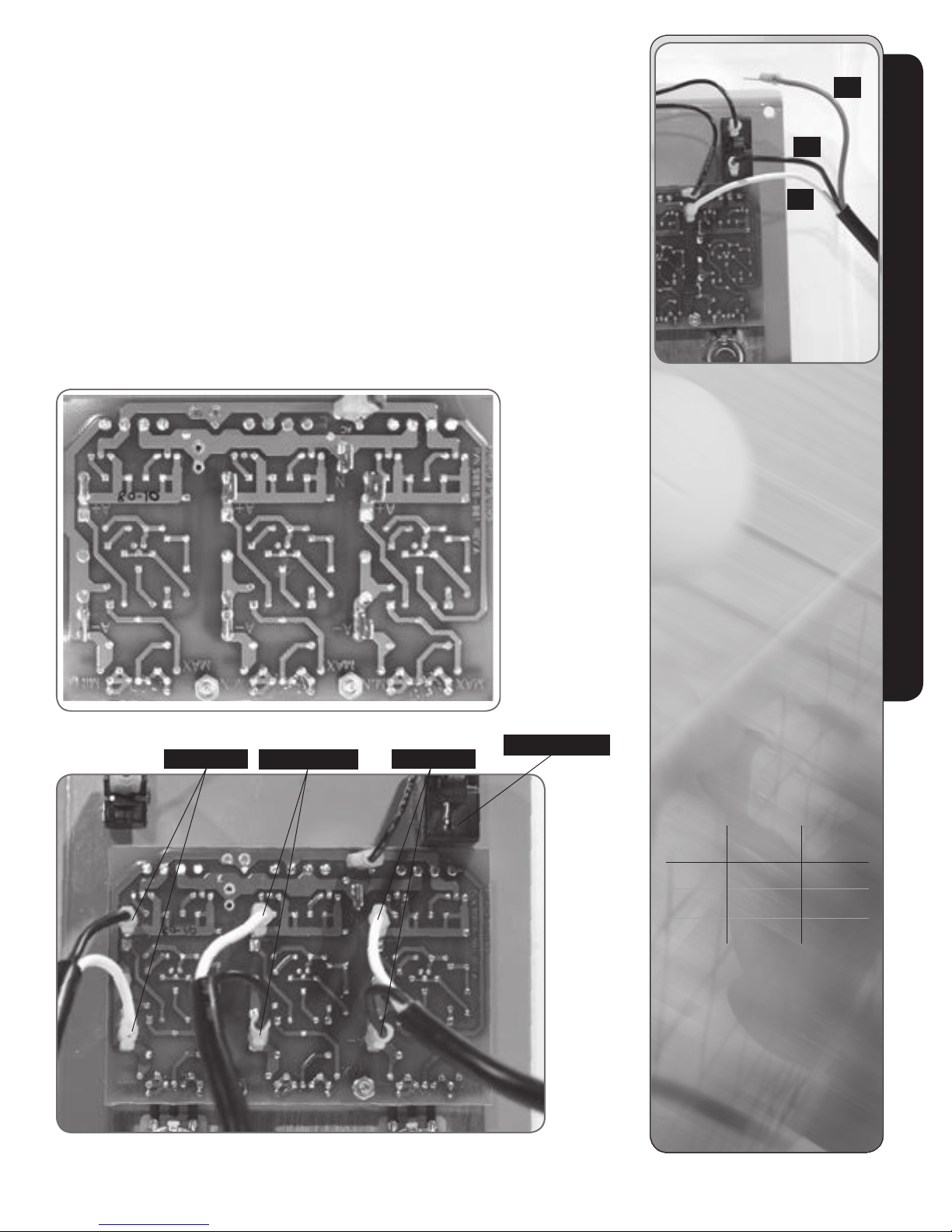

Controller .......................................................................13
Increasing Bungee Tension......................................................... 14

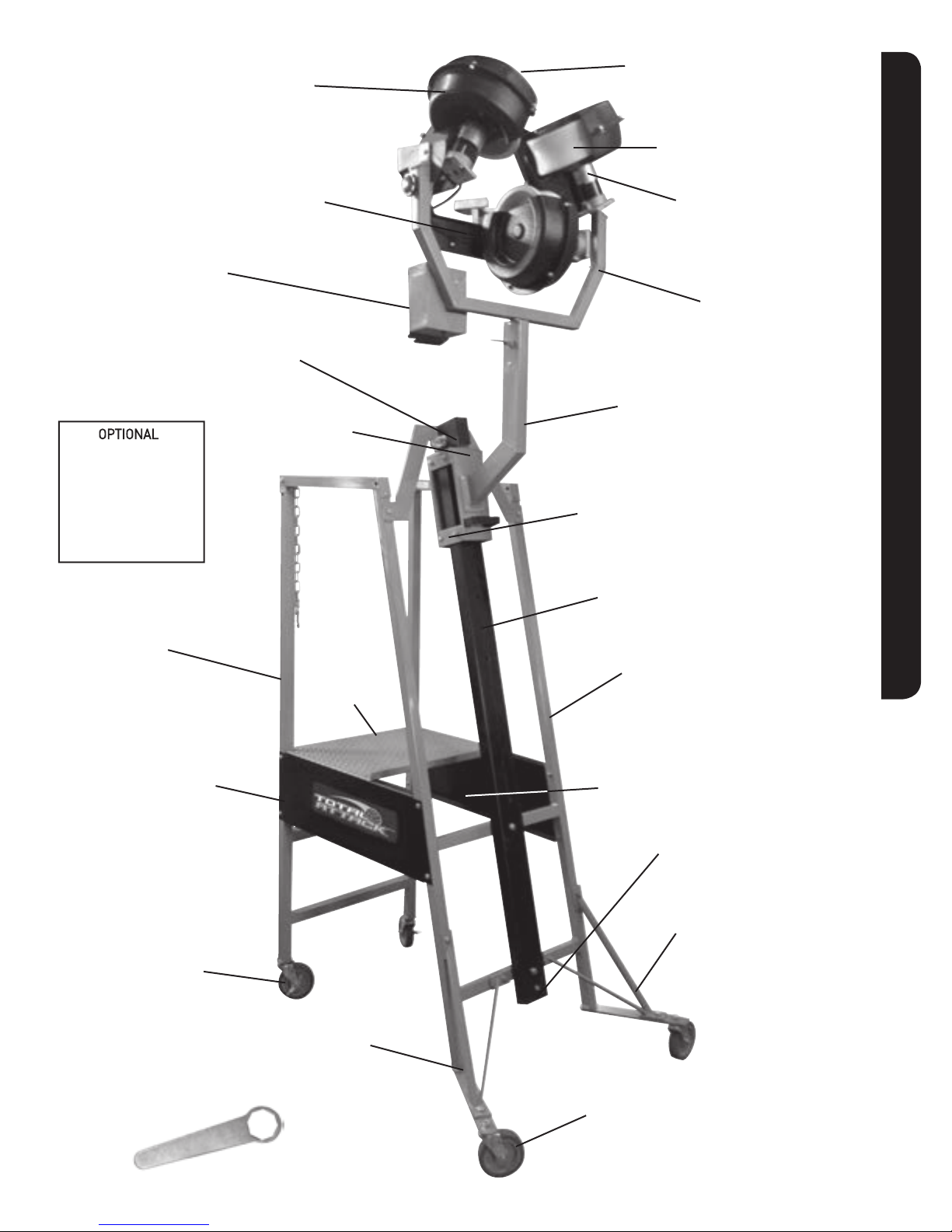

Total Attack Component Parts...................................................... 15
Parts List.......................................................................... 16
To register the Warranty,
please return the Warranty
Registration Card to:
Sports Attack, LLC.
P. O. Box 1529
Verdi, NV 89439
Table of Contents/Introduction
For repairs and service after the
Warranty period, please call:
Sports Attack
Customer Service Dept.
Ph 800-717-4251
Fx 775-345-2883
SPORTS ATTACK
Product Line ...................................................................17-18
INTRODUCTION
Thank You for purchasing this Sports Attack LLC. equipment.
Proper assembly, careful operation and consistent maintenance of this equipment will
ensure that it gives you the very best performance and a long, economical service life.
This manual contains the information needed to properly setup the Total Attack, and to
use, care for and maintain the Total Attack in a manner which will ensure their
optimum performance.
RECEIVING THE PRODUCT
Please check the contents of your boxes to ensure you have received all parts for
the machine. If anything is missing or damaged, call Sports Attack Customer Service,
800-717-4251. If the product or package has been damaged in shipping, note on
shipping tag, save all evidence of damage along with related documents and contact
the shipper immediately.
RETURNS
To return an item, please
contact our Customer Service
Department at 800-717-4251.
A 15% restocking fee will be
charged for any items accepted
for return. It is the customer’s
responsibility to handle the
repacking and shipment (as well
as all associated fees) back to
Sports Attack.
No returns will be accepted after
30 days of receiving product.
TOTAL ATTACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
1
Page 4
SAFETY INSTRUCTIONS
ELECTRICAL SAFETY
Use a 115 volt single phase 3-wire grounded
power source.
Up to 200 ft. from power source,
use a minimum #14/3 grounded 3-wire
extension cord.
Over 200 ft. from power source, consult
a licensed electrician for required power
cord size.
WARNING
PERSONAL INJURY HAZARD
Carefully read all instructions
in this manual, and all labels
and warnings on the Total Attack
before using the machine.
Use machine only under adult
supervision. Failure to operate
Total Attack as described in this
manual can result in severe
personal injury or death.
Total Attack Safety Instructions
OPTION B 208/220/230V
Green = Earth
White or Blue = Neutral
Black or Brown = Line
OPERATING SAFETY
1. Never reach hands into throwing wheel area.
2. Always use the Total Attack with throwing wheel shields in place.
3. Use the Total Attack only under adult supervision.
4. Use the Total Attack only for their intended purpose.
5. Do not operate the Total Attack with a damaged cord or plug, if the machine
malfunctions or has been damaged.
6. Check machine before turning “ON” to make sure there are no foreign object
in feed chute.
7. If ball becomes lodged and stops motor, immediately turn machine off
before dislodging.
8. To dislodge ball from throwing wheel, unplug machine and push ball through chute.
Do not reach hand into feed chute with the machine running.
9. Only one person at a time should operate the Total Attack.
ELECTRICAL SHOCK HAZARD
Total Attack Volleyball Machine
must be connected to a properly
grounded electrical receptacle.
•
Do not operate on wet ground.
WARNING
PERSONAL INJURY HAZARD
Keep hands away from throwing
wheels anytime the machine is
connected to a power source.
•
Carefully check machine for
completeness and condition before
connecting to electrical power.
EQUIPMENT ELECTRICAL
DAMAGE
DO NOT plug in or energize the
equipment until all Assembly and
Operation Instructions are read
and followed.
10. Be sure chain is locked when standing on platform.
11. Do not allow anyone to walk directly in front of the machine. Keep face and hands
away from ball exit.
12. A ball should always be test thrown from the Total Attack before beginning
any drill. Throw several balls to verify end location.
13. Keep hands, hair and loose clothing away from moving parts.
14. Do not use near water or use damp or wet balls.
TOTAL ATTACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
2
Page 5

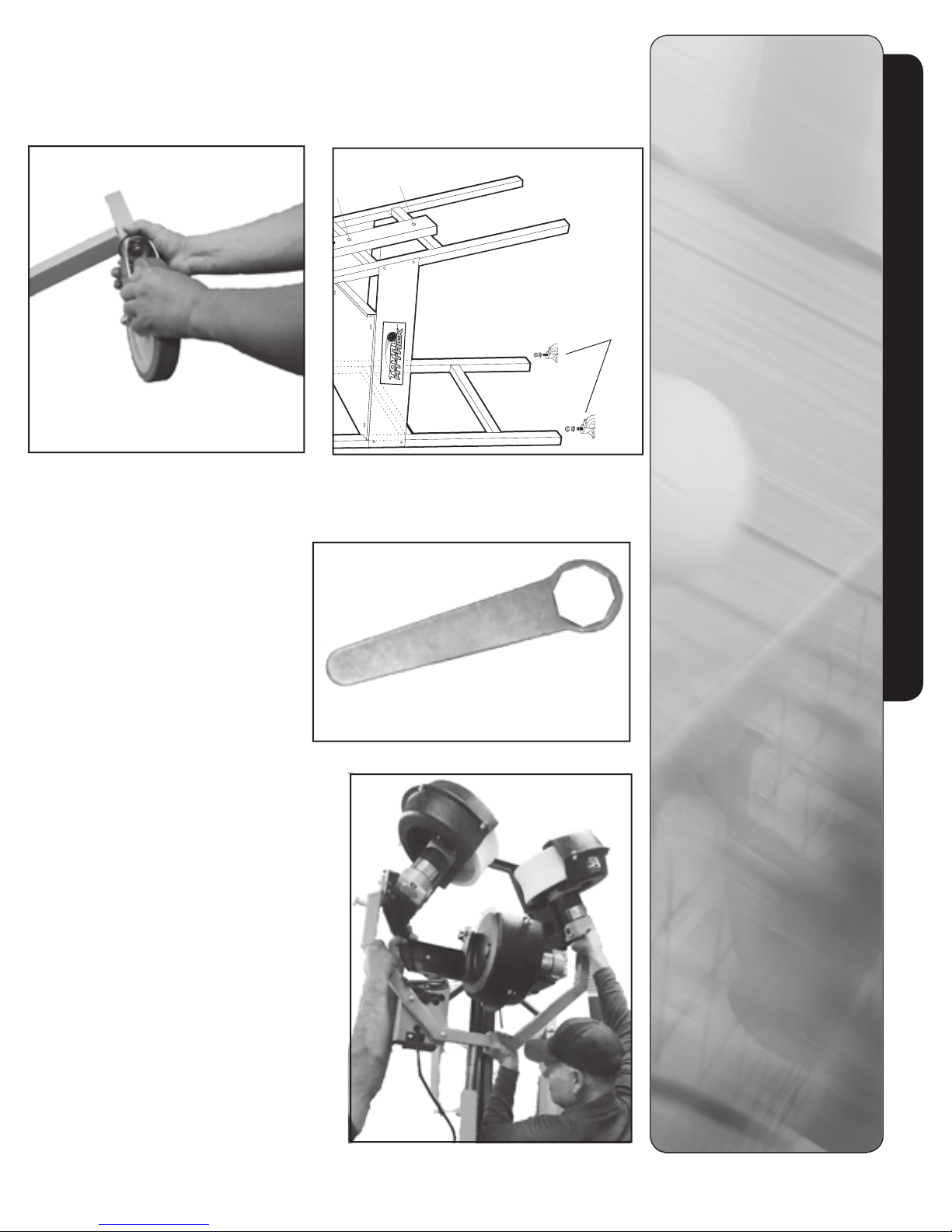

ASSEMB LY INSTRUCTIONS
7
/
Tools required: Two
16
” wrenches and two
DO NOT TIGHTEN BOLTS ALL THE WAY UNTIL YOU COMPLETE ASSEMBLY.
STEP ONE
Lay out all parts and check them against the parts list on page 17. Call customer service
immediately if any parts are missing. Please have applicable part numbers as shown on parts list.
TOTAL ATTACK™
EM PART NO. DESCRIPTION QTY PER
1 280-4002 Wheel Guard Outside 1
9
/
16
” wrenches or two small crescent wrenches.
CAUTION
PERSONAL INJURY HAZARD
Failure to use the special tool
provided to install the casters
could result in personal injury.
Total Attack Assembly Instructions
EQUIPMENT DAMAGE
Failure to use the special tool
provided to install the casters
could result in equipment damage.
2 280-4001 Wheel Guard Inside 1
3 530-4033 Throwing Head Frame 1
4 531-0007 Throwing Wheel 1
5 530-0032
530-0033
Controller - 90V
Controller - 180V
6 271-0031 Rolling Tray Rollers 1
7 520-0107 Mast Assembly (includes shock absorber cord) 1
8 533-4035 Arm Assembly 1
9 680-7004 Shock Absorber Cord 1
10 530-1015
530-1016
Motor - 90V
Motor - 180V
11 533-4034 Yoke Assembly 1
14 533-4037 Rear Frame Assembly 1
15 533-4036 Front Frame Assembly 1
16L 533-4001 Left-hand Side Panel 1
16R 533-4000 Right-hand Side Panel 1
18 533-4014 Platform 1
19 281-0015 Locking Castor 1
20 271-0105 Castor Wrench 1
20L 533-4030 Left-hand Caster Brace Assembly 1
20R 533-4029 Right-hand Caster Brace Assembly 1
22 533-4005 Rolling Assembly 1
23 281-0014 Non-locking Castor 1
24 271-0032 Cord Roller (Top and Bottom) 1
OPTIONAL ACCESSORIES
EM PART NO. DESCRIPTION QTY PER
120-3000 Ball Bag Kit (bag and frame) 1
HARDWARE KIT
Item# 520-9000
1
1
1
Qty Item
4
14
44
19
1
4
8
4
2
4
6
2
2
2
2
2
1
/
4
1
/
4
1
/
4
1
/
4
1
/
4
5
/
16
5
/
16
5
/
16
3
/
8
3
/
8
3
/
8
3
/
8
1
/
2
1
/
2
1
/
2
1
/
2
3
/
” x 20 x
4
” Bolts
” x 20 x 2” Bolts
” USS Washers
” Nuts
3
/
” x 20 x 2
” x 18 x
4
” Bolt
3
/
4
” Bolts
” USS Washers
” Nuts
” x 16 x 4” Bolts
1
/
” x 16 x 2
2
” Bolts
” USS Washers
” Nuts
” USS Washers
” Nylon Lock Nuts
” x 13 x 1 Bolts
” Lock Washers
2 Casters, 8” Non-locking
2 Casters, 8” Locking
3
/
8
4
1
5
” Nylon Nuts
1
/
4
” Nylon Nut
5
/
16
” Lock Washers
1 Caster Wrench
120-3001 Ball Bag (only) 1
533-4015 Ball Bag Frame (only) 1
120-3002 Machine Cover 1
TOTAL ATTACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
3
Page 6
IMPORTANT: as you assemble the machine, leave bolts very loose. Tighten only
after the Total Attack machine is completely assembled.
STEP TWO
Lay out rear frame assembly, front frame assembly and right- and left-hand panels.
Assemble as shown below. Leave all bolts loose.
CAUTION
PERSONAL INJURY HAZARD
Failure to use the special tool
provided to install the casters
could result in personal injury.
Total Attack Assembly Instructions
2”
12
24
12
1
/
4
” x 20 x 2” Bolts
1
/
4
” USS Washers
1
/
4
” Nuts
EQUIPMENT DAMAGE
Failure to use the special tool
provided to install the casters
could result in equipment damage.
TOTAL ATTACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
4
Page 7

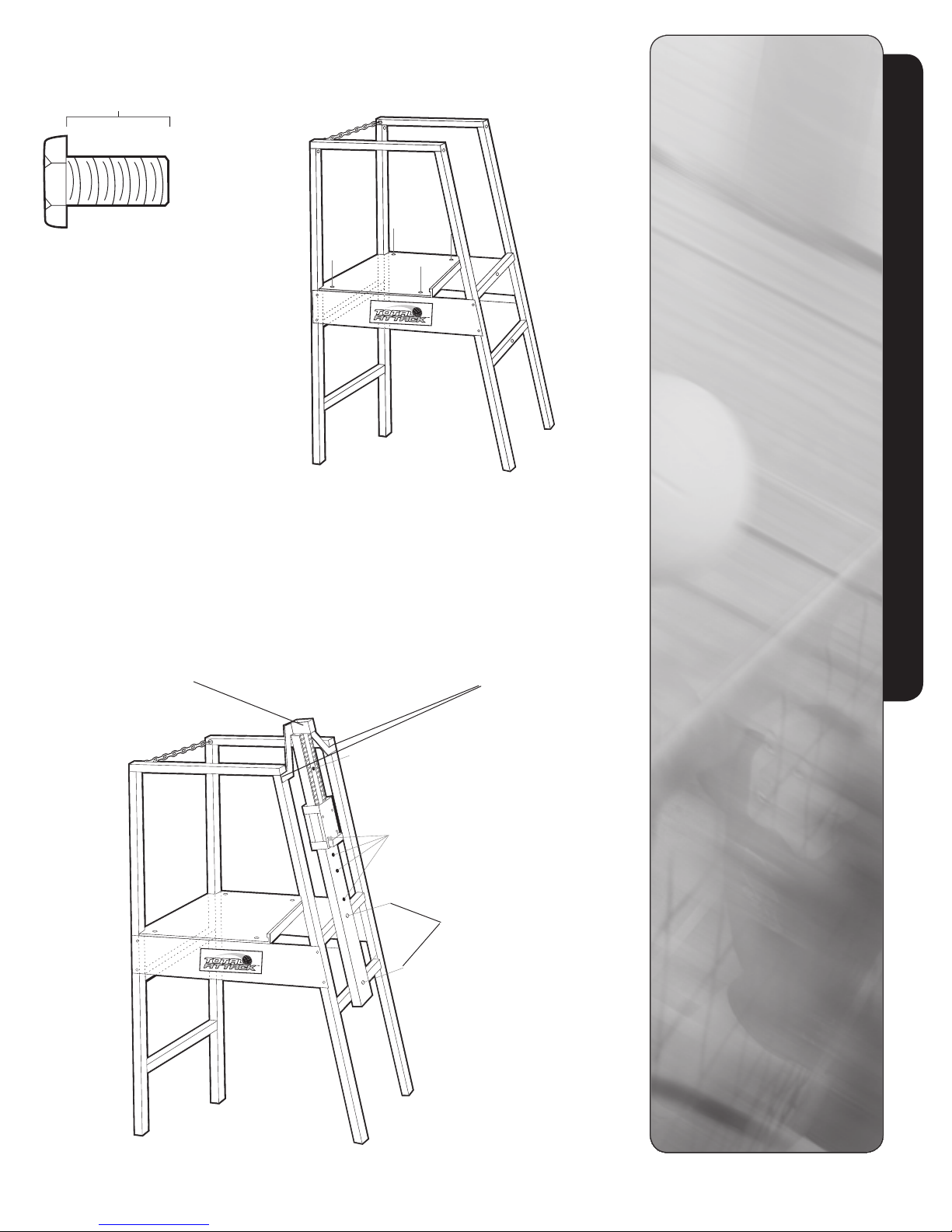

STEP THREE
With bolts from Step Two still loose, set platform in place and tighten bolts securely see below.
Now go back and tighten bolts from Step Two assembly.
3/4”
4
4
4
1
/
4
1
/
4
1
/
4
3
/
” x 20 x
4
” Bolts
” USS Washers
” Nuts
CAUTION
PERSONAL INJURY HAZARD
Failure to use the special tool
provided to install the casters
could result in personal injury.
EQUIPMENT DAMAGE
Failure to use the special tool
provided to install the casters
could result in equipment damage.
Total Attack Assembly Instructions

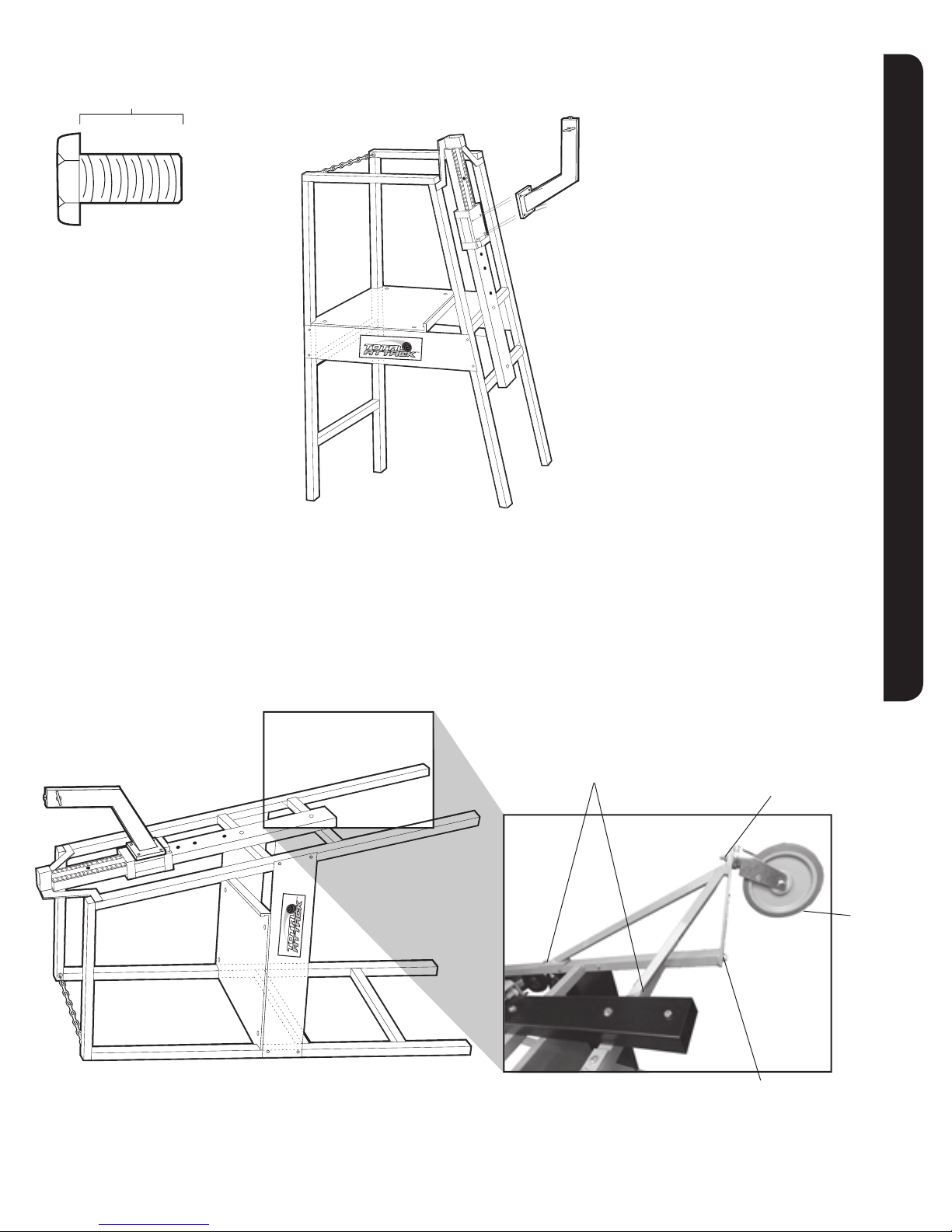

STEP FOUR
Bolt mast to frame assembly as shown below. Than attach mast bracket to mast and and top cross
tube. Do not tighten bolts until both are in place with the nuts on finger tight.
1
/
Mast Bracket
1
/
4
1
1
” x 20 x 2
1
/
4
” Nylon Lock Nut
3
/
4
” Bolt
2
4
2
Position hole
Position hole
4
” x 20 x 2” Bolts
1
/
4
” USS Washers
1
/
4
” Nuts
2
4
2
3
/
8
” x 16 x 4” Bolts
3
/
8
” USS Washers
3
/
8
” Nuts
TOTAL ATTACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
5
Page 8
STEP FIVE
Bolt arm assembly onto rolling tray as shown below. Again do not tighten bolts until all four are in place.
3/4”
Total Attack Assembly Instructions
4
8
4
5
/
16
” x 18 x
5
/
16
” USS Washers
5
/
16
” Nuts
3
/
4
” Bolts
STEP SIX
Lay machine on the ground to attach right and left brace tube caster assembly. Bolt right and left brace tube caster assembly as
shown below. Again do not tighten bolts until all bolts are in place.
3
/
4
4
4
8
” x 16 x 2
3
/
8
” USS Washers
3
/
8
” Nuts
(2 for each side)
1
/
2
” Bolts
1
/
2
2
2
” USS Washers
1
/
2
” Nylon Lock Nuts
(1 for each side)
TOTAL AT TACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
1
/
2
2
2
” USS Washers
1
/
2
” x 13 x 1 Bolts
(1 for each side)
Non-locking
caster
6
Page 9
STEP SEVEN
Hand tighten locking casters to the rear frame as shown below and unlocking casters to the frame
legs shown below. Casters are pre-applied with red locktite
Unlocking caster.
Two locking casters.
BS3
CAUTION
PERSONAL INJURY HAZARD
Failure to use the special tool
provided to install the casters
could result in personal injury.
Total Attack Assembly Instructions
EQUIPMENT DAMAGE
Failure to use the special tool
provided to install the casters
could result in equipment damage.
STEP EIGHT
Tighten casters using wrench shown
STEP NINE
Loosen side-to-side swivel handle on arm
assembly. LOWER the arm assembly to the lowest
position and SECURE in the lowest position hole.
And you can securely attach throwing head by
inserting shaft into bearing provided in arm
assembly and tighten side-to-side swivel
handle (TWO PEOP LE NEED FOR THROWING
HEAD ASSEMBLY)
Assembly is now complete, make sure all nuts
and bolts are tightened securely and your Total
Attack Volleyball Machine is ready for use. See
instructions in the manual and on the decals on
the machine for operating procedures
and options.
TOTAL ATTACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
7
Page 10
INSTALLING A BALL BAG
Step 1 Insert one arm of the ball bag frame into the appropriate holes
on the platform frame.
Step 2 Carefully apply firm pressure to bend the other arm so that it
lines up with the corresponding holes on the platform frame.
INSTALLING A BALL BAG
STEP 1
Insert one arm of the ball bag
frame into the appropriate holes
on the the platform frame. The
second arm of the ball bag frame
will not line up with the set of
corresponding holes on the
platform frame. This is intentional.
Installing A Ball Bag
STEP 2
Holding on to the platform frame
as shown in the photo for Step 2,
carefully apply firm pressure on
the second arm and bend it until
it lines up with the corresponding
holes in the platform frame.
STEP 3
Insert arm into the corresponding
holes on the platform frame.
Step 3 Insert arm of ball bag frame into the holes on the
platform frame.
A
B
Step 4
A Use your palm to “whack” the ball bag frame.
B Button will rest against frame.
STEP 4 A & B
Still holding on to the platform
frame with one hand, use the
palm of your other hand to “whack”
the frame (photo A) until the
button rests against the frame
(photo B).
STEP 5
Both arms are now securely in
place with the proper amount of
tension to keep ball bag in place.
STEP 6
You may now tie the ball bag
straps to the platform frame.
To order additional parts, like
a ballbag, please contact:
Sports Attack
Customer Service Dept.
Ph 800-717-4251
Fx 775-345-2883
Step 5 Both arms are securely in place.
TOTAL ATTACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
Step 6 Tie ball bag straps.
8
Page 11
VOLLEYBALL OPERATION
The Total Attack Volleyball Machine is a total practice machine. No special training
other than the complete, careful reading of this manual is required to operate the machine.
Many coaches have broadened and refined their own coaching skills by its use.
ELEVATING AND LOWERING THE MACHINE HEAD
1. Release the locating pin on the sliding tray.
2. Position the throwing head into one of five elevation settings to the required height.
3. Locating pin will snap into place.
INCREASE OR DECREASE SPEED
1. Before turning machine “ON,” turn dials located on the throwing head to the “0” position.
2. Turn on/off switch to “ON.” The wheels will spin slowly. Turn speed control knobs
clockwise to increase speed.
3. Turn the speed control knobs counter-clockwise to decrease speed.
BALL SPIN, BREAK OR MOVEMENT
1. Floater: All 3 knobs turned to the same setting, making the wheels spin at the
same RPM.
WARNING
PERSONAL INJURY HAZARD
Never reach down near throwing
wheels for any reason! Always turn
all three speed control dials “OFF”,
turn the on/off switch “OFF”, unplug
Total Attack from the power source
and wait until the throwing wheels
have come to a complete stop
before reaching hands or fingers
anywhere near throwing wheels.
•
Total Attack Operation
2. Top Spin: 2 upper wheels turning fast, lower wheel turning slowly. Variations of the ball
spin and break are determined by the wheel speeds.
3. Breaking: Refer to speed chart on machine
HORIZONTAL CONTROL
1. Loosen to vary direction.
2. Tighten for repeatability.

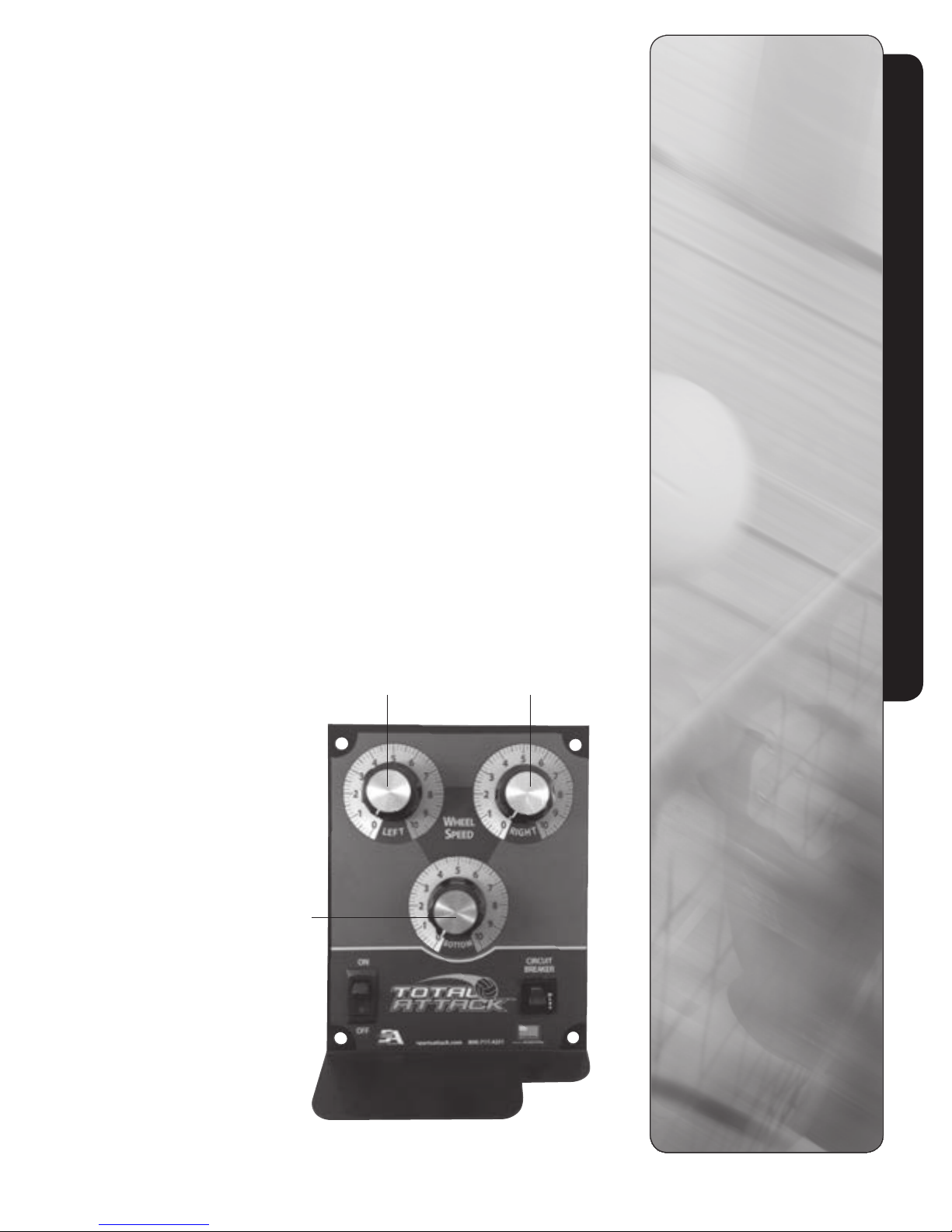

Left wheel
speed control
Bottom wheel
speed control
Right wheel
speed control
TOTAL ATTACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
9
Page 12
VOLLEYBALL SHUTTING DOWN
TURNING TOTAL ATTACK “OFF”
1. Set each speed control dial to “0.”
2. Turn the on/off switch “OFF.”
3. Unplug Total Attack from the power source.
TRANSPORTING
1. Turn the machine “OFF” and unplug.
2. Lower throwing head to the lowest position on the sliding tray. The locating pin
will snap into place.
DO NOT STORE OR TRANSPORT WITH THROWING HEAD ELEVATED.
Total Attack - Shutting Down
TOTAL ATTACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
10
Page 13
CARE, CLEANING & MAINTENANCE
LUBRICATION
Throwing Wheel Motors
Motors are sealed and require no lubrication.
CLEANING THE THROWING WHEELS
The throwing wheels must be kept clean to maintain accuracy. Clean the wheels periodically
to control the build-up of dirt.
1. Turn the on/off switch “OFF” and allow the wheels to come to a complete stop. Unplug
machine from electric power.
CAUTION
PERSONAL INJURY HAZARD
Never attempt to clean the
throwing wheels while they are
turning. Rags or implements
caught in spinning wheels can
cause serious injury.
Unplug machine before cleaning
the wheels or performing any
kind of service.
Care, Cleaning & Maintenance
Dampen a rag with soap and water. Turn the throwing wheel by hand and scrub the wheel
until the build-up is removed. For very heavy build-up, a synthetic scouring pad, such as a
Scotch-Brite
Ketone (M.E.K.) may be required to help loosen the build-up of dirt or ball residue.
® scouring pad, or medium sandpaper may be used sparingly. Methyl Ethyl
EXAMINE THE MACHINE
Examine Total Attack for condition and completeness before every use:
1. Throwing wheels must be tight on the motor shafts. Check that the keyway retaining
bolts are tight.
2. Wheel guard must be securely fastened to the throwing head.
3. Check rolling casters once a year for tightness. Tighten bolts securely using wrench
provided, but do not over-tighten. See Page 8, Schedule 3.
4. Check all casters and bolts of frame once a year for tightness.
CHEMICAL HAZARD
Methyl Ethyl Ketone (M.E.K)
Read and follow the directions
and safety instructions on the
M.E.K container.
FIRE HAZARD
Methyl Ethyl Ketone (M.E.K)
M.E.K. is flammable. Do not use
M.E.K. around a fire or flame.
Do not use M.E.K. near a running
generator or other source
of ignition.
TOTAL ATTACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
11
Page 14
COMPONENT REPLACEMENT
THROWING WHEEL REPLACEMENT
1. Turn the throwing wheels “OFF” and unplug the power cord. Remove four bolts
holding the wheel guard to the motor-side wheel guard.
2. Hold the wheel so that it cannot move. Turn the keyway retaining bolt counter-clockwise
using a box end wrench (See Figure 9).
SUGGESTION: If the bolt is too tight, give the opposite end of the wrench a series of
light taps with a hammer making sure the wrench remains on the bolt.
3. Remove the bolt and washers.
4. Work the wheel off of the motor shaft. Be sure to catch the key as it is freed from
the keyway.
5. Ball throwing wheels are machine balanced. Small holes in the side of the wheel are
applied at the factory and are normal. A slight wobble is also normal.
Component Replacement
Figure 9 Hold wheel while loosening bolts.
Reassemble in reverse order.
a. Install wheel to motor shaft with key slots aligned.
b. Be sure the key is in place, and inserted so that it is flush with the boss at the
wheel center.
c. Be sure the washer and lock washer are installed in the right order, and that the
keyway retaining bolt is tightened.
d. Test the wheel by spinning it by hand and making sure that it spins freely before
turning the unit “ON”.
e. Be sure the wheel guard is properly and securely reinstalled.
NOTE: Check bolts for tightness once a season. Tighten bolts securely, but do
not over-tighten.
MOTOR REPLACEMENT
1. Turn the on/off switch “OFF” and unplug the power cord.
2. Remove the throwing wheel (see above) and two wheel guards.
3. Remove four screws holding controller into main electrical box. Note the position of
the motor wires on the controller, then disconnect the wires. See Page 14.
4. Note the routing of the motor wires. Loosen any wire clamps.
5. Remove bolts holding the motor to the main frame.
Reassemble in reverse order.
HOLES DRILLED
FOR BALANCE
1/2” KEYWAY
RETAINING BOLT
LOCK WASHER
FL AT WASHER
THROWING
WHEEL
KEY
MOTOR
Figure10 Shown using a 6” extension with 1/2” socket. Figure 11 Shown using a 6” extension with 7/16” socket.
NOTE: Check bolts for tightness once a season. Tighten bolts securely, but do not over-tighten.
TOTAL AT TACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
12
Page 15
COMPONENT REPLACEMENT (cont’d)
CONTROLLER REPLACEMENT
1. Turn the on/off switch “OFF” and unplug the power cord.
2. Remove the four screws holding controller faceplate. Note the position of the main
power and motor wires on the controller, then disconnect the wires.
Reassemble in reverse order.
a. Be sure wires are correctly reinstalled. Motor wire connectors are different sizes.
Be sure they are installed on the correct size terminal.
b. When attaching the knobs, turn the speed control shafts fully counter-clockwise,
then install the knobs with the pointer to “0.”
#3
#1
#2
Component Replacement
Figure 14
POWER CORD WIRE
Black (#1)
Circuit breaker
White (#2)
“N” on green control board
Green (#3)
Grounds to machine
Figure 12 Wiring diagram from the control board side.
Left Motor
Figure 13 Wiring diagram for all three motors.
Bottom Motor
Right Motor
Circuit Breaker
CONNECTING WIRES
Motor Black White
Wire Wire
Right A- A+
Left A+ A-
Bottom A- A+
NOTE: Black motor wires
3
are
/16” female disconnect
and white wires are
female disconnect.
1
/4”
TOTAL ATTACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
13
Page 16
INCREASING TENSION INSTRUCTIONS
STEPS IN INCREASING TENSION ON THROWING HEAD (LOCATED AT A)
1. Stretch cord approximately 12” (this distance can be adjusted as required)
2. Using vise grips as shown, clamp tightly to hold shock absorber cord.
3. Loosen knot and slide it down to top of vise grips.
4. Repeat process on opposite side.
5. Release vise grips.
A
Start here.
After you have tied off
the cord, cut off at the
mark here.
5/8” Shock
absorber cord.
Middle mark on rope
must end up here!
Increasing Tension Instructions
Slide knot down to
top of vise grips.
Vise grips.
TOTAL ATTACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
14
Page 17
COMPONENT PARTS
2- Wheel Guard Inside
1- Wheel Guard Outside
#280-4002
#280-4001
4- Throwing Wheel
#531-0007
3- Throwing Head Frame
5- Controller
90V - #530-0032
180V - #530-0033
9- Shock Absorber Cord,
12- Ball Bag Frame
#533-4015
13- Ball Bag
(bag only)
#120-3001
14- Rear Frame Assembly
#533-4037
#530-4033
5
/
8”
(not shown)
#680-7004
22- Rolling Tray Assembly
#533-4005
18- Platform
#533-4014
10- Motor
90V - #530-1015
180V - #530-1016
11- Yoke Assembly
#533-4034
8- Arm Assembly
#533-4035
6- Rolling Tray Rollers
(not shown)
#271-0031 (each)
7- Mast Assembly
(includes shock absorber cord)
#520-0107
15- Front Frame Assembly
#533-4036
Total Attack Component Parts
16R- Right-hand Side Panel
#533-4000
19- Locking Castor
#281-0015
20R- Right-hand Castor Brace Assembly
#533-4029
20- Castor Wrench
#271-0105
16L- Left-hand Side Panel
#533-4001
24- Cord Roller
(Top and Botom -not shown)
#271-0032
20L- Left-hand Castor Brace Assembly
#533-4030
23- Non-Locking Castor
#281-0014
Page 18
TOTAL ATTACK PARTS LIST
TOTAL ATTACK™
EM PART NO. DESCRIPTION QTY PER
1 280-4002 Wheel Guard Outside 1
2 280-4001 Wheel Guard Inside 1
To order additional parts,
please contact:
Sports Attack
Customer Service Dept.
Ph 800-717-4251
Fx 775-345-2883
3 530-4033 Throwing Head Frame 1
4 531-0007 Throwing Wheel 1
5 530-0032
530-0033
Controller - 90V
Controller - 180V
6 271-0031 Rolling Tray Rollers 1
7 520-0107 Mast Assembly (includes shock absorber cord) 1
8 533-4035 Arm Assembly 1
9 680-7004 Shock Absorber Cord 1
10 530-1015
530-1016
Motor - 90V
Motor - 180V
11 533-4034 Yoke Assembly 1
14 533-4037 Rear Frame Assembly 1
15 533-4036 Front Frame Assembly 1
16L 533-4001 Left-hand Side Panel 1
16R 533-4000 Right-hand Side Panel 1
18 533-4014 Platform 1
19 281-0015 Locking Castor 1
20 271-0105 Castor Wrench 1
20L 533-4030 Left-hand Caster Brace Assembly 1
HARDWARE KIT
Total Attack Parts List
Item# 520-9000
1
1
1
Qty Item
4
14
44
19
1
4
8
4
2
4
6
6
2
2
2
1
/
4
1
/
4
1
/
4
1
/
4
1
/
4
5
/
16
5
/
16
5
/
16
3
/
8
3
/
8
3
/
8
3
/
8
1
/
2
1
/
2
1
/
2
3
/
” x 20 x
4
” Bolts
” x 20 x 2” Bolts
” USS Washers
” Nuts
3
/
” x 20 x 2
” x 18 x
4
” Bolt
3
/
4
” Bolts
” USS Washers
” Nuts
” x 16 x 4” Bolts
1
/
” x 16 x 2
2
” Bolts
” USS Washers
” Nuts
” USS Washers
” Nylon Lock Nuts
” x 13 x 1 Bolts
2 Lock Washers
2 Casters, 8” Non-locking
2 Casters, 8” Locking
20R 533-4029 Right-hand Caster Brace Assembly 1
22 533-4005 Rolling Assembly 1
23 281-0014 Non-locking Castor 1
24 271-0032 Cord Roller (Top and Bottom) 1
OPTIONAL ACCESSORIES
EM PART NO. DESCRIPTION QTY PER
120-3000 Ball Bag Kit (bag and frame) 1
120-3001 Ball Bag (only) 1
533-4015 Ball Bag Frame (only) 1
120-3002 Machine Cover 1
TOTAL ATTACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
16
Page 19
SPORTS ATTACK PRODUCTS
BASEBALL
HACK ATTACK BASEBALL
SOFTBALL
JUNIOR HACK ATTACK BASEBALL
HACK ATTACK SOFTBALL
Please visit our web site sportsattack.com for information about Sports Attack sports
training products, or call 800-717-4251 for complete information and specifications.
TOTAL AT TACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
JUNIOR HACK ATTACK SOFTBALL (shown with optional solo feeder)
17
Page 20
SPORTS ATTACK PRODUCTS
TENNIS FOOTBALL
ACE ATTACK SNAP ATTACK
VOLLEYBALL
SOCCER
NEW!
SKILL ATTACK
Please visit our web site sportsattack.com for information about Sports Attack sports
training products, or call 800-717-4251 for complete information and specifications.
TOTAL AT TACK™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. • 800-717-4251 • sportsattack.com
STRIKE ATTACK
18
Loading...
