Spoolmaster SMP-CR-16 Users Guide

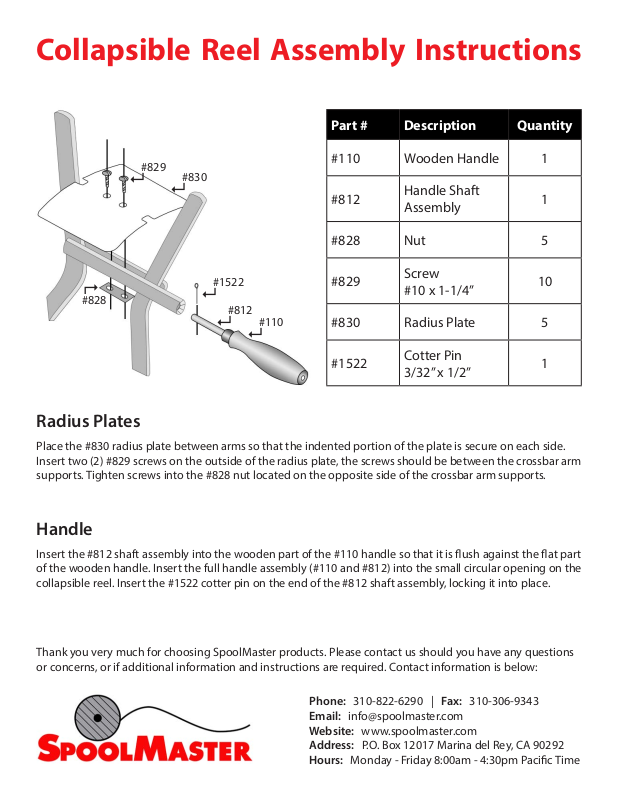

Collapsible Reel Assembly Instructions

Part # Description Quantity

#110 Wooden Handle 1

#812

#828 Nut 5

#829

#830 Radius Plate 5

Handle Shaft
Assembly

Screw

10

#10 x 1-1/4”

1

;

#828

8

#829

8

#830

8

#1522

#812

8

#110

8

#1522

Cotter Pin

1

3/32” x 1/2”

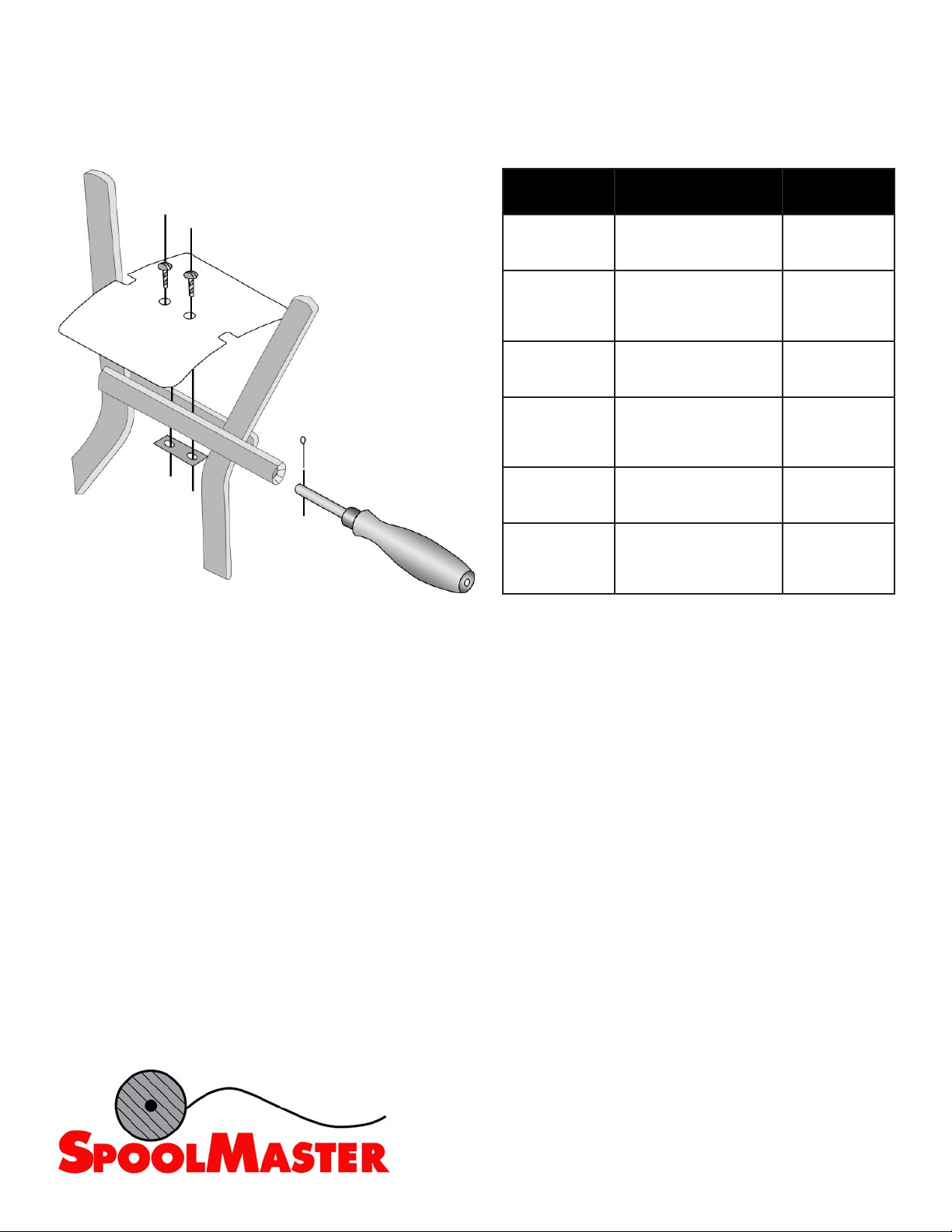

Radius Plates

Place the #830 radius plate between arms so that the indented portion of the plate is secure on each side.
Insert two (2) #829 screws on the outside of the radius plate, the screws should be between the crossbar arm
supports. Tighten screws into the #828 nut located on the opposite side of the crossbar arm supports.

Handle

Insert the #812 shaft assembly into the wooden part of the #110 handle so that it is ush against the at part
of the wooden handle. Insert the full handle assembly (#110 and #812) into the small circular opening on the
collapsible reel. Insert the #1522 cotter pin on the end of the #812 shaft assembly, locking it into place.

Thank you very much for choosing SpoolMaster products. Please contact us should you have any questions
or concerns, or if additional information and instructions are required. Contact information is below:

Phone: [phone] | Fax: [phone]
Email: [email protected]
Website: www.spoolmaster.com
Address: P.O. Box 12017 Marina del Rey, CA 90292
Hours: Monday - Friday 8:00am - 4:30pm Pacic Time

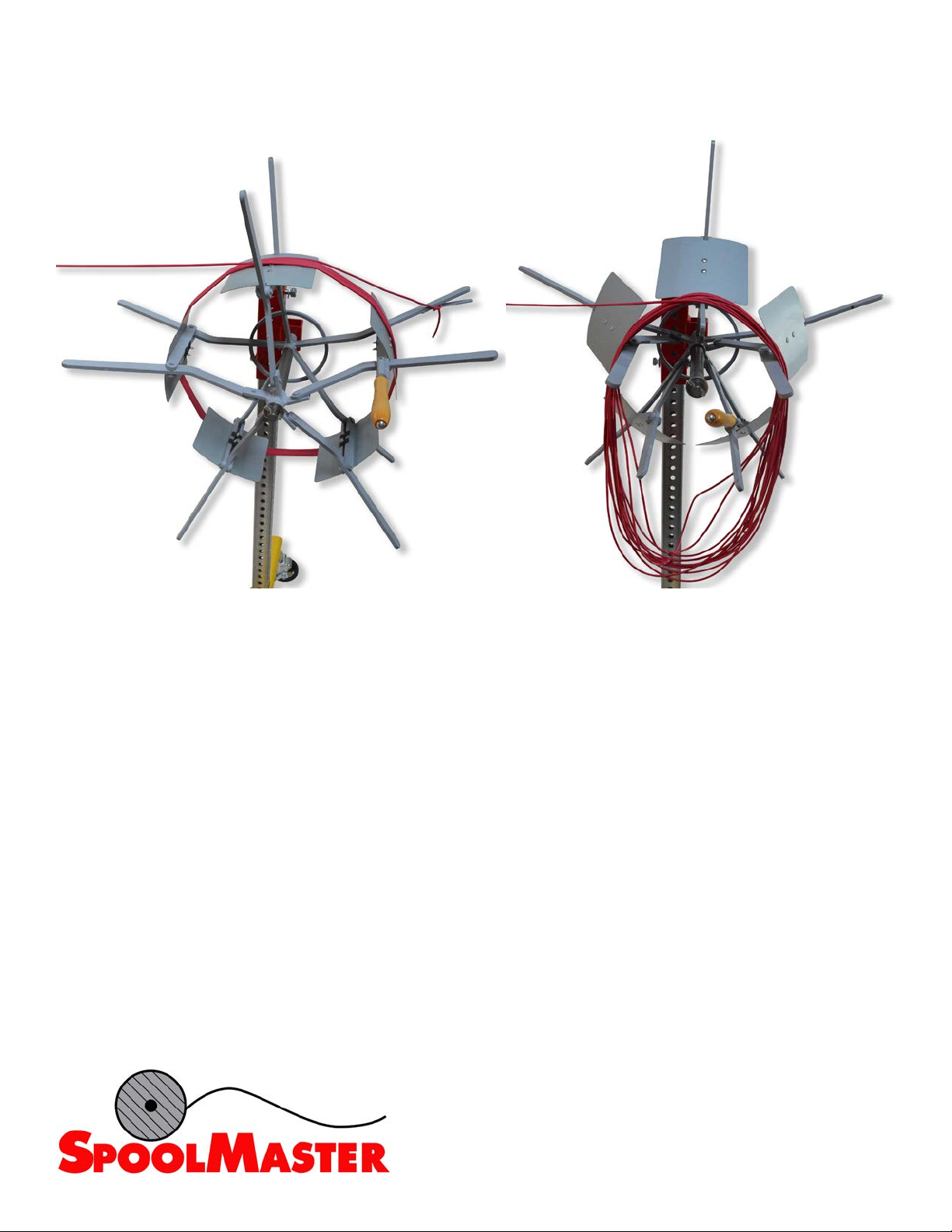

Collapsible Reel Operating Instructions

Unloading/Ooading Coiled Material

Tie coiled material in at least two (2) places (between arms) before collapsing the reel. Collapse the reel by
grasping opposite arms and pressing them toward the reel hub. Ooad/remove the coiled material to the
front of the reel. Return the reel to the starting position by applying reverse pressure on opposite arms until
the sliding hub comes to rest against the washer and pin at the front of the shaft.
