Spoolmaster SMP-ASA Users Guide

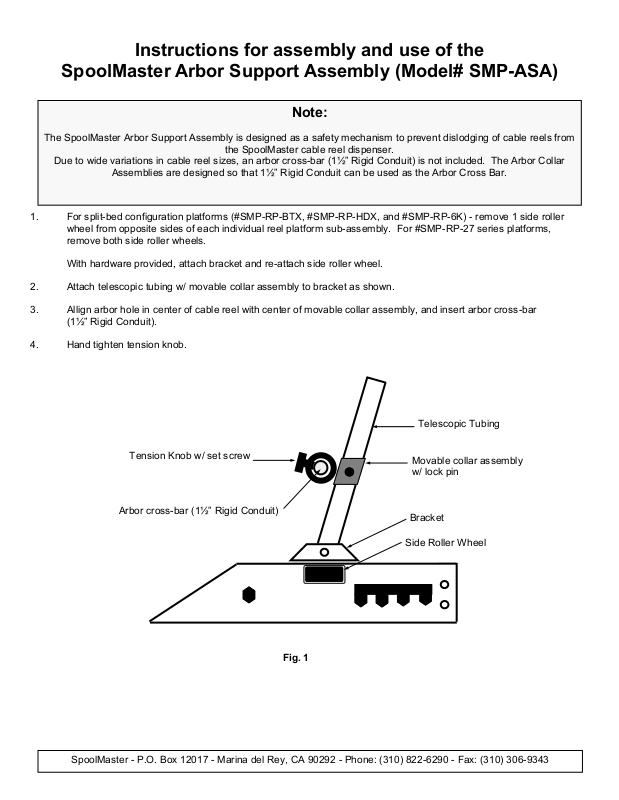

Instructions for assembly and use of the

SpoolMaster Arbor Support Assembly (Model# SMP-ASA)

Note:

The SpoolMaster Arbor Support Assembly is designed as a safety mechanism to prevent dislodging of cable reels from

the SpoolMaster cable reel dispenser.

Due to wide variations in cable reel sizes, an arbor cross-bar (1½” Rigid Conduit) is not included. The Arbor Collar

Assemblies are designed so that 1½” Rigid Conduit can be used as the Arbor Cross Bar.

1. For split-bed configuration platforms (#SMP-RP-BTX, #SMP-RP-HDX, and #SMP-RP-6K) - remove 1 side roller

wheel from opposite sides of each individual reel platform sub-assembly. For #SMP-RP-27 series platforms,
remove both side roller wheels.

With hardware provided, attach bracket and re-attach side roller wheel.

2. Attach telescopic tubing w/ movable collar assembly to bracket as shown.

3. Allign arbor hole in center of cable reel with center of movable collar assembly, and insert arbor cross -bar
(1½” Rigid Conduit).

4. Hand tighten tension knob.

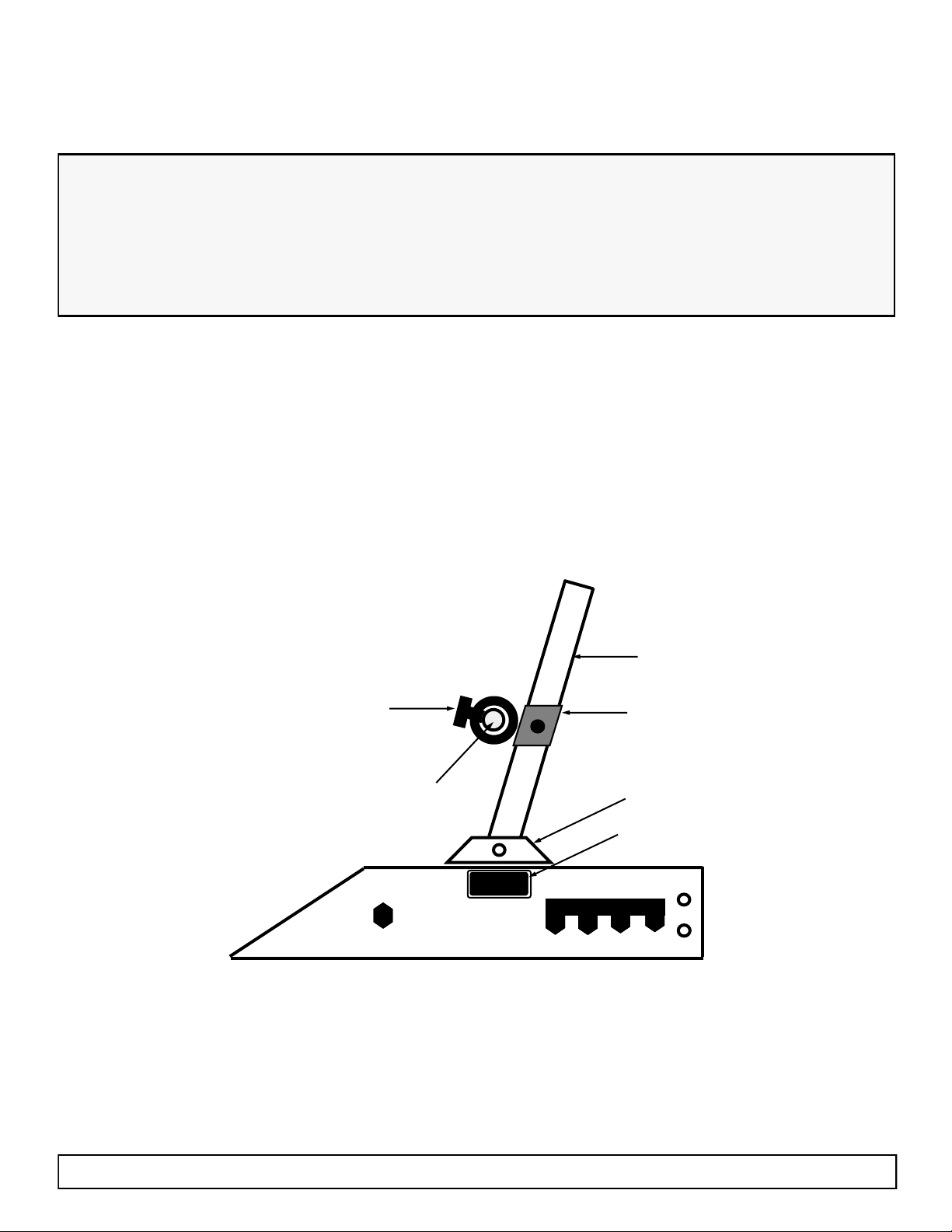

Tension Knob w/ set screw

Arbor cross-bar (1½” Rigid Conduit)

Telescopic Tubing

Movable collar assembly
w/ lock pin

Bracket

Side Roller Wheel

Fig. 1

SpoolMaster - P.O. Box 12017 - Marina del Rey, CA 90292 - Phone: [phone] - Fax: [phone]
