sPOD Installation Instructions
Remove These
Keep this hole clear!
On some plastic pieces, you may have to
against plastic windshield cover.

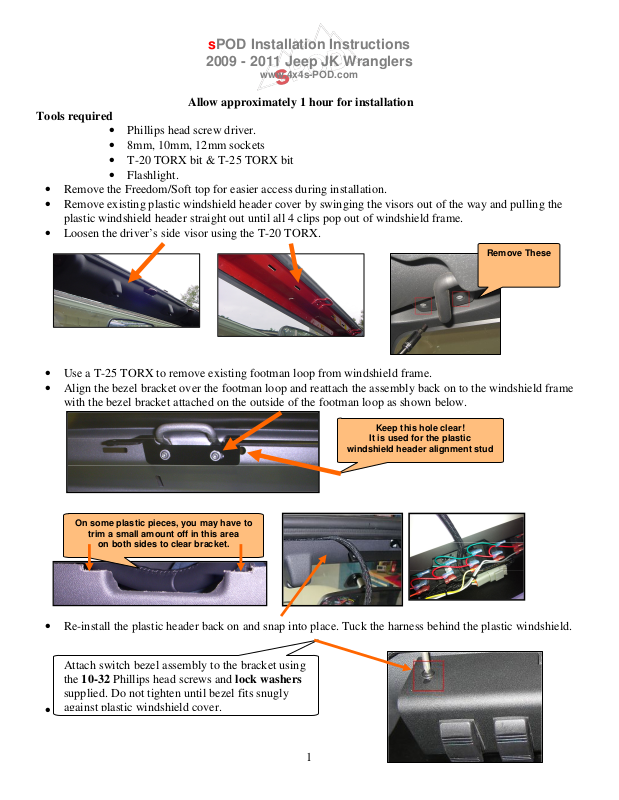

2009 - 2011 Jeep JK Wranglers
www.4x4s-POD.com
Allow approximately 1 hour for installation
Tools required
• Phillips head screw driver.
• 8mm, 10mm, 12mm sockets
• T-20 TORX bit & T-25 TORX bit
• Flashlight.
• Remove the Freedom/Soft top for easier access during installation.
• Remove existing plastic windshield header cover by swinging the visors out of the way and pulling the
plastic windshield header straight out until all 4 clips pop out of windshield frame.
• Loosen the driver’s side visor using the T-20 TORX.
• Use a T-25 TORX to remove existing footman loop from windshield frame.
• Align the bezel bracket over the footman loop and reattach the assembly back on to the windshield frame
with the bezel bracket attached on the outside of the footman loop as shown below.
• Re-install the plastic header back on and snap into place. Tuck the harness behind the plastic windshield.
•
trim a small amount off in this area
on both sides to clear bracket.
Attach switch bezel assembly to the bracket using
the 10-32 Phillips head screws and lock washers
supplied. Do not tighten until bezel fits snugly
It is used for the plastic
windshield header alignment stud
1
1
1
Page 2
sPOD Installation Instructions
through hole
pry out plastic
This Hole !
Goes through here
2009 - 2011 Jeep JK Wranglers
www.4x4s-POD.com
• Guide wire harness through all the plastics going toward the driver’s side by lifting and tucking the
harness behind the plastic as you go. Feed the harness down behind the plastic vertical pillar and out the
side opening for now.
• Next, remove the plastic cover on the driver’s side between the door and the side of the dash for access to
the firewall. Remove by just snapping it off.
• Use this method and grommet on right side of brake booster for standard transmissions.
Original rubber Plug
• Use this method on lower right side of brake booster for automatic transmissions.
Use the flashlight
Look up into upper
left side of firewall
for the harness you
just passed through.
Pull white connector through
•
Sun visor / left side
Vertical “A” pillar
Use a small
screwdriver and
Use a screwdriver to make a
hole in foam to pass through
Push white connector
Run white connector up
through opening in plastic
Fish Line
firewall.
Wire harness
Do Not Use
Form a hook on
the end of the fish
line and wrap the
white connector
with a little
electrical tape.
Look on right side of brake
booster for pass through
Plug connector in with
key facing outward
2
Page 3
sPOD Installation Instructions
Use these 8mm screws to
10 mm socket
12 mm socket
Circuit Breaker
After installation
!!!Must start engine to activate system!!!
8
2009 - 2011 Jeep JK Wranglers
www.4x4s-POD.com

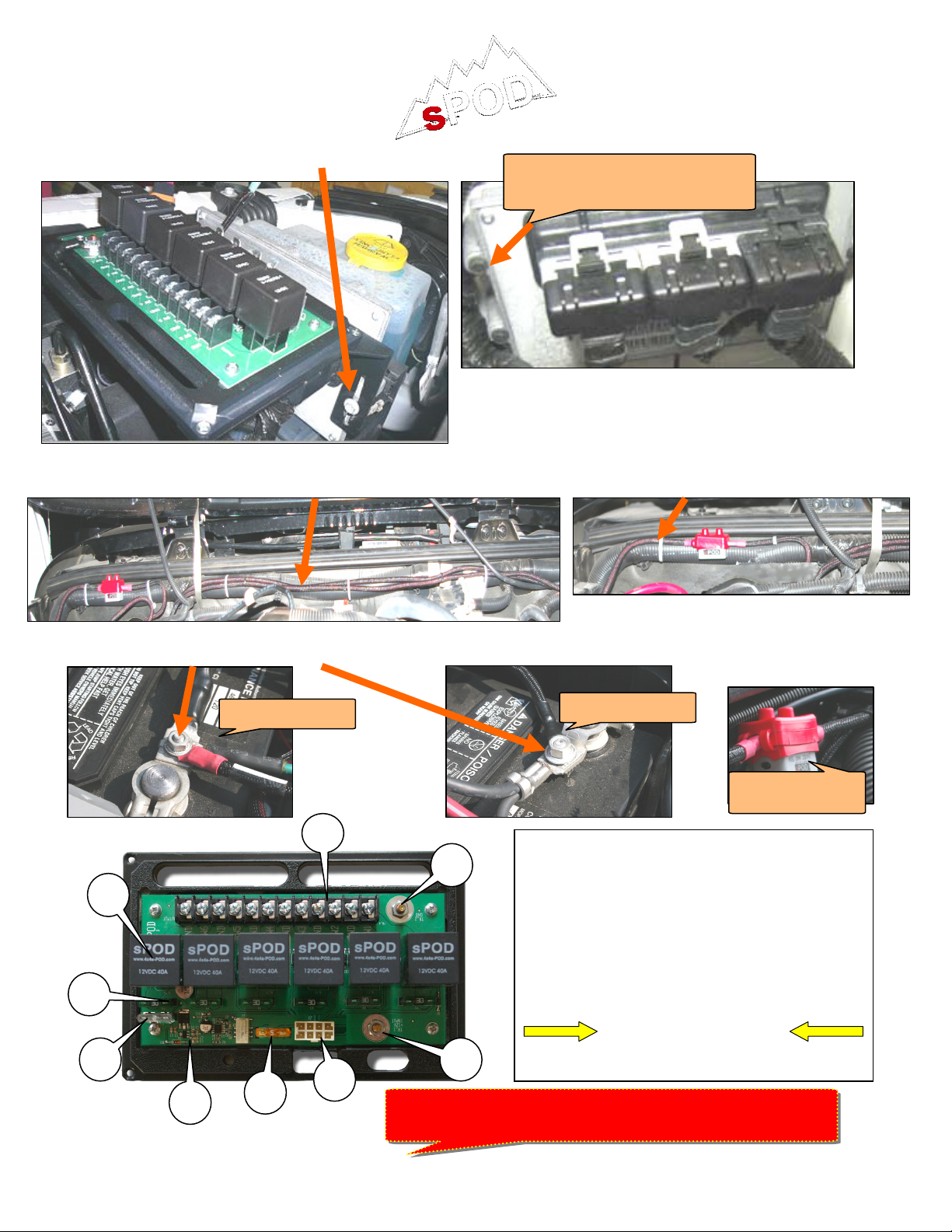

• Next attach the Source mounting bracket to the ECU unit located toward the front of the Jeep. And use the
2 existing 8mm mounting screws shown below.
• Snugly route power leads along firewall over to battery using supplied cable ties to secure.
• Connect Positive & Ground wire to battery terminals. Use supplied cable ties to secure all cables.
ef
mount Source bracket.
Auto Reset
1. Attach your accessories here.
SWx Is the Positive and GND is the negative terminals.
2. Negative battery terminal.
3. Positive battery terminal.
4. Switch panel harness input.
5. Switch panel fuse.
6. Low voltage detection circuit.
7. Low voltage detection circuit fuse. Remove this fuse to
disable LVCO
• If the LVCO detects a low voltage (10.6VDC) and
shuts the sPOD down, turn off all switches on sPOD
and start the vehicle to enable the sPOD again.
8. Accessory fuses. Any fuse can go here up to 30 AMPs. (6 pl.)
9. Relays that are removable.
Always keep your engine running
whenever possible when powering
electrical accessories
3
