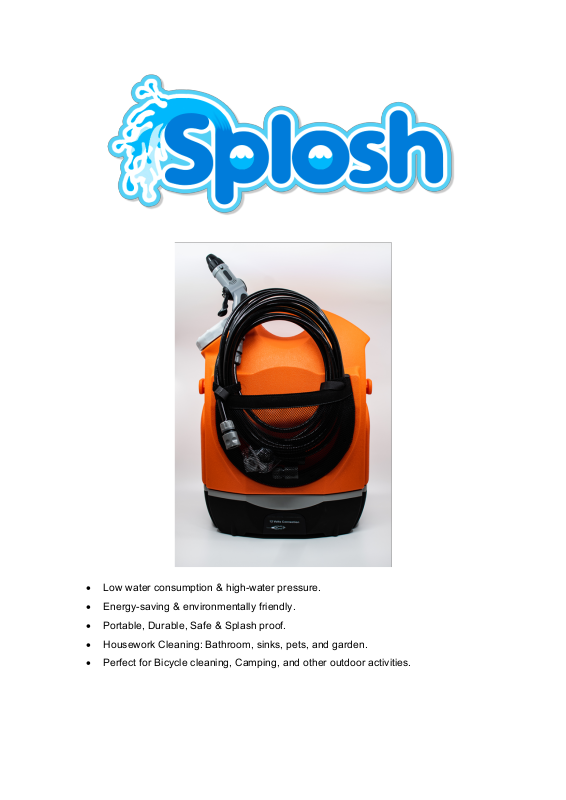

• Low water consumption & high-water pressure.
• Energy-saving & environmentally friendly.
• Portable, Durable, Safe & Splash proof.
• Housework Cleaning: Bathroom, sinks, pets, and garden.
• Perfect for Bicycle cleaning, Camping, and other outdoor activities.
!
!
Contents
Operating Instructions ............................................................................................................. 1!
Important Safety Instructions ................................................................................................... 1!
Limited Warranty ..................................................................................................................... 1!
Warning - to reduce the risk of injury: ...................................................................................... 2!
Features .................................................................................................................................. 3!
How to Assemble .................................................................................................................... 4!
How to Operate ....................................................................................................................... 6!
Automatic Shutoff .................................................................................................................... 7!
General Maintenance .............................................................................................................. 8!
Storing of Splosh #2 ................................................................................................................ 9!
Trouble Shooting the Splosh #2 ............................................................................................ 10!
1!
!
Congratulations!!
We trust your new purchase will bring you many years of satisfaction. Splosh Wash Limited
has designed and developed this product with you in mind. We are very proud of our products
and hope that you are equally satisfied with the quality and performance. Thank you for your
support in choosing our products.
Operating Instructions
Please read these instructions and warnings carefully before using your Splosh #2.
WARNING: Small parts may cause choking hazard.
Important Safety Instructions
When you use the unit, basic precautions should always be followed:
1. Do not fill with any liquid other than clean water; anything other than clean water
may cause serious injury;
2. Study the unit thoroughly before operating it; read the user manual to be familiar
with its operating controls;
3. Do not operate the product when under the influence of alcohol or drugs.
4. Damaged high-pressure hoses can burst and can cause a potentially hazardous
situation or injury. High-pressure hoses should not be kinked, crushed, twisted, or
damaged in any way. Replace the high-pressure hose should this occur.
5. Use water of temperature at 0°c to 40°c only.
Limited Warranty
Splosh Wash Limited will warrant the product for a period of 12 months from the date of
purchase. Please keep your warranty card or original sales invoice to validate the warranty
period.
If the product should become defective within the warranty period, we will repair or replace
any defective parts free of charge. The complete unit must be delivered prepaid to Splosh
Wash Limited. Please include complete description of the problem, date of purchase, with
original sales receipt and your name, address and telephone number.
The warranty does not include usual wear and tear, damage resulting from accident or
unreasonable use of the product, unauthorised repairs or parts that do not belong to the
product.
2!
!
Warning - to reduce the risk of injury:
1. Do not leave the unit unattended when plugged in. Unplug from power port when
not in use and before any maintenance of the unit.
2. This is NOT a toy. Close attention is necessary when used near children.
3. Use only manufacturer’s recommended accessories and replacement parts. Do
not use with damaged cord or plug. Do not use the unit if it is damaged or dropped
into water or when it is not working as it should.
4. Do not pull or carry by the cord, use the cord as handle, or pull the cord around
sharp edges. Keep cord away from heated surfaces.
5. Keep the nozzle free of obstructing objects. Do not use the unit when the nozzle is
clogged; keep free of dust, lint, hair and anything that may reduce water flow.
6. Keep hair, loose clothing, fingers, and all parts of body away from moving unit
parts.
7. Do not use without water filter in place.
8. Turn off all controls before unplugging.
9. Using improper voltage may result in damage to the motor and possible injury to
the user. Proper voltage is listed on the cleaner plate.
10. Do not direct the water jet toward the unit itself, electrical parts or towards other
electrical equipment.
11. Do not alter the original diameter of the spray head nozzle.
12. DISCHARGE residual pressure before disconnecting Splosh #2 hose.
13. Before using Splosh #2, CHECK every time that the screws are fully tightened and
that there are no broken or worn parts.
14. Not to be used with chlorine-based type cleaners or any detergents. Do not fill the
water container with anything but water, or your warranty will be VOID.
15. Never submerse the unit in water.
16. Do not allow the system to freeze. Always empty and store indoors. See storage
instructions.
17. Do not remove cover plate or attempt to disassemble your unit. This will void all
warranty, and may cause serious injury.
18. Always use the recommended plug/amp fuse for your unit. Any other may cause
damage to your unit or vehicle.
19. Do not spray water directly at eyes or mouth.
3!
!

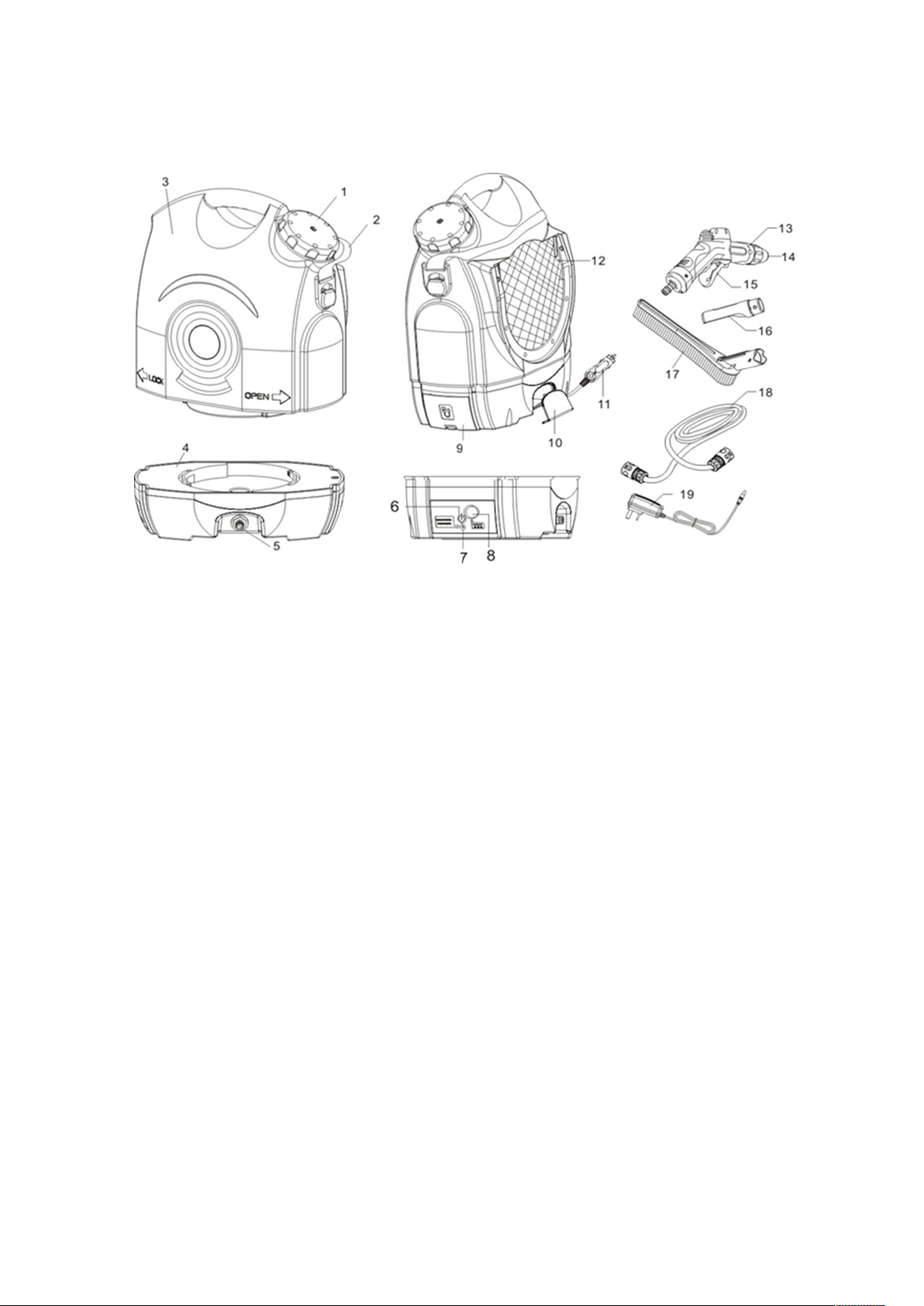

Features
1. Lid
2. Adjustable Shoulder Strap
3. Water tank
4. Motor pump case
5. Hose inlet
6. On/Off Power switch
(The unit will be locked with a long
press of the switch for over 5sec)
7. Indicator
(Charging: RED; Working and fully
charged: Green)
8. Charging Port
9. Charger Compartment
10. Cover for 12V connection
11. 12V connection
12. Mesh Storage Compartment
13. Multi-function Spray gun
14. Adjustable Nozzle head
15. Trigger lock
16. shower head
17. Brush head
18. Hose
19. Charger
4!
!

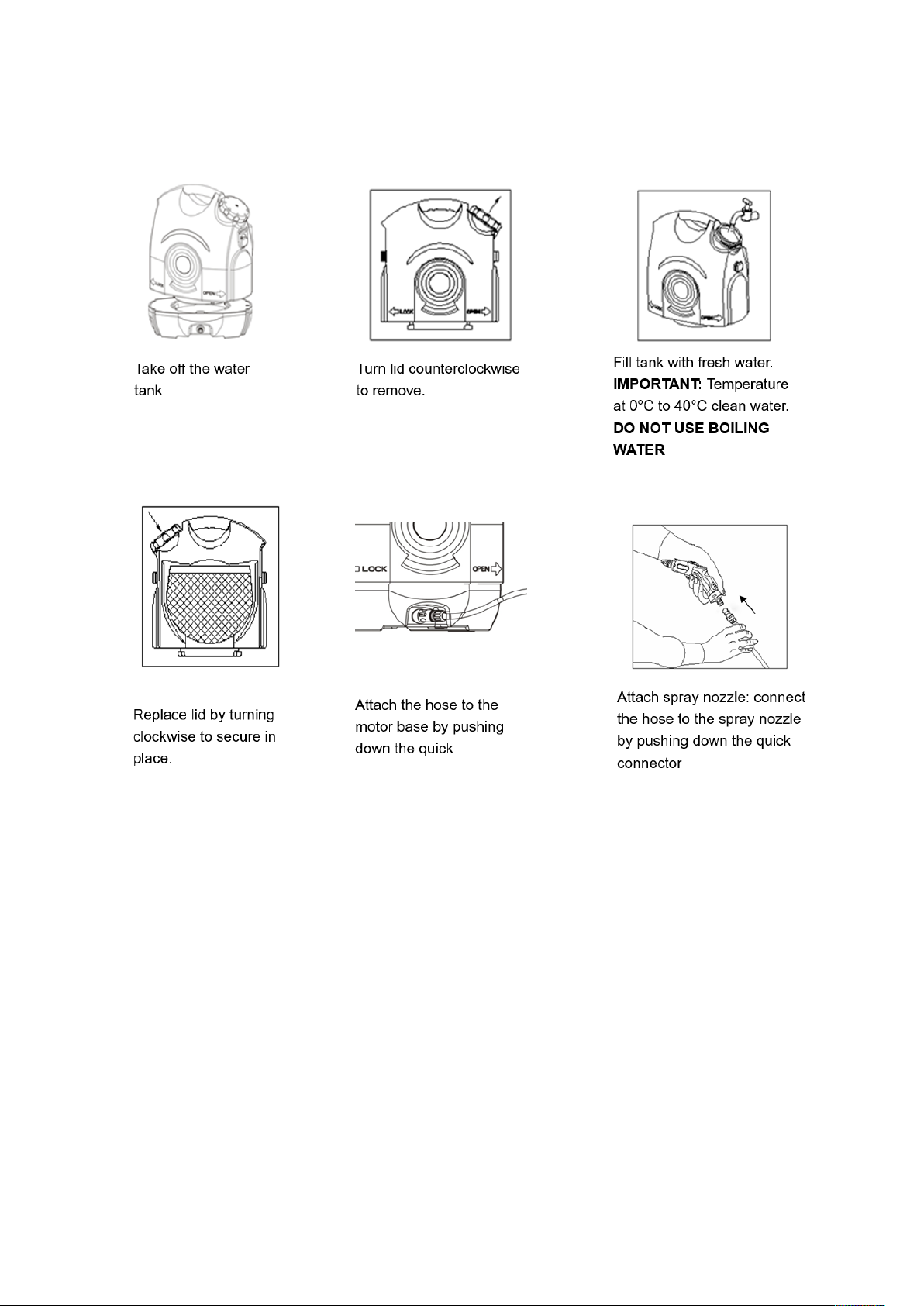

How to Assemble
5!
!

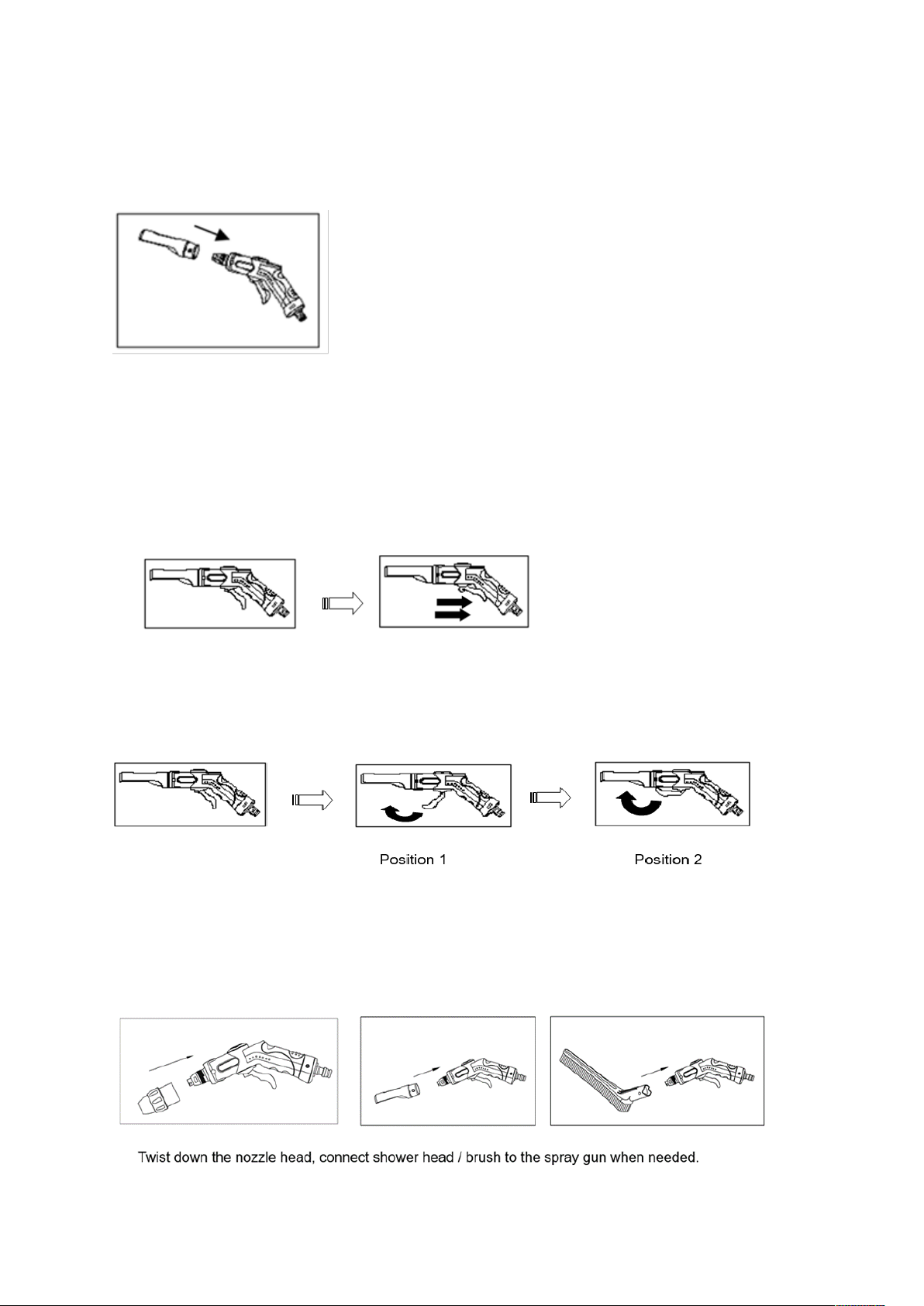

Spray Gun Assembly
Connect the shower head to the spray nozzle.
Push the shower head into the spray nozzle, firmly line up the salient points on the shower
head with the holes on the spray nozzle.
Spray gun operation:
Intermittent flow
For intermittent flow pull and release the trigger repeatedly.
Continuous flow
Water will continuously flow when the trigger is pushed forward at position 1 and will stop at
position 2.

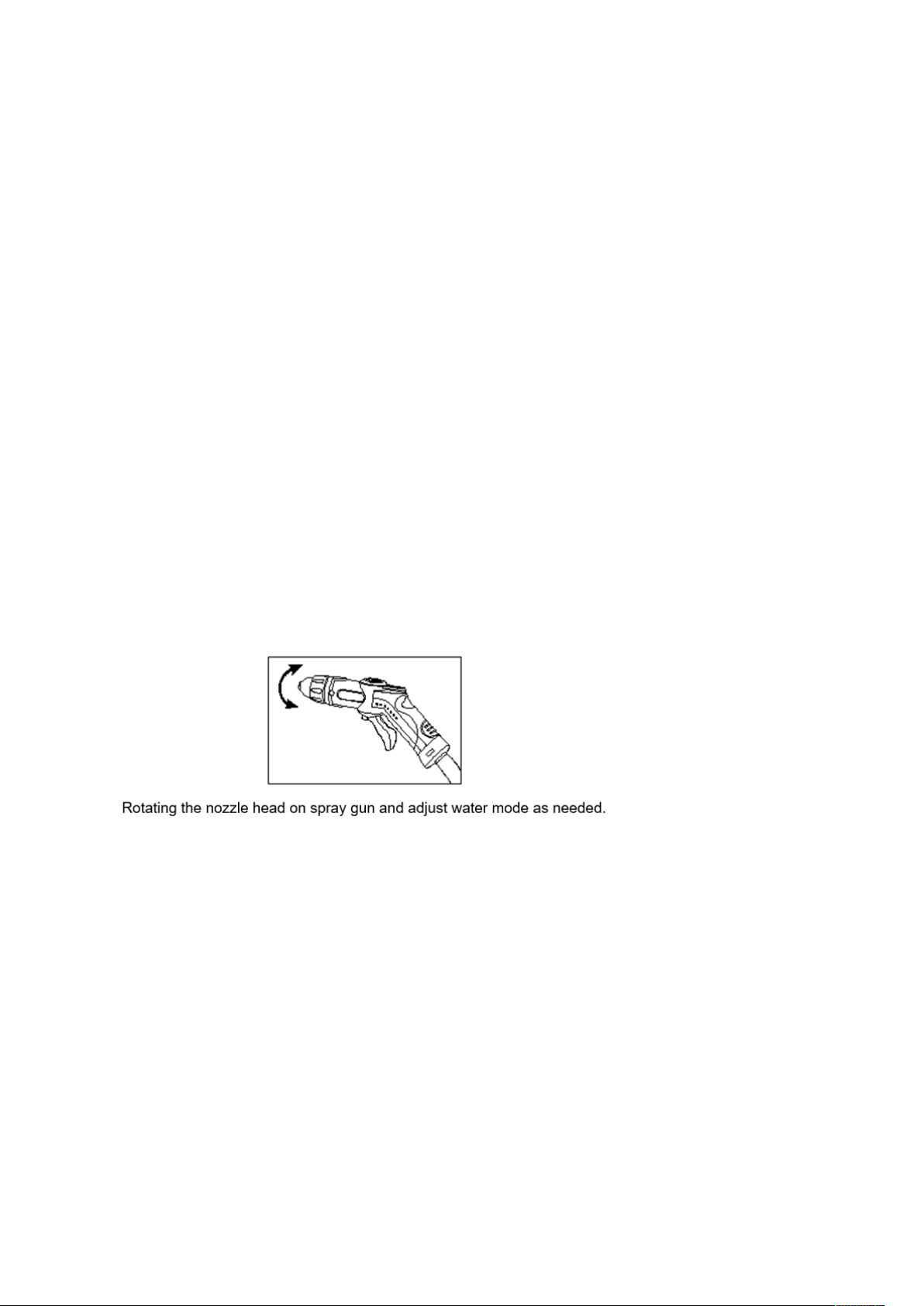

Variable Spray gun
6!
!
How to Operate
Important: disconnect the power cable whenever engine is turned off for extended period of
time. The power does not turn off after switching off the engine in certain vehicles. If the power
plug is left connected, vehicle’s battery may become run down or damaged. Please charge
before using for the first time!
!

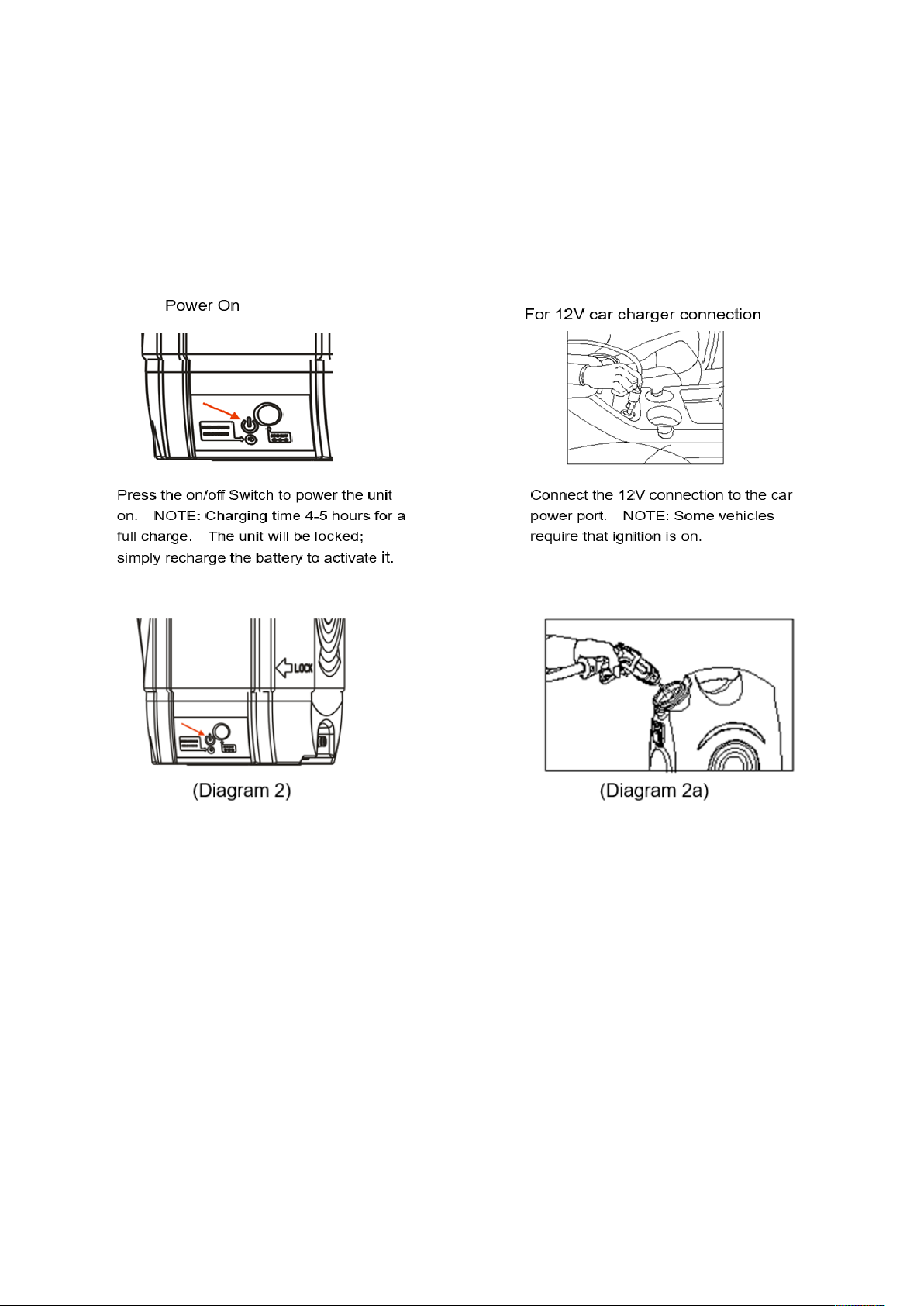

Purge air from system: turn unit on (Diagram 2). Point nozzle into water tank and squeeze
lever until steady stream of water exits hose (Diagram 2a)
With normal use, air can get trapped in the hose. We recommend the following steps to purge
the air out of your system and get the maximum amount of pressure out of your new Splosh #2.
7!
!
Follow these steps after each time you refill your tank:
1. Fill the tank with clean water. Do not use any products containing detergents.
2. Connect the hose to the motor pump case.
3. Connect the nozzle to the hose.
4. Press the on/off switch to start the unit when using the built-in battery.
When using the 12V connection, plug it into car cigarette lighter or other external
power port, then press the on/off switch, the unit will automatically switch to use
the power from 12V connections instead of its built-in battery.
5. Direct the pressure nozzle into the tank.
6. Turn the power on and run for approximately 30 seconds or until a steady stream
of water is present.
7. Turn off the power.
NOTE: Please start the engine while using the device if you are not sure whether the capacity
of the car battery is sufficient.
Automatic Shutoff
When the trigger is released, the dynamic pressure shuts the motor off automatically. When
the trigger is pressed, the pressure drop automatically activates the motor and pressure is
formed once again with a slight delay. To ensure correct automatic shutoff operation, the time
interval between trigger release and engagement must not be less than 5-10 seconds.
Shutting down your Splosh #2:
1. Turn off the switch on the base or lock it by holding the button for over 5 seconds.
2. Pull trigger on spray nozzle to relieve any water pressure in hose or spray nozzle.
3. Disconnect hose from unit.
4. Disconnect nozzle from hose.
5. Press spray nozzle to remove excess water.
!
8!
!
General Maintenance
Warning: always disconnect the plug from the power supply before any maintenance is
started.
1. Water Filter: Check the water filter on the motor base before attaching the water
tank. Clean the filter when necessary.
2. Nozzle Clogged: A clogged nozzle will cause the operating pressure to be too high
causing the Splosh #2 to surge. If this happens turn the unit off and unplug pressure
washer:
• Unplug power supply, pull trigger on spray nozzle handle to relieve
pressure, remove nozzle from hose.

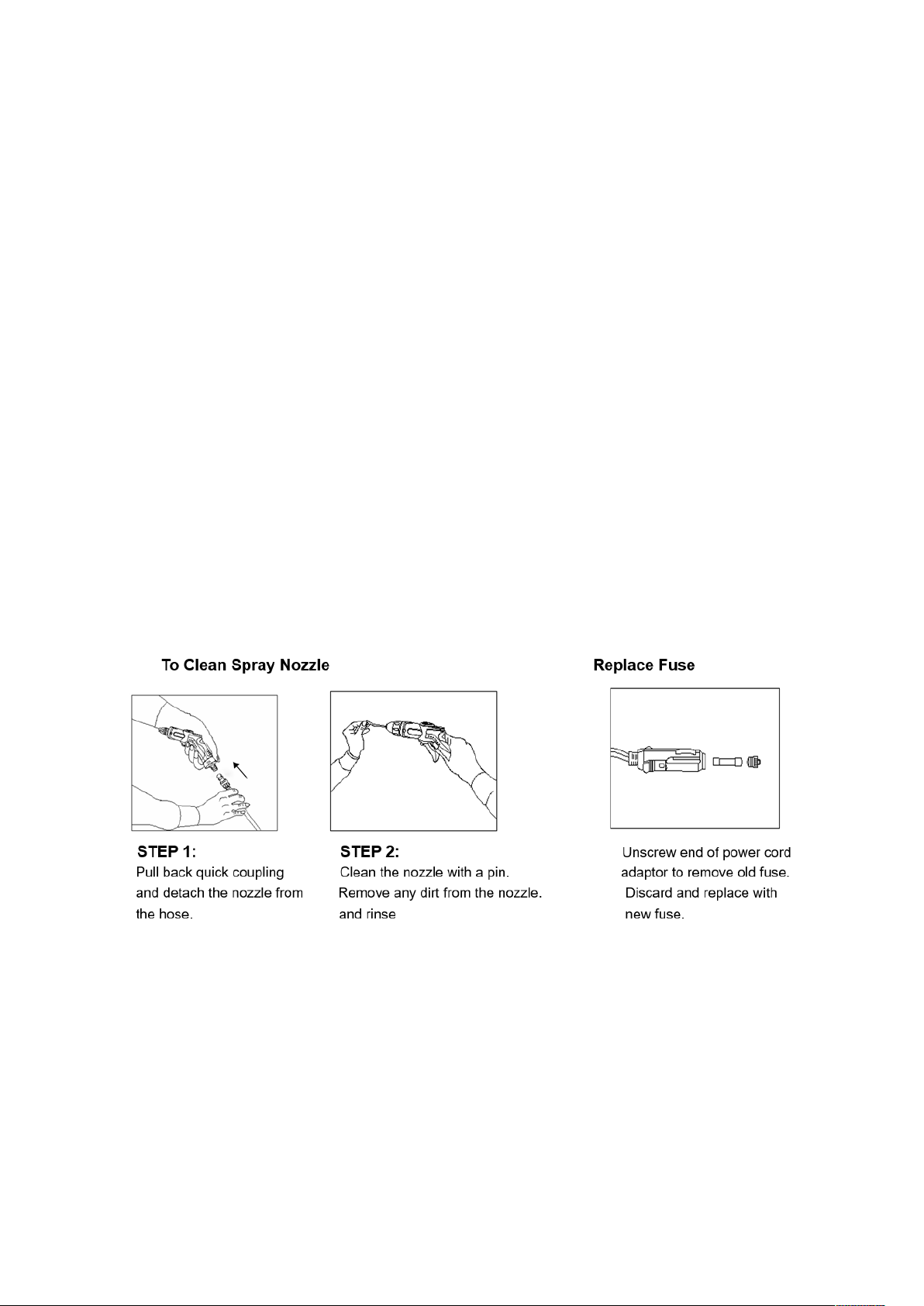

• Clean the spray nozzle with a pin. (See Diagrams 1&2 below).
• Flush wand assembly backwards with water or compressed air.
• If pressure is still too high, repeat steps 1-2.
3. Lubrication: No lubrication is required for this pump. Silicone grease may be added
to hose connector O-rings if connecting becomes difficult.
4. Add some silicone grease to the metal part of the spray nozzle if it has not been
used for a long time.
For battery:
1. Do not store the unit in elevated temperatures for an extended period of time.
2. Store the unit in a dry, cool and well-ventilated place, protect from direct exposure to
sunlight.
3. The unit must be stored in a partial state-of-charge, ideally 50% (charge the battery for
about 2 hours), recommended temperature 0°C ~20°C, if it is not in regular use, charge
the battery to approx. 50% instead of fully charging every 3 months.
9!
!
4. To charge the battery, only use the original mains charger included in the box. Use of
other chargers may damage the battery or may cause serious injury.
Storing of Splosh #2
Your Splosh #2 should be stored in such a way to protect it from freezing. Do not store this
unit outdoors or on an area where temperatures will fall below 0°C (32°F). This can cause
extensive damage to this unit and void the warranty. Before storing, follow the shutting down
instructions.
Drain water from unit:
1. Turn off at the switch, squeeze the nozzle lever to release pressure. Remove
nozzle and squeeze nozzle to drain water from nozzle. Empty water from tank.
Turn the unit on and run for approximately 30 seconds without nozzle.
2. Detach high-pressure hose. Elevate one end and allow water to drain from hose.
3. Remove and place hose, nozzle and power cord in mesh storage compartments.
4. If unit must be stored in freezing conditions, or will be stored for more the 30 days,
a pump winteriser / protector or a non-toxic RV anti-freeze can be used to prevent
freezing and reduce mineral deposits.
Add anti-freeze as follows:
1. Pour approximately 3 litres (1/2 gallon) of RV anti-freeze into tank.
2. Connect high-pressure hose, nozzle, and power cord.
3. Turn the unit on, squeeze lever until a steady stream of RV anti-freeze in present.
4. Turn the unit off. Squeeze nozzle lever to release pressure.
5. Remove and place the hose, nozzle and power cord in mesh storage
compartments.
Using unit after storing with anti-freeze:
1. Drain RV anti-freeze. (follow steps 1 and 2 from Drain water from system)
2. Run 1 tank of fresh water through system before using and ensure all anti-freeze
is purged from system.
WARNING: USE ONLY RV ANTIFREEZE. ANY OTHER ANTI-FREEZE IS CORROSIVE
AND CAN DAMAGE PUMP AND VOID WARRANTY.
10!
!
Trouble Shooting the Splosh #2
Problems
Correction
The pump will not start.
v When using car’s power with cigarette lighter, please check:
o Check power cord is attached properly and has not been
damaged in any way.
o Check the vehicle’s battery, in some vehicles the
cigarette lighter will only have electricity when the ignition
is switched on.
o Check the fuse for cigarette lighter.
v When using the built-in battery, please check if the battery
is out of power and needs to be recharged.
v The unit may be locked, every new unit is locked before
packed; to activate it simply recharge the battery with the
provided charger for a few seconds.
The pump is running, but
there is no water
v Check the nozzle is not clogged.
v Check the inlet water filter is not blocked.
v Check the water hose is not bent and firmly attached.
The pump will not
automatically shut down
when the spray gun is
turned off
v Check if there is water in the tank or not.
v If the pressure switch is damaged, contact Splosh technical
support.
v Pump is faulty, contact Splosh technical support.
Note：To avoid using up the vehicle’s power, please start the engine if you need to use the
cigarette lighter for more than 30 minutes. To protect the battery, please do not use the unit
for more than 20 minutes of continuous spraying.
Disposal
Electrical and electronic devices must never be disposed of in regular household waste!
Consumers are legally obligated and responsible for the proper disposal of electronic and
electrical devices by returning them to collecting sites designated for the recycling of electrical
and electronic equipment waste. For more information concerning disposal sites, please
contact your local authority or waste management company.
11!
!
Specification:
• Pressure (PSI): 43.5 to 130.5
• Voltage: 12V (DC)
• Power: 45W
• Hose: 6.0 meter
• Power Cord: 3.0 meter
• Capability: 17 litres
• N.W.: 3.15kg
• Dimension: 350 x 230 x 460 mm
• Charger Output: 13.4V 1A
Packaging list
Item
Name
Quantity
1
Water Tank 17L
ONE
2
Motor Pump
ONE
3
Hose
ONE
4
Spray Gun
ONE
5
Shower Head
ONE
6
charger
ONE
7
Shoulder Strap
ONE
8
Sealing Ring
FOUR
9
Instruction Book
ONE
Loading...
