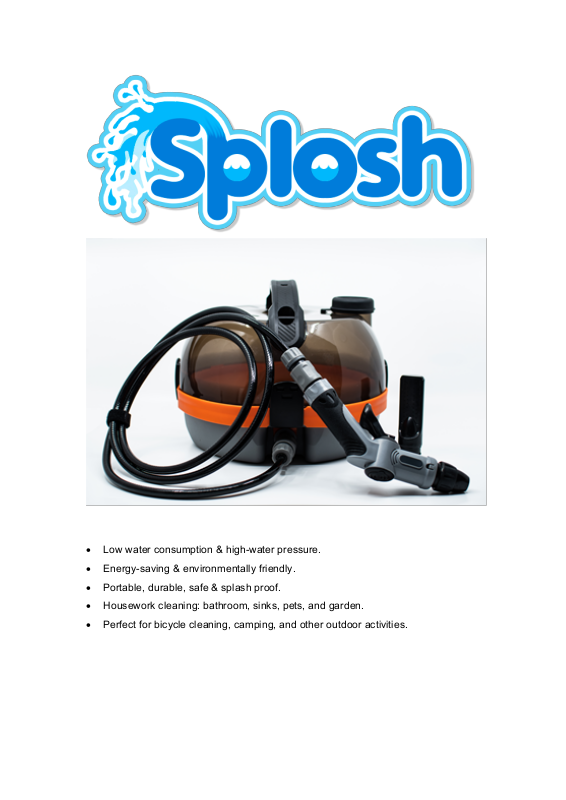

• Low water consumption & high-water pressure.
• Energy-saving & environmentally friendly.
• Portable, durable, safe & splash proof.
• Housework cleaning: bathroom, sinks, pets, and garden.
• Perfect for bicycle cleaning, camping, and other outdoor activities.
!
!
Contents
Operating Instructions ............................................................................................................. 1!
Important Safety Instructions ................................................................................................... 1!
Limited Warranty ..................................................................................................................... 1!
Warning - To reduce the risk of injury ..................................................................................... 2!
Features .................................................................................................................................. 3!
How to Operate ....................................................................................................................... 4!
Spray Gun Assembly ............................................................................................................... 5!
Spray gun Operation: .............................................................................................................. 5!
Automatic shutoff ..................................................................................................................... 6!
General Maintenance .............................................................................................................. 7!
Storing of Splosh #1 ................................................................................................................ 8!
Trouble Shooting Splosh #1 .................................................................................................... 9!
1!
!
Congratulations!!
We trust your new purchase will bring you years of satisfaction. Splosh Wash Limited has
designed and developed this product with you in mind. We are very proud of our products and
hope that you are equally satisfied with the quality and performance. Thank you for your
support in choosing our products.
Operating Instructions
Please read these instructions and warnings carefully before using your Splosh #1.
WARNING: Small parts are a choking hazard
Important Safety Instructions
When you use the unit, basic precautions should always be followed:
1. Do not fill with any liquid other than clean water; anything other than clean water may
cause serious injury;
2. Study the unit thoroughly before operating it; read the user manual to be familiar with
its operating controls;
3. Do not operate the product when under the influence of alcohol or drugs;
4. Damaged high-pressure hoses can burst and can cause a potentially hazardous
situation or injury. High-pressure hoses should not be kinked, crushed, twisted, or
damaged in any way. Replace the high-pressure hose should this happen
5. Do use water of temperatures at 0°c to 40°c.
Limited Warranty
Splosh Wash Limited will warrant the product for a period of 12 months from the date of
purchase. Please keep your warranty card or original sales invoice to validate the warranty
period.
If the product should become defective within the warranty period we will repair or replace any
defective parts free of charge. The complete the unit must be delivered prepaid to Splosh
Wash Limited. Please include complete description of the problem, date of purchase, with
original sales receipt and your name, address and telephone number.
The warranty does not include usual wear and tear, damage resulting from accident or
unreasonable use of the product, unauthorised repairs or parts that do not belong to the
product.!
2!
!
Warning - To reduce the risk of injury
1. Do not leave the unit unattended when plugged in. Unplug from power port when
not in use and before any maintenance of the unit.
2. This is NOT a toy. Close attention is necessary when used near children.
3. Use only the manufacturer’s recommended accessories and replacement parts.
Do not use with damaged cord or plug. Do not use the unit if it is damaged or
dropped into water or when it is not working as it should.
4. Do not pull or carry by cord, use the cord as a handle or pull the cord around sharp
edges. Keep the cord away from heated surfaces.
5. Keep the nozzle free of obstructing objects. Do not use the unit when nozzle
clogged; keep free of dust, lint, hair, and anything that may reduce air flow.
6. Do not use without water filter in place.
7. Turn off all controls before unplugging.
8. Using improper voltage may result in damage to the motor and possible injury to
the user. Proper voltage is listed on the cleaner info plate.
9. Do not direct the water jet toward the unit itself, electrical parts or towards other
electrical equipment.
10. Do not alter the original diameter of the spray nozzle.
11. DISCHARGE residual pressure before disconnecting the hose from Splosh #1.
12. Before using the Splosh #1, CHECK every time that the screws are fully tightened
and that there are no broken or worn parts.
13. Not to be used with chlorine-based type cleaners, or any detergents.
14. Do not fill the water container with anything but water, or your warranty will be
VOID.
15. Never submerse the unit in water.
16. Do not allow the system to freeze. See Storing Splosh #1.
17. Do not attempt to disassemble the unit. This will void all warranty, and may cause
serious injury.
18. Always use the recommended plug/amp fuse for the unit. Any other may cause
damage to the unit or cause injury to people.
19. Do not spray water directly at eyes or mouth.
3!
!

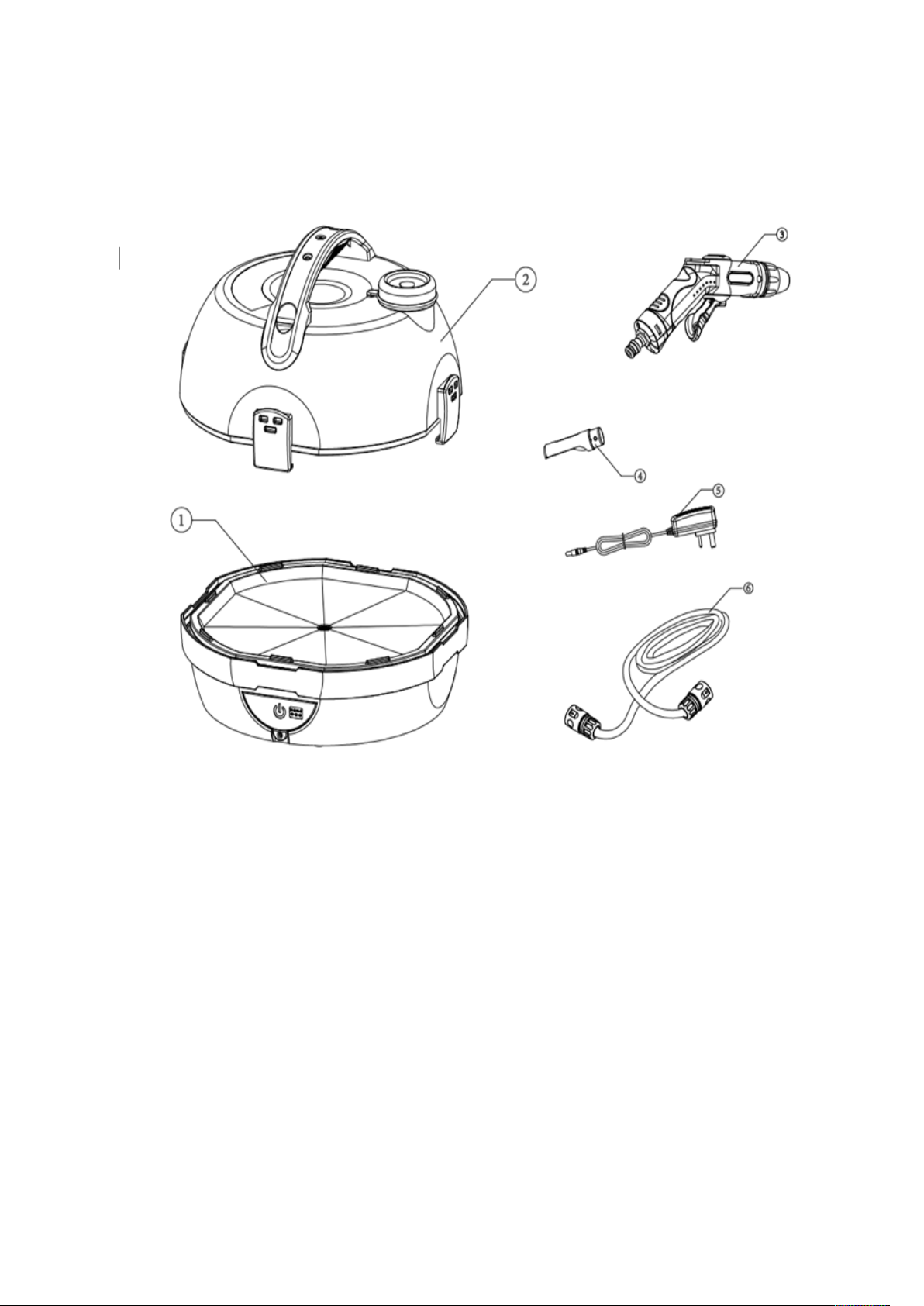

Features
No. Part Name
1 Base
2 Reservoir lid
3 Spray Gun
4 Shower Head
5 Mains Charger
6 2m Hose with quick coupling
4!
!

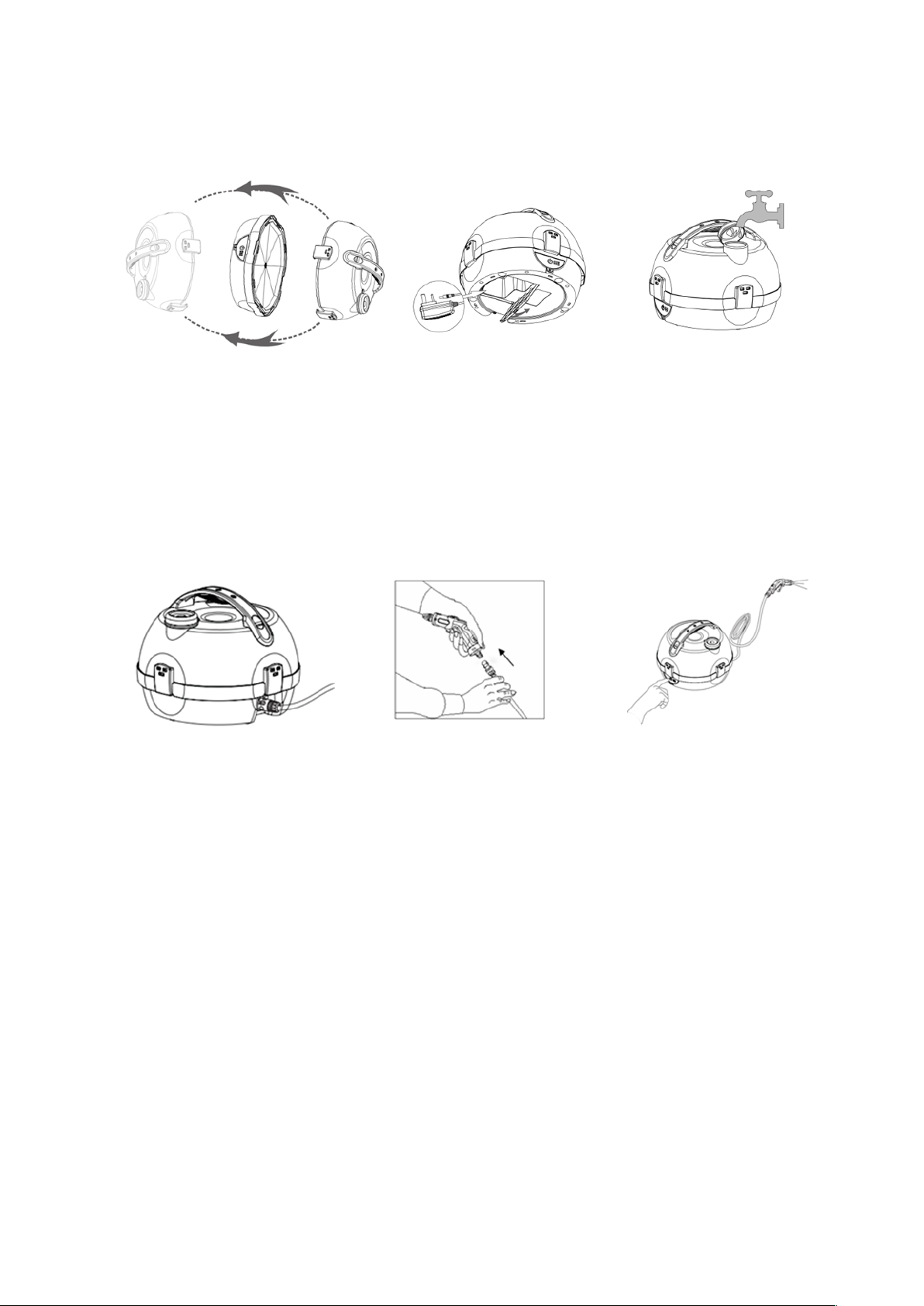

How to Operate
!
Unbuckle the 4 plastic hinges,
take off the lid, connect the
reservoir lid to the base &
buckle the hinges up.
Take out the charger from the
compartment and plug into
mains to activate the cleaner.
Fill tank with fresh water.
IMPORTANT: Water
Temperature at 0°C to 40°C.
DO NOT USE BOILING!
WATER.!
Attach hose
Attach hose to motor base by
pushing down the quick
connector.
Attach Spray Nozzle
Connect hose to spray nozzle by
pushing down the quick connector.
Press on/off switch to
start the unit.
5!
!
Spray Gun Assembly
Connect the shower head to the spray nozzle.
Pushing the shower head to the spray nozzle, firmly line up the salient points on the shower
head with the holes on the spray nozzle.

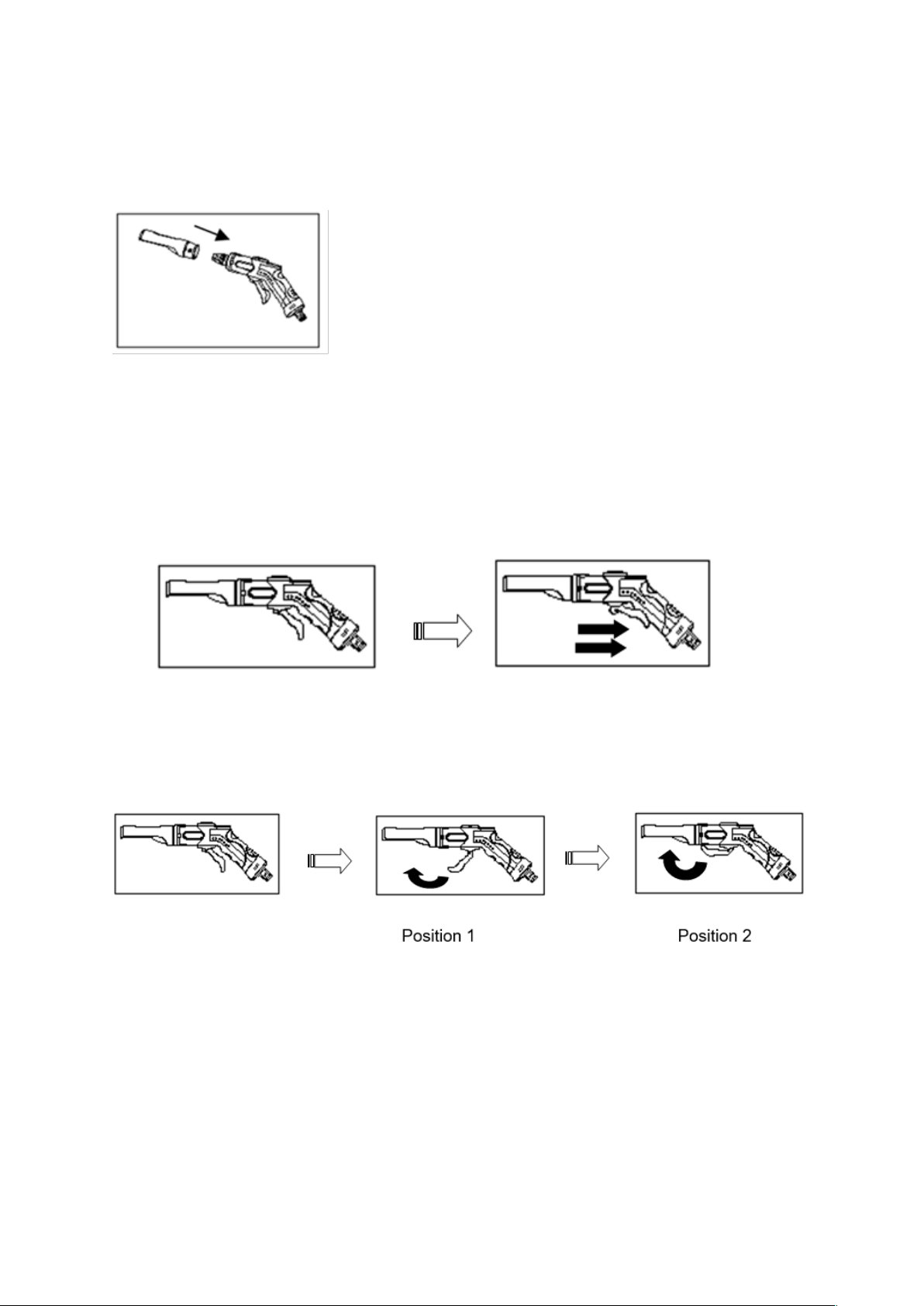

Spray gun operation:
Intermittent flow
For intermittent flow pull and release the trigger repeatedly.
Continuous flow
Water will continuously flow when the trigger is pushed forward at position 1 and will stop at
position 2.
!
6!
!
Automatic shutoff
When the trigger is released the dynamic pressure shuts off the motor automatically. When
the trigger is pressed, the unit automatically activates and pressure is formed once again with
a slight delay. To ensure correct automatic shutoff operation, the time interval between trigger
release and engagement must not be less than 5-10 seconds.

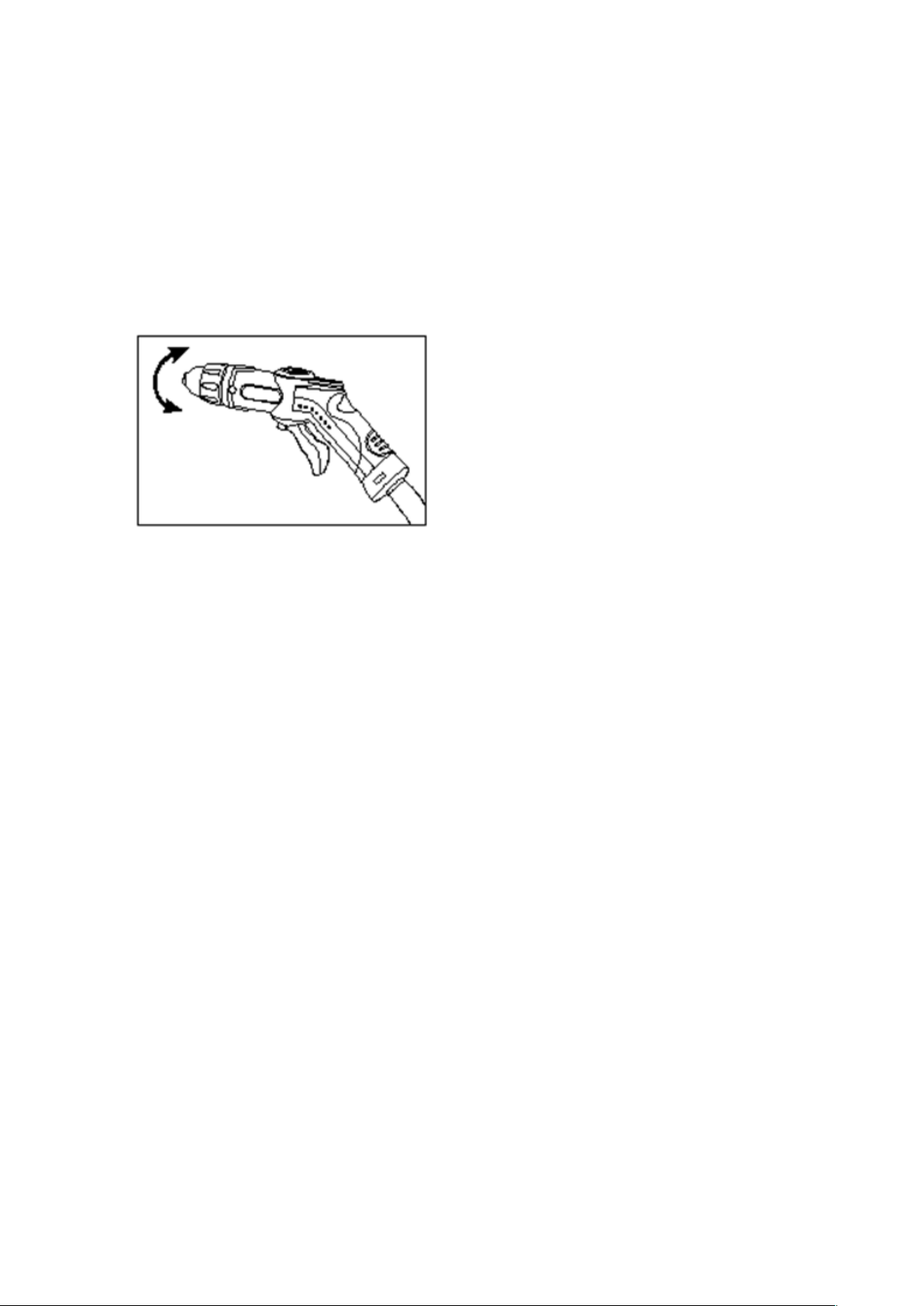

Rotating the nozzle head on the spray gun will adjust the water mode as needed.
Note: When the unit is empty of water the unit will not shut off automatically. Release the
trigger and turn off the unit using the on-off switch on the unit.
Shutting down your Splosh #1:
1. Press spray nozzle or open the cover to remove excess water
2. Turn off the unit using the switch on the base or lock it by holding the button for
over 5 seconds.
3. Pull the trigger on spray nozzle to relieve any water pressure in the hose or spray
nozzle.
4. Disconnect the hose from the unit.
5. Disconnect the nozzle from the hose.
!
7!
!
General Maintenance
Warning: always disconnect the plug from the power supply before any maintenance is
started.
1. Water Filter: Check the water filter on the motor base is free from debris. Clean the
filter when necessary.
2. Nozzle Clogged: A clogged nozzle will cause the operating pressure to be too high
causing the Splosh #1 to surge. If this happens turn unit off:
• Turn the unit off, pull trigger on spray nozzle to relieve pressure, remove nozzle
from hose.
• Clean the spray nozzle with the nozzle. (See Diagrams 1&2 below).
• Flush wand assembly backwards with water or compressed air.
• If pressure is still too high, repeat steps 1-2.
3. Lubrication: No lubrication is required for this pump. Silicone grease may be added
to hose connector O-rings if connecting becomes difficult.!
4. Add some silicone grease to the spray nozzle if it has not been used for a long
time.

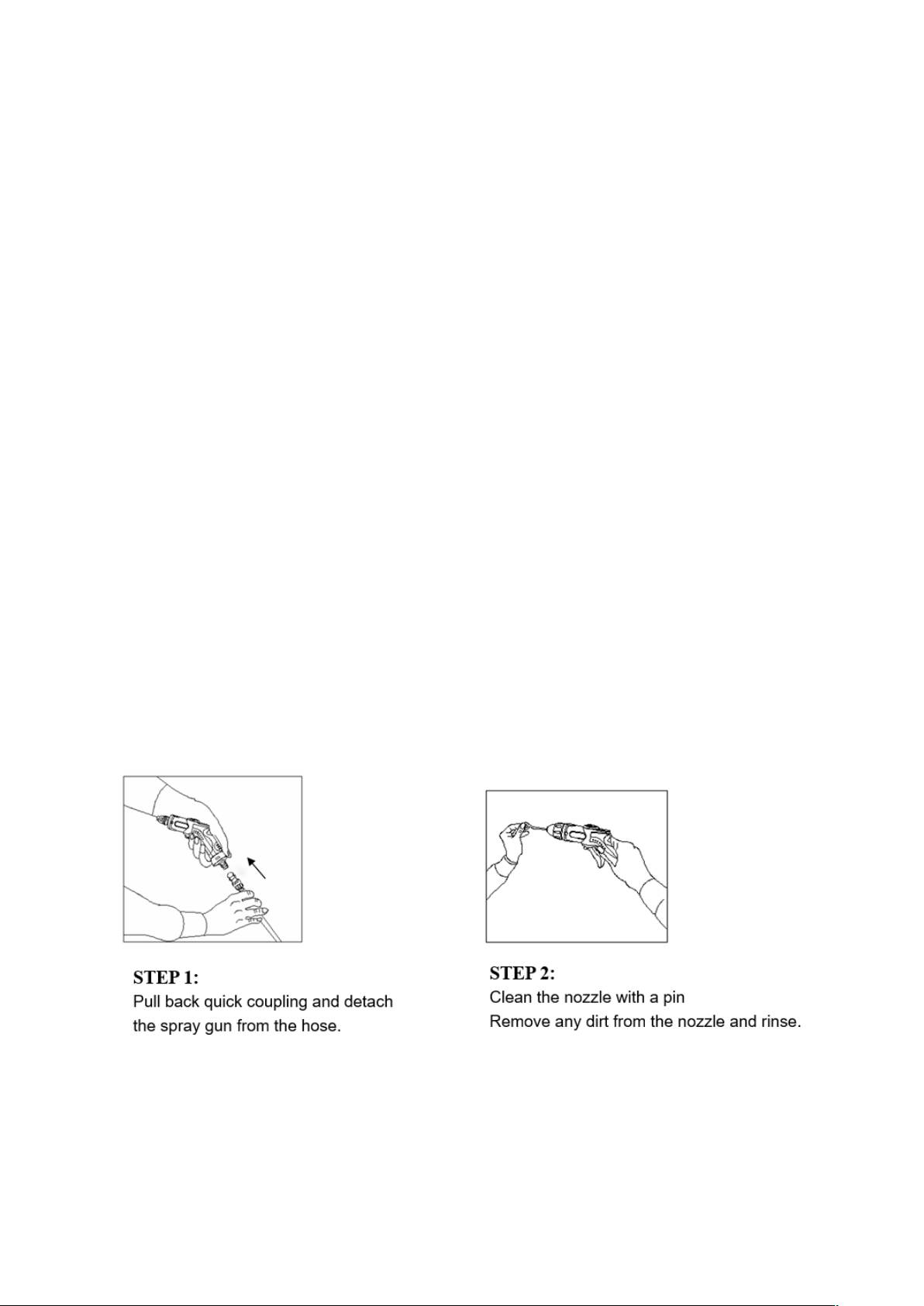

To Clean Spray Nozzle
For battery:
§ Do not store the unit in elevated temperature for an extended period of time.
§ Store the unit in a dry, cool and well-ventilated place, protect from direct exposure
sunlight.
8!
!
§ The unit must be stored in a partial state-of-charge, ideally 50% (charging the battery
about 1 hour after each time of use), recommended temperature 0°C ~20°C, if it is not
in regular use, be sure to charge the battery to approx. 50% SOC instead of fully charged
at least every 3 months.
§ To charge the battery, make sure to use the original mains charger included with the
product. Using another charger may damage the battery or may cause serious injury.
Storing of Splosh #1
Your Splosh #1 should be stored in such a way to protect it from freezing. Do not store it
outdoors or in an area where temperatures will fall below 0°C (32°F). This can cause extensive
damage to this unit and void the warranty. Before storing, follow the shutting down instructions.
Drain water from the unit:
1. Turn the unit off, squeeze nozzle lever to release pressure. Remove the nozzle
and squeeze nozzle to drain water from nozzle. Empty water from tank. Turn unit
on and run for approximately 30 seconds without nozzle.
2. Detach high-pressure hose. Elevate one end and allow water to drain from hose.
3. Remove and place hose, nozzle and power cord in mesh storage compartments.
4. If the unit must be stored under freezing condition, or will be stored for more the 30
days, a pump winteriser/protector or a non-toxic RV anti-freeze can be used to
prevent freezing and reduce mineral deposits.
Add anti-freeze as follows:
1. Pour approximately 3 litres (1/2 gallon) of RV anti-freeze into tank.
2. Connect high-pressure hose, nozzle, and power cord.
3. Turn the unit on, squeeze lever until a steady stream of RV anti-freeze is present.
4. Turn the unit off. Squeeze nozzle lever to release any residual pressure.
5. Remove and place hose, nozzle and power cord in mesh storage compartments.
Using Splosh #1 after storing with anti-freeze:
1. Drain RV anti-freeze. (follow steps 1 and 2 from Drain water from system)
2. Run 1 tank of fresh water through system before using and ensure all anti-freeze
is purged from system.
WARNING: USE ONLY RV ANTIFREEZE. ANY OTHER ANTI-FREEZE IS CORROSIVE
AND CAN DAMAGE PUMP AND VOID WARRANTY.
9!
!
Trouble Shooting Splosh #1
Problems
Correction
The pump will not start
v Check if the battery is out of power or not.
v Check if the hose is well connected to the outlet connector
or not.
v Check if the unit has been locked or not. Every new unit
will be locked when leaving the factory by a long press of
the on-off switch for over 5 seconds, to activate it, simply
recharge the battery with the provided charger for a few
seconds.
The pump is running, but
there is no water
v Check the nozzle is not clogged.
v Check the filter on the base is not blocked.
v Check the water hose is not bent and firmly attached.
v Check the unit has water in storage tank.
The pump will not
automatically shut down
when the spray gun is
turned off
v Check if there is water in the storage tank or not.
v If pump is faulty, contact Splosh technical support.
NOTE: To protect the battery, please do not use the unit for more than 30 minutes of
continuous spraying and charge the battery after each use.
Disposal
Electrical and electronic devices must never be disposed of in regular household waste.
Consumers are legally obligated and responsible for the proper disposal of electronic and
electrical devices by returning them to collecting sites designated for the recycling of electrical
and electronic equipment waste. For more information concerning disposal sites, please
contact your local authority or waste management company.
10!
!
Specification:
• Pressure (PSI): 43.5 to 130.5
• Voltage: 12V (DC)
• Power: 45W
• Hose: 2.0 meter
• Water flow: 2.0L/min
• Capability: 5 Litres
• N.W.: 2.2 KGS
• G.W.: 2.5 KGS
• Dimension: 31 X 31 X 18.5 CM
• Charger Output: 13.4V 1A
Packaging list
Item
Name
Quantity
1
Cover
ONE
2
Main Device
ONE
3
Hose
ONE
4
Spray Gun
ONE
5
Shower Head
ONE
6
Mains charger
ONE
8
Sealing Ring
TWO
9
Instruction Book
ONE
