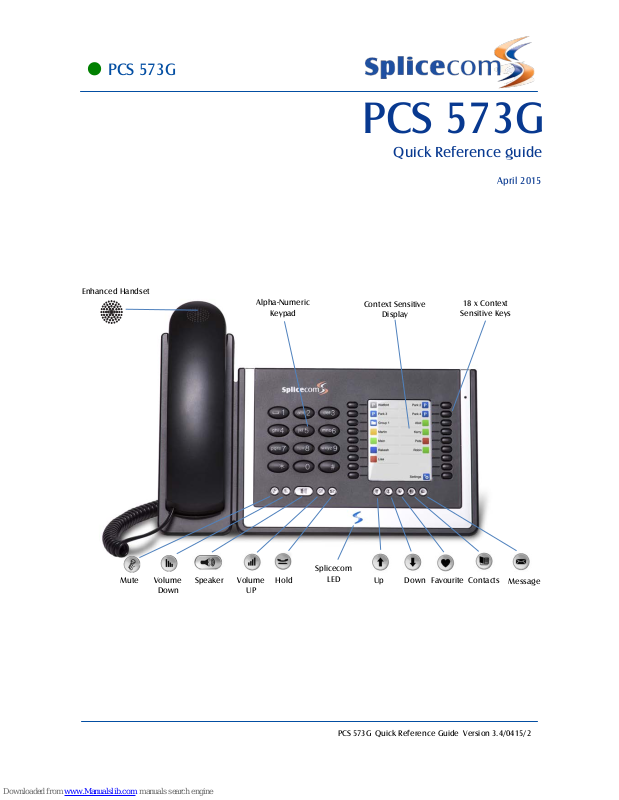

PCS 573G
PCS 573G Quick Reference Guide Version 3.4/0415/2
!
!
!
Message
Contacts
Favourite
Down
Up
Splicecom
LED
Hold
Volume
UP
Speaker
Volume
Down
Mute
Alpha-Numeric
Keypad
Context Sensitive
Display
18 x Context
Sensitive Keys
Enhanced Handset
!
PCS 573G
Quick Reference guide
April 2015
!
PCS 573G
1
PCS 573G Quick Reference Guide Version 4/0415/1
!
!
!
Making an Internal Call
Making an Internal Call
Dial the extension number via the alpha-numeric keypad
Press the context sensitive key alongside the |Dial| icon, or lift
your handset
The Call Status screen will display whom you are ringing and your
details
OR OR
Lift your handset or press the Speaker key and
Dial the extension via the alpha-numeric keypad
OR OR
Press the Contacts Key
Press the key on the keypad that displays the first letter of the
User’s name
Find the User required by using the Navigation keys
Select the User required using the context sensitive key alongside
the |User Name|
Dial the User using the context sensitive key alongside the
number required
OR OR
Press the Favorites Key (Unless this is your default idle page)
Find the colleague required from your Favourites display using the
Navigation Keys
Dial the colleague required us ng the context sensitive Key
alongside |Speed Dial Name|
(Note: If the extension you are ringing is busy or not answered
within 20 seconds (default) you will be passed to voicemail, if
enabled.)
!
PCS 573G
PCS 573G Quick Reference Guide Version 4/0415/1
2
!
!
!
Making an External Call
OR
OR
Making an External Call
Dial the external number via the alpha-numeric keypad. (Your
System Administrator will inform you if a prefix is required.)
Press the context sensitive key alongside the |Dial| icon, or lift
your handset
The Call Status screen will display whom you are ringing and your
details
OR
Lift your handset or press the Speaker button
Dial the external number via the alpha-numeric keypad. (Your
System Administrator will inform you if a prefix is required.)
OR
!
Press the Contact Key
Press the key on the keypad that displays the first letter of the
Contact’s name
Find the Contact required using the Navigate Keys
Select the Contact required using the context sensitive key
alongside the |Contact Name|
Dial the Contact using the context sensitive key alongside the
number required
OR OR
Press the Favorites Key (Unless this is your default idle page)
Find the contact required from your Favourites display using the
Navigation Keys
Dial the Contact required by using the context sensitive Key
alongside | Speed Dial Name |
!
PCS 573G
3
PCS 573G Quick Reference Guide Version 4/0415/1
!
!
!
Answering a Call
Answering a Call
Call Status will display the caller’s details
List the handset or press the Speaker button to answer the call
OR OR
If you do not wish to answer the call select the context sensitive
alongside the |Reject| Icon and the call will be passed to your
Forward on Busy Number (If set), or to voicemail (If enabled), or
cancelled. (If your phone is busy or not answered within 20 seconds
(default) the caller will be passed to voicemail, if enabled)
Ending a Call
Placing a Call on Hold
Ending a Call
Replace your handset (if you are using the handset), or press the
Speaker button (if you are using hands free)
Placing a Call on Hold
Press the Hold Key
To retrieve the call press the Hold Key a 2nd time
Transferring a Call
Announced Transfer
OR
Announced Transfer
Place the call on hold using the Hold Key.
Dial the internal or external number
Wait for the call to be answered and announce the intended
transfer
To transfer the original call, replace your handset (if you are using
the handset) or press the Speaker Key (if you are using hands
free)
OR
To return to the original call, press the Hold Key, or wait for the
destination to hang up.
!
PCS 573G
PCS 573G Quick Reference Guide Version 4/0415/1
4
!
!
!
Transferring a Call (cont)
OR OR
To return to the original call and place the second call on hold,
press the context sensitive key alongside the |Switch| icon to
toggle between the two calls.
To connect the two calls, replace your handset (if you a e using
the handset) or press the Speaker button (if you are using hands
free)
Blind Transfer (unannounced) Blind Transfer (un-announced transfer)
Transfer to colleague’s voicemail
Parking a Call
Place the call on hold using the Hold Key
Dial the internal or external number
To complete the transfer, replace your handset (if you are using
the handset) or press the Speaker button (if you are using hands
free)
Transferring a Call Directly to a Colleague’s voicemail
Place the call on hold using the Hold Key
Dial the internal number
Press the context sensitive key alongside the |Leave Message|
icon
To complete the transfer, replace your handset (if you are using
the handset) or press the Speaker button (if you are using hands
free)
Parking a Call
This facility allows a call to be held on the system and picked up by
any extension.
Once on a call press one of the context sensitive keys alongside
|Park| 1–4 (default)
!
The caller’s details will be displayed against the relevant Park Slot.
!
PCS 573G
5
PCS 573G Quick Reference Guide Version 4/0415/1
!
!
!
Picking Up a Parked Call
OR
Picking up a Parked Call
Press the Favourites button
Park Slots 1–4 (default) will be shown at the top of the display. If
in use, the name (or number) relating to the parked call will be
shown
Press the context sensitive key alongside the relevant Park Slot to
retrieve the call |Name|
OR
If your default Idle Page has been set to Favourites, Park Slots 1–4
(default) will be shown at the top of the display. If in use, the
name (or number) relating to the parked call will be shown.
Press the context sensitive key alongside the relevant Park Slot to
retrieve the call |Name|
Calls History
Your Calls History (Messages button) displays a list of calls you
have made and been answered, calls you have made and not
been answered, calls you have answered, calls you have missed,
new voicemail messages and previously read voicemail messages.
View your Calls History
Redialling a Number
To view your Calls History
Press the Messages Key
Use the Navigation Keys to view your Calls History
Press the Message Key a 2nd time to exit
Redialling a Number
Press the Message Key
Use the Page Up/Down arrows to find the call to be redialed
Press the context sensitive key alongside the appropriate name or
number |Name| or |01234.....|. The entry will be displayed with a
green background.
Press the context sensitive key alongside the appropriate name or
number |Name| or |01234.....| again.
!
PCS 573G
PCS 573G Quick Reference Guide Version 4/0415/1
6
!
!
!
To Call a Previous Caller Back
To Call Previous Caller Back
Press the Message Key
Use the Navigation Keys to find the call to be dialed
Select the entry to be called using the context sensitive key
alongside |Name| or |01234.....| The entry will be displayed with
a green background.
Press the context sensitive key alongside the appropriate name or
number |Name| or |01234.....| again.
To Delete a Call Entry
To Delete a Call Entry
Press the Message Key
Use the Page Up/Down arrows to find the call to be deleted
Select the entry to be deleted using the context sensitive key
alongside |Name| or |01234.....|
Select the context sensitive key alongside the |Delete| icon
Select the context sensitive key alongside the |Yes| icon to
confirm you wish to delete the entry
Press the Messages button to exit
!
PCS 573G
7
PCS 573G Quick Reference Guide Version 4/0415/1
!
!
!
Voicemail
Leaving a Message for a Colleague
Accessing Your Own Messages
Leaving a Message for a Colleague
If the extension you are ringing is busy or is not answered you will
be transferred to voicemail (if enabled) and played your
colleague’s greeting
Leave a message
Replace your handset (if you are using the handset), or press the
Speaker button (if you are using hands free)
Accessing Your Own Messages
The blue “S” LED at the bottom of the PCS573G will flash to indicate
that you have a new message.
Press the Message Key
Deleting a Message
A closed envelope icon indicates a new message
To listen to the new message press the context sensitive key
alongside it.
Your message will be played to you
Press the Messages Key to exit
Deleting a Message
Select the message to be deleted using the context sensitive key
alongside it.
Remove the message by pressing the context sensitive key
alongside the |Delete| icon during message playback.
Select the context sensitive key alongside the |Yes| icon to
confirm you wish to delete the entry
Press the Message Key to exit
(Note: The open blue envelope indicates a previously read
message.)
!
PCS 573G
PCS 573G Quick Reference Guide Version 4/0415/1
8
!
!
!
Voicemail (cont)
Changing your Greeting Changing your Daily and Permanent Voicemail Greetings
If you have voicemail enabled you can record two voicemail
greetings. The first is a daily greeting that you would normally
update on a daily basis, typically giving the date and your
whereabouts/availability. The second is a permanent greeting that
can be used on any day. If you choose to record a permanent
greeting your daily greeting will be deleted at midnight and the
permanent greeting will then be used until you record a new dialy
greeting.
Press the Message Key
Press the context sensitive key alongside the |Greeting| icon.
Your current Daily Greeting will be played back to you.
You will then be prompted to record your new Daily Greeting.
Press hash (#) when finished.
Your new Daily Greeting will be played back to you
If you are happy with your greeting, replace your handset or press
the Speaker button, or press the context sensitive key alongside
the |Stop| icon to save
Repeat the above process to r cord your Permanent Greeting
using the context sensitive key alongside the |Permanent| icon.
For further details on all these features and many others, please
refer to the PCS573G User Manual
!
SpliceCom
The right choice for voice
The Hall Farm Business Centre, Berry Lane, Chorleywood, Hertfordshire WD3 5EX Tel: 01923 287700 Fax: 01923 287722
Email: info@splicecom.com Website: www.splicecom.com
