SPIT Pulsa 700E, Pulsa 700P Operator's Manual

[e-mail]

www.itwcp.co.uk

Technical Helpline UK: 0800 731 4924
Technical Helpline ROI: 1 800 882 388

Pulsa Operator Guide

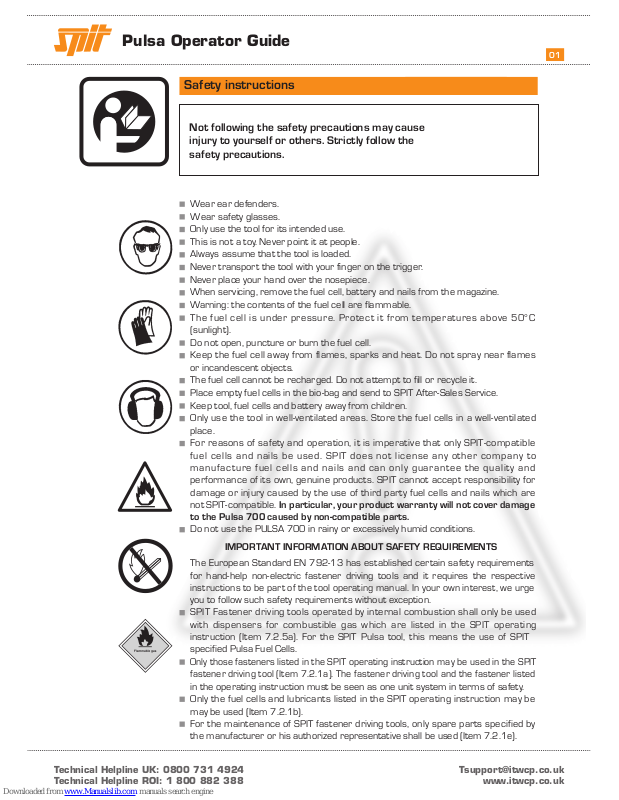

Safety instructions

GB

Not following the safety precautions may cause
injury to yourself or others. Strictly follow the
safety precautions.

Wear ear defenders.
Wear safety glasses.
Only use the tool for its intended use.
This is not a toy. Never point it at people.
Always assume that the tool is loaded.
Never transport the tool with your finger on the trigger.
Never place your hand over the nosepiece.
When servicing, remove the fuel cell, battery and nails from the magazine.
Warning: the contents of the fuel cell are flammable.
The fuel cell is under pressure. Protect it from temperatures above 50°C
(sunlight).
Do not open, puncture or burn the fuel cell.
Keep the fuel cell away from flames, sparks and heat. Do not spray near flames
or incandescent objects.
The fuel cell cannot be recharged. Do not attempt to fill or recycle it.
Place empty fuel cells in the bio-bag and send to SPIT After-Sales Service.
Keep tool, fuel cells and battery away from children.
Only use the tool in well-ventilated areas. Store the fuel cells in a well-ventilated
place.
For reasons of safety and operation, it is imperative that only SPIT-compatible
fuel cells and nails be used. SPIT does not license any other company to
manufacture fuel cells and nails and can only guarantee the quality and
performance of its own, genuine products. SPIT cannot accept responsibility for
damage or injury caused by the use of third party fuel cells and nails which are
not SPIT-compatible. In particular, your product warranty will not cover damage

to the Pulsa 700 caused by non-compatible parts.

Do not use the PULSA 700 in rainy or excessively humid conditions.

IMPORTANT INFORMATION ABOUT SAFETY REQUIREMENTS

The European Standard EN 792-13 has established certain safety requirements
for hand-help non-electric fastener driving tools and it requires the respective
instructions to be part of the tool operating manual. In your own interest, we urge
you to follow such safety requirements without exception.
SPIT Fastener driving tools operated by internal combustion shall only be used
with dispensers for combustible gas which are listed in the SPIT operating
instruction (Item 7.2.5a). For the SPIT Pulsa tool, this means the use of SPIT
specified Pulsa Fuel Cells.
Only those fasteners listed in the SPIT operating instruction may be used in the SPIT
fastener driving tool (Item 7.2.1a). The fastener driving tool and the fastener listed
in the operating instruction must be seen as one unit system in terms of safety.
Only the fuel cells and lubricants listed in the SPIT operating instruction may be
may be used (Item 7.2.1b).
For the maintenance of SPIT fastener driving tools, only spare parts specified by
the manufacturer or his authorized representative shall be used (Item 7.2.1e).

Safety instructions

Safety instructions

GB

Not following the safety precautions may cause
injury to yourself or others. Strictly follow the
safety precautions.

GB

Not following the safety precautions may cause
injury to yourself or others. Strictly follow the
safety precautions.

GB

GB

01

[e-mail]

www.itwcp.co.uk

Technical Helpline UK: 0800 731 4924
Technical Helpline ROI: 1 800 882 388

Pulsa Operator Guide

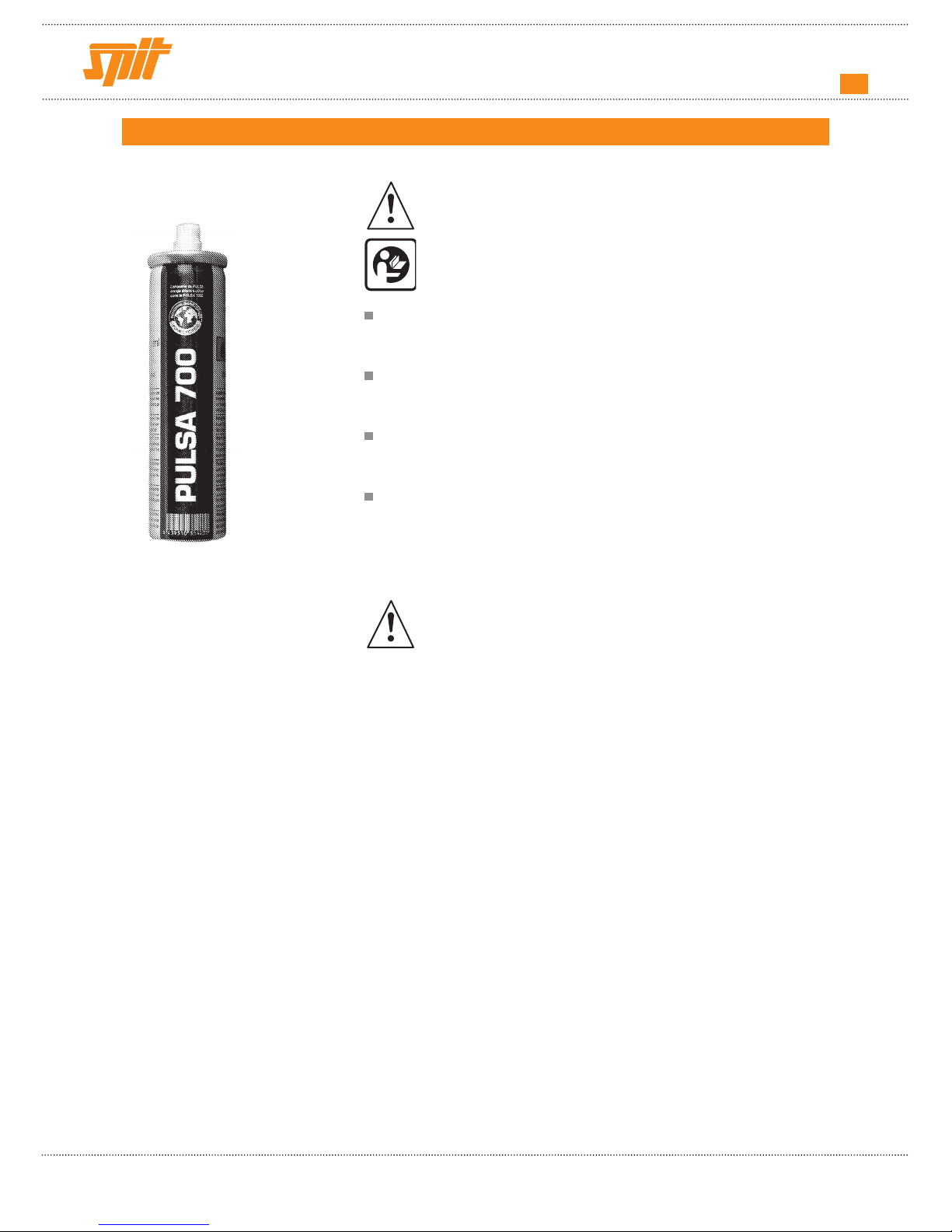

PULSA consumables

GB

Fuel cell The fuel cell must be used at temperatures

between -5° and +49°C. At the beginning of each
cycle, a dose of gas is injected into the combustion
chamber.

The fuel cell has an internal reservoir and an external
housing.

In the internal reservoir, the fuel is kept under pressure by a
propellant.

When the fuel cell is empty, a small amount of propellant
remains in the external chamber.

For reasons of safety and operation of the unit, it is

imperative that only genuine SPIT fuel cells and nails be
used.

SPIT nails Only use SPIT nails with this tool

02

[e-mail]

www.itwcp.co.uk

Technical Helpline UK: 0800 731 4924
Technical Helpline ROI: 1 800 882 388

Pulsa Operator Guide

Consumables

Consumables

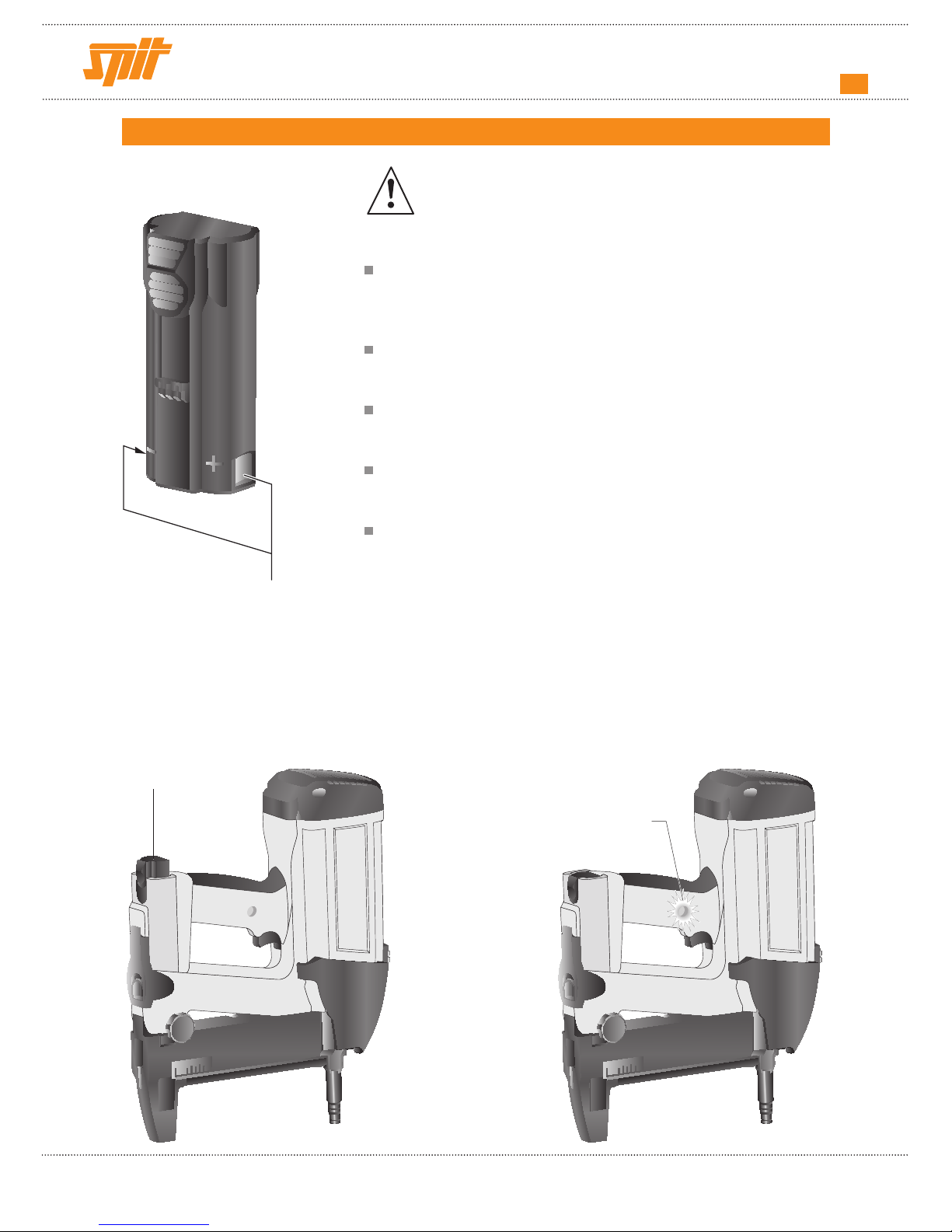

Battery The battery will discharge itself even if the tool is

not being used. Remove the battery when not in
use or put in safe position. Recharge the battery if
it has not been used for a long period of time.

Batteries are supplied uncharged. Fully charge them before
using them for the first time. Only use SPIT batteries and
battery chargers.

Wait until the battery has completely drained before
recharging it.

When the battery has been charged (approx. 1 hour),
insert it into the tool (contacts toward front).

After use, remove the battery or place it in safe position
(see drawing below).

An LED control light is located on the right-hand side of the
handle. After installing the battery: :

• the indicator flashes green: the tool is powered by the
battery

• the indicator flashes red: recharge the battery.

• the indicator is green the roller is pushed in, the

fan is

turning, the tool is

ready to fire.

• the indicator is red: the roller is pushed in, the
fan is not turning, recharge
the battery.

LED

Battery in safe
position

Contacts

03

[e-mail]

www.itwcp.co.uk

Technical Helpline UK: 0800 731 4924
Technical Helpline ROI: 1 800 882 388

Pulsa Operator Guide

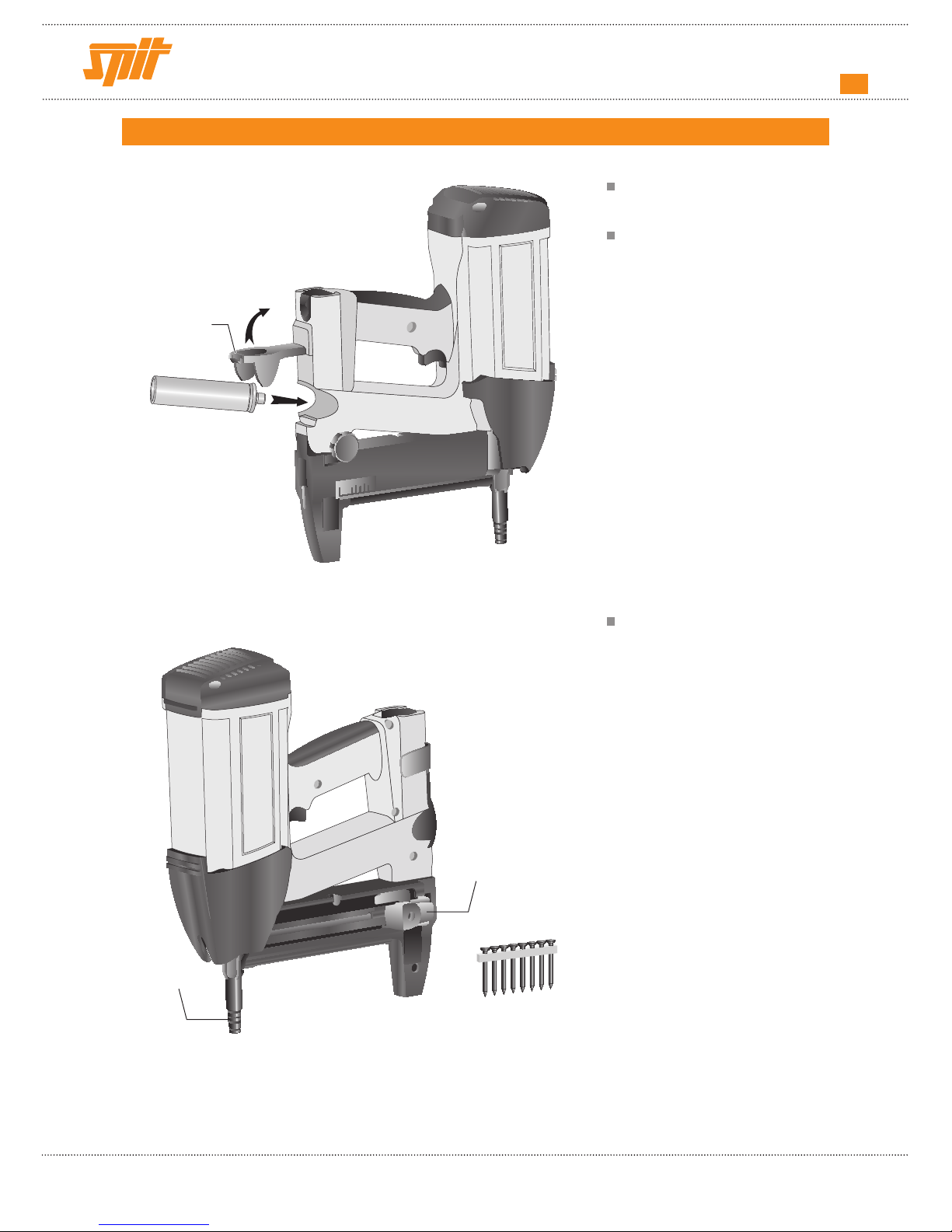

Installing the fuel cell and nails

GB

Lift up the cover on the
fuel cell slot.

Insert the fuel cell and
close the cover.

Pull the button (12) back.
Insert the nail strips into
the back of the magazine.
Release the button (12),

Warning

Do not press on the pin
guide (12) while loading
nails. The ejector push
button (12) prevents you
from using the tool when
only three nails are left in
the magazine.

Fuel cell

SPIT nails

Cover

12

11

04

[e-mail]

www.itwcp.co.uk

Technical Helpline UK: 0800 731 4924
Technical Helpline ROI: 1 800 882 388

Pulsa Operator Guide

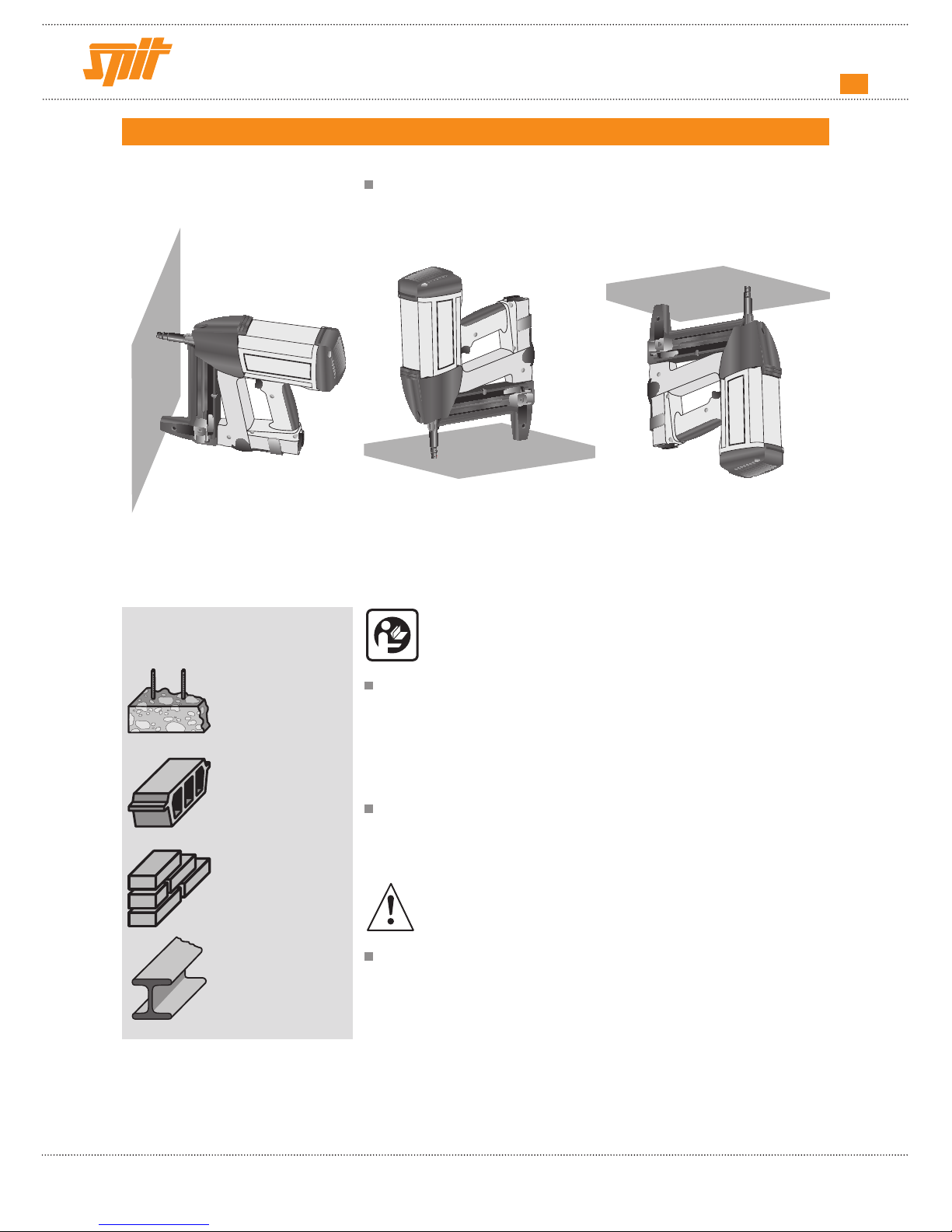

Use

The PULSA 700 can be used in all positions:

Wall CeilingFloor

Use

The PULSA 700 can be used in all positions:

Wall CeilingFloor

Carefully read the safety precautions on page 11
before use.

Place the pin guide against the base material

• the fan is on,

• the green light is not flashing,

• the gas is injected into the combustion chamber then

mixed with air by the fan.

Pull the trigger

• the gas / air mixture burns,

• the fan keeps operating for approx 10 seconds

To avoid overheating, do not hold the device by the
upper hood during use. This obstructs the filters.

When the cycle is over, the tool is ready for another

sequence. When finished, remove the battery or place it in
safe position.

Suitable base materials:

Concrete / Pre­cast concrete

Rendered hollow
block;
Hollow floor block

Solid / rendered
brick

Steel

05

[e-mail]

www.itwcp.co.uk

Technical Helpline UK: 0800 731 4924
Technical Helpline ROI: 1 800 882 388

Pulsa Operator Guide

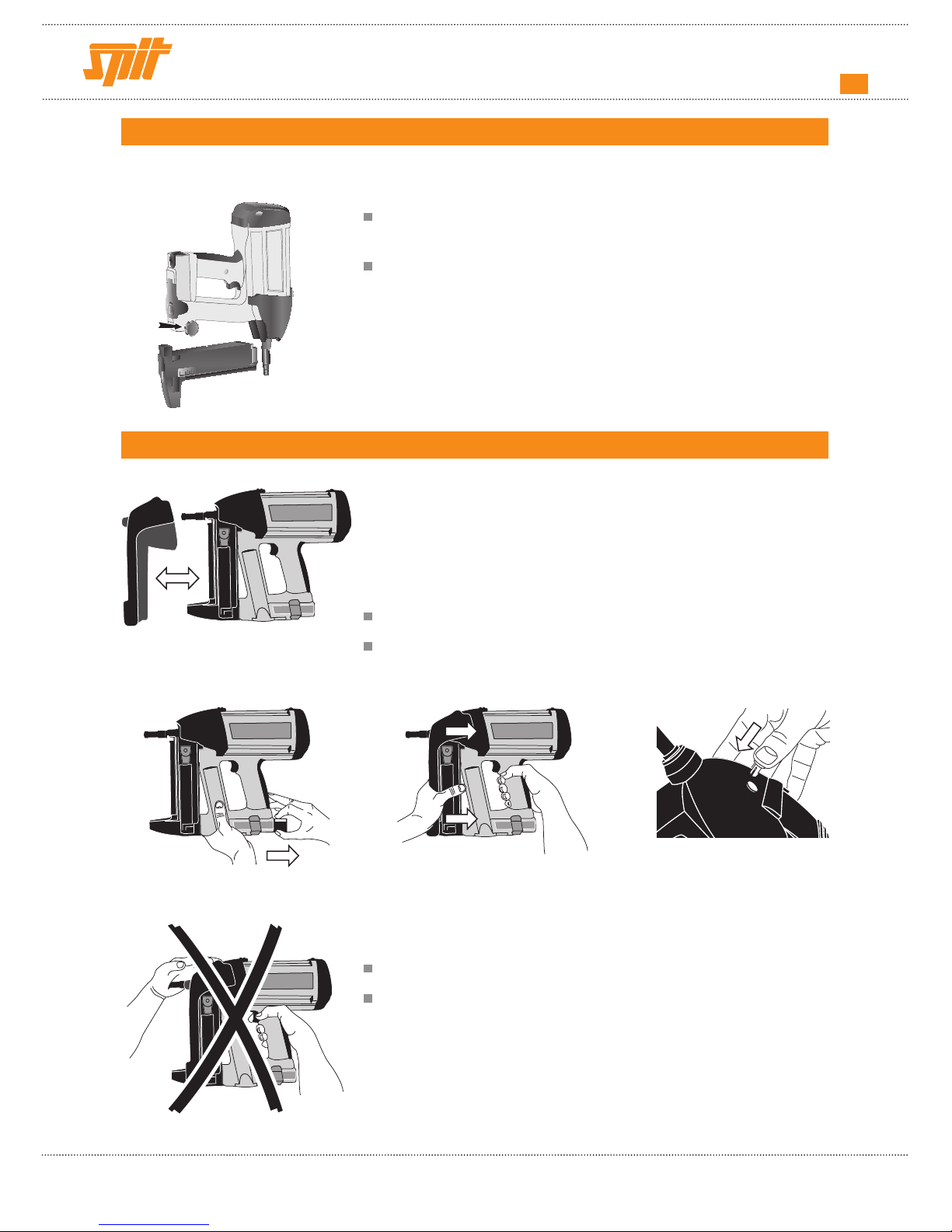

Use (cont.)

GB

Using the PULSA 700E or 700P without the nail magazine.

The nail magazine has to be removed for certain fastening
operations.

To do so, unscrew the knurled nut.

Use (cont.)

GB

Using the PULSA 700E or 700P without the nail magazine.

The nail magazine has to be removed for certain fastening
operations.

To do so, unscrew the knurled nut.

Using the cover

The tool is fitted with a cover which protects the tool and
the magazine from dust and debris, in particular for overhead
fixing.

To fit or remove the cover, please comply with the following
instructions:

Remove the battery before handling the tool.

Proceed as indicated (Fig. 1 to 3).

Never place your hand over the nosepiece (Fig. 4).

Except in special cases, we recommend that you do not remove
the dust cover.

(Fig. 3) (Fig. 2) (Fig. 1)

(Fig. 4)

06

[e-mail]

www.itwcp.co.uk

Technical Helpline UK: 0800 731 4924
Technical Helpline ROI: 1 800 882 388

Pulsa Operator Guide

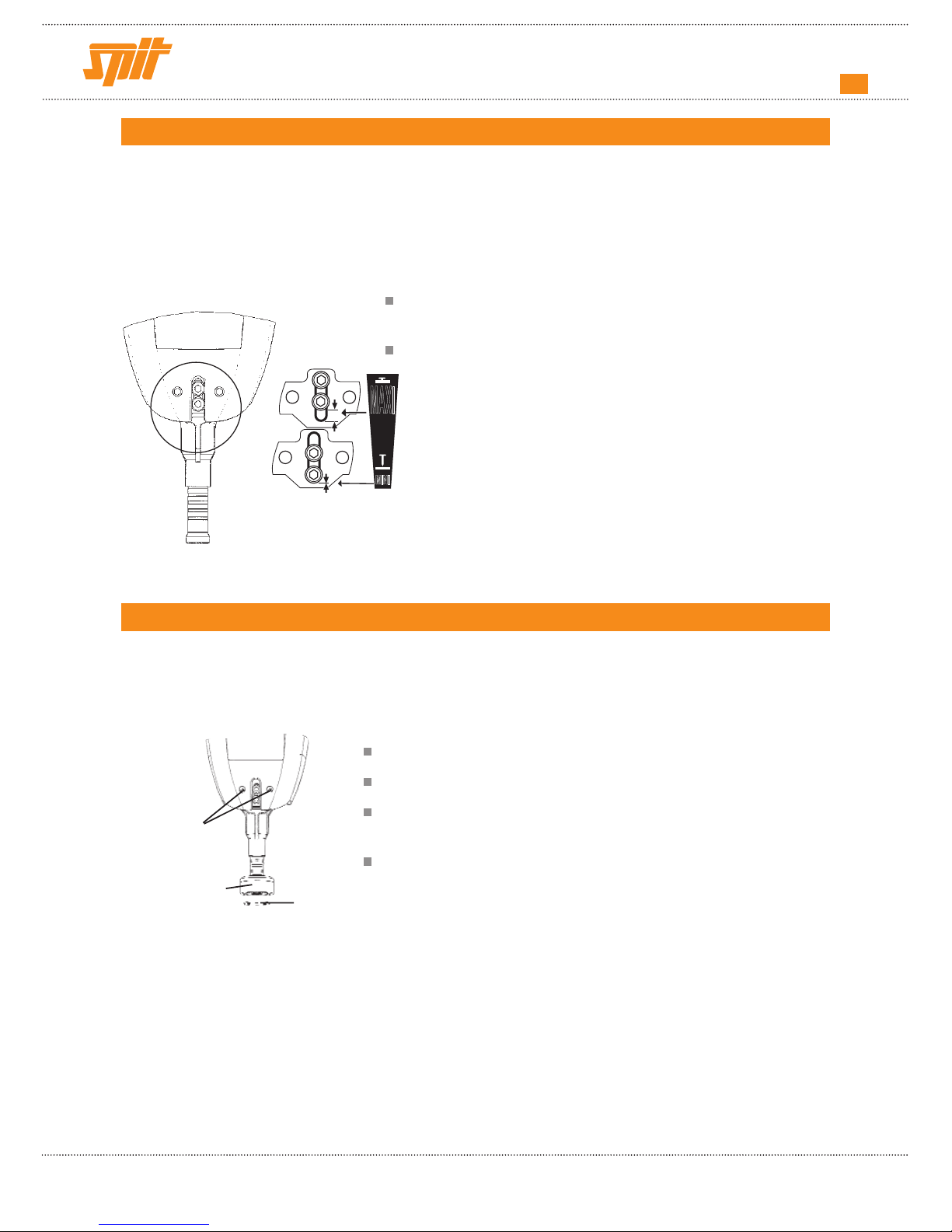

Adjusting the nail insertion depth

The tool automatically adjusts its power to suit the base material.
However, certain applications may require a special setting for the tool pin guide.

Setting the pin guide :

Adjusting the nail insertion depth

Using the metal washer holder (700P)

Certain applications may require use of the metal washer holder (this
accessory is not supplied with the unit).

This washer is mounted instead of the standard pin guide.

Remove the nail magazine (see drawing above).

Unloosen the 2 screws by 3 to 4 turns.

Replace the standard pin guide with the metal washer
holder pin guide.

Retighten the 2 screws.

The tool automatically adjusts its power to suit the base material.
However, certain applications may require a special setting for the tool pin guide.

Setting the pin guide :

Loosen the screw using the hexagonal wrench supplied with
the unit.

W ith the wrench mounted onto the screws, slide :

• to the up position for maximum nail insertion (Fig. 1).

•

to the down position for minimum nail insertion

(Fig. 2).

(Fig. 1)

(Fig. 2)

screws

nosepiece

metal washer

MINI

MAXI

Adjusting the nail insertion depth

The tool automatically adjusts its power to suit the base material.
However, certain applications may require a special setting for the tool pin guide.

Setting the pin guide :

Loosen the screw using the hexagonal wrench supplied with
the unit.

W ith the wrench mounted onto the screws, slide :

• to the up position for maximum nail insertion (Fig. 1).

•

to the down position for minimum nail insertion

(Fig. 2).

(Fig. 1)

(Fig. 2)

MINI

MAXI

07

[e-mail]

www.itwcp.co.uk

Technical Helpline UK: 0800 731 4924
Technical Helpline ROI: 1 800 882 388

Pulsa Operator Guide

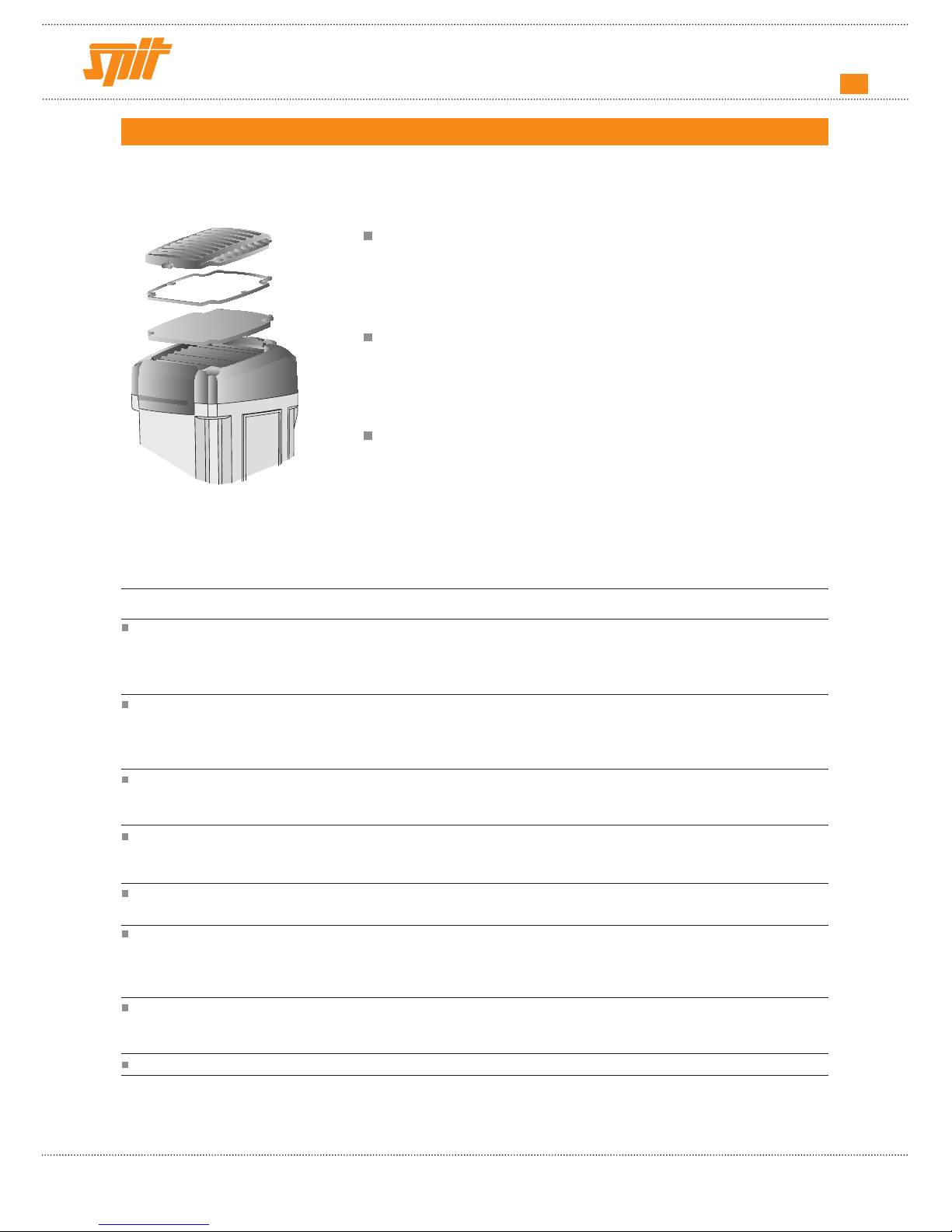

Servicing / Troubleshooting

GB

Troubleshooting

The tool does not work

• the light is off

• the light flashes red

• the light flashes green

The fan is on but the tool
does not discharge

• the light is red

• the light is green

The fan stops after pulling the
trigger

• the light is green

The tool discharges with
interruptions

• the light is green

Insufficient nail penetration

• the light is green

The tool makes a muffled sound.
The piston does not drive the
nails

• the light is green

The tool works slowly and
heats over

• the light is green

Use in cold weather below–5°C

Causes / Solutions

- Battery not in nailer. Dirty battery contacts. Clean.

- Battery completely discharged. Recharge battery.

- Check that there are more than three nails in the magazine.

- Battery power too low. Recharge the battery.

- Change the fuel cell.

- Contact SPIT After-Sales Service.

- Change the fuel cell.

- Change the fuel cell. Clean filters.

- Contact SPIT After-Sales Service.

- Check and clean the filter.

- Place the tool, fuel cells and battery in a warm place.

Servicing For operations not included in this manual, consult the SPIT

After-Sales Service.

Servicing that can be performed by the user:

• Cleaning of filters

• Inspection of fuel cell

• Inspection of battery charger contacts

Cleaning of filters:

• Remove the cover, remove the filters and lightly tap them to
remove any dust.

• After cleaning, replace them and close the cover.

Cleaning of battery contacts:

• Periodically clean these contacts with a dry cloth.

Malfunctions If the recommendations do not solve the problem, contact

the nearest SPIT After-Sales Service.

08
