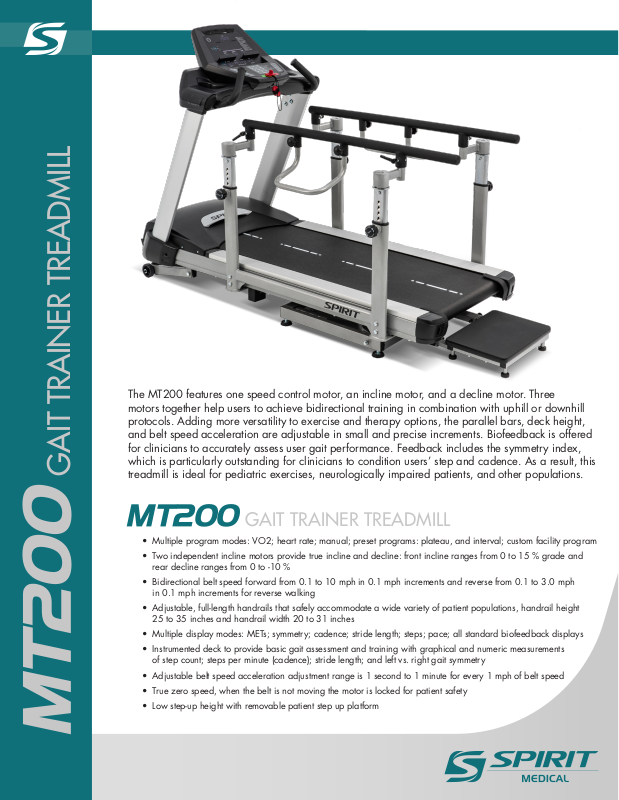

Spirit MT200 DATA SHEET
The MT200 features one speed control motor, an incline motor, and a decline motor. Three
motors together help users to achieve bidirectional training in combination with uphill or downhill
protocols. Adding more versatility to exercise and therapy options, the parallel bars, deck height,
and belt speed acceleration are adjustable in small and precise increments. Biofeedback is offered
for clinicians to accurately assess user gait performance. Feedback includes the symmetry index,
which is particularly outstanding for clinicians to condition users’ step and cadence. As a result, this
treadmill is ideal for pediatric exercises, neurologically impaired patients, and other populations.
MT200 GAIT TRAINER TREADMILL
• Multiple program modes: VO2; heart rate; manual; preset programs: plateau, and interval; custom facility program
• Two independent incline motors provide true incline and decline: front incline ranges from 0 to 15 % grade and
rear decline ranges from 0 to -10 %
• Bidirectional belt speed forward from 0.1 to 10 mph in 0.1 mph increments and reverse from 0.1 to 3.0 mph
in 0.1 mph increments for reverse walking
• Adjustable, full-length handrails that safely accommodate a wide variety of patient populations, handrail height
25 to 35 inches and handrail width 20 to 31 inches
• Multiple display modes: METs; symmetry; cadence; stride length; steps; pace; all standard biofeedback displays
• Instrumented deck to provide basic gait assessment and training with graphical and numeric measurements
of step count; steps per minute (cadence); stride length; and left vs. right gait symmetry
• Adjustable belt speed acceleration adjustment range is 1 second to 1 minute for every 1 mph of belt speed
• True zero speed, when the belt is not moving the motor is locked for patient safety
• Low step-up height with removable patient step up platform
MT200 GAIT TRAINER TREADMILL
ADVANTAGES AND CLINICAL APPLICATIONS
ORTHOPEDIC, SPORTS MEDICINE AND ATHLETIC TRAINING exercise use uphill or downhill walking and jogging to emphasize specic
muscle groups or motions. Use retro-walking to promote the use of reciprocal muscle groups not normally exercised during forward
walking alone.
CARDIOPULMONARY EXERCISE monitoring heart rate by telemetry or contact heart rate in handgrips. MET level displayed for easy
compliance to patient exercise prescriptions. Belt speeds as low as 0.1 mph to accommodate even the most deconditioned patient.
OLDER ADULT PATIENTS can simulate uphill and downhill walking. Retro-walk to reduce exion contractures with total knee and total
hip replacements. Retro-walk is also great for promoting dorsiexion. (Using the dual height geriatric/pediatric handrails.)
PEDIATRIC PATIENTS benet from small and precise speed increments and adjustable handrails that make this treadmill ideal
for use with children too.
DECK ELEVATION FEATURE allows the clinician to manually assist patients’ gait from a more ergonomically correct position and can be
used in conjunction with an unweighting system to de-load a patient’s body weight in 1/4” increments.
MULTI-FUNCTION/DISPLAY CONSOLE SELF-LUBRICATING BELT/DECK INDEPENDENT INCLINE/DECLINE
MT200 ELECTRONIC & SOFTWARE FEATURES
• Easy access to all program modes; quick start, manual, preset, plateau, and interval proles; custom facility, V02 sub-max Gerkin
protocol program and symmetry programs
• Set-up mode button allows for easy access to quick patient data entry, program and treadmill function entries
• Instrumented deck to allow basic gait assessment and training
• Intuitive interface for ease of operation
• Large, easy-to-read displays
EQUIPMENT SPECIFICATIONS
Power 115 volts AC, 60 Hz, 20 amps, NEMA 5-20P power cord
Motor 3HP continuous duty
Belt/Deck self-lubricating
Overall Dimensions 95” x 40” x 55”
Step-up Height to step: 5”, to deck: 10”
Stride Surface 22” x 60”
Net Weight 516 lbs.
Max User Weight 440 lbs.
Certications UL 60601-1, CE conformity to EN 60601-1 EMC, Compliance to EN 60601-1-2
WARRANTY INFORMATION
Commercial (All Facilities) – Lifetime frame, 10 years motor, 3 years parts and labor
800-258-4555 QUESTIONS@SPIRITFITNESS.COM WWW.SPIRITFITNESS.COM
REV.: 05.24.2021
