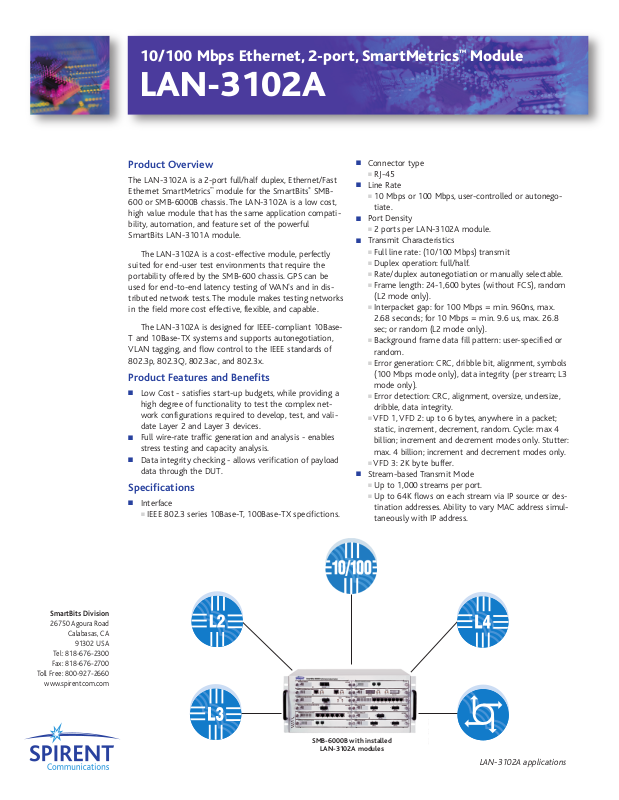

Spirent LAN-3102A Data Sheet

10/100 Mbps Ethernet, 2-port, SmartMetrics™Module

LAN-3102A

■

Product Overview

The LAN-3102A is a 2-port full/half duplex, Ethernet/Fast
Ethernet SmartMetrics
600 or SMB-6000B chassis.The LAN-3102A is a low cost,
high value module that has the same application compati­bility, automation, and feature set of the powerful
SmartBits LAN-3101A module.

The LAN-3102A is a cost-effective module, perfectly
suited for end-user test environments that require the
portability offered by the SMB-600 chassis. GPS can be
used for end-to-end latency testing of WAN's and in dis­tributed network tests. The module makes testing networks
in the field more cost effective, flexible, and capable.

The LAN-3102A is designed for IEEE-compliant 10Base­T and 10Base-TX systems and supports autonegotiation,
VLAN tagging, and flow control to the IEEE standards of

802.3p, 802.3Q, 802.3ac, and 802.3x.

™

module for the SmartBits®SMB-

Product Features and Benefits

■

Low Cost - satisfies start-up budgets, while providing a

high degree of functionality to test the complex net-

work configurations required to develop, test, and vali-

date Layer 2 and Layer 3 devices.

■

Full wire-rate traffic generation and analysis - enables

stress testing and capacity analysis.

■

Data integrity checking - allows verification of payload

data through the DUT.

Specifications

■

Interface

■

IEEE 802.3 series 10Base-T, 100Base-TX specifictions.

Connector type

■

RJ-45

■

Line Rate

■

10 Mbps or 100 Mbps, user-controlled or autonego­tiate.

■

Port Density

■

2 ports per LAN-3102A module.

■

Transmit Characteristics

■

Full line rate: (10/100 Mbps) transmit

■

Duplex operation: full/half.

■

Rate/duplex autonegotiation or manually selectable.

■

Frame length: 24-1,600 bytes (without FCS), random
(L2 mode only).

■

Interpacket gap: for 100 Mbps = min. 960ns, max.

2.68 seconds; for 10 Mbps = min. 9.6 us, max. 26.8
sec; or random (L2 mode only).

■

Background frame data fill pattern: user-specified or
random.

■

Error generation: CRC, dribble bit, alignment, symbols
(100 Mbps mode only), data integrity (per stream; L3
mode only).

■

Error detection: CRC, alignment, oversize, undersize,
dribble, data integrity.

■

VFD 1, VFD 2: up to 6 bytes, anywhere in a packet;
static, increment, decrement, random. Cycle: max 4
billion; increment and decrement modes only. Stutter:
max. 4 billion; increment and decrement modes only.

■

VFD 3: 2K byte buffer.

■

Stream-based Transmit Mode

■

Up to 1,000 streams per port.

■

Up to 64K flows on each stream via IP source or des­tination addresses. Ability to vary MAC address simul­taneously with IP address.

SmartBits Division

26750 Agoura Road

Calabasas, CA

91302 USA

Tel: [phone]

Fax: [phone]

Toll Free: 800-927-2660

www.spirentcom.com

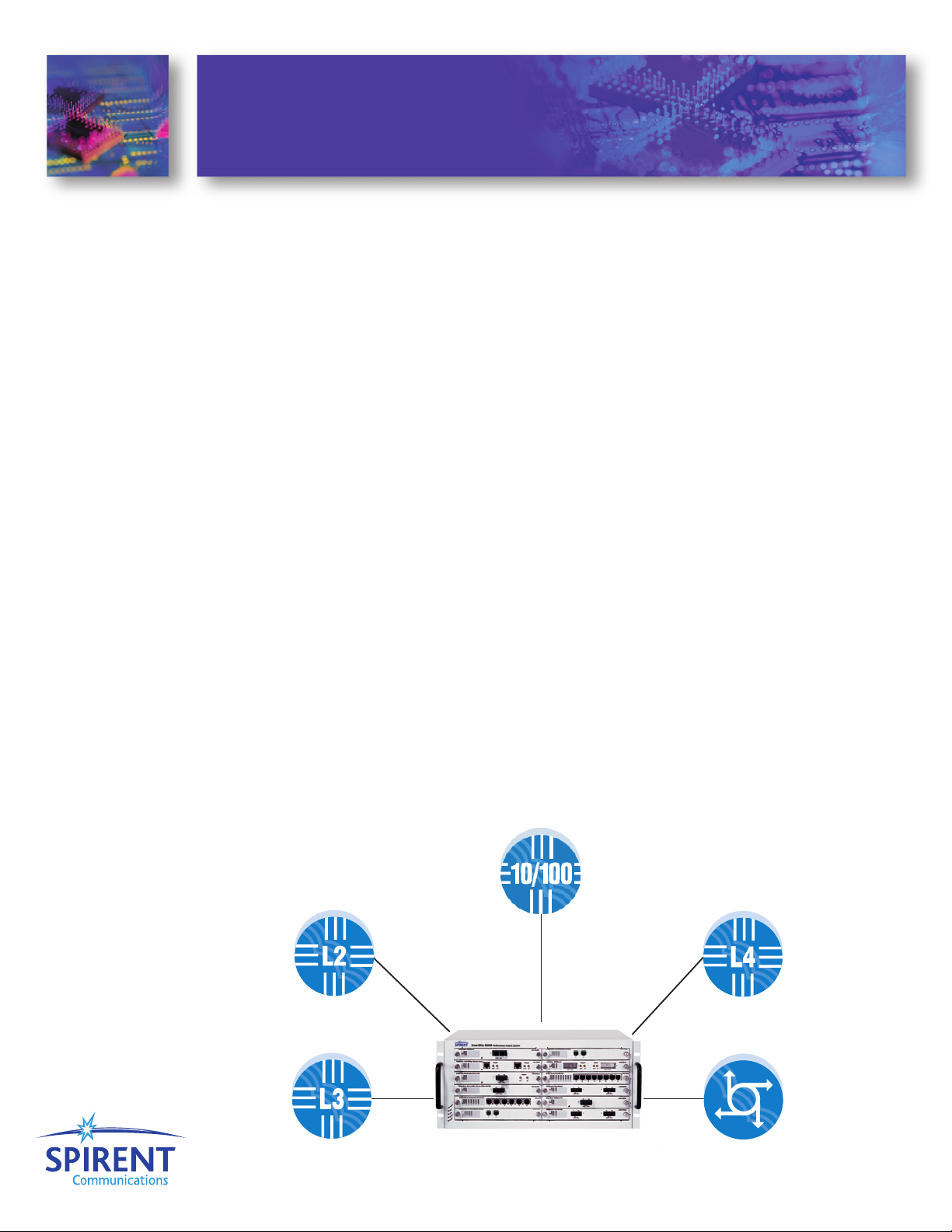

SMB-6000B with installed

LAN-3102A modules

LAN-3102A applications

10/100 Mbps Ethernet, 2-port, SmartMetrics Module: LAN-3102A

SmartBits Division

26750 Agoura Road

Calabasas, CA

91302 USA

Tel: [phone]

Fax: [phone]

Toll Free: 800-927-2660

www.spirentcom.com

■

Frame-based Transmit Modes

■

Continuous: constant frame transmit.

■

Single burst: up to 4 billion packets in a single burst.

■

Multi-burst up to 4 billion repetitive bursts with user­defined delay between bursts (same restrictions as
interpacket gap).

■

Continuous Multi-burst: runs multi-burst mode continu­ously.

■

Management Frame Transmit

■

Ability to configure the module's MAC and IP address,
Netmask, and Gateway.

■

User-selectable Ping, SNMP, and RIP frequency.

■

Ability to reply to ARP requests.

■

Capture

■

Full fine rate (10/100 Mbps) capture and analysis.

■

Frame Length: 18-2,006 bytes.

■

Frame selection: entire frame only.

■

6500 frame capture buffer for frames.

■

Pre-capture filtering on: CRC errors, undersize, oversize,
data integrity errors, alignment errors, received triggers,
or all.

■

Triggers

■

Two triggers up to 6 bytes each.

■

Trigger combinations: Trigger 1 only,Trigger 2 only,
Triggers 1 and 2, Trigger 1 or 2.

■

Data Integrity
Protects (on transmission) and verifies (on reception), the
integrity of the payload content; applies to non-VLAN IP
type streams only.

■

Counters

■

Transmitted and received frames

■

Received bytes

■

Collisions

■

Alignment errors (Rx)

■

CRC errors (Rx)

■

Fragment/undersized frames (Rx)

■

Oversize frames (Rx)

■

Triggers (Rx)

■

Tags (Rx and Tx)

■

Data integrity detected errors (Rx)

■

VLAN frames (Rx)

■

Pings (requests Rx and Tx; replies Rx and Tx)

■

ARPs (requests Rx and Tx, replies Rx and Tx)

■

RIP frames

■

SNMP frames

■

Good/bad IP checksums

■

Good/bad TCP checksums

SmartMetrics Test Functions

The SmartMetrics tests emulate live network traffic. They
provide information about the relationships and timing of
frames so you can evaluate the functionality and perform­ance of a device under load. They dynamically track data per
stream and any change in latency. SmartMetrics tests
include:

■

Sequence Tracking: This provides throughput and frame
loss testing on a per-stream basis. This test also provides
precise readings of the number of frames received in and
out of sequence.

■

Latency over Time: The user selects a time interval such
as every 10ms. For each port, the test records the number
of frames received, minimum latency, and maximum
latency.The test also calculates the average latency for
each port.

■

Latency per Stream: This test records the minimum laten­cy and maximum latency, and calculates the average
latency for each traffic stream.

■

Latency Distribution: The user selects up to 16 time inter­vals. Within each time interval and for each stream, the
following are displayed: transmitting port number, stream
number, and the total number of frames received.

■

Raw Tags: In this test, frames are stored and sent to the
application without any calculations or filtering per­formed on the stream tags received. Up to 130,000
records are stored. Module transmit time, receive time,
and delta (in ms) are recorded per tag.

■

Frame Variation: This test measures variations in how
soon one packet follows another in a stream. The test
measures, for example, the time interval between packets
1 and 2, then between packets 2 and 3, and so on as the
packets arrive at the device under test. This test plots the
number of packets that arrive within each of the 16 user­specified time intervals.

Supported Applications

■

SmartWindow

■

SmartLib™Programming Library

■

ScriptCenter

■

SmartApplications

■

SmartFlow

■

SmartVoIPQoS

■

SmartMulticastIP

■

■

■

■

■

™

AST II
SmartTCP
SmartxDSL
SmartCableModem Test
WebSuite

™

™

™

™

™

™

™

™

™

™

Requiremants

■

The LAN-3102A module requires one slot in an SMB-600
or SMB-60008 chassis.

■

An IBM or compatible Pentium™PC running Windows
98/2000/NT, with mouse and color monitor

Ordering Information

LAN-3102A

10/100Base-TX Ethernet, 2-port, SmartMetrics module

SUS-SMB

12-month Software Update Support Service (includes
firmware support)

©2001 Spirent Communications, Inc. All rights reserved. Specifications subject to change without notice.
Spirent Communications and the Spirent logo are trademarks of Spirent plc. All other names are trademarks
or registered trademarks of their respective owners and are hereby acknowledged.
P/N 360-1054-001 Rev B, 2/02
