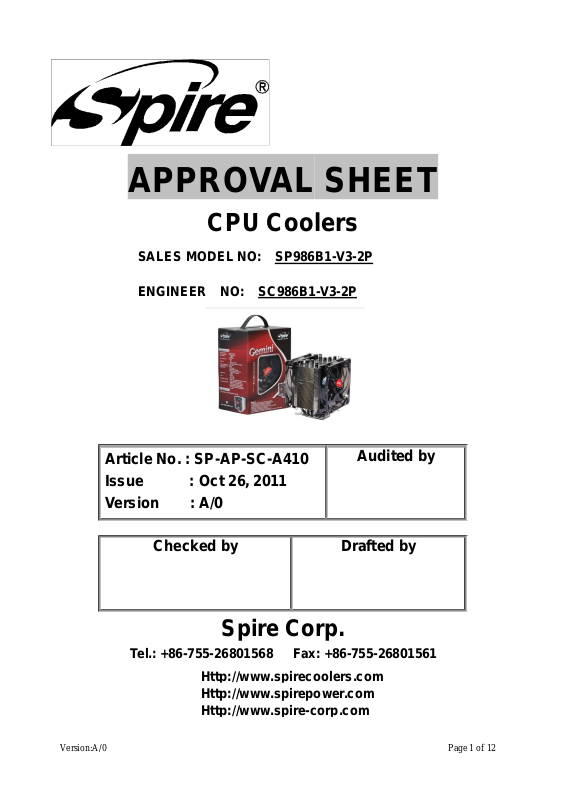

APPROVAL SHEET
CPU Coolers
SALES MODEL NO: SP986B1-V3-2P
ENGINEER NO: SC986B1-V3-2P
Article No. : SP-AP-SC-A410
Issue : Oct 26, 2011
Version : A/0
Checked by Drafted by
Audited by
Spire Corp.
Tel.: +86-755-26801568 Fax: +86-755-26801561
Http://www.spirecoolers.com
Http://www.spirepower.com
Http://www.spire-corp.com
Version:A/0 Page1of 12
Approval Sheet Revisement Record
SALES MODEL NO: SP986B1-V3-2P
ENGINEER NO: SC986B1-V3-2P
Article No:SP-AP-SC-A410
Spire Corp.
Version
Revised
Description
Chapter
A/0 N/A First Version 2011-10-26 N/A
Revised
Date
Drafte
dby
Audited
by
ECN
No.
Version:A/0 Page2of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
13
Spire Corp.
Contents
1. Main Components List……………………………………..….……….………4
2. Multi views andimages……………………………………..….………………………5
2.1 Coolers images…………………………………………………………………5
2.2 Components images……………………………………………………………7
3. Features and Specifications……………………….....…………………….…………8
4. Product Drawing………………………....….……………….…………………9
4.1 Assembly Drawing……………………...……………………...…………………. 9
4.2 Cooler Drawing……………………….…………………………………………….10
5. Fan Specification………………………………………………….……………… 11
6. P&Q Characteristic curves…………..……………………………………………. 12
7. Correlative Certification compliance…..…………………………………………. 13
Version:A/0 Page3of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
13
1. Main Components List
Spire Corp.
Item Components Part No.
1 Cooler SC986B1-V3-2P 1 AL+CU
2 Fan 0212025B1L4W3-PWM 1 Plastic
3
fan speed
adjustor
04984PM01 1
Quanti
ty
Material
Version:A/0 Page4of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
13
2. Multi views and images
2.1 Cooler images
Picture 1 : Full view Picture 2 : Top view
Spire Corp.
Picture 3 : Base view Picture 4 : Right view
Version:A/0 Page5of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
13
Spire Corp.

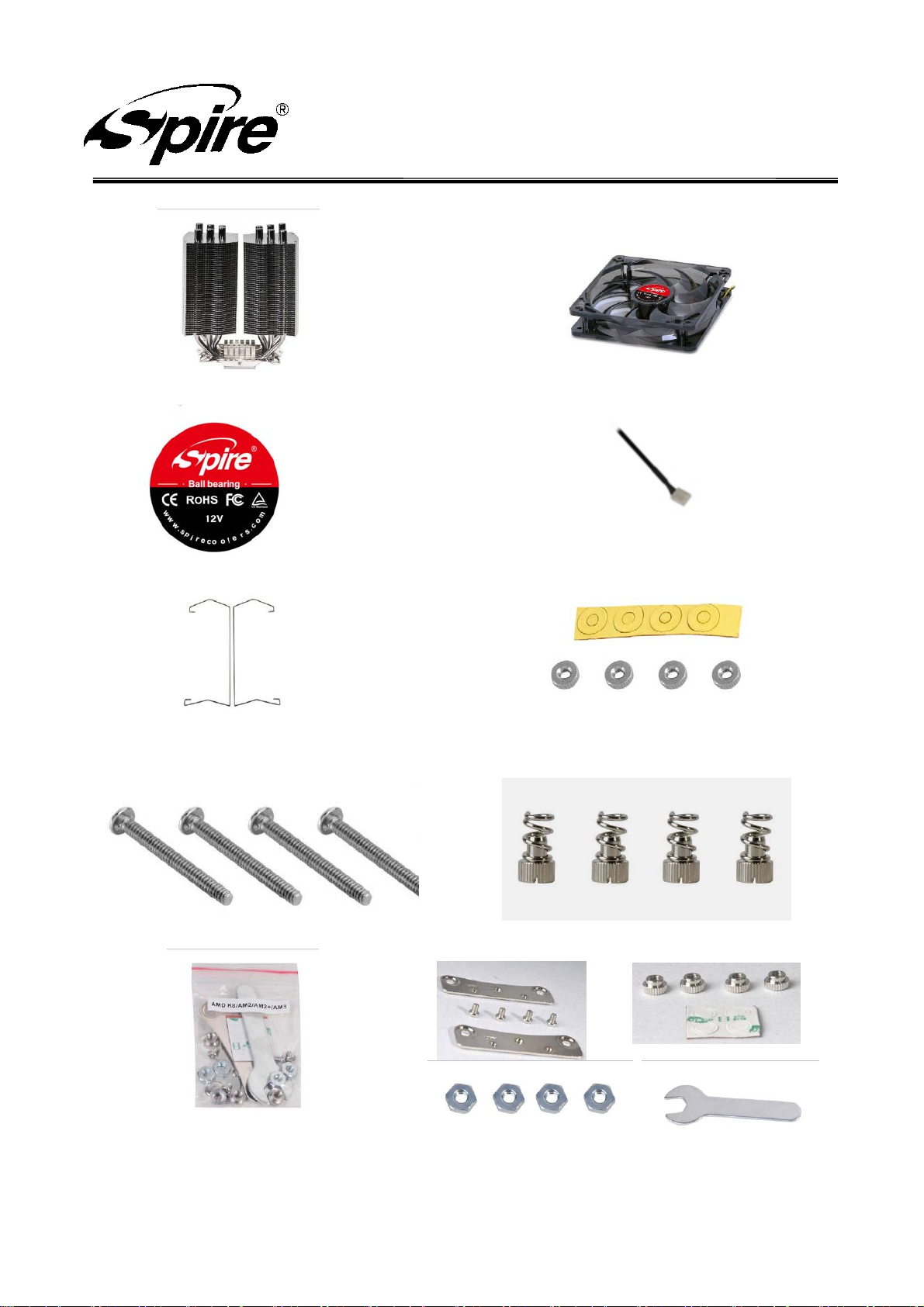

2.2 Components images
Picture 1 : Cooler Picture 2: Fan
Picture 3:Fan Label Picture 4: 4 pin connector （ black ）
Picture 5: Fan Clip （4PCS） Picture 6:Intel washer+nut
Picture 7: Fixing bolt #6-32 X33.5mm Picture 7：Fixing bolt（#6-32）
Picture 8：AMD appurtenance
Version:A/0 Page6of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
13
Picture 10：Common backboard
Spire Corp.
Picture 11：fan speed adjustor
Version:A/0 Page7of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
13
3. Features and Specifications:
Main features:
Six 6mm all copper u-shaped heat-pipes
All new Direct-Touch heat-pipe technology
TWO 120mm BlackStar 9 blade fan design
46 stampedAluminum Micro-Fin`s
Supports the latest Intel &AMD micro-processors
Specifications:
Heat sink : 131X71X153mm
Dimensions
12VDC Fan : 120X120X25mm
Spire Corp.
Material
heatpipe Six(6) 6mm all copper u-shaped direct
Bearing Ball Bearing
Rated speed
Rated power 1.8 W
Noise level
Air flow 71.12CFM at 1,700 RPM
Current(MAX) 0.15A
Connector 4 pin, main board
Application AMD AM2
AL+CU
Cooler
Only fan 12V
10～25 dBA
600～1700 RPM +/-10%
600～1650 RPM +/-10%
Socket754/939/940
Intel LGA775 &LGA1155&LGA1156&LGA1366All catena
TDP(Watt) 130W
Thermal resistance 0.091°C/W
Life hours Ball: 50,000
weight 842g(Cooler only)
Version:A/0 Page8of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
13
4. ProductDrawing
4.1
Assembly Drawing
Spire Corp.
REV
1
DESCRIPTION
234
Drawn
Checked
Approved
DATE
5
A
6
A
4
B
3
B
1
C
D
C
D
E
2
F
6
G
Component
Item
Heatsink
1
Fan
2
Steel detain
3
H
Cover
4
Bracket
5
Screw
6
Part No.
SC986S1
SF12025B1 4W3-PWM
03CM039
03OT036
03CM052
03SW142
Quantity
1
2
2
6
1
2
UNSPECIFIED TOLLERENCE
OVER
TO
0
10
30
10
30
100
250
100
250
over
Angles
1234
TOLERANCE
±0.10
±0.20
±0.30
±0.40
±0.50
±0.5
THIRD ANGLE PROJECTION
mm
Unit
1:1
Scale
Material
N/A
N/A
Finish
Version
A/0
1/1
Page
5
File Name
SP986 Components images
APVD
CHK. BY
DRN. BY
Date
Date
DateDSN. BY
Date
E
F
Inspection Items
Spire Corp.
Part No.
SP986B1-V3-2P
Article No.
Spec No.
BOM No.
5
G
H
6
Version:A/0 Page9of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
13
4.2 Cooler
Spire Corp.
REV
1
DESCRIPTION
Drawn
Checked
Approved
432
DATE
5
A
B
C
D
6
A
B
C
D
E
2510-4P
F
G
UNSPECIFIED TOLLERENCE
TO
OVER
H
0
10
30
100
250
Angles
10
30
100
250
over
TOLERANCE
±0.10
±0.20
±0.30
±0.40
±0.50
±0.5
CKM
4
123
THIRD ANGLE PROJECTION
mm
Unit
1:1
Scale
N/A
Material
Finish
N/A
Version
A/0
1/1
Page
°
ITEM
File Name
APVD
CHK. BY
DSN. BY Date
DRN. BY
4321
1
2
3
4
SP986 COOLER
2510-4P PH=2.54
UL 1007 #26 BLACK
UL 1007 #26
UL 1007 #26 YELLOW
UL 1007 #26 GREEN
RED
Date
Date
Date
5
Inspection Items
Part No.
Article No.
Spec No.
BOM No.
Spire Corp.
SP986B1-V3-2P
6
E
F
G
H
Version:A/0 Page10of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
13
5. Fan Specification:
1) Rated Voltage : 12VDC
2) Operating Voltage Range : 10.2 ~13.8VDC
3) Rated Speed(Only fan) : 600～1650RPM ±10%
4) Static Pressure : 2.12 mm-H2O
5) Air Flow : 71.12CFM
6) Rated Current : 0.15A
7) Rated Power : 1.80WATTS
8) Noise Level : 10～25 dB(A)
9) Operating Temperature : -10 to 700C
Spire Corp.
FAN MODEL: SF12025B1H4W3-PWM
10) Storage Temperature : -40 to 700C
11) Bearing System : Ball Bearing
12) Connector : 4 pin
13) W eight : 124 g
Version:A/0 Page11of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
13
6. P&Q Characteristic curves
Spire Corp.
0.142
0.106
0.071
0.035
0
inch-H
3.6
2.7
1.8
0.9
0
O
2
mm-H
O
2
020406080
0
0.567
1.133 1.70 2.266
CFM
CMM
Version:A/0 Page12of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
13
7. CorrelativeCertification compliance
Spire Corp.
Item # Certification type Certification Number Certification listing Remark
1 EMC BCT07LC-807E www.bontek.com.cn
2 LVD BCT07LC-807S www.bontek.com.cn
3 FCC ASZ08041007FK www.aovt.com
4 ROHS GZ0803038947A/CHEM www.rohs.cn.com
5 TUV R50131773 www.sz.chn.tuv.com
Version:A/0 Page13of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
13
