APPROVAL SHEET
CPU Coolers
SALES MODEL NO: SP985S1-V2
ENGINEER NO: SC985S1-095-3L302
Article No. : SP-AP-SC-A348
Issue Date : Dec 16, 2010
Version : A/0
Checked by Drafted by
Audited by
Spire Corp.
Tel.: +86-755-33823311 Fax: +86-755-33823314
Http://www.spirecoolers.com
Http://www.spirepower.com
Http://www.spire-corp.com
Version:A/0 Page1of 12
Approval Sheet Revisement Record
SALES MODEL NO: SP985S1-V2
ENGINEER NO: SC985S1-095-3L302
Article No:SP-AP-SC-A348
Spire Corp.
Version
Revised
Description
Chapter
A/0 N/A First Version 2010-12-17 N/A
Revised
Date
Drafte
dby
Audited
by
ECN
No.
Version:A/0 Page2of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
12
Spire Corp.
Contents
1. Main Components List……………………………………..….……….………4
2. Multi views andimages……………………………………..….………………………5
2.1 Coolers images…………………………………………………………………5
2.2 Components images……………………………………………………………6
3. Features and Specifications……………………….....…………………….…………7
4. Product Drawing………………………....….……………….…………………8
4.1 Assembly Drawing……………………...……………………...…………………. 8
4.2 Cooler Drawing……………………….……………………………………………..9
5. Fan Specification………………………………………………….……………… 10
6. P&Q Characteristic curves…………..……………………………………………. 11
7. Correlative Certification compliance…..…………………………………………. 12
Version:A/0 Page3of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
12
Spire Corp.
1. Main Components List
Item Components Part No. Quantity Material
1 Heatsink
2
3 FAN Clip SC985S1-V2 2 Steel
4
775/1156 Clip
Fan SF09025S3L302
SC985S1-V2
SC985S1-V2 1
1Cu+Al
Plastic
1
Plastic
Version:A/0 Page4of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
12
Spire Corp.
2. Multi views and images

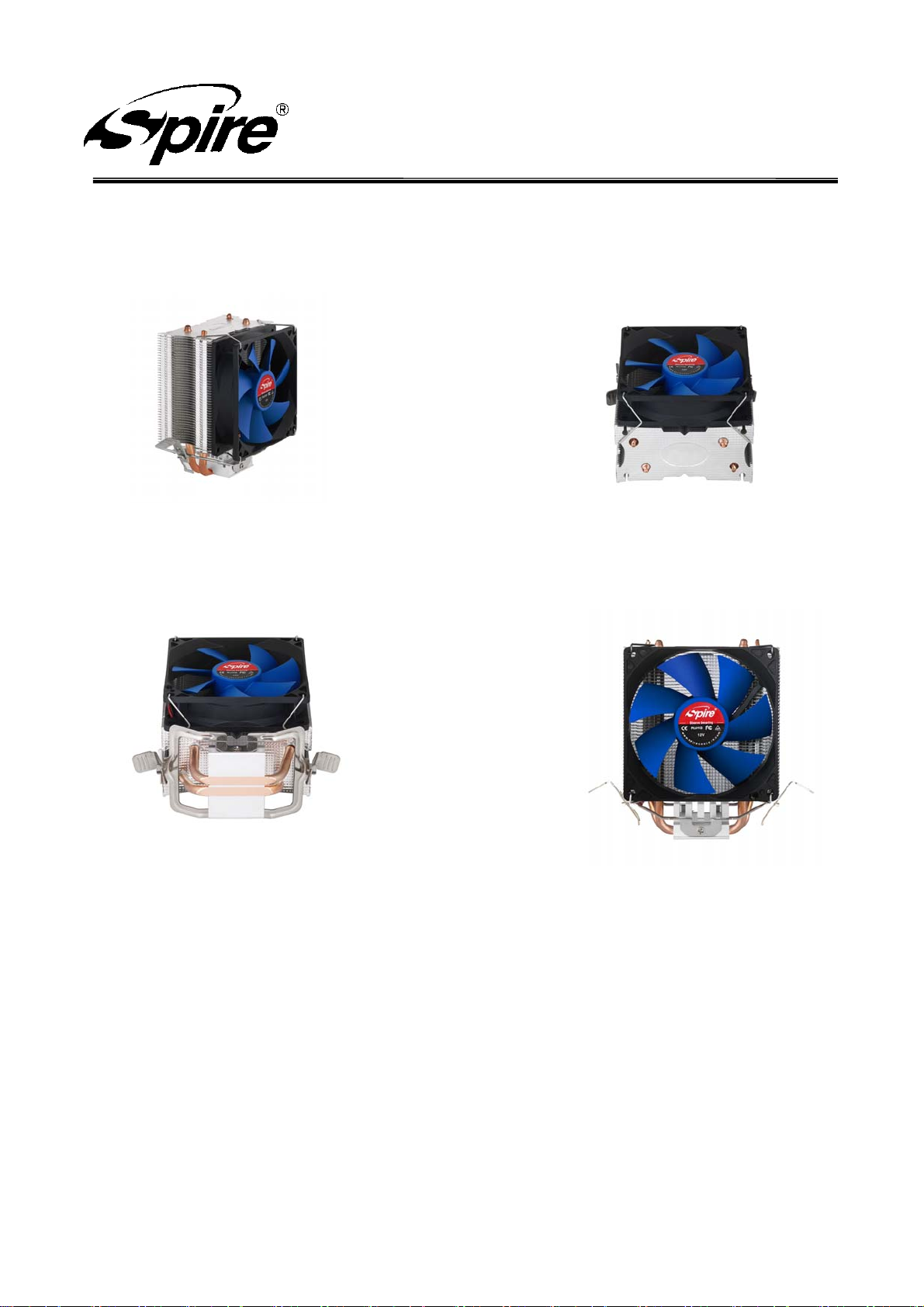

2.1 Cooler images
Picture 1 : Full view Picture 2 : Top view
Picture 3 : Base view Picture 4 : Right view
Version:A/0 Page5of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
12
Spire Corp.
2.2 Components images
Picture 1 : Heatsink Picture 2: Fan
Picture 3: FAN Clip Picture 4: 775 Clip
Picture 5: Fan Label Picture 6: 3pin connector
Version:A/0 Page6of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
12
3. Features and Specifications:
Main features:
Aluminum High-density fin Heat Sink
2 thermally improved copper heat-pipes
92x25mm Sleeve bearing fan for silent operation
heat-sink with large base for optimal heat conductivity
Specifications:
Heat sink : 96.5X51X125 mm
Dimensions
12VDC Fan : 92X92X25 mm
Spire Corp.
Material
heatpipe Two(2) 6mm all copper U-shaped
Bearing Sleeve Bearing
Rated speed
Rated power 2.4 W
Noise level 19.0 dBA
Air flow 38.4 CFM
Current(MAX) 0.20A
Life hours Sleeve: 30,000
Connector 3 pin, main board
Application
AL+CU
Cooler 2000 RPM
Only fan 2000 RPM
1. Intel LGA775/1156
2. AM2/AM3
3. AMD FM1
TDP(Watt) 95 W
Thermal resistance 0.285°C/W
Thermal type Stars-420
weight 358 g(Cooler only)
Version:A/0 Page7of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
12
4. ProductDrawing
4.1
Assembly Drawing
Spire Corp.
REV
1
DESCRIPTION
Drawn
Checked
Approved
432
DATE
5
A
2
1
B
6
A
B
3
C
D
C
D
E
F
G
Item Component Part No. Quantity
1
Heatsink
Clip
2
H
3
Fan
4
Bracket
5
Screw
SC985S1-V2
SC985S1-V2
SF09025S3L302
SC985S1-V2
SC985S1-V2
1
E
5
F
4
Inspection Items
TOLERANCE
±0.10
±0.20
±0.30
±0.40
±0.50
±0.5 °
THIRD ANGLE PROJECTION
Unit
Scale
Material
Finish
Version
Page
UNSPECIFIED TOLLERENCE
TO
OVER
10
0
10
1
2
1
1
2
30
100
250
Angles
30
100
250
over
2
mm
- N/A
N/A
A/0
1/1
43
File Name
SP985S1-V2
APVD
CHK. BY
DSN. BY Date
DRN. BY
Date
Date
Date
Spire Corp.
Part No.
SP985S1-V2
Article No.
Spec No.
BOM No.
5
G
H
6
Version:A/0 Page8of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
12
4.2 Cooler
Spire Corp.
REV
1
DESCRIPTION
Drawn
Checked
Approved
432
DATE
5
A
B
C
Connector
2510-3P PH=2.54
Wire 1
Black (-) UL1007 #26
Wire 2
Red (+) UL1007 #26
Wire 3
Yellow (FG) UL1007 #26
D
6
A
B
C
D
E
21
TOLERANCE
±0.10
±0.20
±0.30
±0.40
±0.50
±0.5
°
3
2510-3P
THIRD ANGLE PROJECTION
Unit
mm
- -
Scale
N/A
Material
N/A
Finish
Version
A/0
1/1
Page
43
File Name
SP985S1-V2
APVD
CHK. BY
DSN. BY Date
DRN. BY
Date
Date
Date
Inspection Items
Spire Corp.
Part No.
SP985S1-V2
Article No.
Spec No.
BOM No.
5
6
F
G
UNSPECIFIED TOLLERENCE
TO
OVER
10
0
10
30
100
H
1
2
30
100
250
Angles
250
over
E
F
G
H
Version:A/0 Page9of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
12
5. Fan Specification:
1) Rated Voltage : 12VDC
2) Operating Voltage Range : 10.2 ~13.8VDC
3) Rated Speed(Only fan) : 2000RPM ±10%
4) Static Pressure : 2.21 mm-H2O
5) Air Flow : 38.4CFM
6) Rated Current(max) : 0.20A
7) Rated Power : 2.4WATTS
8) Noise Level : 19.0 dB(A)
9) Operating Temperature : -10 to 700C
Spire Corp.
FAN MODEL: SF09025S3L302
10) Storage Temperature : -40 to 700C
11) Bearing System : Sleeve Bearing
12) Connector : 3 pin
13) Weight : 62 g
Version:A/0 Page10of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
12
6. P&Q Characteristic curves
Spire Corp.
Version:A/0 Page11of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
12
7. CorrelativeCertification compliance
Spire Corp.
Item # Certification type Certification Number Certification listing Remark
1 EMC BCT07LC-807E www.bontek.com.cn
2 LVD BCT07LC-807S www.bontek.com.cn
3 FCC ASZ08041007FK www.aovt.com
4 ROHS GZ0803038947A/CHEM www.rohs.cn.com
5 TUV R50131773 www.sz.chn.tuv.com
Version:A/0 Page12of
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
12
