APPROVAL SHEET
CPU Coolers
SALES MODEL NO: SP953-1U
ENGINEER NO: SC953-1U
Article No. : SP-AP-SC-A259
Issue Date : Oct 28, 2009
Version : A/0
Checked by
Audited by
Drafted by
Spire Corp.
Tel.: +86-755-33823311 Fax: +86-755-33823314
Version:A/0 Page 1 of 12
Http://www.spirecoolers.com
Http://www.spirepower.com
Http://www.spire-corp.com
Approval Sheet Revisement Record
SALES MODEL NO: SP953-1U
Spire Corp.
ENGINEER NO: SC953-1U
Article No:
SP-AP-SC-A259
Revised
Version
Description
Chapter
A/0 N/A First Version 2009-10-26 N/A
Revised
Date
Drafted
by
Audited
by
ECN
No.
Version:A/0 Page 2 of10
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
Spire Corp.
Contents
1. Main Components List……………………………………..….……….………4
2. Multi views and images……………………………..….………………………5
2.1 Coolers images…………………………………………………………………5
3. Features and Specifications …………….....…………………….…………7
4. Product Drawing………………………....….……………….…………………8
4.1 Assembly Drawing……………………………………………...………………….8
5. Correlative Certification compliance…..…………………………………. 12
Version:A/0 Page 3 of10
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
1. Main Components List
Item Components Part No. Quantity Material
1 Heatsink 01CU953UCW1 1 Cu
2 spring 03SG043 4 Steel
3 Screw 03SW126 4 Steel
4 Clip 03CM005 4 Steel
5 cushion 03WS004 4 Steel
6 1366 back plate 03MB260 1 Steel
7 FAN
SF07015C4H402-
PWM
Spire Corp.
1
Version:A/0 Page 4 of10
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
Spire Corp.
2. Multi views and images
2.1 Cooler images
Picture 1 : Full view Picture 2 : Top view
Picture 3 : Base view Picture 4 : Side view
Picture 5 : back plate
Version:A/0 Page 5 of10
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
3. Features and Specifications:
Main features:
All Copper Heatsink,1U Rackmount
For Intel LGA1366 up to 3.6GHz ,for 1U Server
Specifications:
Heat sink : 80L x 82W x 28H (mm)
Dimensions
FAN size 70*70*15
Rated speed 5000rpm
Bearing Ball Bearing
Rated power 4.2 W
Spire Corp.
Noise level 39.58 dBA
Current 0.35A
Life hours Sleeve: 50,000
Connector 4 pin, main board
Model 1366 1U
Weight
Material Copper
Fin pitch 1.4
Fin thickness ~0.30
TDP（W） 130 @5M/S
Thermal
Resistance
400 g
5M/s Flow Speed 0.28°C/W
Accessories Stars-420 White Grease & back plate
Version:A/0 Page 6 of10
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
4. Product Drawing
4.1 Assembly Drawing
Spire Corp.
REV
DESCRIPTION
Drawn
Checked
Approved
4321
DATE
5
A
B
C
D
6
A
B
C
D
E
F
G
UNSP ECIFIED TOLLE RENCE
OVER
TO
10
0
30
10
100
H
30
100
250
Angles
250
over
TOLERANCE
±0. 1 0
±0. 2 0
±0. 3 0
±0. 4 0
±0. 5 0
±0. 5
THIRD ANGLE PROJECTION
Unit
Scale
Material
nickel plating
Finish
Version
Page
1
Version:A/0 Page 7 of10
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
mm
8:1
steel
A/0
1/1
432
File Name
APVD
CHK. BY
DSN. BY Date
DRN. BY
588-1
Date
Date
Date
5
Inspection Items
Part No.
Article No.
Spec No.
BOM No.
Spire Corp.
6
E
F
G
H
4.2 Cooler
Spire Corp.
Version:A/0 Page 8 of10
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com

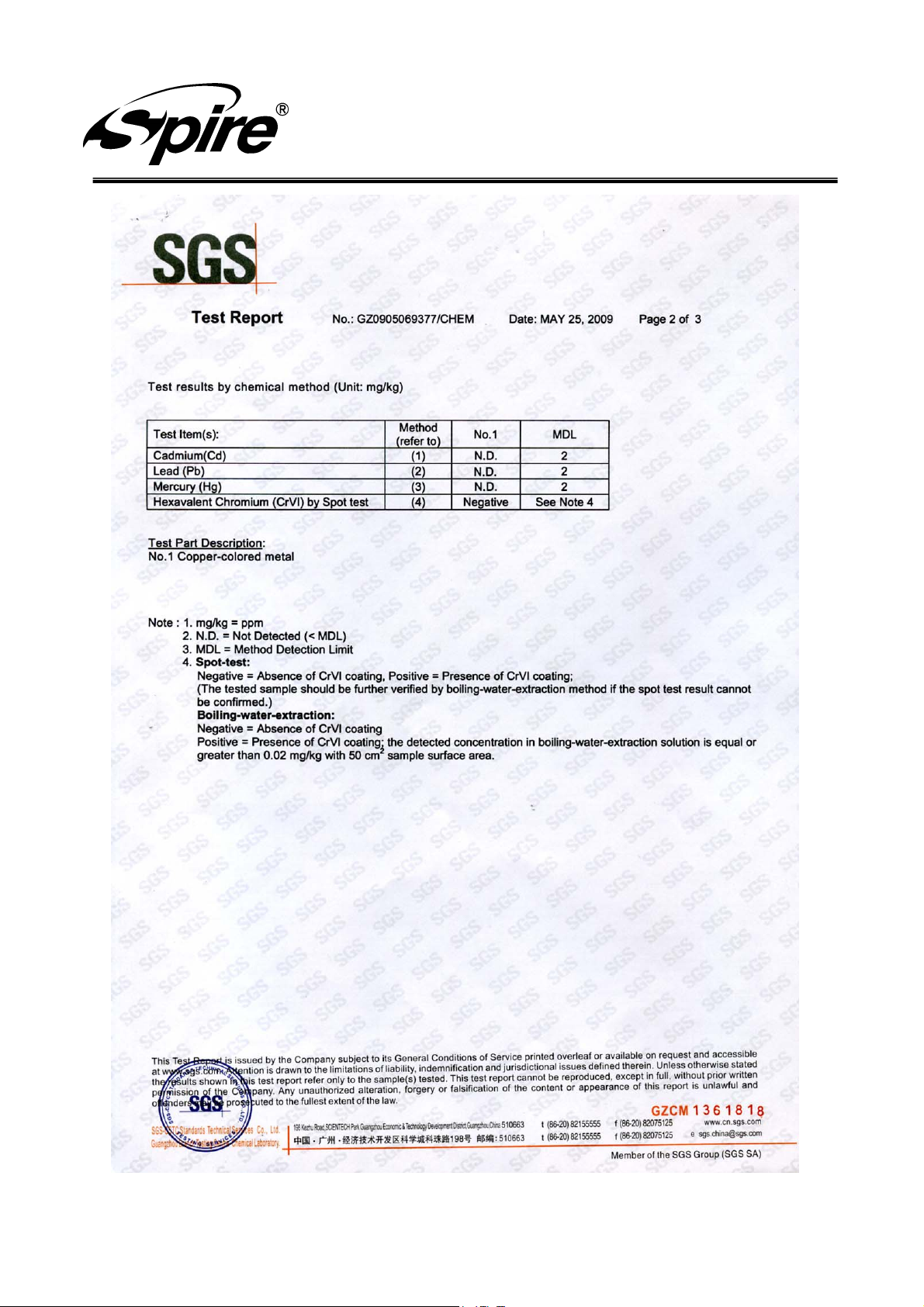

5. Correlative Certification compliance
Spire Corp.
Version:A/0 Page 9 of10
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
Spire Corp.
Version:A/0 Page 10 of10
Http://www.spirecoolers.com & Http://www.spirepower.com
Http://www.spire-corp.com
