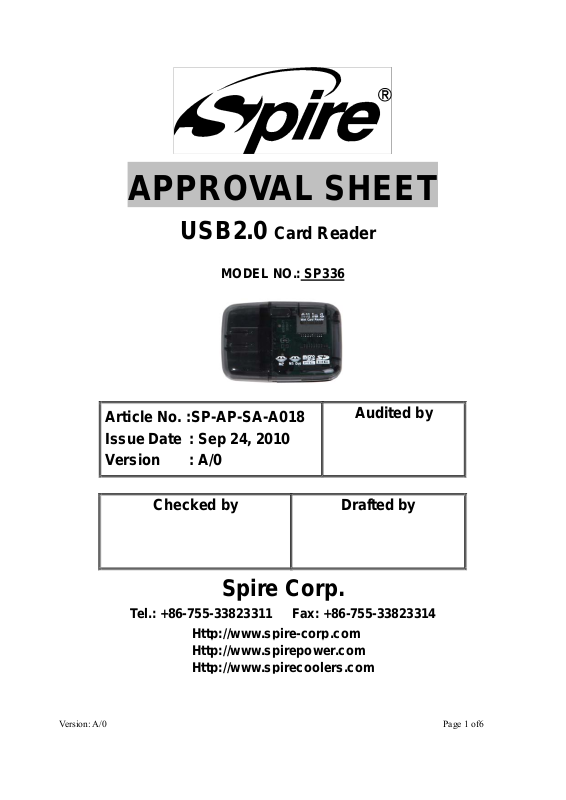

Page 1
APPROVAL SHEET
USB2.0 Card Reader
MODEL NO.: SP336
Article No. :SP-AP-SA-A018
Issue Date : Sep 24, 2010
Version : A/0
Checked by
Spire Corp.
Tel.: +86-755-33823311 Fax: +86-755-33823314
Http://www.spire-corp.com
Http://www.spirepower.com
Http://www.spirecoolers.com
Audited by
Drafted by
Vers ion : A / 0 Page 1 of6
Page 2
Spire Corp.
Approval Sheet Revisement Record
Article No: SP-AP-SA-A108
Version
Description
Chapter
A/0 N/A First Version 2010-09-24 Sam N/A
Revised
Revised
Date
Drafted
by
Audited
by
ECN
No.
Vers ion : A / 0
Page 2 of 4
Http://www.spire-corp.com & Http://www.spirecoolers.com
Http://www.spirepower.com
Page 3
Spire Corp.
Contents
1. Features ……………………………………………………………4
2. System required ……………………………………………………4
3. Pictures……..…………………………………………………………4
Vers ion : A / 0
Page 3 of 4
Http://www.spire-corp.com & Http://www.spirecoolers.com
Http://www.spirepower.com
Page 4
Spire Corp.
1 Features:
Complies with USB specification Rev.2.0 for bus power operations.
− High-speed USB 2.0 interface; backward compatible with USB 1.1.
− Integrated USB 2.0 Transceiver Macrocell Interface (UTMI) and Serial Interface Engine (SIE).
− Supports bus powered and self powered modes.
Complies with USB Mass Storage Class Bulk-Only Transport specification Rev.1.0.
MSC Bulk-Only Interface: Control, Bulk IN, Bulk OUT and Interrupt endpoints for mass storage
class.
Supports multiple flash card interfaces and the latest flash card specifications.
MultiMediaCard™ (MMC) card spec. Rev. 4.2 (1/4/8-bit) and SecureDigital™ (SD) card Rev. 2.0.
@48MHz operating speed. Compliant with high-speed 52MHz MMCPlus™ (HS-MMC) a nd high-speed
50MHz HS-SD, high capacity HC-SD (SDHC) specifications.
− Memory Stick™ PRO-HG Duo card format spec. Rev.1.01 (8-bit) @60MHz operation peed.
− Memory Stick™ (MS) card format spec. Rev. 1.43 and Memory Stick PRO™ (MS PRO) card format
spec Rev. 1.03 (4-bit) @40MHz operating speed.
2 System required
1. PC
z Pentium II/compatible with USB port
z Windows98SE, WindowsME, Windows2000, WindowsXP and Vista,windowns 7
2. MAC
z All desk type computer and PC supporting USB port
z MacOS 9.2, MacOS 10.1 to 10.4 and higher version

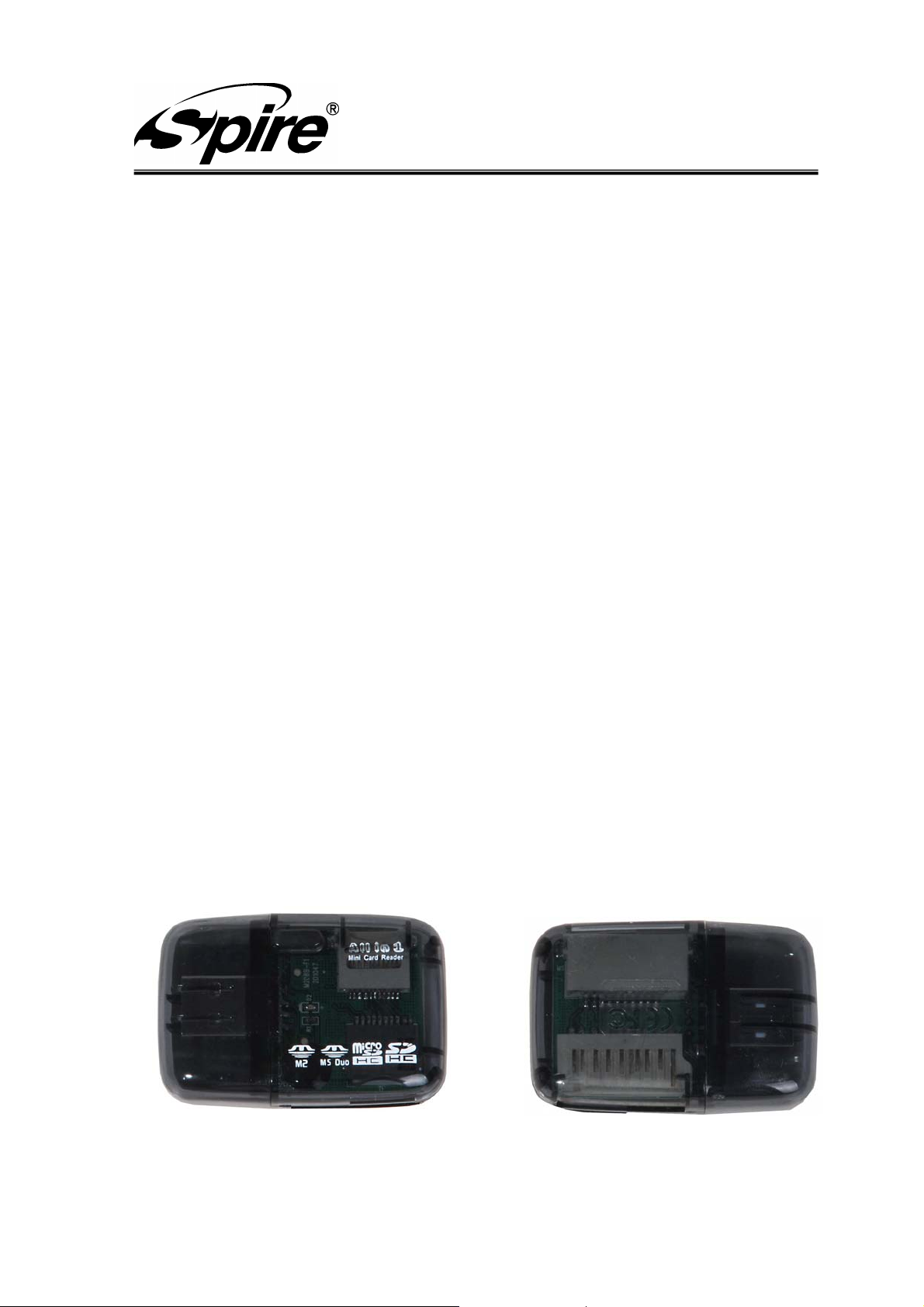

3 Pictures:
Vers ion : A / 0
Page 4 of 4
Http://www.spire-corp.com & Http://www.spirecoolers.com
Http://www.spirepower.com
