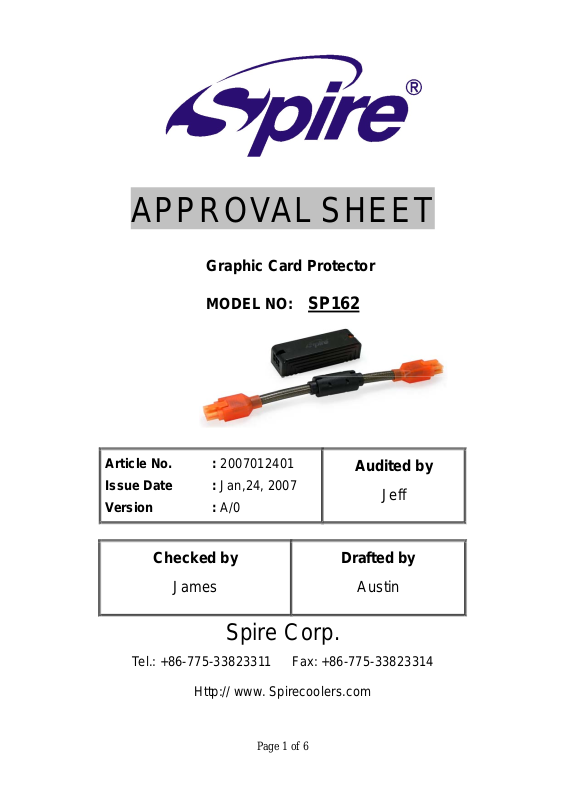

APPROVAL SHEET
Graphic Card Protector
MODEL NO: SP162
Article No. : 2007012401
Issue Date : Jan,24, 2007
Audited by
Jeff
Version : A/0
Checked by
James
Drafted by
Austin
Spire Corp.
Tel.: +86-775-33823311 Fax: +86-775-33823314
Http:// www. Spirecoolers.com
Page 1 of 6
Page 2
Spire Corp.
Contents:
1: Features ·······················································································3
2: Specification ··············································································4
3: Radiation & EMI deduction diagram··········································5
4: Assembly Drawing ······································································6
Page 2 of 6
Page 3
Spire Corp.
1.Features
① SP162 is an over –Voltage protector on 12V to avoid devices to be damaged by irregular high
voltage.
② Over Voltage Protection : Protection will be activated if irregular
voltage beyond allowance detected.
③ Over Current Protection : The fuse value of Graphic Card
Protector is 15A. The fuse will be latched off if
continuous load of Graphic Card Protector stays in 19~23A for 3~5 seconds.
④ Deduction of ripple noise : 50% of ripple noise could be
filtered through the components installed near
⑤ Deduction of radiation : 50% of radiation could be filter through EMC core.
⑥ Color changeable Led indicator
Page 3 of 6
Page 4
Spire Corp.
2.Specification
Over-voltage protection rate
Protection minimum average maximum
12V OVP 14.5V 15.2V 16.0V
Over-current protection rate
Protection minimum average maximum
12V OCP 19.0A 20.6A 23.0A

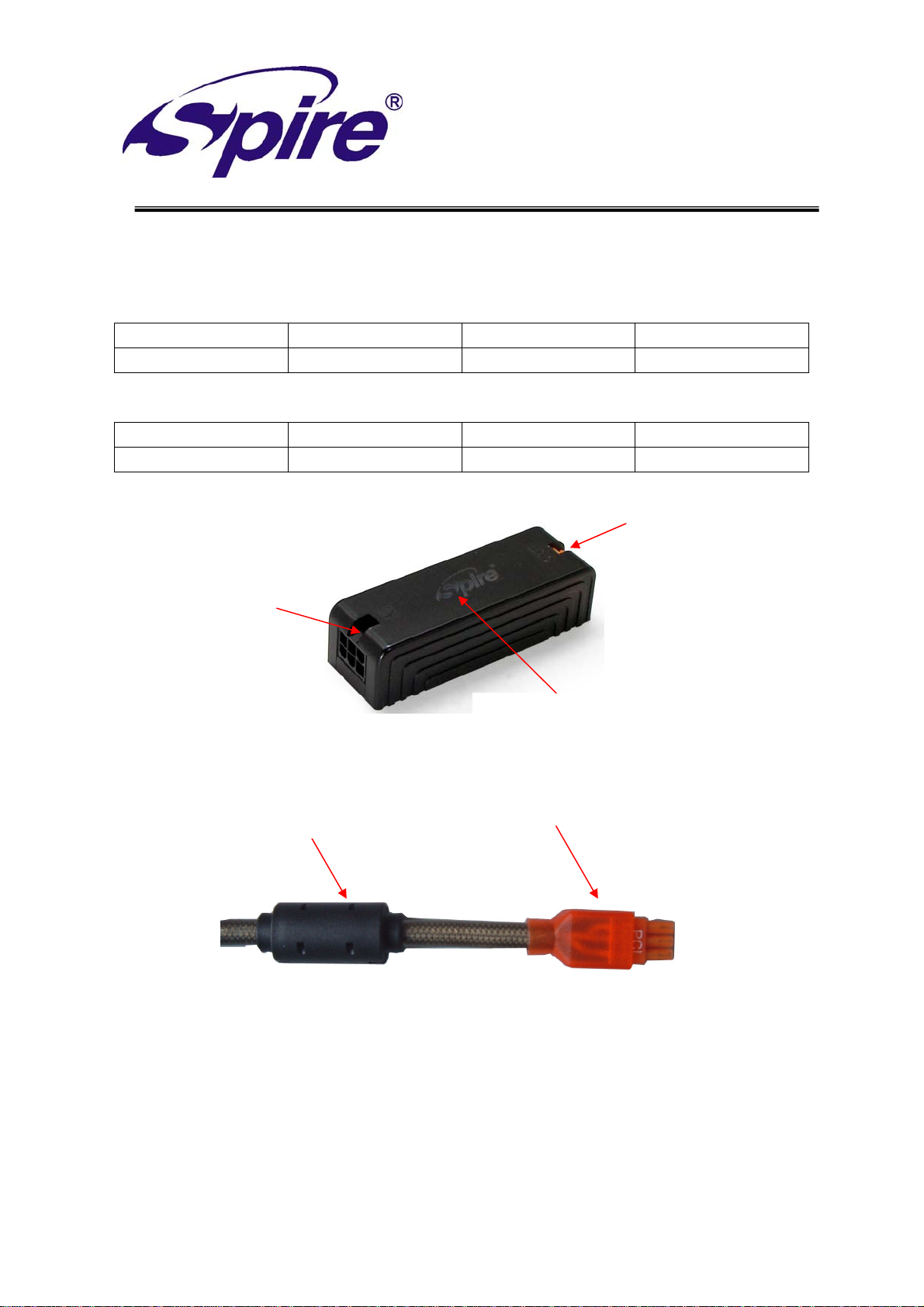

Power out
Power in
Color changeable LED indicator
EMI filter inside EMC core
Page 4 of 6
Page 5

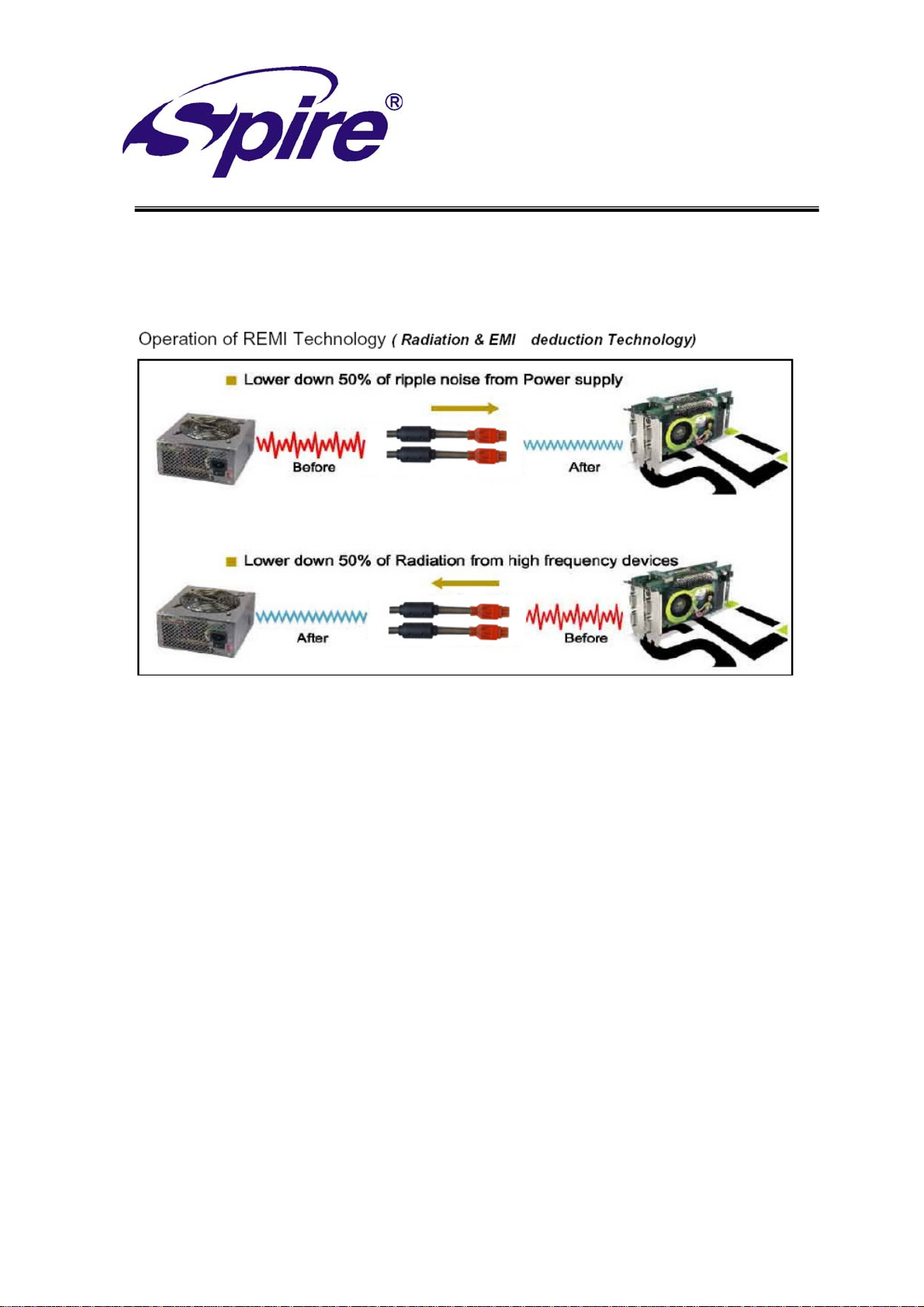

3.Radiation& EMI deduction diagram
Spire Corp.
Page 5 of 6
Page 6

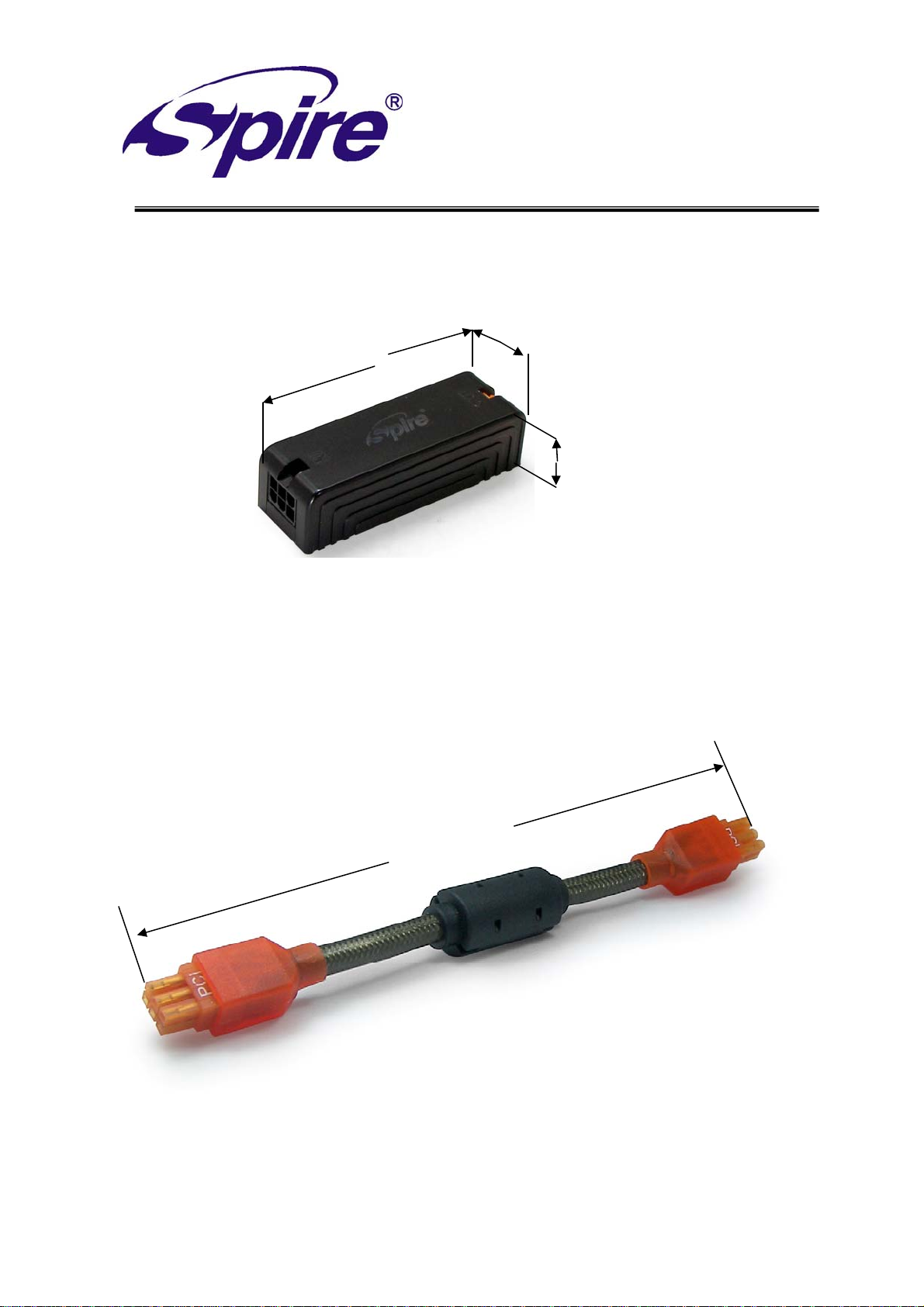

4. Assembly Drawing
Spire Corp.
25mm
75mm
20mm
205mm
Page 6 of 6
