APPROVAL SHEET
2.5” HDD Enclosure
SALES MODEL NO : SP155SEO-BK-EU
ENGINEER NO : SH0814SEO-BK
Article No. : SP-AP-SH-A114
Issue Date : 2010-7-2
Version : A/0
Audited by
Checked by
Drafted by
Spire Corp.
Tel.: +86-755-33823311 Fax: +86-755-33823314
Http://www.spire-corp.com
Http://www.spirepower.com
Http://www.spirecoolers.com
Spire Corp.
Approval Sheet Revisement Record
SALES MODEL NO: SP155SEO-BK-EU
ENGINEER NO: SH0814SEO-BK
Article No: SP-AP-SH-A114
Version
Description
Chapter
A/0 N/A First Version 2010-7-2 N/A
Revised
Revised
Date
Drafted
by
Audited
by
ECN
No.
Version: A/0
Page 2 of 10
Http://www.spire-corp.com & Http://www.spirecoolers.com
Http://www.spirepower.com
Spire Corp.
Contents
1 Features …………………….……………………………………………4
2 Package includes …………..…………………………………………4
3 Specification..…………………………………………………………5
4 Picture……..………...………………………………………………6
5 Detail part specifications………..………..…………………………...7
6 HDD Drawing ……………………………………………………………
7 Assembly Drawing ……………………………………………………
8 Correlative Certification compliance …………………………………
Version: A/0
Page 3 of 10
Http://www.spire-corp.com & Http://www.spirecoolers.com
Http://www.spirepower.com
Spire Corp.
1 Features:
1) Supports Windows98/ME/2000/XP/VISTA/Windows7/Mac OS 8.6 or above
2) Supports 2.5" SATA Hard disk up to 500G
3) Easy installation/plug- play/no jumpers
4) Hot swappable
5) Self Power consumption +5V
6) Maximum transfer speed at 3G/sec
7) Support OTB function
Sales List
Dimensions 138.5*76*13.5mm
Material AL+ABS
Color Black
AC input N/A
DC output N/A
Trasfering interface
HDD support
Support maximum capacity
Maximum transfer speed
OS support
Chipset JM20336
Certification CE/FCC
MTBF 3Years
Operating temperature
Storage temperature
Warranty 1Years
Packaging type Color box
Package includes
N.W (only enclosure) 110g
G.W(inclcolorbox&accessoires) 215g
Dimension / color Box 172*130*40mm
UPC/EAN Code 6943051203751
Dimension /Carton Box 425*325*430mm
PCS/Carton Box 50
Windows 98/ME/2000/XP/VISTA/Windows7/ Mac OS
SP155SEO-BK unit/USB Cable/ Screw diver/ Driver
CD/ Manual/ Screws/ Power Cable/Esata Cable
High speed USB2.0
2.5" SATA HDD
5000Gbit
3G/sec
8.6,OS X
10°~60°
10°~60°
Version: A/0
Page 4 of 10
Http://www.spire-corp.com & Http://www.spirecoolers.com
Http://www.spirepower.com
2 Package includes:
1) SP155 unit
2) USB cable
3) Driver CD
4) Leather bag
5) Manual
6) Screws
7) Screw driver
8) Esata Cable
Spire Corp.
3 Specification
HDD
Connector
SATA 2.5” USB2.0 USB cable 138.5*76*13.5mm 110g
Version: A/0
Page 5 of 10
HDD
Size
Http://www.spire-corp.com & Http://www.spirecoolers.com
Http://www.spirepower.com
Transfer
Interface
Power Dimension Weight
4 Pictures:
Spire Corp.
Version: A/0
Page 6 of 10
Http://www.spire-corp.com & Http://www.spirecoolers.com
Http://www.spirepower.com
Spire Corp.

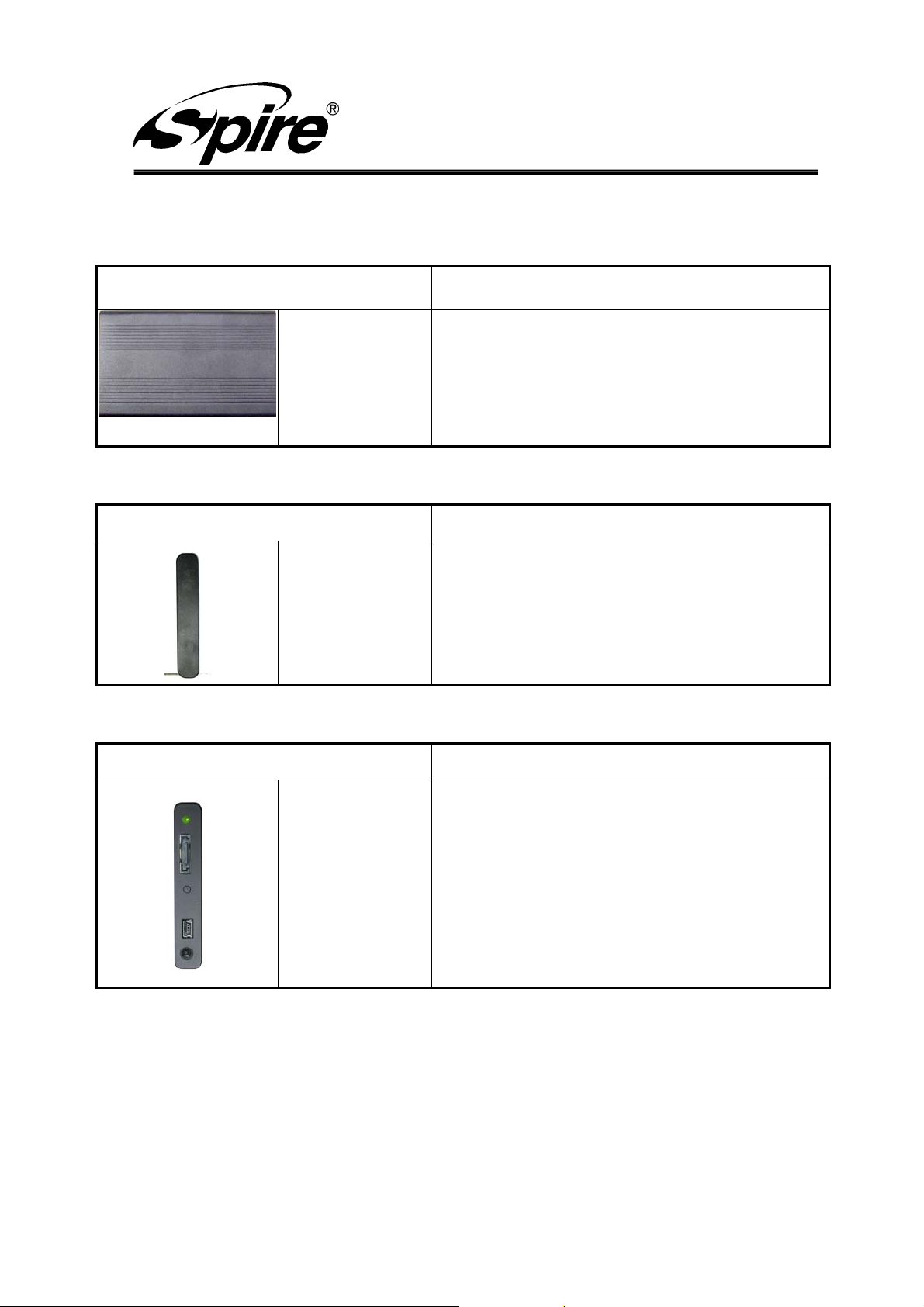

5 Detail part specifications
1） Aluminum enclosure
Item
Enclosure AL
2） Front cover
Item Material
Material
3） Back cover
Front cover ABS
Item Material
Back cover ABS
Version: A/0
Page 7 of 10
Http://www.spire-corp.com & Http://www.spirecoolers.com
Http://www.spirepower.com
6 HDD Drawing
Spire Corp.
Version: A/0
Page 8 of 10
Http://www.spire-corp.com & Http://www.spirecoolers.com
Http://www.spirepower.com
7 Assembly Drawing
Spire Corp.
Version: A/0
Page 9 of 10
Http://www.spire-corp.com & Http://www.spirecoolers.com
Http://www.spirepower.com
Spire Corp.
8 Correlative Certification compliance
Certification
Item # Certification type
Number
1 CE A08012903EK
2 FCC A08012904FK
Certification listing Remark
www.aovt.com
www.aovt.com
Version: A/0
Page 10 of 10
Http://www.spire-corp.com & Http://www.spirecoolers.com
Http://www.spirepower.com
Spire Coolers Corp.
1~3rd floor, No.D BLDG, Bantian Str.
Buji town, Longgang Area
Shenzhen, China
Tel.: +86-0755-33823311
Fax: +86-0755-33823314
W.: www.spire-corp.com
RoHS Declaration of Conformity
Spire hereby declares under our sole responsibility that the product:
Part number:
Codename:
SP155SEO-BK-EU
HDD Enclosure
Description:
1) Supports Windows98/ME/2000/XP/VISTA/Windows7/Mac OS8.6or above
2) Supports 2.5" SATA Hard disk up to 500G
3) Easy installation/plug- play/no jumpers
4) Hot swappable
5) Self Power consumption +5V
6) Maximum transfer speed at 5G/sec
Is tested and approved in compliance with the EUROPEAN COUNCIL ROHS DERECTIVE.
(Restriction of Hazardous Substances) which will restrict the use of certain substances in
electrical and electronic products: including lead (Pb), mercury, cadmium, hexavalent chromium,
and certain halide-containing flame retardants. The directive applies to all electrical and
electronic products, their component parts that are placed on the market after July 1, 2006.
Spire Coolers Corp.
PM Engineering Dept.
Buji, Shenzhen
