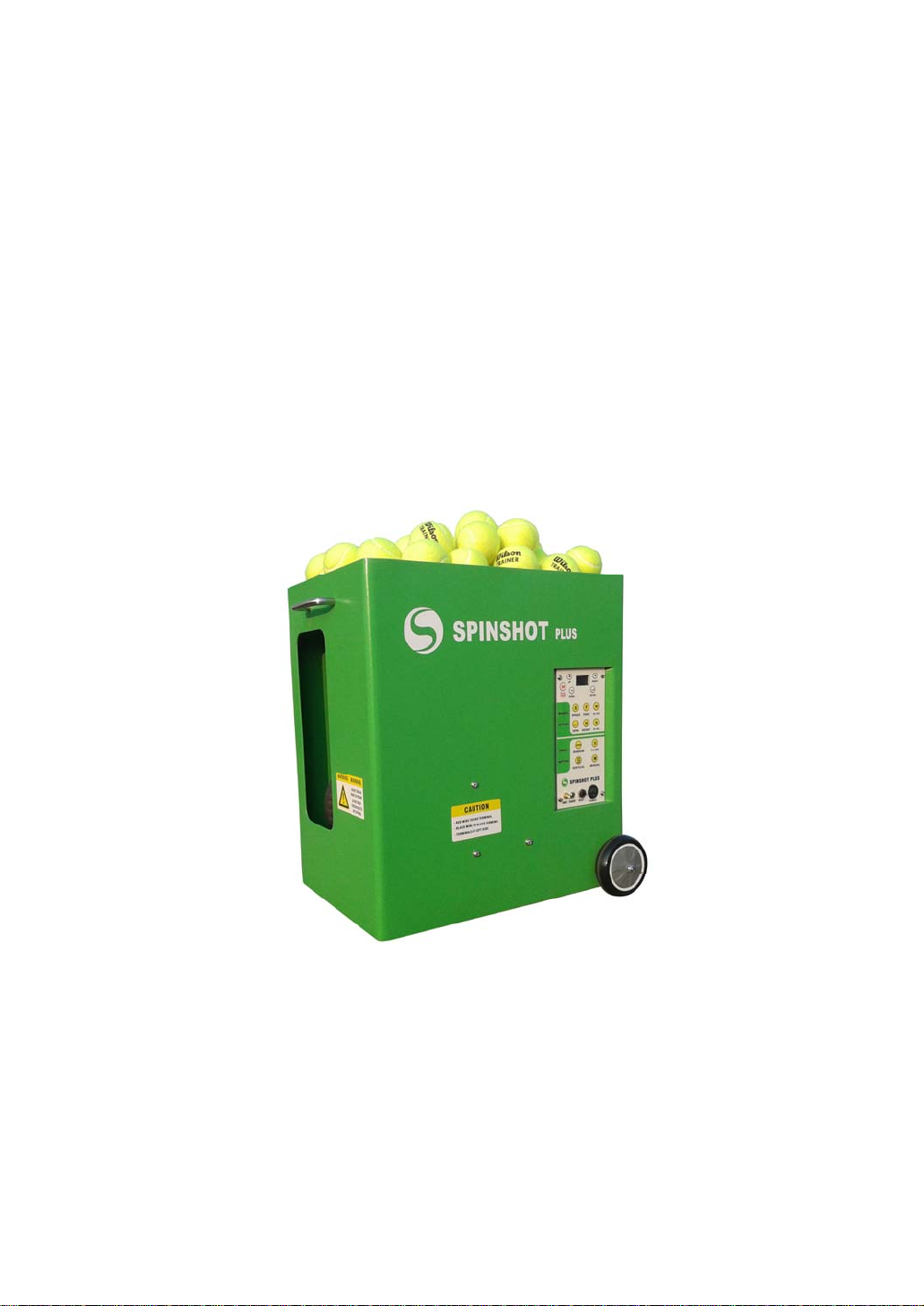

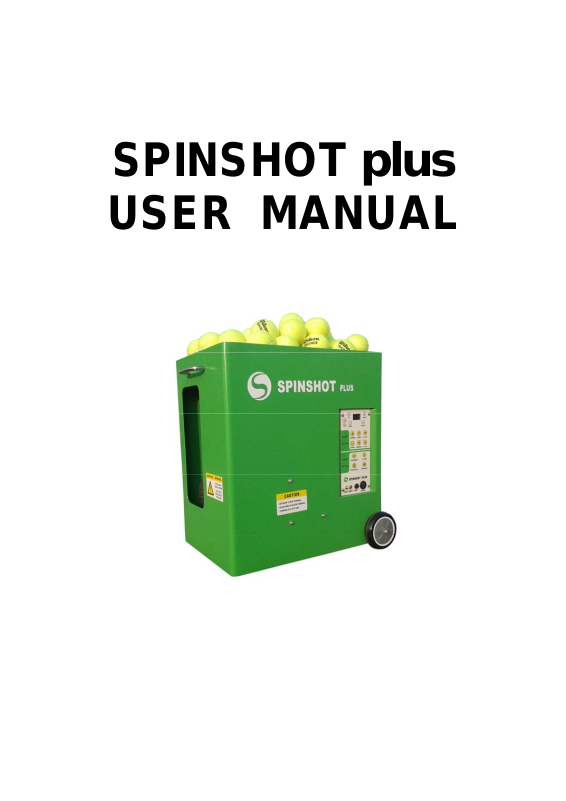

SPINSHOT plus
USER MANUAL
Section-1: Before Using Machine
Introduction
Thank you for purchasing a SPINSHOT tennis ball machine. This
manual contains important information concerning the proper use and
care of your ball machine. Please read owner’s manual completely
before operating your machine.
Tennis Balls To Be Used
Please take note that brand new tennis balls are not recommended to
be used especially during first ten hours of break-in period. The ink and
waxy coating on brand new tennis balls can leave a slick coating on the
new ball throwing wheels, resulting in inconsistent ball throws. It is best
to use balls that are slightly used to reduce the potential for developing
the slick coating on the wheels.
The consistency of ball throws will depend on the consistency of the
tennis balls being used. A mixture of new and old balls will produce
inconsistent throws. Inconsistent ball throws may also be caused by
excess dirt and ink build up on throwing wheels. Cleaning the ball
throwing wheels as described in the section “Maintenance and
Cleaning” will restore consistent performance.
Important Warnings
WARNING: Do not reach or look into the ball exit hole without turning
the main power off and only after both wheels come to a complete stop.
WARNING: Do not stand closer than 10 meters in front of the ball
machine when the power is on.
WARNING: Do not place balls or foreign objects into the ball hopper
while the power is on. It could cause jam and damage the feeder motor.
WARNING: The overloading of balls into the ball hopper may result in a
jam of the feeder. It is suggested that no more than 120 balls be put
inside the ball hopper.
WARNING: Do not use machine while it is raining or in water. Do not
use wet tennis balls.
Section-2: Operating Machine

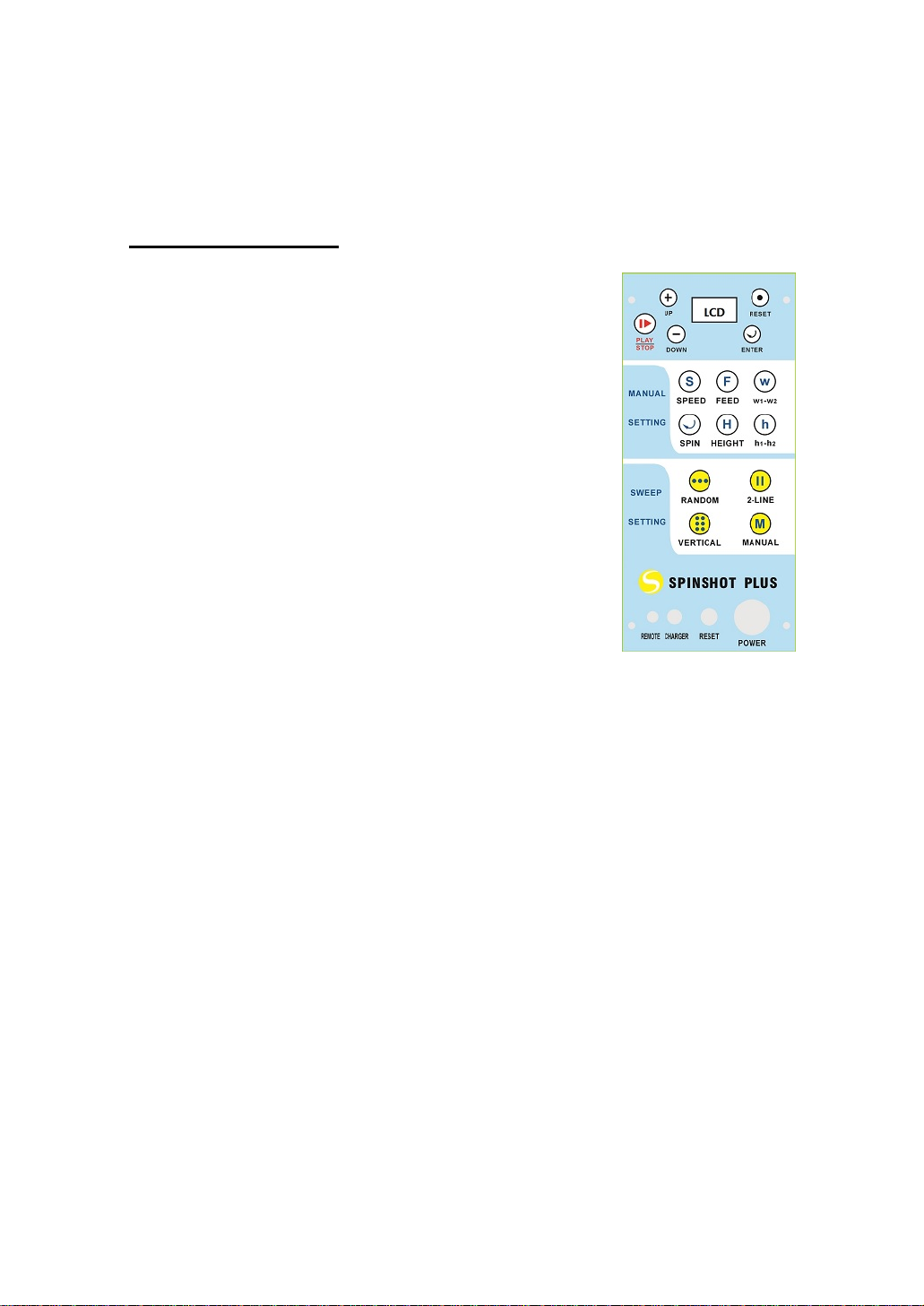

Control Panel
POWER: The power switch is used to turn on or off
the machine. After you turn on the power, the
machine will show its battery voltage on the LCD.
Both horizontal and vertical motors will perform a
functional initialization for proper function of the
machine. Then user needs to put the machine at
the centre of the baseline and in proper direction,
which will make machine sweep the balls evenly
across the court.
Powering on the machine will not make machine
start to propel balls. The user needs to select the
settings and then push the “PLAY/STOP” button.
After switching the power on, the machine will be
default to work on manual mode without
oscillation.
If at anytime the machine functions improperly, the user can turn
off the power button to reset machine’s control logic. Most of
time, the imprope
attery voltage.
b
RESET: The white reset switch protects the electronics and motors.
When activated, this switch pops out approximately 6mm. In the even
when the reset is activated, turn off the main power, press the reset
switch, check for any balls jammed inside machine and then turn on the
main power to normal operation status. The “reset” can be caused by
excessively dirty or slick ball throwing wheels which prevent the wheels
from properly grabbing the ball. Cleaning the ball throwing wheels
described in the sectio
roper performance.
p
CHARGER JACK: Plug the charger into the jack and t
power outlet to start the charging of your machine.
a
REMOTE JACK: It is reserved port but not used for Plus model. Befor
the
r working of the machine is caused by low
as
n “Maintenance and Cleaning” will restore
he other end into
e
t
use remote controller to control the machine, user needs to start up
machine first. The FEED button will stop or start the feeding of th
into the machine. T
scillation mode.
o
The operation to Android-Phone based remote is similar to operations
on the front panel. The real time setting values will be shown on control
panel. User need to turn on the ball machine first before turn on rem
application. First time when use remote, it need to be paired with
password of 1234. User can download the install
ttp://www.spinshot.co.uk/Android-Remote.html
h
he SWEEP button will stop or start the 2-line
ation code from
e ball
ote
anual Setting ButtonsM
PLAY/STOP: The button will trigger the machine to start or stop. Every
time when you press this button to start the machine, the machine will
hold for 10 seconds before it prope
etting changes durin this time.
s g
UP(+)/DOWN(-): The UP(+)/DOWN(-) button are used to adjust the
manual setting parameters. Before clicking the button, the user n
to choose the type of setting to be adjusted. The types of setting
include ball SPEED, ball HEIGHT, FEED frequency, SPIN level, h1-h2
and w1-w2. Ple
etting types.
s
ESET: Reserved button.
R
ENTER
is running, the ENTER button needs to be pressed after inputting t
height value. The machine will not shoot any balls until the height
adjustment is completed. At the initialization stage, the ENTER button
h
as to be pressed after the user points the machine in pr
SPEED: The SPEED button needs to be pressed first when the us
adjusts the ball speed. Then the user can press the UP or DOWN
buttons to adjust the speed level (shown as RATE in LCD screen). Its
value can be shown on LED with maximum level at 20 and minimum
level at 1. The SPEED value can be adjusted whe
ru
: If the user needs to change the ball height when the machine
nning mode and will take effective immediately.
ase find sections below for more details about different
l the balls. Machine will not take any
eeds
he
oper direction.
er
n the machine is in
FEED: The FEED button needs to be pressed first when the user
adjusts the ball feed interval. Then the user can press the UP or DOWN
buttons to adjust the feed rate. Its level is shown on LCD with 9 bei
fastest (approximately 1 ba
ode without oscillation).
m
SPIN: The SPIN button needs to be pressed first when the user adjusts
the ball SPIN level. Then the user can press the UP or DOWN button to
adjust the amount of spin. It can set topspin or slice levels. When SPIN
is set at 0, it will be flat balls. +9 represents the highest level of topsp
and -9 represents the highest level of slice. The SPIN level can be
adjusted when the machine is in the running mode and will be effecti
immedia
odes)
m
HEIGHT: The HEIGHT button needs to be pressed first when the user
adjusts the ball height level. Then the user can press the UP or DOWN
buttons to adjust the height value. It will control the ball height when the
machine is not running in the vertical oscillation mode. The height level
can be shown on the LCD with highest level at 50 and lowest level at
The user needs to press the ENTER button to make the height
setting take effective if machine is running. After press the ENTE
button, the machine w
djustment is done.
a
In the vertical oscillation modes, the user needs to use h1-h2 button to
adjust th
etting.
s
In the vertical oscillation modes, the HEIGHT button will also be us
but not represent the ball height. The HEIGHT value will sho
umber of shoots at each height level (defined by h1, h2).
n
h1-h2: The button is used only in the vertical oscillation modes. In th
vertical oscillation modes, the machine is shooting balls at 2 height
levels defined by h1 and h2. Pressing once on the h1-h2 button will
give access to set the h1 level with a minimum level at 1 and a maxim
level at 20. Pressing again on the h1-h2 button will give access to set
the h2 level with a minimum level of 30 and a maxim level of 50
setting is only effective when the machine is set on the vertical
oscillation mode (horizontal vertical oscillation
tely. (See note-2 for spin level setting at vertical oscillation
e height oscillation range. Please see below section for h1-h2
ll every 1 second at the manual setting
ill stop shooting out balls until the height level
w the
mode, 2-line vertical
ng
in
ve
1.
R
ed
e
. This
oscillation mode or vertical oscillation mode).
w1-w2: The button is used for horizontal 2-line oscillation modes,
which includes horizontal 2-line oscillation and vertical horizontal 2-line
oscillation. In such modes, the machine is shooting balls to a defined
width. W1 stands for the 2-line width range on the backhand side and
W2 stands for the 2-line width range on the forehand side. Pressing
once on the w1-w2 button will have the user set the W1 level with a
minimum level of 1 and a maxim level of 9. Pressing again on the
w1-w2 button will have the user set the W2 level with a minimum le
vel
of 1 and a maxim level of 9. This setting is only effective when the
machine is set on the
ertical oscillation).
v
2-Line oscillation mode (2-line oscillation or 2-line
scillation Mode Setting and ButtonsO
SPINSHOT-Plus model can support
c
ombination of oscillation modes. Overall it can support 5 types of oscillation:
Type-1: RANDOM HORIZONTAL OSCILLATION
Type-2: 2-LINE HORIZONTAL OSCIL
Type-3: VERTICAL OSCILLATION;
Type-4: RANDOM HORIZONTAL AND VERTICAL OSCILLATION
Type-5: 2-LINE HORIZONTAL AND VERTICAL OSCILLATION;
RANDOM: Pressing this button will set machine to horizontal
oscillation mode. In this mode, the machine will randomly shoot balls
horizontally. Ball speed, heigh
e random oscillation mode.
th
When the machine is set to the horizontal oscillation mode, the user
can still press the vertical oscillation to switch the machine to RAND
HORIZONTAL AND VERTICAL OSCILLATION mode. This is an
oscillation mode combining both horizontal and vertical oscillations
For this oscillation mode, the h1-h2 setting need
efine the 2 height levels of vertical oscillation.
d
2-LINE: Pressing this button will set the machine to the 2-line
horizontal oscillation mode. The two-line oscillation automatically
shoots to two preset locations allowing a user to practice alternating
different oscillation modes, or a
;
LATION;
;
t, spin and feed rate can be adjusted for
OM
.
s to be applied to
forehand and backhand shots. 2-line width can be defined by w1-w2
etting as described in section of “w1-w2”.
s
After the machine has been set to the 2-line oscillation mode, the user
can still press vertical oscillation to make the m
ORIZONTAL AND VERTICAL OSCILLATION.
H
achine set to a 2-LINE
VERTICAL: Pressing the VERTICAL button will set the machine to a
vertical oscillation mode. The vertical oscillation mode will allow for a
combination of high balls and low balls
height levels defined by h1 and h2.
2
. The machine will shoot balls at
If machine has been in the random horizontal oscillation mode,
pressing this button will set the machine to RANDOM HORIZONTA
L
AND VERTICAL OSCILLATION mode. If the machine has been in
2-line oscillation mode, pressing this button will set the machine to
2-LINE
ode.
m
HORIZONTAL AND RANDOM VERTICAL OSCILLATION
a
MANUAL: Pressing the MANUAL button will set machine back to
manual mode witho
ower on or reset.
p
ut oscillations. This is also a default setting after
otes:
N
1. When the user needs to switch between different oscillations
modes, it can be through the “SWEEP SETTING” buttons directly.
In most cases, it is not a problem. However, because the machine
could still be running during switching, the internal logic can work
improperly by such direct switching. If this happens, the user ca
just turn
off and then turn the machine on again to reset all the
n
logics.
2. In the 3 types of vertical modes, the machine will shoot balls at 2
height levels. In the low height level defined by h1, the machine wi
deliver a flat shot without any spin even though the user defined
spins. In the higher level defined by h2, the machine will be wi
spin as defined. T
his is to simulate real games with flat shots
th
followed by lobs.
ll
3. Each time when the user presses the oscillation button to enter a
different oscillation mode, there will be a default setting
the LCD. Such a setting is the pre
corresponding oscillation mode.
4. Keep pressing the “+” or “-“ butt
decrease the selected values.
5. By properly positioning the machine, the user can make the
machine shoot balls
oscillation modes.
6. The maxim feed rate setting is 9, but in oscillation mode, the feed
rate can be lower than in manual mo
horizontal motor adjustment delay.
7. The serving wheels can not slow down quickly. So in vertical
oscillation mode, when machine switches from low shots to higher
shots with a high spin setting it will produ
the court if it is used with fast feed rates.
8. The high top spin setting will slow down the balls. Therefore, w
machine works with high spin setting, it is suggested that the
machine be set to a high speed level of over 1
setting will be 20 for spin level higher than 7.
9. When machine switch between different oscillation modes, it could
be possible that machine shoot initial 2 or 3 balls not very precis
during its calibration stage. After such sta
precisely shoot balls at defined setting.
evenly across the court during horizontal
ferred value for the
on will continuously increase or
de due to internal height or
ce shots out the back of
7. Default speed
ge, the machine will
shown in
hen
ely
Battery Charging (for Battery Model)
You need to first connect the battery charger to a live electrical outlet
and then insert battery charger into the socket labeled as “CHARGER”
n the control panel.
o
The battery will be fully charged in 8 to 15 hours. The LED light on the
charger pack will be green when the machine is fully charged. If LE
stays red, the charging process is still continuing. A fully charged
battery will provide approximately 3-4 hours of practice time. Higher
ball spe
ed requires more power and therefore will drain the battery
D
faster.
It is very important to CHARGE THE BATT
FTER EACH USE.
A

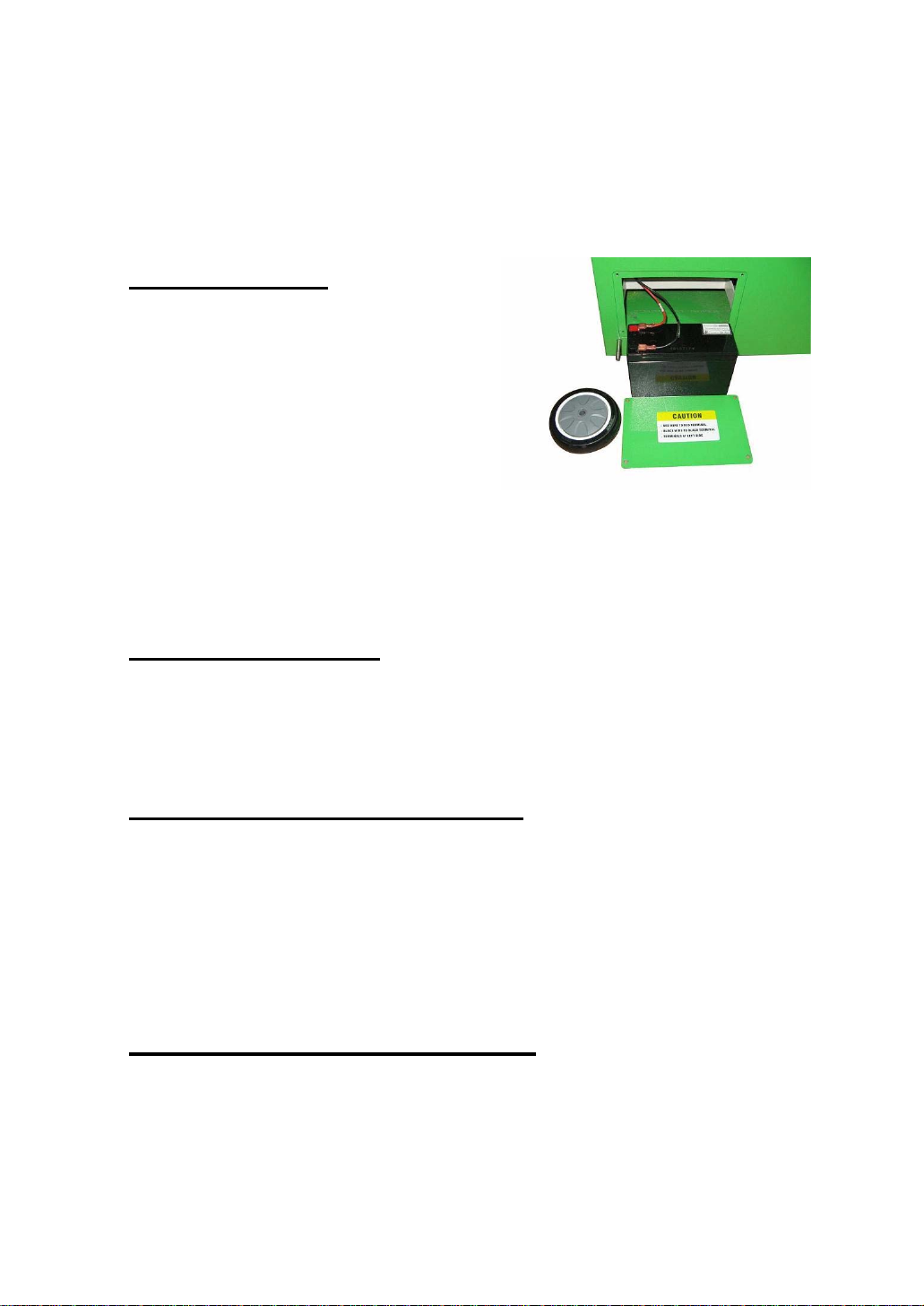

Battery Cage
The battery cage enables the user to
easily install and replace the battery
or an AC module. Unscrew the wheel
first before opening the battery cage
door. Unscrew the 4 screws at the
corners and then you will find 2 wires
which will be connected to the batt
terminals. The red wire should be
connected to the red terminal and
black wire to the black terminal. Care must b
e battery terminals to the top left side when you insert the battery into th
the cage.
ery
ERY IMMEDIATELY
e taken to ensure you put
Static Electricity
It is possible that the action of the tennis balls rubbing against the
throwing wheels will cause a small static electric shock when you touch
e control panel. To eliminate this connect a wire from the control th
panel to the court surface.
Transporting and Storage
Remove all balls and close the ball hopper before transporting your
SPINSHOT ball machine. Store the machine in a clean, dry loca
Never store the machine in a closed trunk where temperatures can
very high. Extreme temperatures and conditions can affect the
achine’s electronic board and battery. Never store the machine
m
utside. Exposure to rain and snow will shorten the life of the machine.
o
tion.
be
Maintenance and Cleaning
It is suggested that you clean the ball throwing wheels every year
after 150 hours of use especially when the machine is not throwing
balls consistently. Clean the ball throwing wheels only when the
machine is off. Firmly rub coarse sandpaper across the throwing
or
the
wheels through the ball ejection opening to remove the dirt and ink
uild-up. Sand the entire circumference of each wheel and use enough
b
pressure to rough-up the rubber surface of the wheels.
To clean the case, use a slightly damp cloth. Do not use chem
abrasive cleanse
f the machine. The use of compressed air for cleaning is not
o
commended.
re
rs. Use a vacuum cleaner to clean dirt from the inside
icals or
Section-3: Warranty
Warranty Period
The warranty service is free for materials and workmanship for a period
of one year from date of original purchase except for the battery, which
is warranted for three months.
Scope of Warranty
This warranty covers all defects in material and workmanship. The
following are not covered by the warranty:
Units damaged by accident, misuse, abuse, neglect
Units modified by unauthorized personnel
Units damaged during shipment
Battery damage
Loading...
