Page 1
www.spider-web.co.kr
5 Product operation
a.
b.
c.
Run SPIDER WEB application, click “Share” to transmit laptop contents to display.
Click “Private” to withdraw laptop transmission when presentation finishes.
When SPIDER WEB screen is shown at display, the next user clicks “Share” to transmit.
(Share function is not released to others before current pairing user presses Private button.)

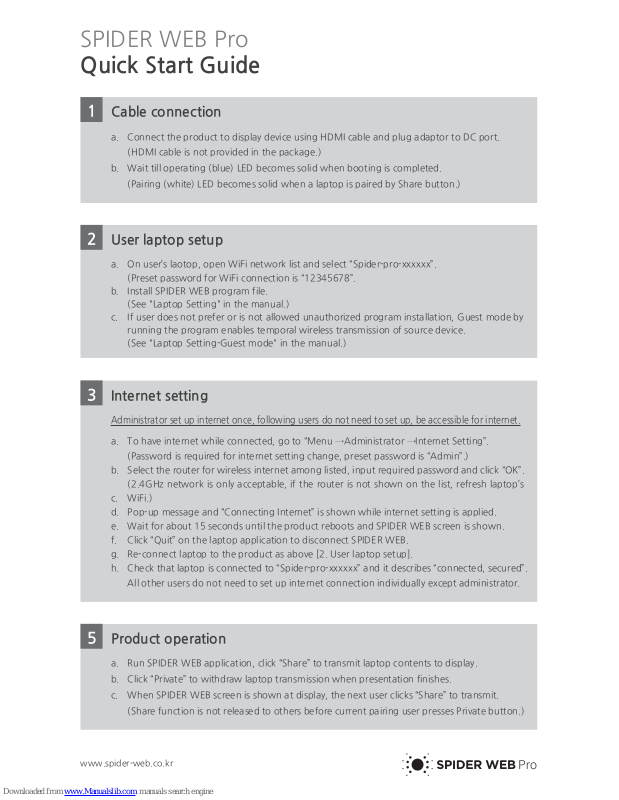

SPIDER WEB Pro
Quick Start Guide
1 Cable connection
a.b.Connect the product to display device using HDMI cable and plug adaptor to DC port.
(HDMI cable is not provided in the package.)
Wait till operating (blue) LED becomes solid when booting is completed.
(Pairing (white) LED becomes solid when a laptop is paired by Share button.)
2 User laptop setup
a.
b.
c.
On user’s laotop, open WiFi network list and select “Spider-pro-xxxxxx”.
(Preset password for WiFi connection is “12345678”.
Install SPIDER WEB program file.
(See "Laptop Setting" in the manual.)
If user does not prefer or is not allowed unauthorized program installation, Guest mode by
running the program enables temporal wireless transmission of source device.
(See "Laptop Setting-Guest mode" in the manual.)
3 Internet setting
a.
b.
c.
d.
e.
f.
g.
h.
Administrator set up internet once, following users do not need to set up, be accessible for internet.
To have internet while connected, go to “Menu →Administrator →Internet Setting”.
(Password is required for internet setting change, preset password is “Admin”.)
Select the router for wireless internet among listed, input required password and click “OK”.
(2.4GHz network is only acceptable, if the router is not shown on the list, refresh laptop’s
WiFi.)
Pop-up message and “Connecting Internet” is shown while internet setting is applied.
Wait for about 15 seconds until the product reboots and SPIDER WEB screen is shown.
Click “Quit” on the laptop application to disconnect SPIDER WEB.
Re-connect laptop to the product as above [2. User laptop setup].
Check that laptop is connected to “Spider-pro-xxxxxx” and it describes “connected, secured”.
All other users do not need to set up internet connection individually except administrator.
Page 2
www.spider-web.co.kr
・
・
・
・
For better performance in general environment, 5GHz WiFi is recommended.
(If laptop supports 2.4GHz only, main unit has to be changed to 2.4GHz mode manually.
Transmission quality can be better with 5GHz connection. 5GHz WiFi dongle, sold separate
in the market, can be added to user’s laptop.)
Depending on the specifications of laptop and usage environment, connection quality may
affect to speed or response time, and the later version OS of laptop(Windows, Mac) provide
a higher transmission quality.
If “Spider-pro-xxxxxx” is not shown on the laptop WiFi list, refresh and check the updated
list.
Administrator set up internet once, following users do not need to set up, be accessible for
internet, Share function is not released to others before current pairing user presses Private
button.
(Default setting can be changed to the other option at Admin Setting.)
・
・
・
・
・
The edge of display screen may be hidden when the laptop does not support 1080p resolu-
tion due to different ratio between original contents at laptop and display output aspect.
Display output screen may differ relying on the display manufacturers and models.
When pairing LED is lit on but nothing is shown at display screen, check HDMI cable
between main unit and display.
In case laptop specification is lower than recommended system requirement, the system may
not work properly or share button may not be activated in spite of laptop’s connection to the
main unit WiFi. Refer to the product specification in the manual.
In File stream mode, playing video is not able to be controlled. When user wants to stop
video, select presentation mode.
SPIDER WEB Pro
Initial Notice
First time to use?
Something wrong on display screen!
