Page 1
Operation manual
Spider ILD01 G (SN 2474 - )
original Operation manual
revised
03-01-04-2019
Product serial number: ILD01…………………………………………………………
Engine type/serial number: FS541VB / ……………………………………………
DVOŘÁK – svahové sekačky, s.r.o., Pohled 277, 582 21 Pohled, Czech Republic
[email protected]; www.spider-cz.com
Page 2
Operation manual - Spider ILD01G
2 / 54 rev. 03-01-04-2019
1 CONTENTS
1 CONTENTS ......................................................................................................................................................... 2
2 INTRODUCTIONS ............................................................................................................................................... 4
2.1 IMPORTANT ................................................................................................................................................. 4
2.2 MACHINE USAGE ....................................................................................................................................... 5
2.3 RESTRICTIONS ........................................................................................................................................... 6
2.4 PRODUCT IDENTIFICATION ...................................................................................................................... 6
2.5 GUIDELINES FOR THE DISPOSAL OF SCRAP PRODUCTS .................................................................. 7
3 SAFETY INSTRUCTIONS .................................................................................................................................. 8
4 SPECIFICATION ............................................................................................................................................... 11
4.1 SPECIFICATION ........................................................................................................................................ 11
4.2 NOISE EMISSIONS .................................................................................................................................... 11
4.3 CONFORMITY CERTIFICATES ................................................................................................................ 12
4.4 CERTIFICATE OF STABILITY .................................................................................................................. 13
5 DECALS ............................................................................................................................................................ 15
5.1 SAFETY DECALS ...................................................................................................................................... 15
5.2 INSTRUCTION DECALS........................................................................................................................... 17
5.3 RECOMMENDED METHODS OF OPERATION ....................................................................................... 18
6 CONTROLS ...................................................................................................................................................... 20
6.1 REMOTE RADIO CONTROLLER .............................................................................................................. 20
6.2 MOWER CONTROLS ................................................................................................................................. 20
7 DISPLAYS ......................................................................................................................................................... 21
7.1 RADIO CONTROL DISPLAYS .................................................................................................................. 21
7.2 MOWER DISPLAY ..................................................................................................................................... 21
8 SAFETY SYSTEMS .......................................................................................................................................... 22
8.1 MOWER SAFETY SYSTEMS .................................................................................................................... 22
9. PREPARING THE MACHINE .......................................................................................................................... 23
9.1 MACHINE DELIVERY TO A DEALER OR RETAILER ............................................................................. 23
9.2 HYDRAULIC PUMP BY-PASS .................................................................................................................. 24
9.3 CHECKING ENGINE OIL LEVEL .............................................................................................................. 24
9.4 CHECKING HYDRAULIC DRIVE OIL LEVEL ........................................................................................... 25
9.5 PREPARING THE BATTERY .................................................................................................................... 25
9.6 FUEL TANK ................................................................................................................................................ 26
9.7 PREPARING THE REMOTE RADIO CONTROLLER ............................................................................... 26
9.8 CHARGING THE REMOTE RADIO CONTROLLER BATTERY ............................................................... 26
10 OPERATION ................................................................................................................................................... 27
10.1 TRANSPORTING THE MOWER .............................................................................................................. 27
10.2 STARTING THE ENGINE OF THE MOWER ........................................................................................... 27
10.3 SHUTTING OFF THE ENGINE ................................................................................................................ 28
10.4 EMERGENCY SHUTTING OFF OF THE ENGINE .................................................................................. 28
10.5 ENGAGING THE MOWING BLADES ...................................................................................................... 29
10.6 DISENGAGING THE BLADES ................................................................................................................ 29
10.7 HEIGHT OF CUT ADJUSTMENT ............................................................................................................ 29
10.8 ENGAGING THE WINCH ......................................................................................................................... 29
10.9 MULCHING COVER (OPTIONAL ATTACHMENT) ................................................................................ 30
10.10 DRIVING THE MACHINE ....................................................................................................................... 31
10.11 DRIVING SPEED OF THE MOWER ...................................................................................................... 31
10.12 DRIVING ON SLOPES ........................................................................................................................... 32
10.13 STOPPING THE MACHINE ON A SLOPE ............................................................................................ 32
10.14 PIVOT SUPPORT FOR ILD01 ............................................................................................................... 33
11 MAINTENANCE AND LUBRICATION ........................................................................................................... 34
11.1 MAINTENANCE CHART – MOWER ....................................................................................................... 34
11.2 MAINTENANCE CHART - ENGINE ......................................................................................................... 35
11.3 ENGINE MAINTENANCE ........................................................................................................................ 35
11.4 CLEANING THE FUEL TANK ................................................................................................................. 36
11.5 MAINTAINING THE HYDRAULIC DRIVE ............................................................................................... 36
11.6 CHECKING AND REFILLING OIL ........................................................................................................... 36
11.7 ADJUSTMENT OF THE NEUTRAL POSTION OF THE HYDRAULIC DRIVE ....................................... 36
11.8 DRIVE V-BELTS ....................................................................................................................................... 38
11.9 GEOMETRY ADJUSTMENT .................................................................................................................... 38
11.10 FINAL GEAR DRIVE TO WHEELS ....................................................................................................... 39
11.11 MAINTAINING ELECTRIC CIRCUITS AND DEVICES, TRANSMITTER ............................................. 39
11.12 ADJUSTING BLADE DECELERATION ................................................................................................ 39
11.13 STEERING CHAIN ................................................................................................................................. 39
Page 3
Operation manual - Spider ILD01G
3 / 54 rev. 03-01-04-2019
11.15 MOWING BLADE ................................................................................................................................... 41
11.16 CHANGING THE WHEEL ...................................................................................................................... 42
11.17 TYRE PRESSURE.................................................................................................................................. 42
11.18 MOWING HEIGHT ADJUSTMENT MECHANISM ................................................................................. 42
11.19 LUBRICATION ....................................................................................................................................... 43
11.20 CLEANING THE MACHINE ................................................................................................................... 44
11.21 TORQUE CHART ................................................................................................................................... 44
11.22 OIL VISCOSITY ...................................................................................................................................... 44
11.23 TECHNICAL PLATE .............................................................................................................................. 45
11.24 TOOLS .................................................................................................................................................... 45
11.25 BATTERY MAINTENANCE ................................................................................................................... 46
12 TROUBLESHOOTING .................................................................................................................................... 47
13 MAINTENANCE AFTER SEASON ................................................................................................................. 50
14 WARRANTY CONDITIONS ............................................................................................................................ 52
15 SERVICE RECORDS ...................................................................................................................................... 54
Page 4
Operation manual - Spider ILD01G
4 / 54 rev. 03-01-04-2019
2 INTRODUCTION
2.1 IMPORTANT
This is a precision machine and the service obtained from it depends on the way it is
operated and maintained.
This OPERATION MANUAL should be regarded as part of the machine and should
always be present at the machine and available to the operator. Suppliers of both new and
second-hand machines are advised to retain documentary evidence that this manual was
provided with the machine.
This machine is designed solely for use in customary grass cutting operations. Use in any other way is
considered as contrary to the intended use. Compliance with and strict adherence to the conditions of
operation, service and repair as specified by the manufacturer, also constitute essential element of the
intended use.
Before attempting to operate this machine, ALL operators MUST go through a practical training in machine
usage, read through this manual and make themselves thoroughly conversant with Safety Instructions,
controls, lubrication and maintenance. The machine may be operated with additional accessories specifically
designed for this purpose. Operating and Safety Instructions of such accessories must be strictly adhered to.
Accident prevention regulations, all other generally recognized regulations on safety and occupational
medicine, and all road traffic regulations shall be observed at all times.
Any arbitrary modifications carried out on this machine as well as non-adherence to this
OPERATION MANUAL may relieve the manufacturer of liability for any resulting damage or
injury.
In several places this Manual contains instructions for safe work. If the text includes such an instruction, then
the instruction is marked by the following WARNING symbol:
Warning against a highly probable danger of severe injury or life threat if appropriate
instructions are not followed.
other symbols:
Provides useful information.
Page 5
Operation manual - Spider ILD01G
5 / 54 rev. 03-01-04-2019
2.2 MACHINE USAGE

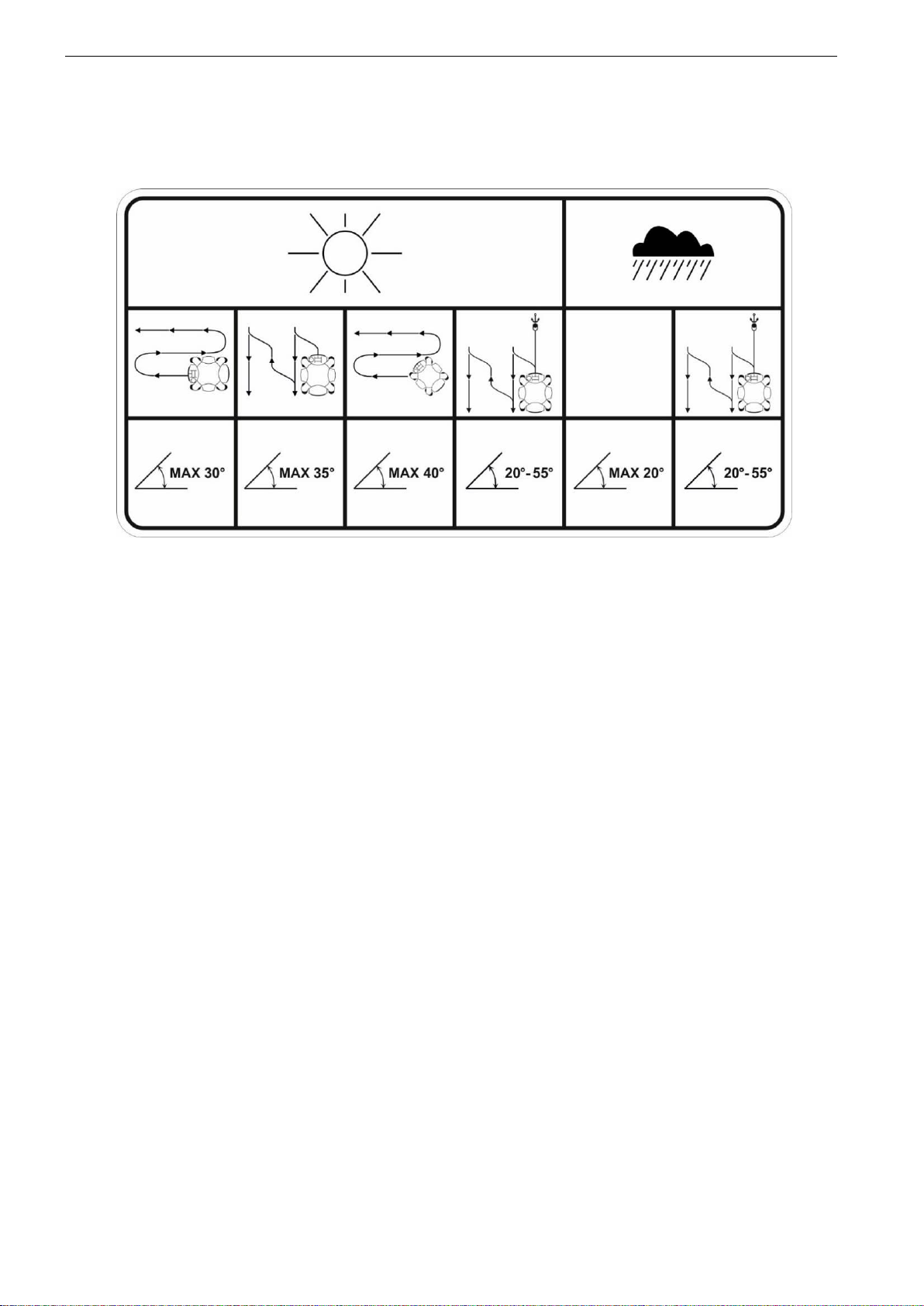

The machine is designed for the mowing of grass on level as well as extremely steep terrain. Any
other use is prohibited. The maximum slope on which the machine may be used depends on the type
of area to be mowed, on the current condition of the area and on the method of mowing:
DRY CONDITIONS:
Cutting across a slope: Maximum slope is 30°
Cutting up and down a slope: Maximum slope is 35°
Cutting across a slope with mower positioned diagonally: Maximum slope is 40°
Cutting up and down a slope with use of the integrated
stabilizing winch Maximum slope is 55°
WET CONDITIONS:
All areas and applications without use of the integrated
stabilizing winch: Maximum slope is 20°
Cutting up and down a slope with use of the integrated
stabilizing winch: Maximum slope is 55°
The Spider is a mulching mower designed for mowing of well-maintained, but also unkempt
or only occasionally mowed areas. The mower is operated by one person using radio
control.
The mower may only be operated by authorized persons over 18 years of age both mentally
and physically fit, who are familiar with this Safety, Operator’s and Maintenance Manual and
all applicable regulations and laws pertaining to work health and safety that need to be
observed while operating the mulching mower Spider.
For use of the integrated stabilizing winch it is obligatory to have read the HSN 02 Winch
Operation manual and be properly trained by the seller on how to use the integrated
stabilizing winch.
When driving on a slope the operator of the machine must carefully watch and evaluate the
movements of the mower and the characteristics of the terrain, especially the momentary
adhesion of the wheels to the ground.
Pay attention to climatic conditions. Do not rely on the anchoring of the mower on the rope.
Climbing ability of the mower will rapidly change on dry, wet or moist grass.
The soil characteristics and firmness will also play a significant role. Sideslip will be much
bigger on newly built slopes then on hard ground. When working on a slope with the
integrated stabilizing winch use only one driving method: driving vertically / up and down a
slope.
Page 6
Operation manual - Spider ILD01G
6 / 54 rev. 03-01-04-2019
2.3 RESTRICTIONS
• The mower may not be used for other purpose than for which it was designed and which is
described in chapter 2.2.
• The mower may not be used on surfaces littered by glass, loose stones, pieces of iron and other
foreign objects that can either be thrown by the blades during mowing or damage the mower.
• The mower may not be used on slopes exceeding 20 degrees without use of the integrated
stabilizing winch when wet or foggy as the climbing ability and mower stability are adversely
influenced by poor ground adhesion, regardless of the type of area to be mowed.
• The mower may not be used where other people, children or animals can be found within 3 m
(10 ft.) from the mower/mowed area.
• Never use the mower unless you are properly acquainted with the terrain and mainly with the
occurrence of undesired terrain irregularities, stumps, swamps, pits, unstable and poor load
bearing soil etc.
• The mower may not be used on slopes with incline exceeding the values stated in chapter 2.2.
• The mower may not be used as a towing/transporting device or as means of transporting
people.
• It is prohibited to drive the mower on public thoroughfares.
• It is prohibited to increase the engine revolutions or the engine performance above the limits
specified by the manufacturer. It is also prohibited to make any other modifications to the
machine construction or to the engine setup. The manufacturer does not bear any liability for
damage or injury resulting from such modifications.
• It is prohibited to use the mower under the influence of alcohol or drugs
• It is prohibited to drive the mower into heaps of sand, gravel or similar material, on stumps,
rocks, construction elements or any other obstacles, which may compromise the stability of the
machine
• It is prohibited to use the machine under low visibility (dusk, fog, heavy rain etc.)

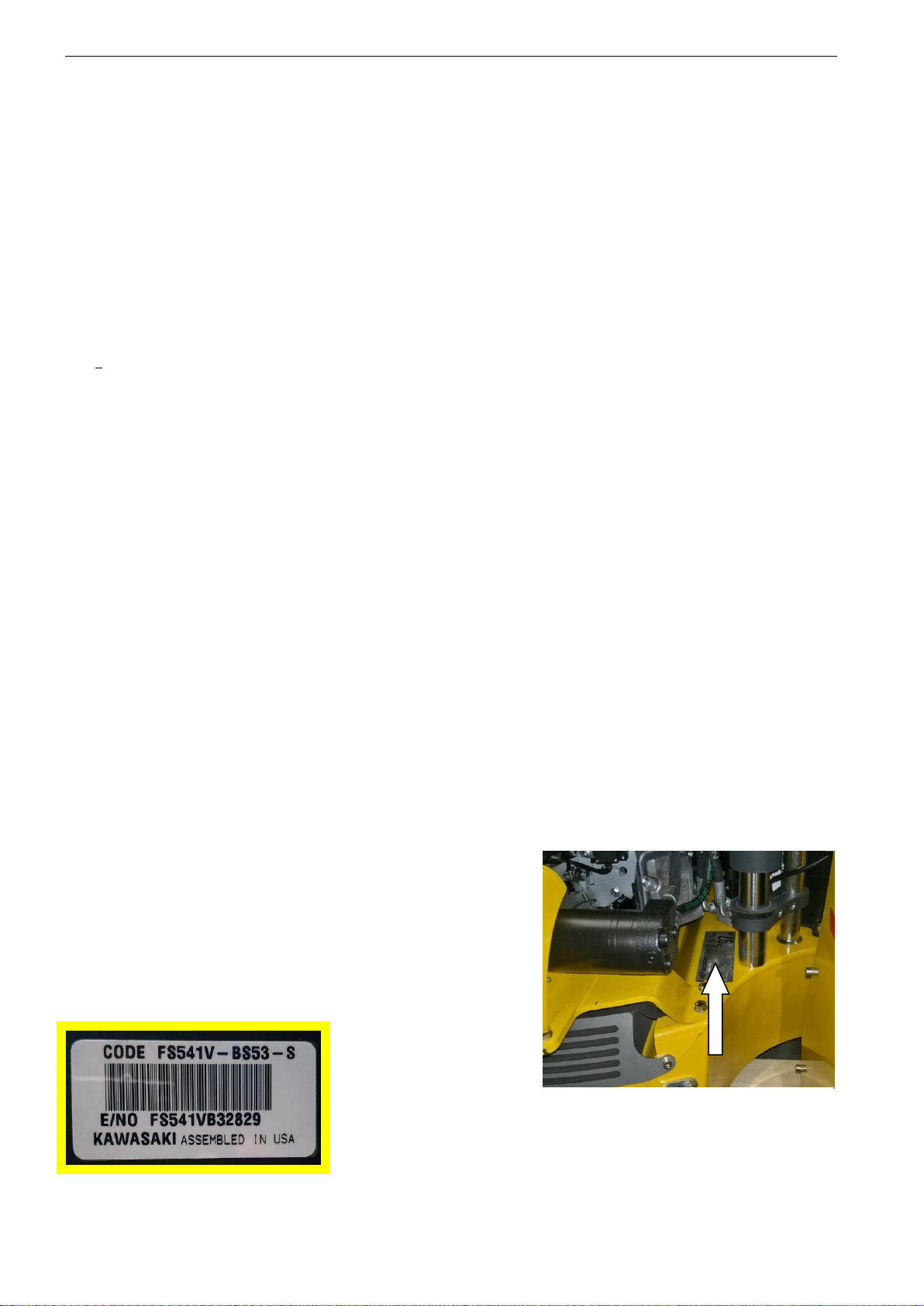

2.4 PRODUCT IDENTIFICATION
The machine can be identified by the serial number, which
can be found on the factory label on the front of the
machine beside the exhaust pipe.
On the internal engine you can also find a factory label
placed there by the engine manufacturer.
Mower factory label location
Page 7
Operation manual - Spider ILD01G
7 / 54 rev. 03-01-04-2019
2.5 GUIDELINES FOR THE DISPOSAL
OF SCRAP PRODUCTS
When it has been identified that a turf care
product has no further functional value and
requires disposal, the following actions should be
taken.
These guidelines should be used in conjunction
with Health, Safety and Environmental legislation
and use of approved local facilities for waste
disposal and recycling.
• Position the machine in a suitable
location for any necessary lifting
equipment to be used.
• Use appropriate tools and Personal
Protective Equipment (PPE) and take
guidance from the technical manuals
applicable to the machine.
• Remove and store appropriately:
1. Batteries
2. Fuel Residue
3. Oils
Disassemble the structure of the machine
referring to the technical manuals where
appropriate. Special attention should be made for
dealing with “stored energy” within pressurized
elements of the machine or tensioned springs.
Any items that still have a useful service life as
second hand components or can be re-serviced
should be separated and returned to the relevant
centre.
Other worn out items should be separated into
material groups for recycling and disposal
consistent with available facilities. More
common separation types are as follows:
• Steel
Nonferrous metals
• Aluminium
Brass
• Copper
• Plastics
• Identifiable
• Recyclable
• Non-recyclable
• Non identified
• Rubber
• Electrical and electronic components
• Items that cannot be separated
economically into different material groups
should be added to the “General waste”
area.
• Do not incinerate waste.
Finally update machinery records to indicate that the
machine has been taken out of service and
scrapped.
Page 8
Operation manual - Spider ILD01G
8 / 54 rev. 03-01-04-2019
3 SAFETY INSTRUCTIONS
This safety symbol indicates important
safety messages in this manual. When
you see this symbol, be alert to the
possibility of injury, carefully read the
message that follows, and inform other operators.
Safety Checks
• Do not enter or reach under the machine if it
is lifted and not sufficiently supported. The
machine should be supported on places
marked by the symbol of a lifting jack.
• The mower should only be transported in a
container or on a trailer.
• Check bolt torques at regular intervals. The
first check should be done after 8 operating
hours. Pay attention to the attachment of the
cutting blade and the proper bolt torque.
Use a torque wrench and the specified
torque. See 11.21.
• The attaching flange of the blades or the
bolts must not show signs of damage or
wear. The bolts must be complete. The
blade must be undamaged, evenly worn and
adequately sharp.
• If you are driving the machine outside the
working area, always turn off the mowing
blade and set the maximum mowing height,
otherwise the blade may get damaged.
• Keep the product clean after use. Do not
use gasoline or similar oil products for
cleaning.
• Do not reach into the space under the
mower with your hands or feet. Do not reach
under the engine cover or into the gear
mechanism.
• If you are forced to reach under the
machine, wait until all rotating parts stop.
Attention, it takes some time before the
blade runs down! The run-down time
depends on the state and wear of the
brake/clutch. Have the brake checked at
regular intervals at an authorised servicing
facility.
• While operating, wear closed shoes and
work clothing. Do not wear loose clothes
that could get caught by the machine, short
trousers or light shoes.
• It is strictly prohibited for the operator to
wear loose clothing.
• A local risk assessment should determine
the need for a face shield.
• Do not operate the machine after drinking
alcohol or using medication influencing
perception.
• Before starting the engine, make sure that
the mower blade is disengaged. If the blade
switch is in the ON position, the machine
cannot be started. When engaging the
mower blade, step aside far enough to be
protected against object accidentally thrown
from the mower and to be able to stop the
mower in case of an emergency. Do not
enter the path of the mower.
• While operating the mower make sure that
the mower is clearly visible at all times and
within the range of the remote-control unit
and that you can clearly recognize
dangerous situations and react to them
properly. Do not abuse the maximum reach
of the remote control.
• When using the mower, follow all general
work safety regulations.
• Work with the mower may only be started if
the mower is not damaged by previous
operation.
• Do not change the engine tuning, especially
the engine speed regulator. Do not modify
the exhaust pipe.
• Do not use the mower if there is less than
30% of fuel in the fuel tank.
• Do not move the mower by means of towing
it behind other machines.
Operating Environment
• The machine should only be used by
persons over 18 years of age, who have
been acquainted with the machine and the
user’s manual. The remote control (further
referred to as “RC”) is considered a part of
the machine
• The user’s manual must be stored in a
place permanently accessible to the
operator and must be available to him at all
times.
• Do not allow children or unauthorised
persons use the product.
• Before starting to operate the machine, you
have to be familiar with all the symbols next
to the controls and indicators used on the
mower and the RC.
• Pay special attention to the stopping and
shutting-off of the engine and to the
emergency shutting-off of the mower.
• Before using the mower on a slope, make
sure you test and practice your mowercontrol skills on flat and level ground, which
is sufficiently free and spacious. Master
how to control the movement on a surface,
to mow around bushes, trees and other
terrain elements and obstacles.
• When operating the mower on a slope,
make sure that the engine revolutions are
set to maximum speed. If you stop the
mower on a slope, position the wheels
across the slope.
• While operating or transporting the mower,
the operators must always have the mower
in their view. The maximum distance
between the operator and the mower is 50
m (164 ft).
Page 9
Operation manual - Spider ILD01G
9 / 54 rev. 03-01-04-2019
• While using the mower follow all safety
regulations given in this manual and respect
local regulations and provisions concerning
noise-emissions, especially when using in
hospitals, spas and other sensitive areas.
• The operator must pay attention to the area
into which the mulched grass may be
thrown. Neither the operator, nor any other
persons, children or animals should be
allowed to enter this area. If mowing uneven
terrain, the ejection and throwing of
undesirable objects becomes more probable
due to the displacement of the mowing
device (tilt of one side of the machine) while
crossing the edges of different terrain.
• The operator of the machine may be held
responsible for any damage caused to third
parties by operating the machine.
• The mower may be used on dry surfaces on
slopes listed in chapter 2.2. on wet or moist
surfaces, the mowed slope should not
exceed 20 degrees when using the machine
without use of the integrated stabilizing
winch.
• Before operating the machine, make sure
you remove all loose stones, sticks, glass,
wire, bones, branches and all other objects
that can be picked up by the blades and
thrown or that could damage the mower
from the mowing area.
• While operating the mower avoid obstacles,
do not drive over higher obstacles (such as
stones, stumps, bricks), near precipices, on
unstable soil or in places where the mower
could fall down or flip over.
• When operating pay attention to electric
power lines especially when driving beneath
electric wires where the radio signal may be
lost. In such case the mower immediately
shuts off the internal combustion engine and
stops all movement.
• When using the machine near busy
thoroughfares make sure that the mower
does not endanger (by throwing undesirable
objects) passers-by or their property.
• Choose a suitable working procedure (see
chapter: 10 Operation).
• The operator/user is responsible for the
safety of persons that enter the working area
of the machine. Stop your work if these
persons enter the working area.
• The transportation of persons, animals or
loads on the mower is prohibited.
• Do not place any objects or tools on the
product.
• While operating, especially in windy
conditions, choose the operator’s position
carefully so as to keep the operator away
from the stream of exhaust gas, dust or
mulched grass.
• Stop work and clean the machine and its
cooling surfaces several times while
working in dusty conditions to avoid overheating during operation. If necessary,
clean the machine and its cooling surfaces
several times while working. The dust layer
must not exceed 1mm (3/64 inch).
• Refuel only when the machine is off –
before operating, if possible – and the fuel
tank is cold. Always keep at least 30% of
the fuel in the tank. If you need to refuel
during your work, do not fill the fuel into a
hot tank or while the engine is still hot. Let
the machine cool down.
• Before refuelling push the STOP button on
the control panel of the mower.
• Never refuel while the engine is running.
• Do not start the engine if you find spilled
fuel, open vessels with fuel or other
combustible objects or gases in the
immediate proximity of the mower.
• Do not refuel near open fire.
• Do not place this product near open fire or
other sources of heat.
• While operating or immediately after
shutting the machine off do not touch those
parts of the machine that heat up during
operation. This concerns mainly the engine
exhaust pipe, metal parts of the hydraulic
drive and metal parts of the internal
combustion engine.
• While operating do not touch the high
voltage conductor leading to the sparking
plug.
• After starting the engine, test the correct
functioning of the emergency engine stop
on the radio transmitter. This function
should be checked at least once during
every shift and every time you enter a new
area for mowing or mulching.
• Before starting your work test the correct
functioning of the safety components
(EMERGENCY STOP...) on the mower and
the RC.
• Never leave the engine running without
supervision.
• If the engine is running, do not put aside the
transmitter and do not touch or move any
parts of the machine.
• Always stop the engine when leaving the
machine, secure it against starting by
pushing the red EMERGENCY STOP
button on the control panel of mower and by
removing the key. Never leave the
transmitter next to the mower, but put it in a
different, properly secured place
inaccessible to third persons.
• Do not engage the mowing blade until
immediately before mowing.
Page 10
Operation manual - Spider ILD01G
10 / 54 rev. 03-01-04-2019
• Turn off the mowing mechanism, shut off the
engine and remove the key from the ignition
every time:
o You clean the machine
o You remove dirt from the mowing
mechanism (grass or debris).
o You run over an unknown object and need
to check for possible damage or to repair it
o The machine unusually intensively
vibrates, and you need to find the cause
o You repair the engine or other parts of the
mower (also unplug cables from sparking
plugs)
• While operating, avoid molehills, concrete
bases, guard-stones, stumps, loose stones
and curbs. These must not come into direct
contact with the blade as they could cause
serious damage. These may also
compromise the mower stability.
• Do not drive the mower into heaps of sand,
gravel or similar materials
• The mower may only be operated during
daylight or under very good artificial light
conditions.
• Do not use the mower in limited visibility
(dusk, fog, heavy rain etc.)
• Do not let the engine run in enclosed
spaces. The exhaust gases contain CO,
they damage health and can ultimately
cause death.
• The engine should only be started and
operated in open spaces. If the engine is
started and operated in enclosed spaces,
the exhaust gases must be conducted away
by the means of prolonging the exhaust pipe
outside the enclosed space. Proper
ventilation and fresh air supply must be
secured in order to prevent the accumulation
of CO.
• Before storing the machine in a closed
space, let the engine and the hydraulic drive
of the machine cool properly.
• Regularly remove all combustible objects
(dry grass, leaves...) from the areas around
the exhaust pipe, engine, and battery.
• Always control the machine from a working
station, which gives you a perfect view of
the whole working area and of the machine.
• While working, change your working
position to have a perfect view of the mower
at all times.
• When operating the mower on slopes never
enter the space directly below or above the
mower.
• The working position should be far enough
(maximum 50 meters) to prevent the
operator from getting hit by objects that may
be accidentally thrown by the mower.
• Do not operate the mower if you cannot see
it (behind terrain obstacles, corners of
buildings, hidden in grass etc.)
Safety Decals
• Before starting the mower, check the state
of the safety labels. If any labels are
damaged or missing, contact your dealer
and replace such labels on the machine.
Get thoroughly acquainted with these
labels. The placement of the labels on the
machine is obligatory.
• Do not remove or damage any of the safety
labels.
• Do not remove any covers or safety
elements. They are for your protection.
• Do not use the machine if any of the
protecting devices or covers are damaged
or missing.
• Keep the machine and its accessories clean
and in a good technical condition at all
times.
• It is strictly prohibited to make any changes
or modifications to the machine that were
not previously approved by the
manufacturer. Any modification to the
machine may lead to a hazardous situation
or injury. If these instructions are not
followed, the manufacturer does not bear
any liability for the machine and the terms
of warranty may be invalidated.
• The machine must always be equipped with
all covers and protective elements.
Page 11
Operation manual - Spider ILD01G
11 / 54 rev. 03-01-04-2019
4 SPECIFICATIONS
4.1 SPECIFICATIONS
TECHNICAL DESCRIPTION
The mower is a self-propelled machine with four-wheel drive, controlled by the transmitter (remote radio
controller) signal. Its unique wheel-steering technology ensures a high manoeuvrability both on level ground and
on slopes.
The basic part of the machine is formed by a square solid frame, which is connected with a sliding frame. The
middle part of the sliding frame carries all transmission parts such as the engine, the hydraulic pump, the oil
cooler and the control unit. A cutter blade is attached to the bottom part of the frame. An electromagnetic clutch
is placed between the blade carrier and the engine.
Transmission is by chains and gears on all four wheels. The wheels are driven centrally by the hydraulic drive
through V-belts. The wheels are steered by an electric motor.
The control unit is situated in a box above the cover of the gel battery. The mower is controlled by a multichannel transmitter.
Parameter
Unit
Value
Length×Width
mm (inch)
1340×1200 (52,7×47,2)
Height
mm (inch)
913 (35,9)
Mowing width
mm (inch)
800 (31,5)
Mowing blade height
mm (inch)
60 - 110 (2,36 – 4,33); 30 - 80 (1,18 - 3,14)
continuous regulation
Weight
kg (pound)
288 (635)
Driving speed
km/h (mph)
0 – 3, 0 – 7 (0-2, 0-4,5)
Mowing mechanism
-
Single-blade with a fixed blade attached by the
flange in the middle
Mowing clutch
-
Electromagnetic with a friction brake
Hydraulic pump Hydro Gear BDP 21L
Hydraulic motor
-
Sauer Danfoss OMP 40
Propelled wheels - 4 x 4
Travel wheel
inch
16x6,5 - 8 with and arrow (V) tread pattern
Battery
12 V, 18 Ah, gel
Fuel
-
unleaded gasoline
Fuel tank capacity
l (gallon)
11 (2,9)
Engine
Air-cooled four-stroke two cylinder
Kawasaki FS541V
Cylinder volume
cm3
603
Performance
kW/min-1
13,4/3600
Torque
N.m/min-1
46/2200
Ignition
Electronic
Starter
Electric
Frequency range of the Remote
controller NBB for EU and USA
MHz
434.050 - 434.750
4.2 NOISE EMISSIONS
The mower emits the following noise: Sound pressure level LWA = 96,0 dB
Guaranteed Sound pressure level LWA = 97,0 dB
The measuring was carried out in conformity with EN ISO 3744
Noise at the operator’s station (ear): L = 77,9 dB (A) Leq – Measured in the distance of 3 m from the
machine according to EN 11201
Page 12
Operation manual - Spider ILD01G
12 / 54 rev. 03-01-04-2019

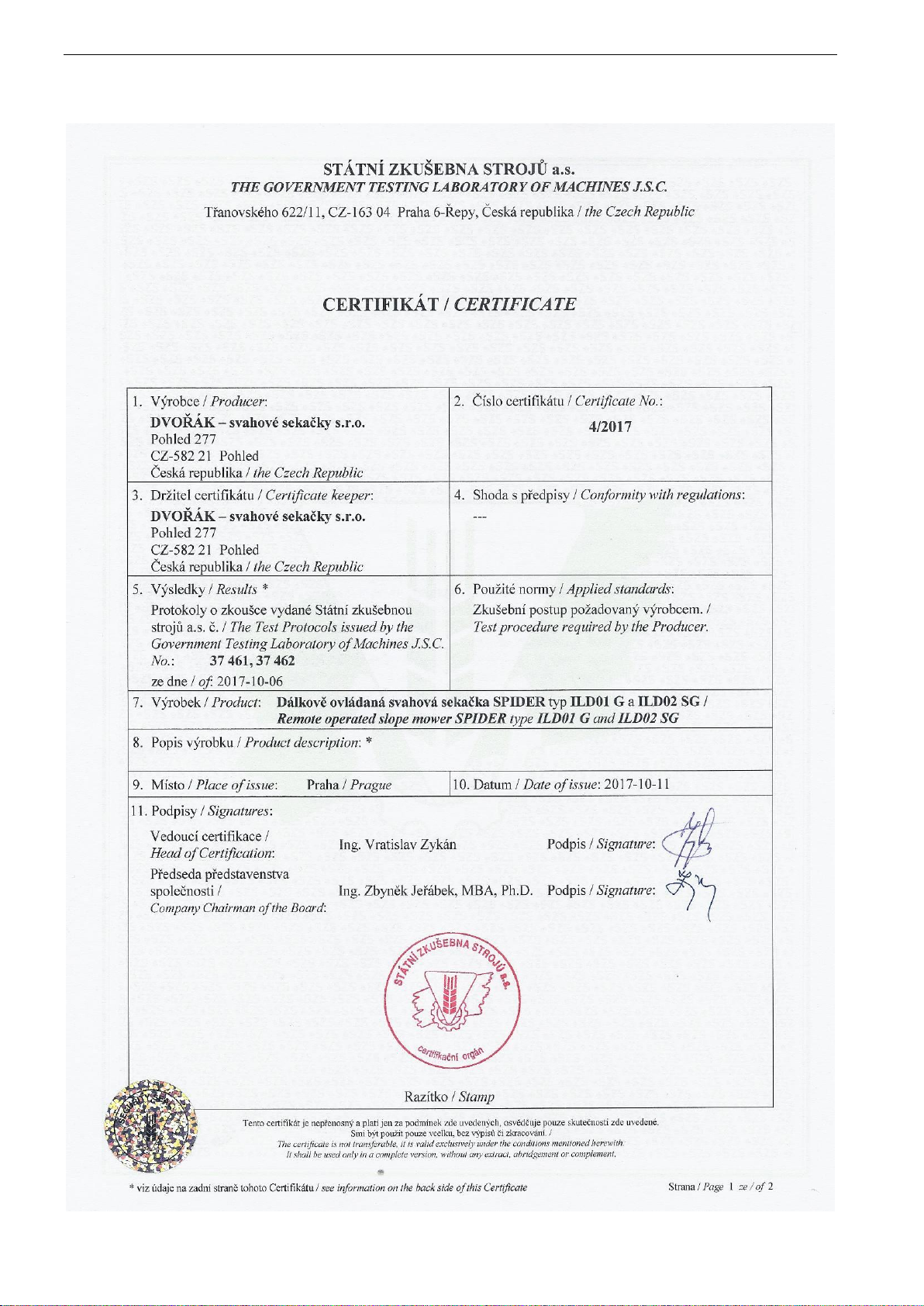

4.3 CONFORMITY CERTIFICATES
EC DECLARATION OF CONFORMITY
We manufacturer
DVOŘÁK - svahové sekačky s.r.o.
Pohled 277, 582 21 Pohled, Czech Republic
VAT ID: CZ26013797
declare that the product
name:
Slope applicable rotary mower
model:
SPIDER ILD 01 G
designed for:
mowing of grass areas
serial number:
fulfils all the relevant provisions of Directives
Directive 2006/42/EC – machinery
Directive 2014/30/EC - EMC
Directive 2000/14/EC - noise
Directive 2002/88/EC, 97/68/EC
List of technical
standards, specification
and harmonised norms
used for review of its
conformity:
EN ISO 5395-1, EN ISO 5395-3, EN ISO 12100, EN ISO 13850, EN ISO
13732-1, EN ISO 4254-1, EN ISO 4254-12, EN ISO 4413, EN ISO
14120, EN ISO 13849-1, EN 1005-3+A1, EN ISO 3744, EN ISO 11 201,
ISO 3767-1, EN ISO 3767-3, EN ISO 19353, EN 55012 ed.2, EN 11752+A1, EN 60215, EN 300-220-03, EN 300-220-2, ISO 11 684
Description, basic
technical specification
Parameter
Unit
Value
mowing width
cm
80
Weight (without winch)
kg
288
driving speed
km/h
0 - 7
engine
-
KAWASAKI FS541V
performance
kW
13,4
engine speed
rpm
2700
Conformity assessment in accordance with directives 2000/14/EC, art 14, point 1
The person participating in this conformity assessment in accordance with directives 2000/14/EC:
NB 1017, TÜV SÜD Czech s.r.o., Novodvorská 994, CZ – 142 21 Praha 4
Measured sound pressure emission level
LWA = 96,0 dB
Guaranteed sound pressure emission level
LWA = 97,0 dB
The person authorised to compile
the technical file
Jakub Trachtulec
DVOŘÁK - svahové sekačky s.r.o.
Pohled 277, 582 21 Pohled
In Pohled on 01.12.2018
………………………………………
Lubomír Dvořák, CEO
Page 13
Operation manual - Spider ILD01G
13 / 54 rev. 03-01-04-2019

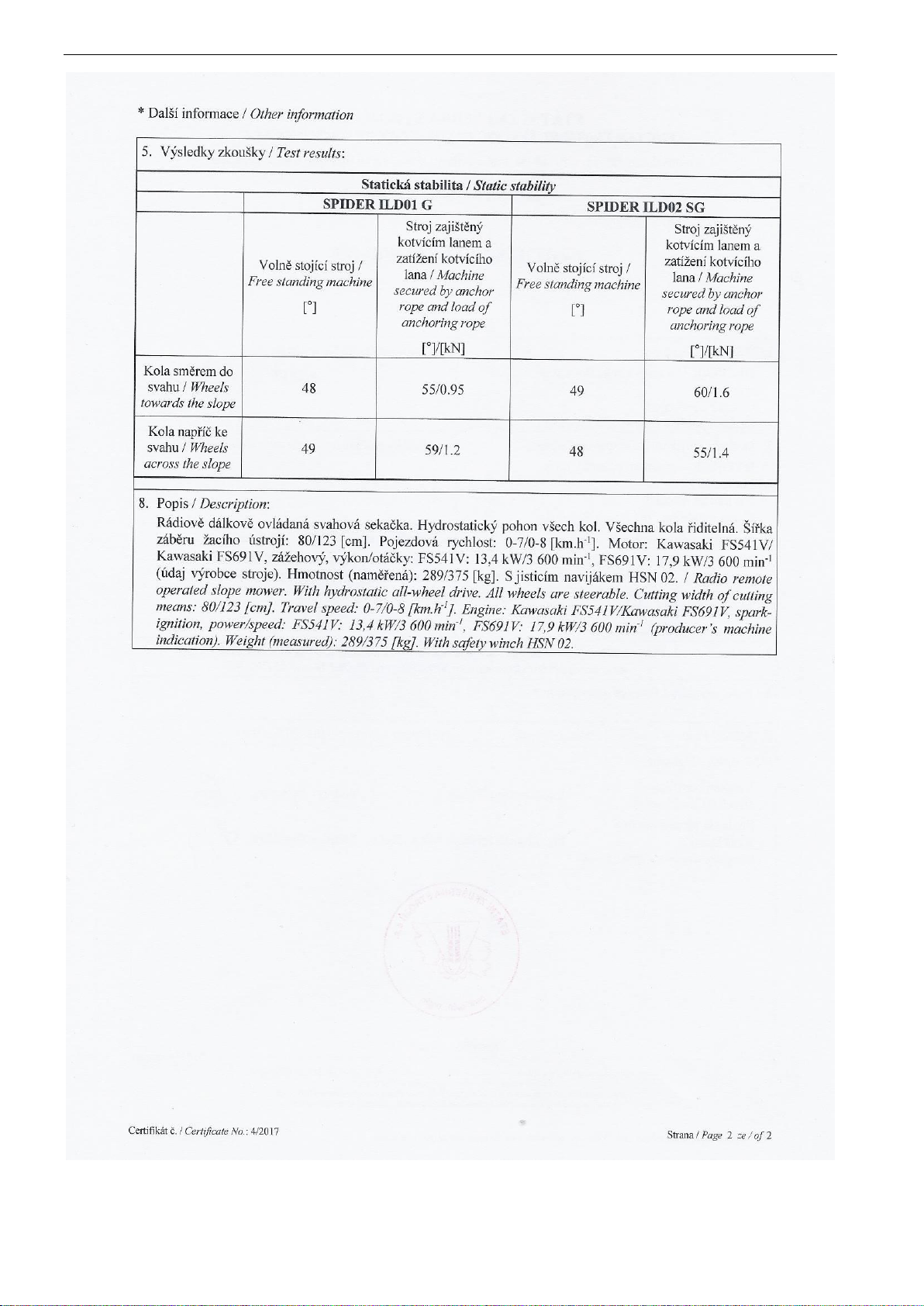

4.4 CERTIFICATE OF STABILITY
Page 14
Operation manual - Spider ILD01G
14 / 54 rev. 03-01-04-2019
Page 15
Operation manual - Spider ILD01G
15 / 54 rev. 03-01-04-2019
5 DECALS

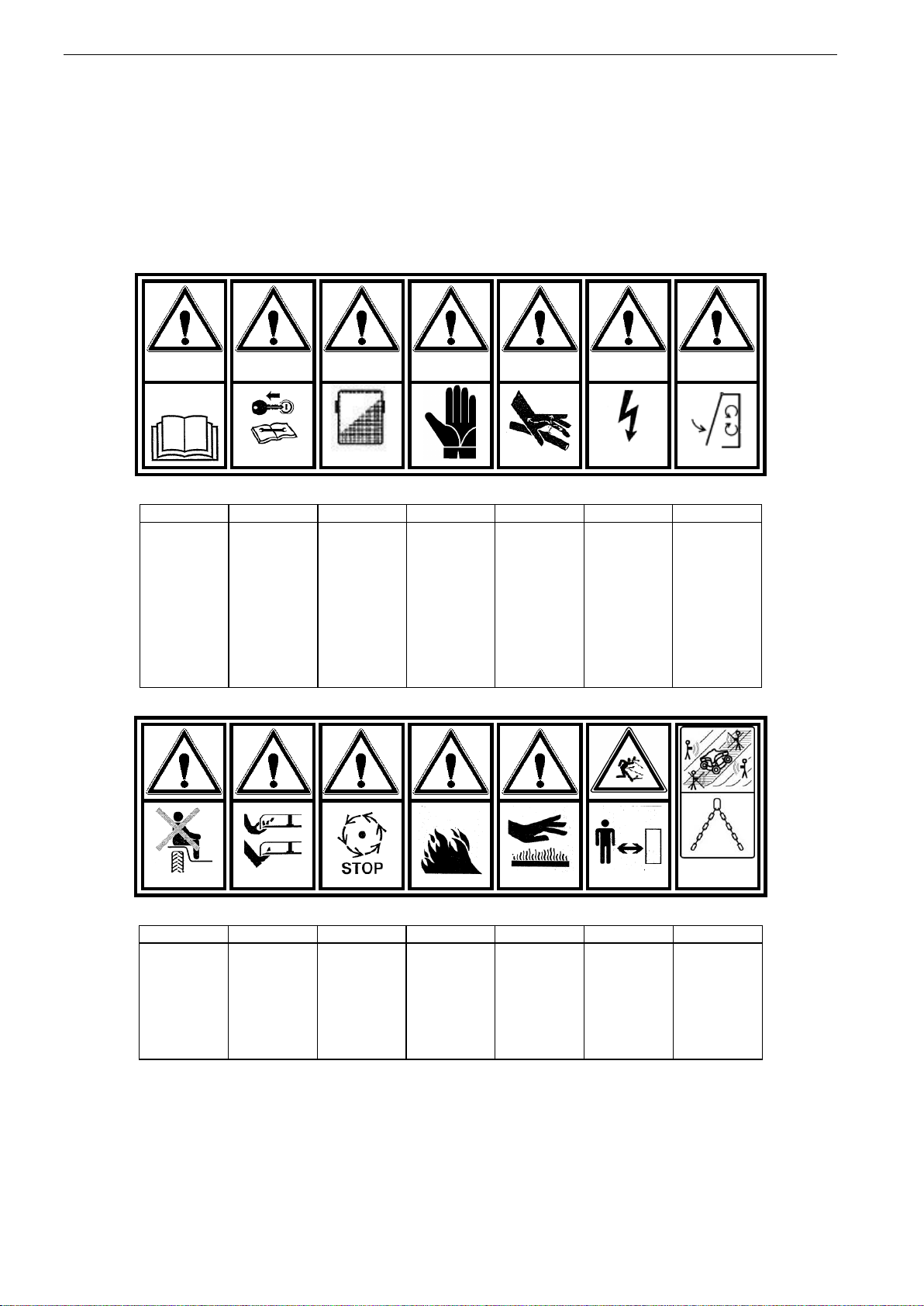

5.1 SAFETY DECALS
Attention! This machine may be dangerous. Incorrect and negligent use may result in damage, serious
injuries or death. This chapter is devoted to the safety symbols (pictograms) used on the product, their
placement and meaning. Safety labels inform the operator about risks while using the product.
Understanding their meaning will make the use of this product safe.
1 2 3 4 5 6 7
Read the
user’s manual
before use
While
maintaining,
repairing or
adjusting the
mower, follow
the user’s
manual and
remove the
key from the
ignition
Use
protective
work aids;
face shield
Attention, use
protective
gloves when
changing the
mowing
blades
Attention, the
device uses
hydraulic
energy drive,
danger of
injury caused
by the
squirting
hydraulic oil
Attention,
electric
accumulator
Before
starting close
all protective
covers
8 9 10
11
12
13
14
Transportatio
n of persons
on the
machine is
prohibited
Attention,
danger of
hand or feet
injury caused
by rotating
blades
Attention,
rotating parts
are
decelerating
after they
were turned
off
Attention,
combustible
substance,
danger of fire
Danger of
getting
burned by hot
parts
Attention,
danger of
getting hit by
flying object.
Keep safe
distance.
On slope
never enter
the area
below or
directly above
the machine.
Slinging point
Page 16
Operation manual - Spider ILD01G
16 / 54 rev. 03-01-04-2019

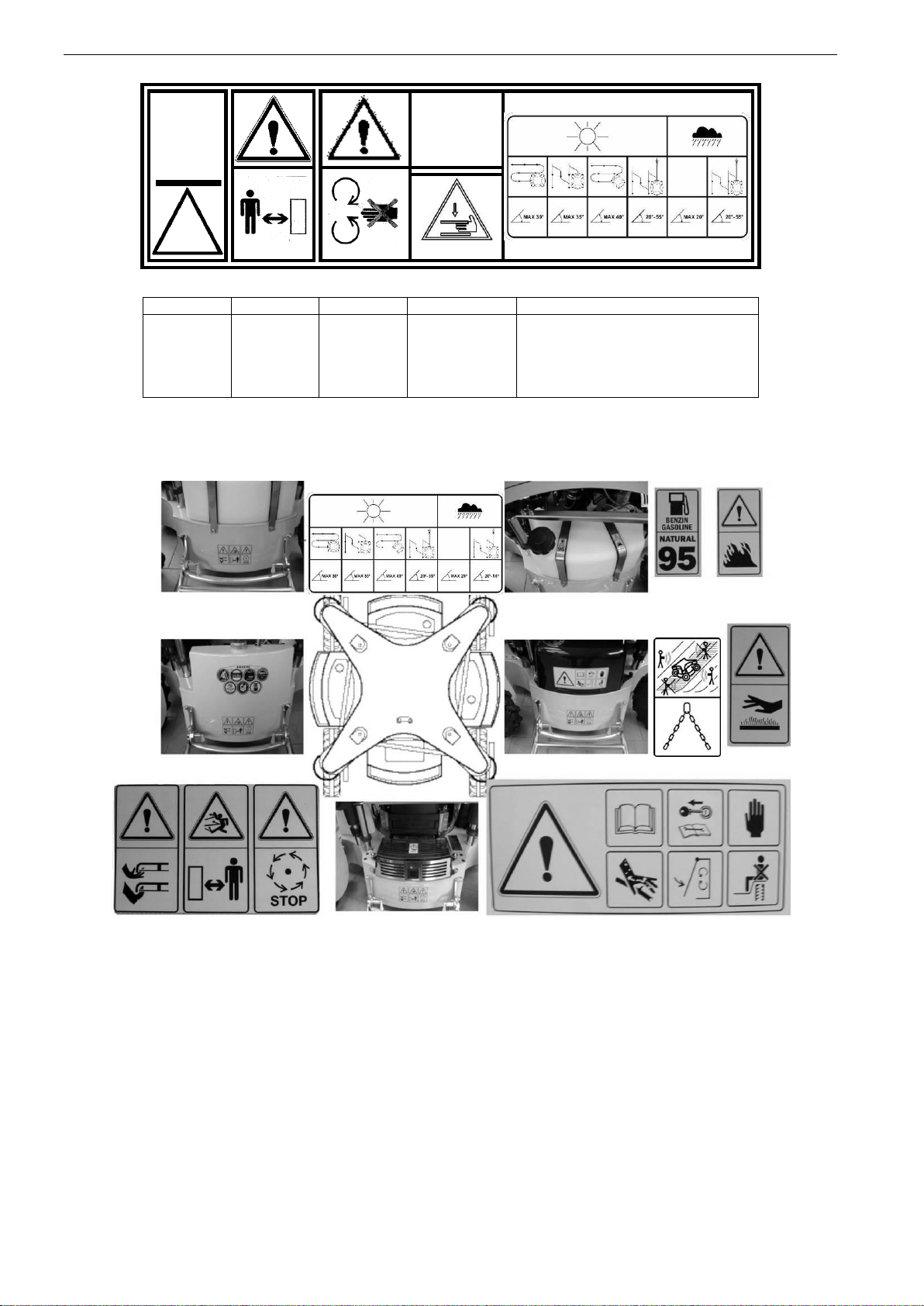

15
16
17
18
19
Lifting jack
support point
Keep safe
distance from
the machine
when it is
moving
Attention,
rotating parts
Attention
moving parts
Maximum permissible slope with regards
to machine application and climatic
conditions.
Page 17
Operation manual - Spider ILD01G
17 / 54 rev. 03-01-04-2019

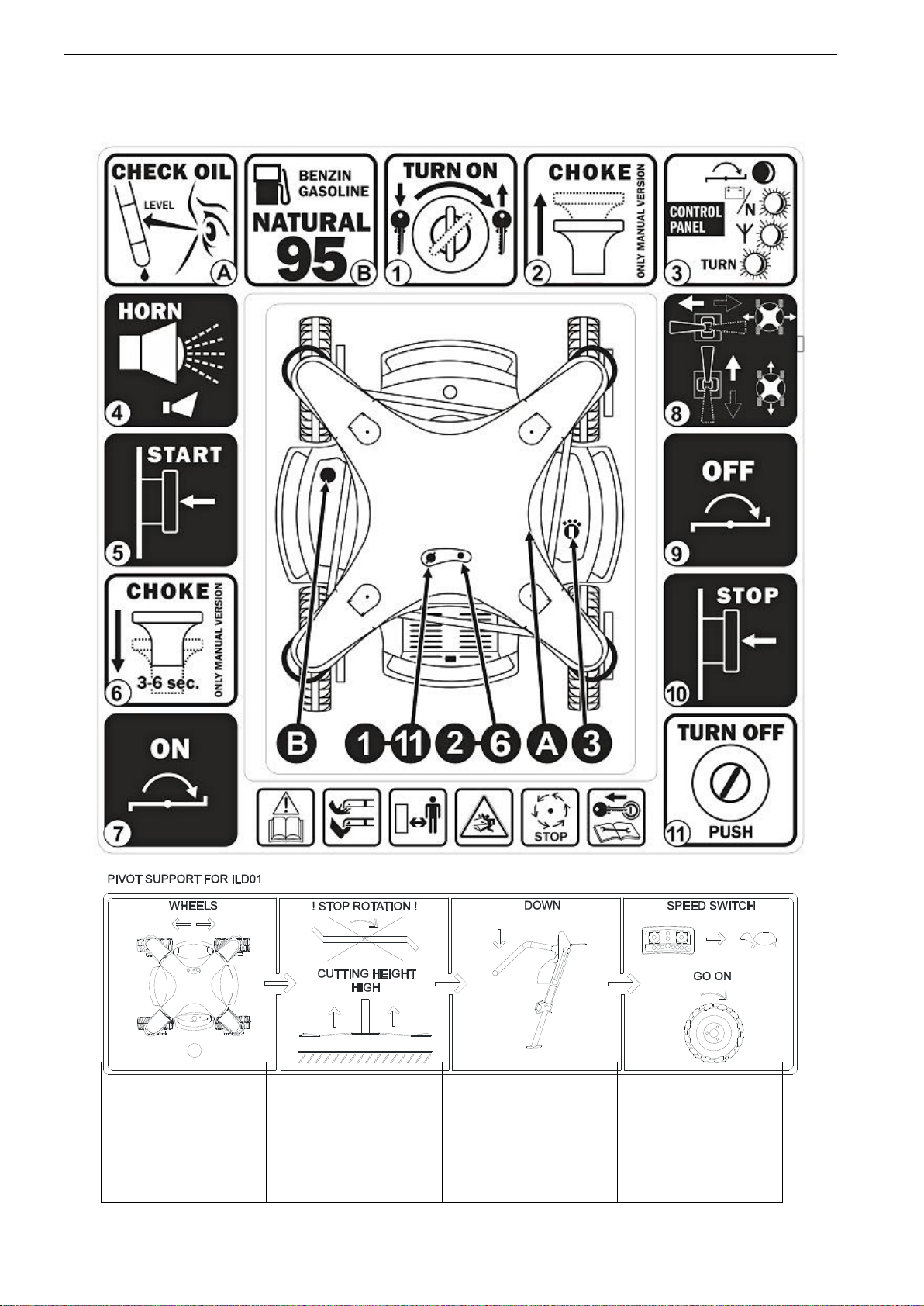

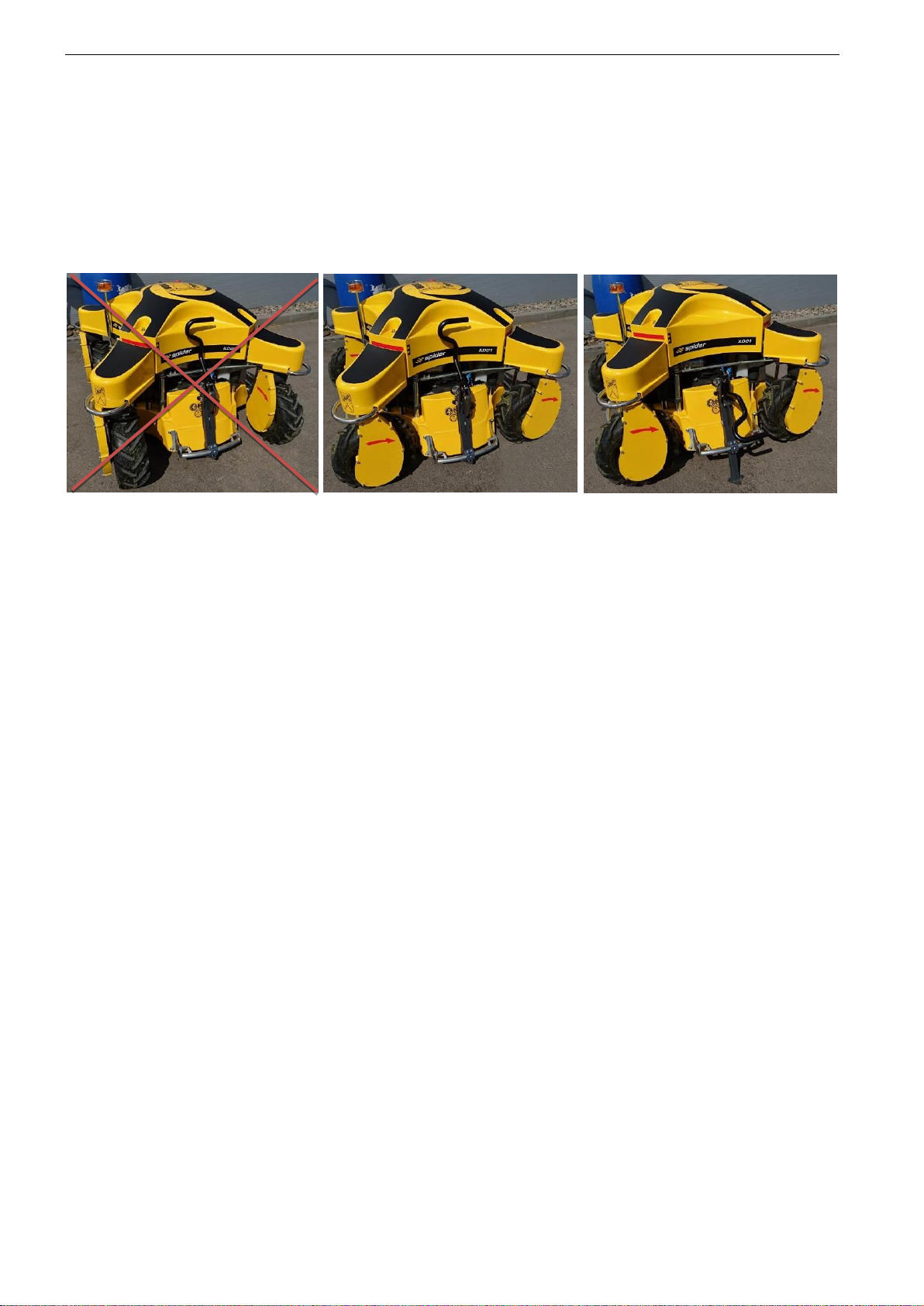

5.2 INSTRUCTION DECALS
Direction of wheels must
be correct (along hydraulic
tank)
Switch off the mowing
device. Cutting height must
be set to maximum
Push down the lever of the
support leg to lift two wheels
in the air
Set the driving speed
controller to turtle mode,
the Rotation starts by
using joystick for driving
forward/backward
Page 18
Operation manual - Spider ILD01G
18 / 54 rev. 03-01-04-2019

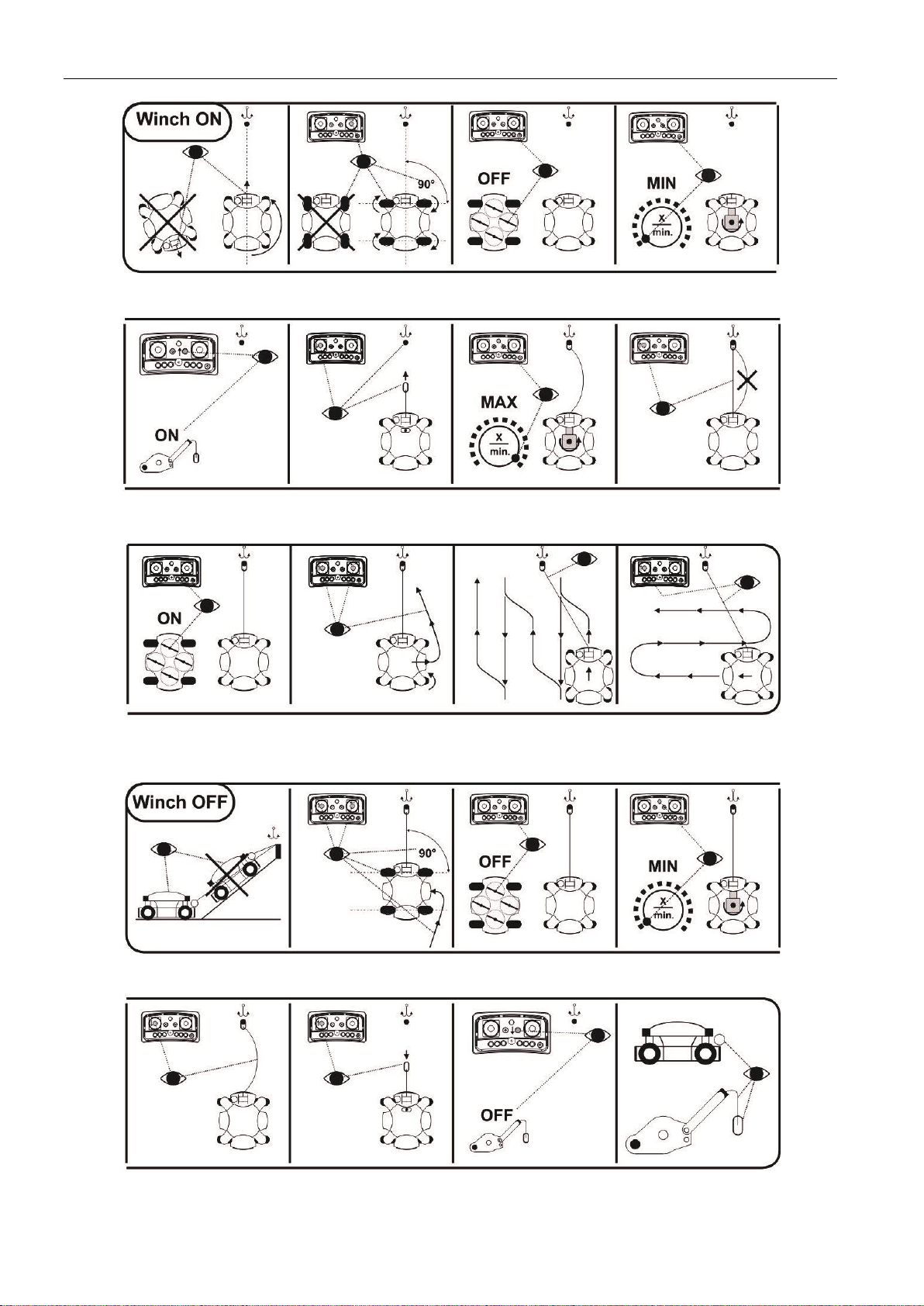

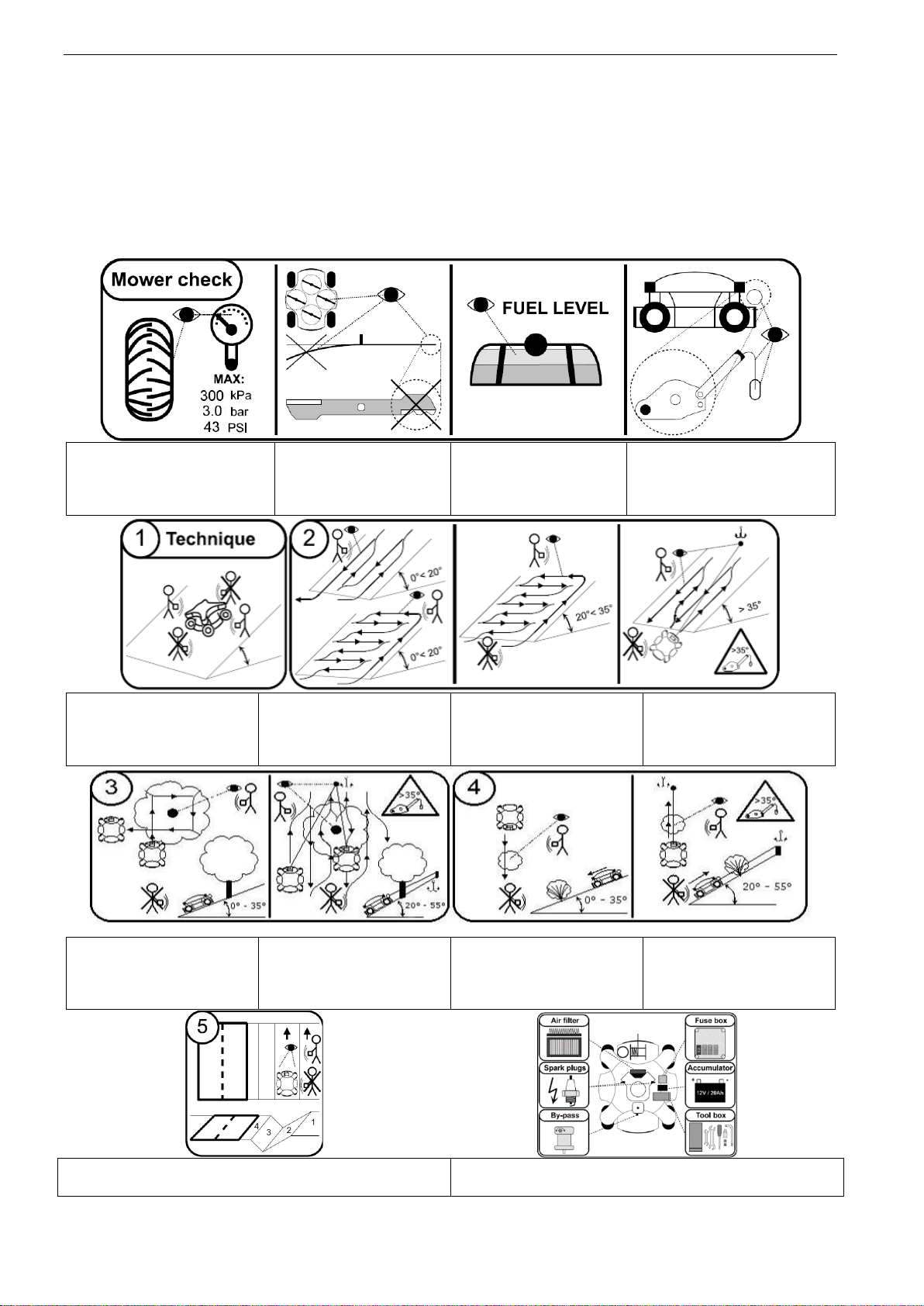

5.3 RECOMMENDED METHODS OF OPERATION
This chart shows basic information about recommended methods of cutting grass in various types of terrain. It
also describes the correct procedure of anchoring the hydrostatic stabilizing winch. However current terrain and
climatic conditions may require different methods of operation than those shown in this chart. The operator is
always responsible for choosing the most suitable method of operation especially with regards to safety. In any
case it is always absolutely necessary to comply with all safety instructions listed in this manual.
Chart of recommended methods of operation is placed together with the basic set of tools on the machine. See
chapter 11.24 Tools.
Always keep the tyres inflated to the
recommended pressure. Other values
may unfavourably influence the driving
characteristics. Maximum pressure –
300kPa/3,0bar/43PSI
Check the blades. Blades must
be properly tightened. Blades
must not be bent and the edges
must not be damaged.
Check the fuel level
Check the overall condition of the
winch. The rope and the snap hook
must not be damaged.
On slopes never enter the area
below or directly above the
machine.
Recommended method of cutting on
slopes up to 35 degrees provided
the operator is well acquainted with
the terrain and there is no risk of
tipping the machine over.
Recommended method of cutting on
slopes up to 30 degrees provided
the operator is well acquainted with
the terrain and there is no risk of
tipping the machine over.
On slopes exceeding 35 degrees
always use the stabilizing winch. On
slopes never enter the area below
or directly above the machine.
Recommended method of cutting
around trees on slopes up to 35
degrees.
Recommended method of cutting
around trees on slopes exceeding
35 degrees. On slopes exceeding
35 degrees always use the
stabilizing winch.
Recommended method of cutting
bushes on slopes up to 35 degrees.
Recommended method of cutting
bushes on slopes exceeding 35
degrees. On slopes exceeding 35
degrees always use the stabilizing
winch.
Recommended method of cutting along roads. Never enter the area below or
directly above the machine. Danger of getting injured by objects thrown by the
blades. Carefully check the terrain in front of the mower.

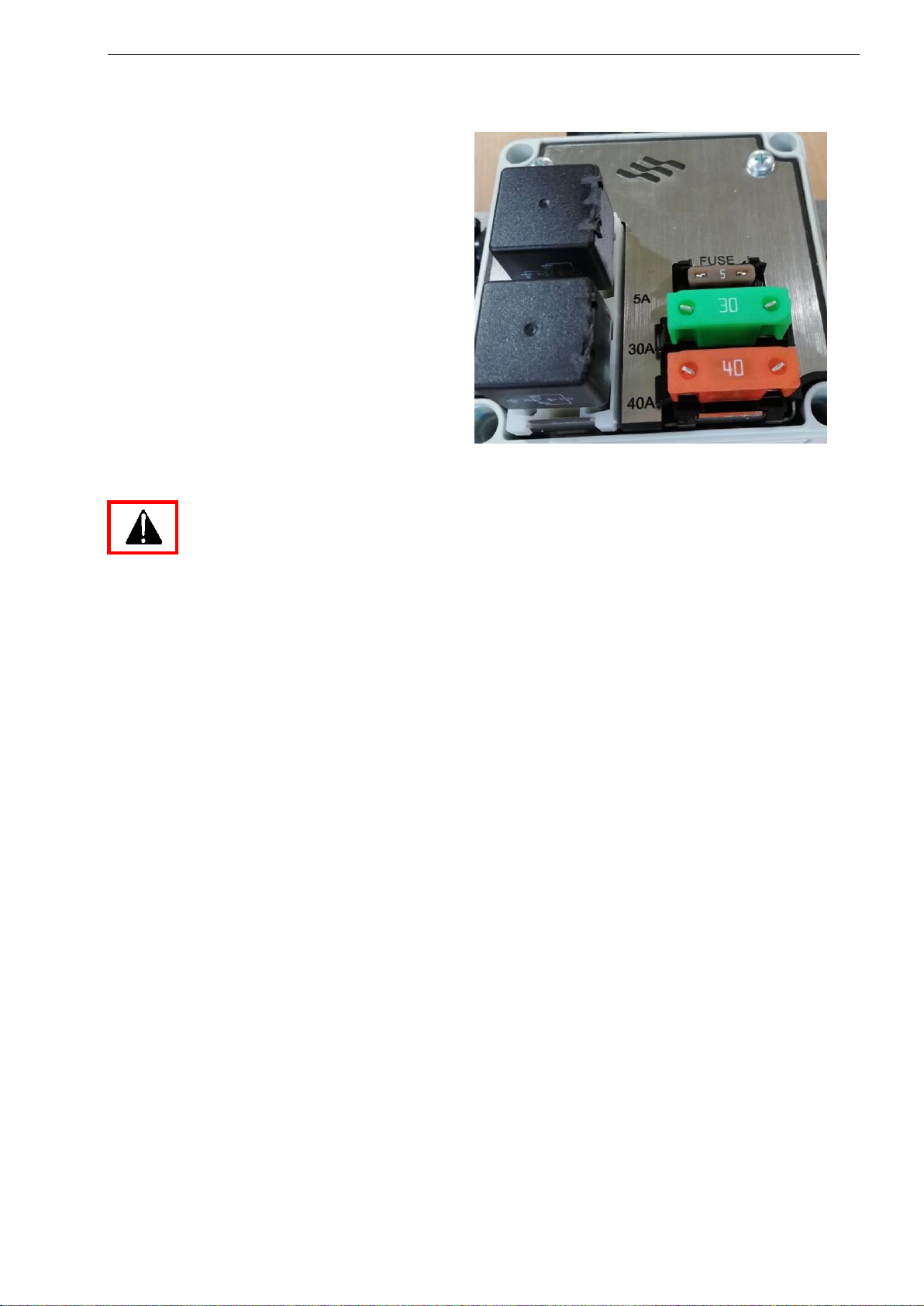

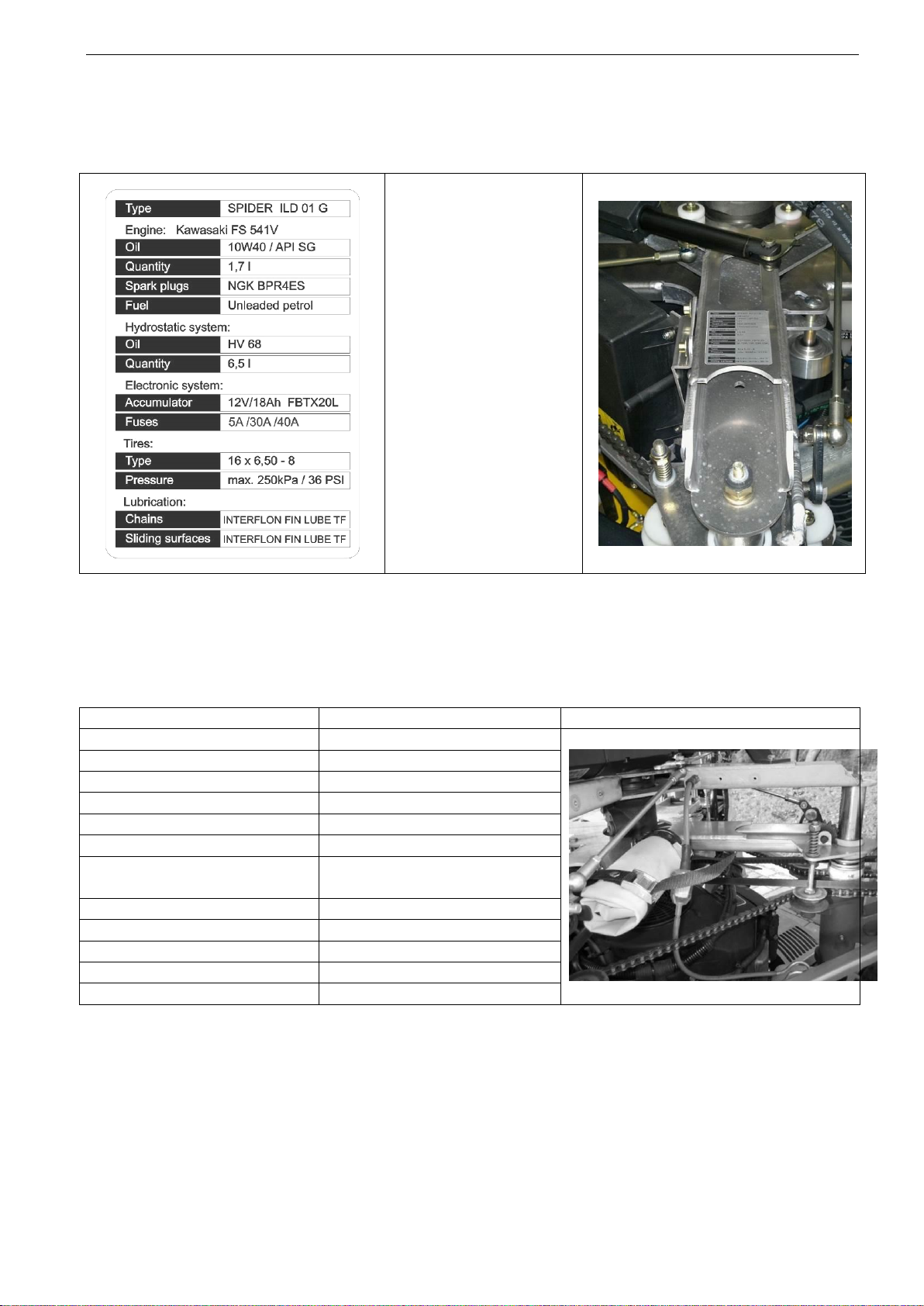

Position of important components on the machine (air filter, spark plugs,
hydraulic by-pass allowing the disengagement of hydraulics and consequent
towing of the machine, fuse box, battery, tools
Page 19
Operation manual - Spider ILD01G
19 / 54 rev. 03-01-04-2019
Instructions for turning on and off the hydrostatic winch
Rotate the machine so that the
winch is facing up the hill toward
the expected anchoring point.
Turn the wheels so that they are
orientated across the slope (along
the slope contours)
Turn off the blades
Reduce the engine RPM to
minimum (idling speed)
On the remote controller of the
machine turn on the hydrostatic
winch by the ON-OFF switch.
By pushing the driving joystick
slightly backward the rope will
begin to unwind. Fasten the rope
properly to the anchoring point.
Increase the engine RPM to
maximum
Tighten the winch rope by
pushing the driving joystick
slightly in the forward direction.
Turn on the blades
Leave the anchoring position of
the mower by pushing the driving
joystick forward and by driving up
the slope.
Method of cutting up and down a
slope: driving up the slope – push
the joystick forward, driving down
the slope – push the joystick
backward
Method of cutting across the
slope: Drive according to the
picture. The joystick should
always be pushed in the forward
direction.
Place the mower at the bottom of
the slope
Turn the wheels across the slope,
perpendicular to the anchoring
point
Turn off the blades
Reduce the engine RPM to
minimum (idling speed)
Loosen the winch rope by
pushing the drive joystick slightly
backward.
Untie the rope from the anchoring
point. Wind the rope back onto the
winch drum by pushing the drive
joystick slightly forward.
On the remote controller of the
machine turn off the hydrostatic
winch by the ON-OFF switch.
Check the overall condition of the
winch. The rope and the snap
hook must not be damaged.
Page 20
Operation manual - Spider ILD01G
20 / 54 rev. 03-01-04-2019
6 CONTROLS

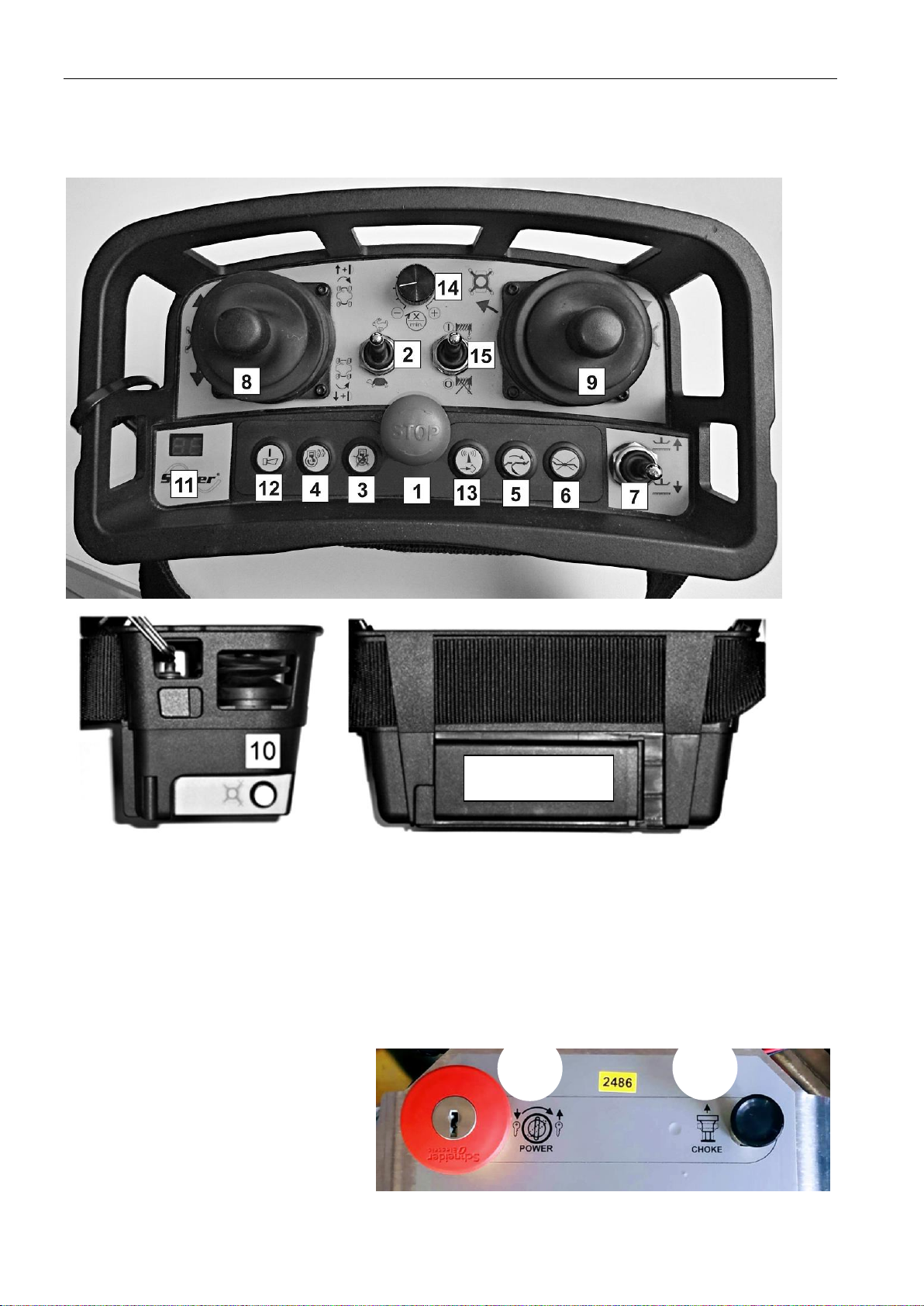

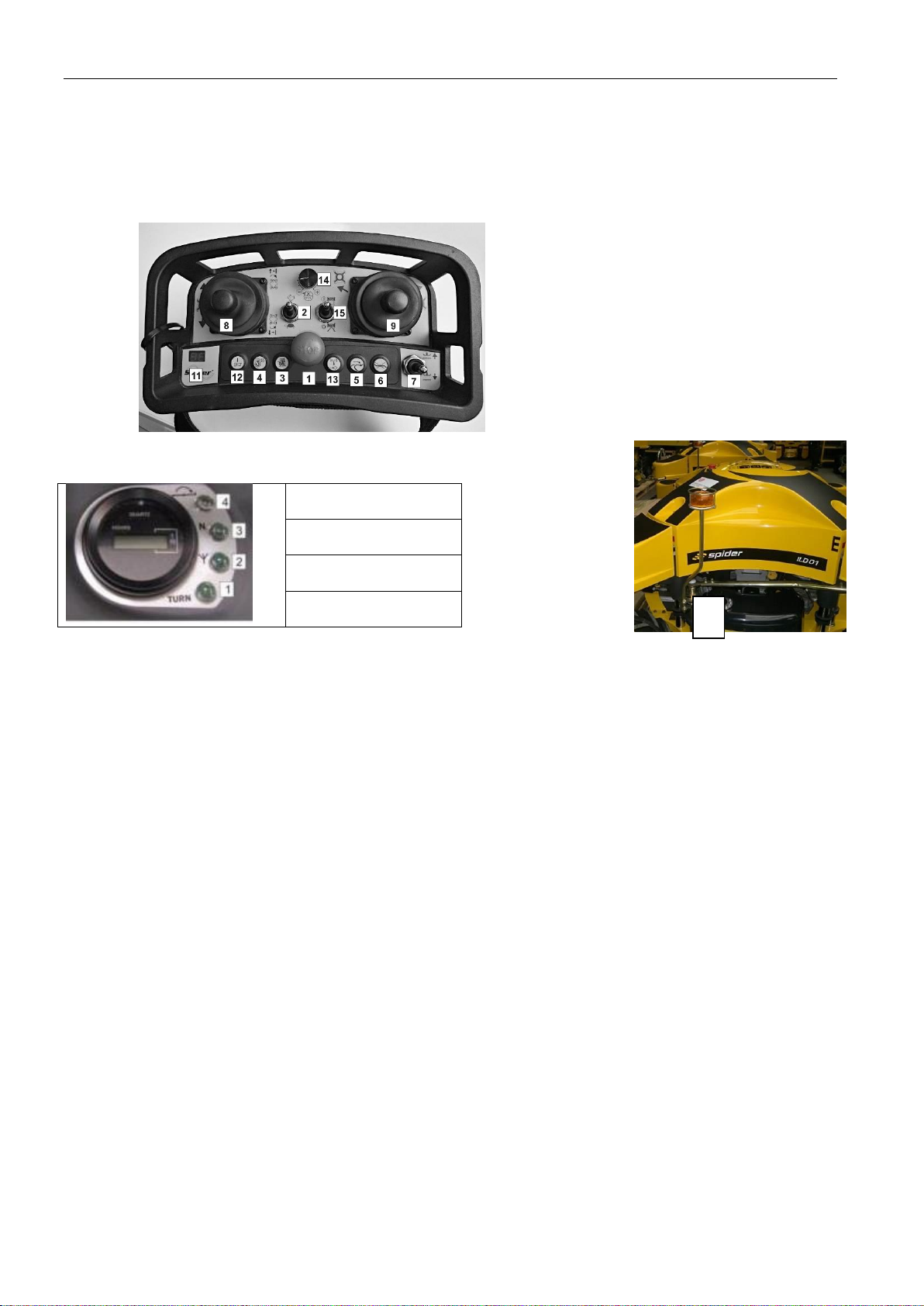

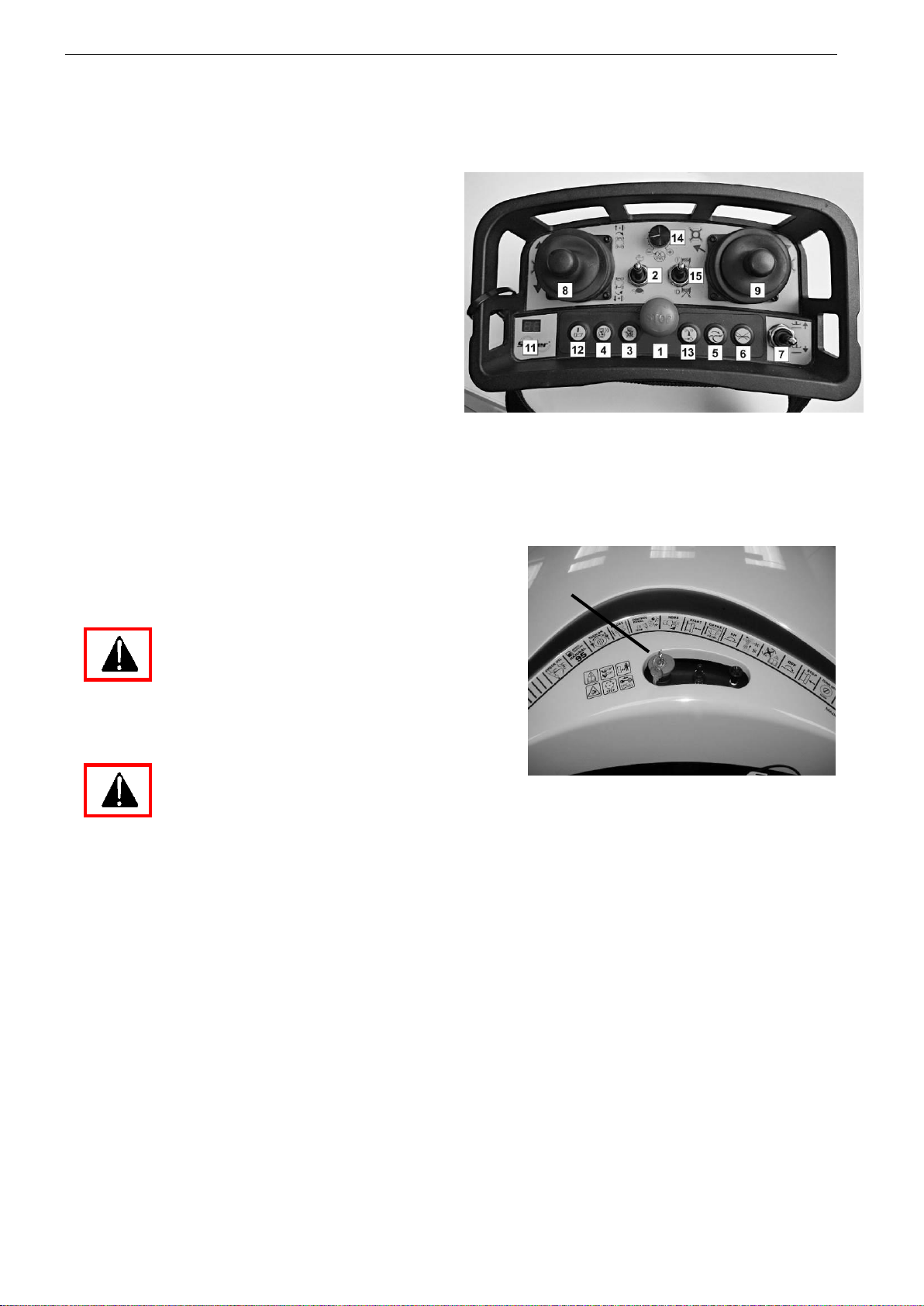

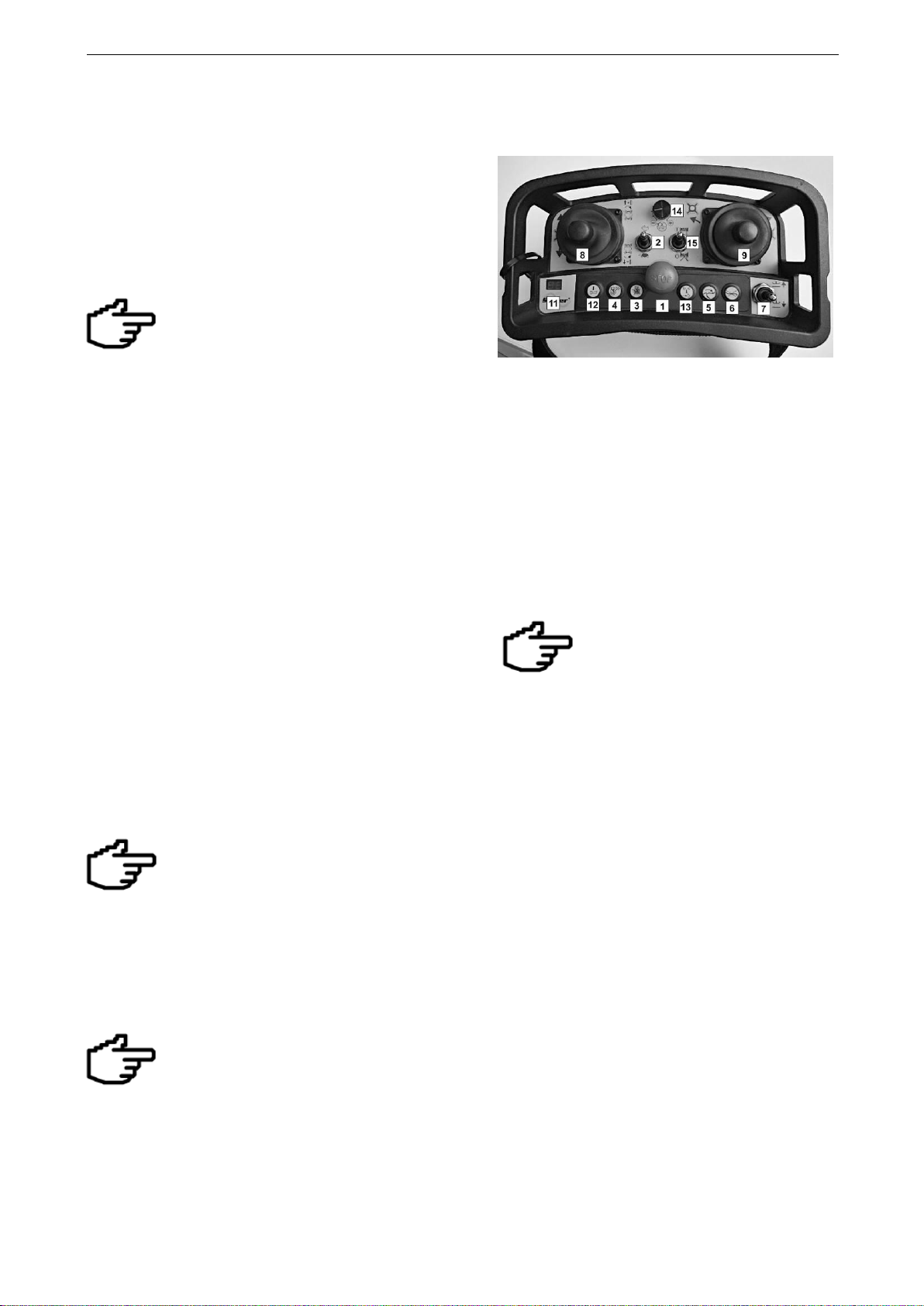

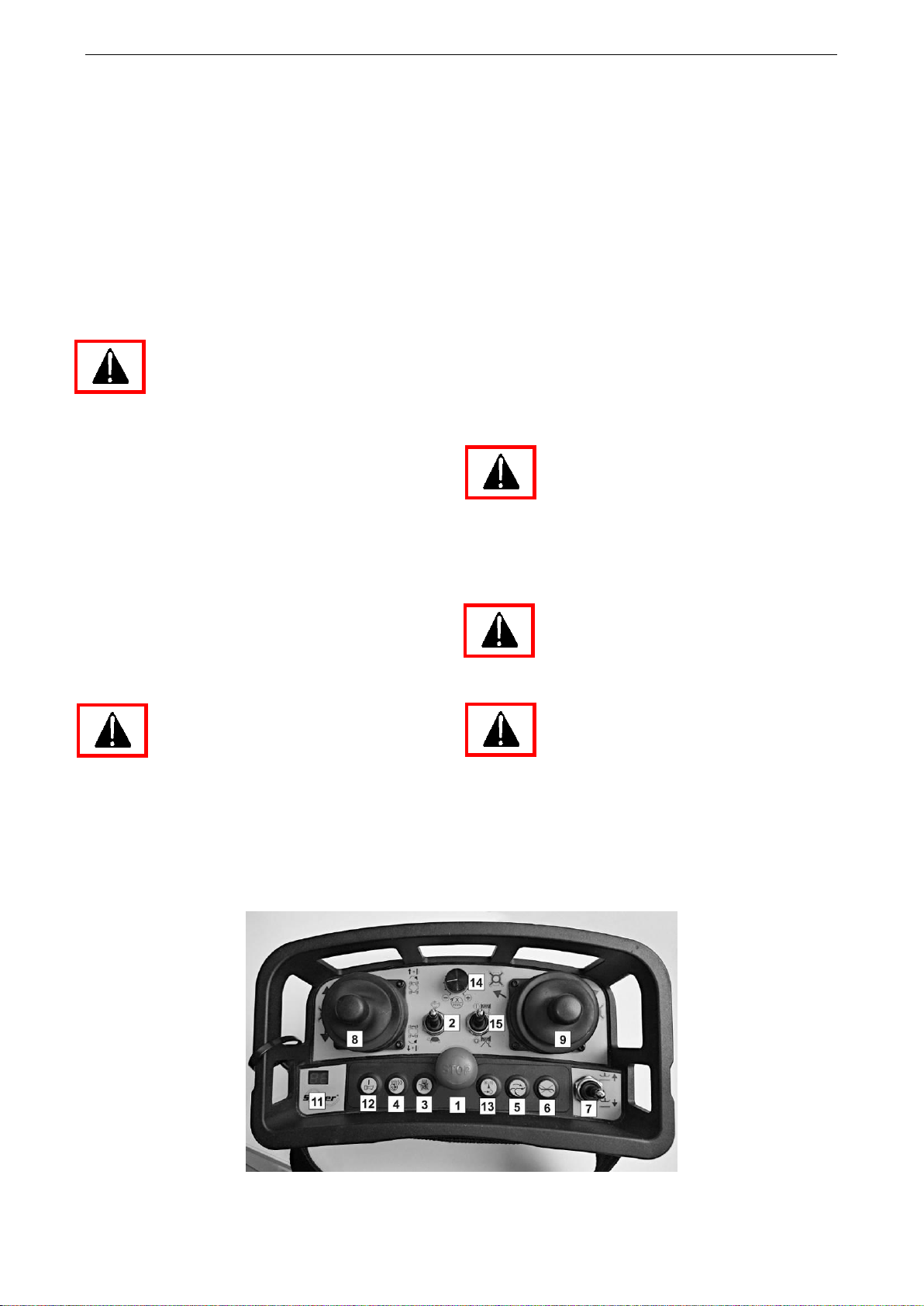

6.1 REMOTE RADIO CONTROLLER
1 Main Switch / EMERGENCY STOP button
2 Driving speed controller H/L
3 Engine stop switch
4 Engine starter switch
5 Mowing blades ON switch
6 Mowing blades OFF switch
7 Height of cut adjustment
8 Joystick for driving forward / backward
9 Joystick for steering left / right
10 Skid steering switch – for ILD01 inactive
11 Remote controller power display
12 Operator’s preparedness confirmation / Horn
13 Frequency check / change button
14 Engine speed controller
15 Winch switch On/Off
6.2 MOWER CONTROLS
On the body of the mower there are two
controls for operating the mower.
1 Lockable EMERGENCY STOP button
/ Ignition switch
2 Choke for cold start
1
2
Battery
Page 21
Operation manual - Spider ILD01G
21 / 54 rev. 03-01-04-2019
7 DISPLAYS
7.1 RADIO CONTROL DISPLAYS
Indicator (11) flashes - Radio Control power on indicator
Radio control emits a high pitch tone - Radio Control battery low voltage warning
7.2 MOWER DISPLAY
1. Power indicator
2. Signal Reception
3. Neutral
4. Blade
On the cover of the battery there are several warning LEDs and an hour meter.
The displays signal the following states:
1- Power Indicator: Illuminated green when the EMERGENCY STOP on the top of the mower is unlocked.
Beacon is flashing when the EMERGENCY STOP on the top of the mower is
unlocked.
2- Signal Reception: Illuminated green when the radio link between the RC and the receiver is established
and correct.
3- Neutral: Illuminated green when the transmission is in a neutral position.
4- Blade: Illuminated red when the blade is engaged.
5- Beacon: Flashing when the EMERGENCY STOP on top of the mower is unlocked.
After the power supply is turned on, indicator lamp 1 will be illuminated. It will flash for seven seconds, during
this period the following actions take place:
• Initialisation of the processor; check of radio connection and check the communication with the
hydraulic pump servo-motor. If the checks are successful lamp 1 will illuminate. If a malfunction is
detected lamp 1 will flash.
• When there is communication between the machine and the radio control unit, lamp 2 flashes. If there
is a break in communication lamp 2 dims.
• Lamp 3 is illuminated when the drive servomotor is in a neutral position.
• Lamp 4 is illuminated while the blade is engaged. The mower cannot be started while this lamp is
illuminated.
5
Page 22
Operation manual - Spider ILD01G
22 / 54 rev. 03-01-04-2019
8 SAFETY SYSTEMS
8.1 MOWER SAFETY SYSTEMS
The product is controlled by a remote radio controller. This means that the operator is not close to the mower at
all times and cannot use controls on the mower. For the safety of the operator and other persons the following
table lists various situations and actions:
The mower is out of the signal range.
The EMERGENCY STOP command is
automatically generated.
Radio signal failure.
The EMERGENCY STOP command is
automatically generated
Another machine with the same frequency
is working in the vicinity.
The EMERGENCY STOP command is
automatically generated.
Emergency situations - shutting off by the
emergency stop button.
Push the EMERGENCY STOP button on
the radio controller.
Push the EMERGENCY STOP button
on the body of the mower.
Safety Interlocks prevent the engine
from starting.
If the mowing blade clutch is engaged.
If the transmission is not set to a neutral
position.
If the radio connection is not
established properly.
The EMERGENCY STOP command (automatic or manual) has the following effects:
1. Engine stops
2. Steering of wheels is blocked
3. Travelling is blocked
4. Starter is blocked
5. Mowing blade clutch disengages
6. Ignition is turned off
Page 23
Operation manual - Spider ILD01G
23 / 54 rev. 03-01-04-2019
9. PREPARING THE MACHINE
9.1 MACHINE DELIVERY TO A DEALER
OR RETAILER
From the manufacturer the machine is
delivered filled with engine oil and
hydraulic oil but without gasoline in the
tank.
The training of the operator should take place during
the installation of the product.
The mower may be delivered on a wooden pallet or in
a crate.
To take the mower off the pallet
• Place the palette with the mower on a level
surface
• Carefully remove the upper boards of the crate
and take out all accessories & the remote control
Disassemble the side boards of the crate
• Release the attachment fastening the mower to
the pallet, remove transportation wrapping.
Recycle these wraps.
• Thoroughly examine the mower for possible
damage and missing parts from the delivery. If
necessary, contact the transporting company with
your claim.
• Before driving down from the pallet raise the
mowing mechanism to the upper position (this can
be done without starting the engine)
• Place boards in front of the wheels in the direction,
in which you expect to drive the mower from the
pallet to the ground. Put at least 5 litres of fuel to
the tank and attach cables onto the battery. While
starting, follow instructions in chapter 5.

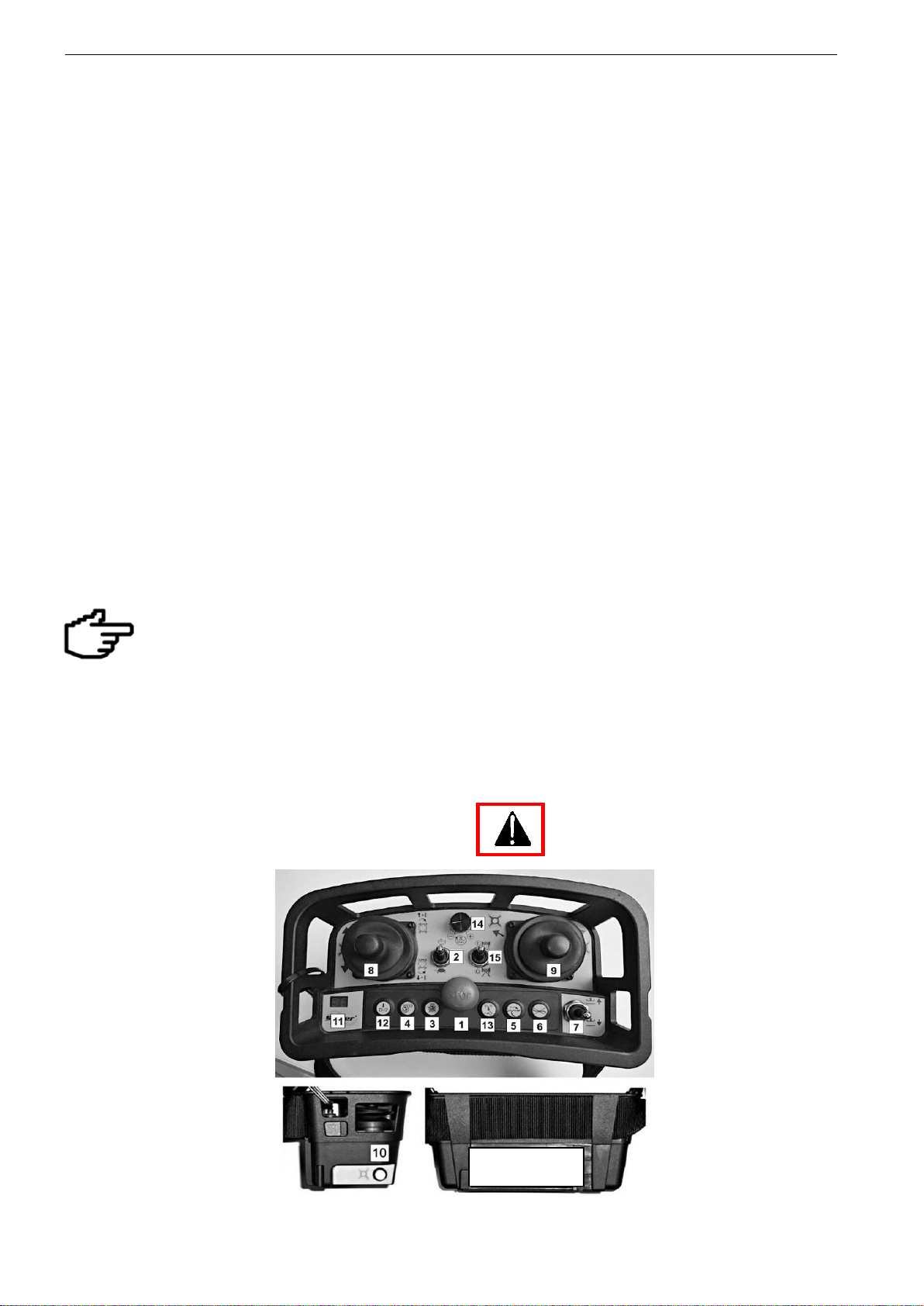

• The aerial must be attached to the mower
• After starting the engine set the speed controller
on the transmitter to the (L) symbol – lower driving
speed
• Slowly move the forward/reverse joystick to
correspond with the direction you want to move
the mower. The arrow on the wheel legs indicates
forward.
• Slowly drive down to the ground and stop the
engine
• While unpacking, assembling and preparing the
mower, do not engage the mower blade.
• SIDER mower
• Mower ignition key (X2)
• Gel battery (12V starting)
• Remote control including 2 batteries
• Remote control battery charger (12V – 7.2V)
• Operation manual
• Radio controller key (2×)
• Engine user’s and maintenance manual
• RC instruction manual
• Copy of the EC declaration of conformity
• Copy of the EC declaration of conformity for
Remote controller NBB
If you have a lifting device with a
sufficient lifting capacity
available, place the lifting
hooks/eyes on spots marked with the symbols
of chain, lift the load by about 0,15 m (6inch),
move the pallet away from the mower and
lower the machine to the ground.
There may not be enough fuel in
the fuel system when starting for
the first time and you may need
to repeat the starting several times. Starting
period must not exceed 3 seconds. There
must be a pause of at least 20 seconds
between all attempts to start the engine.
Page 24
Operation manual - Spider ILD01G
24 / 54 rev. 03-01-04-2019

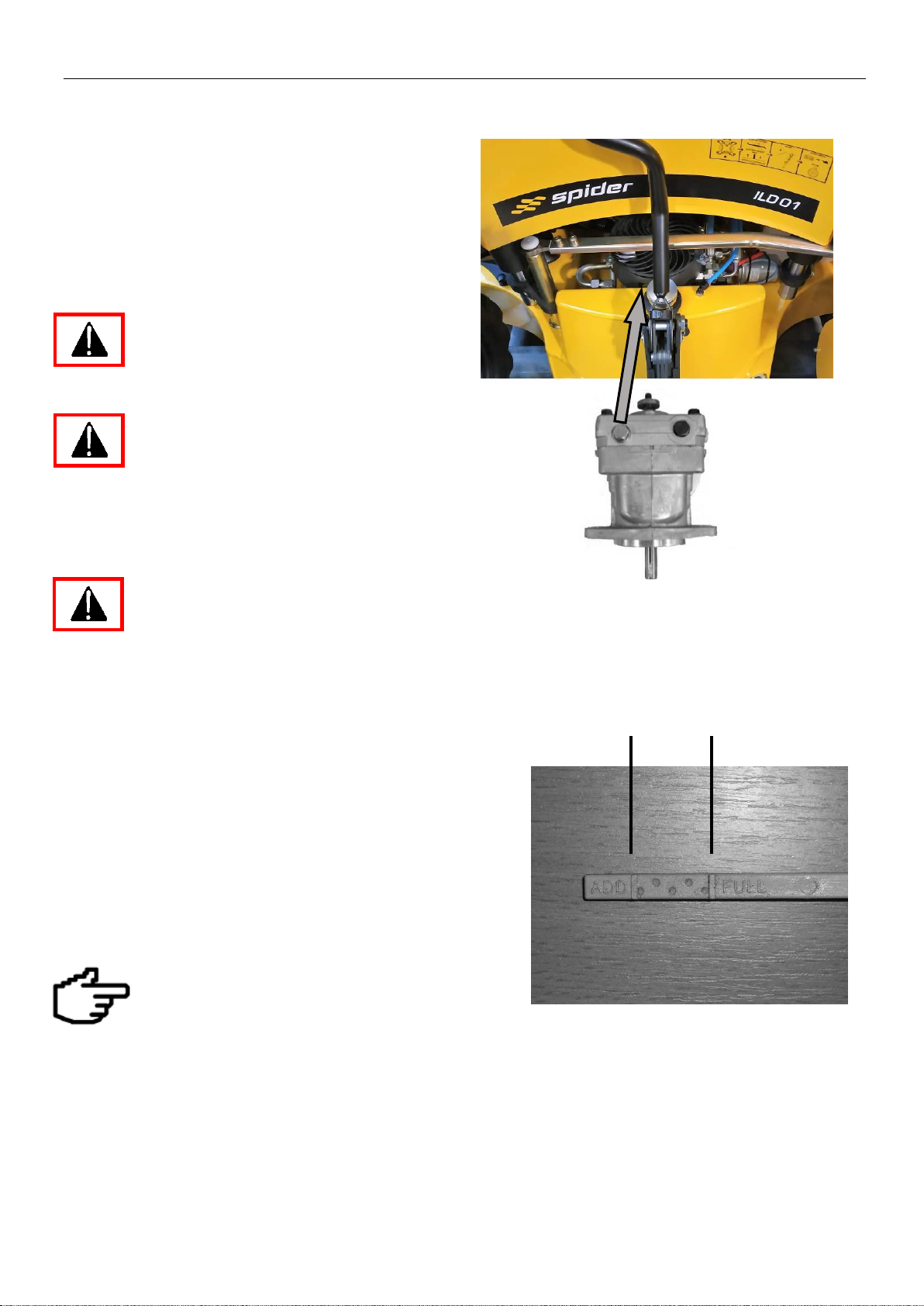

9.2 HYDRAULIC PUMP BY-PASS
The By-pass is used to disable the hydraulic drive and to
engage the oil bypass for manual handling (engine not
running) of the machine on flat surfaces. The by-pass
should only be used when the hydraulic drive is not
functional. For normal hydraulic drive it is necessary to
have the bolt on the pump tightened. For manual
handling loosen this bolt by two revolutions.
Before starting, check the bolt tightness. If
loose, it will disable the hydraulic drive.
Insufficient tightening may result in
undesirable behaviour of the mower on slopes.
It may uncontrollably drive down a slope.

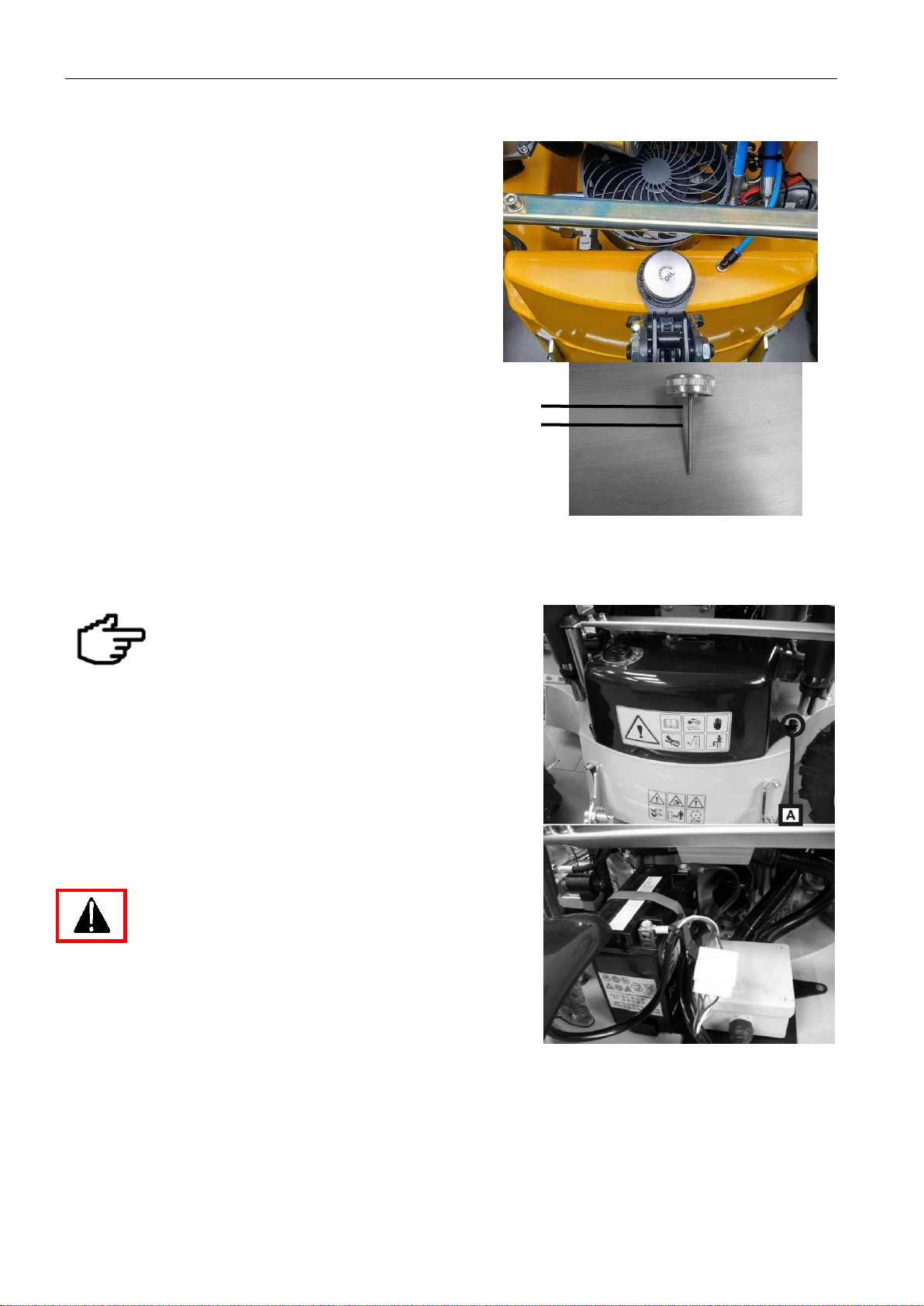

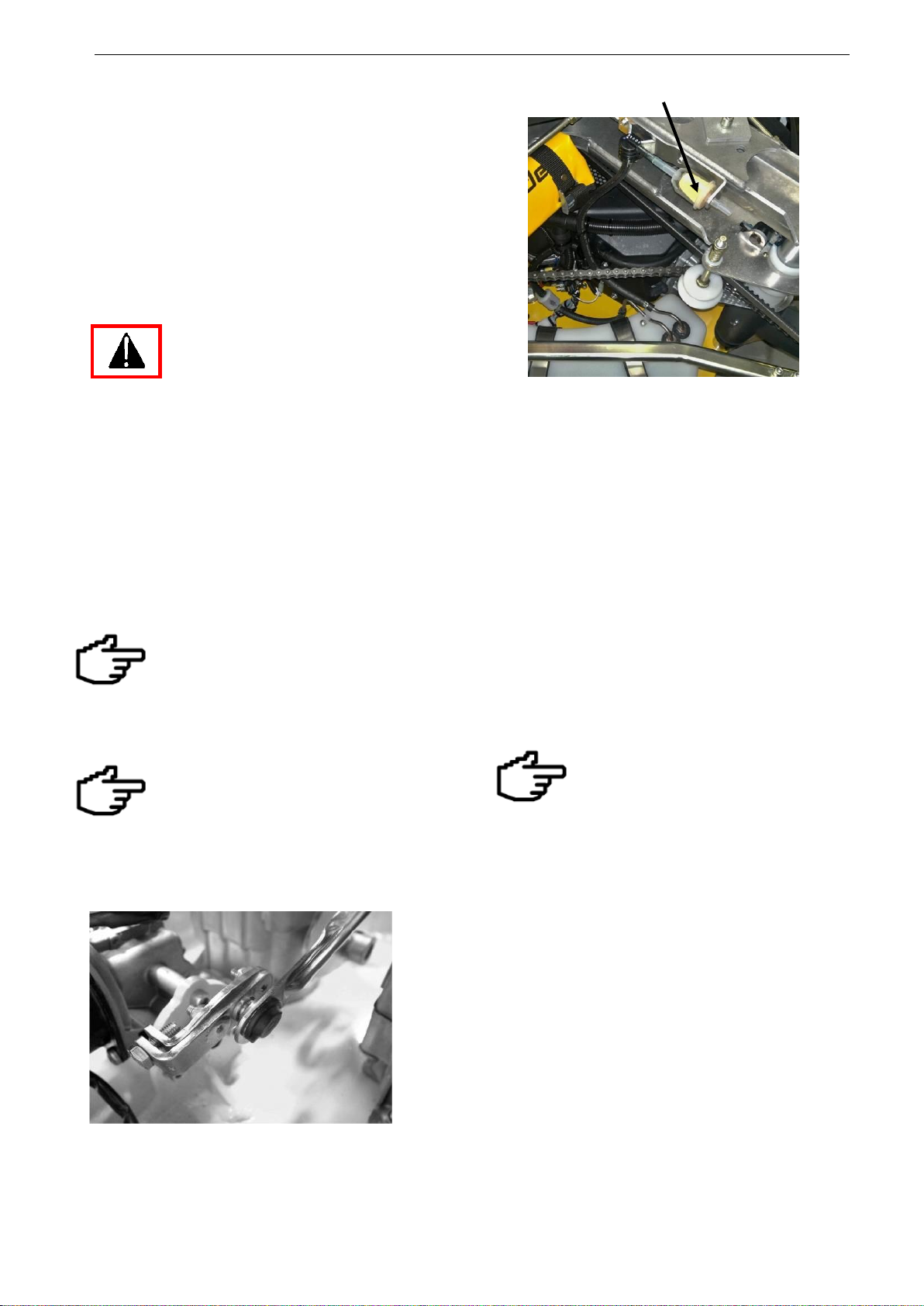

9.3 CHECKING ENGINE OIL LEVEL
Attention! Before checking or refilling oil stop the
engine and let it cool down.
The oil level of the machine standing on a level surface
must be between the limit marks on the dipstick (see the
engine user’s manual). Check oil according to the engine
user’s manual as follows:
1) Place the machine on a level surface.
2) Remove the upper body
3) Unscrew the dipstick and wipe off oil.
4) Without screwing inset the dipstick back into the
filler as far as you can.
5) If the oil level is close or under the lower limit
mark (ADD), fill with recommended oil up to the
upper limit mark (FULL).
6) Refit the dipstick.
Running the engine with insufficient oil
may cause serious damage to the
engine.
Check the engine oil level on a level surface and
only when the engine is off.
Use only oil recommended by the engine
manufacturer.
min max
Page 25
Operation manual - Spider ILD01G
25 / 54 rev. 03-01-04-2019
9.4 CHECKING HYDRAULIC DRIVE OIL LEVEL
Oil level should only be checked when the oil is cold.
Clear debris from around the cap, unscrew the cap
on the hydraulic oil tank on the side of the mower.
Using the dipstick check the oil level. It must be
between the limit marks.
If the level is above this range, the oil may overflow
from the breather pipe in the tank when hot. If the
level is below the lower limit, the hydraulic drive
may be damaged.
Refill with oil if necessary (HV 68 according to ISO
6743 or HLP 68, CLP 68 according to DIN 51502).
When finished, refit the cap back on the oil tank.
9.5 PREPARING THE BATTERY
SPIDER ILD01 mower uses a gel battery model 6E12, 12 V, 18 Ah
Do not fill the battery with electrolyte! The machine
construction uses a dry type of battery. If recharging,
use a maximum electric current of 1,4 A.
Unscrew the thumb wheel (A) and move aside the battery cover
(see the figure).
Remove/insert and fasten the battery
Attach the terminal connectors according to polarity. First (+)
then (-).
Secure the battery against movement with a belt.
Screw back the battery cover.
When disconnecting and removing the battery, proceed in
reversed order.
NEVER START THE MOWER WHEN A CHARGER IS
CONNECTED TO THE BATTERY. FOR CHARGING
USE ONLY SPECIAL CHARGERS PREVENTING THE
EXCESS OF THE GASSING VOLTAGE. WHEN CHARGING
THE BATTERY, MAKE SURE THAT CABLES CONNECTING
THE BATTERY TO THE MOWER ARE DISCONNECTED.
min
max
Page 26
Operation manual - Spider ILD01G
26 / 54 rev. 03-01-04-2019

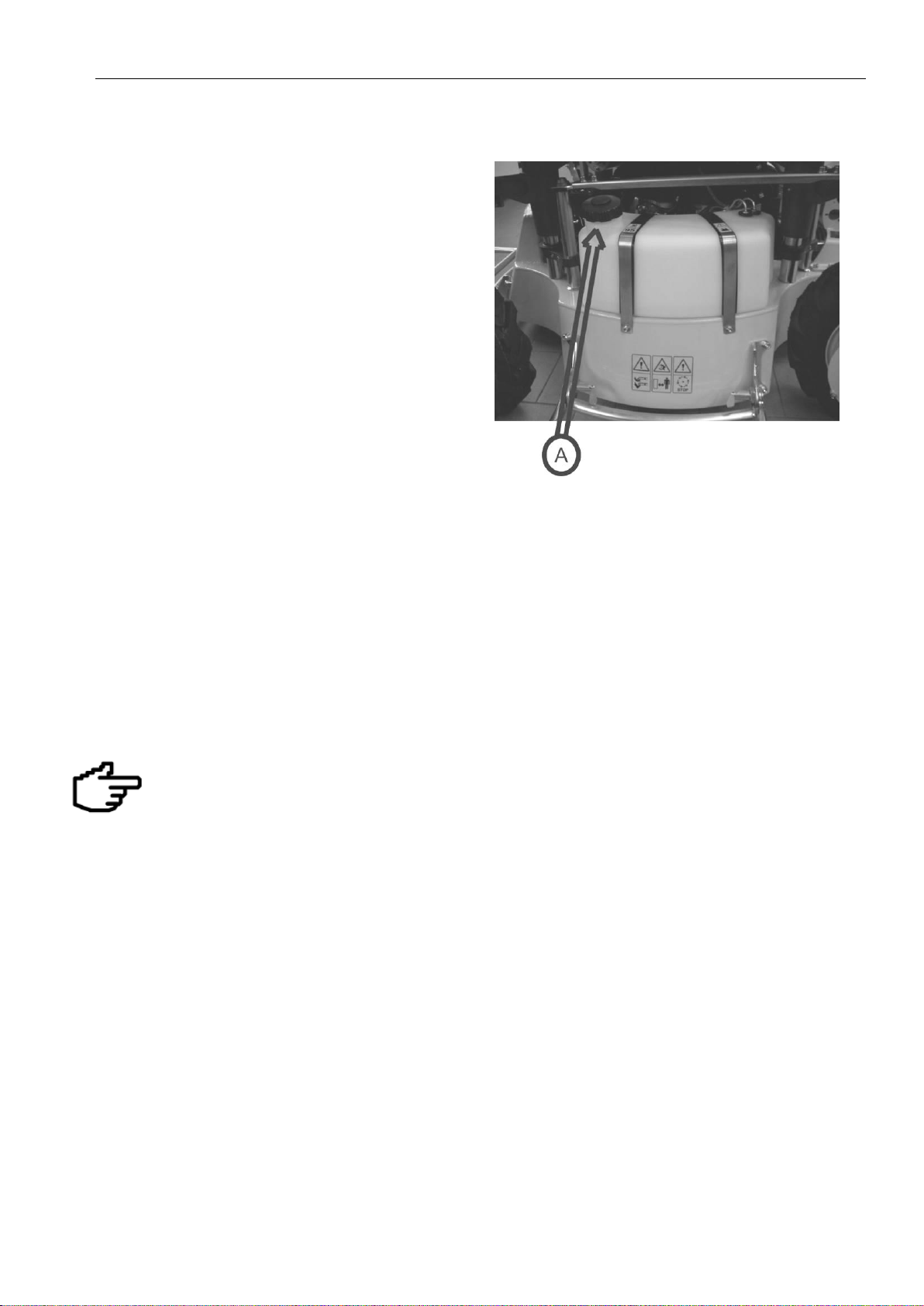

9.6 FUEL TANK
The plastic fuel tank is placed on top of the mower
deck, on one side of the mower. The tank has a screwon cap A.
Before refuelling always stop the engine. Do not smoke
or approach open flames or sources of sparks when
manipulating with gasoline.
Use unleaded 95-octane gasoline without any additives.
The operator is responsible for all engine or fuel system
damage resulting from the use of wrong, low-class, old
or contaminated fuel. The warranty does not extend to
such damage.
Do not fill the tank near open flames or sources of
ignition.
Do not smoke.
Do not open the tank while it is hot.
Do not fill/empty the tank in enclosed areas.
9.7 PREPARING THE REMOTE RADIO CONTROLLER
Insert the original battery (Ni-Cd 7.2V, 1500 mAh) into the remote radio controller. If the power indicator flashes,
the battery is charged.
Discharge signal – if the voltage of the remote radio controller is too low, then the RC will emit a high pitch
sound. Move the mower to a safe place and replace the battery. After the low voltage is indicated, you have
about 15 minutes to move the mower to a safe place. After 15 minutes the remote radio controller will be turned
off permanently. If the battery is exhausted, replace it with a reserve battery.
The transmitter (remote radio controller) and the receiver (control unit) were adjusted and setup by the manufacturer. Do not make any modifications to these devices. They are a matched
pair.
9.8 CHARGING THE REMOTE RADIO CONTROLLER BATTERY
To charge the battery:
Connect the charger to the electric power outlet in your car. Insert the battery into the charger (orange lamp is
illuminated, and the battery charging starts).
When the battery is fully charged, the orange lamp flashes quickly.
Leave the battery in the charger as long as necessary (the charger controls the charge level and does not
overcharge the battery)
Page 27
Operation manual - Spider ILD01G
27 / 54 rev. 03-01-04-2019
10 OPERATION
10.1 TRANSPORTING THE MOWER
The mower should be transported to the mowing area on a trailer or other suitable transport vehicle.
Transporting the mower on thoroughfares on its own wheels is prohibited
When loading/unloading a trailer, make sure that the edge - formed by the floor of the trailer and the ramps – is
not an obstacle for the mower. Otherwise you need to use longer ramps.
When loading, do not allow any person to stand by the ramps or under the hanging mower if it is lifted. It may
only be hung up on places marked by the chain symbol. The loading capacity of the lifting eyes/ hooks must be
suitable for the weight of the machine as quoted on the serial plate.
When transporting the mower, make sure it is properly secured. Attach fastening devices to the hoist rings
marked by the chain symbol on the mower.
10.2 STARTING THE ENGINE OF THE MOWER
• Check the gasoline in the fuel tank, refuel with
unleaded gasoline BA95 if necessary.
• Check the forward/reverse control joystick (8)
on the remote radio controller and leave it the
neutral position.
• Switch ON the remote radio controller power
switch (1) by turning clockwise.
• A red lamp (11) will illuminate on the RC.
Unless button (1) is in the ON
position, the machine will not start
• Ensure the EMERGENCY STOP button (1) on
the remote radio control is in the raised
position.
• Use the key to unlock and pull up the
EMERGENCY STOP button on the mower
• Set the engine choke control to the position for
cold start - the lever is pulled up (only for the
first start or if the engine is cold). See the
engine user’s manual.
• Wait till lamps 1 and 3 are illuminated and lamp
2 is flashing (on the mower), then press the
horn button (12) on the remote radio controller
– the mower ignition engages.
• Press the START button (4) on the remote
radio controller. If the engine does not start, all
the functions of the mower are locked again. To
unlock them and consequently to start the
engine, press button (3). After three
unsuccessful starting cycles machine is locked,
wait for one minute.
• The engine is “running”, release the START
button on the remote radio controller. While the
engine is working do not use the START button
again.
• Let the mower idle for about 2 – 3 minutes
without engaging the mowing device and, while
the engine is warming up, push back the choke
control (in the case of a cold start)
NOTICE:
Do not stand in direction where the
mower may move while starting it
Battery
Page 28
Operation manual - Spider ILD01G
28 / 54 rev. 03-01-04-2019
10.3 SHUTTING OFF THE ENGINE
• Before shutting off the engine, always disengage
the mowing mechanism drive on the remote radio
controller.
• Do not shut the engine off immediately after
mowing, let it run for a short while with the
minimum engine speed in order to let it cool
down.
• Stop the engine by pushing the STOP button (3)
on remote radio controller.
• Do not use the EMERGENCY STOP button to
shut off the engine except in an emergency.
• Press the EMERGENCY STOP (2) button on the
mower and remove the key.
• Turn off the remote radio controller by pushing
button (1).
10.4 EMERGENCY SHUTTING OFF OF THE ENGINE
There are two red EMERGENCY STOP buttons.
One is placed in the remote radio controller (1), the
other one on the body of the mower (2). Both
buttons have the same function.
For emergency stopping use preferably
the remote-control button (1). Use the
button on the mower (2) only when the
mower is in a stable position and on a
flat area, or when you are standing right next to the
mower and cannot be endangered by the machine.
The EMERGENCY STOP buttons on
the remote radio control (1) and on
the mower (2) should be used at any
time when an emergency stop is
required.
2
Page 29
Operation manual - Spider ILD01G
29 / 54 rev. 03-01-04-2019
10.5 ENGAGING THE MOWING BLADES
The mowing blades can only be engaged when the
engine is running.
Set the maximum mowing height with switch (7).
Increase engine speed by regulator 14.
Push the button for blades engagement (5)
- the mowing device turns on
Set the working position of the blade by the mowing
height switch on the remote radio controller (7)
Do not engage the mowing blades in
tall grass, damage to the clutch may
result. If you wish to mow tall grass,
move the mower to a place without tall
grass and then turn the blades on. When engaging
the blades stand in a safe distance from the mower.
Do not engage the blades if there are people near
the mower. The rotating blades may throw objects.
10.6 DISENGAGING THE BLADES
Press button (6) to disengage the blade. If you are
not planning to mow anymore, set the maximum
height with switch on the remote radio controller.
10.7 HEIGHT OF CUT ADJUSTMENT
The machine has a variable mowing height. The
mowing height can be from 60 to 110 mm as a
standard.
The mowing height can be adjusted by switch (7) on
the remote radio controller. Follow the marks on the
body of the mower.
If the grass growth is high or wet, select a higher
mowing position.
The lowest position is used when mowing wellmaintained and even areas.
When mowing unknown areas for the
first time, we recommend mowing with
blades in a higher position and - after
finishing mowing - to re-examine the
area for undesirable objects. The next
cut should only be done after the grass cuttings
have dried up.
Set the height of cut approximately, mow a few
meters of the area and check that the height of the
cut grass meets your expectations.
The height of cut on a slope may
significantly vary from that on a level
surface.
10.8 ENGAGING THE WINCH
To work with stabilizing winch switch button (15)
into ON position.
For instruction how to use stabilizing winch please
refer to “HSN 02 Winch Operation manual”.
Switch (7) has 3 positions: The
maximum and minimum limit
position and the third intermediate
position, which preserves the
current height set-up.
Cleaning the mowing mechanism
After each use the mowing mechanism must be
carefully cleaned, especially the inner walls of the
mowing deck. The cleaning should be carried out
with a scraper. The mower must not be washed by
power washer or other high-pressure devices.
When cleaning, secure the machine against
moving.
Raise the mowing mechanism to the transporting
position. When cleaning, also check the blades.
Proper maintenance and treatment of the mowing
mechanism increases the quality of work and
durability of your machine.
After cleaning and drying, especially if the mower
will not be used for a longer time, treat all
scratched parts with preservative coating.
If you are lifting the mower during cleaning,
make sure that you secure it against
movement and fall. Disconnect the battery,
remove the spark plug terminal and press the
EMERGENCY STOP button on the mower.
Page 30
Operation manual - Spider ILD01G
30 / 54 rev. 03-01-04-2019

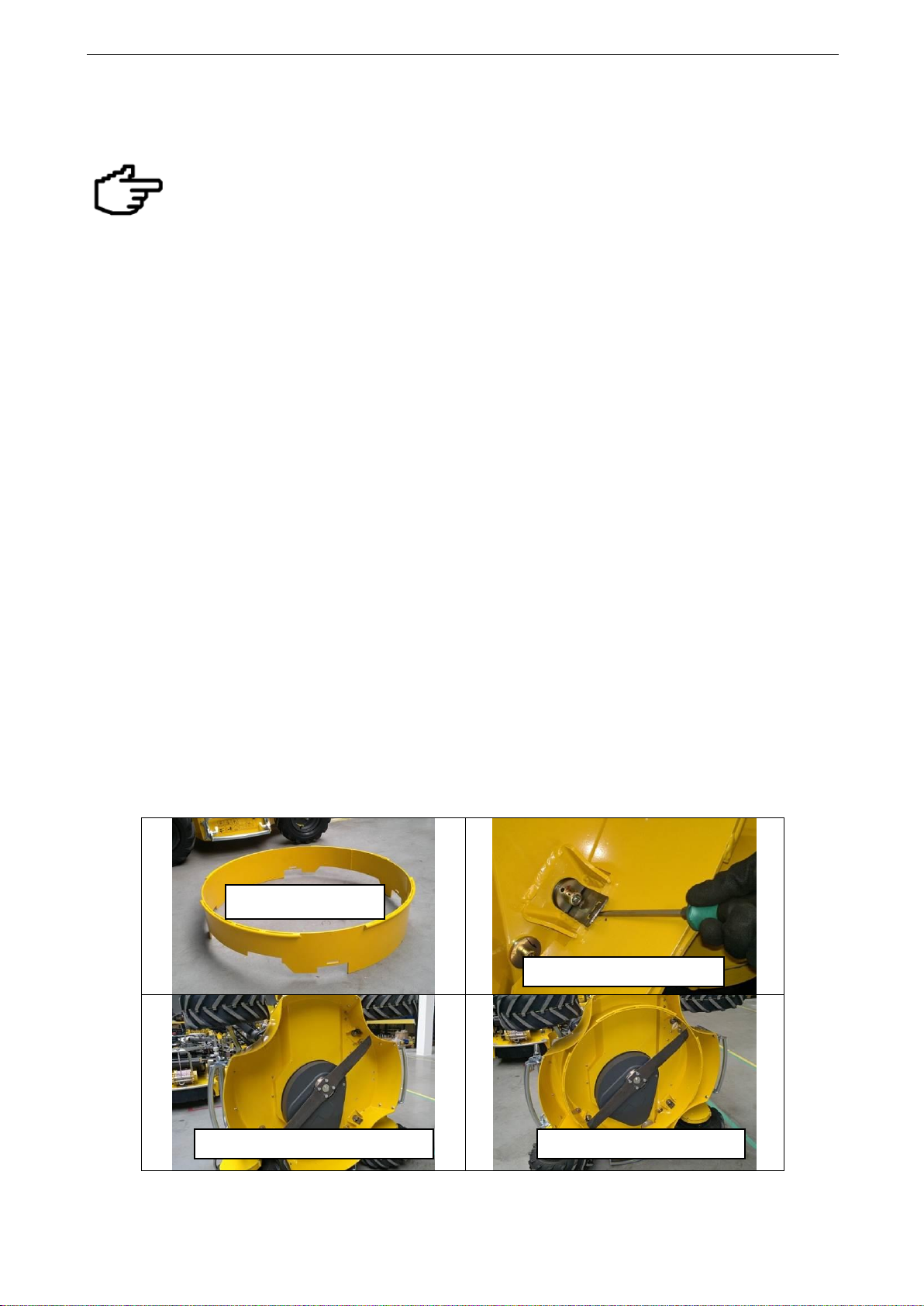

10.9 MULCHING COVER (OPTIONAL ATTACHMENT)
Spider ILD01 can be fitted with a mulching cover, which improves the mulching quality on well-maintained
lawns.
With the mulching cover it is possible to mow grass, which is at the most 50% higher than the
selected height of cut (i.e. max. 165 mm). If mowing higher grass, the mulch deck may become
clogged and the mulching quality may deteriorate.
Principles of quality mulching:
- Always mow after the growth has dried properly.
- When mowing thick or moist grass use lower driving speed
- If a low cut is required, you may need to mow the area twice: for the first time with the mower deck set
up higher and for the second time with the mower deck set up low.
- Keep the mower deck clean. Regularly remove remains of grass from the mower deck.
- Regularly check the condition and sharpness of the blade.
Mounting of the mulching cover
- Shut the machine down and disconnect the minus pole from the battery and spark plugs.
- Tip the machine over to the servicing position (hydraulic tank down).
- Clean the mower deck.
- Insert the mulching cover in between the mower deck and the cover clips (make sure the mulching kit
is correctly orientated)
- Push the cover into the mower deck until the clips lock in the openings in the mulching cover.
- Make sure the mulching cover is properly secured again movement and cannot accidently fall out.
- Turn the blade in on order to make sure that the blade does not collide with the mulching cover.
- Tip the machine back on its wheels.
- Reconnect the spark plug and the battery.
Dismounting of the mulching cover
- Shut the machine down, disconnect the minus pole from the battery and disconnect the spark plugs.
- Tip the machine over to the servicing position (hydraulic tank down).
- Clean the mower deck.
- Unlock the clips holding the mulching cover and pull the mulching cover out.
- Tip the machine back on its wheels.
- Reconnect the spark plug and the minus pole of the battery.
Mulching cover
Dismounting the cover
Without the mulching cover
With the mulching cover
Page 31
Operation manual - Spider ILD01G
31 / 54 rev. 03-01-04-2019
10.10 DRIVING THE MACHINE
The machine movement is controlled by joystick
(8) (forward and reverse) (see the symbol under
the joystick on the remote radio controller) and by
joystick (9) (Left/ right). By combining these two
controls you will be able to control the machine.
When these joysticks are moved, the machine
both accelerates and steers.
NOTICE:
Accelerate slowly so as to be able to
react to the direction in which the
mower starts to move. The V shaped
tread pattern on the tyres denotes the direction
the machine will move when forwards motion is
selected.
When driving, slowly move the joystick in the
desired forward or reverse direction.
When changing the forward motion to reverse
motion, always leave the joystick for a short
moment in the neutral positron.
When driving the mower, always set
the maximum engine speed. Driving
with any lower engine speed is
prohibited.
In cold weather let the engine run for about 2
minutes to allow the oil to get warm before
driving.
10.11 DRIVING SPEED OF THE MOWER
Always choose a suitable driving speed, which
enables an acceptable mowing quality. When
selecting speed, always start with slow and
proceed to fast, not the other way around. If the
growth is thin, you may mow at higher speed.
To control the driving speed, you can also use the
driving speed controller (2), which lets you choose
between high (rabbit) and low (turtle) driving
speeds. When starting to operate, always use the
low (turtle) speed range. Also choose the low
speed range when mowing either slopes steeper
than 20 degrees or an uneven terrain.
Never reduce the driving speed by
reducing the engine speed!!! Always
use joystick (8) to reduce the speed.
Higher speed range: 0-7 km.h1 (0-5 mph)
Lower speed range: 0-3 km.h1 (0-2 mph)
IT IS PROHIBITED to drive on slopes
steeped than 20 degrees with the
mowing device engaged and the
controller switched to the high-speed
(rabbit) position.
IT IS PROHIBITED to switch to the
high-speed position while mowing. Stop
the machine before selecting a different speed
range.
Page 32
Operation manual - Spider ILD01G
32 / 54 rev. 03-01-04-2019
10.12 DRIVING ON SLOPES
Driving on slopes is very demanding for the
operator, as they constantly have to evaluate
information about the movement of machine
and the character of the terrain. Especially
important is the wheel adhesion to the grass or
other surfaces and the mower tilt angle. Pay
attention to climatic conditions. The climbing
ability of the mower will be radically different
on dry, wet or moist grass slopes.
The mower may work on the
recommended slopes (see chapter 2.2)
only when the surface (grass) is dry. If
the grass is wet or moist, the maximum
slope, on which work is permitted, is 20 degrees
without use of the integrated stabilizing winch,
when using the integrated stabilizing winch the
climbing ability is up to 55 degrees.
Examine the working area closely. Evaluate the
situation and test the possibilities and
characteristics of the specific terrain. Do not take
chances. If the mower loses traction, you have lost
control, stop mowing and re-evaluate the
conditions.

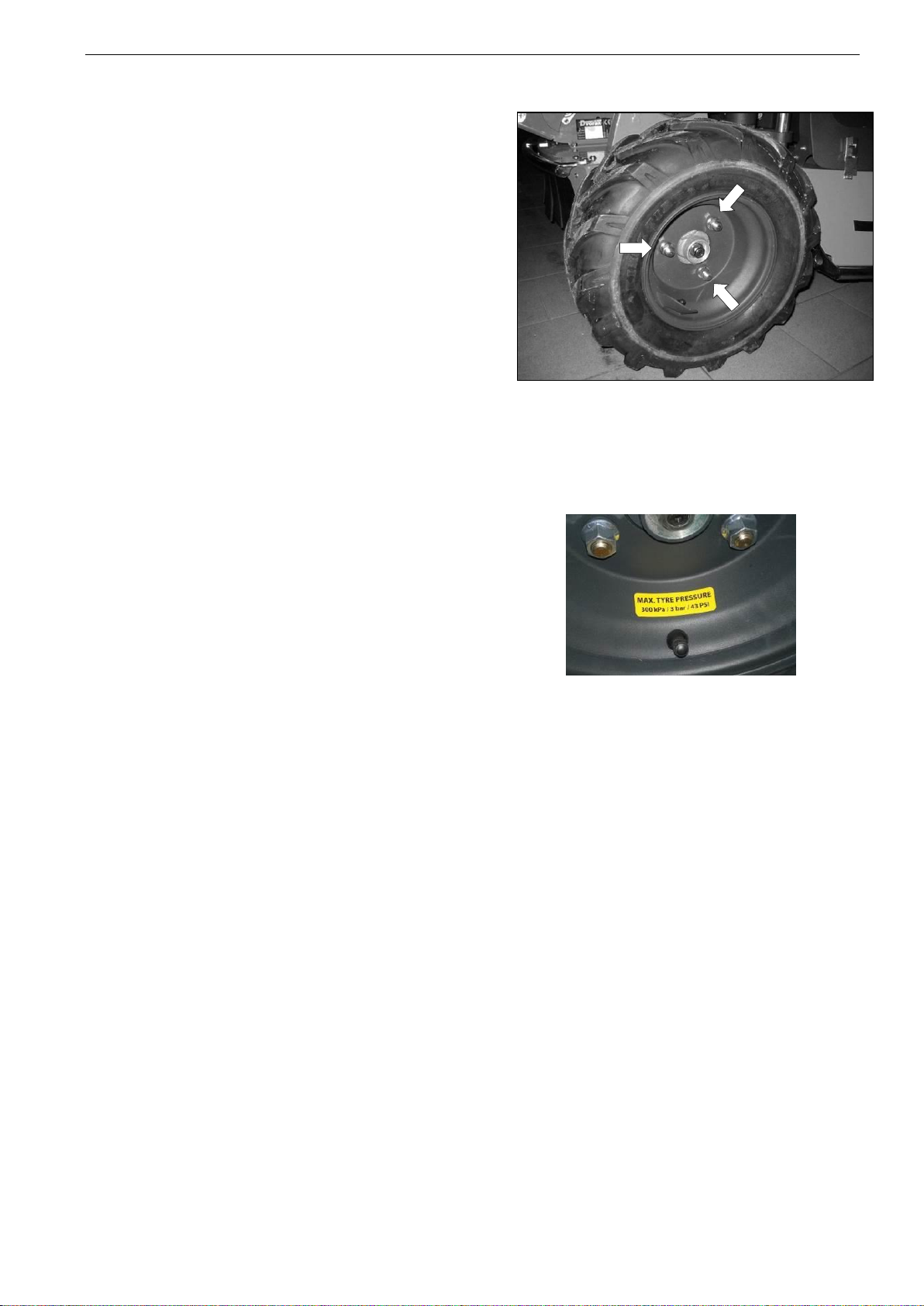

The driving wheels of the mower must be evenly
inflated to the maximum value allowed by the tyre
manufacturer. Maximal 300 kPa / 3,0 bar / 43 PSI
Preferably start your work at the bottom of the
slope and proceed to the top. This way you will
usually be moving from less to more steep slopes,
which will give you a better chance to evaluate the
climbing ability and make the right decisions
concerning further work. If you begin to mow
steeper slopes first, it may happen that – due to
adverse conditions - the mower will slip on the
slope. Due to dynamic effects the mower may even
roll over.
If the mower is slipping, do not try to stop it and do
not approach it, especially the area below or
directly above the mower.
Do not touch or approach the mower if the wheels
are lifted, the mower tilted, in an unstable position
or starting to roll over. The method of cutting
from the top of the hill to the bottom should
only be used exceptionally when the operator
is in detail acquainted with the terrain.
Before operating on slopes, make sure that no
one is below the mower or the working area.
Do not endanger third persons by the
movement of the mower.
Choose your operating position away from the
area to which the mower may slide or to which
the mowed grass may be thrown. The
direction of the discharged grass may change
while operating according to the driving
direction of the mower.
When working on slopes and when driving in
an unknown terrain, make sure that the foldout bumpers are locked in a horizontal
position. The fold-out bumpers increase the
mower resistance against rolling over. For
correct functioning the bumpers must be
undamaged and properly locked
When working on slopes, avoid the
following:
• Sudden sharp acceleration, steering or
braking
• High driving speed
• Uneven ground
• Changing adhesion (moving from areas
exposed to sun to shade)
• Driving over the mowed material
• Reduction of engine speed
• Stopping on a slope and shutting off the
engine.
10.13 STOPPING THE MACHINE ON
A SLOPE
In case you are forced to stop the mower on a
slope and need to interrupt you work, stop the
engine etc. be sure to position the wheels
across the slope. This will prevent possible
movement of the mower down the slope.
Page 33
Operation manual - Spider ILD01G
33 / 54 rev. 03-01-04-2019
10.14 PIVOT SUPPORT FOR ILD01
Spider ILD01 cannot rotate around its vertical axis as Spider ILD02 with its skid steering, therefore it can be
equipped with an additional supporting leg. The Supporting leg is mounted on the bumper on the side of the
hydraulic tank and filling neck of the hydraulic tank. At a maximum cutting height and correct steering position it
is possible by pushing down the lever to lift two wheels up in the air and with help of driving to turn the machine
around its pivot support.
Principles of using support leg:
- Cutting height must be set to maximum
- Direction of wheels must be correct (along hydraulic tank -see figure above)
- Push down the lever of the support leg to lift two wheels in the air
- Rotation starts by using joystick for driving forward/backward
Page 34
Operation manual - Spider ILD01G
34 / 54 rev. 03-01-04-2019
11 MAINTENANCE AND LUBRICATION
11.1 MAINTENANCE CHART – MOWER
* No later than 2 years
Machine Maintenance Plan
Period according to the state of the operating hours (OH) counter
X = Operator
Daily before
operating
Every
50 OH
Every
200 OH
Every
400 OH
Visually check for oil leakage from engine and hydraulic
systems
x x
Grease all sliding bars (at least once a season)
x
Lubricate other lubrication points with dry lubricant in a
spray
x
Check the level of hydraulic oil in tank
x x
Check the tyre pressure
x x
Visually check the tension of travel V-belts
x x
Visually check the tension and lubricate the steering chain
x x
Check the remote control battery state of charge
x
Check the mower battery state of charge
x
Check electronic and safety devices (emergency stop,
steering, signal etc.)
x x
Check screw and nuts tightening (visually check daily)
x
Check blade sharpness and deformation
x x
Check the blade bolts tightening
x
Change the hydraulic oil (first exchange after 200 OH)
x*
Change the hydraulics filter
(first exchange after 200 OH)
x*
Rinse the fuel tank, change the breather filter
x
Change the fuel filter (change more often on extremely
dusty or dirty conditions)
x
Clean cooling systems (engine, hydraulic pump)
x
Visually check hydraulic hoses, fuel hoses, cables –
replace if necessary
x
Check and adjust wheel geometry
x
Adjust the neutral position of the machine drive (hydraulic
pump)
x
Check, adjust and tighten chains in the wheel suspensions
x
Adjust the blade deceleration
x
Check drive belts and mowing mechanism belts – replace if
necessary
x
Check and clean the mowing mechanism gear (belts,
pulleys, belts pulleys)
x
Check safety decals on the machine
x
Check the mowing device bearings
x
Check the blade hub
x
Visually check and clean the Pivot support
x
Page 35
Operation manual - Spider ILD01G
35 / 54 rev. 03-01-04-2019
11.2 MAINTENANCE CHART - ENGINE
11.3 ENGINE MAINTENANCE
The following activities are considered to be workshop maintenance and should be carried out
by trained personnel.
Before beginning any maintenance activity on the mower, turn off the engine, push the
emergency button and remove the key from the button. Also turn off the remote radio controller by the switch
on the control panel.
To eliminate the possibility of an unexpected start of the mower, disconnect the (+) terminal connector on the
battery.
The engine should only be repaired or serviced by an authorised dealer/servicing facility that possesses all
necessary tools, equipment, spare parts and professional skills.
When maintaining, repairing or cleaning, always follow the engine manufacturer’s user’s manual, which is
included is the technical manual pack .
Engine maintenance chart: Kawasaki FS541V
Maintenance
Period according to the operating hours counter
* = Perform more often in dusty conditions
K =Performed by authorized Kawasaki
service/dealer
Daily
After first
8 hours
Every
25 hours
Every
100 hours
Every
200 hours
Every
300 hours
Check and add engine oil
X
Check for loose or lost nuts and screws
X
Check for fuel and oil leakage
X
Check or clear air intake screen
X
* Clean air cleaner foam element
X
* Clean air cleaner paper element
X
* Clean dust and dirt from cylinder and cylinder head fins
X
Tighten nuts and screws
X
Change engine oil
X X
Clean and set spark plug
X
Change oil filter
X
* Replace air cleaner paper element
X
K Clean combustion chamber
X
K Check and adjust valve clearance
X
K Clean and lap valve seating surface
X
________
= Device check
= Element replacement
Page 36
Operation manual - Spider ILD01G
36 / 54 rev. 03-01-04-2019
Breather filter
11.4 CLEANING THE FUEL TANK
While using the mower impurities may settle in
the fuel tank. These impurities may cause a
blockage while using the mower.
The fuel tank may only be emptied by siphoning
the gasoline from the tank, especially if it is full.
The filter hose from the fuel tank leads under the
upper part of the body to the filter. Blocking may
be identified by poor engine performance and by
vacuum being created in the tank.
When working with gasoline do not
smoke or work near open flames.
11.5 MAINTAINING THE HYDRAULIC
DRIVE
The maintenance of the hydraulic drive requires
properly trained service personnel.
Regular maintenance should address the torque
of hydraulic connections and bolts, replacement
of pressure hoses and oil refilling.
The maintenance of the hydraulic parts
must be carried out in a very clean
working area. Any contamination
brought into the hydraulic circuit may
cause damage. If replacing any part, remove all
contamination by rinsing it with cleaning fluid.
The hydraulic drive must never work
without or with an insufficient amount
of oil, not even for a short time
11.6 CHECKING AND REFILLING OIL
Check the oil level in the hydraulic oil tank daily.
Measure the oil level with the dipstick in the cap of
the tank. The oil level must be between the limit
marks. If you are working in extreme conditions,
the level of oil (at ambient temperature) must
reach the upper limit mark on the dipstick.
When checking the oil, the engine must be off and
the oil cold.
If you are checking warm or hot oil, the level of oil
may be higher (and reach above the limit mark)
due to the oil volume expansion.
Do not overfill the hydraulic
tank!!!
11.7 ADJUSTMENT OF THE NEUTRAL POSTION OF THE HYDRAULIC DRIVE
Manual adjustment should only be performed by an authorised service/dealer.
Page 37
Operation manual - Spider ILD01G
37 / 54 rev. 03-01-04-2019
For Control Units S/N 96 001 xxxxx there is a possibility of neutral position adjustment by so called
Teach mode allowing trimming of neutral position on Remote controller
1) Activate the
programming mode
Set all proportional channels to zero position.
Release the EMERGENCY STOP switches and wait till the radio connection is
present.
Press and hold the “Motor Start” (4) and “Motor Stop” (3) buttons for 5 seconds.
As a confirmation the horn will be activated briefly (2 times).
Do NOT press the “HORN/ENABLE” (12) button!
2) Adjust the Zero
Position value
Standard value is 0.
Use steering joystick 9 for adjusting the value (left/right).
Each time you push the steering joystick to the left, the value will decrease by one.
Pushing the steering joystick to the right will increase the value by one.
Each time you move the joystick to the left or right, the horn will acknowledge the
movement.
3) Save the value
For saving the value after changing, you have to push the “HORN/ENABLE” (12)
button.
The values are stored now.
4) Check the values
Press the EMERGENCY STOP switches !!!ATENTION!!! – press first the
EMERGENCY STOP switch on the remote controller and after the mower´s
EMERGENCY STOP switch (not in opposite order). Wait 2-3 seconds. Release the
EMERGENCY STOP switches again and prepare the mower to operate by pressing
the “HORN/ENABLE” (12) button.
If you are not content and want to change the values again, start over at point 1.
Restore the factory
settings / default value
Set all proportional channels to zero position. Release the EMERGENCY STOP
switches. Wait till the radio connection is present.
Press and hold the buttons for “Motor Start” (2) and “Frequency check/change” (13)
for 5 seconds.
The factory settings / default values are restored automatically.
As a confirmation the horn will be activated briefly (4 times).
Release the buttons. Press the EMERGENCY STOP switches !!!ATENTION!!! –
press first the EMERGENCY STOP switch on the remote controller and after the
mower´s EMERGENCY STOP switch (not in opposite order). Wait 2 seconds.
Release the EMERGENCY STOP switches again and prepare the mower to
operate by pressing the “HORN/ENABLE” (12) button.
Page 38
Operation manual - Spider ILD01G
38 / 54 rev. 03-01-04-2019

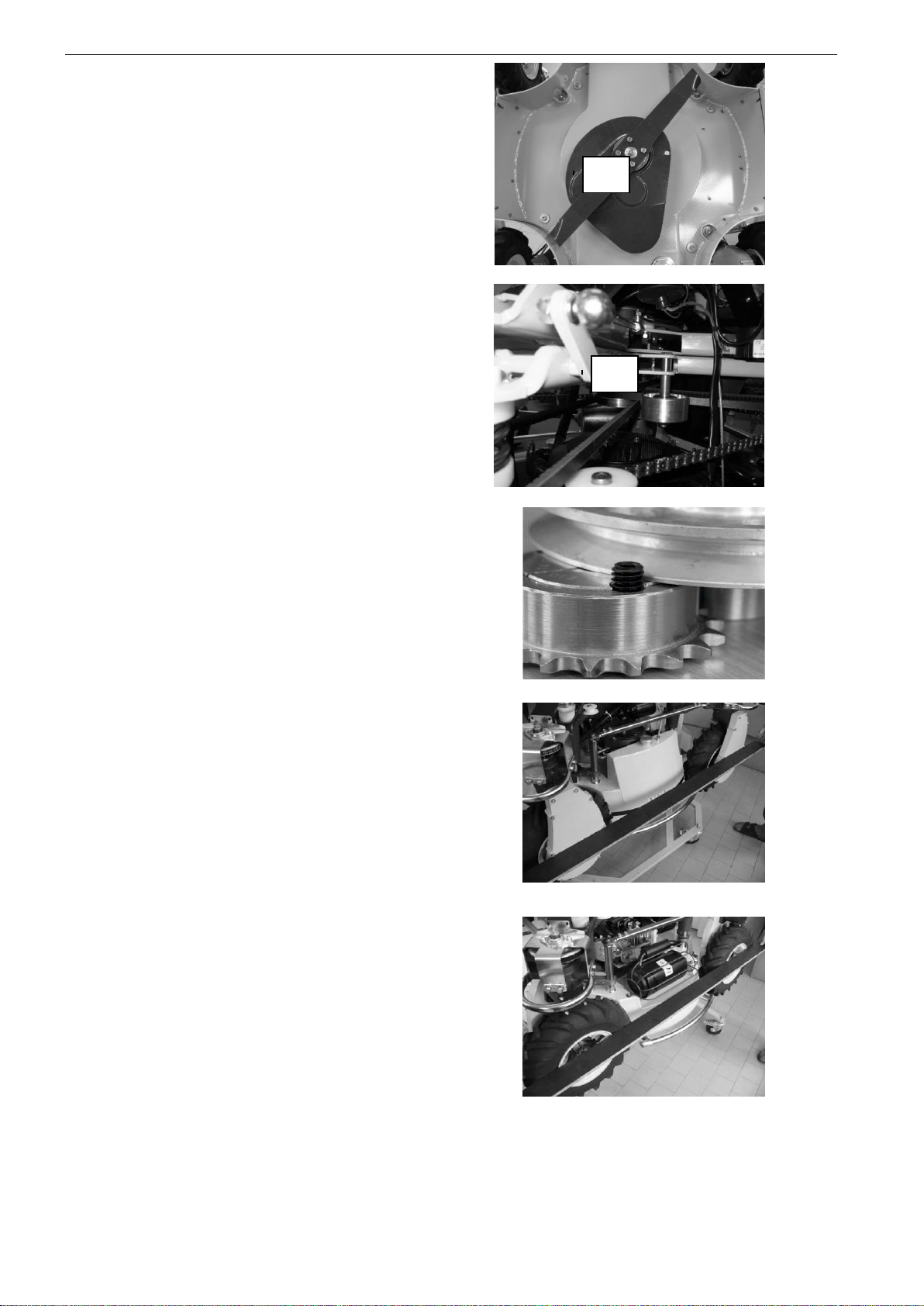

11.8 DRIVE V-BELTS
Check the wear and tension of the V-belts and
the tensioning devices.
a) Hydraulic pump drive
Located under the cutter deck inside cover A.
The V-belt is tensioned automatically by a spring
and a tension pulley.
b) Travel wheels drive
Pulleys B are used for vibration elimination of
driving belts. Do not use these pulleys for
tensioning of driving belts, this could cause the
belts to slip down.
11.9 GEOMETRY ADJUSTMENT
If you do not possess necessary equipment and
skills, have this work performed by an authorized
service/dealer.
- Lift the mower (wheels above ground) and
position the wheels into a straight direction.
- Release the steering chain taper lock (figure
91).
- Place a straight lath to the wheel portal on the
left side and to the tyre disc on the right side
and adjust the wheels so that they are parallel
(figure 92, figure 93).
- Tighten at least 1 screw of the taper lock
(whichever is accessible). Do not turn the
wheels unless you have tightened at least one
screw - this would distort the geometry!
- After tightening one screw you can turn the
wheels.
- Tighter the second screw.
- Check the geometry with a lath.
- Step-by-step turn wheels and tighten both
screws of the taper locks of all wheels until
they are completely tightened (approx. 23
Nm).
Picture 91.
Picture 92.
Picture 93.
A
B
Page 39
Operation manual - Spider ILD01G
39 / 54 rev. 03-01-04-2019

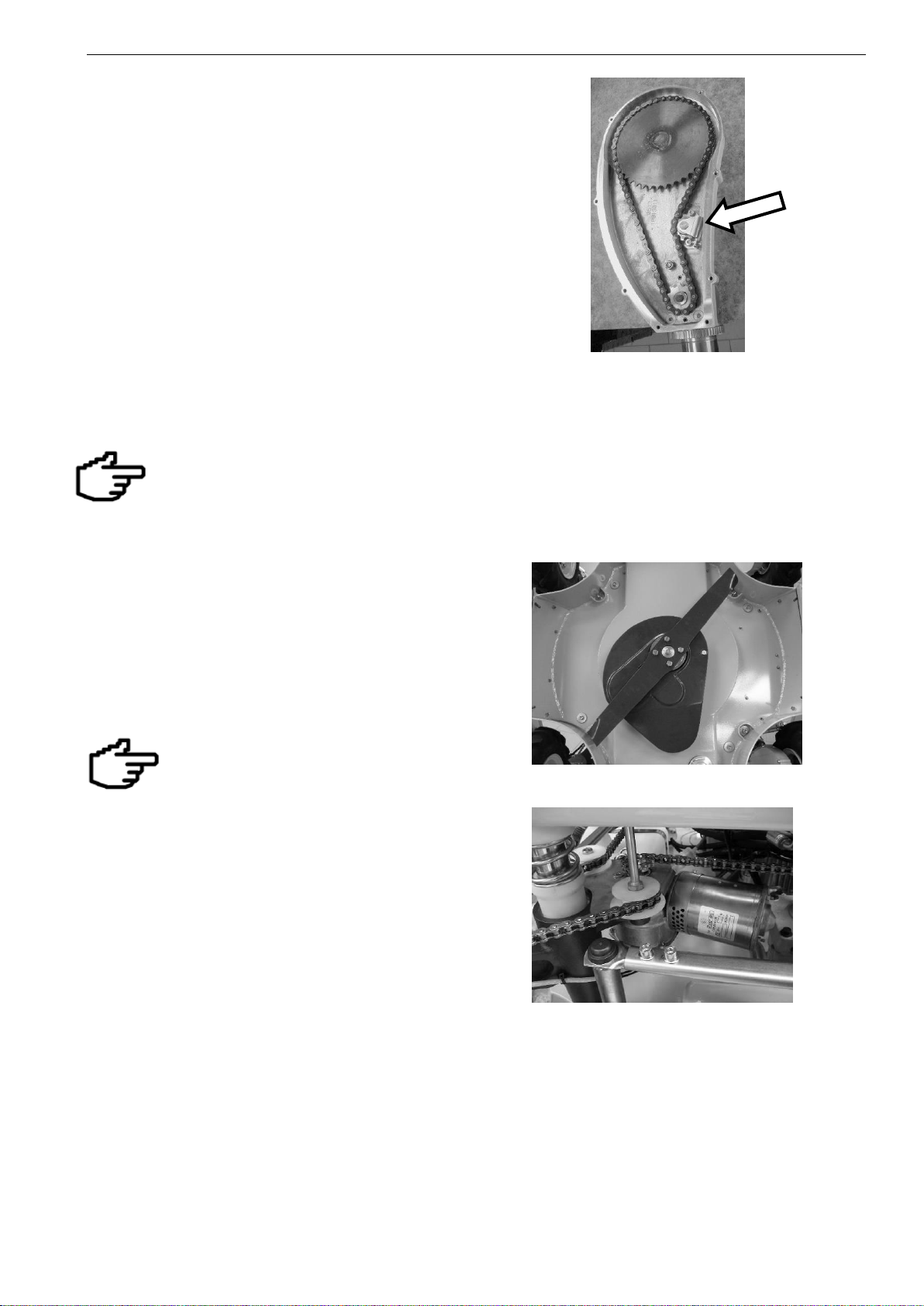

11.10 FINAL GEAR DRIVE TO WHEELS
If you do not possess necessary equipment and skills,
have this work performed by an authorized
service/dealer.
Remove the cover of the final gear drive. The cover is
attached by bolts onto the sides. Adjust the chain
tensioner C so the chain is properly tensioned. The
tensioner can be shifted after loosening the fastening
screws (see the figure). To tighten the chain, slightly
unscrew the thrust bolt.
Do not tension the chain excessively. This could
reduce the durability of the chain and the bearing.
Lubricate the chain by spraying it with lubricating oil.
11.11 MAINTAINING ELECTRIC CIRCUITS AND DEVICES, TRANSMITTER
Keep all parts of electric circuits clean, especially from oil products, dust sediments and dry grass.
Replace conductors with damaged insulation. For replacement, use only original conductors supplied by the
manufacturer.
Repairing of electric circuit should only be
performed by an approved dealer.
11.12 ADJUSTING BLADE DECELERATION
The electromagnetic clutch is placed under the clutch
cover above the rotary blades. The clutch was adjusted
by the manufacturer. When engaged the clutch
transmits power onto the blade, when disengaged the
brake stops the rotating blade. Do not change the clutch
setting. If damage on this part of the machine should
occur, always leave the repairing to an approved dealer.
The maximum rundown time of the rotary blade was set
to 5 seconds.
After finishing any work on the electromagnetic clutch, the cover must be returned
to its original place and properly sealed to
prevent the clutch from getting dirty.
11.13 STEERING CHAIN
Check the wear and tension of the chain and the
tensioning devices. The chain can by tightened by
rotating the steering motor bracket after loosening
two attachment bolts (see the figure).
Page 40
Operation manual - Spider ILD01G
40 / 54 rev. 03-01-04-2019
11.14 FUSES
The fuse box is placed in the space next to the battery. Inside the fuse box you can find fuses for
5A .......... control panel
30A ........ battery charging
40A ........ parallel protection of the main circuit,
steering servomotor
When changing fuses follow the electric current value for which the fuses are designed.
Do not replace damaged fuses with fuses with a higher or lower electric current value.
These could cause damage or even a fire in the mower!
Page 41
Operation manual - Spider ILD01G
41 / 54 rev. 03-01-04-2019
11.15 MOWING BLADE
Check the state of cutting blades in regular intervals.
Blade:
Must not show signs of damage such as twisted,
bent or deformed parts of blade.
Must be properly attached by the flange in the
middle of blade.
Must be sharp.
The fastening bolts of the flange must not be
damaged.
For proper and reliable functioning, the blade is
statically balanced by the manufacturer. This
balance must be preserved during the entire use
of the blade
The blade must be statically balanced after each
sharpening
To tighten the blade, use a torque wrench and a
specified tightening torque of 60 Nm.
If the blade is damaged, it is prohibited to:
Straighten them
Heat them
Weld them
Ream them or otherwise change their
construction.
When replacing worn-out parts follow these rules:
The blade may only be sharpened within the
permitted wear limit. Balancing must be carried
out after sharpening.
The blade cannot be repaired.
When changing the blade, use new fastening
bolts if the current ones show signs of damage.
Only high-tensile steel bolts may be used for this
purpose. No other steel bolts are acceptable.
If the mowing mechanism vibrates when
engaged, do not continue operating the mower,
turn it off and contact your local dealer.
To tighten bolts, use torque listed in the chart at
the end of this chapter (see 11.21).
Changing the mowing blade
Raise the mowing device to the transport
position.
Stop the engine, switch off the RC and push the
emergency button on the body of the mower.
Disconnect the spark plug and battery.
Lift one side of the mower until it leans against
the handles on the other side. Always lift the
mower on the exhaust side tilt it against the
hydraulic tank side to prevent oil entering the air
cleaner.
Secure the lifted side against falling by
supporting it.
Use gloves when changing the blades.
Loosen the fastening bolts. Remove the bolts
and the washers. Be careful when removing the
last bolt, the blade may fall to the ground.
After the blade is replaced, fasten it by working
in the reversed order.
Always check the bolts when fastening the
blade.
After attaching the blades, check their
tightness. Be very careful when engaging the
mowing mechanism for the first time after
replacement. Check for unknown sounds,
vibrations etc.
Always lift the mower on the
exhaust side and tilt against the
hydraulic tank side to prevent oil
entering the air cleaner. Be aware
of oil spills.
Page 42
Operation manual - Spider ILD01G
42 / 54 rev. 03-01-04-2019
11.16 CHANGING THE WHEEL
• Change the wheels on a level, firm surface
• Turn the wheel so that the tightening nut are accessible
from the outside
• Stop the engine, remove the key from the ignition
• Secure the machine against movement.
• Lift the mower and support it under the cutter deck
• Ensure the machine safe & supported before working on
it.
• Loosen the wheel nuts, remove the wheel
• After repairing it, attach the wheel back in the reversed
order.
• Use suitable tools to unscrew the nuts
11.17 TYRE PRESSURE
Keep the specified tyre pressure. Other values may
unfavourably influence the riding characteristics
especially on slopes. You may even loose control of the
machine.
(recommended and max. tire pressure - 300 kPa / 3,0 bar
/ 43 PSI)
11.18 MOWING HEIGHT ADJUSTMENT MECHANISM
Keep the moving parts of the slide way clean, undamaged
and without an excessive clearance
Page 43
Operation manual - Spider ILD01G
43 / 54 rev. 03-01-04-2019

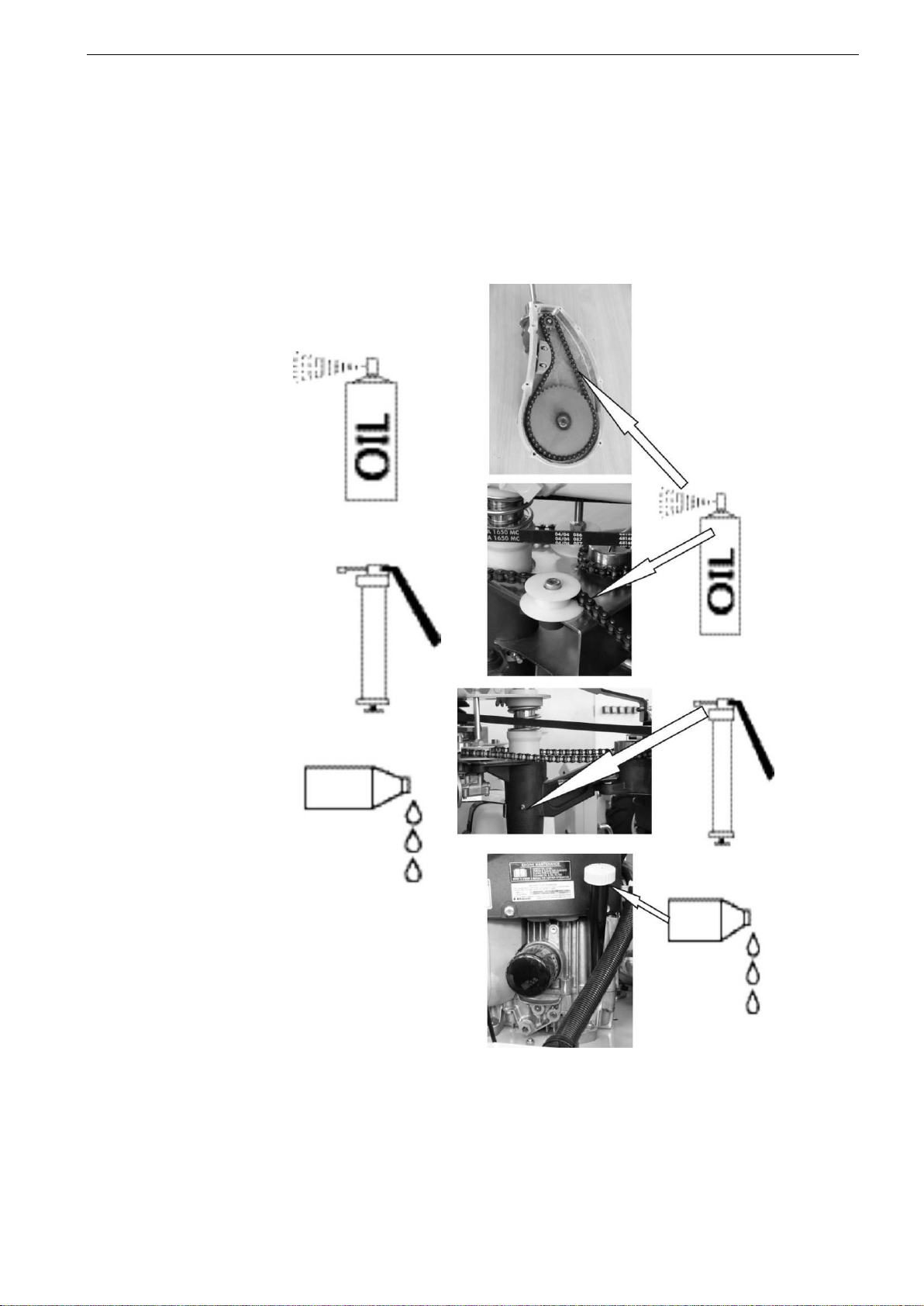

11.19 LUBRICATION
Use adequate amount of lubricant on parts, which are
to be lubricated. Excessive lubricant tends to drop
down and pollute both the machine and the
environment. Insufficient amount requires frequent
lubrications.
Chain Spray Lubricant:
INTERFLON FIN LUBE TF
Lubricating grease:
MOBILGREASE XHP/222
Motor oil:
SAE 10W - 40
Page 44
Operation manual - Spider ILD01G
44 / 54 rev. 03-01-04-2019
11.20 CLEANING THE MACHINE
Cleaning the whole machine by a power washer or similar is not recommended. Water under pressure may
penetrate inside electrical parts, carburettor, air filter and cause malfunction.
Wipe other parts with tissue or brush.
Do not use gasoline or other oil products for cleaning.
11.21 TORQUE CHART
Connection bolt
M 6
M 8
M 10
M 12
M 14
M 16
M 20
Wheel
nut
Blade
bolts
Torque /Nm/
10
25
50
85
135
215
410
50
60
11.22 OIL VISCOSITY
Oil requirement may differ according to the use in
different seasons or climatic zones. The following
chart shows the SAE values.

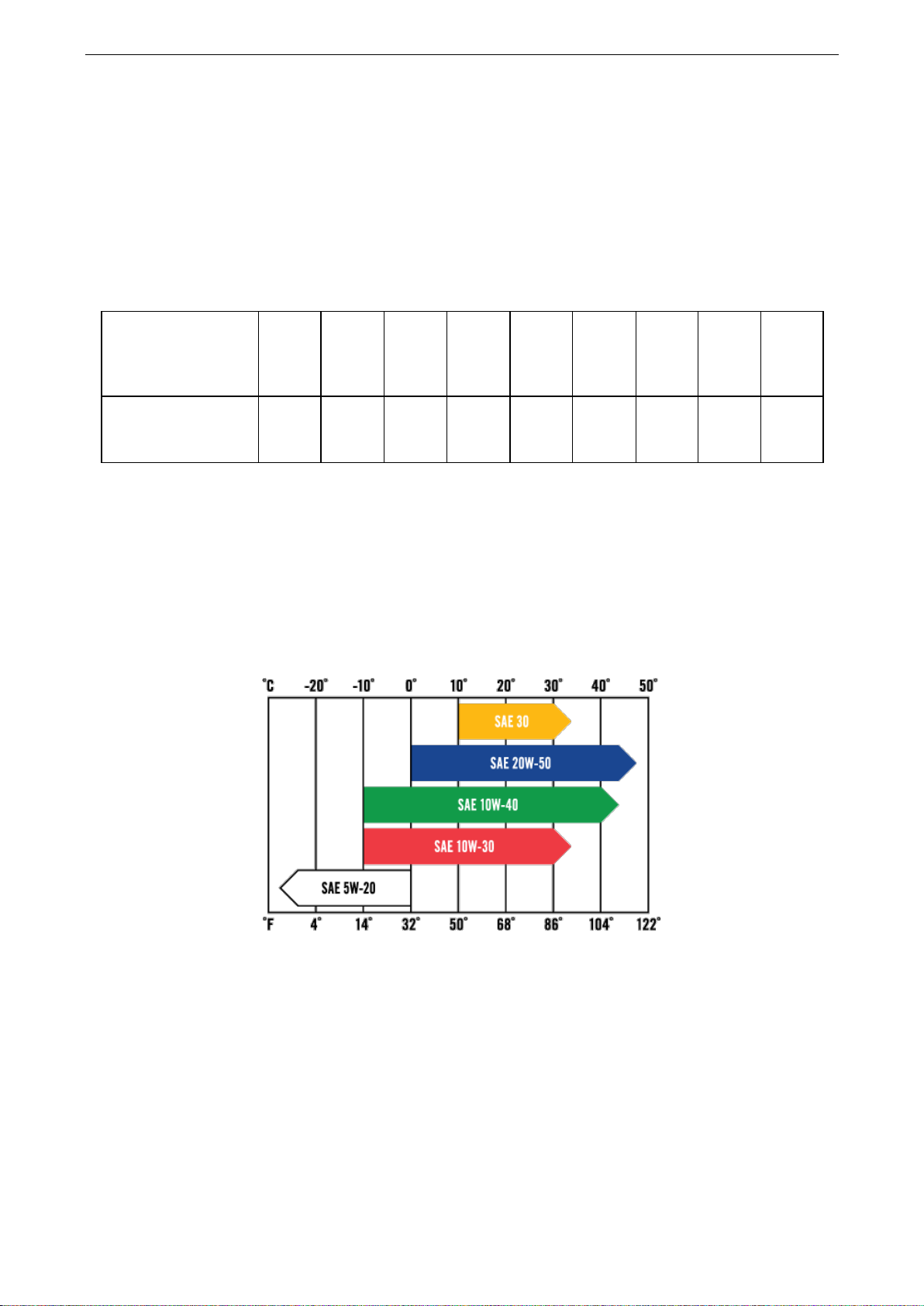

Chart of SAE oil classes according to external temperatures engine
Recommended oils:
SAE 10W – 40 API classification SF or higher
For higher working temperatures we recommend SAE 20W-50
Page 45
Operation manual - Spider ILD01G
45 / 54 rev. 03-01-04-2019
11.23 TECHNICAL PLATE
The technical plate provides information on mower fillings and basic information for machine
maintenance. The technical plate is placed on the machine girder.
- Engine
- Engine oil
- Oil quantity
- Spark plug
- Fuel
- Hydraulic system
- Hydraulic oil
- Oil quantity
- Electronic system
- Battery
- Fuses
- Tyres
- Tyre type
- Maximal pressure
- Lubrication
- Chain gears
- Sliding surfaces
11.24 TOOLS
Spider ILD01 is equipped with a basic set of tools, which allow regular maintenance and basic servicing. The
tools are based under the side cover upon to the Fuel tank (see figure below). The tool roll is also equipped with
a pocked for the business card of your local authorized service/dealer.
List of tools
Use
Placement on the machine
Spark plug spanner 21 mm
Spark plugs
Socket head 19 mm
Change of blades
Socket head 17 mm
Change of wheels
Socket head 15 mm
Tightening of drive belts
Lever handle
-
Flat spanner 10-13 mm
Tightening of drive belts
Flat spanner 16-17 mm
By-pass, tightening of steering
chain
Hex-wrench IMBUS 5 mm
Wheel suspension
Hex-wrench IMBUS 6 mm
Wheel suspension
Hex-wrench IMBUS 8 mm
Tightening of steering chain
Screwdriver flat-tip / crosshead
Fuse box
Fuses 5A, 30A, 40A
Fuse box
Page 46
Operation manual - Spider ILD01G
46 / 54 rev. 03-01-04-2019
11.25 BATTERY MAINTENANCE
The battery should be examined for cleanliness at regular intervals.
Read the Safety page.
Keep cell terminals and connectors free of dust and corrosion. Terminal corrosion may affect the performance
of the battery and could present a safety hazard. Should corrosion be observed, disconnect the battery, unbolt
and remove the connectors, and remove the corrosion by brushing the terminals and connectors with a dilute
solution of baking soda and water (sodium bicarbonate). Reapply an anti-oxidizing grease before reconnecting
and bolting the connectors. Always maintain proper records.
DO NOT UNDER ANY CIRCUMSTANCES REMOVE PRESSURE RELIEF VALVES AND NEVER ADD
WATER.
How to store yur battery.
To ensure our batteries safely reach their maximum shelf life, the average annual storage temperature should
be 15°C. The short-term storage temperature must not exceed 25°C or battery life may be affected.
Remove the battery from the vehicle.
Find a cool, dry place to keep your battery.
Make sure the battery is fully charged and recharge it approximately every two months.
Clean any terminal corrosion may that affect the performance of the battery and could present a safety hazard.
Remove the corrosion by brushing the terminals and connectors with a dilute solution of baking soda and water
(sodium bicarbonate). Reapply an anti-oxidizing grease before reconnecting and bolting the connectors.
Test a battery
The best and easiest way to test a battery is using a voltmeter or multi meter to measure the voltage. Once you
know the exact voltage, use the table below to gauge the state of charge.

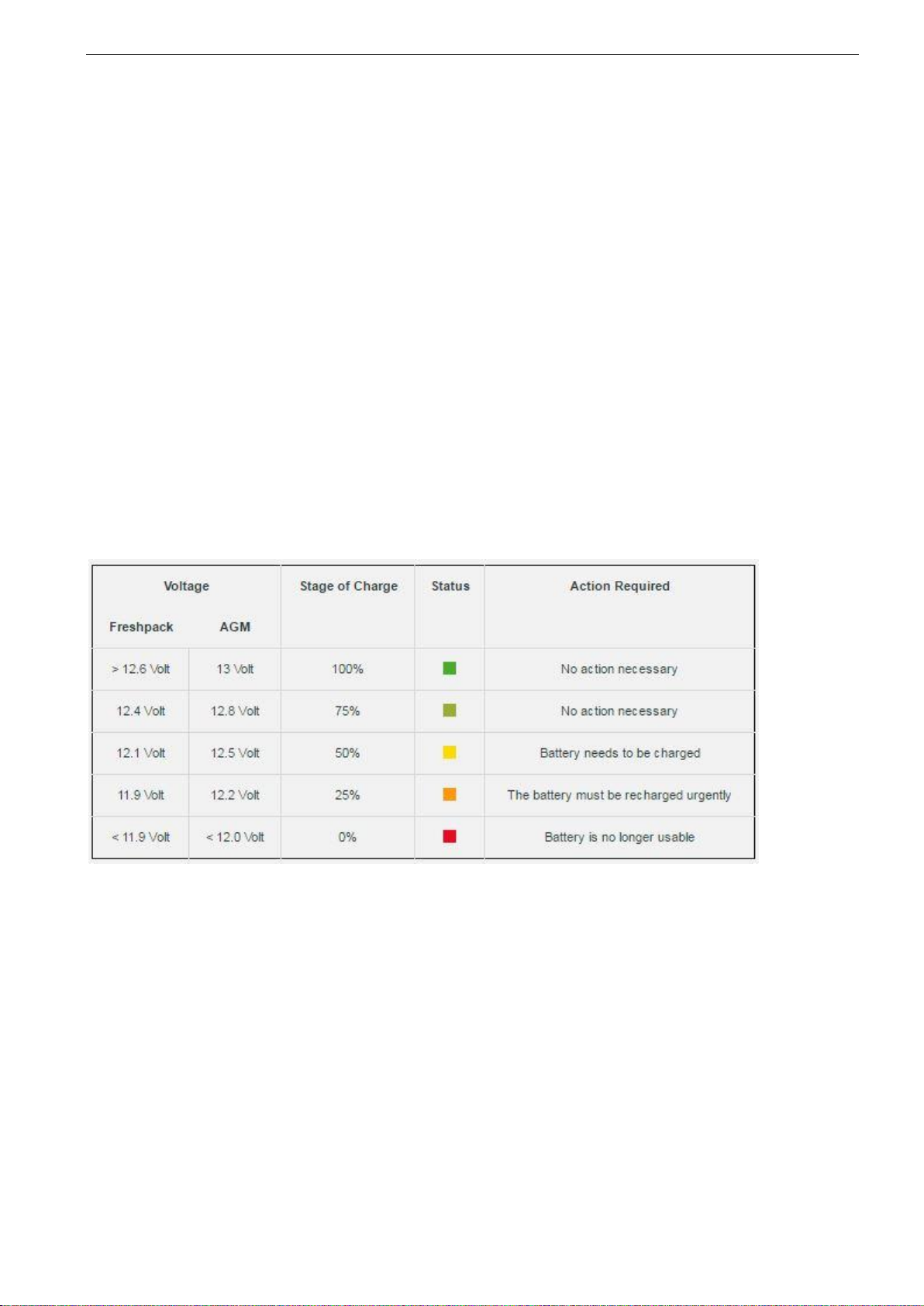

Battery Testing Chart with Status of Chart
Make sure the battery is charged
To ensure that the battery can supply its stated starting power, it first needs to be fully charged. The
recommended charging current is 10% of nominal capacity in amperes (e.g. a 4 Ah battery requires a 0.4A
[Ampere] charging current). We recommend that you ensure your battery is fully charged before fitment to
ensure a long service life.
Page 47
Operation manual - Spider ILD01G
47 / 54 rev. 03-01-04-2019
12 TROUBLESHOOTING
Engine faults and their probable solution
Fault
Probable cause
Solution
Engine
doesn't start
It doesn't
turn over
No connection with the remote
Check the connection and signal, empty
battery RC
Broken starter relay
Test/measure/replace the starter relay
Exhausted battery
Charge/change battery, check fuses and
cable connections to fuses
Drive system isn't in neutral position
("N" Led isn't lit)
Adjust the drive servo to neutral position if
not possible change servomotor
Is the mowing blade disengaged
Disengage the mowing blade
Mowing clutch is broken (bearings
burned out)
Replace
Starter motor doesn't work
consequently
Replace
Interrupted cabling harness
Check cabling harness and fuses replace
where need
It turns over
but
Insufficient amount of fuel
Replenish fuel
Loosened weight of fuel hose in fuel
tank, hose sucks air
Reattach weight to the end of the hose
Blocked fuel hoses
Clean fuel hoses
Clogged up fuel filter
Replace fuel filter
Broken fuel pump
Exchange fuel pump
Solenoid valve of the carburettor
doesn't give fuel
Check/exchange valve, check contacts
and cabling
Check breather filter
Clean exchange the filter
The motor runs irregularly
Bad spark plugs
Clean/exchange spark plugs
Broken ignition coils
Exchange ignition coils
Water in the fuel, carburettor
Clean carburettor thoroughly
Blocked fuel hoses
Clean fuel hoses
Bad contact solenoid carburettor
Check contact points solenoid carburettor
Polluted carburettor
Clean the carburettor
The engine has infiltrated/false air
reseal the joints,
carburettor/inlets/cylinder
Engine
doesn't have
enough
power
Works on
both
cylinders
Polluted air filter
Clean/replace the air filter
Cylinders don’t have enough
compression
Bad fuel
Replace fuel, natural 95 only
Only one
cylinder is
working
Loosened rocker arm, detached
lifting rod valves
Reassemble and re-set valve clearances
Bad spark plug
Clean/replace spark plug
Broken ignition coil
Replace ignition coil
Engine
smokes
excessively
Black smoke
Heavily polluted air filter
Clean/replace air filter
Jammed choke
Oil the choke cable and check the choke
spring
Bad valve in the floater chamber of
the carburettor
Replace the valve
White
smoke
Too much oil in the engine
Check oil level in the engine, remove
excess
Bad quality or wrong fuel
Replace fuel, natural 95 only
Mower was in servicing position
Temporary problem, not a real problem
Page 48
Operation manual - Spider ILD01G
48 / 54 rev. 03-01-04-2019
Mowing unit faults
Fault
Probable cause
Solution
Mowing unit
can't be
turned on
Clutch engages and immediately
disengages (control LED turns on
but immediately turns off again)
Electromagnetic clutch is
broken
Replace electromagnetic
clutch
Clutch does not engage
Clutch connector is
loosened
Check the connector and
cabling
Clutch engages
Broken V-belt
Replace V belt
Turning faults
Fault
Probable cause
Solution
The mower does not turn
Bad contact between the carbon and
the commutator of the turning
servomotor (servo reacts to tapping)
Clean the commutator and check the
carbon blocks
Disengaged power cable
Engage power cable
Broken steering servomotor
Replace
Exhausted battery
Check/recharge battery, check fuses
and cable connections to fuses
Control unit fault
Replace
Broken joystick in remote control
Replace
The mower turns around it's
vertical axis (crabbing)
Bad wheel geometry
Set wheel geometry right
Steering chain is loose
Tighten steering chain
Tyres aren't inflated correctly
Inflate tyres correctly
Usage of tyres with different wear
Use tyres with same wear (profile
depth)
Driving faults
Fault
Probable cause
Solution
Machine doesn't have power
when driving on slopes.
Not enough hydraulic oil in the oil tank
Replenish hydraulic oil
Worn mechanical parts of the hydraulic
system
Exchange worn parts
Loosened bypass bolt on hydraulic pump
Tighten bolt
Broken drive servomotor
Exchange servomotor
Machine
doesn't react
to the drive
servomotor
Pump ventilator
doesn't turn
Broken V-belt B 17x965
Replace V-belt
Pump ventilator
does turn
Snapped pin of arm on hydraulic pump
Replace pin
Servomotor isn't in neutral position/Broken
servomotor
Set neutral position/Replace
drive servomotor
Loosened bypass bolt on hydraulic pump
Tighten bolt
The machine accelerates,
decelerates on its own
Broken drive servomotor
Replace Drive servomotor
Broken Control unit
Replace unit
The machine drives when
turning up the throttle (drive
servomotor makes noise)
Throttle servomotor is broken which
influences the drive servomotor
Replace throttle servomotor
Page 49
Operation manual - Spider ILD01G
49 / 54 rev. 03-01-04-2019
Problems with the elevation
Fault
Probable cause
Solution
Slow height changes when changing
cutting height
One of the elevation servomotors is
broken
Check which of the servo
motors is broken and replace
Machin doesn't react to elevation
changes
Elevation module is broken
Replace
Worn elevation gears
Replace
Elevation regulation does not stop
when at max or min height
One of the height sensors is broken
Replace
Issues with the remote control, and electrical system
Fault
Probable cause
Solution
Machine turns
of while
working
Allows repeated
starting
Interference nearby (High voltage,
Transmitters)
Not a machine fault
Bad sparkplugs, interfere with the remote/unit
Replace spark plugs
Machine cannot be
started (motor does
not turn; starter
relay does react)
The combination of a weak battery, a worn
drive servomotor can burn out the fuses for the
alternator
Replace the
alternator fuses
The machine keeps running for about
2 seconds after pushing the off button
Burned out ignition coils (often caused by
incorrect battery connection (swapping + for -))
Replace ignition coils
Fuses blow out
often
Alternator fuses
2x15A (blue)
Battery is in bad shape, often caused by turning
the wheels while standing; this overloads the
alternator
Test the state of the
battery, replace a
bad battery. Steer
while moving.
Drive servomotor
and control unit
fuses 2x 20A
(Yellow)
Extreme power consumption due to burned out
coils in the turning servomotor, under inflated
tyres
Replace drive
servomotor. Check
the tyre pressure as
prescribed
Page 50
Operation manual - Spider ILD01G
50 / 54 rev. 03-01-04-2019
13 MAINTENANCE AFTER SEASON
When the season is over or if the machine is not going to be used for longer than 1 month, it is advisable to
prepare it for storage.
If fuel stays in a tank longer than 1 month without moving, it may create sticky sediment that can unfavourably
affect the carburettor and the whole fuel system and cause engine malfunction.
• Thoroughly clean the whole machine, especially the mowing mechanism.
• Replace damaged or worn-out parts
• Check all bolted connections. Tighten all loose nuts and screws.
• Lubricate all mobile parts – the whole machine (according to the lubrication plan)
• Empty the fuel tank and let the engine run until it runs out of fuel.
• When emptying the fuel tank, work in an open area outside.
• Prepare the engine for storage (according to the user’s manual of the engine)
• Disconnect the ignition cable.
• Unscrew the spark plug and pour a little oil into the cylinder bore (about 1 cm/0,4 inch).
• Turn the engine by starting it shortly with the ignition key without spark plugs on.
• Screw the spark plug back hand tight. Do not connect the cable.
• Dismount the Accumulator and store it on the dry and warm place
• Keep the mower on the save and dry place. Use the permeable cover to save the mower against the
corrosion
Page 51
Operation manual - Spider ILD01G
51 / 54 rev. 03-01-04-2019

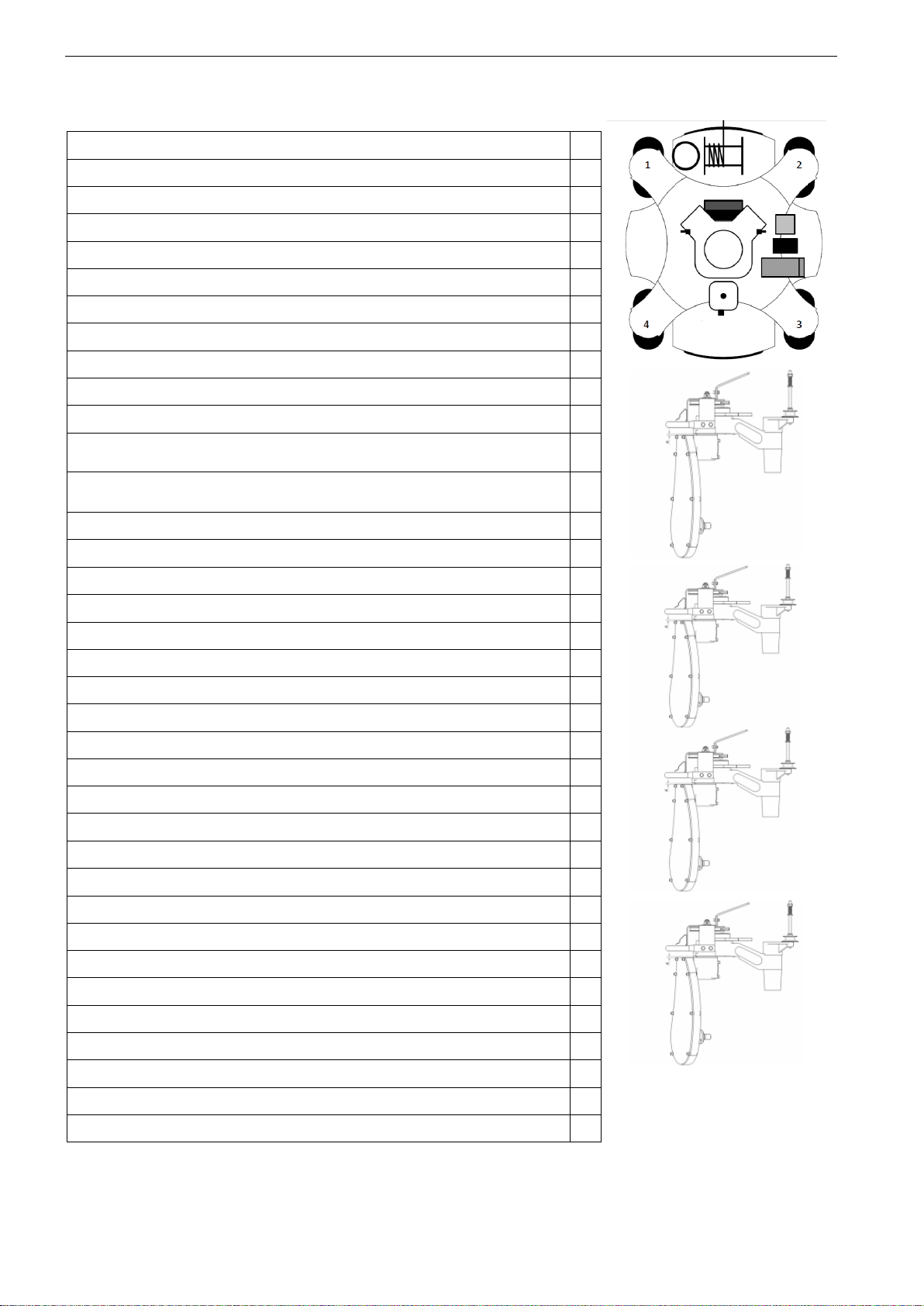

Summary of after season maintenance
checking/change of engine oil
exchange of oil filter
checking/change of hydraulic oil
exchange of hydraulic filter
checking and clearing of engine air filters
checking / replacing the spark plugs
check engine valve clearance
check wiring - fuses, measurement of recharging, battery
checking of weight in the fuel tank
checking of wheel hub nut tightening
checking of wheel chain tightening
checking of tightening of both angle gear shafts vertical and horizontal
checking of seating tightening of wheel housing to angle gear
checking of cutting height regulation
checking of hydraulic oil leakage
visual checking of frame welding defects, straightening of skeleton
checking of mowing device bearings
checking of mowing device belts and pulleys
checking of pulleys wear of mowing device
checking and adjusting of clutch
checking of blade/s
checking of angle gear teeth and filling level
checking of tyre pressure 2,5/3,0 bar
checking and adjusting of cross geometry
checking of tightening of steering chain
checking and adjusting of wheel geometry
checking / tightening of driving belts
lubrication of steering chain
checking of tightening Engine bolts
checking of function of skid steering
checking and adjusting of hydraulic pump servo neutral position
checking and lubrication of winch chain
checking and adjusting of winch by throttle valve
checking/exchange of winch rope
lubrication of all moving mechanical parts
general checking of all mower functions
11 2
2
33 4
4
Page 52
Operation manual - Spider ILD01G
52 / 54 rev. 03-01-04-2019
14 WARRANTY CONDITIONS
LIMITED WARRANTY FOR NEW SPIDER EQUIPMENT
GENERAL PROVISIONS – The warranties described below are provided by DVOŘÁK – svahové sekačky
s.r.o. (“Spider”) to the original purchaser of new equipment from Spider or authorised Spider
Distributors/Dealers. Under these warranties Spider will repair or replace, at its opinion, any covered parts
which is found to be defective in material or workmanship during the applicable warranty term. Warranty service
must be performed by a Distributor/Dealer or service centre authorised by Spider to sell and/or service the type
of equipment involved, which will use only new or remanufactured parts or components furnished by Spider.
Warranty service will be performed without charge to the purchaser for parts and labour. The purchaser will be
responsible, however, for any service call and/or transportation of product to and from the Distributor´s/Dealer´s
or service centre’s place of business, for any premium charged for overtime labour requested by the purchaser,
and for any service and/or maintenance not directly related to any defect covered under the warranties below.
a) Spider provides Warranty:
• for new Products according to the valid Warranty Conditions Spider will provide the
Distributor/Dealer with a Warranty for the Product for a maximum period of 36 months. from the
day the Product was delivered to the Distributor/Dealer
• 24 months for the Customer after purchase and registration of the Product
• for new Spare Parts delivered outside the Product Warranty for a period of 3 months from the day
these were delivered to the Customer, but only under the condition that these were installed and
mounted by an authorized service Distributor/Dealer. Otherwise the Warranty is forfeit.
• For new spare parts delivered under Warranty the Warranty period expires together with the
Warranty period of the whole Product
b) The Distributor/Dealer is obliged to ensure performance of warranty inspections on the Product as
prescribed in the Operator’s Manual.
c) In order for a warranty claim to be acknowledged, the purchaser must have had all prescribed warranty
inspections performed and recorded.
d) In the case of defects reclaimed by the Customer in terms of the warranty period, the Distributor/Dealer
assesses and determines whether this concerns a defect in the warranty period, which can be
acknowledged (acknowledged warranty) or not and ensures repairs are carried out.
e) If the Distributor/Dealer assesses the defect as one that can be acknowledged (acknowledged warranty),
they are obliged to request in writing that Spider acknowledges such warranty repair at the latest within one
month after the end of the month in which such warranty repair was performed. This can only be done
through a standard “Warranty Claim Report” form. Such request will include all information about the
method of assessment and solution of the warranty (description of defect, identification of defect,
description of repair, list of defective parts, hourly work by the service centre, specification of costs for
repair, photo/video documentation of the repaired part). Spider is obliged after investigation, to make a
decision on this request as whether to acknowledge the warranty or not.
f) Spider will make a decision about the acknowledgement of the warranty claim without unnecessary delay,
latest within 60 days since the warranty claim is filed.
g) If the warranty is acknowledged, Spider will write out a credit note to the Distributor/Dealer for costs
connected with the warranty repair – i.e. the cost of spare parts and the hourly rate for service work
according to the valid repair norms.
h) Spider is entitled to reject such warranty claim if the warranty was acknowledged by the Distributor/Dealer
in conflict with the warranty conditions. In such a case, Spider is not obliged to reimburse the
Distributor/Dealer for costs for performance of such warranty repair work.
i) Acknowledged warranty repairs of commercial models (Spider XLINER, Spider ILD01, Spider ILD02,
Spider 2SGS and higher) up to the level of EUR/USD 100.00 (one hundred EUR/USD) per case are not
covered by Spider, costs connected with such repairs are included in the Distributor’s/Dealer´s profit
margin.
j) The Distributor/Dealer is obliged to ensure clear marking and storage of damaged spare parts, which were
replaced under warranty for the period of min. 12 months, as well as of all-important documents pertaining
to such warranty repair.
Page 53
Operation manual - Spider ILD01G
53 / 54 rev. 03-01-04-2019
k) The selling Distributor/Dealer has no authority to make any warranty, representation, condition or promise
on behalf of Spider, or to modify the terms or limitations of this warranty in any way and makes no warranty
on any other item unless it delivers to the purchaser a separate written certificate specifically warranting
the item.
l) Spider is not responsible for the following: (1) Used equipment; (2) Any equipment that has been altered or
modified in ways not approved by Spider, including, but not limited to, setting injection pump fuel delivery
above Spider specifications; Depreciation or damage caused by normal wear, lack of reasonable and
proper maintenance, failure to follow operation instructions, misuse, lack of proper protection during
storage, or accident; (4) Any repairs done by the Customer; (5) Normal maintenance parts including
blades, hydraulic hoses, belts, bearings, spark plugs, filters, chains, tires, winch ropes etc. and service.
m) To secure warranty service, the purchaser must (1) Report the product defect to an authorised
Distributor/Dealer and request repair within the applicable warranty term, (2) Present evidence of the
warranty start date, and (3) Make the equipment available to an authorised Distributor/Dealer or service
centre within a reasonable period of time.
n) Every Distributor/Dealer must ensure that the Product is registered by the Customer on www.slope-
mower.com/machine-registration/ within seven (7) days after delivery in order to receive the full warranty of
24 months/800 working hours, whichever happens first.
o) All Demo units will be registered by Spider on the date of delivery to the Distributor/Dealer. All Demo units
will be appointed by Spider.
In Pohled, January, 2019
Page 54
Operation manual - Spider ILD01G
54 / 54 rev. 03-01-04-2019
15 SERVICE RECORDS
SPIDER ILD01
Warranty Inspection after 200 Operating Hours
Date: ____________
Inspection description:
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
Defects found:
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
Parts changed:
Part number
Part description
Qty
Service shop signature: Customer signature:
____________________ __________________
Loading...
