Spicer IPL Models ON or AFTER User Manual

Download
Spicer® Drive Axles
Illustrated Parts List
AXIP-0057A - Models Designed ON or AFTER June 10, 2013
November 2013
D170, D170D, R170, R170D - Single Reduction - Tandem Axles
D190, D190D, R190, R190D - Single Reduction - Tandem Axles
S170, S170D, S190, S190D -Single Reduction - Tandem Axles
D590, D590D, R590, R590D, S590, S590D - Double Reduction Axles
IMPORTANT: Dana made changes to the carriers designed AFTER June 10, 2013. Only models made ON or AFTER this date are shown in this IPL. For models BEFORE June 10, 2013, see AXIP-0057.
Table of Contents
Table of Contents
How To Use Illustrated Parts List .................................................................................................................................2
Model Identification ................................................................................................................................................. 3-4
Model Information - Model Line-up - Models Made On or After June 10, 2013 ..........................................................5
Single Reduction ..................................................................................................................................................... 5
Double Reduction ....................................................................................................................................................5
Tridems ...................................................................................................................................................................5
High Entry ...............................................................................................................................................................5
FORWARD AXLES .........................................................................................................................................................
Forward Single Reduction Models - D170, D170D, D190, D190D - Carrier Exploded View ........................................6
Forward Single Reduction Models - D170, D170D, D190, D190D - Power Divider - Exploded View .......................... 7
Forward Single Reduction Models - D170, D170D, D190, D190D - Parts List ...................................................... 8-10
Double Reduction Models - D590, D590D - Carrier Exploded View ..........................................................................11
Double Reduction Models - D590, D590D - Power Divider - Exploded View ............................................................ 12
Double Reduction Models - D590, D590D - Parts List ........................................................................................ 13-14
Double Reduction Models - S590, R590 / S590D, R590D - Carrier Exploded View .................................................. 15
Double Reduction Models - S590, R590 / S590D, R590D - Power Divider - Exploded View ....................................16
Double Reduction Models - S590, R590 / S590D, R590D - Parts List ................................................................ 17-18
High Entry Single Models - S170E, S190E, S190DE - Forward Carrier Exploded View .............................................19
High Entry Single Models - S170E, S190E, S190DE - Forward Carrier Power Divider - Exploded View ...................20
High Entry Single Models - S170E, S190E, S190DE - Parts List......................................................................... 21-22
REAR-REAR & SINGLE AXLES ......................................................................................................................................
Rear-Rear Single Reduction Models - R170, R170D, R190, R190D, S170, S170D, S190, S190D - ...........................
Carrier Exploded View ...........................................................................................................................................23
Rear-Rear Single Reduction Models - R170, R170D, R190, R190D, S170, S170D, S190, S190D - Parts List .. 24-25
Gear and Pinion Kits ............................................................................................................................................ 26-27
Bearing Kits ...............................................................................................................................................................28
Pinion Bearing Selective Spacers & Spacer Kits ........................................................................................................29
Wheel Differential Case Kits - All Models ............................................................................................................ 30-33
Wheel Differential Lock Shift Parts - Exploded View & Parts List ..............................................................................34
Axle Housing and Output Shaft Assembly - Exploded View .......................................................................................35
Axle Housing and Output Shaft Assembly - Parts List ............................................................................................... 36
Summary of Axle Housing Related Service Kits ..................................................................................................... 37
Axle Housing Hardware Kits & Axle Housing Cover Kits ..................................................................................... 37-38
Axle Housings - Most Popular Bare Axle Housing Chart ..........................................................................................39
Axle Housings - All D170 ................................................................................................................................ 39-41
Axle Housings - All R170, S170 ............................................................................................................................ 42
Axle Shafts .......................................................................................................................................................... 43-44
Service Carriers ................................................................................................................................................... 45-54
Yokes & Flanges ........................................................................................................................................................55
Pinion Seal Driver Tool Kit ........................................................................................................................................56
Service Kits - Quick Reference List ...................................................................................................................... 57-58
1
General Information
How To Use Illustrated Parts List
Ordering Parts
This parts book is organized in sections according to parts • servicing requirements. Use the Contents or page headings and colored tabs to find information.
Use this book to order parts for your Dana•
For convenience, part numbers have been included for all • pieces of the carrier assembly. Some of these parts, such as the carrier and caps, are serviced only in kits or assemblies. Part numbers are for your reference only. Those parts not serviced separately are identified with NSS.
Kits and Assemblies
Kits and Assemblies contain groups of individual or • assembled parts developed for optimal replacement or repair of a service problem.
Kits and Assemblies are shown with applicable parts • groupings in the parts listing.
See the Appendix for detailed information concerning kits • applicable to this model.
Abbreviations
AR - As Required - Parts that vary in quantity with each axle. • Example: shims
NSS - Not Serviced Separately - Items which can only be • purchased in sets, kit form or service assemblies. Example: brake shoes.
RH/LH - Right Hand/Left Hand - Determined as viewed from • behind the vehicle looking forward.
“RTV” - Gasket Compound - Formed-in-place gasket sealer. It • is recommended for use on all surfaces requiring a gasket.
Assy - Assembly•
Brg - Bearing•
Diff - Differential•
Hsg - Housing•
Inv - Involute•
ABS - Antilock Brake System•
N/A - Not Applicable•
Str - Straight•
®
Spicer® Axle.
General Information
Illustrations
Illustrations show parts in assembly groups.•
Item numbers on illustrations correspond with parts listings • on pages that accompany the drawings.
Notes are included on illustrations where needed.•
Parts Listings
Parts listings are defined by parts groupings and are broken • down by service assemblies.
Parts Listings identify a part for servicing with the following • categories:
Item - corresponds with numbers on illustrations for part • identification
Part Name - specifies part name or description•
Quantity (Qty) - quantity required for assembly•
Current Part - service part numbers are broken down by • model, type or other applicable information
Notes - define unique characteristics or replacement • notes
Kits / Assy’s Where Used - indicates Kits or Assemblies • that contain a particular part
Other pertinent information is listed in tables or parts • listings as required.
2
General Information
Model Identification
Locating Model Designation Information
Axle Model Identification, Part Number and Serial Number are located on a tag at the axle centerline. This information will help to locate • information in this book and to identify the correct parts for servicing.
Drive Axles
Country or origin 1 -
Axle model identification 2 -
Specification number assigned to the axle built by Spicer. Identifies all component parts of the axle including special OEM 3 ­requirements such as yokes or flanges.
OEM part number assigned to the axle build 4 -
Carrier assembly serial number assigned by the manufacturing plant 5 -
Axle gear ratio 6 -
Carrier assembly production or service part number 7 -
3
Identification
1
PT. NO. HSG. CAP. LB
S.
HSG. I.D. NO. HOUSING MADE IN
Spicer
®
2
D 46-1 7 0 D
D - Dual Drive Forward Axle with Inter-Axle Differential R - Rear Tandem Axle
Gear Type
1 - Standard Single Reduction 5 - Helical Reduction
Options
D - Differential Lock H - Heavy Wall P - Lube Pump R - Retarder Ready W - Wide-Track
Design Level
Head Assembly Series
GAW Rating
x 1000 lbs.
Axle Housing Axle Shaft
1 - ID Tag 2 - Axle shaft part number
Using Model Designation to Identify Axle Components
The Axle Model Identification number contains information that is important to understand when purchasing service parts or new components. The Model Identification number provides important vehicle, capacity and application information and model features. Use this guideline to understand your Axle Model Identification. If you need assistance, contact your Dana Aftermarket representative.
Effectively using a Parts Listing - Example
Follow the example below to locate and order exactly what is required for servicing. •
Match to Order this quantity Indicated information items on Use to identify Part for servicing Order Part Number important to ordering or use illustration
Item Part Name Qty D170 D190(P) Notes
1 Axle Shaft 2 xxxxxx xxxxxx See Axle Shaft Chart
2 Flat Washer 4 xxxxxx xxxxxx
Kits and Assemblies
Item Part Name Qty D170 D190(P) Notes
Bearing Kits 1 xxxxxx xxxxxx Contents Identified with *
4
Model Information
Model Information - Models made On or AFTER June 10, 2013
The following models are included in this publication:
Single Reduction Models
Forward Axle Rear Axle Axle Capacity Gear Size
D40-170 R40-170 40,000 Ibs. 17.7" Hypoid Gear
D40-170P R40-170 40,000 Ibs. 17.7" Hypoid Gear
D40-170DP R40-170 40,000 Ibs. 17.7" Hypoid Gear
D46-170 R46-170 46,000 Ibs. 17.7" Hypoid Gear
D46-170P R46-170 46,000 Ibs. 17.7" Hypoid Gear
D46-170DP R46-170 46,000 Ibs. 17.7" Hypoid Gear
D52-190P R52-190 52,000 Ibs. 18.5" Hypoid Gear
D52-190DP R52-190 52,000 Ibs. 18.5" Hypoid Gear
D60-190P R60-190 60,000 Ibs. 18.5" Hypoid Gear
Double Reduction Models
Forward Axle Rear Axle Axle Capacity Gear Size
D46-590P R46-590 46,000 Ibs. 18.5" Hypoid Gear
D52-590P R52-590 52,000 Ibs. 18.5" Hypoid Gear
D60-590P R60-590 60,000 Ibs. 18.5" Hypoid Gear
D70-590P R70-590 70,000 Ibs. 18.5" Hypoid Gear
Tridem Models
Forward Axle Forward Axle Rear Axle Axle Capacity Gear Size
T69-170HP T69-170HP R69-170H 69,000 Ibs. 17.7" Hypoid Gear
T78-190P T78-190P R78-190 78,000 Ibs. 18.5" Hypoid Gear
T78-590P T78-590P R78-590 78,000 Ibs. 18.5" Hypoid Gear
*Tridem model configuration consist of 3 axles; Two Forward Carriers and a Rear-Rear Carrier. Example would be: (D170>D170>R170) (D190>D190>R190) or (D590>D590>R590).
High Entry Single Axle Models
Single Axle Axle Capacity Gear Size
S21-170E 21,000 Ibs. 17.7" Hypoid Gear
S23-170E 23,000 Ibs. 17.7" Hypoid Gear
S25-170E 25,000 Ibs. 17.7" Hypoid Gear
S23-190E 23,000 Ibs. 18.5" Hypoid Gear
S26-190E 26,000 Ibs. 18.5" Hypoid Gear
S30-190E 30,000 Ibs. 18.5" Hypoid Gear
The suffix letter “P” in the model number indicates lube pump. The pump is designed to provide additional lubrication to the inter-axle differential and related parts. The “190” and “590” models come standard with pumps and the suffix letter “P” may not be referenced in all model callouts.
5
13
12
14
20
19
15
11
22
22
23
24
28
26
25
29
27
21
22
10
9
8
7
6
17
5
18
16
17
5
5
2
4
3
2
5
2
1a
D170
3
4
D190
1b
D170 / D190 Axle Parts Explode
D170 / D190 Forward Axle - Parts Exploded View Models Made ON or AFTER June 10, 2013
6

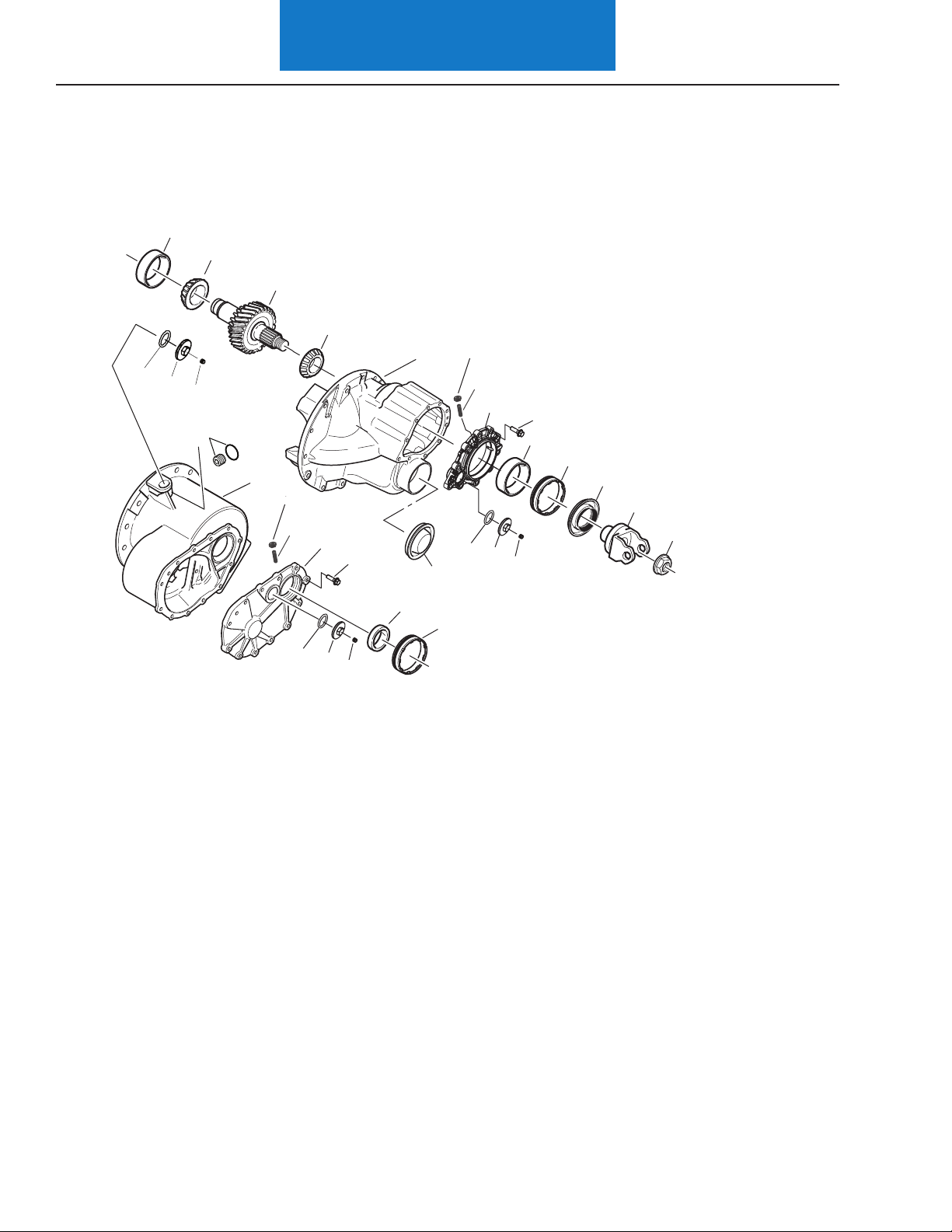

D170 / D190 Power Divider Parts Explode
40
47
46
43
41
35
44
48
49
30
33
34
32
31
45
D170
D190
36
39
38
37
Output Shaft
Parts, see page 35-37
42
61
60
50
53
51
52
56
57
59
58
58A
58
Yo kes - see page 55
62
63
50
53
51
52
55
54
56
57
58A
D170 / D190 Forward Axle Power Divider - Parts Exploded View
7
D170 / D190 Axle Parts List
D170 / D190 Forward Axle - Parts List Models Made ON or AFTER June 10, 2013
Item Description Qty Per D170 D190 Notes Axle D170D D190D
BEARING KIT 1 504126 504128 Contents identified with * 1 504127 -------- D170D Diff Lock Models Only
1a Carrier Sub-Assy 1 132483 -------- D170 models
1a Carrier Sub-Assy 1 132484 -------- D170D Diff Lock models - refer to chart Pg 10
1b Carrier Sub-Assy 1 -------- 132485 All D190, D190D models - refer to chart Pg 10
2 Capscrew - Bearing Cap 6 131016 131016
3 Pilot Bearing Web Support 1 N/A N/A Not a serviceable part - order item 1
4 Capscrew - Pilot Bearing Web 4 N/A 131017
5 Cotter Pin 2 090311 090311
6 Bearing Adjuster - Plain Half 1 139993 139993
7 Bearing Cup - Plain Half Diff 1 140012* 140020* Standard model
1 140020* 140020* Diff Lock model
8 Bearing Cone - Plain Half Diff 1 140014* 140019* Standard model
1 140019* 140019* Diff Lock model
9 Bearing Adjuster - Flange Half 1 139992 139992
10 Bearing Cup - Diff Flange Half 1 140012* 140012*
11 Bearing Cone - Diff Flange Half 1 140014* 140014*
KIT - RING GEAR BOLT 1 504069 504069 Includes qty 16 of 131473
12 Bolt - Ring Gear 16 131473 131473
13 Diff Case - Flange Half 1 See Diff Case Kits Pg 30-33 All models
14 Diff Case - Plain Half 1 See Diff Case Kits Pg 30-33 Standard models
15 Diff Case - Plain Half - Diff Lock 1 See Diff Case Kits Pg 30-33 Diff Lock models
KIT - WHEEL DIFF SIDE GEAR w/WASHERS 504096 504096 Includes items 16-20
16 Thrust Washer - Side Pinion 4 300HS100-1 300HS100-1
17 Thrust Washer - Side Gear 2 HS108-1 HS108-1
18 Side Pinion 4 131040 131040
19 Spider - Differential 1 131039 131039
20 Side Gear - Differential 2 300GD101 300GD101 46 Involute
NO SPIN ASSEMBLY - 46 Inv 1 131882 -------- Item not illustrated
21 Bearing - Pinion Pilot 1 -------- 129947*
22 Ring Gear and Pinion - NSS See Ring & Pinion Kits Page 26-27
23 Bearing Cone - Inner Pinion 1 139968* 139968*
24 Bearing Cup - Inner Pinion 1 139969* 139969*
25 Bearing Cone - Outer Pinion 1 139971* 139971*
26 Bearing Cup - Outer Pinion 1 139972* 139972*
27 Helical Gear - Pinion 1 131343 131343
28 KIT - PINION BRG SPACER A/R 504041 504041 Individual pinion spacers listed on Pg 29
KIT - PINION NUT 1 131095K 131095K Kit includes 29 & 64
29 Locknut - Pinion 1 131095 131095 Socket size 69mm
MANIFOLD PARTS KIT Non-Pump Models 1 513880 -------- Includes item 30a Pump Model 1 513878 513878 Includes items 30b, 31-34
30a Manifold Assembly - Non Pump 1 132435-NSS -------- Used in Non-Pump models only
30b Manifold Assembly - Pump Models 1 131366-NSS 131366-NSS Used in all Pump models
31 Clamp 1 129338 129338
8
D170 / D190 Axle Parts List
Item Description Qty Per D170 D190 Notes Axle D170D D190D
32 Collar Lock 1 134010 134010
33 Hose 1 131524 131524
34 Screen Filter Assembly 1 133964 133964
35 Bearing Cup - Output Side Gear 1 139976* 139976*
36 Bearing Cone - Output Side Gear 1 139975* 139975*
KIT - OUTPUT GEAR & LUBE PUMP 1 504065 504065 Includes items 37, 38a, 39
37 Pump - Lube - NSS 1 131368-NSS 131368-NSS Order Lube Pump Kit 504065
38a Output Side Gear - Pump Models 1 131466 131466
38b Output Side Gear - Non Pump 1 131467 --------
39 Pin 1 131541 131541
40 INTER-AXLE DIFFERENTIAL 1 139965 139965
41 Helical Side Gear & Bushing Assy. 1 131345 131345 Gear ID # 131005 includes item 42
42 Bushing - Helical Gear 2 131344 131344
43 Thrust Washer 1 132440 132440
44 Sliding Clutch 1 131332 131332
45 V-Ring 1 131333* 131333*
KIT - SHIFT FORK & SPRING 1 510870 514142 Includes items 46-47
46 Compression Spring 1 129859 129859
47 Shift Fork Assembly - NSS 1 129856-NSS 131330-NSS Order kit listed above
KIT - INPUT SHAFT - NON-PUMP 1 513839 -------- Includes items 48a, 63-64
KIT - INPUT SHAFT - PUMP 1 513840 513840 Includes items 48b, 63-64
48a Input Shaft - NSS - NON-PUMP 1 131348-NSS -------- Order kit listed above
48b Input Shaft - NSS - PUMP 1 131349-NSS 131349-NSS Order kit listed above
49 Bearing Cone - Input Shaft 1 139973* 139973*
KIT - AIR LOCKOUT REPAIR 1 512892 512892 Includes items 50-53
KIT - AIR LOCKOUT (Complete w/Shift Fork) 1 512893 N/A Includes items 46-47, 50-53
50 Piston 1 131232 131232
51 O-Ring - Piston 1 210180 210180
52 O-Ring Cover 1 131665 131665 Production#131665, alternate service# is 220HH102
53 Piston Cover 1 131096 131096
KIT - INPUT COVER - D170 1 504067 -------- Includes items 49, 54-58A
54 Input Cover - 131221-NSS 1 131686 -------- Order 504067 kit
55 Capscrew - Input Cover 10 131374 --------
56 Nut - Adjuster Stud 1 131693 131693 M12 thread
57 Stud - Adjuster 1 131692 131692 M12 thread
58 Input Adjuster & Cup Assy. 1 134354 134354
58A Bearing Cup - Input Adjuster 1 139974* 139974* Part of item# 58
KIT - INPUT COVER - D190 1 -------- 504066 Includes items 49, 56-58A, 59-60
59 Input Cover - 131328-NSS 1 -------- 131687 Order 504066 kit
60 Capscrew - Input Cover 12 -------- 131374
61 Plug - Carier 1 131544 --------
KIT - INPUT SEAL & LOCKNUT 1 131008K 131008K Includes items 62-64
62 Input Seal 1 134323* 134323* Sold in 131008K kit also
KIT - PINION NUT 1 131095K 131095K Includes item 61-62
63 Input Locknut 1 131095 131095 Socket size 69mm
64 Loctite Adhesive .5ml tube 1 129293 129293 Item not illustrated
65 RTV Sealant - 3oz 1 107276S* 107276S* Item not illustrated
9
D170 / D190 Axle Parts List
Service Diff Carrier Sub-Assembly
Item Model Part No. Notes
1a D170 132483 Includes items 1-4
1a D170D 132484 Includes items 1-4
1b D190, D190D 132485 Includes items 1-4
Carrier Sub-Assembly Identification Information:
Part No. Casting # Notes
132483 131222 No Pilot Web (D170)
132484 131218 No Pilot Web (D170D)
132485 131322 Built w/Pilot Web (D190, D190D)
Note 1: The D170 & D170D models are the over-hung design (no pilot web).
10
D590 / D590D Axle Parts Explode
13
12
14
20
19
15
11
22
22
23
24
28
26
25
29
27
21
10
9
8
7
6
17
5
18
16
17
5
2
2
1
3
4
D590 / D590D Double Reduction Axle - Parts Exploded View
11
D590 / D590D
47
46
43
41
40
44
48
49
45
30
33
34
32
31
35
36
39
38
37
55
54
1
64
42
53
50
52
51
Output Shaft Parts
See Page 35-37
59
58
60
Yokes - see page 55
61
63
62
56
57
58A
Power Divider Parts Explode
D590 / D590D Double Reduction Power Divider - Parts Exploded View
12
D590 / D590D Axle Parts List
D590 / D590D Double Reduction Axle - Parts List
Qty Item Description Per D590 Notes Axle D590D
BEARING KIT 1 504128 Contents identified with *
1 Carrier Sub-Assy 1 132485 Includes items 1-4 See chart Pg 14 2 Capscrew - Bearing Cap 6 131016 3 Pilot Bearing Web Support 1 N/A Not a serviceable part - order item 1 4 Capscrew - Pilot Bearing Web 4 131017 5 Cotter Pin 2 090311 6 Bearing Adjuster - Plain Half 1 139993 7 Bearing Cup - Plain Half Diff 1 140020* 8 Bearing Cone - Plain Half Diff 1 140019* 9 Bearing Adjuster - Flange Half 1 139992 10 Bearing Cup - Diff Flange Half 1 140012* 11 Bearing Cone - Diff Flange Half 1 140014*
KIT - RING GEAR BOLT 1 504069 Includes qty 16 of 131473
12 Bolt - Ring Gear 16 131473 13 Diff Case - Flange Half 1 See Kits Pg 30-33 All models 14 Diff Case - Plain Half 1 See Kits Pg 30-33 Standard models 15 Diff Case - Plain Half - Diff Lock 1 See Kits Pg 30-33 Diff Lock models
KIT - WHEEL DIFF SIDE GEAR w/WASHERS 1 504096 Includes items 16-20
16 Thrust Washer - Side Pinion 4 300HS100-1 17 Thrust Washer - Side Gear 2 HS108-1 18 Side Pinion 4 131040 19 Spider - Differential 1 131039 20 Side Gear - Differential 2 300GD101 46 Involute 21 Bearing - Pinion Pilot 1 129947* 22 Ring Gear and Pinion - NSS See Ring & Pinion Kits Pg 26-27 23 Bearing Cone - Inner Pinion 1 139968* 24 Bearing Cup - Inner Pinion 1 139969* 25 Bearing Cone - Outer Pinion 1 139971* 26 Bearing Cup - Outer Pinion 1 139972* 27 Pinion Helical Gear 1.39:1 1 131249 1.39:1 Reduction
28 KIT - PINION BRG SPACER A/R 504041 Individual pinion spacers listed on Pg 29
KIT - PINION NUT 1 131095K Includes 29 & 65
29 Locknut - Pinion 1 131095 Socket size 69mm
MANIFOLD PARTS KIT Pump Model 1 513878 Includes items 30-34
30 Manifold Assembly - NSS 1 131366-NSS Pump model 31 Clamp 1 129338 32 Collar Lock 1 134010 33 Hose 1 131524 34 Screen Filter Assembly 1 133964 35 Bearing Cup - Output Side Gear 1 139976* 36 Bearing Cone 1 139975*
KIT - LUBE PUMP 1 504065 Includes items 37-39
37 Pump - Lube - NSS 1 131368-NSS Order Lube Pump Kit 504065 38 Output Side Gear 1 131466 Pump model 39 Pin 1 131541
13
D590 / D590D Axle Parts List
Qty Item Description Per D590 Notes Axle D590D
40 INTER-AXLE DIFFERENTIAL 1 139965 41 Helical Side Gear & Bushing Assy. 1.39:1 1 131346 Gear stamp id# 131341, includes item 42 42 Bushing - Helical Gear 2 131344 43 Thrust Washer 1 132440* 44 Sliding Clutch 1 131332 45 V-ring 1 131333*
KIT - SHIFT FORK & SPRING 1 514142 Includes items 46-47
46 Compression Spring 1 129859 47 Shift Fork Assembly - NSS 1 131330-NSS Must order kit above
KIT - INPUT SHAFT - PUMP MDL 1 513840 Includes items 48, 60 & 65
48 Input Shaft - NSS - PUMP 1 131349-NSS 49 Bearing Cone - Input Shaft 1 139973*
KIT - AIR LOCKOUT REPAIR 1 512892 Includes items 50-53
50 Piston 1 131232 51 O-Ring - Piston 1 210180 52 O-Ring Cover 1 131665 Production#131665, alternate service# is 220HH102 53 Piston Cover 1 131096
KIT - INPUT COVER 1 504066 Includes items 49, 54-58A
54 Input Cover - 131328-NSS 1 131687 Order 504066 kit 55 Capscrew - Input Cover 12 131374 56 Nut - Adjuster Stud 1 131693 M12 thread 57 Stud - Adjuster 1 131692 M12 thread 58 Input Adjuster & Cup Assy. 1 134354 58A Brg Cup - Input Adjuster 1 139974* Part of item# 58
KIT - INPUT SEAL & LOCKNUT 1 131008K Includes items 59-60 & 65
59 Input Seal 1 134323* Sold in 131008K kit also
KIT - PINION NUT 1 131095K Includes item 60 & 65
60 Locknut - Input Shaft 1 131095 Socket size 69mm 61 Cover - Diff Lock Shift 1 131096 For Non-diff lock mdls. For diff lock models see Pg 34 62 Plug - Diff Lock Shift 1 127195 For Non-diff lock mdls. For diff lock models see Pg 34 63 O-Ring - Diff Lock Cover 1 131665 For Non-diff lock mdls. For diff lock models see Pg 34 64 Plug & O-Ring - Diff Lock Cylinder 1 131487 For Non-diff lock mdls. For diff lock models see Pg 34 65 Loctite Adhesive .5ml tube 1 129293 Not illustrated 66 RTV Sealant - 3oz 1 107276S* Not illustrated
Service Diff Carrier Sub-Assembly
Item Model Part No. Notes
1 D590, D590D 132485 Includes items 1-4
Carrier Sub-Assembly Identification Information:
Part No. Casting # Notes
132485 131322 Built w/Pilot Web (D590, D590D)
14
S590 / S590D / R590 Axle Parts Explode
13
12
14
20
19
15
11
22
22
23
24
28
26
25
29
27
21
10
9
8
7
6
17
5
18
16
17
5
2
2
1
3
4
S590 / S590D / R590 / R590D Double Reduction Axle -
15
S590 / S590D / R590 Power Divider
30
31
32
33
38
39
See Yokes Page 55
40
35
1
44
34
41
43
42
41
43
42
36
37
38A
Parts Exploded View
S590 / S590D / R590 / R590D Double Reduction Power Divider -
16
S590 / S590D / R590 Axle Parts List
Parts Exploded View
S590 / S590D / R590 / R590D Double Reduction Axle - Parts List
Qty Item Description Per S590, R590 Notes Axle S590D, R590D
BEARING KIT 1 504128 Contents identified with *
1 Carrier Sub-Assy 1 132485 Includes items 1-4 See chart Pg 18 2 Capscrew - Bearing Cap 6 131016 3 Pilot Bearing Web Support 1 N/A Not a serviceable part - order item 1 4 Capscrew - Pilot Bearing Web 4 131017 5 Cotter Pin 2 090311 6 Bearing Adjuster - Plain Half 1 139993 7 Bearing Cup - Plain Half Diff 1 140020* 8 Bearing Cone - Plain Half Diff 1 140019* 9 Bearing Adjuster - Flange Half 1 139992 10 Bearing Cup - Diff Flange Half 1 140012* 11 Bearing Cone - Diff Flange Half 1 140014*
KIT - RING GEAR BOLT 1 504069 Includes qty 16 of 131473
12 Bolt - Ring Gear 16 131473 13 Diff Case - Flange Half 1 See Kits Pg 30-33 All models 14 Diff Case - Plain Half 1 See Kits Pg 30-33 Standard models 15 Diff Case - Plain Half - Diff Lock 1 See Kits Pg 30-33 Diff Lock models
KIT - WHEEL DIFF SIDE GEAR w/WASHERS 1 504096 Includes items 16-20
16 Thrust Washer - Side Pinion 4 300HS100-1 17 Thrust Washer - Side Gear 2 HS108-1 18 Side Pinion 4 131040 19 Spider - Differential 1 131039 20 Side Gear - Differential 2 300GD101 46 Involute 21 Bearing - Pinion Pilot 1 129947* 22 Ring Gear and Pinion - NSS See Ring & Pinion Kits Pg 26-27 23 Bearing Cone - Inner Pinion 1 139968* 24 Bearing Cup - Inner Pinion 1 139969* 25 Bearing Cone - Outer Pinion 1 139971* 26 Bearing Cup - Outer Pinion 1 139972* 27 Pinion Helical Gear 1.39:1 1 131249 1.39:1 Reduction
28 KIT - PINION BRG SPACER A/R 504041 Individual pinion spacers listed on Pg 29
KIT - PINION NUT 1 131095K Includes 29 & 45
29 Locknut - Pinion 1 131095 Socket size 69mm 30 Bearing Cup 1 139976* 31 Bearing Cone 1 139975* 32 Input Shaft & Helical Gear 1.39:1 131353 33 Bearing Cone - Input Shaft 1 139973*
KIT - INPUT COVER 1 504066 Includes items 33-38A
34 Input Cover - 131328-NSS 1 131687 Order 504066 kit 35 Capscrew - Input Cover 12 131374 36 Nut - Adjuster Stud 1 131693 M12 thread 37 Stud - Adjuster 1 131692 M12 thread 38 Input Adjuster & Cup Assy. 1 134354 38A Bearing Cup - Input Adjuster 1 139974* Part of item# 38
17
S590 / S590D / R590 Axle Parts List
Qty Item Description Per S590, R590 Notes Axle S590D, R590D
KIT - INPUT SEAL & LOCKNUT 1 131008K Includes items 39-40, 45
39 Input Seal 1 134323* Sold in 131008K kit also
KIT - PINION NUT 1 131095K Includes item 40 & 45
40 Input Locknut 1 131095 Socket size 69mm 41 Cover - Diff Lock Shift 2 131096 See Note 1 42 Plug - Diff Lock Shift 2 127195 See Note 1 43 O-Ring - Diff Lock Cover 2 131665 See Note 1 44 Plug & O-Ring - Diff Lock Cover 1 131487 For Non-diff lock models only 45 Loctite Adhesive .5ml tube 1 129293 Item not illustrated 46 RTV Sealant - 3oz 1 107276S* Item not illustrated
Note 1: Quantity used is 2 unless you have a Diff Lock model, see page 34 for diff lock shift parts
Diff Carrier Sub-Assembly
Item Model Part No. Notes
1 S590, S590D, R590, R590D 132485 Includes items 1-4
Carrier Sub-Assembly Identification Information:
Part No. Casting # Notes
132485 131322 Built w/Pilot Web
18
13
12
14
20
19
15
11
22
22
23
24
28
26
25
29
27
21
22
10
9
8
7
6
17
5
18
16
17
5
5
2
4
3
2
5
2
1a
S170E
3
4
S190E
1b
S170E / S190E / S190DE Parts Explode
S170E / S190E / S190DE High Entry Axle - Parts Exploded View
Parts for Diff Lock Assembly See page 34
190 Design
19
S170E / S190E / S190DE Power Divider
42
30
31
32
33
1A
45
47
34
35
38
43
Yokes - see page 55
44
46
40
1B
39
45
47
46
41
51
48
50
49
36
37
41A
36
37
38A
S170E / S190E / S190DE High Entry Power Divider - Parts Exploded View
20
S170E / S190E / S190DE Parts List
S170E / S190E / S190DE High Entry Axle - Parts List
Qty Item Description Per S170E S190E S190DE Notes Axle
BEARING KIT 1 504126 504128 504128 Contents identified with *
1a Carrier Sub-Assy 1 132483 -------- -------- Includes items 1a & 2 See Chart Pg 22
1b Carrier Sub-Assy 1 -------- 132485 132485 Includes items 1b-4 See Chart Pg 22
2 Capscrew - Bearing Cap 6 131016 131016 131016
3 Pilot Bearing Web Support 1 -------- N/A N/A Not a serviceable part - order item 1
4 Capscrew - Pilot Bearing Web 4 -------- 131017 131017
5 Cotter Pin 2 090311 090311 090311
6 Bearing Adjuster - Plain Half 1 139993 139993 139993
7 Bearing Cup - Plain Half Diff 1 140012* 140020* 140020* Standard model
1 140020* 140020* 140020* Diff Lock model
8 Bearing Cone - Plain Half Diff 1 140014* 140019* 140019* Standard model
1 140019* 140019* 140019* Diff Lock model
9 Bearing Adjuster - Flange Half 1 139992 139992 139992
10 Bearing Cup - Diff Flange Half 1 140012* 140012* 140012*
11 Bearing Cone - Diff Flange Half 1 140014* 140014* 140014*
KIT - RING GEAR BOLT 1 504069 504069 504069 Includes qty 16 of 131473
12 Bolt - Ring Gear 16 131473 131473 131473
13 Diff Case - Flange Half 1 See Diff Case Kits Pg 30-33 All models
14 Diff Case - Plain Half 1 See Diff Case Kits Pg 30-33 Standard models
15 Diff Case - Plain Half - Diff Lock 1 See Diff Case Kits Pg 30-33 Diff Lock models
KIT - WHEEL DIFF SIDE GEAR w/WASHERS 1 504096 504096 504096 Includes items 16-20
16 Thrust Washer - Side Pinion 4 300HS100-1 300HS100-1 300HS100-1
17 Thrust Washer - Side Gear 2 HS108-1 HS108-1 HS108-1
18 Side Pinion 4 131040 131040 131040
19 Spider - Differential 1 131039 131039 131039
20 Side Gear - Differential 2 300GD101 300GD101 300GD101 46 Involute
21 Bearing - Pinion Pilot 1 -------- 129947* 129947*
22 Ring Gear and Pinion - NSS See Ring & Pinion Kits Pg 26-27
23 Bearing Cone - Inner Pinion 1 139968* 139968* 139968*
24 Bearing Cup - Inner Pinion 1 139969* 139969* 139969*
25 Bearing Cone - Outer Pinion 1 139971* 139971* 139971*
26 Bearing Cup - Outer Pinion 1 139972* 139972* 139972*
27 Pinion Helical Gear 1 131343 131343 131343
28 KIT - PINION BRG SPACER A/R 504041 504041 504041 Individual pinion spacers listed on pg 29
KIT - PINION NUT 1 131095K 131095K 131095K Includes 29 & 52
29 Locknut - Pinion 1 131095 131095 131095 Socket size 69mm
30 Bearing Cup - Output Side Gear 1 139976* 139976* 139976*
31 Bearing Cone - Output Side Gear 1 139975* 139975* 139975*
21
S170E / S190E / S190DE Parts List
Qty Item Description Per S170E S190E S190DE Notes Axle
32 INPUT SHAFT & HELICAL - HIGH ENTRY 1 131340 131340 131340 1:1 ratio
33 Bearing Cone - Input Shaft 1 139973* 139973* 139973*
KIT - INPUT COVER - S170E 1 504067 -------- -------- Includes items 33-38A
34 Input Cover - 131221-NSS 1 131686 -------- -------- Order 504067 kit
35 Capscrew - Input Cover 10 131374 -------- --------
36 Nut - Adjuster Stud 1 131693 131693 131693 M12 thread
37 Stud - Adjuster 1 131692 131692 131692 M12 thread
38 Input Adjuster & Cup Assy. 1 134354 134354 134354
38A Bearing Cup - Input Adjuster 1 139974* 139974* 139974*
KIT - INPUT COVER - S190E/S190DE 1 -------- 504066 504066 Includes items 33, 36-37, 39-41A
39 Input Cover - 131328-NSS 1 -------- 131687 131687 Order 504066 kit
40 Capscrew - Input Cover 12 -------- 131374 131374
41 Input Adjuster & Cup Assy. 1 134354 134354 134354
41A Bearing Cup - Input Adjuster 1 139974* 139974* 139974* Part of item# 41
42 Plug - Carier 1 131544 -------- --------
KIT - INPUT SEAL & LOCKNUT 1 131008K 131008K 131008K Includes items 43-44 & 52
43 Input Seal 1 134323* 134323* 134323*
KIT - PINION NUT 1 131095K 131095K 131095K Includes item 44 & 52
44 Input Locknut 1 131095 131095 131095 Socket size 69mm
45 Cap - Lockout Cylinder 1 131096 131096 131096
46 Plug - Cap - Lockout Cylinder 1 127195 127195 127195
47 O-Ring - Cap - Lockout Cylinder 1 131665 131665 131665
48 Cap - Diff Lock Shift Cylinder 1 131096 131096 -------- For Non-diff lock mdls. For diff lock models see Pg 34
49 Plug - Cap - Diff Lock Shift Cylinder 1 127195 127195 -------- For Non-diff lock mdls. For diff lock models see Pg 34
50 O-Ring - Cap - Diff Lock Shift Cylinder 1 131665 131665 -------- For Non-diff lock mdls. For diff lock models see Pg 34
51 Plug & O-Ring - Diff Lock Switch Opening 1 131487 131487 -------- For Non-diff lock mdls. For diff lock models see Pg 34
52 Loctite Adhesive .5ml tube 1 129293 129293 129293 Item not illustrated
53 RTV Sealant - 3oz 1 107276S* 107276S* 107276S* Item not illustrated
Service Diff Carrier Sub-Assembly
Item Model Part No. Notes
1a S170E 132483 Includes items 1-4
1b S190E, S190DE 132485 Includes items 1-4
Carrier Sub-Assembly Identification Information:
Part No. Casting # Notes
132483 131222 No Pilot Web (S170E)
132485 131322 Built w/Pilot Web (S190E, S190DE)
22
R170 / R190 / S170 / S190 Parts Explode
13
12
14
8
15
7
11
17
22
22
23
24
27
26
25
29
21
22
28
10
9
20
19
18
16
6
17
2
4
3
5
5
3
5
4
2
5
2
2
Yokes - see page 55
1b
1a
R170 / R190, S170 / S190 - Rear Axle Parts Explode Models Made ON or AFTER June 10, 2013
23
R170 / R190 / S170 / S190 Parts List
R170 / R190, S170 / S190 - Rear Axle Parts List Models Made ON or AFTER June 10, 2013
Qty S170, S170D S190, S190D Item Description Per S170R S190R Notes Axle R170 R190 R170D R190D
BEARING KIT 1 -------- 504131 S190 Series - ratios 2.53-4.78 Contents identified with * 1 -------- 504133 S190 Series - ratios 5.25-7.83 1 504029 -------- S170 Series - ratios 2.69-3.91 1 504130 -------- S170 Series - ratios 4.10-7.17 1 504131 -------- S170D - Diff Lock Series - ratios 2.69-3.91 1 504132 -------- S170D - Diff Lock Series - ratios 4.10-7.17
1a Carrier Sub-Assy 1 See Chart Pg 25 Standard model - Note 1
1b Carrier Sub-Assy 1 See Chart Pg 25 Diff Lock model - Note 1
2 Capscrew - Bearing Cap 6 131016 131016
3 Pilot Bearing Web Support 1 NSS-Note 1 NSS-Note 1
4 Capscrew - Pilot Bearing Web 4 131017 131017
5 Cotter Pin 2 090311 090311
6 Bearing Adjuster - Plain Half 1 139993 139993
7 Bearing Cup - Plain Half Diff 1 140012* 140020* Standard model
1 140020* 140020* Diff Lock model
8 Bearing Cone - Plain Half Diff 1 140014* 140019* Standard model
1 140019* 140019* Diff Lock model
9 Bearing Adjuster - Flange Half 1 139992 139992
10 Bearing Cup - Diff Flange Half 1 140012* 140012* All models
11 Bearing Cone - Diff Flange Half 1 140014* 140014* All models
KIT - RING GEAR BOLT 1 504069 504069 Includes qty 16 of 131473
12 Ring Gear Bolt 16 131473 131473
13 Diff Case - Flange Half 1 See Diff Case Kits Pg 30-33 All models
14 Diff Case - Plain Half 1 See Diff Case Kits Pg 30-33 Standard models
15 Diff Case - Plain Half - Diff Lock 1 See Diff Case Kits Pg 30-33 Diff Lock models
KIT - WHEEL DIFF SIDE GEAR w/ WASHERS 504096 504096 Includes items 16-20
16 Thrust Washer - Side Pinion 4 300HS100-1 300HS100-1
17 Thrust Washer - Side Gear 2 HS108-1 HS108-1
18 Side Pinion 4 131040 131040
19 Spider - Differential 1 131039 131039
20 Side Gear - Differential 2 300GD101 300GD101 46 Involute
NO SPIN ASSEMBLY - 46 Inv Spline 1 131882 -------- Item not illustrated
21 Bearing - Pinion Pilot Ratios 2.69-3.91 1 129947* --------
Ratios 2.53-4.78 1 -------- 129947*
Ratios 5.25-7.83 1 -------- 126187*
22 Ring Gear & Drive Pinion Set See Ring & Pinion Kits Pg 26-27
23 Bearing Cone - Inner Pinion 1 139968* 139968*
24 Bearing Cup - Inner Pinion 1 139969* 139969*
25 Bearing Cone - Outer Pinion 1 139970* 139970*
26 Bearing Cup - Outer Pinion 1 139969* 139969*
27 KIT - PINION BRG SPACER A/R 504042 504042 Individual pinion spacers listed on Pg 29
KIT - INPUT SEAL & LOCKNUT 1 131008K 131008K Includes items 28-29, 30
28 Input Seal 1 134323* 134323* Also sold in 131008K kit
24
R170 / R190 / S170 / S190 Parts List
Item Description Per S170R S190R Notes Axle R170 R190 R170D R190D
KIT - PINION NUT 1 131095K 131095K Includes item 29-30
29 Locknut - Pinion 1 131095* 131095* Socket size 69mm
30 Loctite Adhesive .5ml tube 1 129293* 129293* Item not illustrated
31 RTV Sealant - 3oz 1 107276S* 107276S* Item not illustrated
Service Diff Carrier Sub-Assembly
Item Model Part No. Notes
1a R170, S170 (has pilot web) 132480 Includes items 1-4
1b R190, R190D, S190, S190D 132482 Includes items 1-4
1a S170R (retarder ready) 132486 Includes items 1-4
1b S190R, S190DR (retarder ready) 132487 Includes items 1-4
Carrier Sub-Assembly Identification Information
Part No. Casting # Notes
132478-nss 131228 No Pilot Web order 132480
132479-nss 131020 No Pilot Web order 132481
132480 131228 Built w/Pilot Web order 132480
132481 131020 Built w/Pilot Web order 132481
132482 131024 Built w/Pilot Web order 132482
132486 131020 Built w/Pilot Web order 132486
132487 131024 Built w/Pilot Web order 132487
Note 1: Some S170, R170 production models utilize the Pilot Web, while others are the over-hung design (no pilot web). All service replacement Carrier Sub-Assemblies are only offered with the pilot webs. Service uses Pilot web design carrier sub-assemblies to replace non pilot web designs.
1a = Non Diff-Lock Design 1b = Diff Lock Design
25
Single Reduction
Ring Gear
Pinion
Matched Gear Set Number
Part Number
Ring Gear Teeth
Manufacturing Numbers
L
7
0
3
8
8
8
6
7
8
3
9
-
6
E
A
-
9
3
J
F
-
1
9
L7038
Side
Self Locking Nut
Front
Pinion Teeth
Manufacturing Numbers
Part Number
6-39
JD77
93
85405
SPICER
Ring Gear Teeth
Pinion Teeth
Indicates Genuine
Spicer Parts
Gear and Pinion Kits
Gear & Pinion Kits
Ring Gear & Pinion Identification
Dana has highly developed primary axle gearing which is only used in matched sets. These sets are identified by the mating parts listed below. Within any Dana production drive axle or genuine Spicer® Gear & Pinion service kits, these mated part numbers will appear. Because they are developed as a set with precision machining, never mix gears and pinions from different mated sets within an axle. Shortened gearing life, noise and failure may occur. Always use genuine Spicer® products.
•RingGearandDrivePinionarematchedpartsandmustbereplacedinsets.
•Identicationofmatedpartsareshownonthedrawingbelow.
D170, D170D, S170E High Entry Models
Ring Gear Size: 17.7"
Pinion Nut Part No. 131095
Spicer Ratio Service Kit Gear Pinion P/N Tooth Part No. Part No. Part No.
3.07 513882 131281 131250 43-14
3.21 513883 131282 131261 45-14
3.42 513885 131283 131253 41-12
3.58 513886 131284 131254 43-12
3.73 513887 131283 131255 41-11
3.91 513888 131284 131256 43-11
4.10 513889 131283 131257 41-10
4.30 513890 131284 131258 43-10
4.56 513891 131285 131259 41-9
4.78 513892 131286 131260 43-9
5.25 513893 131287 131261 42-8
5.38 513894 131288 131262 43-8
5.57 513895 131289 131263 39-7
6.14 513896 131288 131264 43-7
6.83 513897 131290 131265 41-6
7.17 513898 131288 131266 43-6
26
R170, R170D, S170, S170D
Ring Gear Size: 17.7"
Pinion Nut Part No. 131095
Spicer Ratio Service Kit Gear Pinion P/N Tooth Part No. Part No. Part No.
3.07 513917 131183 131150 43-14
3.21 513918 131185 131151 45-14
3.42 513920 131186 131153 41-12
3.58 513921 131187 131154 43-12
3.73 513922 131186 131155 41-11
3.91 513923 131187 131156 43-11
4.10 513924 131186 131157 41-10
4.30 513925 131187 131158 43-10
4.30 BC 504024 131596 133800 43-10
4.56 513926 131188 131159 41-9
4.78 513927 131189 131160 43-9
5.25 513928 131190 131161 42-8
5.38 513929 131460 131456 43-8
5.57 513930 131461 131457 39-7
6.14 513931 131460 131458 43-7
6.83 513932 131462 131459 41-6
7.17 513933 131463 131475 43-6
Gear and Pinion Kits
D190, D190D, D/R590, D/R590D, S590, S590D, S190E High Entry Models
Ring Gear Size: 18.5"
Pinion Nut Part No. 131095
Spicer Ratio Service Kit Gear Pinion P/N Tooth (note 1) Part No. Part No. Part No.
3.42 (4.75) 513899 131283 131267 41-12
3.58 (4.99) 513900 131284 131268 43-12
3.73 (5.19) 513901 131283 131269 41-11
3.91 (5.44) 513902 131284 131270 43-11
4.10 (5.70) 513903 131283 131271 41-10
4.30 (5.98) 513904 131284 131272 43-10
4.56 (6.34) 513905 131285 131273 41-9
4.78 (6.65) 513906 131286 131274 43-9
5.25 (7.30) 513907 131287 131275 42-8
5.38 (7.48) 513908 131288 131276 43-8
5.57 (7.75) 513909 131289 131277 39-7
6.14 (8.55) 513910 131288 131278 43-7
6.83 (9.51) 513911 131290 131279 41-6
7.17 (9.97) 513912 131288 131280 43-6
7.83 (10.90) 513913 131522 131521 47-6
Note 1: Ratios shown in parentheses are ratio callouts for "Double Reduction 590 models" which use a 1:39-1 helical reduction gearing.
R190S, R190D, S190S, S190D
Ring Gear Size: 18.5"
Pinion Nut Part No. 131095
Spicer Ratio Service Kit Gear Pinion P/N Tooth Part No. Part No. Part No.
2.53 513934 131506 131505 43-17
2.69 513935 131191 131162 43-16
2.87 513936 131191 131163 43-15
2.93 513937 131192 131164 41-14
3.07 513938 131191 131165 43-14
3.21 513939 131193 131166 45-14
3.42 513941 131194 131168 41-12
3.58 513942 131195 131169 43-12
3.73 513943 131194 131170 41-11
3.91 513944 131195 131171 43-11
4.10 513945 131194 131172 41-10
4.30 513946 131195 131176 43-10
4.56 513947 131194 131174 41-9
4.78 513948 131195 131175 43-9
5.25 513949 131196 131176 42-8
5.38 513950 131197 131177 43-8
5.57 513951 131198 131178 39-7
6.14 513952 131197 131179 43-7
6.83 513953 131198 131180 41-6
7.17 513954 131197 131181 43-6
7.83 513955 131200 131182 47-6
27
Bearing Kits
Bearing Kits
Forward Carrier Models
504126 504127 504128
D170S All D190, D590, S590, R590 Part Description Qty S170E D170D All S190E & S190DE
Brg Cup - Diff Plain Half 1 140012 140020 140020
Bearing Cone - Diff Plain Half 1 140014 140019 140019
Brg Cup - Diff Flg Half 1 140012 140012 140012
Brg Cone - Diff Flg Half 1 140014 140014 140014
Bearing - Pinion Pilot 1 -------- -------- 129947
Brg Cup - Inner Pinion 1 139969 139969 139969
Brg Cone - Inner Pinion 1 139968 139968 139968
Brg Cup - Outer Pinion 1 139972 139972 139972
Brg Cone - Outer Pinion 1 139971 139971 139971
Brg Cup - O/P Side Gear 1 139976 139976 139976
Brg Cone - O/P Side Gear 1 139975 139975 139975
Brg Cup - Input Adjuster 1 139974 139974 139974
Brg Cone - Input Shaft 1 139973 139973 139973
V-Ring 1 131333* 131333 131333* * See Note 1
Oil Seal - Input Location 1 134323 134323 134323
Gasket Compound - RTV 1 107276S 107276S 107276S
Note 1 - The S590 & R590 models and High Entry "E" models do not use the V-Ring - simply discard it.
Single & Rear-Rear Carrier Models
504129 504130 504131 504132 504131 504133
R170S R170S R170D R170D R190 R190 S170S S170S S170D S170D S190 S190 Part Description Qty 2.69-3.91 4.10-7.17 2.69-3.91 4.10-7.17 2.53-4.78 5.25-7.83
Brg Cup - Diff Plain Half 1 140012 140012 140020 140020 140020 140020
Bearing Cone - Diff Plain Half 1 140014 140014 140019 140019 140019 140019
Brg Cup - Diff Flg Half 1 140012 140012 140012 140012 140012 140012
Brg Cone - Diff Flg Half 1 140014 140014 140014 140014 140014 140014
Bearing - Pinion Pilot 1 129947 -------- 129947 -------- 129947 126187
Brg Cup - Inner Pinion 1 139969 139969 139969 139969 139969 139969
Brg Cone - Inner Pinion 1 139968 139968 139968 139968 139968 139968
Brg Cup - Outer Pinion 1 139969 139969 139969 139969 139969 139969
Brg Cone - Outer Pinion 1 139970 139970 139970 139970 139970 139970
Oil Seal - R-Pinion 1 134323 134323 134323 134323 134323 134323
Gasket Compound - RTV 1 107276S 107276S 107276S 107276S 107276S 107276S
28
Bearing Spacers
Bearing Spacers
Select a variable pinion bearing spacer from the list below to attain the correct pinion bearing preload. All procedures on "Pinion Bearing Preload" remain the same and the proper steps should be followed according to your Dana Spicer Service Manual AXSM-0057. Spicer Pinion Bearing Spacer kits are available as shown below.
PINION BRG SPACER KIT: 504041
Models: ALL D170, D190, D/R590, S590, D170E/D190E
Dana P/N Spacer Thickness (mm)
131376 21.760
*131408 22.360
131377 21.790
*131409 22.375
*131378 21.820
131410 22.390
131379 21.850
131411 22.405
131380 21.880
131412 22.420
131381 21.910
*131413 22.435
131382 21.940
131414 22.450
131383 21.970
131415 22.465
131384 22.000
131416 22.495
131385 22.015
131417 22.525
131386 22.030
131418 22.555
131387 22.045
131419 22.585
131388 22.060
131420 22.615
131389 22.075
*131421 22.645
131390 22.090
131422 22.675
*131391 22.105
131423 22.705
Dana P/N Spacer Thickness (mm)
131392 22.120
132838 21.775
*131393 22.135
132839 21.805
131394 22.150
132840 21.835
131395 22.165
132841 21.865
131396 22.180
132842 21.895
131397 22.195
132843 21.925
131398 22.210
*132844 21.955
*131399 22.225
132845 21.985
*131400 22.240
132846 22.470
131401 22.255
132847 22.510
131402 22.270
132848 22.540
131403 22.285
132849 22.570
131404 22.300
132850 22.600
131405 22.315
132851 22.630
131406 22.330
132852 22.660
131407 22.345
132853 22.680
PINION BRG SPACER KIT: 504042
Models: ALL R170, S170, R190, S190
Dana P/N Spacer Thickness (mm)
131053 7.750
131074 8.140
132825 7.765
131075 8.155
131054 7.780
131076 8.170
132826 7.795
*131077 8.185
131055 7.810
131078 8.200
132827 7.825
*131079 8.215
131056 7.840
131080 8.230
132828 7.855
131081 8.245
131057 7.870
131082 8.260
*132829 7.885
*132830 8.275
131058 7.900
131083 8.290
131059 7.915
*132831 8.305
*131060 7.930
131084 8.320
Dana P/N Spacer Thickness (mm)
131061 7.945
132832 8.335
131062 7.960
131085 8.350
131063 7.975
132833 8.365
131064 7.990
*132834 8.395
*131065 8.005
131086 8.380
131066 8.020
131087 8.410
131067 8.035
132835 8.425
131068 8.050
131088 8.440
*131069 8.065
132836 8.455
*131070 8.080
132837 8.485
131071 8.095
131089 8.470
131072 8.110
131090 8.500
131073 8.125
*These represent the most popular used spacers and each Bearing Spacer Kit contains qty 1 each.
29
Wheel Differential Case
Spicer Wheel Differential Case Kits
Wheel Differential Case Kit Reference Chart:
Kit Part-NO Flange Half (A) Plain Half (B) (B) Plain Half Case Design Ring Gear Bolts (C)
504134 139996 140004
504135 139997 140003 131473
504136 139998 140002 (qty-16)
504137 139996 140003 Note - 504069
504138 139997 140002 Bolt Kit Contains
504139 139997 139999 DL qty 16 of
504140 139997 140000 DL
504141 139998 139999 DL
504142 139996 140001 DL
504143 139996 140000 DL
DL = Diff Lock Splined Diff Case
All new designed Plain Half diff cases now have "Lubrication Holes"
Wheel Differential Case Kits
Dana Wheel Differential Cases are sold individually and in kit form. When doing ratio changes or replacing original diff cases from the field, check the individual part numbers you are replacing to ensure you are installing or ordering the correct parts. Be sure to know which model design is being worked on. Refer to the Model & Ratio chart matrix for case & kit part numbers.
SERVICE Flange Half Plain Half Dana Model Ratio KIT Case Case
3.07
3.21
3.42
3.58 504135 139997 140003
3.73
D170 3.91
D170P 4.10
S170E 4.30 504136 139998 140002
4.56
4.78
5.25
5.38 504135 139997 140003
5.57
6.14
6.83 504136 139998 140002
7.17
Each Dana Diff Case Service Kit contains 16 bolts, part number 131473
504134 139996 140004
30
Wheel Differential Case
SERVICE Flange Half Plain Half Dana Model Ratio KIT Case Case
3.07 504137 139996 140003
3.21
3.42 504135 139997 140003
3.58
3.73 504137 139996 140003
3.91
S170S 4.10
R170S 4.30
4.56
4.78
5.25
5.38
5.57
6.14 504138 139997 140002
6.83
7.17
3.07
3.21
3.42
3.58
3.73 504139 139997 139999
D170D 3.91 504141 139998 140025
D170DP 4.10
4.30
4.56
4.78
5.25
5.38 504140 139997 140000
5.57
6.14 504141 139998 140025
6.83
7.17
Each Dana Diff Case Service Kit contains 16 bolts, part number 131473
504136 139998 140002
504136 139998 140002
504142 139996 140001
504140 139997 140000
504136 139998 140002
504136 139998 140002
31
Wheel Differential Case
SERVICE Flange Half Plain Half Dana Model Ratio KIT Case Case
3.07 504143 139996 140000
3.21
3.42 504140 139997 140000
3.58
3.73 504143 139996 140000
3.91 504141 139998 140025
S170D 4.10
R170D 4.30
S170DR 4.56
4.78 504136 139998 140002
5.25
5.38
5.57
6.14 504139 139997 139999
6.83
7.17
3.42
3.58
3.73 504139 139997 139999
3.91 504141 139998 140025
4.10
D190 4.30
D190D 4.56
S190E 4.78
S190DE 5.25
5.38 504140 139997 140000
5.57
6.14 504141 139998 140025
6.83
7.17
Each Dana Diff Case Service Kit contains 16 bolts, part number 131473
504136 139998 140002
504140 139997 140000
504136 139998 140002
504136 139998 140002
32
Wheel Differential Case
SERVICE Flange Half Plain Half Dana Model Ratio KIT Case Case
2.53
2.69
2.87 504142 139996 140001
2.93
3.07
3.21
3.42
R190 3.58
R190D 3.73 504140 139997 140000
S190 3.91
S190D 4.10 504139 139997 139999
S190R 4.30 504141 139998 140025
S190DR 4.56
4.78 504136 139998 140002
5.25
5.38 504140 139997 140000
5.57
6.14
6.83
7.17 504136 139998 140002
7.83
4.75
4.99
5.19 504139 139997 139999
5.44 504141 139998 140025
5.70
5.98
D590 6.34
R590 6.65
S590 7.30
7.48 504140 139997 140000
7.75
8.55 504141 139998 140025
9.51
9.97 504136 139998 140002
10.90
Each Dana Diff Case Service Kit contains 16 bolts, part number 131473
504143 139996 140000
504139 139997 139999
504140 139997 140000
504136 139998 140002
33
Wheel Differential Lock Shift Parts
6
7
5
2
3
4
1
10
9
WHEEL DIFFERENTIAL LOCK ASSEMBLY
8
12
11
Differential Lock Shift Parts - All Models Made ON or AFTER June 10, 2013
All Item Description Qty Diff-Lock Notes Models
Kit - Diff Lock Parts Conversion-190 Series (note 1) 504097 Includes items 1-10
Kit - Diff Lock Cylinder Repair 512895 Includes items 2, 5-8
1 Sliding Clutch 1 140024 2 Spring-Compression 1 131102
Kit - Shift Fork & Pin 504095 Includes items 3-4
3 Shift Fork-NSS 1 140008-nss 4 Pin 1 210020 5 Piston & Rod Assembly 1 134482 Will replace 131237 - note 2 6 O-Ring - Piston 1 210180 7 O-Ring - Cap Cover 1 131665 Will replace 220HH102 - note 3 8 Piston Cover (Diff Lock Cap) 1 131096 9 Washer 1 129034 10 Switch 1 129035 11 Plug - Carrier 1 127195 Use for Non Diff Lock Mdls 12 O-Ring & Plug Assy 1 131487 Use for Non Diff Lock Mdls
Note 1: The “170” Series carriers cannot be converted to Diff Lock. You must have the unique base carrier sub-assy that has the Diff Lock shift cylinder. You would need to purchase a replacement carrier. All “190” Series have the shift cylinder as part of the standard design.
Note 2: The 134482 and 131237 are completely interchangeable parts. Dana service will continue to use up the 131237 in kits until further notice.
Note 3: The 220HH102 is replaced by 131665. Parts are completely interchangeable and Dana service will continue to use up the 220HH102 in kits until further notice.
34
Axle Housing Exploded View
7
16
17
18
20
14
22
Welded Rear Cover - D170 Series
15
10
5
6
6
5
1
3
4
11
12
13
21
8
9
19
(long)
(short)
(long)
(short)
2
For Yokes,
see page 55
28
24
23
For Axle Shafts, see pages 43-44
26
25
27
Housing and Output Shaft Assembly Models Made ON or AFTER June 10, 2013
35
Axle Housing Parts List
Housing and Output Shaft Assembly Models Made ON or AFTER June 10, 2013
Item Description Qty All Models Notes
KIT - OUTPUT SHAFT 1 512894 Includes items 1-2
1 Output Shaft -NSS 1 131536-nss Order Kit 512894 2 Output Shaft Nut 1 128049 3 Output Seal 1 210737
KIT - OUTPUT SHAFT BEARING 1 504060 Includes items 4-6
4 Snap Ring 1 134322 .109" x 4.22" 5 Bearing Cup 2 139978 6 Bearing Cone 2 139977 7 Axle Housing - Forward 1 See Axle Hsg Listing pg 36-39 - Refer to assy bill of material 7 Axle Housing - Rear-Rear 1 See Axle Hsg Listing pg 36-39 - Refer to assy bill of material 8 Rear Cover Capscrew - Short 4 131105 55 mm - D190 only (see kit chart pg 34) 9 Rear Cover Capscrew - Long 8 131375 70 mm - D190 only (see kit chart pg 34)
10a KIT-D190 HOUSING COVER 1 504061 Cover # 302576-NSS - 12 hole (see chart pg-35)
10b KIT-S190 HOUSING COVER 1 514322 Cover # 302704-NSS - 14 hole (see chart pg-35)
10c KIT-S590 HOUSING COVER 1 504025 Cover # 302622-NSS - 12 hole (see chart pg-35)
11 Rear Cover Nut 2 127567 D190 only 12 Washer - Rear Cover 2 130877 D190 only 13 Stud - Double Ended 2 132927 D190 only - 80mm length 14 Drain Plug 1 054254 3/4" magnetic 15 Fill Plug 1 129492 3/4" magnetic - All Models
KIT - U-TUBE BREATHER 507162 Includes items 16-17
16 Breather Assy-NSS 1 302706 Order kit 507162 17 Breather Hose & Clamp-NSS 1 129340 Order kit 507162 18 Carrier Capscrew - Long A/R 131106 Carrier to housing (see kit chart pg 34) - 85mm 19 Carrier Capscrew - Short A/R 131105 Carrier to housing (see kit chart pg 34) - 55mm 20 Stud - double ended 2 132927 Carrier to housing - 80mm length 21 Washer 2 130877 Carrier to housing 22 Nut 2 127567 Carrier to housing 23 Spindle Nut - Outer 2 119881 24 Locking Ring 2 119883 25 Spindle Nut - Inner 2 119882 26 Oil Seal 1 304446 190 & 590 models only 27 Spindle Sleeve 1 304447 190 & 590 models only 28 Temperature Sensor Plug 1 90898 1/2" magnetic - All Models 29 Loctite Adhesive .5ml tube 1 129293 Item not illustrated 30 RTV Sealant - 3oz 1 107276S Item not illustrated
36
Axle Housing Kit Summary and
Fastener Kits
Summary of Axle Housing Related Service Kits
Description Kit Part-No. Notes
Output Shaft Bearing Kit-Current Builds 504060 Includes items 4-6 Output Shaft Kit 512894 Includes items 1 and 2 D-Housing Cover Hardware Kit 513351 Includes items 8-9, 11-12 Axle Housing Hardware Kit - Forward 512896 Includes items 18-22, 26-27 Axle Housing Hardware Kit - Rear 512897 Includes items 18-19, 26-27 U-Tube Breather Kit 507162 Includes items 16 and 17
Axle Housing Fastener Hardware Kits
D-Housing Cover or Bolt-On Cover Fastener Kit Model: D190, S190, D590, S590, R590
Dana# 513351
Qty P/N Description
4 131105 Capscrew - 55mm 8 131375 Capscrew - 70mm 2 132927 Stud - dbl ended 2 127567 Nut 2 130877 Washer 1 129293 Loctite Adhesive .5ml tube 1 107276S RTV Sealant - 3oz
Carrier-To-Housing Fastener Kit Models: D170, D190, S190DE, S590, R590
Dana# 512896
Qty P/N Description
9 131105 Capscrew - 55mm 3 131106 Capscrew - 85mm 2 132927 Stud - dbl ended 2 127567 Nut 2 130877 Washer 1 129293 Loctite Adhesive .5ml tube 1 107276S RTV Sealant - 3oz
Carrier-To-Housing Fastener Kit Models: R170, R190, S170, S190
Dana# 512897
Qty P/N Description
10 131105 Capscrew - 55mm 4 131106 Capscrew - 85mm 1 129293 Loctite Adhesive .5ml tube
37
Axle Housing Cover Kits
AXLE HOUSING COVER KITS
The D190, S190 & S590 models have a bolt on axle housing covers, shown below are the kit contents.
D190 - AXLE HSG COVER & BRG PARTS KIT: 504061
Qty Per Item Description Axle Part-No. Notes
1 COVER - AXLE HOUSING 1 134324 2 PLUG - COVER 1 90898 1/2" 3 PLUG - LUBE FILL 1 129492 3/4" non magnetic 4 BEARING CONE 2 139977 5 SNAP RING .109” 1 134322 6 BEARING CUP 2 139978
S190 - AXLE HSG COVER KIT: 514322
Qty Per Item Description Axle Part-No. Notes
1 COVER - AXLE HOUSING 1 302704 (cover not illustrated) S190 mdls only 2 PLUG - COVER 1 90898 1/2" 3 PLUG - LUBE FILL 1 129492 3/4" non magnetic 7 CAPSCREW - LONG 8 131375 70mm 8 CAPSCREW - SHORT 6 131105 55mm 9 WASHER 14 130877
S590 - AXLE HSG COVER KIT: 504025
Qty Per Item Description Axle Part-No. Notes
1 COVER - AXLE HOUSING 1 302622 (cover not illustrated) S590 mdls only 2 PLUG - COVER 1 90898 1/2" 3 PLUG - LUBE FILL 1 129492 3/4" non magnetic
38
Axle Housings
D/R170 Most Popular Bare Axle Housings
Original For Service Wall Replaces Production Order Thickness Trac Old Service Model Part No. Part No. (mm) Length Part No. Misc Design Notes
324252 324252 12.5 2078 321981 no abs blocks 324275 324275 12.5 2078 ----- has abs blocks (0 deg location) D170 324270 324270 16 2078 322891 has abs blocks (0 deg location) 324290 324290 16 2078 ----- has abs blocks (90 deg location) 324271 324271 16 2222 322895 has abs blocks (0 deg location)
322484-nss 322485 11 2078 ----- no abs blocks R170, S170 323301-nss 322703 12.5 2078 ----- has abs blocks (0 deg location) 322968-nss 322969 16 2078 ----- has abs blocks (0 deg location) 322896-nss 322897 16 2222 ----- has abs blocks (0 deg location)
nss = not sold seperately
D170 AXLE HOUSING REPLACEMENT CHART
Torque Rod Current For Service Wall Bracket or Production Order Thickness Trac ABS Tracking Rod Hanger Part No. Part No. (mm) Length Blocks Brackets Brackets Misc Design Notes
324252 324252 12.5 2078
324253 324270 16 2078
324254 324252 11 2078
324255 call dana 12.5 2078 x x
324256 call dana 12.5 2078 x x
324257 call dana 12.5 2078 x
324258 call dana 12.5 2078 xx x
324259 324259 16 2078 x
324260 call dana 16 2078 x
324261 call dana 12.5 2078 x
324262 324262 12.5 2078 x
324263 call dana 11 2078 x
324264 call dana 11 2078 x
324265 324265 11 2078 x
324266 324266 12.5 2078 x
324267 call dana 12.5 2078 x x
324268 call dana 12.5 2078 xx x
324269 324252 11 2078
324270 324270 16 2078 x
324271 324271 16 2222 x
324272 324272 16 2222 x
324273 call dana 16 2078 x x
324274 call dana 16 2222 x x
324275 324275 12.5 2078 x
324276 324276 12.5 2078 x
324277 324277 12.5 2078 x
324278 324278 16 2078 x
324279 324279 16 2078 x x
39
Axle Housings
D170 AXLE HOUSING REPLACEMENT CHART (Continued)
Torque Rod Current For Service Wall Bracket or Production Order Thickness Trac ABS Tracking Rod Hanger Part No. Part No. (mm) Length Blocks Brackets Brackets Misc Design Notes
324280 call dana 16 2078 x
324281 324252 12.5 2078
324282 call dana 12.5 2078 x
324283 324270 16 2078
324284 324284 16 2078 x x
324285 324271 16 2222
324286 324275 11 2078 x
324287 call dana 11 2078 x
324288 call dana 11 2078 x
324289 call dana 16 2078 x
324290 324290 16 2078 x
324291 324291 16 2078 x
324292 324252 11 2078
324293 324271 16 2222
324294 call dana 16 2222 x x
324295 call dana 16 2222 x x
324296 324270 16 2078
324297 324297 12.5 2078 x
324298 324298 16 2078 x
324299 call dana 11 2078 x
324300 324252 12.5 2078
324301 call dana 12.5 2078 unique flg dia.
324302 call dana 12.5 2078 x xx x
324303 call dana 12.5 2078 x xx x
324304 call dana 16 2078 x xx x
324305 call dana 16 2078 x xx x
324306 call dana 16 2222 x xx x
324307 call dana 16 2222 x xx x
324308 call dana 12.5 2078 x x x
324309 call dana 16 2078 x x
324310 call dana 11 2078 x
324311 324270 16 2078
324312 324312 16 2078 x x
324313 call dana 16 2078 x
324314 324314 12.5 2078 x
324315 call dana 16 2078 x x
324316 324316 12.5 2078 x
324317 call dana 11 2078 x
324318 call dana 16 2222 x x
324319 call dana 16 2078 x x x
324320 324320 12.5 2078 x x x
324321 call dana 16 2078 x
324322 call dana 16 2078 x x x
Torque Rod
40
Axle Housings
Current For Service Wall Bracket or Production Order Thickness Trac ABS Tracking Rod Hanger Part No. Part No. (mm) Length Blocks Brackets Brackets Misc Design Notes
324323 324252 11 2078
324324 324324 16 2078 x
324325 call dana 12.5 2078 xx x
324326 324326 16 2078 xx x
324327 324327 16 2222 x
324328 call dana 12.5 2078 x x
324329 call dana 16 2078 x x
324330 call dana 11 2078 x
324331 call dana 16 2078 x x
324332 call dana 12.5 2078 x xx x
324333 call dana 12.5 2078 x x
324334 324271 16 2222
324335 call dana 16 2222 x x
324336 call dana 16 2078 x
324337 call dana 16 2078 x
324338 324338 12.5 2078 x x
324339 call dana 16 2222 x
324340 call dana 12.5 2078 x x
324341 call dana 16 2222 x
324342 324342 12.5 2078 x
324343 324343 16 2222 x
324344 call dana 11 2078 x
324345 call dana 16 2078 x
324346 call dana 11 2078 x
324347 call dana 12.5 2078 x
324348 call dana 16 2222 x
324349 call dana 16 2078 x x
324350 call dana 16 2078 x xx x
324351 call dana 12.5 2078 x
324352 call dana 11 2078 x xx x
324353 call dana 11 2078 x xx x
324354 call dana 12.5 2078 x xx x
324355 call dana 12.5 2078 x xx x
324356 call dana 16 2078 x xx x
324357 call dana 16 2078 x xx x
324358 call dana 16 2222 x xx x
324359 call dana 16 2222 x xx x
324360 call dana 11 2078 xx x
324361 call dana 11 2078 xx x
324362 call dana 12.5 2078 xx x
324363 call dana 12.5 2078 xx x
324364 call dana 16 2078 xx x
324365 call dana 16 2078 xx x
324366 call dana 16 2222 xx x
324367 call dana 16 2222 xx x
41
Axle Housings
R170/S170 AXLE HOUSING REPLACEMENT CHART
Torque Rod Current For Service Wall Bracket or Production Order Thickness Trac ABS Tracking Rod Hanger Part No. Part No. (mm) Length Blocks Brackets Brackets Misc Design Notes
322484 322485 11 2078 bare service hsg
322648 322649 12.5 2078 x
322748 322749 12.5 2078 x
322756 322757 11 2078 x
322866 322867 11 2078 x
322892 322892 16 2078 x abs block offset
322896 322897 16 2222 x
322900 322901 16 2222 x
322904 322905 16 2078 x x
322936 322937 11 2078 x
322958 322959 12.5 2078 x x
322962 322963 12.5 2078 x x
322966 322967 12.5 2078 x x x
322968 322969 16 2078 x
322972 322973 16 2078 x x
322976 322977 16 2078 x x x
323270 323271 11 2078 x roll over design
323301 322703 12.5 2078 x
323341 502003 11 2078 x x
323391 502074 12.5 2078 roll over design
323392 323392 16 2078 roll over design
323411 502054 16 2078 x x
323436 323436 16 2078 x
323440 502017 12.5 2078 x
323456 502014 16 2078 x x
323458 502065 12.5 2078 x
323471 502059 12.5 2078 x
323509 502009 16 2078 x x x
323533 502064 16 2078 x x
323534 323059 16 2078 x
323562 502021 16 2222 x
323575 323575 11 2078 x
323664 502080 12.5 2078 x
323790 323790 12.5 2078 x
323885 502067 12.5 2078 x x
323919 323919 12.5 2078 x roll over design
323923 323923 16 2078 x x
323977 502084 16 2222 x
42
Axle Shafts
Axle Shafts
Dana 170/190 series axle shafts are used in “sets,” and are shown as sets in the chart below. They have unequal shaft lengths and are “location specific” and/or “Wheel Equipment specific.” When replacing the axle shafts, locate the axle shaft part number in the chart or select the correct axle shaft using the dimensional information. Always verify part numbers before placing your order.
DO NOT MISPLACE AXLE SHAFTS FROM THEIR INTENDED LOCATION.
Axle Shafts - For Standard Models
Part No. Qty Spline Body O.D. Shaft Length Spline Length BC Dim. Flange O.D. Flange Holes
Models: D/R170, S170, S190(note 1)
131428 1 46 2.06 37.000 3.70 7.000 8.500 .948-TPR
131429 1 46 2.06 46.000 3.70 7.000 8.500 .948-TPR
131804 1 46 2.06 45.150 3.70 7.000 8.500 .773-STR
131805 1 46 2.06 36.150 3.70 7.000 8.500 .773-STR
Models: D/R190, S190, D/S590, S170E, S190E
131246 1 46 2.25 37.000 3.70 7.000 8.500 .948-TPR
131247 1 46 2.25 46.000 3.70 7.000 8.500 .948-TPR
131516 1 46 2.25 45.150 3.70 7.000 8.500 .948-TPR
131517 1 46 2.25 37.716 3.70 7.000 8.500 .948-TPR
Note 1:In some Dana approved S21-190 and S23-190 single axle applications, 2.06" body diameter axle shafts are used. Always check the part number on the axle shaft or oem axle bom before ordering replacement parts. Aways use Dana Genuine OE approved parts for the applications they were intended.
Axle Shaft - For Diff Lock Models
Part No. Qty Spline Body O.D. Shaft Length Spline Length BC Dim. Flange O.D. Flange Holes
Models: D/R170D, S170D, D/R190D, S190D, D590D, S590D, S190DE
131245 1 46 2.25 46.000 11.50 7.000 8.500 .948-TPR
131246 1 46 2.25 37.000 3.70 7.000 8.500 .948-TPR
131740 1 46 2.25 45.150 11.50 7.000 8.500 .948-TPR
131741 1 46 2.25 36.150 3.70 7.000 8.500 .948-TPR
131719 1 46 2.25 47.150 11.50 7.244 8.500 .948-TPR
131720 1 46 2.25 38.425 3.70 7.244 8.500 .948-TPR
131806 1 46 2.25 45.150 11.50 7.000 8.500 .773-STR
131807 1 46 2.25 36.150 3.70 7.000 8.500 .773-STR
43
Axle Shafts
Axle Shaft - Wide Track Models
Part No. Qty Spline Body O.D. Shaft Length Spline Length BC Dim. Flange O.D. Flange Holes
Models: D/R170D, S170D, D/R190D, S190D, D590D, S590D, S190DE
131503 1 46 2.25 48.835 11.50 7.000 8.500 .948-TPR
131504 1 46 2.25 39.835 3.70 7.000 8.500 .948-TPR
131717 1 46 2.25 46.949 11.50 7.244 8.500 .948-TPR
131718 1 46 2.25 38.898 3.70 7.244 8.500 .948-TPR
131721 1 46 2.25 48.425 11.50 7.244 8.500 .948-TPR
131722 1 46 2.25 39.331 3.70 7.244 8.500 .948-TPR
131721 1 46 2.25 48.425 11.50 7.244 8.500 .948-TPR
131723 1 46 2.25 40.394 3.70 7.244 8.500 .948-TPR
131724 1 46 2.25 50.945 11.50 7.244 8.500 .948-TPR
131725 1 46 2.25 42.894 3.70 7.244 8.500 .948-TPR
131726 1 46 2.25 53.445 11.50 7.244 8.500 .948-TPR
131727 1 46 2.25 45.394 3.70 7.244 8.500 .948-TPR
131750 1 46 2.25 49.291 11.50 7.244 8.500 .948-TPR
131751 1 46 2.25 40.196 3.70 7.244 8.500 .948-TPR
134052 1 46 2.25 50.154 11.50 7.000 8.500 .948-TPR
134054 1 46 2.25 41.154 3.70 7.000 8.500 .948-TPR
Note 2: When doing "Upgrades" from Non-Diff Lock applications to "Diff Lock" in the 170 series, both axle shafts must be replaced by the 2.25" body diameter design, refer to the chart to select the correct axle shafts.
44
Service Carriers
Service Carrier Part Numbers - All Models
D170(P) - Standard Carrier
17.7" Ring Gear Diameter Side Gear # 300GD101
These new carrier units directly replace tandem forward models D40-170(P), D46-170(P), and D46-170H(P) with no modifications.
Ratio Side Non-Pump Pump Notes Gear New New Spline Carrier Carrier
3.07 46 Inv 683000 683034
3.21 46 Inv 683001 683035
3.42 46 Inv 683003 683037
3.58 46 Inv 683004 683038
3.73 46 Inv 683005 683039
3.91 46 Inv 683006 683040
4.10 46 Inv 683007 683041
4.30 46 Inv 683008 683042
4.56 46 Inv 683009 683043
4.78 46 Inv 683010 683044
5.25 46 Inv 683011 683045
5.38 46 Inv 683012 683046
5.57 46 Inv 683013 683047
6.14 46 Inv 683014 683048
6.83 46 Inv 683015 683049
7.17 46 Inv 683016 683050
R170 - Standard Carrier and No Spin Carrier
17.7" Ring Gear Diameter Side Gear # 300GD101 No Spin # 131882
Note: Drive Axle Tag may read R46-170, S23-170
These new carrier units directly replace tandem rear-rear models R40-170, R46-170, and single axle models S21-170, S23-170, and S26-170 with no modifications.
Ratio Side New No Spin Gear Service Service Spline Carrier Carrier
3.07 46 Inv 683183 683519
3.21 46 Inv 683184 683520
3.42 46 Inv 683186 683521
3.58 46 Inv 683187 683522
3.73 46 Inv 683188 683523
3.91 46 Inv 683189 683524
4.10 46 Inv 683190 683525
4.30 46 Inv 683191 683408
4.56 46 Inv 683192 683409
4.78 46 Inv 683193 683410
5.25 46 Inv 683194 683411
5.38 46 Inv 683252 683412
5.57 46 Inv 683253 683382
6.14 46 Inv 683254 683413
6.83 46 Inv 683255 683414
7.17 46 Inv 683256 683526
45
Service Carriers
D170D(P) - Diff Lock Carrier
17.7" Ring Gear Diameter Side Gear # 300GD101
These new carrier units will directly replace tandem forward models D40-170D(P), D46-170D(P), and D46-170DH(P) with no modifications.
Ratio Side Non-Pump Pump Notes Gear New New Spline Carrier Carrier
3.07 46 Inv 683017 683051
3.21 46 Inv 683018 683052
3.42 46 Inv 683020 683054
3.58 46 Inv 683021 683055
3.73 46 Inv 683022 683056
3.91 46 Inv 683023 683057
4.10 46 Inv 683024 683058
4.30 46 Inv 683025 683059
4.56 46 Inv 683026 683060
4.78 46 Inv 683027 683061
5.25 46 Inv 683028 683062
5.38 46 Inv 683029 683063
5.63 46 Inv 683030 683064
6.14 46 Inv 683031 683065
6.83 46 Inv 683032 683066
7.17 46 Inv 683033 683067
R170D - Diff Lock Carrier
17.7" Ring Gear Diameter Side Gear # 300GD101
Note: Drive Axle Tag may read R46-170D or S23-170D
These new carrier units directly replace tandem rear-rear models R40-170D, R46-170D, and single axle models S21-170D and S23-170D with no modifications.
Ratio Side New Notes Gear Service Spline Carrier
3.07 46 Inv 683198
3.21 46 Inv 683199
3.42 46 Inv 683201
3.58 46 Inv 683202
3.73 46 Inv 683203
3.91 46 Inv 683204
4.10 46 Inv 683205
4.30 46 Inv 683206
4.56 46 Inv 683207
4.78 46 Inv 683208
5.25 46 Inv 683209
5.38 46 Inv 683257
5.57 46 Inv 683258
6.14 46 Inv 683259
6.83 46 Inv 683260
7.17 46 Inv 683261
46
Service Carriers
D190 - Standard Carrier
18.50" Ring Gear Diameter Side Gear # 300GD101
These new carrier units will directly replace tandem forward models D52-190, and D60-190 with no modifications. See Note 2.
Ratio Side New Notes Gear Service Spline Carrier
3.42 46 Inv 683068
3.58 46 Inv 683069
3.73 46 Inv 683070
3.91 46 Inv 683071
4.10 46 Inv 683072
4.30 46 Inv 683073
4.56 46 Inv 683074
4.78 46 Inv 683075
5.25 46 Inv 683076
5.38 46 Inv 683077
5.57 46 Inv 683078
6.14 46 Inv 683079
6.83 46 Inv 683080
7.17 46 Inv 683081
R190 - Standard Carrier and No Spin Carrier
18.50" Ring Gear Diameter Side Gear # 300GD101
Note: Drive Axle Tag may read R46-190 or S23-190
These new carrier units will directly replace tandem rear rear models R46-190, R52-190, and single axle models S23-190, S26-190, and S30-190 with no modifications.
Ratio Side New No Spin Gear Service Service Spline Carrier Carrier
2.53 46 Inv 683288
2.69 46 Inv 683210 683527
2.87 46 Inv 683211 683528
2.93 46 Inv 683212 683529
3.07 46 Inv 683213 683530
3.21 46 Inv 683214 683531
3.42 46 Inv 683216 683532
3.58 46 Inv 683217 683533
3.73 46 Inv 683218 683534
3.91 46 Inv 683219 683535
4.10 46 Inv 683220 683536
4.30 46 Inv 683221 683537
4.56 46 Inv 683222 683538
4.78 46 Inv 683223 683539
5.25 46 Inv 683224 683540
5.38 46 Inv 683225 683415
5.57 46 Inv 683226 683416
6.14 46 Inv 683227 683417
6.83 46 Inv 683228 683418
7.17 46 Inv 683229 683541
7.83 46 Inv 683230 683542
Note: Dana D190 Forward models come standard with lube pump. Serial tags for production axles may not carry the traditional “P” designation in the model identifier.
47
Service Carriers
D190D - Diff Lock Carrier
18.50" Ring Gear Diameter Side Gear # 300GD101
These new carrier units will directly replace tandem forward models D52-190D with no modifications.
Ratio Side New Notes Gear Service Spline Carrier
3.42 46 Inv 683082
3.58 46 Inv 683083
3.73 46 Inv 683084
3.91 46 Inv 683085
4.10 46 Inv 683086
4.30 46 Inv 683087
4.56 46 Inv 683088
4.78 46 Inv 683089
5.25 46 Inv 683090
5.38 46 Inv 683091
5.57 46 Inv 683092
6.14 46 Inv 683093
6.83 46 Inv 683094
7.17 46 Inv 683095
R190D - Rear Rear w/ Diff Lock
18.50" Ring Gear Diameter Side Gear #300GD101
Note: Drive Axle Tag may read R46-190D or S23-190D
These new carrier units will directly replace tandem forward models R46-190D, R52-190D, and single axle models S23-190D, S26-190D, and S30-190D with no modifications.
Ratio Side New Notes Gear Service Spline Carrier
2.53 46 Inv 683478
2.69 46 Inv 683231
2.87 46 Inv 683232
2.93 46 Inv 683233
3.07 46 Inv 683234
3.21 46 Inv 683235
3.31 46 Inv 683236
3.42 46 Inv 683237
3.58 46 Inv 683238
3.73 46 Inv 683239
3.91 46 Inv 683240
4.10 46 Inv 683241
4.30 46 Inv 683242
4.56 46 Inv 683243
4.78 46 Inv 683244
5.25 46 Inv 683245
5.38 46 Inv 683246
5.57 46 Inv 683247
6.14 46 Inv 683248
6.83 46 Inv 683249
7.17 46 Inv 683250
7.83 46 Inv 683251
48
Note: Dana D190D Forward models with Diff Lock come standard with lube pump. Serial tags for production axles may not carry the traditional “P” designation in the model identifier.
Service Carriers
S170R - Retarder Ready Carrier
17.7" Ring Gear Diameter Side Gear # 300GD101
These new carrier units directly replace single axle models S23-170R, S26-170R and S30-170R with no modifications.
Side Gear New Ratio Spline Carrier Notes
5.25 46 Inv 683349
S170BC - GenTech™ Quiet Gearing
17.7" Ring Gear Diameter Side Gear # 300GD101
These new carrier units directly replace single axle models S21-170BC, S23-170BC, S25-170BC with no modifications.
Side Gear New Ratio Spline Carrier Notes
4.30 46 Inv 683394
4.78 46 Inv 683500
S170DBC - Diff lock w/GenTech™ Quiet Gearing
17.7" Ring Gear Diameter Side Gear # 300GD101
These new carrier units directly replace single axle models S21-170DBC, S23-170DBC, S25-170DBC with no modifications.
Side Gear New Ratio Spline Carrier Notes
4.30 46 Inv 683501
4.78 46 Inv 683502
S170DR - Diff Lock w/Retarder Ready Option Carrier
17.7" Ring Gear Diameter Side Gear # 300GD101
These new carrier units directly replace single axle models S23­170DR, S26-170DR and S30-170DR with no modifications.
Side Gear New Ratio Spline Carrier Notes
5.25 46 Inv 683350
49
Service Carriers
S190R - Retarder Ready Option Carrier
18.50" Ring Gear Diameter Side Gear # 300GD101
These new carrier units will directly replace single axle models S30-190R with no modifications.
Side Gear New Ratio Spline Carrier Notes
3.07 46 Inv 683543
3.21 46 Inv 683544
3.42 46 Inv 683545
3.58 46 Inv 683546
3.73 46 Inv 683547
3.91 46 Inv 683548
4.10 46 Inv 683549
4.30 46 Inv 683550
4.56 46 Inv 683551
4.78 46 Inv 683552
5.25 46 Inv 683553
5.38 46 Inv 683554
5.57 46 Inv 683479
6.14 46 Inv 683556
S190DR - Diff Lock w/Retarder Ready Option Carrier
18.50" Ring Gear Diameter Side Gear # 300GD101
These new carrier units will directly replace single axle models S30-190DR with no modifications.
Side Gear New Ratio Spline Carrier Notes
3.07 46 Inv 683593
3.21 46 Inv 683594
3.42 46 Inv 683595
3.58 46 Inv 683596
3.73 46 Inv 683597
3.91 46 Inv 683598
4.10 46 Inv 683599
4.30 46 Inv 683600
4.56 46 Inv 683601
4.78 46 Inv 683602
5.25 46 Inv 683603
5.38 46 Inv 683604
5.57 46 Inv 683605
6.14 46 Inv 683592
50
Service Carriers
D590 - Double Reduction Carrier
18.50" Ring Gear Diameter Side Gear # 300GD101
These new carrier units will directly replace forward models D46­590, D52-590, D60-590, D70-590 with no modifications.
Side Gear New Ratio Spline Carrier Notes
4.75 46 Inv 683096
4.99 46 Inv 683097
5.19 46 Inv 683098
5.44 46 Inv 683099
5.70 46 Inv 683100
5.98 46 Inv 683101
6.34 46 Inv 683102
6.65 46 Inv 683103
7.30 46 Inv 683104
7.48 46 Inv 683105
7.75 46 Inv 683106
8.55 46 Inv 683107
9.51 46 Inv 683108
9.97 46 Inv 683109
10.90 46 Inv 683419
D590D - Double Reduction w/Diff Lock Carrier
18.50" Ring Gear Diameter Side Gear # 300GD101
These new carrier units will directly replace forward models D52­590D, D60-590D and D70-590D with no modifications.
Side Gear New Ratio Spline Carrier Notes
4.75 46 Inv 683110
4.99 46 Inv 683111
5.19 46 Inv 683112
5.44 46 Inv 683113
5.70 46 Inv 683114
5.98 46 Inv 683115
6.34 46 Inv 683116
6.65 46 Inv 683117
7.30 46 Inv 683118
7.48 46 Inv 683119
7.75 46 Inv 683120
8.55 46 Inv 683121
9.51 46 Inv 683122
9.97 46 Inv 683123
10.90 46 Inv 683608
51
Service Carriers
S590 - Double Reduction Carrier
18.50" Ring Gear Diameter Side Gear # 300GD101
These are "Forward" carrier units by design. These carriers will directly replace single axle models called out as; S23-590, S26­590, S30-590, S35-590 and replace tandem models called out as; R46-590, R52-590, R60-590, R70-590 with no modifications.
Side Gear New Ratio Spline Carrier Notes
4.75 46 Inv 683152
4.99 46 Inv 683153
5.19 46 Inv 683154
5.44 46 Inv 683155
5.70 46 Inv 683156
5.98 46 Inv 683157
6.34 46 Inv 683158
6.65 46 Inv 683159
7.30 46 Inv 683160
7.48 46 Inv 683161
7.75 46 Inv 683162
8.55 46 Inv 683163
9.51 46 Inv 683164
9.97 46 Inv 683165
10.90 46 Inv 683276
S590D - Double Reduction with Diff Lock Carrier
18.50” Ring Gear Diameter Side Gear # 300GD101
These are "Forward" carrier units by design. These carrier units will directly replace single axle models called out as; S23-590D, S26-590D, S30-590D and S35-590D and replace models called out as; R52-590D, R60-590D, R70-590D with no modifications.
Side Gear New Ratio Spline Carrier Notes
4.75 46 Inv 683166
4.99 46 Inv 683167
5.19 46 Inv 683168
5.44 46 Inv 683169
5.70 46 Inv 683564
5.98 46 Inv 683621
6.34 46 Inv 683391
6.65 46 Inv 683393
7.30 46 Inv 683565
7.48 46 Inv 683566
7.75 46 Inv 683567
8.55 46 Inv 683392
9.51 46 Inv 683568
9.97 46 Inv 683569
10.90 46 Inv 683277
52
Single Axle - High Entry Carriers
Service Carriers
S170E - High Entry Carrier
17.7" Ring Gear Diameter Side Gear # 300GD101
These are "Forward" carrier units by design. These carrier units directly replace single axle models called out as; S21-170E, S23­170E with no modifications.
Side Gear New Ratio Spline Carrier Notes
3.07 46 Inv 683483
3.21 46 Inv 683484
3.42 46 Inv 683486
3.58 46 Inv 683487
3.73 46 Inv 683488
3.91 46 Inv 683489
4.10 46 Inv 683490
4.30 46 Inv 683491
4.56 46 Inv 683492
4.78 46 Inv 683493
5.25 46 Inv 683494
5.38 46 Inv 683495
5.57 46 Inv 683496
6.14 46 Inv 683497
6.83 46 Inv 683498
7.17 46 Inv 683499
S170DE - High Entry with Diff lock Carrier
17.7" Ring Gear Diameter Side Gear # 300GD101
These are "Forward" carrier units by design. These carrier units directly replace single axle models called out as; S21-170DE, S23-170DE with no modifications.
Side Gear New Ratio Spline Carrier Notes
3.07 46 Inv 683503
3.21 46 Inv 683504
3.42 46 Inv 683505
3.58 46 Inv 683506
3.73 46 Inv 683507
3.91 46 Inv 683508
4.10 46 Inv 683509
4.30 46 Inv 683510
4.56 46 Inv 683511
4.78 46 Inv 683512
5.25 46 Inv 683513
5.38 46 Inv 683514
5.57 46 Inv 683515
6.14 46 Inv 683516
6.83 46 Inv 683517
7.17 46 Inv 683518
53
Service Carriers
S190E - High Entry Carrier
18.50" Ring Gear Diameter Side Gear # 300GD101
These are "Forward" units by design. These carrier units will directly replace single axle models called out as; S23-190E, S26­190E and S30-190E with no modifications.
Side Gear New Ratio Spline Carrier Notes
3.42 46 Inv 683556
3.58 46 Inv 683125
3.73 46 Inv 683557
3.91 46 Inv 683558
4.10 46 Inv 683559
4.30 46 Inv 683560
4.56 46 Inv 683130
4.78 46 Inv 683131
5.25 46 Inv 683561
5.38 46 Inv 683133
5.57 46 Inv 683134
6.14 46 Inv 683135
7.17 46 Inv 683137
7.83 46 Inv 683563
S190DE - High Entry with Diff Lock Carrier
18.50" Ring Gear Diameter Side Gear # 300GD101
These are "Forward" units by design. These carrier units directly replace single axle models called out as: S23-190DE, S26-190DE and S30-190DE with no modifications.
Side Gear New Ratio Spline Carrier Notes
3.42 46 Inv 683138
3.58 46 Inv 683139
3.73 46 Inv 683140
3.91 46 Inv 683141
4.10 46 Inv 683142
4.30 46 Inv 683143
4.56 46 Inv 683144
4.78 46 Inv 683145
5.25 46 Inv 683146
5.38 46 Inv 683147
5.57 46 Inv 683148
6.14 46 Inv 683149
6.83 46 Inv 683150
7.17 46 Inv 683151
54
Yokes
C
A
B
A
C
B
C
A
Yokes & Flanges
To replace the driveline yoke on any of the Dana D170/190, R170/190 or S190 series choose from the chart below. Each Yoke Replacement kit below includes a new pinion nut along with very important installation instructions and torque figures.
Style X
Half Round
Style Y
Full Round
Style Z
Half Round Tapped Holes Bearing Strap
Input Yoke and Slinger Assembly - 49 Inv Spline
Driveshaft Part Number Pinion Nut Series Joint Angle Type Production Reference Numbers
131447K * 131095 1810 30º Half Rd. 6.5-4-5101-1 131448K * 131095 1810 30º Full Rd. 6.5-4-5101 131446K * 131095 SPL250 25º Half Rd. 250-4-1031-1 131520K 131095 1760 30º Half Rd. 5005582 131530K 131095 1710 30º Full Rd. 5008438 131519K 131095 1710 30º Half Rd. 5008439 132863K 131095 SPL170 26.5º Half Rd. 5008444, 5005217 132931K 131095 SPL170 42º Half Rd. 5008461
Output Yoke and Slinger Assembly - 41 Inv Spline
Driveshaft Part Number Pinion Nut Series Joint Angle Type Production Reference Numbers
131449K * 128049 1710 38º Full Rd. 6-4-10301 131450K * 128049 1710 39º Full Rd. 6-4-10301-1 131451K * 128049 SPL170 45º Half Rd. 170-4-1901-1
Rear Pinion Yoke and Slinger Assembly - 49 Inv Spline
Driveshaft Part Number Pinion Nut Series Joint Angle Type Production Reference Numbers
131442K * 131095 1710 30º Full Rd. 6-4-10291 131439K 131095 1710 45º Full Rd. 6-4-10311 131437K * 131095 1710 30º Half Rd. 6-4-10291-1 131438K * 131095 1710 45º Half Rd. 6-4-10311-1 131441K 131095 1760 30º Full Rd. 6-3-4-1861 131440K 131095 1760 30º Half Rd. 6-3-4-1861-1 131444K 131095 1810 30º Full Rd. 6-5-4-5091 131443K 131095 1810 30º Half Rd. 6-5-4-5091-1 131436K 131095 Comp Flg --- Comp Flg 6-1-6281 131433K * 131095 SPL170 25º Half Rd. 170-4-1891-1 131434K * 131095 SPL170 45º Half Rd. 170-4-1911-1 131435K 131095 SPL250 25º Half Rd. 250-4-1021-1
* Most popular - Spicer recommends keeping these in stock
55
Service Kits
Location
Tool
D-Input
210749
D-Output R-Pinion
210749
131471
131472
131472
Pinion Seal Driver Kit
Part Number 513349
Kit includes: 131471, 131472, 210749
Spicer® Tool Kits
56
Quick Reference Service Parts List
Service Kits - Quick Reference List - Models made ON or AFTER June 10, 2013
(Listed by "Part Description" alpha order)
Note* - Parts & Kits Identified with a * asterick are used to service both "BEFORE & AFTER" design models.
Dana P/N Description *Note Model Information
512892 Air Lockout Repair Kit x All D170, 190 Models 512893 Air Lockout Repair Kit - Complete w/ Fork x Only D170 Models
504061 Axle Housing Cover & Brg Pts Kit x All D190 Models (has cover 134324 inside) 514322 Axle Housing Cover Kit x All S190 Models (has cover 302704 inside) 504025 Axle Housing Cover Kit x All S590 Models (has cover 302622 inside)
512896 Axle Hsg Hardware Kit - Forward Axle (carrier to hsg) x All D170, 190 Models 512897 Axle Hsg Hardware Kit - Rear Axle (carrier to hsg) x All R170/R190, S170, S190 513351 Axle Hsg Fastener Kit - (for D-Hsg bolt on covers) x All D190, S190, D/R590, S590 Models
504126 Bearing Kit - D170S, S170E All Ratios 504127 Bearing Kit - D170D All Ratios 504128 Bearing Kit - D190S, D190D, D590, D590D, S590, S590D,
S190E, S190DE All Ratios
504129 Bearing Kit - R170S, S170S Ratios 2.69-3.91 504130 Bearing Kit - R170S, S170S Ratios 4.10-7.17 504131 Bearing Kit - R170D, S170D Ratios 2.69-3.91 504132 Bearing Kit - R170D, S170D Ratios 4.10-7.17 504131 Bearing Kit - R190S, R190D, S190S, S190D Ratios 2.53-4.78 504133 Bearing Kit - R190S, R190D, S190S, S190D Ratios 5.25-7.83
132480 Carrier Sub-Assy R170, S170 132481 Carrier Sub-Assy R170D, S170D Diff Lock Design 132482 Carrier Sub-Assy R190, R190D, S190, S190D Diff Lock Design 132483 Carrier Sub-Assy D170, S170E 132484 Carrier Sub-Assy D170D Diff Lock Design 132485 Carrier Sub-Assy All D190, 590 and S190E, S190DE 132486 Carrier Sub-Assy S170R Retarder Ready 132487 Carrier Sub-Assy S190R Retarder Ready
504097 Diff Lock Conversion Parts Kit All Diff Lock Models 504095 Diff Lock Shift Fork & Pin Kit (fork# 140008) All Diff Lock Models 512895 Diff Lock Shift Parts Repair Kit x All Diff Lock Models 140024 Diff Lock Sliding Clutch All Diff Lock Models
131345 Helical Gear & Bushing Assy x All D170, 190 Models 131343 Helical Gear - Pinion x All D170, 190 Models 139965 IAD Assembly x All Models
504067 Input Cover & Adjuster Kit - D170 x All D170 Models 504066 Input Cover & Adjuster Kit - D190 x Only D190 Models
57
Quick Reference Service Parts List
Service Kits - Quick Reference List - Models made ON or AFTER June 10, 2013
Note* - Parts & Kits Identified with a * asterick are used to service both "BEFORE & AFTER" design models.
Dana P/N Description *Note Model Information
513839 Input Shaft Kit - Non Pump Models x Only D170 Non-Pump Models 513840 Input Shaft Kit - Pump Models x All D170P and All D190 Models 131340 Input Shaft & Helical Gear x All S170E and S190E, S190DE High Entry Models
504065 Lube Pump & Output Side Gear Kit x All D170P and D190 Pump Models
513880 Manifold Parts Kit - Non Pump Models x Only D170 Non-Pump Models 513878 Manifold Parts Kit - Pump Models x All D170P and All D190 Pump Models
131882 No Spin Diff Assy 46 Inv x All Approved D/R170, D/R190 Models
504060 Output Shaft Brg Kit x All D170, 190 Models 512894 Output Shaft Kit (shaft# 131536) x All D170, 190 Models
131095K Pinion Nut Kit x Only D-Input & Rear-Pinion Models
504041 Pinion Bearing Spacer Kit x All D170, D190 and D/R590 504042 Pinion Bearing Spacer Kit x All R170, R190, S170, S190
504069 Ring Gear Bolt Kit x All Models
131008K Seal & Nut Kit x Only D-Input & Rear-Pinion Models (contains 134323 seal) 134323 Seal - Oil x Input Location 210737 Seal - Oil x Output Location 134323 Seal - Oil x R-Pinion
510870 Shift Fork & Spring Kit - IAD x All D170 Models 514142 Shift Fork & Spring Kit - IAD x All D190 Models
513349 Tool - Pinion Seal Driver Tool Kit x All Models 507162 U-Tube Breather Kit x All Models
504134 Wheel Diff Case Kit (139996/140004) Refer to specific model and ratio in charts 504135 Wheel Diff Case Kit (139997/140003) Refer to specific model and ratio in charts 504136 Wheel Diff Case Kit (139998/140002) Refer to specific model and ratio in charts 504137 Wheel Diff Case Kit (139996/140003) Refer to specific model and ratio in charts 504138 Wheel Diff Case Kit (139997/140002) Refer to specific model and ratio in charts 504139 Wheel Diff Case Kit (139997/139999) Refer to specific model and ratio in charts 504140 Wheel Diff Case Kit (139997/140000) Refer to specific model and ratio in charts 504141 Wheel Diff Case Kit (139998/139999) Refer to specific model and ratio in charts 504142 Wheel Diff Case Kit (139996/140001) Refer to specific model and ratio in charts 504143 Wheel Diff Case Kit (139996/140000) Refer to specific model and ratio in charts
504096 Wheel Diff Side Gear Kit w/ Washers - 46 Inv All Models Built After June 10th, 2013 300GD101 Wheel Diff Side Gears 46 Inv x All Models HS108-1 Wheel Diff Side Gear Thrust Washers All Models Built After June 10th, 2013 300HS100-1 Wheel Diff Side Pinion Thrust Washers All Models Built After June 10th, 2013
58
Dana Aftermarket Group
PO Box 321 Toledo, Ohio 43697-0321
Warehouse Distributor: 1.800.621.8084 OE Dealers: 1.877.777.5360
www.spicerparts.com
AXIP-0057A Printed in U.S.A. Copyright Dana Limited, 2013. All rights reserved. Dana Limited.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
