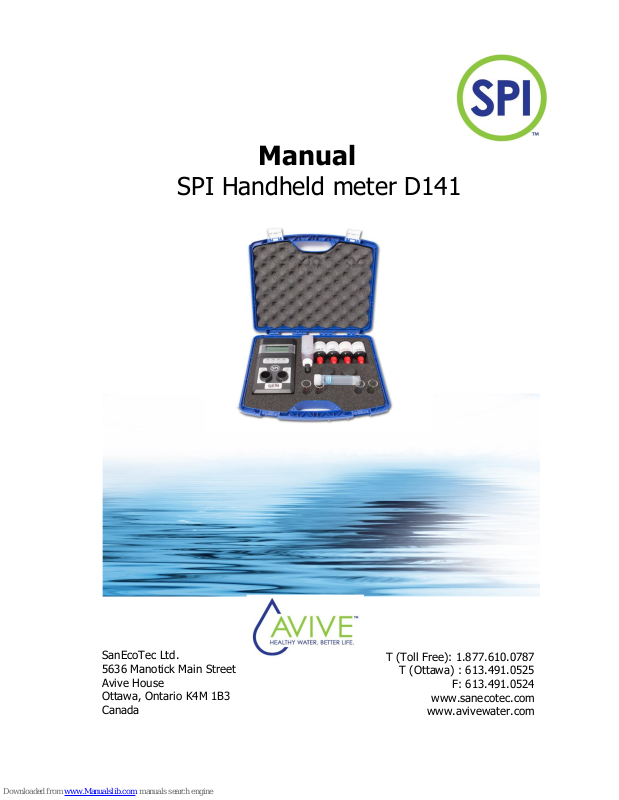

Manual
SPI Handheld meter D141
SanEcoTec Ltd.
5636 Manotick Main Street
Avive House
Ottawa, Ontario K4M 1B3
Canada
T (Toll Free): 1.877.610.0787
T (Ottawa) : 613.491.0525
F: 613.491.0524
www.sanecotec.com
www.avivewater.com
Contents
SPI HANDHELD METER D141 ................................................................................................................ 1
GENERAL INFORMATION .............................................................................................................. 1
1. INTRODUCTION ........................................................................................................................ 2
2. FUNCTION AND OPERATION ..................................................................................................... 3
3. USE OF HANDHELD METER ........................................................................................................ 4
4. SPARE PARTS ............................................................................................................................ 5
5. TO START ................................................................................................................................. 6
6. PREPARATION CHEMICALS. ....................................................................................................... 7
7. USE .......................................................................................................................................... 8
8. SAFETY REGARDS .................................................................................................................... 11
9. MAINTENANCE ....................................................................................................................... 12
10. STORAGE AND TRANSPORT. .................................................................................................. 12
SPI – D141 HANDHELD METER
SPI HSPI
V6 20161007 1
General information
The SPI handheld meter is specifically designed to carry out measurements in the field.
With the design there is aimed at a good price/quality ratio for this unit
This handheld meter can be used to measure the following parameters:
Free available chlorine (VBC)
Total chlorine (Tot. Cl)
pH
Hydrogen peroxide (PerO)
Limited warranty
This manual is made with care, although SanEcoTec is not taking any responsibility according the
consequential for any failures made in this manual.
Copyright notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted, in any form, by any means, electronic, mechanical, photocopying, recording or
otherwise without permission in writing from your supplier.
SPI – D141 HANDHELD METER
SPI HSPI
V6 20161007 2
1. Introduction
Thank you for buying this handheld meter. This manual is made to help you by installation and use of
your handheld meter. We advise to read this manual with care.
You bought our new handheld meter this handheld meter can be used to measure the following
parameters:
Free available chlorine (VBC)
Total chlorine (Tot. Cl)
pH
Hydrogen peroxide (PerO)
Specifications for these parameters:
Measurments
Liquid
Range
Accuracy
VBC
DPD
0-2 mg/l
+/- 0.03 mg/l
Tot. cl
DPD
0-2 mg/l
+/- 0.03 mg/l
pH
Phenol Red
6.8- 8.0 pH
+/- 0.1 pH
PerO
Peroxide color
0-15 ppm
+/- 0.1 ppm
PerO
Peroxide color
15-100 ppm
+/- 1 ppm
These accuracies are based when you take care of all procedures described in this manual.
SPI – D141 HANDHELD METER
SPI HSPI
V6 20161007 3
2. Function and operation
2.1 Warnings:
• This handheld meter is not waterproof, so by usage take care of water in the handheld
meter. Let the handheld meter not left in water. Water can cause damage onto the
electronic circuits.
• After using the cuvettes take care the cuvettes are cleaned properly and rinsed with water,
after rinsing they have to be dried.
• Replace the cuvettes back into the hand case so these cuvettes cannot damage. (Damage of
cuvettes cause problems with measurements).
2.2 Technical specifications :
The power for this instrument is made by 3 batteries type AA 1,5V 2500 mAh.
2.3 Performance:
The handheld meter guarantees a high quality, so take care of this meter with highest
responsibility.
With those batteries can be measured for approximately 300 hours continuously.
2.4 Surrounding influence :
During measurements the results can have influence of light so by every measurement you
have to use the 2 caps to close the cuvettes.
During the measurement of pH you have to take care of temperature disturbing. With the pH
measurement made by phenol red the temperature correction is standard at 25ºC.
SPI – D141 HANDHELD METER
SPI HSPI
V6 20161007 4
3. Use of handheld meter

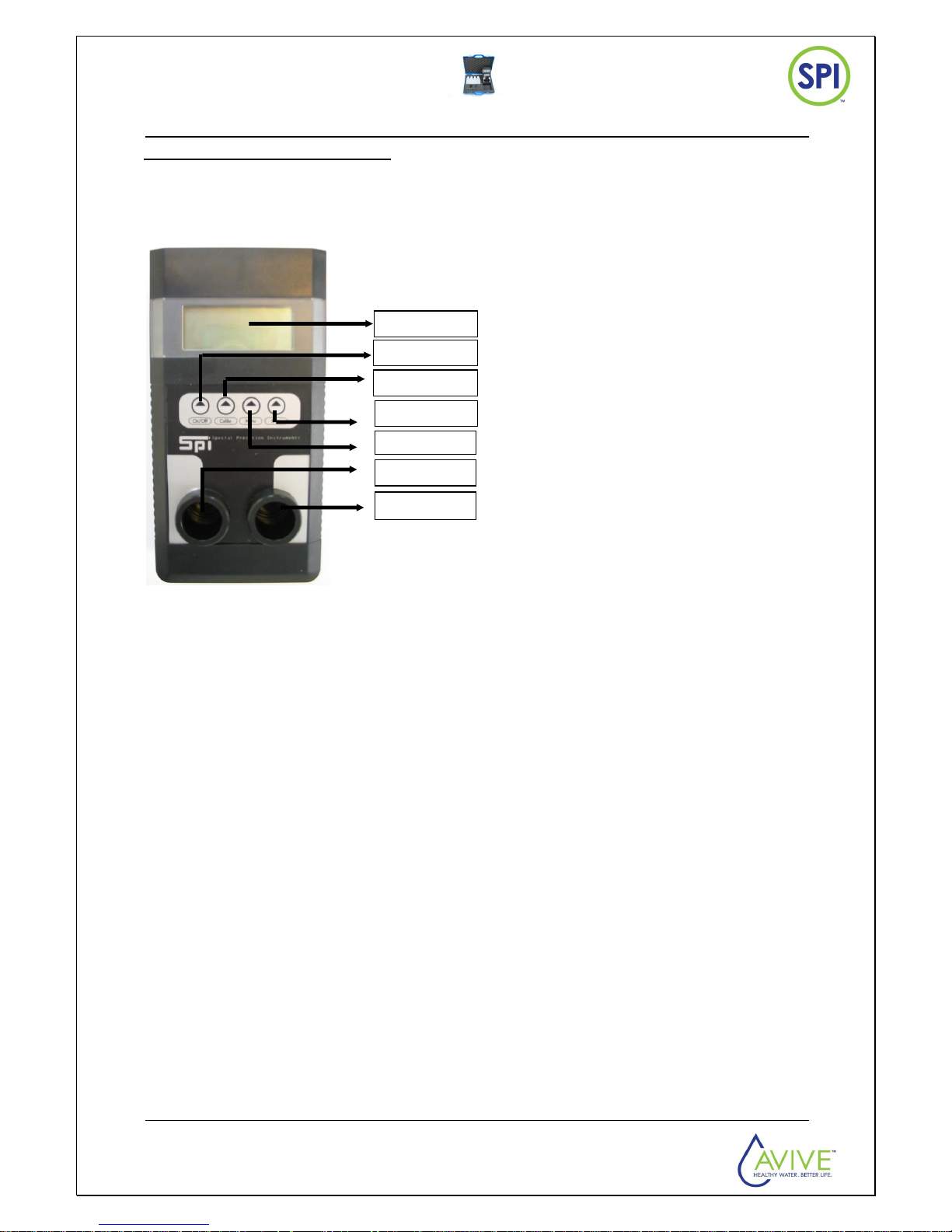

3.1 Handheld meter description:
Parts of the handheld meter :
1 Display.
2 On/Off. This button is used to activate the handheld meter.
3 Calib. This button is used to zero the blanc measurement.
4 Enter. This button is used to confirm your choice.
5 Menu. This button is used to switch to the different parameters of your
handheld meter.
6 Channel 1. Supplied with a blue led . This channel can be used for measurement of
peroxide and is used as reference (blanc) for chlorine and pH.
7 Channel 2. Supplied with a green led. This channel can be used for measurement of
chlorine and pH and is used as reference (blanc) for peroxide.
1 DISPLAY
2 ON/OFF
3 CALIB.
4 ENTER
5 MENU
6 CHANNEL 1
7 CHANNEL 2
SPI – D141 HANDHELD METER
SPI HSPI
V6 20161007 5
4. Spare parts
This handheld meter is delivered include:
• 1 x hand case
• 2 x Caps
• 4 x Cuvettes
• 100 ml Phenol red with pipette
• 1 x graduated cylinder
• 50 ml Peroxide reagent (just PerO measurement)
• 50 ml DPD 1 (just Cl measurement)
• 50 ml Start (just Cl measurement)
• 50 ml Totaal 2 (just Cl measurement)
• 1 x manual
All these spare parts has to be delivered. All these items can be purchased afterwards.
SPI – D141 HANDHELD METER
SPI HSPI
V6 20161007 6
5. To start
5.1 Demand of surrounding:
During measurement the results can have bad influence of light so you use 2 caps to cover the
cuvettes during measurement.
5.2 Installation:
Take the handheld meter out of case and check the cuvettes.
5.3 Cleaning cuvettes:
Before every measurement the cuvettes has to be cleaned. The cuvettes you use has to be clean not
polluted and clear. If not, clean cuvettes properly in- and outside has to be dried.
Pollution in cuvettes can cause disturbance of measurements.
SPI – D141 HANDHELD METER
SPI HSPI
V6 20161007 7
6. Preparation chemicals
6.1 DPD 1:
DPD 1 is ready to use solution.
6.2 Start:
Start is a ready to use solution.
6.3 Totaal 2:
Totaal 2 is a ready to use solution
Take care of the tenability of Totaal 2
6.4 Peroxidecolor:
Peroxide color is a ready to use solution
Take care, All above described solutions has to be stored in the refrigerator.
6.4 Phenol red:
Phenol red is a ready to use solution.
It is not necessary to keep it in the fridge.
SPI – D141 HANDHELD METER
SPI HSPI
V6 20161007 8
7. Use
7.1 Zero calibration:
• Before every measurement a zero calibration has to be done.
• You take 2 empty, clean cuvettes (Glass test tubes) with the appropriate colour line and
rinse off with the measured water.
• Fill these cuvettes with measurement water (Blanc or control).
• Dry the cuvettes on the outside.
• Place both cuvettes in each channel.
• Activate handheld meter by pushing button “On/Off”
• Select by button “menu” the parameter you want to measure and confirm by pushing
button “enter”
• Display shows a number.
• By pushing button “calib.” you confirm the zero calibration.
• Take care, after zero calibration the number in display has to be 0.00.
If so, the zero calibration is done correct.
• When you have a correct zero calibration you can continue your sample measurements.
7.2 Free available chlorine (Cuvette with red line):
After zero calibration you can continue your sample measurement.
The cuvette for Blanc measurement is left in channel 1 (Reference).
The other cuvette must be empty and fill successively this cuvette with:
- 5 drops “Start”
- 5 drops “DPD 1”
- The cuvette must be filled up to the first line in the cuvette with sampling water.
(First line seen from bottom of cuvette).
- Dry the cuvettes on the outside.
- Put the cuvette into channel 2 (Measuring channel).
Read the value from display within 10 seconds and write value down.
7.3 Total chlorine (Cuvette with yellow line):
• After measuring free chlorine you can start measurement of total chlorine.
• Rinse the cuvette with the yellow line with the measured water.
• Fill the cuvette with the yellow line with:
- 5 drops “Totaal 2”
- Pour just measured solution (Pink) from free available into this cuvette.
- Dry the cuvette on the outside.
- Put the cuvette in channel 2 again.
• Read the value from display within 2 minutes and write value down.
When the “Totaal 2”has a yellowish colour, don’t use them anymore.
Suggestion, wrap the bottle in aluminium foil.
Take care of time, also for this measurement you have to wait for 2 minutes.
Use just 1 cuvette ( Always the same cuvette) to fill with “Totaal 2”. This reagent leave
Potassium Iodide in cuvette what can affect your free available chlorine measurement.
SPI – D141 HANDHELD METER
SPI HSPI
V6 20161007 9
After finishing all measurements for total chlorine, the cuvettes has to be cleaned properly.
7.4 pH (Cuvette with blue line):
After zero calibration you can continue your sample measurement.
The cuvette for blanc measurement is left in channel 1 (Reference).
Rinse the blue marked cuvette with the measured water.
Fill the supplied graduated cylinder with 25 ml sample water ( pict. 1 )
Take with the pipette 0.5 ml Phenol Red liquid out of the 100 ml bottle Phenol Red ( pict.2)
Add this 0.5 ml Phenol Red to the sample water in the graduated cylinder ( pict.3)
Put the cap on the graduated cylinder ( pict. 4)
Shake the graduated cylinder gently 3x upside down for a proper mixing ( pict.5)
Fill the blue marked cuvette :
- up to the first line with the water from the graduated cylinder (First line seen from the
bottom cuvette) ( pict. 6)
- Dry the cuvette on the outside.
Put the cuvette into channel 2 (Measuring channel).
The display shows the pH, wait until this value is stable and make note of this..
Picture 1
Picture 2
Picture 3
Picture 4
Picture 5
Picture 6
When 3 horizontal stripes are shown in display, the measurement is out of range. By the colour of
sampling water it easy to see if your sample is in pH too high or too low.
Pink pH 8,0 or higher
Yellow pH 6,8 or lower.
Important :
When the display shows a pH of 8.0 and or 6.8, the measurement is not reliable anymore.
Please use a pH electrode to measure the correct pH.
SPI – D141 HANDHELD METER
SPI HSPI
V6 20161007 10
7.5 Hydrogen peroxide (Cuvette with blue line):
After zero calibration you can continue your sample measurement.
The cuvette for blanc measurement is left in channel 2 (Reference).
Rinse the cuvette with the blue line with the measured water.
The other cuvette must be empty and fill successively this cuvette with:
- 5 drops “Peroxide color.”
- The cuvette must be filled up to the first line in the cuvette with sampling water.
(First line seen from bottom cuvette).
- Dry the cuvettes on the outside.
- Put the cuvette into channel 1 (Measuring channel).
Read the value from display within 10 seconds and write value down.
SPI – D141 HANDHELD METER
SPI HSPI
V6 20161007 11
8. Safety regards
All delivered chemicals can cause health injures so take care handling those chemicals.
R/36/37/38 Irritating for eyes, respiratory organs and skin
S2 Keep out of reach from children.
S20 Do not use any food or drinks during usage.
S45 In case of an accident or when someone feel unwell, contact medical staff
immediately.
Avoid contact with eyes and skin.
By contact with eyes, immediately rinse with a lot of water and contact medical staff.
In case of swallow contact medical staff immediately.
DPD : irritating for eyes, respiratory organs and skin.
Peroxide: Can promote fire for flammable substances.
Causes burn.
Do not eat, drink and smoke during usage.
Wear protection clothes and protection hand gloves.
Use protection for eyes and face.
SPI – D141 HANDHELD METER
SPI HSPI
V6 20161007 12
9. Maintenance
9.1 Routine maintenance:
Take successively following actions:
Clean cuvettes properly
Clean channels with a dry soft tissue.
10. Storage and transport
10.1 Dismantle:
Replace the handheld meter into original hand case get the cuvettes out of handheld meter, take
care there is no water left in handheld meter. Clean cuvettes on proper way and place those into
hand case.
10.2 Pack up:
Pack the handheld meter into original hand case and get the cuvettes out of handheld meter.
SPI – D141 HANDHELD METER
SPI HSPI
V6 20161007 13

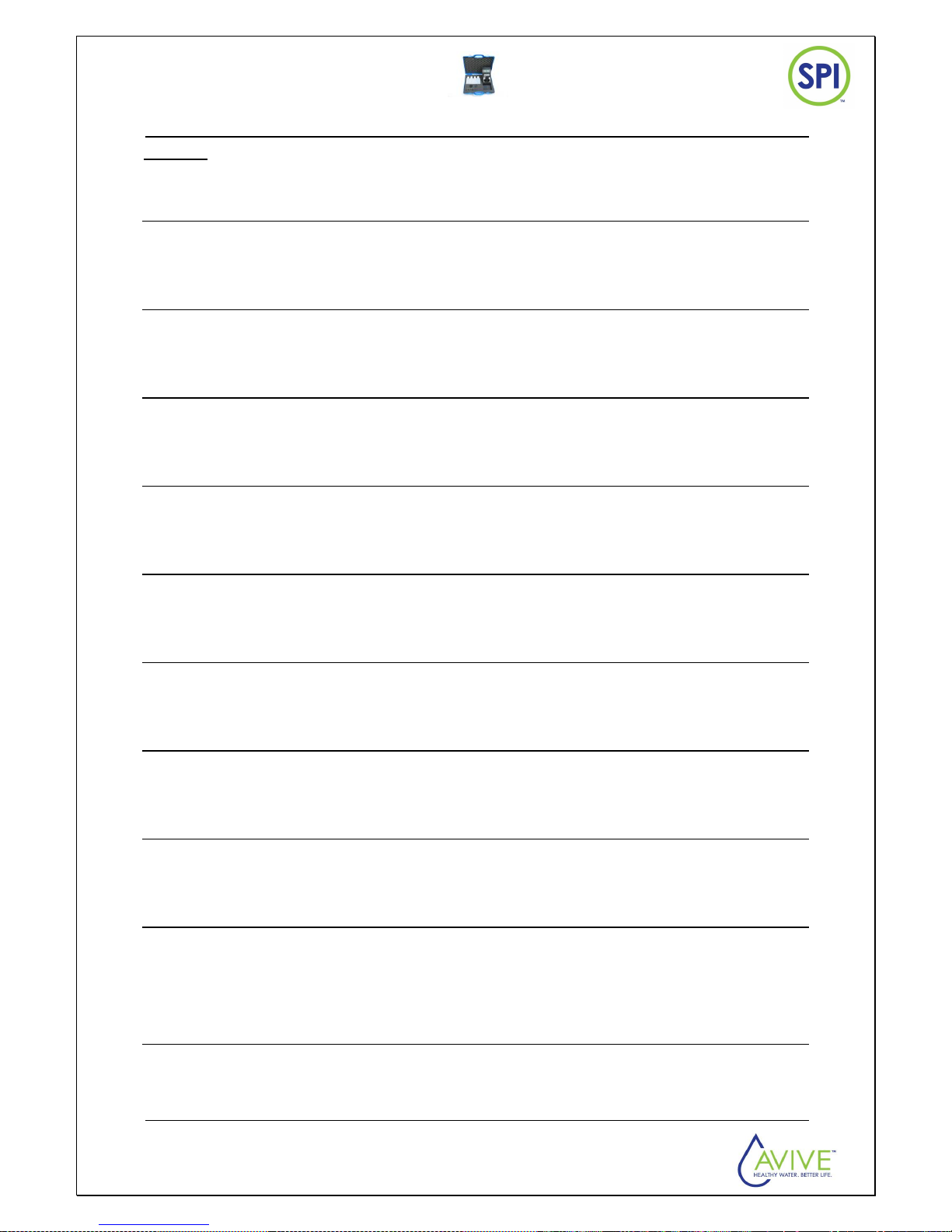

Notes:
SPI – D141 HANDHELD METER
SPI HSPI
V6 20161007 14

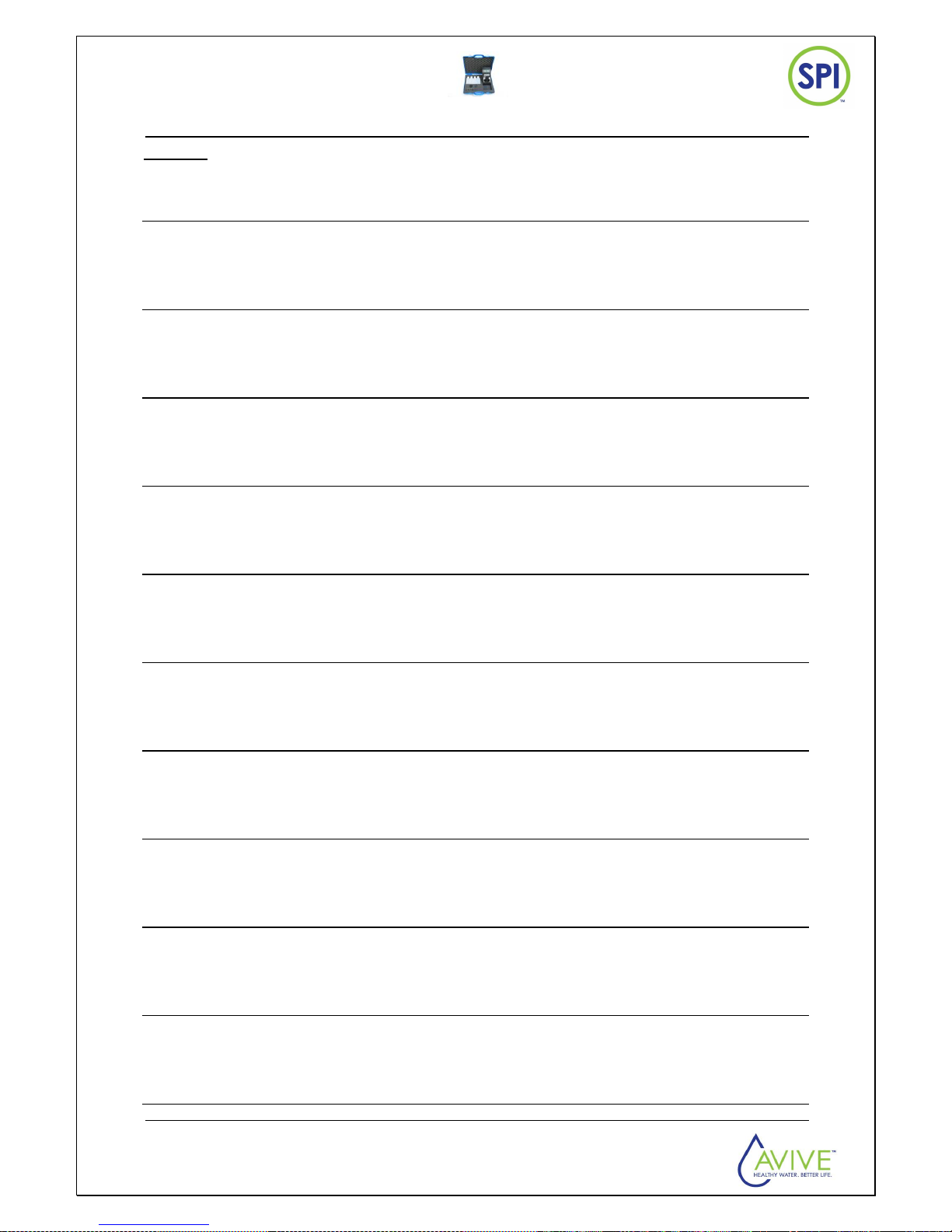

Notes:
SPI – D141 HANDHELD METER
SPI HSPI
V6 20161007 15
Loading...
