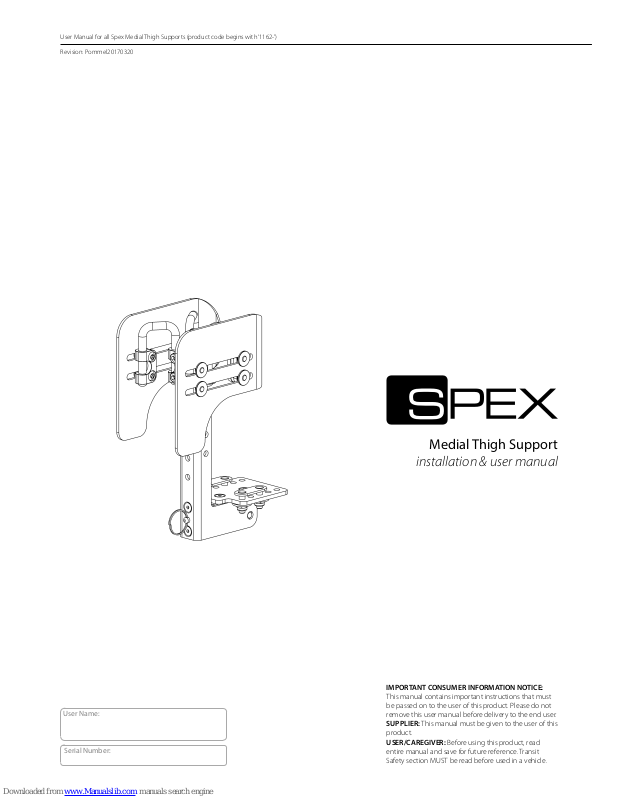

Medial Thigh Support
installation & user manual
®
S
User Name:
Serial Number:
User Manual for all Spex Medial Thigh Supports (product code begins with ‘1162-’)
Revision: Pommel20170320
IMPORTANT CONSUMER INFORMATION NOTICE:
This manual contains important instructions that must
be passed on to the user of this product. Please do not
remove this user manual before delivery to the end user.
SUPPLIER: This manual must be given to the user of this
product.
USER/CAREGIVER: Before using this product, read
entire manual and save for future reference. Transit
Safety section MUST be read before used in a vehicle.
05
SPEX MEDIAL THIGH SUPPORT USER MANUAL
2
WWW.SPEXSEATING.COM
Introduction
Medifab recommends that a clinician such as an Occupational or Physio Therapist
that is skilled in wheelchair seating and positioning be consulted to determine if
the Spex Medial Thigh Support is appropriate for the user. The intended user of the
Medial Thigh Support is a user with postural support requirements.
Safety Instructions
To avoid injury, read, understand and follow all instructions and warnings in this
manual before installing and using the Spex Medial Thigh Support. There are hazards
associated with the use of wheelchairs and adaptive equipment. If you misuse your
wheelchair or your Medial Thigh Support you can be seriously injured. If your Medial
Thigh Support ceases to function as intended, please consult your authorised Spex seating supplier immediately before continuing to use.
The foam meets the ammability requirements of California Technical Bulletin 117, the
fabric meets the ammability requirements of AS/NZS 3744:1. In rare cases the Neoprene
and Lycra fabric may cause a skin irritation for people with sensitive skin. If you experience any reddening or itching of the skin consult with your health care professional.
Disclaimer: Medifab takes no responsibility as to the therapeutic eectiveness of our
products. Our claims relate to the ability of the products to provide safe and reliable
positioning and seating on the equipment onto which they are installed.
Compatibility
• Spex Medial Thigh Support has been designed to be compatible with most wheelchairs.
• If the wheelchair has no access to the seat pan, the Medial Thigh Support will not be
compatible. This occurs on some power wheelchair models.
Disposal & Recycling
Your Spex Seating System is manufactured using a variety of materials, of which most
can be recycled. Once it reaches the end of its life, if you are the legal owner, do not
dispose of as ordinary household waste but take your Spex system to an approved recycling or collection point, to dispose of according to local laws and regulations.
Separate collection and recycling of the Spex System when disposing ensures protection
of the environment and assists with natural resource conservation.
05
SPEX MEDIAL THIGH SUPPORT USER MANUAL
3
WWW.SPEXSEATING.COM
Warning
1. Spex products shipped out disassembled and with brackets attached loosely. It is the installer’s responsibility to
ensure all hardware is installed correctly and tightened before using the wheelchair.
2. Installation and adjustment of your medial thigh support should be performed only by an authorized dealer or
qualied therapist.
3. Medial thigh support must not be modied or changed as this voids warranty.
4. Only use genuine Spex accessories, components and hardware.
5. Never lift the wheelchair by the medial thigh support.
6. Never use the medial thigh support if any hardware is missing, malfunctioning, or broken. Seek qualied assistance with any repairs, replacements or adjustments.
7. A poorly tted medial thigh support can aggravate posture problems and the overall safety of the user.
8. The user must not put excessive force against the medial thigh support.
9. When swinging away the medial thigh support, ensure the user is supported by a carer prior to avoid the user
falling from the wheelchair.
10. Be aware of the pinch points of the swing-away pivot points. Ensure all body parts are kept clear during these
movements and adjustments.
11. The locking mechanism must be correctly locking at all times. If it stops locking do not use the equipment.
12. A medial thigh support is not a device used to prevent the user sliding forward in the seating.
13. Never use the medial thigh support without the padding or cover.
14. Care must be taken when undertaking a user transfer from the seating system. The user may fall from the wheelchair or injure themselves when supports are removed.
15. Never use the medial thigh support without its cover. Care should be exercised near open ame or burning cigarettes. Using the medial thigh support without its cover increases the risk of ammability and skin damage.
Check that the hardware is working correctly, if not you must replace immediately.
Medifab recommends that all fasteners be checked for wear, such as loose bolts or broken
components every 6 months. Loose fasteners should be retightened according to the
installation instructions. Contact your authorized Spex Seating supplier immediately to
replace any broken components. Do not continue to use the system after identifying
loose or broken components. The expected lifetime of the Medial Thigh Support is 5 years.
Cleaning the hardware: Hardware may be wiped clean with mild detergent and
water. Dry thoroughly after wiping.
Cleaning the cover: Machine wash. Do not bleach. Tumble dry (low heat). Do not iron.
Do not dry clean.
If you have any additional questions regarding cleaning procedures, please contact your
authorized Spex Seating dealer.
Maintenance & Cleaning
05
SPEX MEDIAL THIGH SUPPORT USER MANUAL
4
WWW.SPEXSEATING.COM

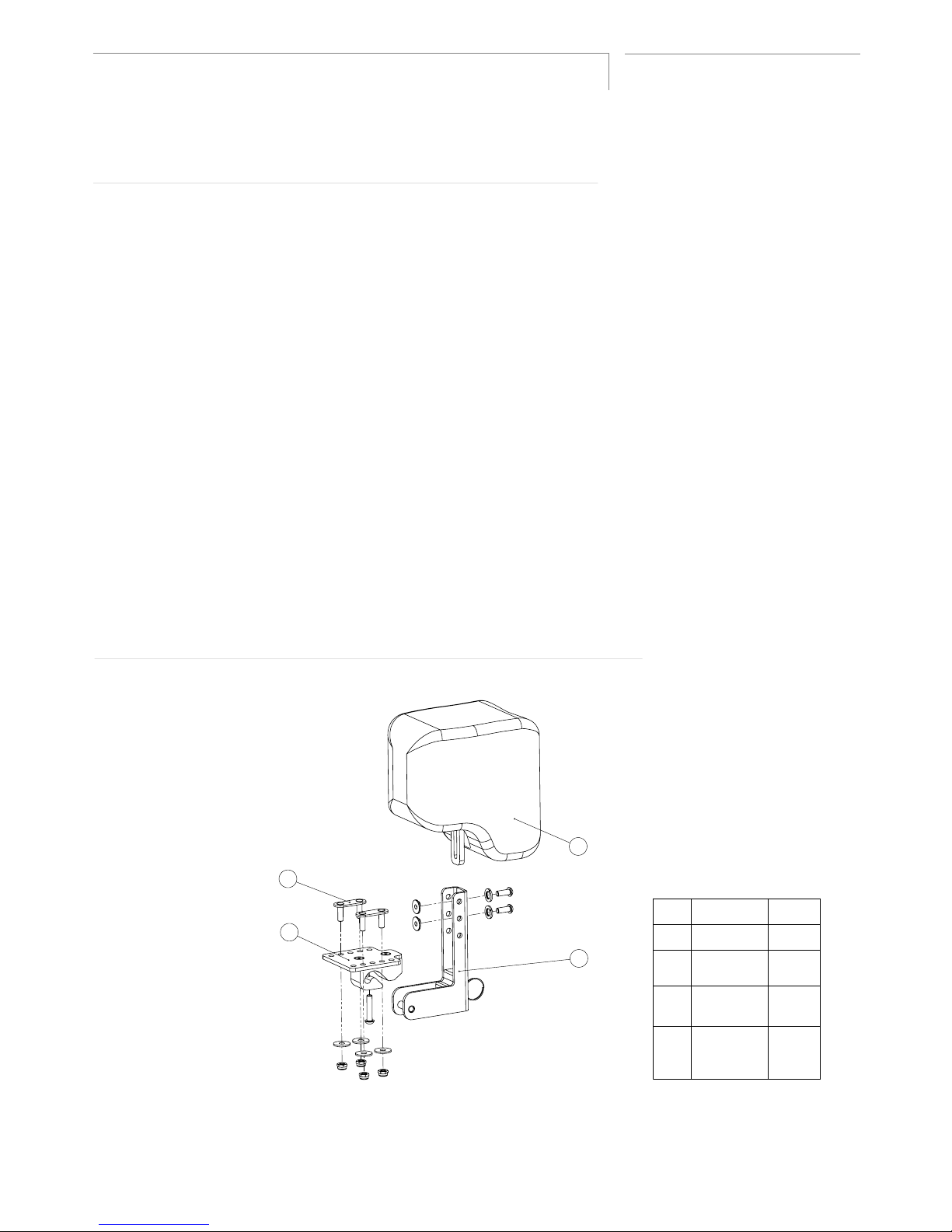

Medial Thigh Support Contents
Your Medial Thigh Support contains the following:
D
A
B
C
DESCRIPTION
QUANTITY
A
Fixing plate
2
B
Mounting block
1
C
Thigh support
1
DESCRIPTION
QUANTITY
A
Fixing plate
2
B
Mounting block
1
C
Thigh support
1
D
Drop down
bracket
1
Environment
Moisture: Keep your Medial Thigh Support dry at all times, as contact with water or
excess moisture could cause corrosion, degradation to the functionality of your Medial
Thigh Support, or potential failure. If your Medial Thigh Support becomes damp or wet,
thoroughly wipe with a dry cloth as soon as possible. Do not use your Medial Thigh Support in a showering or pool facility.
Temperature: Your Medial Thigh Support may not function as intended when used
at extreme temperatures. Keep the Medial Thigh Support away from sources of extreme
heat or extreme cold to avoid burns from the metal components.
Dirt: Small particles such as dust, dirt and sand may restrict optimum functionality.
Regularly check your Medial Thigh Support to ensure no build-up occurs around openings and moving parts.
05
SPEX MEDIAL THIGH SUPPORT USER MANUAL
5
WWW.SPEXSEATING.COM
Installation Steps

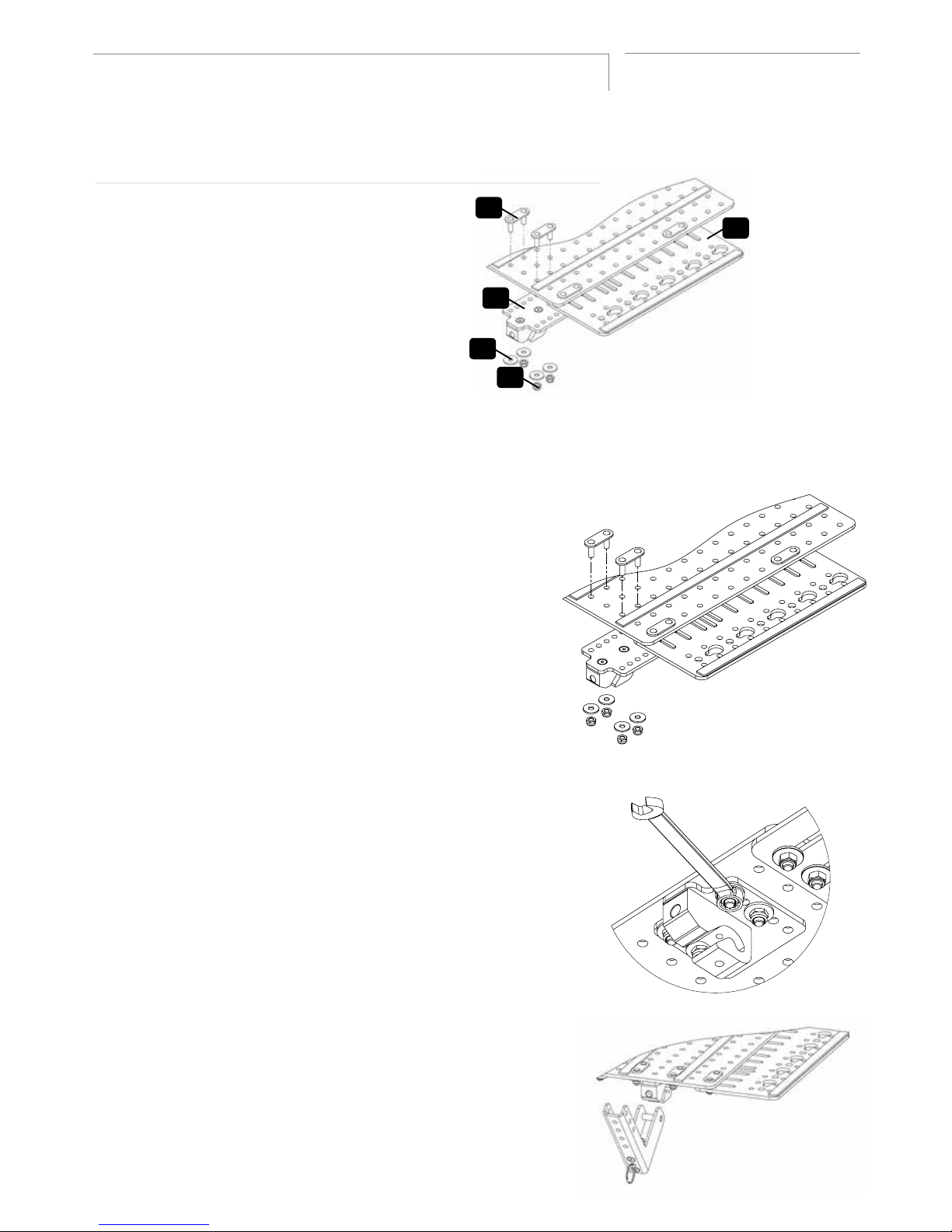

Install mounting block (A) to seat pan (E)
The front edge of the mounting block should line up with the front
edge of the seat pan.
The xing studs (B) mount through the centre left and centre right,
rst and second row of holes, as shown.
Oset if necessary.
Use the supplied washer (C) and M6 nuts (D) to fasten the block
securely in place.
A. Mounting Block
B. Threaded Fixing Studs
C. Washer
D. M6 nuts
E. Seat pan
A
B
C
D
1.
2.
3.
4.
5.
Use a 10mm spanner to tighten the M6 nuts. Do not overtighten.
Block should be mounted securely without movement.
6.
A
Attach the medial thigh support bracket by inserting the bar into the
slot underneath the bracket and swivelling upright.
The medial thigh support bracket will lock into position.
7.
E
05
SPEX MEDIAL THIGH SUPPORT USER MANUAL
6
WWW.SPEXSEATING.COM

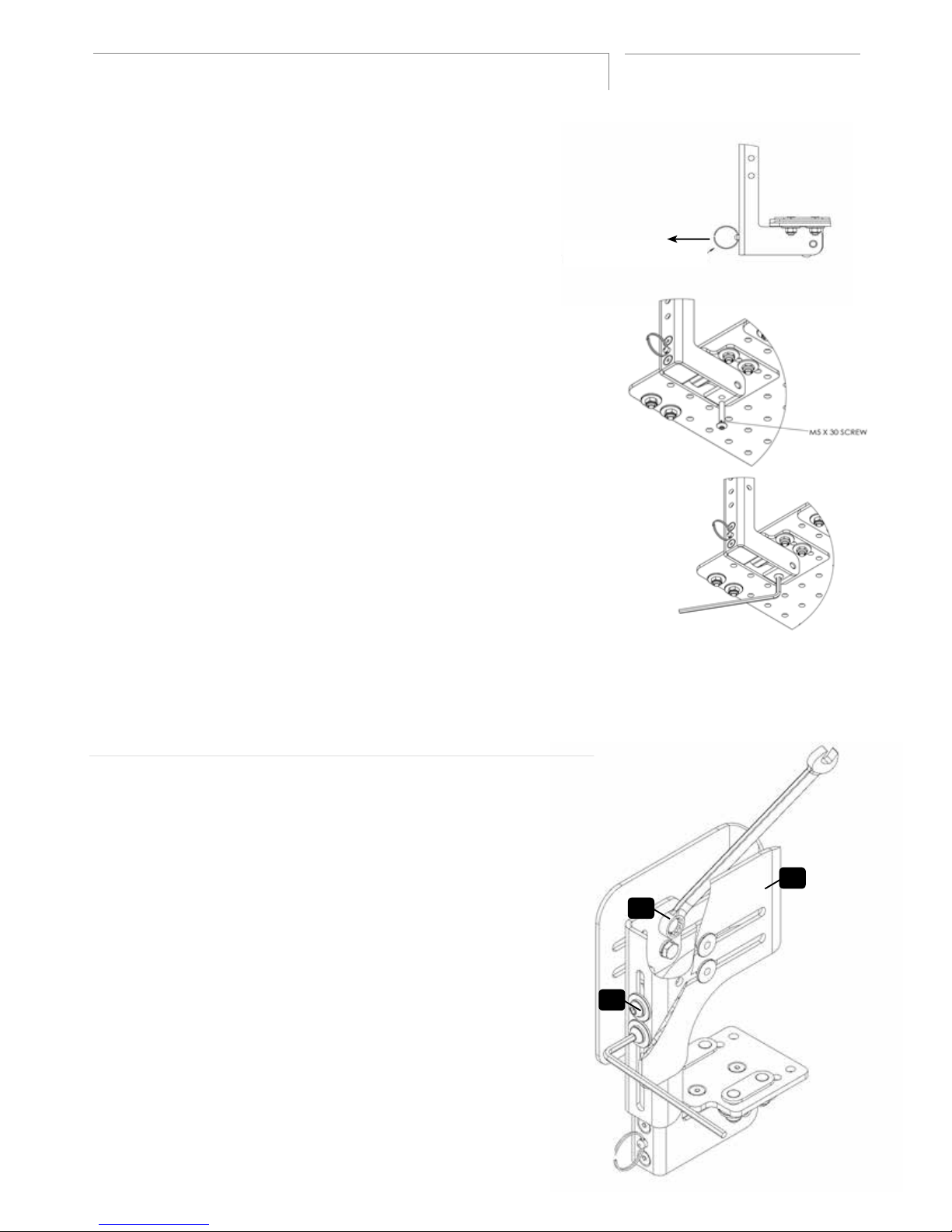

Pull the key ring to release the medial thigh support and drop it
down.
The medial thigh support can be removed if required.
8.
(Optional)
Insert the supplied 30 mm screw from underneath, as shown, to prevent the medial thigh support from being removed.
9.
10.
1.
Adjust the height of the Medial Knee Support by loosening the front
fasteners (A) with a 4mm Hex Key.
Retighten once the correct height is achieved.
Adjust the Medial Knee Support plate (C) position as necessary.
Tighten Hex screws (B) using a 10mm spanner once the correct position is achieved.
Replace cover and zip up.
2.
3.
Tighten as shown using a Hex Key
Fixed Medial Thigh Support
4.
A
B
C
05
SPEX MEDIAL THIGH SUPPORT USER MANUAL
7
WWW.SPEXSEATING.COM

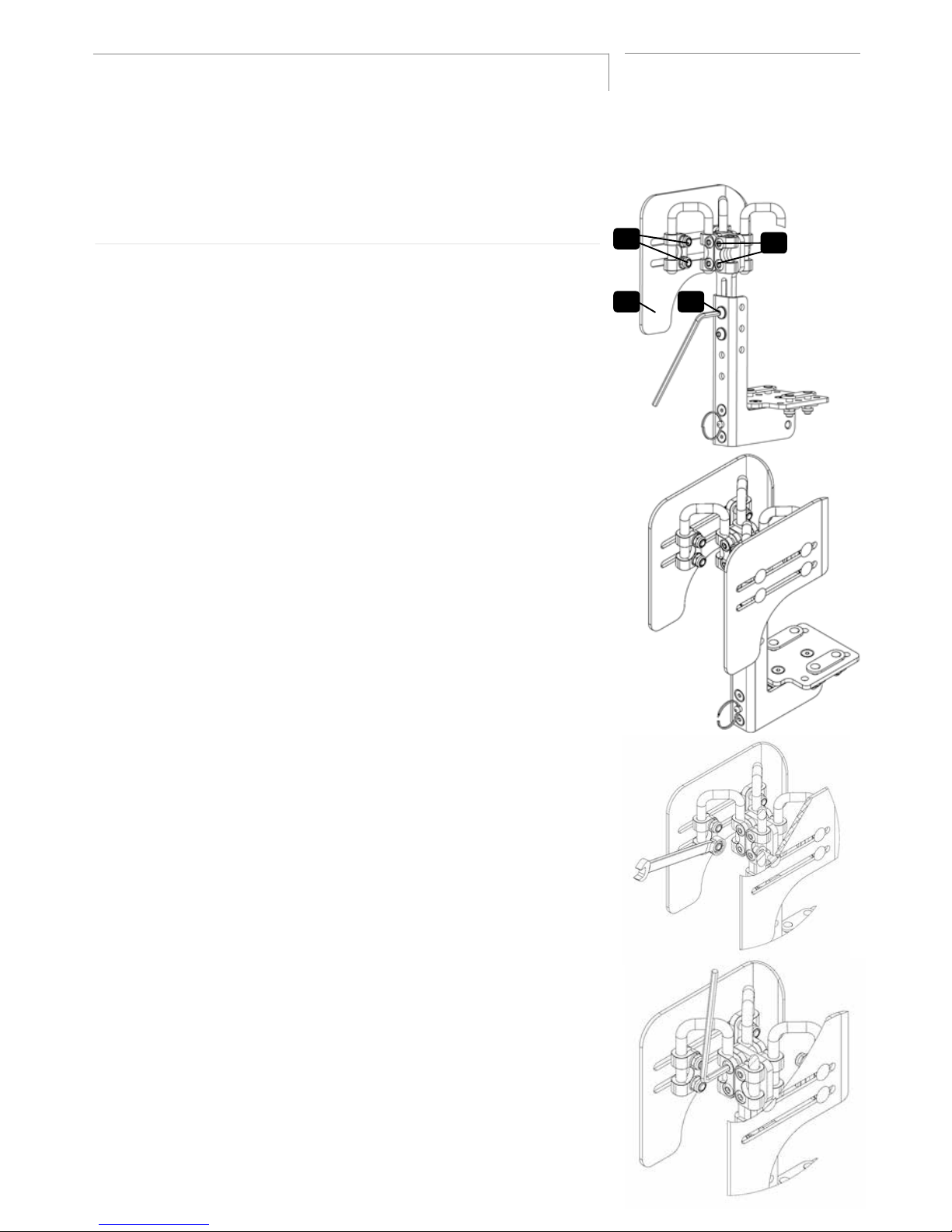

Adjust the height of the Medial Thigh Support by loosening the front
fasteners (A) with a 4mm Hex Key.
Retighten once the correct height is achieved.
Remove cover and padding if needed.
Adjust the Medial Thigh Support plate (B) width and angle and depth
as necessary.
2.
Tighten nuts (C) using a 10mm spanner once the correct position is
achieved.
3.
Tighten fasteners (D) using 4mm Hex Key to prevent movement.
Replace the foam padding and cover and zip up before use.
4.
1.
Axial Medial Thigh Support
5.
AB
C
D
05
SPEX MEDIAL THIGH SUPPORT USER MANUAL
8
WWW.SPEXSEATING.COM
EC REP
BEO MedConsulting Berlin GmbH
Helmholtzstr, 2-9
10587 Berlin Germany
Tel: +49-30-318045-51
Medifab Ltd
Phone +64 3 307 9790
Fax +64 3 307 2820
fasterresults@spexseating.com
www.spexseating.com
32 Detroit Drive
Rolleston 7675
New Zealand
US REP
Medicept
200 Homer Ave, Ashland, MA 01721
United States
Tel: +1-508-231-8842
Warranty
Each Spex Medial thigh support is carefully inspected to provide peak performance and is guaranteed to be free from defects in
materials and workmanship for a period of 12 months from the date of purchase, provided normal use. Should a defect in materials
or workmanship occur within 12 months from the original date of purchase, Medifab will, at its option, repair or replace it without
charge. This warranty does not apply to general wear and use, including punctures, tears or burns, nor to the removable cover.
Claims and repairs should be processed through the nearest authorized Spex supplier. Except for express warranties made herein,
all other warranties, including implied warranties of merchantability and warranties of tness for a particular purpose are excluded.
There are not warranties which extend beyond the description on the face hereof. Remedies for breach of express warranties herein
are limited to repair or replacement of the goods. In no event shall damages for breach of any warranty include any consequential
damages or exceed the cost of non-conforming goods sold.
The serial number of your Medial thigh support can be located by unzipping the Medial thigh support cover.
Once the user has nished using the Spex Medial thigh support, it must be refurbished if it is issued to another user. Below are the
strict guidelines for refurbishing the Spex Medial thigh support. Medifab takes no responsibility for contamination, cross infection, or
damage.
Reissuing to another user
Part Procedure
Safety check All components to be checked for signs of stress or cracking.
Upholstery covers Upholstery outer covers must be replaced regardless of condition.
Hardware and
components
Ensure the mechanism components are in place and in safe working order. If any are missing, they must be
ordered. Check for signs of stress or cracking. If any stress/cracks are found the Medial thigh support is to
be condemned and must be disposed of. Clean the hardware and components with a mild detergent and
quality disinfectant ensuring all areas are free from grime.
Foam Foam pad must be replaced regardless of condition.
