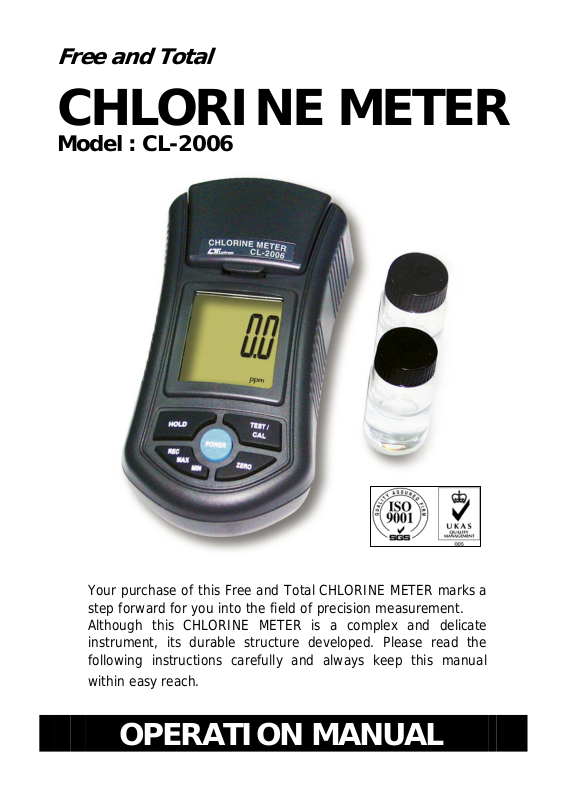

Sper Scientific LUCL-2006 User Manual

Free and Total

CHLORINE METER

Model : CL-2006

Your purchase of this Free and Total CHLORINE METER marks a
step forward for you into the field of precision measurement.
Although this CHLORINE METER is a complex and delicate
instrument, its durable structure developed. Please read the
following instructions carefully and always keep this manual

within easy reach.

OPERATION MANUAL

.

.

.

.

.

.

.

.

.

.

TABLE OF CONTENTS

1. FEATURES.................................................................1

2. SPECIFICATIONS......................................................

3. FRONT PANEL DESCRIPTION.....................................4

3-1 Cover of Testing bottle.........................................4

3-2 Container of Testing bottle...................................

3-3 Display................................................................4

3-4 Hold Button ( Esc Button )....................................4

3-5 TEST/CAL Button.................................................4

3-6 Power Button......................................................

3-7 ZERO Button.......................................................

3-8 REC Button ( MAX, MIN Button )...........................4

3-9 Battery Compartment/Cover................................. 4

3-10 1.0 ppm Free Chlorine standard solution........... 4

3-11 1.0 ppm Total Chlorine standard solution........ 4

3-12 Zero Chlorine standard solution..........................

3-13 Empty testing bottle 1........................................4

3-14 Empty testing bottle 2........................................4

3-15 Clean Cloth........................................................4

3-16 Free Chlorine DPD powder ( 10 PCs ).................. 4

3-17 Total Chlorine DPD powder ( 10 PCs )................ 4

4. MEASURING PROCEDURE..........................................5

4-1 Measurement Consideration.................................

4-2 Measurement......................................................

4-3 Free/Total Chlorine mode selection.......................

4-4 Data Hold............................................................9

4-5 Data Record ( Max., Min. reading ).......................

2

4

4
4

4

5
6
8

9

5. CALIBRATION PROCEDURE.......................................

6. BATTERY REPLACEMENT...........................................14

10

1. FEATURES

* The meter measures the Free and Total chlorine ( CL )

in the 0.00 to 3.50 ppm ( mg/L ).

* The measuring method is an adaptation of the USEPA

Method 330.5 for waste water and Standard Method
4500-Cl G for drinking water.

* The advanced optical system based on a special narrow

band LED lamp that allows most accurate and
repeatable reading.

* Friendly and powerful calibration function are able to

validate good performance of your meter at any time.

* 1.00 ppm Free standard solution and 1.00 ppm Total

standard solution are includes as the standard
accessories.

* The unique optics structure, enables the instrument to

read with high resolution : 0.01 ppm ( mg/L ).

* Splash waterproof on the front panel.
* Jumbo LCD, easy readout.
* Microprocessor circuit assures maximum possible

accuracy, provides special functions and features.

* Battery operated for field and on-site testing

convenience.

* Data hold function for freezing the desired value on

display.

* Records Maximum and Minimum reading with Recall.
* Heavy duty & compact housing with hard carrying case,

designed for easy carry out & operation.

* Auto shut off is available to save battery life.
* Application : Test swimming pool, municipal water,

food and beverage water, or other aqueous solution
where fluid clarity is important.

1

2. SPECIFICATIONS

*

Circuit Custom one-chip of microprocessor LSI

circuit.
Display LCD size : 41 mm x 34 mm
Range Free chlorine ( CL ) :

0.00 to 3.50 ppm ( mg/L ).

Total chlorine ( CL ) :

0.00 to 3.50 ppm ( mg/L ).
Resolution 0.01 ppm ( mg/L ).
Accuracy ± 0.02 ppm ( mg/L ).

@ 1.00 ppm ( mg/L )

Light source LED, 525 nm.
Light detector Photo diode
Method The measuring method is an adapta-

tion of the USEPA Method 330.5 and
Standard Method 4500-Cl G.

The reaction between free ( total )

chlorine and the DPD reagent cause
a pink tint in the sample.

Response time Less than 10 seconds.
Sample volume 10 mL.
Data Hold Freeze the display reading.
Memory Recall Maximum & Minimum value.
Display Approx. 1 second.
Sampling
Time
Power off Auto shut off saves battery life or

manual off by push button.
Calibration Zero chlorine.
points 1.00 ppm ( Free chlorine ).

1.00 ppm ( Total chlorine ).

2

Operating 0 to 50 .℃

.

g

.

T

Temperature
Operating Less than 85% R.H.
Humidity
Power Supply DC 1.5 V battery ( UM4, AAA ) x 6 PCs,

or equivalent.
Power Current Stand by Approx. DC 4 mA.

Testing Approx. DC 12 mA.
Weight 320 g/0.70 LB.

@ Battery is included.

Dimension 155 x 76 x 62 mm

( 6.1 x 3.0 x 2.4 inch)

Accessories * Instruction manual.........................

1 PC

Included * 1.0 ppm Free Chlorine standard

solution, CF-01...............................1 PC

* 1.0 ppm Total Chlorine standard

solution, CT-01...............................1 PC

* Zero Chlorine standard solution,

CL-01 1 PC
* Empty testin

* Clean cloth.....................................1 PC

* Free Chlorine DPD powder..............

otal Chlorine DPD powder..............10 PCs

*

bottle........................2 PCs

10 PCs

Optional * Free Chlorine DPD powder ( 10 PCs ),
Accessories Model : CFP-10

* Total Chlorine DPD powder ( 10 PCs ),

Model : CTP-10
* Empty testing bottle, Model : 0601
* 1.0 ppm Free Chlorine standard

solution, Model : CF-01
* 1/0 ppm Total Chlorine standard

solution, Model : CT-01
* Zero Chlorine standard solution,

Model : CL-01

3

3. FRONT PANEL DESCRIPTION

3-2 Container of Testing bottle
3-3 Display

3-7 ZERO Button

3-10 Free Chlorine 1.0 ppm standard solution.

g

g

3-17 Total Chlorine DPD powder ( 10 PCs )

3-1 Cover of Testing bottle

3-4 Hold Button ( Esc Button )
3-5 TEST/CAL Button
3-6 Power Button

3-8 REC Button ( MAX, MIN Button )
3-9 Battery Compartment/Cover

3-11 Total Chlorine 1.0 ppm standard solution
3-12 Zero Chlorine standard solution
3-13 Empty testin
3-14 Empty testin
3-15 Clean Cloth
3-16 Free Chlorine DPD powder ( 10 PCs )

bottle 1
bottle 2

4

4. MEASURING PROCEDURE

2)

4-1 Measurement Consideration

White mark
on the edge of the " Container "

Fig. 2

White mark
on the up
position of
" Testing
Bottle "

1)There is a " White mark " on the edge of the

" Container " ( 3-2, Fig. 1 ) and also on the up
position of " Testing Bottle " ( 3-10, 3-11, 3-12
3-13, 3-14 Fig. 1 ), refer Fig. 2.

When make the
measurement ( or
calibration ), it should
keep the " Container
white mark " face to face
together with the
" Testing bottle white mark "

5

3)Insert the " Testing bottle " to the bottom of

keep the outside of Testing Bottle

t

existing any dust.

T

T

e

t

y

"

" Container " ( 3-2, Fig. 1 ) completely.

4)Before the measurement, it should envelop in the
" Cover " ( 3-1, Fig. 1 ) completely.

Remark :Before the measurement, it should

under the dry condition and withou

4-2 Measurement
Before the measurement, should select the

measurement model to " Free Chlorine " or " Total
Chlorine " first, the setting procedures refer to
chapter 4-3, page 8.

ZERO setting for the liquid

1)Power ON the meter by pressing the " Power Button "
( 3-6, Fig. 1 ) once.

he Display ( 3-3, Fig. 1 ) will show the text " Free (
OTAL ) " approx. 1 second. then show " CAL 0 ", now

the meter for the ZERO setting procedures.

2)Fill the measurement liquid into the " Testing bottle "
( 3-11, 3-12, Fig. 1 ) .

Attention :

Model 0601

It should fill th

10 mL

measuremen
liquid capacit
until its level

Fig. 3

up to the " level
marker " of the
" Testing bottle

6

3)Insert the " Testing bottle " to the bottom of

under the uniform condition.

" Container " ( 3-2, Fig. 1 ) completely.
Before the measurement, it should envelop in the
" Cover " ( 3-1, Fig. 1 ) completely.

4)Press " Zero Button " ( 3-7, Fig. 1 ) once, the display
will show the text " tESt " ( TEST )" with flashing,
then show " 0.00 ".

Liquid with the DPD powder

5)Take away the " Testing bottle " with the measurement
liquid away from " Container " ( 3-2, Fig. 1 ).

Fill the DPD powder into the " Testing bottle "
with the measurement liquid. It should shake
the at least 10 seconds to keep the solution

Remark :

* For the Free Chlorine measurement, it should use

the " Free Chlorine DPD powder ".

* For the Total Chlorine measurement, it should use

the " Total Chlorine DPD powder ".

7

6)Wait one minute approximately,
then insert the " Testing bottle " to the bottom of
" Container " ( 3-2, Fig. 1 ) completely.
Before the measurement, it should envelop in the
" Cover " ( 3-1, Fig. 1 ) completely.

7)Press " Test Button " ( 3-5, Fig. 1 ) once, the display
will show the text " tESt " ( TEST )" with flashing,
wait approx. 10 seconds, the Display will show
the measurement value.

Wash ( Reins ) the Testing bottle

* After the testing, it should wash ( reins )

the Testing Bottle by the Distill Water

4-3 Free/Total Chlorine mode selection

1)Meter is under the power off conditions.
Press " Hold Button " ( 3-4, Fig. 1 ) " REC Button " (
3-8, Fig. 1 ) at the same time ( not release ), then
press the " Power Button " ( 3-6, Fig. 1 ) will enter the
selection mode to select the function of " Free
Chlorine " or the " Total Chlorine ".

2)Press the " TEST Button " ( 3-5, Fig. 1 ) to select the
desiring function ( Free Chlorine or Total Chlorine ),
then " REC Button " to confirm and save the selection
mode into the memory.

Remark :

* For the swinging pool application, typical to

select the " Free Chlorine " function.

* For the industrial water pollution application, typical

to select the " Total Chlorine " function.

8

4-4 Data Hold

During the measurement, press the " Hold Button " ( 3-4,
Fig. 1 ) once will hold the measured value & the LCD will
display a " HOLD " symbol.
* Press the " Hold Button " once again will release the data

hold function.

4-5 Data Record ( Max., Min. reading )

* The data record function records the maximum and

minimum readings. Press the " REC Button " ( 3-8, Fig.
1 ) once to start the Data Record function and there
will be a " REC. " symbol on the display.

* With the " REC. " symbol on the display :

a)Press the " REC Button " ( 3-8, Fig. 1 ) once, the "

REC. MAX. " symbol along with the maximum value
will appear on the display.

b)If intend to delete the maximum value, just press

the " Hold Button " ( 3-4, Fig. 1 ) once, then the
display will show the " REC. " symbol only & execute
the memory function continuously.
Press the " REC Button " ( 3-8, Fig. 1 ) again, the
" REC. MIN. " symbol along with the minimum value
will appear on the display.
If intend to delete the minimum value, just press
the " Hold Button " ( 3-4, Fig. 1 ) once, then
the display will show the " REC. " symbol only &
execute the memory function continuously.

9

5. CALIBRATION PROCEDURE

1)The meter can be calibrated under following calibration
points :

Free chlorine

*Zero
*1.00 ppm

or

Total chlorine

*Zero
*1.00 ppm

2)The meter ship along with

* Zero Chlorine standard solution ( CL-01 ) X 1 PC,
* 1.0 ppm Free Chlorine standard solution ( CF-01 ) X 1 PC.
* 1.0 ppm Total Chlorine standard solution ( CT-01) X 1 PC.

as the standard accessories.

3)The complete calibration should be executed by
following two solution :

*Zero Chlorine standard solution
*1.0 ppm standard solution ( Free or Total ).

10

4) Zero chlorine calibration
* Insert the " Zero Chlorine standard solution into the

" Container " ( 3-2 , Fig. 1) and envelope in the " Cover "
( 3-1, Fig. 1 ) completely, other procedures please
refer to chapter 4-1, 4-2.

* Press " CAL Button " ( 3-5, Fig. 1 ) continuously

until the Display show the text " CAL " then release
the button.

CAL

ppm

* During the display show text " CAL ", press the

" CAL Button " ( 3-5, Fig. 1 ), the display will show

0.00

CAL ppm

Now the meter is ready for the " Zero Chlorine "
calibration

11

* Press " CAL Button " ( 3-5, Fig. 1 ) once, the

Display will show following text with flashing ( approx.
10 seconds ).

flashing

CAL

0.0 ppm

Then the Display will show :

1.00

CAL ppm

Now the meter is finished the " Zero Chlorine "
calibration procedures and ready for " 1.00 ppm "
calibration procedures.

5) 1.00 ppm calibration

Refer to page 12, when finish the " Zero Chlorine "
calibration procedures and the Display show

1.00

CAL ppm

The meter is ready for " 1.0 ppm " calibration.

12

* Insert the " 1.0 ppm standard solution into the

*

*

" Container " ( 3-2 , Fig. 1) and envelope in the
" Cover " ( 3-1, Fig. 1 ) completely, other
procedures please refer to chapter 4-1, 4-2.

Press " CAL Button " ( 3-5, Fig. 1 ) once, the
Display will show following text with flashing ( approx.
10 seconds ).

flashing

CAL

1.00 ppm

Then the LCD display will return to normal
measurement screen, now the meter is finished the
calibration procedures ( Zero, 1.0 ppm calibration )
completely and ready for the measurement.

Remark :

The calibration procedures for the function of " Total
chlorine " and the " Free chlorine " are independent.

The complete calibration procedures for the function
of " Free chlorine " measurement should be
executed by

Zero Chlorine standard solution

1.0 ppm Free standard solution

The complete calibration procedures for the function
of " Total chlorine " measurement should be
executed by

*Zero Chlorine standard solution
*1.0 ppm Total standard solution

13

6. BATTERY REPLACEMENT

1)When the left corner of LCD display show " ", it

is necessary to replace the battery. However, in-spec.
measurement may still be made for several hours after
low battery indicator appears before the instrument
become inaccurate.

2)Loss the " Battery Cover Screws " and slide the
" Battery Cover " ( 3-9, Fig. 1 ) away from the
instrument and remove the battery.

3)Replace with DC 1.5 V battery ( UM4, AAA,
Alkaline/heavy duty ) x 6 PCs, and reinstate the cover.

4)Make sure the battery cover is secured after changing
the battery.

14

0805-CL2006
