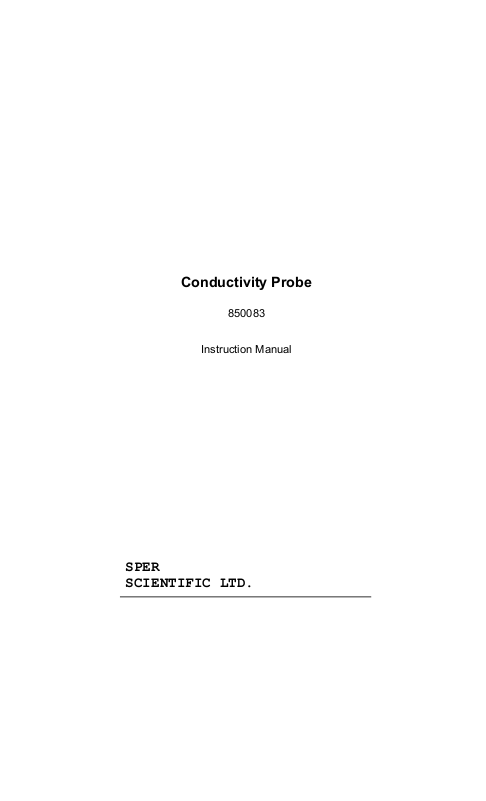

Conductivity Probe

850083

Instruction Manual

SPER
SCIENTIFIC LTD.

TABLE OF CONTENTS

I. INTRODUCTION ............................................................................. 2

II. PANEL DESCRIPTION ................................................................... 2

III. MEASUREMENT PROCEDURES .................................................. 3

IV. CALIBRATION ................................................................................ 3

V. SPECIFICATIONS .......................................................................... 4

VI. WARRANTY .................................................................................... 4

I. INTRODUCTION

This probe measures conductivity and temperature in °C or °F . Features
a long-life carbon rod electrode and built-in automatic temperature com­pensation (ATC), or selectable uncompensated readings. With the plug­and-play feature of this probe, calibration procedures are generally not
required. The meter features Hold, Max./Min, RS232 and Auto Shut Off.

II. PANEL DESCRIPTION

13

8

7

1. LCD Display

2. POWER Button

3. REC. Button

6. B & Left (Range) Button

7. C & Down Button

8. D (TEMP.C) Button

4. HOLD Button 9. Battery

5. A & Up (°C/°F) Button

10. pH BNC Input Socket

- 2 -

14

11. Probe Lock

12. Probe Input
Socket

13. Probe Head

14. Probe Handle

III. MEASUREMENT PROCEDURES

•

Plug probe into the PROBE INPUT SOCKET.

•

Make sure the PROBE LOCK is in the lock position.

•

Turn on the instrument by pressing the POWER button.

•

The default ATC factor is 2% per °C, adjustable between 0 to 5.0%.
To adjust the ATC factor, press the

D (TEMP.C)

button once, then use
the UP, LEFT, and DOWN buttons to set the desired ATC factor. Press
the D (TEMP.C) button again to lock in the new ATC factor.

• Press the RANGE button to select the optimum range. The meter

features an overload indicator. If the LCD displays "— — — —", select
the next higher range. Select the next lower range is the LCD displays
"- - - -".

• Immerse the

PROBE HEAD

in the solution to be measured. The unit of
measure ("mS") and the measured results are displayed, along with the
ATC reading.

•

Press the A (°C/°F) button to select Centigrade or Fahrenheit. The
temperature is shown on the lower display.

Refer to the Water Quality Meter 850081 Instruction Manual for instructions
about Hold, Max./Min, RS232, Auto Shut Off, and other functions.

IV. CALIBRATION

Although calibration is not generally needed, the following procedures
should be preformed the first time a new conductivity probe is used, or after
long periods of use.

Range 1 Calibration (2 mS range)

1. Prepare a 1.413 mS calibration solution and select RANGE 2 mS.

2. Immerse the PROBE HEAD in the solution.

3. Set the temperature coefficient factor to 2.0% of °C.

4. Press both the REC and HOLD buttons at the same time, "CAL" and
"1.413" will flash on the display. Release the buttons.

5. To cancel the calibration setup (before the display stops flashing),
release the REC and HOLD buttons and press the HOLD button again.

Range 2 Calibration (20 mS range)

1. Prepare a 12.88 mS calibration solution and select RANGE 20 mS.

2. Follow steps 2 to 5 above. NOTE: In step 4, "CAL" and "12.88" will
flash on the display, not "1.413".

- 3 -

.

V. SPECIFICATIONS

Unit of
Msrmt.

mS 0.2 ~ 1.999 0.001

mS 2 ~ 19.99 0.01

ºC 0 ~ 60

ºF 32 ~ 140 1.5

Operating Temperature (meter) 0°C to 50°C (32°F to 122°F).

Operating Humidity Max. 80% RH.

Probe Size Diameter: " (22mm).

Refer to the Water Quality Meter 850081 Instruction Manual for meter
specifications.

Range Resolution Accuracy

±(3%fs + 1d)

Full Scale

0.8

0.1

Length: " (120mm).

ONE YEAR WARRANTY

Sper Scientific warrants this product against defects in materials and
workmanship for a period of one year from the date of purchase, and
agrees to repair or replace any defective unit without charge. If your model
has since been discontinued, an equivalent Sper Scientific product will be
substituted if available. This warranty does not cover damage resulting from
accident, misuse, or abuse of the product. In order to obtain warranty
service, simply ship the unit postage prepaid to:
