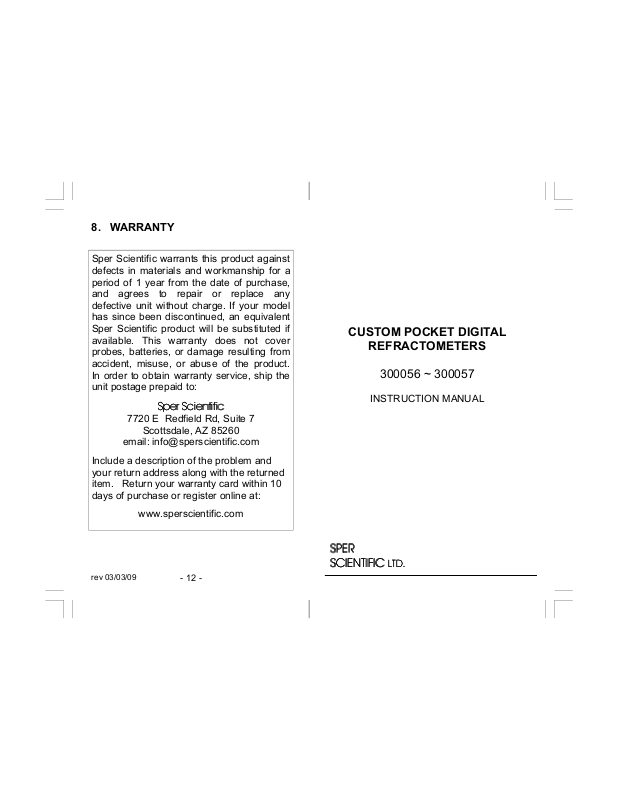

8. WARRANTY
Sper Scientific warrants this product against
defects in materials and workmanship for a
period of 1 year from the date of purchase,
and agrees to repair or replace any
defective unit without charge. If your model
has since been discontinued, an equivalent
Sper Scientific product will be substituted if
available. This warranty does not cover
probes, batteries, or damage resulting from
accident, misuse, or abuse of the product.
In order to obtain warranty service, ship the
unit postage prepaid to:
Sper Scientific
Sper Scientific
Sper ScientificSper Scientific
7720 E Redfield Rd, Suite 7
Scottsdale, AZ 85260
Include a description of the problem and
your return address along with the returned
item. Return your warranty card within 10
days of purchase or register online at:
email: [email protected]
www.sperscientific.com
CUSTOM POCKET DIGITAL
REFRACTOMETERS
300056 ~ 300057
INSTRUCTION MANUAL
rev 03/03/09
- 12 -
SPER
SPER
SPERSPER
SCIENTIFIC
SCIENTIFIC
SCIENTIFIC SCIENTIFIC
LTD
LTD
LTDLTD
....
Page 2
CONTENTS
1. Introduction .................................. 2
2. Panel Description ......................... 3-4
3. Calibration .................................... 5
4. Measurement ............................... 6
• Models with Multiple Scales...... 7
• Notes and Precautions ............. 7-8
5. Zero Checking .............................. 9
6. Battery Replacement ................... 9
7. Specifications ............................... 10-11
8. Warranty....................................... 12
1. INTRODUCTION
Our Custom Scale Pocket Digital
Refractometers measure your specified
parameters with laboratory accuracy. The
digital readout eliminates uncertainties,
while the water resistant design facilitates
clean ups and protects the electronics from
moisture.
Features:
•
Automatic Temperature Compensation
•
Zero Calibration
•
Automatic shut off
•
Instantaneous reading
Scale Range Res. Accuracy
Use pure distilled water as the calibration solution for all models.
7. SPECIFICATIONS (continued)
- 11 -
Page 3
7. SPECIFICATIONS
2. PANEL DESCRIPTION
Weight 5.3 oz, 150 grams
5" x 2
1/2"
x 1
1/4
Dimensions
Storage
Environment
Operating
Environment
120 x 65 x 30 mm
14~122°F (–10~50°C)
Below 90% RH
Below 2000m sea level
32~104°F (0~40°C)
"
Battery Life Approx. 8000 tests
Protective Case
Included
1.5V AAA Battery
Distilled Water
Transfer-Pipette
- 10 -
1
2
3
4
5

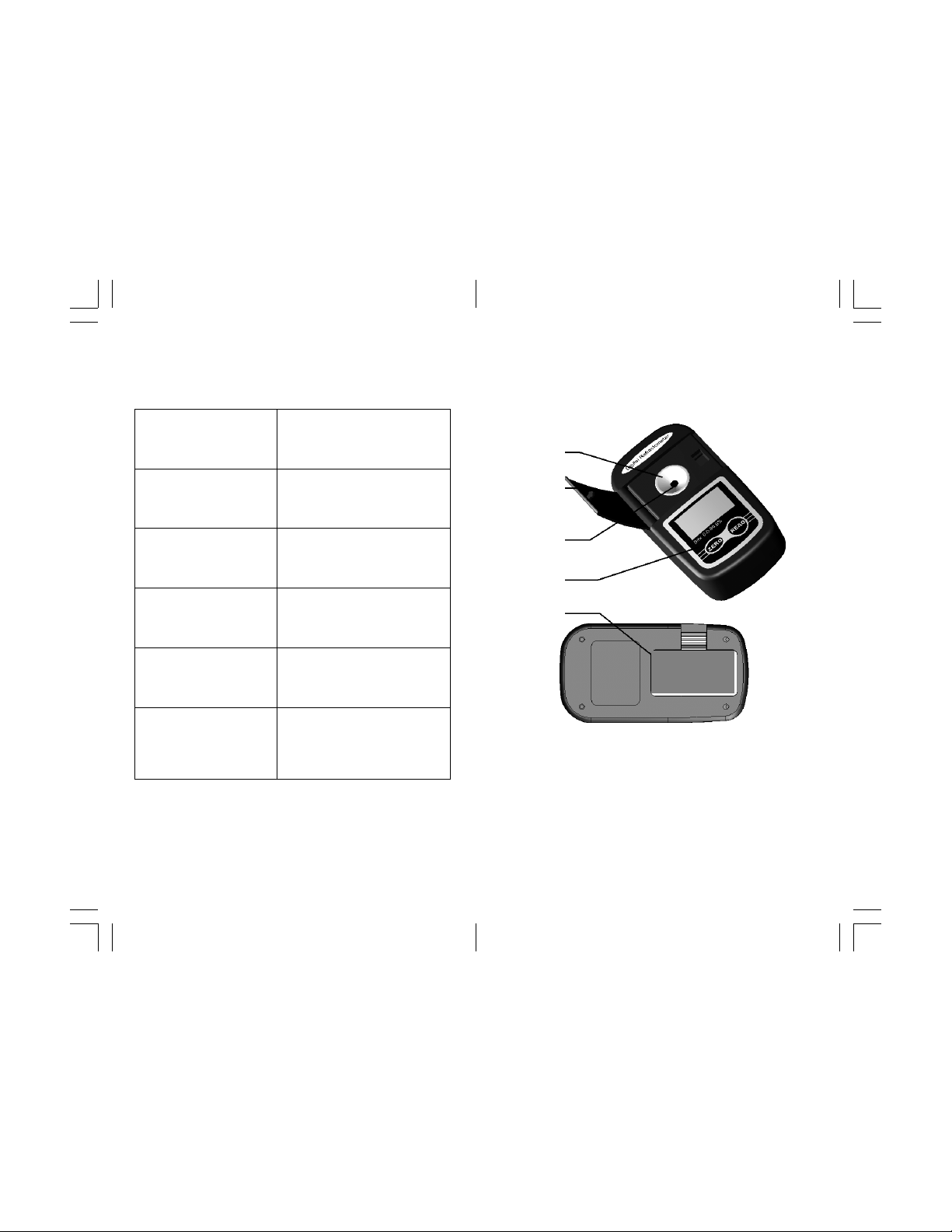

1. Stainless Steel Sample Plate
2. Prism Cover
3. Prism
4. Keypad
5. Battery Compartment
- 3 -
Page 4
6
7
▼
1 2 3 4 custom
sc ale
8

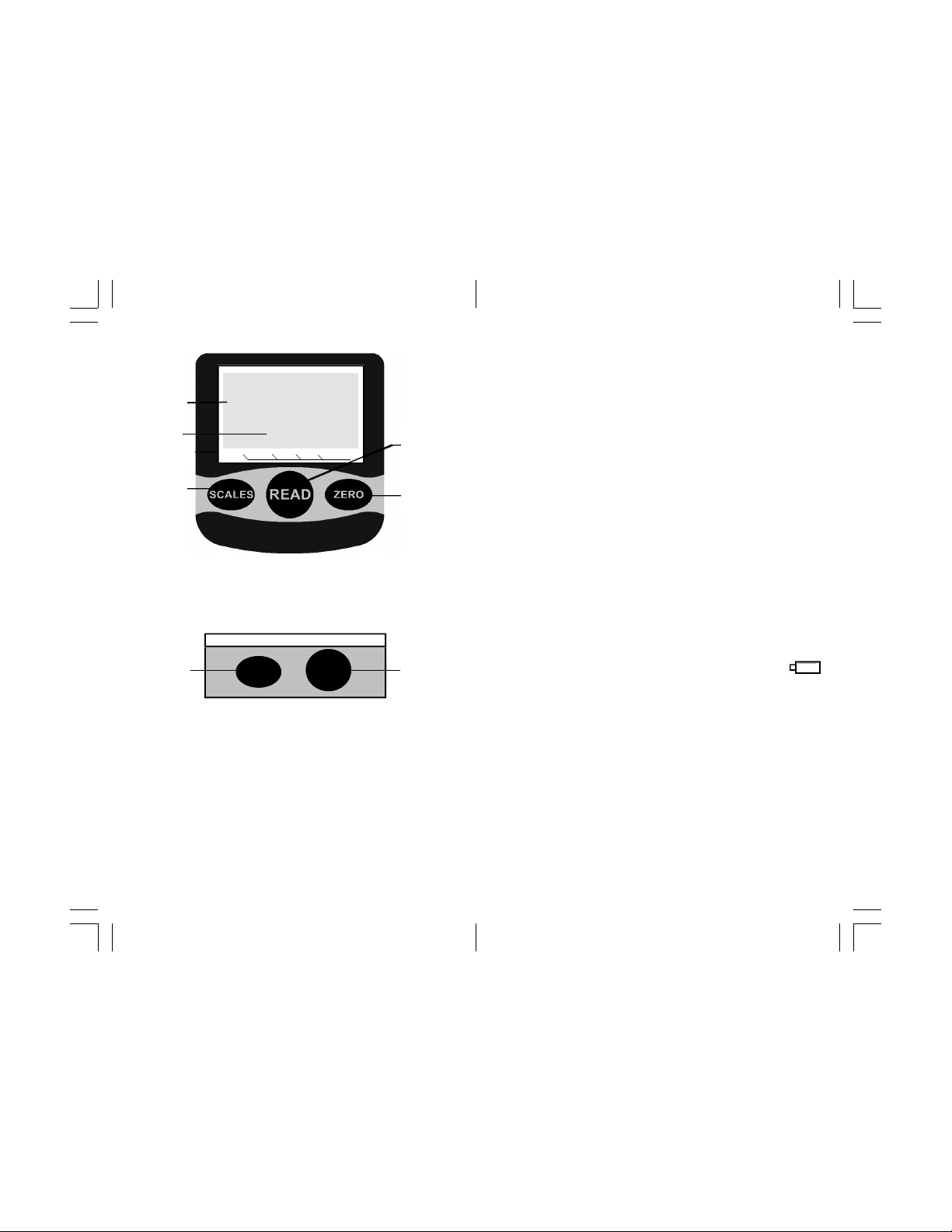

Keypad for Single Scale Models
Custom Scale
10 9
ZERO
READ
6. Display
7. Active Scale Indicator
8. SCALES button
9. READ button
10. ZERO button
9
10
5. ZERO CHECKING
Use this function to check the nD value of the
zero setting for distilled water.
•
Fill the PRISM (3) with a standard solution
of distilled water (0.0) that is the same temperature as the solution to be tested.
•
Close the PRISM COVER (2).
•
Press the READ (4) button to turn the
refractometer on and obtain a temperature
reading.
•
Quickly press the ZERO (5) button once.
•
The nD value of the solution is displayed.
•
This information can be viewed at any time
to show the last calibration value.
6. BATTERY REPLACEMENT
When the low-battery symbol is displayed,
push the tab to open the BATTERY
COMPARTMENT (5) and replace the 1.5V
AAA battery with a fresh alkaline battery.
- 4 -
- 9 -
Page 5
•
Do not drop or shake the unit.
•
Use the protective carrying case to
prevent physical damage.
Erratic Readings
If the readings are significantly above or
below the expected results, consider the
following:
•
Sample contains more than one dissolved
solid. For example, if the sample contains
both salt and sugar, a Brix refractometer
will not display the true sugar content
because the salt content will skew the brix
measurement.
•
When diluting samples, be sure to use a
pure solution such as distilled water.
•
Sample contains suspended solids. Filter
and thoroughly mix the sample before
testing.
•
Perform a calibration.
•
Replace the battery.
•
Outside light can cause erratic readings,
make sure to close the COVER on the
PRISM during measurement.
•
After about 3000 tests, turn the unit off for
5 to 10 minutes to rest the battery.
- 8 -
3. CALIBRATION
Calibration should be performed daily before
sample testing begins. For best results,
perform the calibration in a controlled
environment of 68°F (20°C).
•
Allow the refractometer and the distilled
water to acclimate to the ambient
environment.
•
Clean the PRISM (3) before and after
every use.
•
Drop at least 1.0 ml of distilled water (0.0)
onto the PRISM (3).
•
Close the PRISM COVER (2).
•
Press the READ (9) button to turn on the
refractometer.
•
Press the ZERO (10) button for 3 seconds
to enter calibration mode.
•
"CAL" flashes on the display. There will
be a red flash in the PRISM (3).
•
The calibration is complete after "End" is
displayed.
- 5 -
Page 6
4. MEASUREMENT
•
Clean the SAMPLE PLATE (1) and
PRISM (3) before and after every use.
•
When the temperature difference between
the ambient temperature and the refractometer is greater than 10°F (5°C), place
the refractometer in the lab and allow it to
adjust to the ambient temperature. Allow
apx. 30 minutes for every 5°F (10°C)
difference in temperature.
•
Press the READ (9) button to turn the unit
on and display the temperature. This unit
features Automatic Temperature
Compensation (ATC) within the range of
41~104°F (5~40°C), eliminating the need
for manual temperature correction.
•
Perform a calibration (pg 6) before the
day's first use or after extended daily use.
•
Fill the PRISM (3) with about 1.0ml of the
sample solution.
•
Close the PRISM COVER (2).
•
Press the READ (9) button immediately to
obtain a reading. Delays may cause the
sample to evaporate.
•
Within 1 second, the value is displayed.
•
When the reading is under-range, the low
indicator (LLL) is displayed. The high
indicator (HHH) is displayed when the
reading is over-range.
- 6 -
Models with Multiple Scales
•
Follow the measurement instructions
(page 6), then press the SCALES (8)
button and hold the button for 1 second to
cycle through the options.
•
"- - -" is displayed and the ACTIVE
SCALE (7) indicator "▼" points to the
selected scale.
•
With the desired scale selected, press the
READ (9) button to obtain the results.
Notes and Precautions
•
The refractometer will automatically shut
off after about 3 minutes of inactivity.
•
After each use, clean the SAMPLE
PLATE (1) and PRISM (3) with distilled
water on a soft cloth, and wipe dry.
•
If a film develops on the PRISM (3) it will
repel test samples and affect readings.
If this occurs, clean with a mild detergent.
•
The prism is easily scratched, never use
abrasive cleaning materials.
•
Never submerge.
•
Avoid spills around the unit.
•
Avoid prolonged use or storage in
extreme temperatures.
•
Do not use in corrosive environments.
- 7 -
