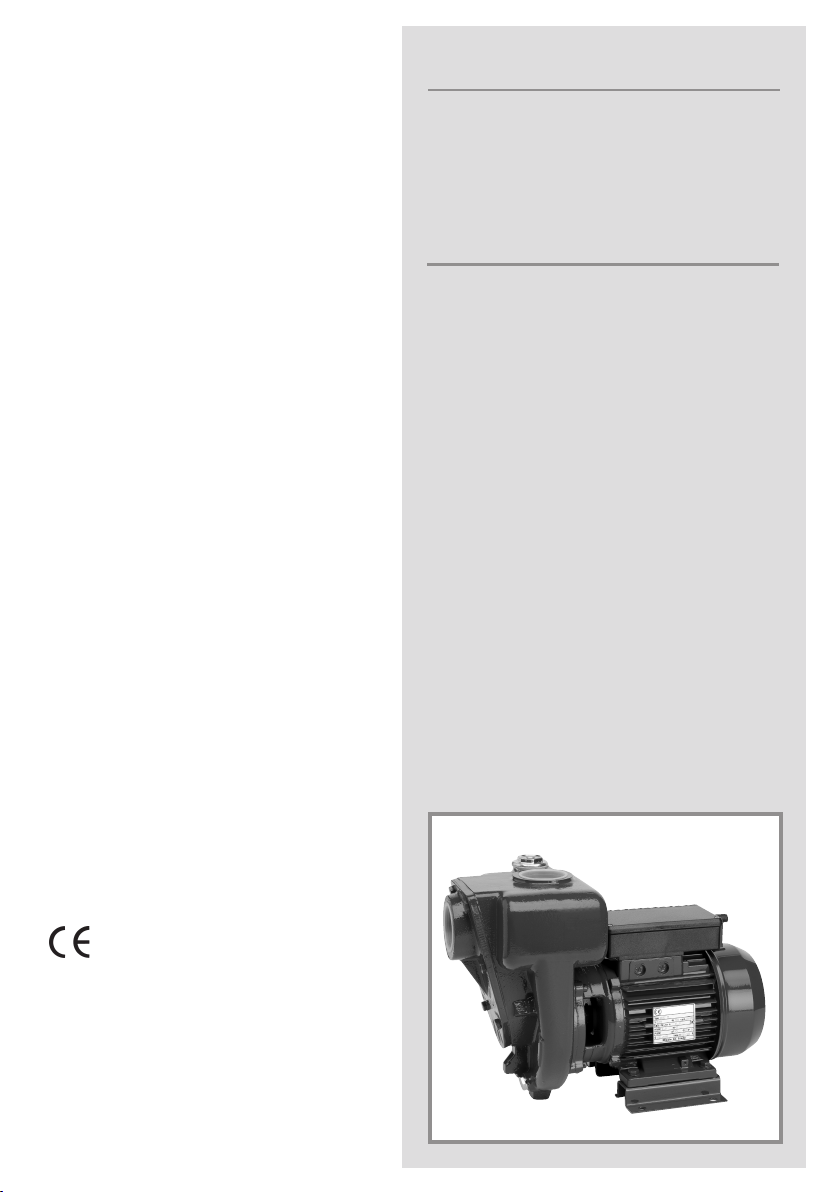

SPERONI HDM Series, HGM 2, HGM 1, HGM 3 Operating Instruction

Selfpriming pumps

Pompes autoamorcantes

Pompe autoadescanti

Bombas autoasebante

HGM

 Operating instruction
 Mode d’emploi
 Libretto Istruzioni
 Manual de instrucciones

SELFPRIMING PUMPS

1. Safety Measures

• Read carefully the operating instructions before
assembling and starting. The appliance must not be
used by operators who are not thoroughly acquainted
with the instructions handbook (operating instructions).
Moreover, the appliance must not be used by persons
under the age of 16.

• The user is liable towards third parties in the area where
the appliance is in operation.

• Before starting it is necessary to check that the
necessary electrical protection measures are met, by
means of a test carried out by a specialist.

WHILST using the pump, there should be
no person in the water or liquid to be

pumped, and the carrying out of any type
of maintenance is strictly forbidden.
The pump may be connected only by means of a
safety switch for fault currents, with an opening
rated current up to 30 mA and a socket with an
earth contact in compliance with the regulations.
Protection: at least 10 Amps.

Operation in swimming pools and garden ponds is
not recommended.
For other operation, the provisions in conformity with
the standard VDE 0100 part 702 must be respected.

CAUTION: Before checking, unplug the pump
from the mains!

Replacing the power supply cable requires using
special tools and therefore you must address to the
authorized after-sales service.

The pump may only operate with an extension
obtained through cable mod. H07 RNF and a thread
section of no less than 1 mm in compliance with the
DIN 57282 or DIN 57245 standard.

• The noise (continuous equivalent in dbA) of
the motor-driven pumps is less or equal (≤) to
70 dbA.

• The voltage (230 Volts alternating current)
indicated on the pump rating plate must
correspond to the available mains voltage.

• The temperature of the liquid conveyed must

not exceed 35°C.

• Never attempt to lift or move the pump by stretching
the power-supply cable whilst it is plugged into the
mains.

• Make sure that the plugged electrical connections are
in an area safe from flooding and are protected from
humidity.

• Before use it is necessary to check that the plug and
the mains connection line are not damaged.

• Unplug from the mains before performing any work on
the pump.

• Avoid directly exposing the pump to the jet of water.

• The user is responsible for complying with the local
regulations concerning assembly and safety.

• The user by taking appropriate measures (e.g. installing
an alarm, reserve pump and the like) will have to exclude
the possibility of indirect damage caused by flooding
premises due to failure of the pump.

• In the event of the pump failing, repair work may only
be carried out by the repair workshops of the technical
service. Only genuine spare parts must be used.

• It is notified that in conformity with the law on product
liability

we cannot be held responsible

for the damage caused by our appliance:
a) because of improper repairs not carried out by the

personnel of the assistance points authorized by us;
or

b) if GENUINE SPARE PARTS are not used to replace

parts; or

c) if the indications and provisions given in the instructions

handbook are not complied with.

The same provisions hold for the accessories.

Resistance

This pump should not be used to convey inflammable,
combustible or explosive liquids.

2. Use
CAUTION! Sector of use

• For irrigation and watering of lawns, gardens,
vegetable patches, etc.

• For operating garden sprinkler systems

• For drawing water from ponds, streams, water butts
and wells, subject to fitting of suitable filter.

Acceptable liquids

In order to pump clear water (fresh water), rainwater
or non-aggressive chemical cleaning solutions.

Abrasive liquids or any other type of corrosive
liquid could damage or destroy the pump.

Operating Instructions

Generally speaking it is recommended to use a
preliminary filter and exhauster with a suction
hose, suitable and foot valve (reflux lock) to avoid
long suction times and pointlessly damaging the
pump due to stones and solid foreign bodies.

2



3. Before Starting

Your irrigation pump is self-priming. Before starting for
the first time, the pump has to be filled through the
delivery union with the delivery liquid until it overflows.

Suction Piping

• Fit the water suction pipe so that it points upwards
towards the pump. Absolutely avoid fitting the suction
pipe higher than the pump (formation of air bubbles in
the suction pipe).

• The suction and delivery piping must be fitted so as
not to be able to apply any mechanical pressure on
the pump.

• The suction valve should be situated at least 30 cm.
below the bottom water level.

• Suction pipes that are not airtight suck in air obstructing
suction of the water.

Delivery Piping

During suction, the cut-off parts (sprayers, valves, etc.)
situated in the delivery piping have to be fully open so
that the air in the suction pipe can be freely expelled.

4. Maintenance Instructions

The irrigation pump is entirely maintenance-free.
Should the pump become blocked, first try rinsing. Should
it turn out that the blockage is due to the inefficiency or

complete absence of the filters, dismantle the hydraulic
section and thoroughly rinse the interior, carefully
reassemble and refit the filters correctly before turning
back on.

• If there is a risk of frost, the pump has to be emptied
completely.

• When the pump is not going to be used for a long time,
for instance in the winter period, it is recommended to
rinse out the pump thoroughly with water, empty it
completely and store it in a dry place.

• Before restarting, check whether the pump works freely
by briefly connecting and disconnecting it.

• Then fill the pump again with the delivery liquid and
set it up for use.

CAUTION!

In order to work, the pump must always be filled
with the delivery liquid until it overflows!
Caution: The pump must never run dry. The
manufacturer’s warranty is null and void in the
event of damage to the pump caused by its running
dry.
Check that the pump is airtight, in fact not airtight
pipes draw in air preventing the pump from
working properly.

5. Troubleshooting Table

Trouble Cause Remedy

Motor will not start

Pump will not suck

• No mains voltage.

• Pump impeller jammed

• Thermostat detached.

• Suction valve not in water.

• Pump chamber with no water.

• Air in suction pipe.

• Suction valve not airtight.

• Suction rose dirty.

• Max. suction lift exceeded.

• Check voltage.

• Dismantle the hydraulic section and
check whether the impeller rotates
freely; reassemble with care.

• Put the suction valve into water
(min. 30 cm.)

• Pour water into the suction union.

• Check airtight of the suct. pipe.

• Clean the suction valve.

• Clean the suction rose.

• Check the suction lift.

Insufficient rate of flow.

Thermal cutout switches off pump.

If it is not possibile to eliminate the trouble, please call our service department.
To avoid damage during transport, please ship in the ORIGINAL PACKING.

• Suction lift too high.

• Dirty suction rose.

• Water level falls quickly.

• Pump flow rate reduced by foreign
bodies.

• Motor overload. Excessive friction
caused by foreign bodies.

3

• Check suction lift.

• Clean the suction rose.

• Set the suct. valve lower down.

• Clean the pump and replace the worn
parts.

• Eliminate the foreign bodies.
Wait for the thermal cutout switch to
trigger again (approx. 20 mins.).

10

Dati tecnici - Technical data

POTENZA

TIPO - TYPE AMPERE Q = PORTATA - CAPACITY

Monofase

Single-phase

230V-50Hz

HGM 1

HGM 2

Trifase

Three-phase

230/400V-50Hz

HG 1

HG 2

HP kW

1,521,1

HGM 3 HG 3

HG 4

5,5 4

HG 5

POTENZA

NOMINALE

ASSORBITA

NOMINAL

INPUT

POWER

POWER

P1

kW

1,5

2

2,7

Monofase

Single-phase

1 x 230V

7

9,3

P2

1,5

3 2,2 12

7, 5

5,5 12

Trifase

Three-phase

3 x 400V

3

4,2

5,3

9,4

m3/h

1,5253506

lt/1’

Prevalenza manometrica totale in m.C.A. - Total head in meters w.c.

1001220018300

18 1719161815 1612149

H

(m)

17 16 15 14 13 10

24 23 22 21 20 165,5 13

25 24 23 22 207, 5

24 36

400

60048800601000

11

4

72

1200

6

17

Dimensioni e pesi - Dimensions and weights

TIPO - TYPE

Monofase

Single-phase

Three-phase

HGM 1 HG 1

HGM 2 HG 2

HGM 3

Trifase

HG 3

HG 4

HG 5

A

260B152C412E185G193

335 193 528 200 193 220

408 240 648 185 280 348442 185

DIMENSIONI mm - DIMENSIONS mm

H1

H

240N122

302

302

312 150

11

DNA

2”

2” 2”

3”

3”

3”

DNM

2”

3”

3”

3”

Dimensioni

Dimensions

mm

Weight

220 420 330 26

220 420 330 28260 152 412 185 193 240 122

220

420 330

490 655 360

490 730 360 92465 240 705 210 280 373465 185

Peso

KgILM

36

71



Informazioni sullo smaltimento delle apparecchiature elettriche ed elettroniche in ottemperanza alla direttiva
2002/96 CE (RAEE).

Attenzione: per smaltire il presente prodotto non utilizzare il normale bidone della spazzatura.
Le apparecchiature elettriche ed elettroniche usate devono essere gestite a parte ed in conformità alla legislazione
che richiede il trattamento, il recupero e il riciclaggio adeguato dei suddetti prodotti.
In seguito alle disposizione attuate dagli Stati membri, i privati residenti nella UE possono conferire gratuitamente
le apparecchiature elettriche ed elettroniche usate a centri di raccolta designati.
In caso di difficoltà nel reperire il centro di raccolta autorizzato allo smaltimento, interpellare il rivenditore dal
quale è stato acquistato il prodotto.
La normativa nazionale prevede sanzioni a carico dei soggetti che effettuano lo smaltimento abusivo o l’abbandono
dei rifiuti di apparecchiature elettriche ed elettroniche.



Information on the disposal of electric and electronic equipment in compliance with directive 2002/96 CE (RAEE).

Warning: do not use the normal house trash bin to dispose of this product.
Used electric and electronic equipment must be handled separately and in compliance with the regulations relating to the treatment,
recovery and recycling of the said products.
In accordance with the regulations applied in the member States, private users resident in the EU can take used electric and electronic
equipment free of charge to designated collection centers.
If you experience difficulties in locating an authorized disposal center, consult the dealer from whom you purchased the product.
The national regulations provide sanctions against whoever unlawfully disposes of or abandons waste of electric or electronic equipment.



Informations sur l’élimination des appareillages électriques et électroniques en conformité avec la directive 2002/96 CE (RAEE).

Attention: pour éliminer ce produit, ne pas utiliser la poubelle ordinaire.
Les appareillages électriques et électroniques usagés doivent être gérés séparément et en conformité avec la législation régissant le
traitement, la récuparation et le recyclage de ces produits.
Suite aux dispositions en vigueur dans les États membres, les particuliers résidant en UE peuvent porter gartuitement les appareillages
électriques et électroniques usagés aux centres de récolte désignés.
En cas de difficultés pour trouver le centre de récolte autorisé à l’élimination, veuillez interpeller le revendeur qui vous a vendu l’appareil.
La législation nationale prévoit des sanctions à la charge des sujets qui abandonnet ou éliminent les déchets d’appareillages électriques
ou électroniques de façon illégale.

SPAÑOL

Informaciones sobre el desguace de aparatos eléctricos y electrónicos en conformidad con la directiva 2002/96 CE (RAEE).

Atención: no utilizar la normal lata de la basura para desguazar el presente producto.
Los aparatos eléctricos y electrónicos necesitan un manejamiento saparado en conformidad con la legislación que require el tratamiento,
la recuperación y el reciclaje de los dichos productos.
En conformidad con las disposiciones vigentes en los Estados miembros, los particulares residentes en la UE pueden llevar gratuitamente
los aparatos eléctricos y electrónicos de uso a centrales de recolección designadas. En caso de dificultades para localizar la central de
recolección autorizada para el desguace, sirvanse consultar el rivendidor donde el producto fué comprado.
La normativa nacional preve sanciones a cargo de sujetos que abandonan ó desguazan los desechos de aparatos eléctricos ó eléctronicos
en forma abusiva.



Informationen zur Entsorgung von Elektrogeräten sowie elektronischen Geräten gemäß Richtlinie 2002/96 CE (RAEE).

Hinweis: verwenden Sie nicht den normalen Hausabfall, um dieses Produkt zu beseitigen.
Gebrauchte Elektrogeräte sowie elektronische Geräte müssen separat, gemäß der Gesetzgebung, welche die sachgemäße Behandlung,
Verwertung und das Recycling dieser Produkte vorschreibt, verwertet werden.
Gemäß aktueller Anordnungen der Mitgliedsstaaten können private Haushalter der EU die gebrauchten Elektrogeräte sowie elektronische
Geräte kostenlos zu den dafür vorgesehen Müllverwertungszentren bringen.
Die nationalen Anordnungen sehen Sanktionen gegen diejenigen vor, die Abfälle von elektrischen oder elektronischen Geräten rechtswidrig
entsorgen oder verlassen.



Informações a respeito da eliminação de aparelhos eléctricos e electrónicos conforme disposto na directiva 2002/96 CE (RAEE).

Atenção: não elimine este produto deitando-o nos recipientes de lixo normais.
Os aparelhos eléctricos e electrónicos devem ser tratados em separado e segundo a legislação que prevê a recuperação, a reciclagem
e tratamento adequados de tais produtos.
Segundo as disposições actuadas pelos Estados-membros, os utilizadores domésticos que residam na União Europeia podem entregar
gratuitamente os aparelhos eléctricos e electrónicos usados em centros de recolha autorizados.
Se for difícil localizar um centro de recolha autorizado para a eliminação, contactar o revendedor onde se comprou o produto.
A legislação nacional prevê sanções para aqueles que efectuam a eliminação abusiva de resíduos de aparelhos eléctricos e electrónicos
ou os abandonam no meio ambiente.



Informatie over het milieuvriendelijk afvoeren van elektronische installatie volgens richtlijn 2002/96 CE (RAEE)

Opgepast: product niet meegeven met normaal huisvuil ophaling.
Gebruikte elektrische en elektronische apparaten moeten apart worden verwerkt volgens de wet van het de
verwerking, hergebruiking en recyclage van het product.
Overeenkomstig de regeringen die in de lidstaten worden toegepast, de privé gebruikers wonende in de EU kunnen
gebruikte elektrische en elektronisch kosteloos inleveren in aangewezen inzamelingscentra.
Als u moeilijkheden ondervindt met het vinden van een inzamelingscentrum, neem dan contact op met de dealer
waar u het product heeft aangekocht. De nationale regeringen verstrekken sancties tegen personen die afval van
elektrisch of elektronisch materiaal wegdoen of onwettig achterlaten.



Information om deponering av avfall som utgörs av eller innehåller elektriska och elektroniska produkter i enlighet med direktiv
2002/96 CE (WEEE).

Observera! Släng inte denna produkt i den vanliga soptunnan
som utgörs av eller innehåller elektriska och elektroniska måste hanteras separat och i enlighet med lagstiftningen som kräver behandling,
återvinning och återanvändning av sådana produkter.
I enlighet med bestämmelserna som antagits av medlemsstaterna får privatpersoner som är bosatta inom EU kostnadsfritt lämna in
uttjänta elektriska och elektroniska produkter till speciella uppsamlingsställen.
Om du har svårighet att hitta en uppsamlingsplats som är auktoriserad för deponering, vänd dig till distributören där du har köpt
produkten.
Den nationella lagstiftningen omfattar sanktioner för den som på olagligt sätt deponerar eller överger avfall bestående av elektriska och
elektroniska produkter.



Informationer om bortskaffelse af elektrisk og elektronisk udstyr i overensstemmelse med direktiv 2002/96/EF (WEEE).

Advarsel: brug ikke den normale affaldsbeholder til bortskaffelse af dette produkt.
Brugt elektrisk og elektronisk udstyr skal behandles separat i henhold til lovgivningen, der kræver passende behandling, genvinding og
genbrug af disse produkter.
I henhold til bestemmelserne, der er iværksat af EU-landene, kan privatpersoner, der er bosat her, gratis aflevere brugt elektrisk og
elektronisk udstyr til udvalgte indsamlingscentre.
Hvis det er vanskeligt at finde et opsamlingscenter, der har tilladelse til bortskaffelse, bedes De kontakte forhandleren, hvor produktet
er købt. Det nationale normativ forskriver sanktioner for dem, der foretager ulovlig bortskaffelse eller efterladelse af elektrisk og elektronisk
udstyr.

FIN



Tietoja sähköisten ja elektronisten laitteiden hävittämisestä direktiivin 2002/96/EY (WEEE) mukaisesti.

Huomio: Tätä tuotetta ei saa heittää tavalliseen jätesäiliöön
Käytetyt sähköiset ja elektroniset laitteet täytyy hävittää erikseen ja se on tehtävä näiden tuotteiden käsittelyä, talteenottoa ja kierrätystä
koskevien lakien mukaisesti.
Mikäli hävittämiseen valtuutettua keräyskeskusta on vaikea löytää, kysy asiaa jälleenmyyjältä, jolta tuote on ostettu.
Kansalliset asetukset määräävät rangaistuksen henkilöille, jotka hävittävät sähköiset ja elektroniset laitteet väärin tai jättävät ne heitteille.



Informasjon om avhending av elektriske og elektroniske apparater i henhold til direktivet 2002/96 CE (RAEE).

Advarsel: dette produktet skal ikke kastes sammen med det vanlige avfallet
Utbrukte elektriske og elektroniske apparater skal tas hånd om på annen måte og i samsvar med loven, som krever korrekt behandling,
gjenvinning og resirkulering av slike produkter.
I henhold til bestemmelsene i medlemslandene, kan private som er bosatte i EU gratis innlevere de brukte elektriske og elektroniske
apparatene til bestemte innsamlingssentre.
Dersom du har problemer med å finne et autorisert innsamlingssenter, bør du kontakte forhandleren der du kjøpte produktet.
Loven straffer den som ikke tar hånd om avfall på korrekt vis eller etterlater elektriske og elektroniske apparater i miljøet.



Пληροφορες για τη διθεση του ηλεκτρικοÚ και ηλεκτρονικοÚ εξο∏λισμοÚ σÚμφωνα με την οδηγα 2002/96/ΕΚ
(ΑΗΕΕ).
Пροσοχ: για τη διθεση αυτο
Οι ηλεκτρικ"ς και ηλεκτρονικ"ς συσκευ"ς πρ"πει να διατθενται χωριστ και σ‡μφωνα με την ισχ‡ουσα νομοθεσα
που απαιτε την επεξεργασα, την ανκτηση και την ανακ‡κλωση των προϊντων αυτ#ν.
Μετ την εφαρμογ των διατξεων απ τα κρτη μ"λη, οι ιδι#τες που κατοικο
να παραδδουν δωρεν τις ηλεκτρικ"ς και ηλεκτρονικ"ς συσκευ"ς σε εξουσιοδοτημ"να κ"ντρα συλλογς *.
Σε περπτωση που δυσκολε
απ το οποο αγορσατε το προϊν.
Η εθνικ νομοθεσα προβλ"πει κυρ#σεις για τους υπε
απορριμμτων ηλεκτρικο

Ú του προϊντος μη χρησιμοποιετε τους κοινοÚς κδους απορριμμτων

Úν στην Ευρωπαϊκ %νωση μποροÚν

Úσετε να εντοπσετε το εξουσιοδοτημ"νο κ"ντρο συλλογς, απευθυνθετε στο κατστημα

Ú και ηλεκτρονικοÚ εξοπλισμοÚ.

Úθυνους της παρνομης διθεσης  της εγκατλει

ης των

Ψ

DICHIARAZIONE DI CONFORMITÀ

EC declaration of conformity
We declare that articles present in this handbook comply
with the following Directives:
y 2006/42/CE
(P2<2,2 kW - V/Hz rated, curve point at QmaxÆLpA

GBF

measured ≤ 70 dBA/R:1m - H:1m)
(P2≥2,2 kW - V/Hz rated, curve point at QmaxÆLpA
measured ≤ 80 dBA/R:1m - H:1m)
y 2006/95/CE

Déclaration CE de Conformité
Nous declarons que les articles de ce livret sont déclarés
conformes aux Directives suivantes:
y 2006/42/CE
(P2<2,2 kW - V/Hz d’après plaque, point en courbe au
QmaxÆLpA mesuré ≤ 70 dBA/R:1m - H:1m)
(P2≥2,2 kW - V/Hz d’après plaque, point en courbe au
QmaxÆLpA mesuré ≤ 80 dBA/R:1m - H:1m)
y 2006/95/CE

Dichiarazione CE di conformità
Si dichiara che gli articoli del presente libretto sono conformi
alle seguenti Direttive:
y 2006/42/CE
(P2<2,2 kW - V/Hz di targa, punto in curva a QmaxÆLpA
misurato ≤ 70 dBA/R:1m - H:1m)
(P2≥2,2 kW - V/Hz di targa, punto in curva a QmaxÆLpA
misurato ≤ 80 dBA/R:1m - H:1m)

y 2006/95/CE y 2004/108/CE

y 2004/108/CE

y 2004/108/CE

y 2000/14/CE

(P2<2,2 kW - V/rated Hz, curve point at Qmax)ÆLWA measured 84
dBA/LWA guaranteed 85 dBA/Procedure followed: Enclosure V
(P2≥2,2 kW - V/rated Hz, curve point at Qmax)ÆLWA measured 94
dBA/LWA guaranteed 95 dBA/Procedure followed: Enclosure V

Applied harmonized standards:

y

EN 60034-1/EN 60335-1/EN 60335-2-41/EN 292-1/EN 292-2/EN

55014/EN ISO 3744

y 2000/14/CE
(P2<2,2 kW - V/Hz d’après plaque, point en courbe au Qmax)ÆLWA
mesuré 84 dBA/LWA garanti 85 dBA/Procédure suivie: Annexe V
(P2≥2,2 kW - V/Hz d’après plaque, point en courbe au Qmax)ÆLWA
mesuré 94 dBA/LWA garanti 95 dBA/Procédure suivie: Annexe V

Normes harmonisées appliquées:

y

EN 60034-1/EN 60335-1/EN 60335-2-41/EN 292-1/EN 292-2/EN

55014/EN ISO 3744

y 2000/14/CE
(P2<2,2 kW - V/Hz di targa, punto in curva a Qmax)ÆLWA misurato 84
dBA/LWA garantito 85 dBA/Procedura seguita: Allegato V
(P2≥2,2 kW - V/Hz di targa, punto in curva a Qmax)ÆLWA misurato 94
dBA/LWA garantito 95 dBA/Procedura seguita: Allegato V

Norme armonizzate applicate:

y

EN 60034-1/EN 60335-1/EN 60335-2-41/EN 292-1/EN 292-2/EN

55014/EN ISO 3744

Declaración CE de conformidad
Se declara que los artículos del presente libro son conformes
a las siguientes Directivas:
y 2006/42/CE
(P2<2,2 kW - V/Hz nominal, punto en curva QmaxÆLpA

E I

medido ≤ 70 dBA/R:1m - H:1m)
(P2≥2,2 kW - V/Hz nominal, punto en curva QmaxÆLpA
medido ≤ 80 dBA/R:1m - H:1m)
y 2006/95/CE y

2004/108/CE

y 2000/14/CE
(P2<2,2 kW - V/Hz nominal, punto en curva Qmax)ÆLWA medido 84
dBA/LWA garantizado 85 dBA/Procedimiento adoptado: Anexo V
(P2≥2,2 kW - V/Hz nominal, punto en curva Qmax)ÆLWA medido 94
dBA/LWA garantizado 95 dBA/Procedimiento adoptado: Anexo V

Normas Armonizadas aplicadas:

y

EN 60034-1/EN 60335-1/EN 60335-2-41/EN 292-1/EN 292-2/EN

55014/EN ISO 3744
