Nov 25, 2013
Custom Bent Brake Line Kit
'67-'69 Camaro and '68-'74 Nova
Installation Instructions
The following instructions are intended for professional
installers and are guidelines only. Speedtech Performance
assumes NO responsibility for the installation of any of its
products. All products are intended for off road use only and
must be installed by qualified professionals only
Thank you for purchasing your new Speedtech Brake Line Kit. To install this kit
you may have to jack up the car off the ground and/or remove parts. Take all
necessary precautions whenever jacking up your vehicle and be sure to use safe
and sturdy jack stands to support the vehicle whenever it is off the ground.
1 | P a g e
Brake Line Hardware Parts List:
1- Proportioning Valve # Wilwood 260-11179
1- Proportioning Valve Bracket
5- Labeled Brake Lines
5- Black Line clamps # Russell 654030
2- Line Mount Brackets ( bent)
2 - ¼ x 1 ¾ Bolts and Nuts
1- Inverted Flare plug #131x3
1- 1/8 NPT Pipe plug # Russell 662031
1- 90 Deg Bulkhead # Russell 661231
2- Straight bulkhead # Russell 661161
2- Bulkhead “T” # Russell 661301
4- Bulkhead Nuts # Russell 643871
1- Union # Russell 660331
4- Inverted Flare # Russell 643961
2- Rear Flex Lines # Russell 656042 18” long
2- Front Flex Lines # Russell 656072 27” long
2- Black Powder Caoted Rear Line Clamps
2 | P a g e
1. Install the line fittings into the proportioning valve Wilwood # 260-11179
Note brake line locations for in and out, front and rear.
2. Install the Proportioning Valve to the supplied bracket with the ¼ x 1 ¾”
bolts. Notice that the switch on the right side of the valve is intended to
activate your rear brake lights. If you are planning on maintaining the
factory pedal mounted brake light switch, remove the Wilwood switch and
3 | P a g e
block the port with the supplied 1/8” npt plug. The proportioning valve can
now be installed on the firewall.
If using a brake booster, you will need to bend the bracket down
approximately 30 degrees to clear the booster and bend the ends of the
brake line to match.
NOTE: We have NOT supplied brake lines that go from the master
cylinder to the proportioning valve. This is due to variations in fittings and
master cylinder designs. The easiest way to complete the connection
would be to use braided flex lines that you can purchase from a
performance parts retailer. If you have the proper tools, you can fabricate
custom hard lines.
4 | P a g e
3. Install the brake lines. Above you can see the 2 downward lines. The
front brake line is in the foreground. Note which port the front line is
connected to on the prop valve.
Note: DO NOT tighten any of the fittings at this time. Keep them finger
tight as you continue the installation so you can adjust parts as needed to
line up properly.
5 | P a g e
4. Install the Bulk head “T” into the sub frame mounting holes with the
long leg through the frame. This shows the driver’s side bulk head T
installed with both lines connected. You can see Front Line #1 on the left
and Line #2 coming out of the fitting.
6 | P a g e
5. Install the passenger side 90 deg bulkhead fitting. Connect Front #2 line.
6. Install rear line #1 so that it runs down the firewall and onto the sub
frame. This line continues along the sub frame and then out to the rocker
panel.
7 | P a g e

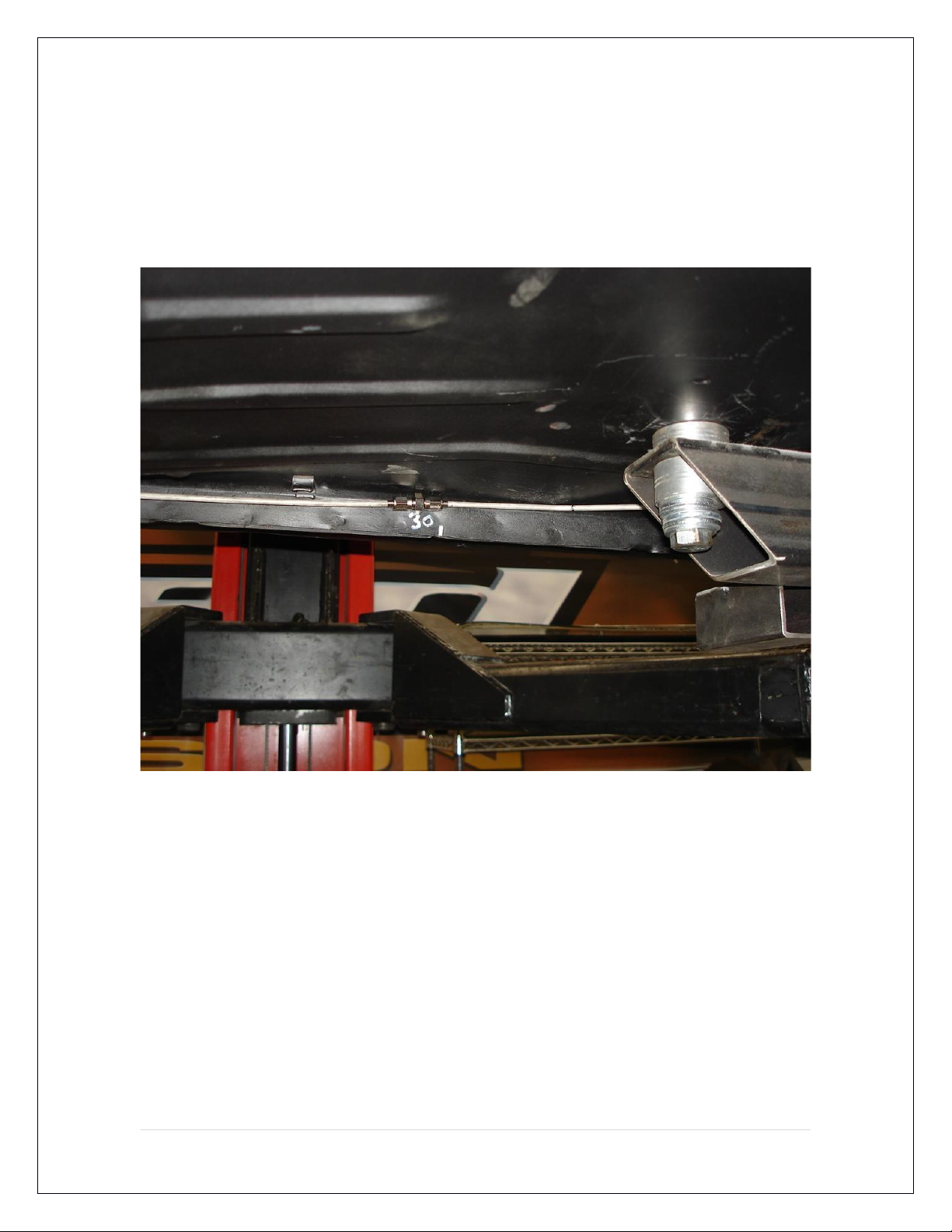

7. Install the Russell union that joins rear line #1 to rear line #2 just past
the end of the sub frame, see above. Here you can use the factory line
clamps to hold the line in place.
8 | P a g e
8. Insert a bulkhead “T” through the mounting bracket and attach rear line
#2. Hold bracket against the frame rail with a Vise Grip or other style
clamp. Attach rear line #3. This line runs over to the passenger side. The
final open side of the fitting is where the rear brake caliper braided flex line
will attach. Use rivets to attach the line clamp solidly to the frame.
9 | P a g e

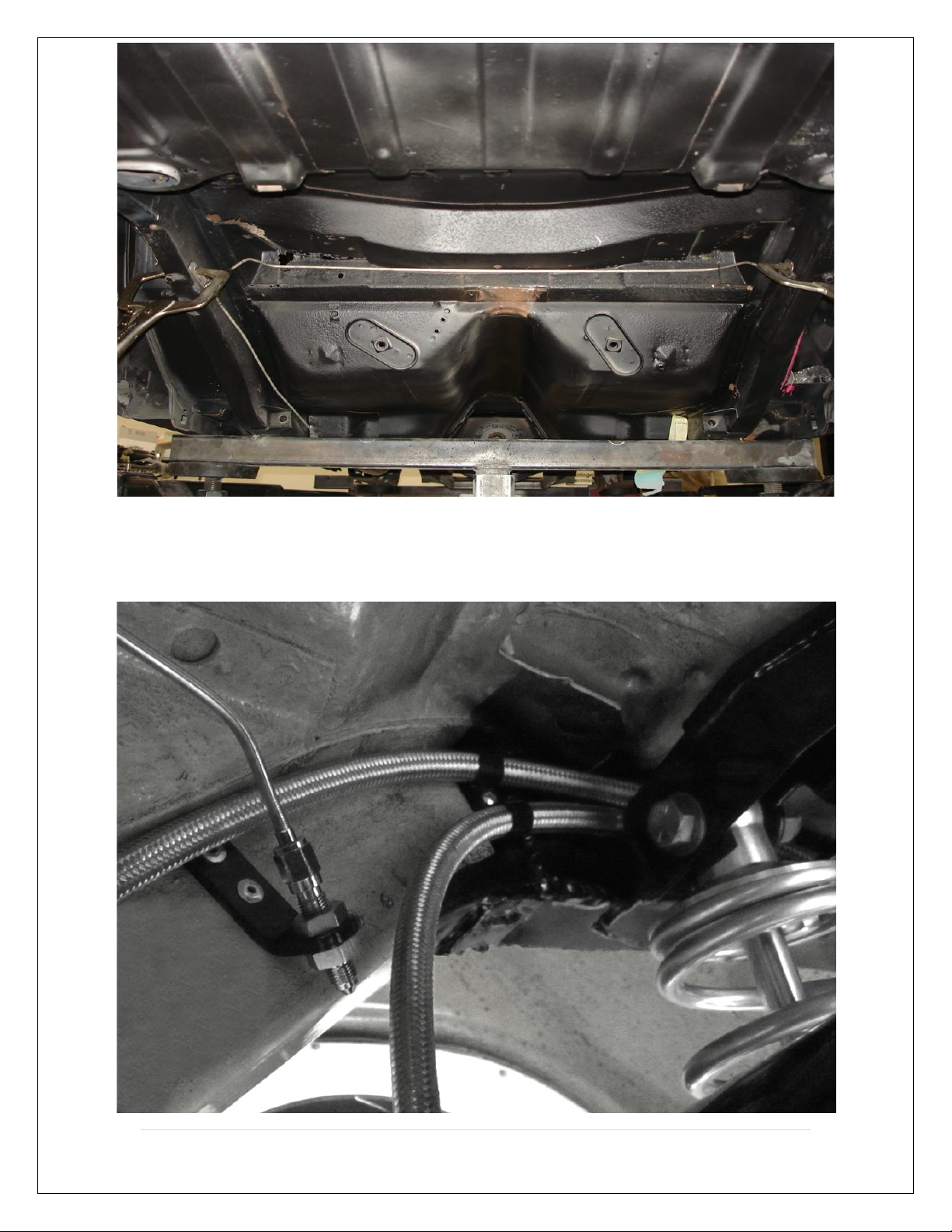

9. Install a line clamp in the center of line #3 and attach the right side of
the line to the mounting bracket on the passenger side frame rail, see
below.
10 | P a g e
10. Once you have all the lines clamped and the mounting brackets
attached to the vehicle, tighten the bulkhead fitting mounting nuts and all
tube end nuts.
Keep in mind that the fittings are aluminum and damage easily. Do not
cross thread or over tighten. They only need to be tight enough so that
they don't leak. The tube nut and sleeve combined with the flared end will
provide an adequate seal when installed properly.
11. Install the flex lines onto ends of the hard lines. The flex lines provided
for both the front and rear caliper connection will need adapter fittings for
the caliper side. All flex lines have the same end fittings, -3 JIC. Because
of the many different caliper designs, you will have to purchase the correct
adapter fittings for your calipers from your performance parts retailer.
12. Be sure to properly bleed the entire brake system before driving the
vehicle.
11 | P a g e
