Commercial
Front Control
Washers
Refer to Page 3 for Model Numbers
Parts
www.comlaundry.com
H003C_685975
Part No. 685975R2
June 2004
Table of Contents
Title Page
Parts Ordering Information........................................................................................................................................ 2
Nameplate Location .................................................................................................................................................. 2
Model Identification ................................................................................................................................................... 3
Control Panel and Controls....................................................................................................................................... 4
Timer, Motor Control Assembly, Pressure Switch and Relays.................................................................................. 6
Cabinet Top and Wrapper Assembly ........................................................................................................................ 8
Front Panel, Door Assembly and Door Seal ........................................................................................................... 10
Dispenser Assembly ............................................................................................................................................... 12
Inner Basket, Trunnion, Bearing Housing and Pulley ............................................................................................. 14
Outer Tub, Front and Clamp Ring........................................................................................................................... 16
Inlet Hose, Mixing Valve and Dispenser Hose ........................................................................................................ 18
Motor and Belt......................................................................................................................................................... 20
Hoses and Pump .................................................................................................................................................... 22
Panels and Base ..................................................................................................................................................... 24
Shipping Materials .................................................................................................................................................. 26
Lead-In Cord and Terminals ................................................................................................................................... 28
Terminals ................................................................................................................................................................ 30
Wire Harnesses and Wires ..................................................................................................................................... 32
Parts Index .............................................................................................................................................................. 33
© Copyright 2004, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
685975 1
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Parts Ordering Information
If literature or replacement parts are required, contact the source from whom the machine was purchased or contact Alliance Laundry Systems at
(920) 748-3950 for the name and address of the
nearest authorized parts distributor.
For technical assistance, call (920) 748-3121.
Nameplate Location
When calling or writing about your product, be
sure to mention model and serial numbers. Model
and serial numbers are located on nameplate(s)
as shown.
NAMEPLATE
LOCATION
H029PE1A_685975
2 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Model Identification
Information in this manual is applicable to these washer models:
HWF261*A1102
HWF261*C1102
SWF261*A
* Add Letter To Designate Color. L - Almond W - White
685975 3
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Control Panel and Controls
H015P_685975
4 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Control Panel and Controls
REF PART NO. DESCRIPTION COMMENTS
1 27260P Lock Kit
2 27261 Cam
3 32464 Light
4 800404 Motor Speed Switch
5 685595 Temperature Switch
6 91176 Washer
7 55882 Switch Assembly
8 52947 Nut
9 25820 Washer
10 504454* Control Panel Assembly
11 686514 Overlay Model SWF261*A
11 800495 Overlay Models HWF261*A1102 and HWF261*C1102
12 24205 Nut
13 39897 Knob
14 N/A Screw
* Add Letter To Designate Color. L - Almond W - White
N/A = Part no longer available
685975 5
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Timer, Motor Control Assembly, Pressure Switch and Relays
H032P_685975
6 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Timer, Motor Control Assembly, Pressure Switch and Relays
REF PART NO. DESCRIPTION COMMENTS
1 33562 Screw
2 58181 Coin Slide Guard
3 685593 Coin Slide Extension
4 52151 Strain Relief
5 36164 Actuator
6 36166 Screw
7 03950 Screw
8 685592 Actuator Support
9 36165 Plastic Boot
10 503661 Screw
11 29503 Clutch Assembly
12 685585 Timer
13 685365 Timer Bracket
14 21720 Screw
15 800949P Motor Control Assembly
16 685520 Pressure Switch
17 503688 Screw
18 N/A Relay
19 431349 Relay
20 51782 Screw
21 685837 Screw
N/A = Part no longer available
685975 7
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Cabinet Top and Wrapper Assembly
H030P_685975
8 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Cabinet Top and Wrapper Assembly
REF PART NO. DESCRIPTION COMMENTS
1 56128 Bumper Pad
2 502431 Screw
3 N/A Security Top Panel
4 503688 Screw
5 511529*P Cabinet Top Kit
6 500236 Hinge Clip
7 503676 Hinge
8 685847 Rivet
9 36020 Nut
10 M402542 Bushing
11 500226 Screw
12 29651 Bolt
13 504228 Top Mounting Bracket
14 N/A Control Shield
15 36985 Hose Clip
16 29796 Nut
17 800052* Wrapper Assembly
18 801008 Control Shield
19 501086 Screw
20 511523* Front Security Cabinet Assembly
21 685942 Instruction Label
22 23008 Screw
23 29796 Nut
24 523P3 Coin Funnel Kit
25 56079 Locator
26 39733 Screw
* Add Letter To Designate Color. L - Almond W - White
N/A = Part no longer available
685975 9
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Front Panel, Door Assembly and Door Seal
FLW876P_685975
10 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Front Panel, Door Assembly and Door Seal
REF PART NO. DESCRIPTION COMMENTS
1 N/A Front Panel Use item 17
2 56079 Locator
3 39733 Screw
4 685407 Door Latch Switch Assembly
5 503661 Screw
6 800438 Wire Clamp Ring
7 800346 Spring
8 800232 Door Seal and Hose Assembly
9 685743 Door Seal Clamp
10 685460 Hinge Assembly
11 N/A Hinge Bracket
12 685843 Screw
13 685366 Foam Tape 1 inch by 26 inch
14 510069* Access Panel
15 685470 Hinge Plate
16 685862 Screw
17 800435*P Front Panel Assembly Includes item 1
18 N/A Dispenser Label
19 800548 Screw
20 685947 Door Locked Label
* Add Letter To Designate Color. L - Almond W - White
N/A = Part no longer available
685975 11
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Dispenser Assembly
H004PZ3B_685975
12 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Dispenser Assembly
REF PART NO. DESCRIPTION COMMENTS
1 55881 Harness Strap
2 800232 Door Seal and Hose Assembly
3 36801 Hose Clamp
4 685830 Screw
5 685756 Dispenser
6 800548 Screw
7 685715* Dispenser Drawer Front
* Add Letter To Designate Color. L - Almond W - White
685975 13
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

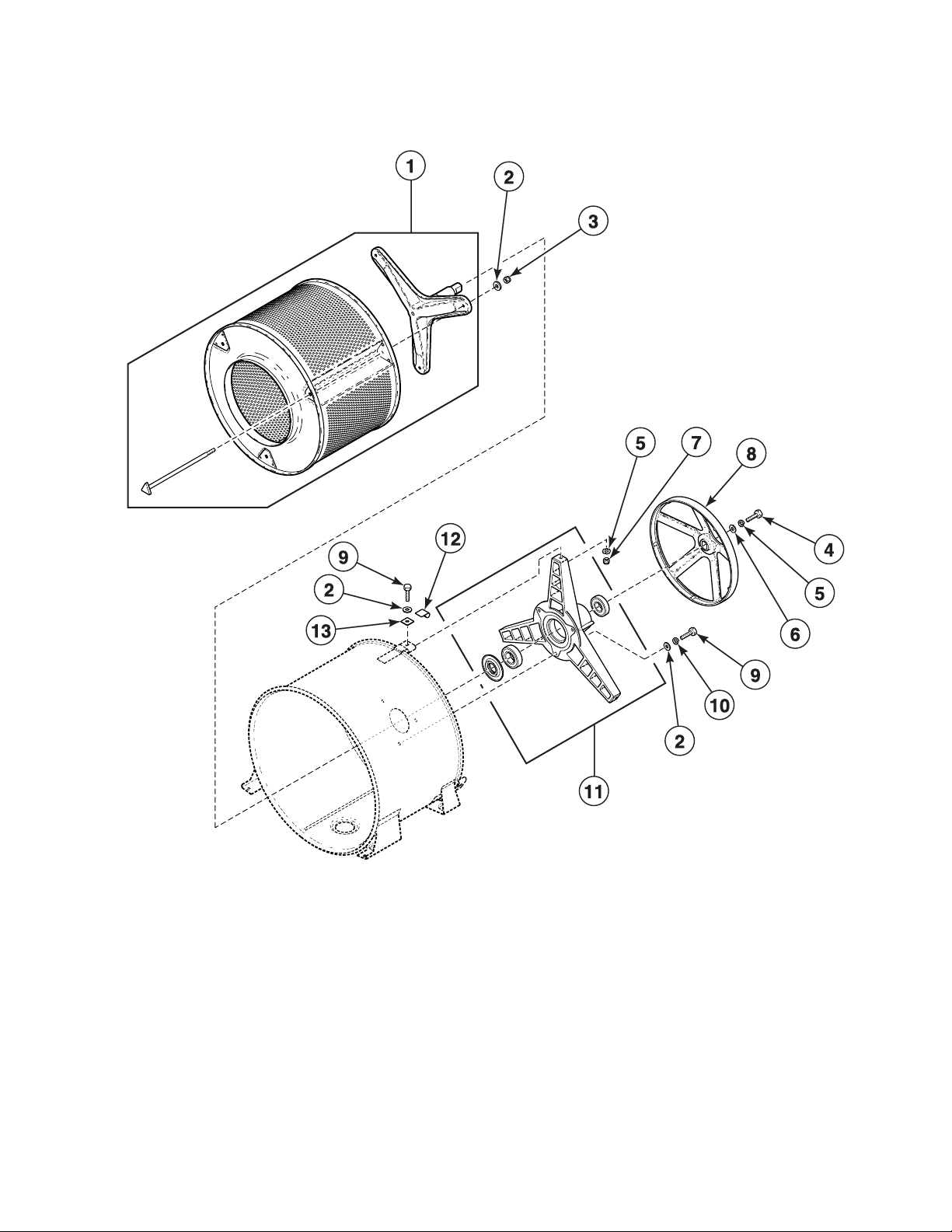

Inner Basket, Trunnion, Bearing Housing and Pulley
H005PZ3C_685975
14 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Inner Basket, Trunnion, Bearing Housing and Pulley
REF PART NO. DESCRIPTION COMMENTS
1 800429P Inner Basket Assembly
2 800457 Washer
3 685844 Nut
4 685831 Screw Left hand thread
5 M403958 Washer
6 800464 Washer
7 800452 Nut
8 800866 Pulley
9 M400043 Screw
10 M400014 Washer
11 800428 Bearing Housing Assembly
12 36985 Hose Clip
13 800074XP Hose Mount Plate
685975 15
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

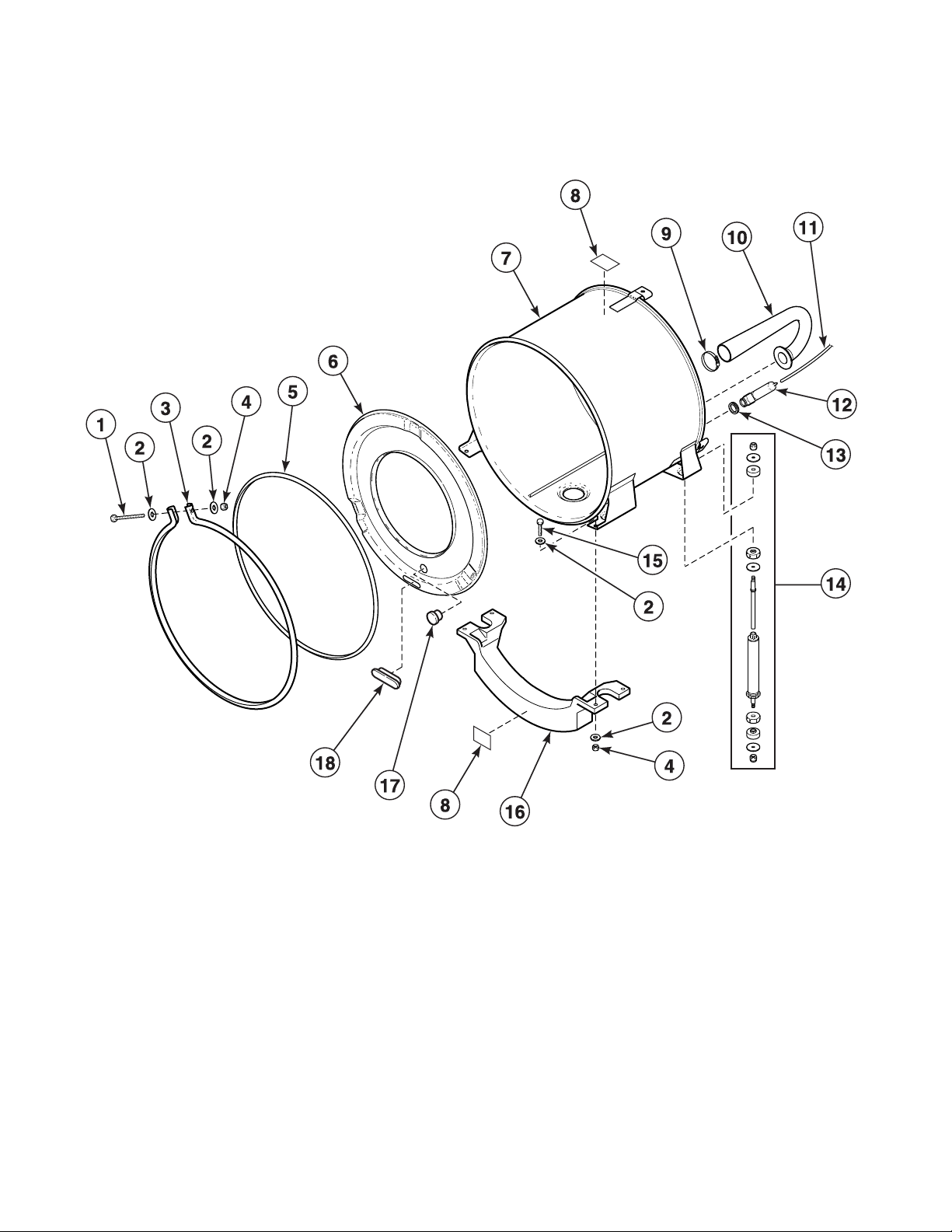

Outer Tub, Front and Clamp Ring
H026P_685975
16 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Outer Tub, Front and Clamp Ring
REF PART NO. DESCRIPTION COMMENTS
1 800462 Screw
2 800457 Washer
3 800312 Clamp Ring
4 800452 Nut
5 800432P Seal
6 800430 Tub Front Assembly
7 801081 Outer Tub Assembly
8 500049 Label Model SWF261*A
8 500314 Label Models HWF261*A1102 and HWF261*C1102
9 685725 Hose Clamp
10 800331 Dispenser-to-Tub Hose
11 800648 Pressure Hose
12 30907 Pressure Bulb
13 29175 Grommet
14 800622P Shock Absorber Kit Upper
14 800623P Shock Absorber Kit Lower
15 800461 Screw
16 800205 Weight
17 N/A Thermostat Plug
18 F360202 Heating Element Plug
N/A = Part no longer available
685975 17
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

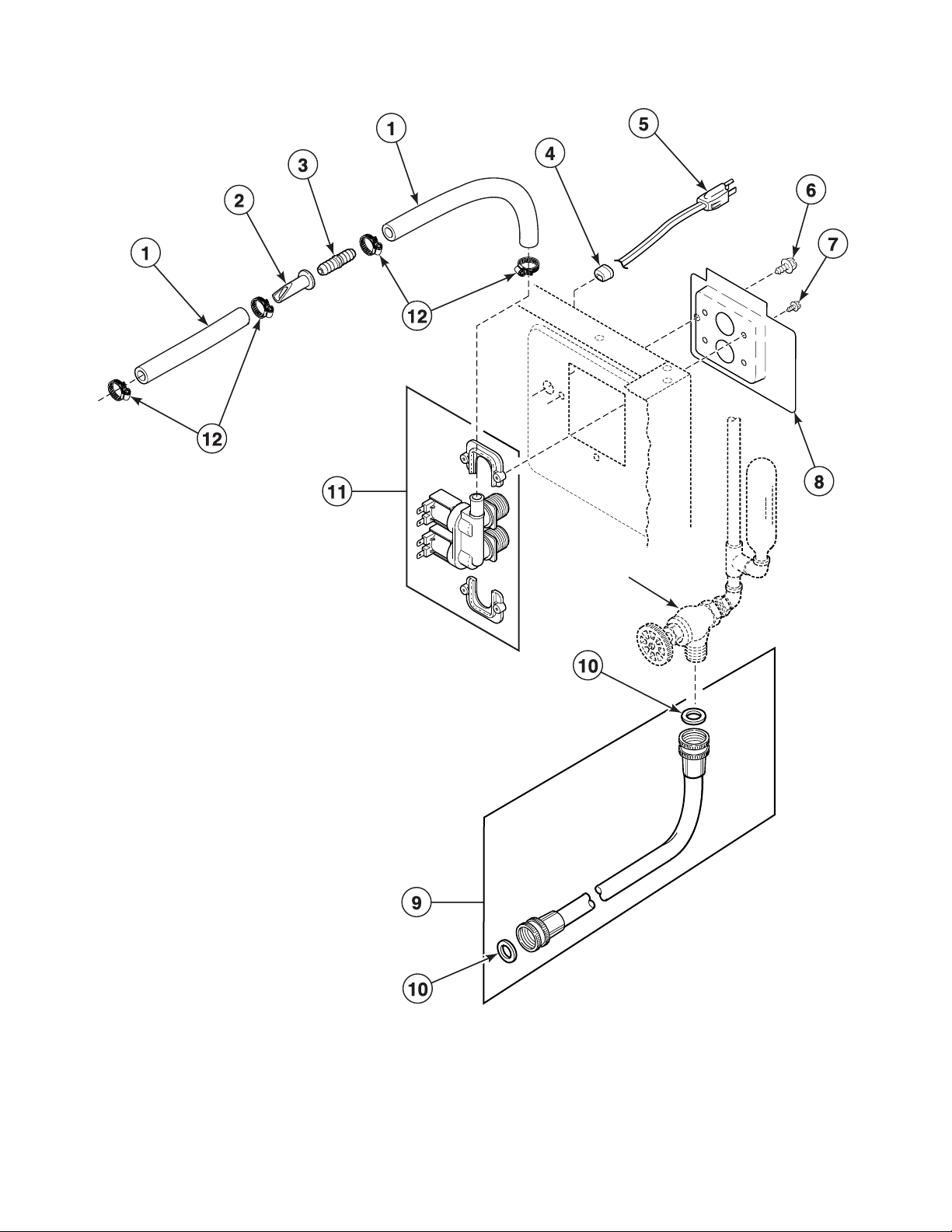

Inlet Hose, Mixing Valve and Dispenser Hose
WATER
FAUCET
H033P_685975
18 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Inlet Hose, Mixing Valve and Dispenser Hose
REF PART NO. DESCRIPTION COMMENTS
1 801464 Valve-to-Dispenser Inlet Hose
2 34500 Backflow Preventer
3 N/A Union
4 38384 Strain Relief
5 39406 Lead-In Cord
6 503661 Screw
7 501086 Screw
8 800323 Mixing Valve Plate
9 28330P Inlet Hose Assembly Includes item 10
10 20290 Washer
11 800434P Mixing Valve
12 36801 Hose Clamp
N/A = Part no longer available
685975 19
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Motor and Belt
H008P_685975
20 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Motor and Belt
REF PART NO. DESCRIPTION COMMENTS
1 M400056 Screw
2 M400080 Washer
3 800319P Belt
4 685617 Motor
5 801062 Motor Rod
685975 21
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

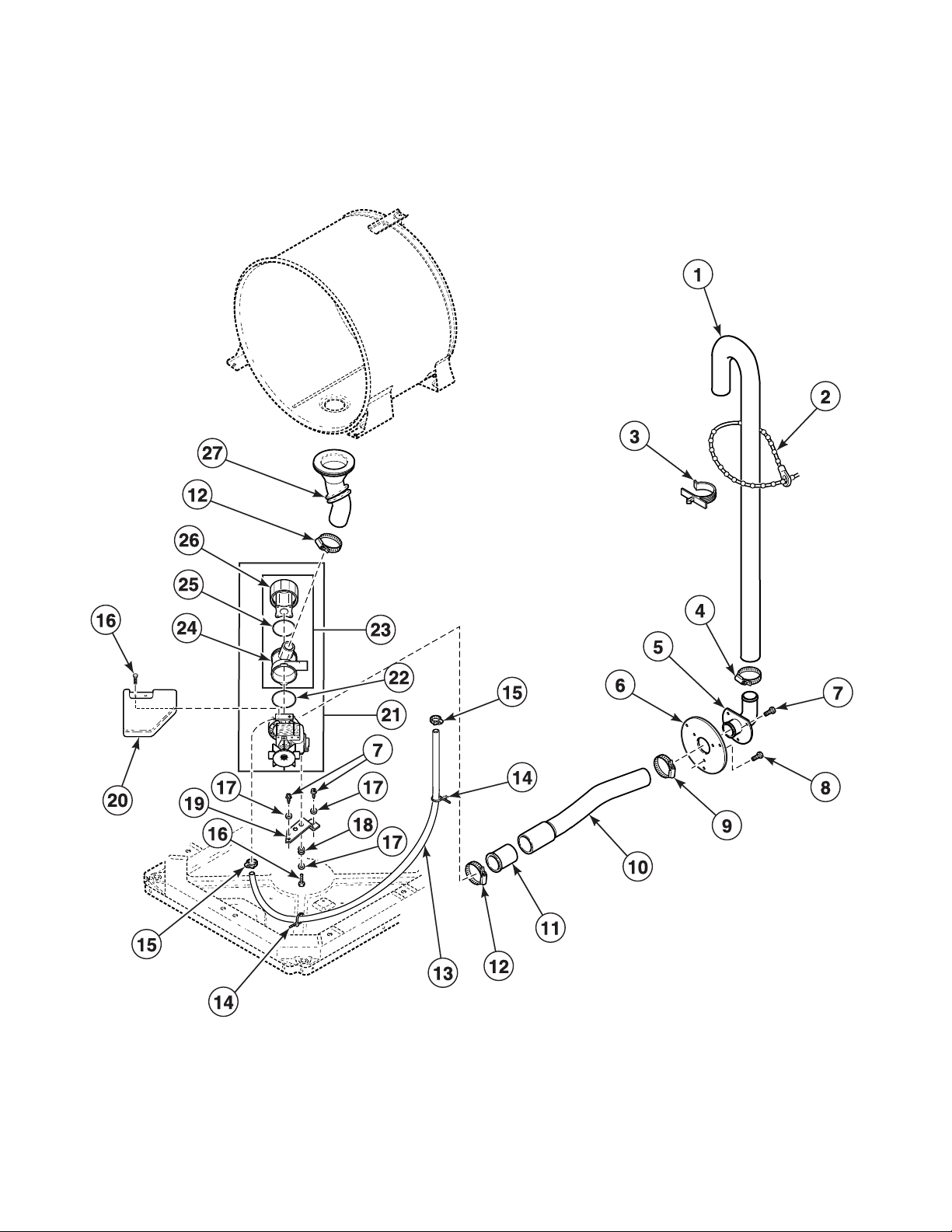

Hoses and Pump
FLW877P_685975
22 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Hoses and Pump
REF PART NO. DESCRIPTION COMMENTS
1 28293 Drain Hose
2 33489 Beaded Strap Use to secure drain hose to drain receptacle
3 39177 Retainer Clip
4 20211 Hose Clamp
5 36990 Elbow
6 N/A Mounting Plate
7 52909 Screw
8 503661 Screw
9 20391 Hose Clamp
10 685737 Pump-to-Elbow Hose
11 800310 Backflow Preventer
12 36802 Hose Clamp
13 N/A Vent Hose Assembly
14 38663 Wire Tie Push mount
15 36801 Hose Clamp
16 38096 Screw Metric
17 800465 Washer
18 685834 Grommet
19 800308 Bracket
20 38067 Shield
21 685703 Drain Pump
22 37392 O-Ring
23 801209 Pump Housing Assembly Includes items 24-26
24 801208 Pump Housing
25 801207 O-Ring
26 801206 Lid Assembly Includes filter
27 800317 Tub-to-Pump Hose
N/A = Part no longer available
685975 23
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Panels and Base
FLW847P_685975
24 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Panels and Base
REF PART NO. DESCRIPTION COMMENTS
1 56128 Bumper Pad
2 56079 Locator
3 39733 Screw
4 36985 Hose Clip
5 510136 Top Hinge
6 503661 Screw
7 727P3* Panel Kit
8 801222 Base
9 70282 Rubber Foot
10 800014 Leveling Leg
11 800015 Spacer
12 20274 Nut
* Add Letter To Designate Color. L - Almond W - White
685975 25
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Shipping Materials
H011P_685975
26 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Shipping Materials
REF PART NO. DESCRIPTION COMMENTS
1 M400043 Screw
2 M400014 Washer
3 685911 Shipping Bracket
4 800364 Shipping Cord and Brace Assembly
685975 27
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

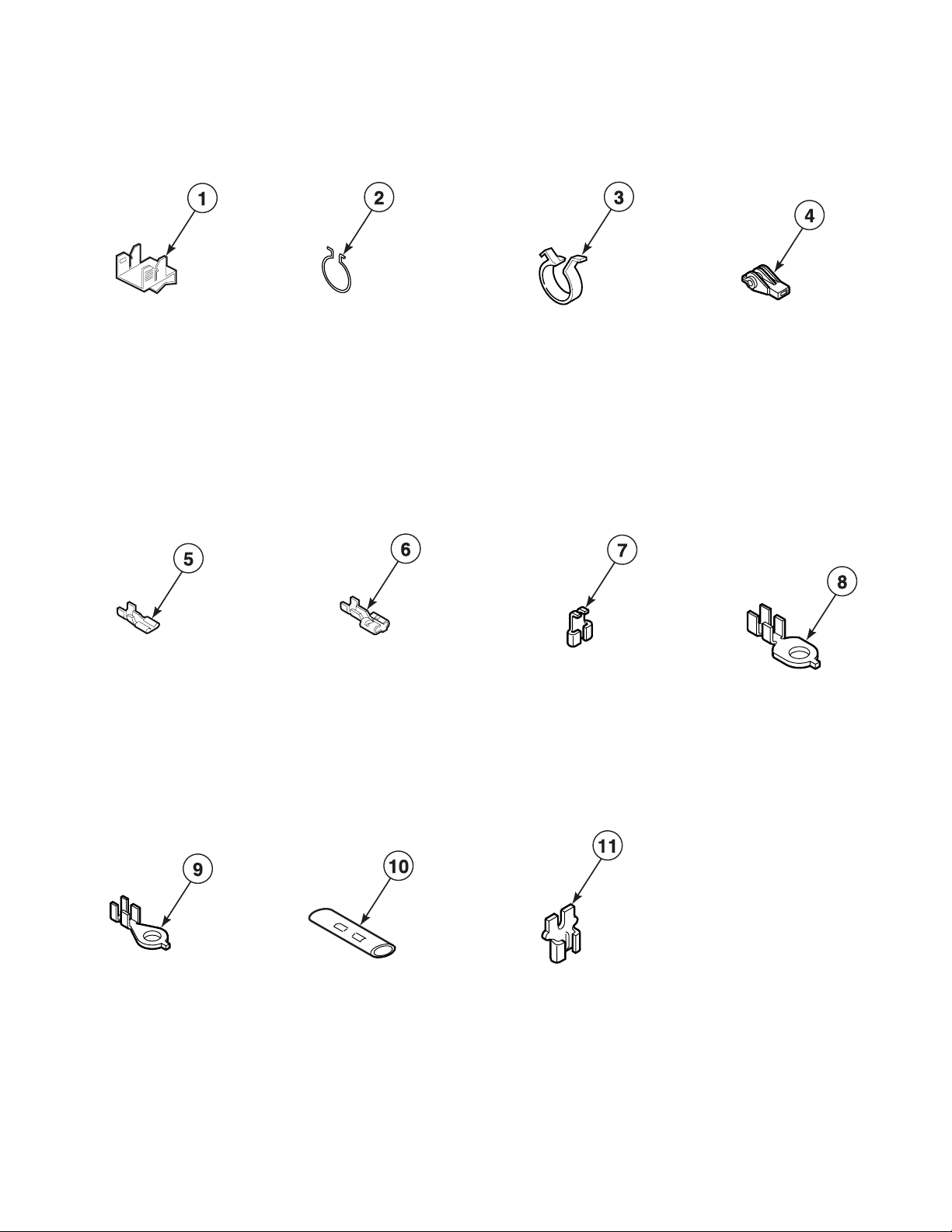

Lead-In Cord and Terminals
H028P_685975
28 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Lead-In Cord and Terminals
REF PART NO. DESCRIPTION COMMENTS
1 32746 Housing Right; Black
1 34123 Housing Left; White
2 00188 Terminal Female; Used for 1 or 2 wire application
3 03815 Washer
4 685837 Screw
5 00234 Insulated Female Terminal
6 03673 Nut
7 00116 Male Pin Terminal
8 23033 Plug 9 circuit
8 23041 Plug 6 circuit
8 26302 Plug 1 circuit
9 39406 Lead-In Cord
10 N/A Harness Clip
11 21036 Cable Clip
12 26163 Receptacle 9 circuit
12 26301 Receptacle 1 circuit
12 26708 Receptacle 6 circuit
13 38663 Wire Tie Push mount
14 00117 Female Pin Terminal
15 39037 Cable Tie
16 36274 Wire Clip
N/A = Part no longer available
685975 29
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Terminals
W248PZ3B_685975
30 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Terminals
REF PART NO. DESCRIPTION COMMENTS
1 00161 Grounding Clip
2 51291 Wire Clip
3 504034 Wire Clip
4 70210 Insulator Blue
5 00112 Spade Terminal Small spade
6 00223 Female Spade Terminal Large spade
7 00120 Flag Terminal
8 00113 Ring Terminal 1/4 inch ring
9 00110 Ring Terminal Small shank
10 21091 Connector (2) 1/4 inch male spades
11 29673 Terminal Adapter
685975 31
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Wire Harnesses and Wires
PART NO. DESCRIPTION COMMENTS
687574 Base Wiring Harness
686527 Control Wiring Harness
N/A Motor Harness
45001 18 Gauge Wire Black; Order wire by foot and terminals and
connectors as required
45380 12 Gauge Wire Orange; Order wire by foot and terminals and
connectors as required
N/A = Part no longer available
NOTE: Individual wires not available separately. Order complete harness, or order wire by the foot. When applying terminals to
wires, it is recommended that terminals be soldered to wires.
32 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
A
Access Panel
510069*................................................................... 11
Actuator
36164 ........................................................................ 7
Actuator Support
685592 ...................................................................... 7
B
Backflow Preventer
34500 ...................................................................... 19
800310 .................................................................... 23
Base
801222 .................................................................... 25
Base Wiring Harness
687574 .................................................................... 32
Beaded Strap
33489 ...................................................................... 23
Bearing Housing Assembly
800428 .................................................................... 15
Belt
800319P.................................................................. 21
Bolt
29651 ........................................................................ 9
Bracket
800308 .................................................................... 23
Bumper Pad
56128 .................................................................. 9, 25
Bushing
M402542 ................................................................... 9
Parts Index
Control Shield
801008 ......................................................................9
Control Wiring Harness
686527 ....................................................................32
D
Dispenser
685756 ....................................................................13
Dispenser Drawer Front
685715* ...................................................................13
Dispenser-to-Tub Hose
800331 ....................................................................17
Door Latch Switch Assembly
685407 ....................................................................11
Door Locked Label
685947 ....................................................................11
Door Seal and Hose Assembly
800232 ..............................................................11, 13
Door Seal Clamp
685743 ....................................................................11
Drain Hose
28293 ......................................................................23
Drain Pump
685703 ....................................................................23
E
Elbow
36990 ......................................................................23
F
C
Cabinet Top Kit
511529*P .................................................................. 9
Cable Clip
21036 ...................................................................... 29
Cable Tie
39037 ...................................................................... 29
Cam
27261 ........................................................................ 5
Clamp Ring
800312 .................................................................... 17
Clutch Assembly
29503 ........................................................................ 7
Coin Funnel Kit
523P3........................................................................ 9
Coin Slide Extension
685593 ...................................................................... 7
Coin Slide Guard
58181 ........................................................................ 7
Connector
21091 ...................................................................... 31
Control Panel Assembly
504454*..................................................................... 5
685975 33
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Female Pin Terminal
00117 ......................................................................29
Female Spade Terminal
00223 ......................................................................31
Flag Terminal
00120 ......................................................................31
Foam Tape
685366 ....................................................................11
Front Panel Assembly
800435*P.................................................................11
Front Security Cabinet Assembly
511523* .....................................................................9
G
Grommet
29175 ......................................................................17
685834 ....................................................................23
Grounding Clip
00161 ......................................................................31
N/A items do not appear in index.
H
Harness Strap
55881 ...................................................................... 13
Heating Element Plug
F360202.................................................................. 17
Hinge
503676 ...................................................................... 9
Hinge Assembly
685460 .................................................................... 11
Hinge Clip
500236 ...................................................................... 9
Hinge Plate
685470 .................................................................... 11
Hose Clamp
20211 ...................................................................... 23
20391 ...................................................................... 23
36801 .......................................................... 13, 19, 23
36802 ...................................................................... 23
685725 .................................................................... 17
Hose Clip
36985 ............................................................ 9, 15, 25
Hose Mount Plate
800074XP ............................................................... 15
Housing
32746 ...................................................................... 29
34123 ...................................................................... 29
I
Inlet Hose Assembly
28330P.................................................................... 19
Inner Basket Assembly
800429P.................................................................. 15
Instruction Label
685942 ...................................................................... 9
Insulated Female Terminal
00234 ...................................................................... 29
Insulator
70210 ...................................................................... 31
K
Knob
39897 ........................................................................ 5
Locator
56079 ............................................................9, 11, 25
Lock Kit
27260P ......................................................................5
M
Male Pin Terminal
00116 ......................................................................29
Mixing Valve
800434P ..................................................................19
Mixing Valve Plate
800323 ....................................................................19
Motor
685617 ....................................................................21
Motor Control Assembly
800949P ....................................................................7
Motor Rod
801062 ....................................................................21
Motor Speed Switch
800404 ......................................................................5
N
Nut
03673 ......................................................................29
20274 ......................................................................25
24205 ........................................................................5
29796 ........................................................................9
36020 ........................................................................9
52947 ........................................................................5
685844 ....................................................................15
800452 ..............................................................15, 17
O
O-Ring
37392 ......................................................................23
801207 ....................................................................23
Outer Tub Assembly
801081 ....................................................................17
Overlay
686514 ......................................................................5
800495 ......................................................................5
P
L
Label
500049 .................................................................... 17
500314 .................................................................... 17
Lead-In Cord
39406 ................................................................ 19, 29
Leveling Leg
800014 .................................................................... 25
Lid Assembly
801206 .................................................................... 23
Light
32464 ........................................................................ 5
N/A items do not appear in index.
34 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Panel Kit
727P3*.....................................................................25
Plastic Boot
36165 ........................................................................7
Plug
23033 ......................................................................29
23041 ......................................................................29
26302 ......................................................................29
Pressure Bulb
30907 ......................................................................17
Pressure Hose
800648 ....................................................................17
Pressure Switch
685520 ...................................................................... 7
Pulley
800866 .................................................................... 15
Pump Housing
801208 .................................................................... 23
Pump Housing Assembly
801209 .................................................................... 23
Pump-to-Elbow Hose
685737 .................................................................... 23
R
Receptacle
26163 ...................................................................... 29
26301 ...................................................................... 29
26708 ...................................................................... 29
Relay
431349 ...................................................................... 7
Retainer Clip
39177 ...................................................................... 23
Ring Terminal
00110 ...................................................................... 31
00113 ...................................................................... 31
Rivet
685847 ...................................................................... 9
Rubber Foot
70282 ...................................................................... 25
S
Screw
M400043 ........................................................... 15, 27
M400056 ................................................................. 21
03950 ........................................................................ 7
21720 ........................................................................ 7
23008 ........................................................................ 9
33562 ........................................................................ 7
36166 ........................................................................ 7
38096 ...................................................................... 23
39733 ............................................................ 9, 11, 25
500226 ...................................................................... 9
501086 ................................................................ 9, 19
502431 ...................................................................... 9
503661 .............................................. 7, 11, 19, 23, 25
503688 .................................................................. 7, 9
51782 ........................................................................ 7
52909 ...................................................................... 23
685830 .................................................................... 13
685831 .................................................................... 15
685837 ................................................................ 7, 29
685843 .................................................................... 11
685862 .................................................................... 11
800461 .................................................................... 17
800462 .................................................................... 17
800548 .............................................................. 11, 13
Seal
800432P.................................................................. 17
Shield
38067 ...................................................................... 23
Shipping Bracket
685911 .................................................................... 27
Shipping Cord and Brace Assembly
800364 ....................................................................27
Shock Absorber Kit
800622P ..................................................................17
800623P ..................................................................17
Spacer
800015 ....................................................................25
Spade Terminal
00112 ......................................................................31
Spring
800346 ....................................................................11
Strain Relief
38384 ......................................................................19
52151 ........................................................................7
Switch Assembly
55882 ........................................................................5
T
Temperature Switch
685595 ......................................................................5
Te r mi n al
00188 ......................................................................29
Terminal Adapter
29673 ......................................................................31
Timer
685585 ......................................................................7
Timer Bracket
685365 ......................................................................7
Top Hinge
510136 ....................................................................25
Top Mounting Bracket
504228 ......................................................................9
Tub Front Assembly
800430 ....................................................................17
Tub-to-Pump Hose
800317 ....................................................................23
V
Valve-to-Dispenser Inlet Hose
801464 ....................................................................19
W
Washer
M400014 ...........................................................15, 27
M400080 .................................................................21
M403958 .................................................................15
03815 ......................................................................29
20290 ......................................................................19
25820 ........................................................................5
800457 ..............................................................15, 17
800464 ....................................................................15
800465 ....................................................................23
91176 ........................................................................5
Weight
800205 ....................................................................17
Wire Clamp Ring
800438 ....................................................................11
N/A items do not appear in index.
685975 35
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Wire Clip
36274 ...................................................................... 29
504034 .................................................................... 31
51291 ...................................................................... 31
Wire Tie
38663 ................................................................ 23, 29
Wire, 12 Gauge
45380 ...................................................................... 32
Wire, 18 Gauge
45001 ...................................................................... 32
Wrapper Assembly
800052*..................................................................... 9
N/A items do not appear in index.
36 685975
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Loading...
