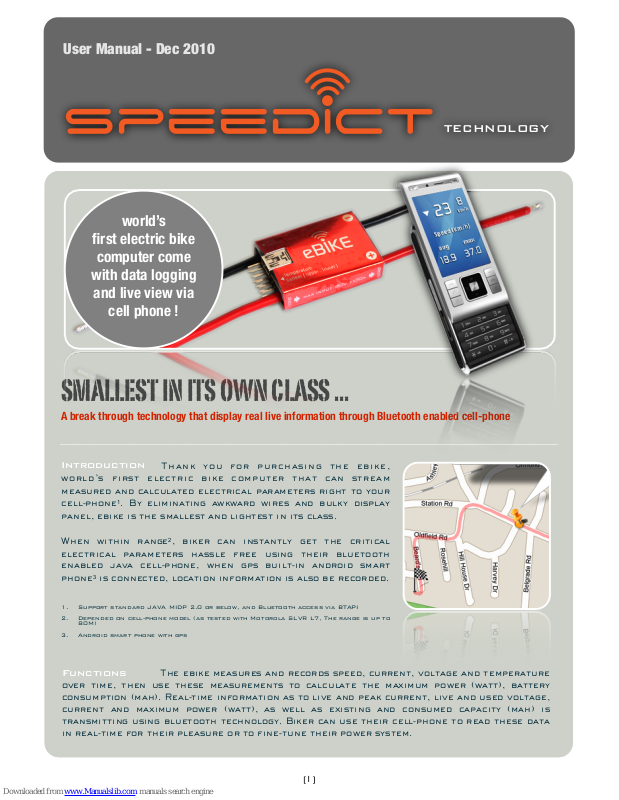

User Manual - Dec 2010
SMALLEST IN ITS OWN CLASS ...
A break through technology that display real live information through Bluetooth enabled cell-phone
Thank you for purchasing the ebike,
wo rl d’ s fi rs t el ec tr ic b ik e co mp ut er t ha t ca n st re am
measured and calculated electrical parameters right to your
cell-phone1. By eliminating awkward wires and bulky display
panel, ebike is the smallest and lightest in its class.
When within range2, biker can instantly get the critical
electrical parameters hassle free using their bluetooth
enabled java cell-phone, when gps built-in android smart
phone3 is connected, location information is also be recorded.
TECHNOLOGY
Functions
Introduction
The ebike measures and records speed, current, voltage and temperature
over time, then use these measurements to calculate the maximum power (watt), battery
consumption (mah). Real-time information as to live and peak current, live and used voltage,
current and maximum power (watt), as well as existing and consumed capacity (mah) is
transmitting using bluetooth technology. Biker can use their cell-phone to read these data
in real-time for their pleasure or to fine-tune their power system.
1. Support standard JAVA MIDP 2.0 or below, and Bluetooth access via BTAPI
2. Depended on cell-phone model (as tested with Motorola SLVR L7, The range is up to
80M)
3. Android smart phone with gps
world’s
first electric bike
computer come
with data logging
and live view via
cell phone !
speedict
[2]

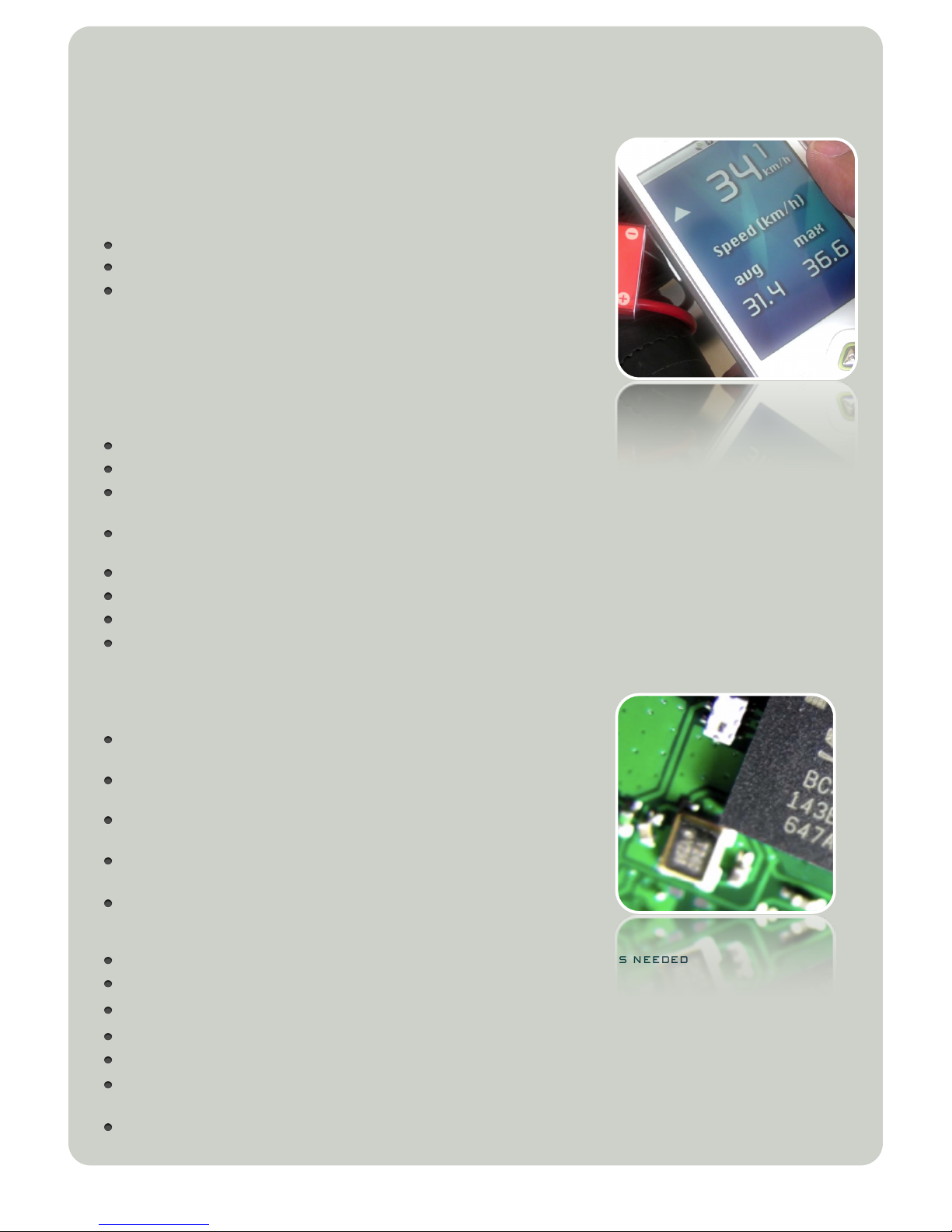

The ebike can save up to 12 hours of information. Bikers can download their logged data to
their computer using a usb cable and manage the data and
performance charts with the included pc software, or upload
to the internet for store, review and share purpose.
the ebike can be used in difference ways to enhance your
electric-powered bike experience as follow :
trip information recorder,
charger and battery health monitor,
system diagnostic and optimization equipment.
The ebike provides critical information in
a revolutionary way to give e-biker a new way to fine-tune the
performance of their electrical powered bike for things such
as :
maximize trip time
maximize trip distance
controller and motor efficiencies through knowledge of current flow through
controller and motor
improve battery life by monitoring battery health, charger performance and current put
through, and discharge from a battery
eliminate potential risk of damaging components with peak current
reduce voltage sags that cause components to operate out of specification
feedback as to why power is lost during different trip conditions
effects of modifications, aging, and damage on many electrical system components
measures and records current, voltage, speed and
temperature over time
real-time calculations of the maximum power (watt) and
capacity used (mah)

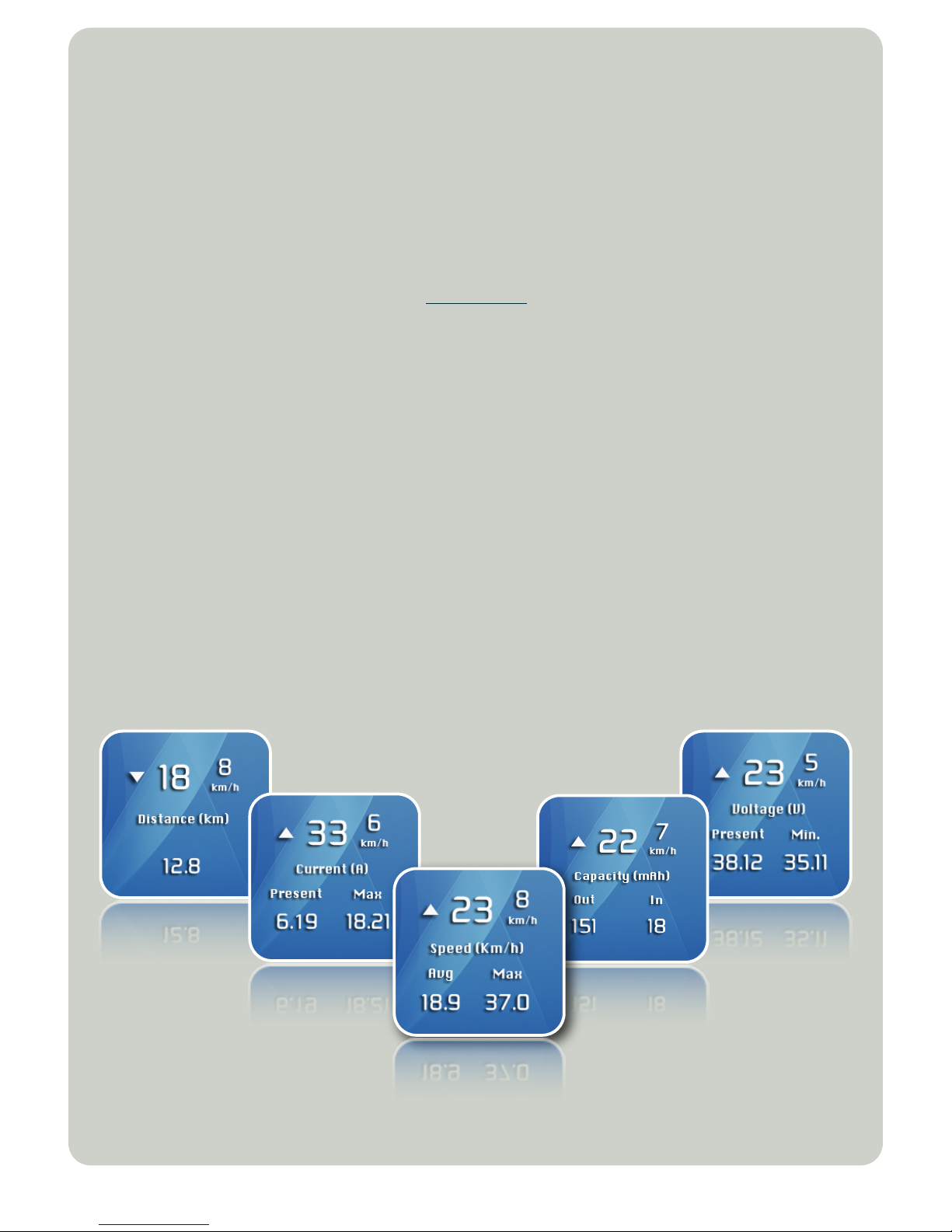

displays real-time information on java enabled cell-phone
or android powered smart-phone streamed via bluetooth
massive built-in memory enables continuos live data
recording for up to 12 hours
computer management of logged data, performance charts
and gps map route information using a usb cable and the
included pc suite software
built-in bluetooth and usb support, no additional hardware is needed
future proof user firmware upgradable
accurate & precise – 0.01 a current, 0.01 v voltage and 0.1 km/h or mph resolutions
durable – handles +/- 100 a peak at 80 v
smallest and lightest in its class, fits right into your battery compartment
precision and low resistant (.00025 ohms) circuitry that doesn’t affect electric bike’s
performance
powerful 8 mips micro-controller
Benefits
Features
[3]
factory calibration stores constants in eeprom to compensate for component tolerances
comes with one-year limited warranty
PARAMETER
RANGE
RESOLUTION
Voltage
6-80 v
0.01 v
Current
± 1-100 a
0.01 a
Power
0-65535 w
1 w
Capacity
0-65535 mah
1 mah
Speed
0-99.9 kmh / mph
0.1 kmh / mph
Odometer
0-999999 km
1 km
Trip distance
0-9999 km
1 km
Trip time
0-99 hours
1 second
Trip capacity
0-65535 mAh
1 mah
Temperature
0-100 °c / °f
1 °c / °f
Specifications Electrical Measurement Ranges
Miscellaneous Specifications
PARAMETER
DATA / FORMAT
Internal memory
8 mbit / 1 mbyte
Log / record time
12 hours
Speed measurement period
Instant
Measurement update period
340 ms
In circuit resistance
0.00025 ohm
Operation current
60 mA (with bluetooth)
Dimensions
45 x 29 x 11 mm
Weight
13 g / 23.4 g (including wires)
Nominal operation conditions
0 - 50 ambient temperature
Bluetooth operation range
up to 80 m (depends on cell phone)
[4]
FEATURE
IMPLEMENTATION
Bluetooth transmission
Class 2
Fully bluetooth qualified
v2.0 + edr
Operating range
Up to 80 m (free space)
(depends on cell-phone)
Frequency
2.4 ~ 2.5 ghz
Max / Min transmit power
+6 / -25 dbm
Receive sensitivity
Better than -86db @ 25°c
Temperature range
Normal operation : -40°c to +85°c
Bluetooth Specifications
Safety Precautions
Electric-powered bike that use high
power elec trical systems may po se
dangers independent of adding ebike
to the system and it is the
user’s responsibility to
be familiar with these
dan ger s and t a ke a ny
n e c e s s a r y a c t i o n t o
e n s u r e s a f e u s e .
I m p r o p e r u s e o f
equipment whilst using
ebike may short circuit a
rechargeable battery or
battery charger that can
sup ply h uge c u rre n ts
a n d r i s k s e r i o u s
consequences including explosions,
causing fire, damage to equipment and
personal injury.
Limitation of your equipment
Ebike is designed to operate within the
pa ram eter li mit s as n ot ed i n the
product specification. Use of ebike in
s y s t e m s e x c e e d i n g t h e
safety limit of 80 volts,
c a r r yi n g i n t e r m i t t e n t
currents over 100 amp may
damage the equipment and
possible personal injury.
note : tested continuous
90 a over 3 minutes
w i t h o u t
venti l a t i o n c a n
c a u s e e b i k e
t e m p e r a t u r e
exceed 100°c
[5]
ESC + MotorBattery
ChargerBattery
BatteryCharger
Operation Instruction - Hardware Connection
The ebike is supplied without connectors. You can use whatever connector type best suits
your equipment. Please make sure that the ebike is connected to the right polarity as it
labeled on device, incorrect polarity connect can damage your device without warranty
cover. the ebike can be use in difference ways and connections to your power system
depends on how is use for.

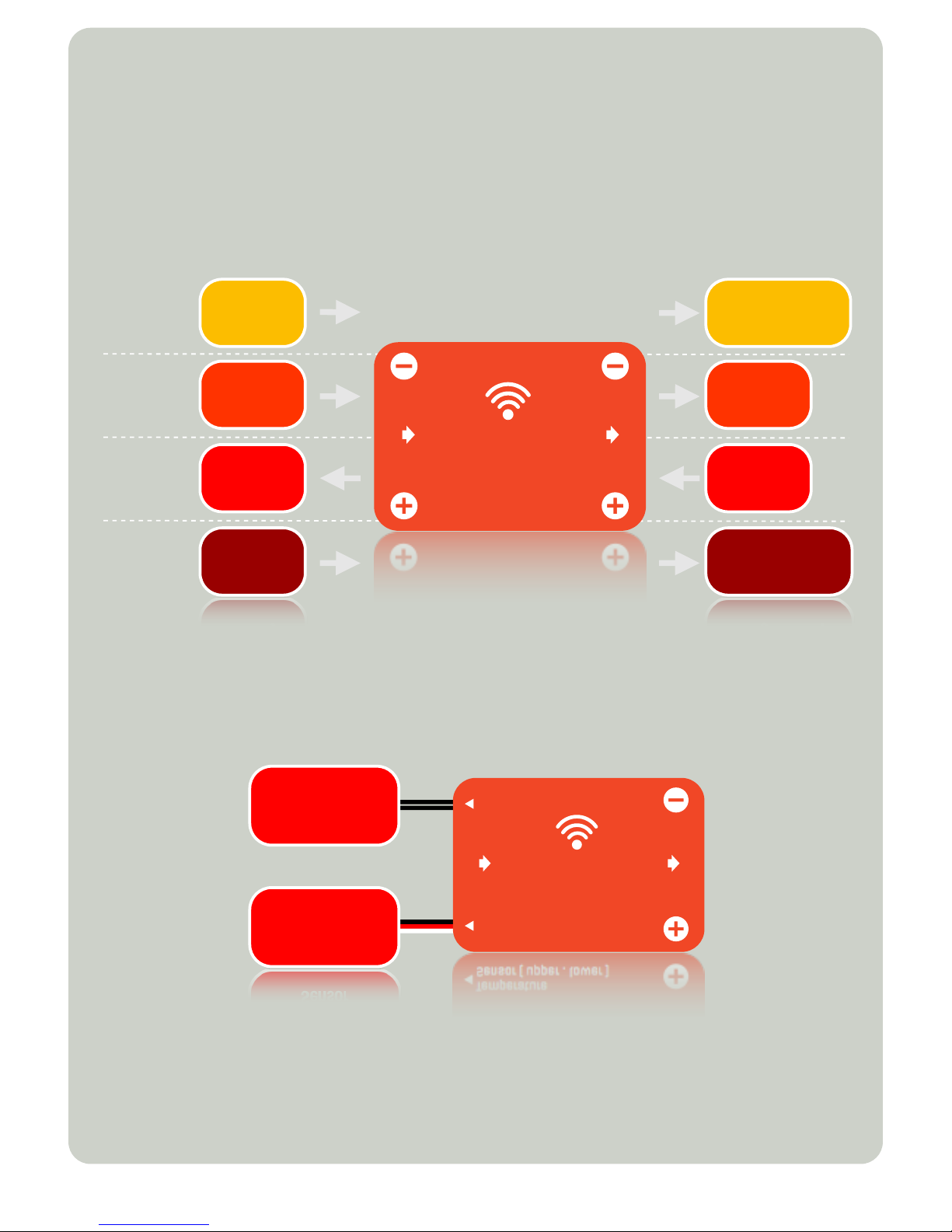

Please refer to the following diagram for hardware connection:
monitor
power
system
monitor
battery
discharge
monitor
battery
charge
Halogen LampBattery
monitor
battery
discharge
amp / rate
Speed
Sensor
Connect speed sensor to the ebike’s sensor port for accurate distance and speed
measurements, connect temperature sensor to upper or lower temperature sensor port
with correct polarity as below.
Temperature
Sensor
eBIKE
INPUT
OUTPUT
Temperature
Sensor ( upper . lower )
RPM
Sensor
eBIKE
INPUT
OUTPUT
[6]
eBike Mobile Client (Java)
eBike provides real time data streaming into any bluetooth equipped java cell-phone.
Download and copy the software to your cell-phone via either bluetooth or data cable as a
normal java game and install accordingly. Since installation methods for java applets vary
from brand to brand, they may display entire different dialog; e.g. Nokia phones allow
copied java program to run directly while Sony Ericsson phones require you to install
copied java program to another folder! The following example is based on a Sony Ericsson
k770i model.
1. download ebike mobile client from speedict.com
2. turn on your cell phone’s bluetooth
3. run (some cell-phones need installation first) the ebike mobile client from the
location where it is saved
4. press the search button on the ebike mobile client’s menu and start searching for
available bluetooth device(s)
5. press ok or yes when the "allow application to create client bluetooth connection"
dialog box appear
6. press ok or yes when the "ebike add to my devices ? " dialog box appears
7. when ask for passcode, enter 00000 which is default passcode and can be changed via
ebike pc client later
8. ebike immediate display current, average and maximum speed value
9. press number 0 to 7 from keypad for different views or features
10. press number 8 from the keypad to create a new session that also wraps up current
recording session. i.e. measuring power of different start style or power assist
level ...
11. press exit from client menu to exit program at any time
[7]

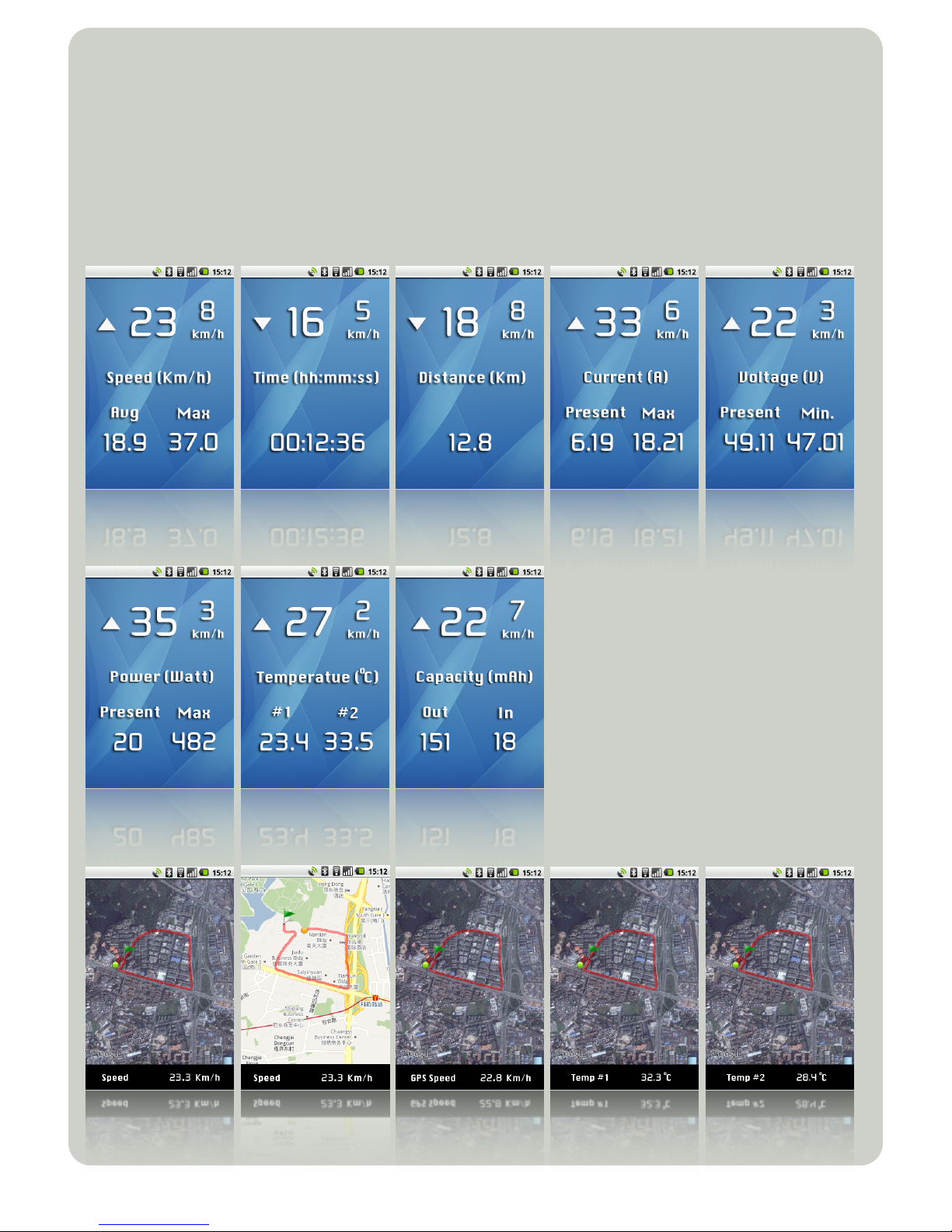

eBike Mobile Client (Android)
in addition to java cell phone, android provides gps location service enable ebike mobile
client to extract gps information display on screen together with captured data and store
into ebike internal memory... download ebike mobile client from android market, install and
connect to ebike. When connected, its speed information will be displayed, slide on smart
phone’s screen for next available information such as elapsed time, or double click on
phone’s screen for display each information automatically !
p r e s s M a p V i e w f r o m m e n u t o
display current location with speed
(sensor measured and gps ground)
and temperature information at
screen bottom info bar, slide to
display one by one or double click
to display each automatically.
[8]

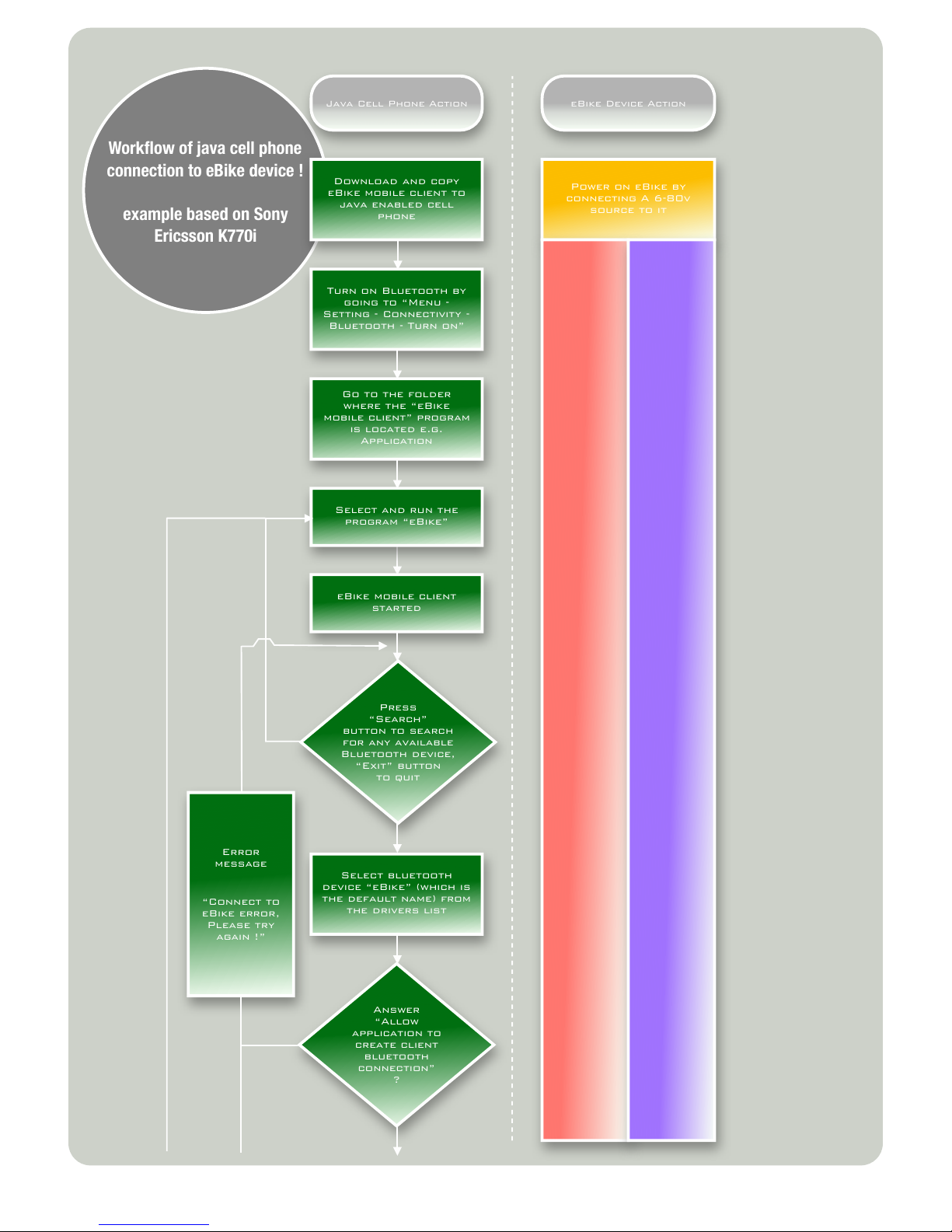

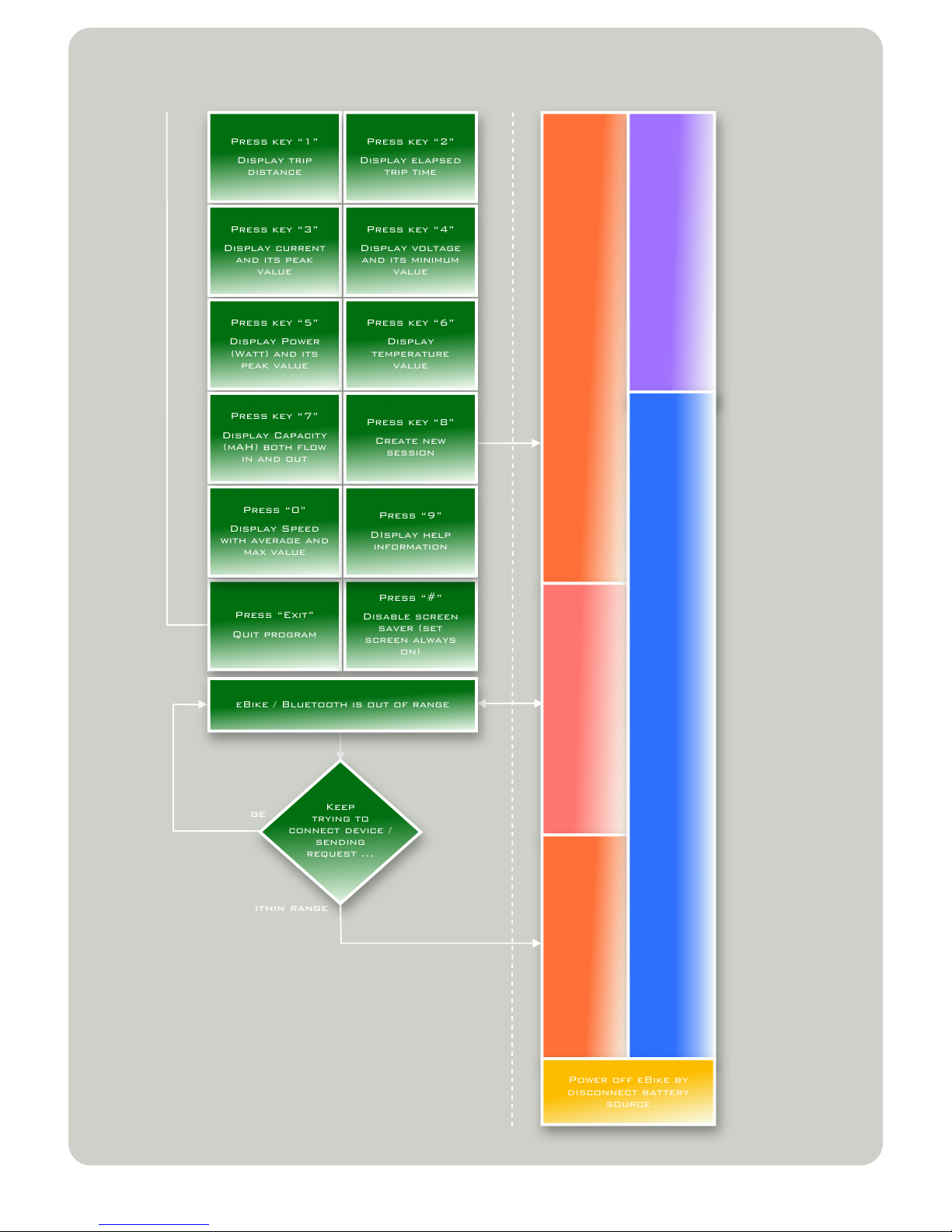

Workflow of java cell phone
connection to eBike device !
example based on Sony
Ericsson K770i
Download and copy
eBike mobile client to
java enabled cell
phone
Turn on Bluetooth by
going to “Menu -
Setting - Connectivity -
Bluetooth - Turn on”
Go to the folder
where the “eBike
mobile client” program
is located e.g.
Application
Select and run the
program “eBike”
eBike mobile client
started
Press
“Search”
button to search
for any available
Bluetooth device,
“Exit” button
to quit
Select bluetooth
device “eBike” (which is
the default name) from
the drivers list
Answer
“Allow
application to
create client
bluetooth
connection”
?
Error
message
“Connect to
eBike error,
Please try
again !”
Search
Yes
Exit
No
Java Cell Phone Action
eBike Device Action
Power on eBike by
connecting A 6-80v
source to it
Green and red light flashing
Start recording data to EEPROM
[9]

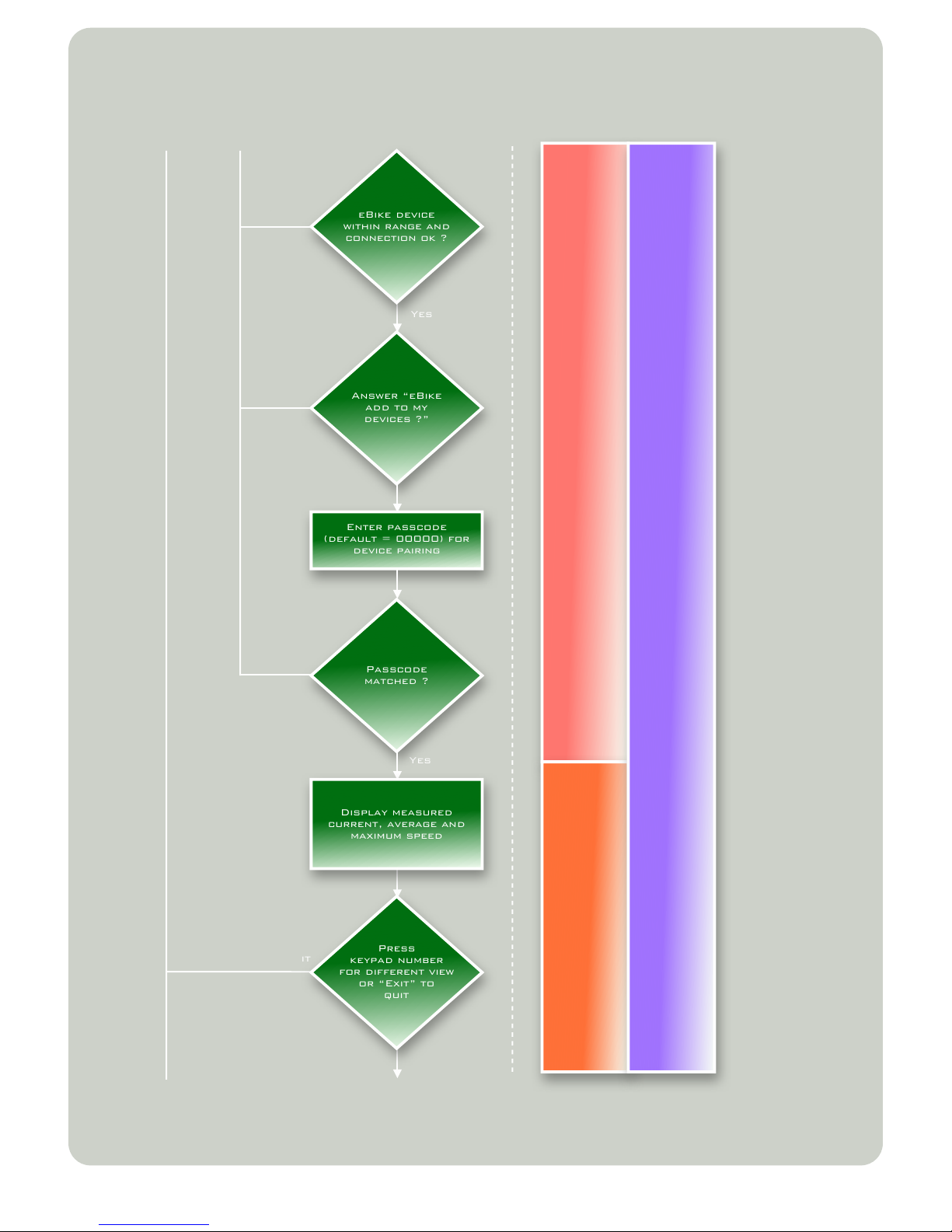

Enter passcode
(default = 00000) for
device pairing
Yes
Exit
Passcode
matched ?
Answer “eBike
add to my
devices ?”
Yes
Yes
Display measured
current, average and
maximum speed
eBike device
within range and
connection ok ?
Start recording data to EEPROM
Green light off and red light flashing
Communication channel is established via
bluetooth, start sending information to
the paired cell-phone
No
No
No
Green and red light flashing
Press
keypad number
for different view
or “Exit” to
quit
[10]
Out of range
Green and red light flashing
Communication channel is broken,
switch to LISTENING mode
Wrap up current record & creating new record (new session feature especially useful when
new peak value recording is needed), this feature creates a new recording session without
the need of power reset on eBike, all is done by press a key on cell phone
Communication channel is
established again
Green light off and red light
flashing
Power off eBike by
disconnect battery
source
Within range
Green light off and red light flashing
Communication channel is established via bluetooth, start
sending information to the paired cell-phone
Keep
trying to
connect device /
sending
request ...
Press key “1”
Display trip
distance
Press key “3”
Display current
and its peak
value
Press key “5”
Display Power
(Watt) and its
peak value
Press key “7”
Display Capacity
(mAH) both flow
in and out
Press key “2”
Display elapsed
trip time
Press key “4”
Display voltage
and its minimum
value
Press key “6”
Display
temperature
value
Press key “8”
Create new
session
Press “Exit”
Quit program
Press “#”
Disable screen
saver (set
screen always
on)
Press “0”
Display Speed
with average and
max value
Press “9”
DIsplay help
information
eBike / Bluetooth is out of range
[11]
Speedict PC Suite
Windows based pc suite provides management for logged data
such as graph plotting, gps map route plotting, editing,
saving and deleting. Device related settings like firmware
upg r ade s, tir e c irc u mfe r enc e, odo m ete r
battery reset, device name and bluetooth
passcode can be configured though
the s i n gle e x e c uta b l e p r ogra m
without installation.

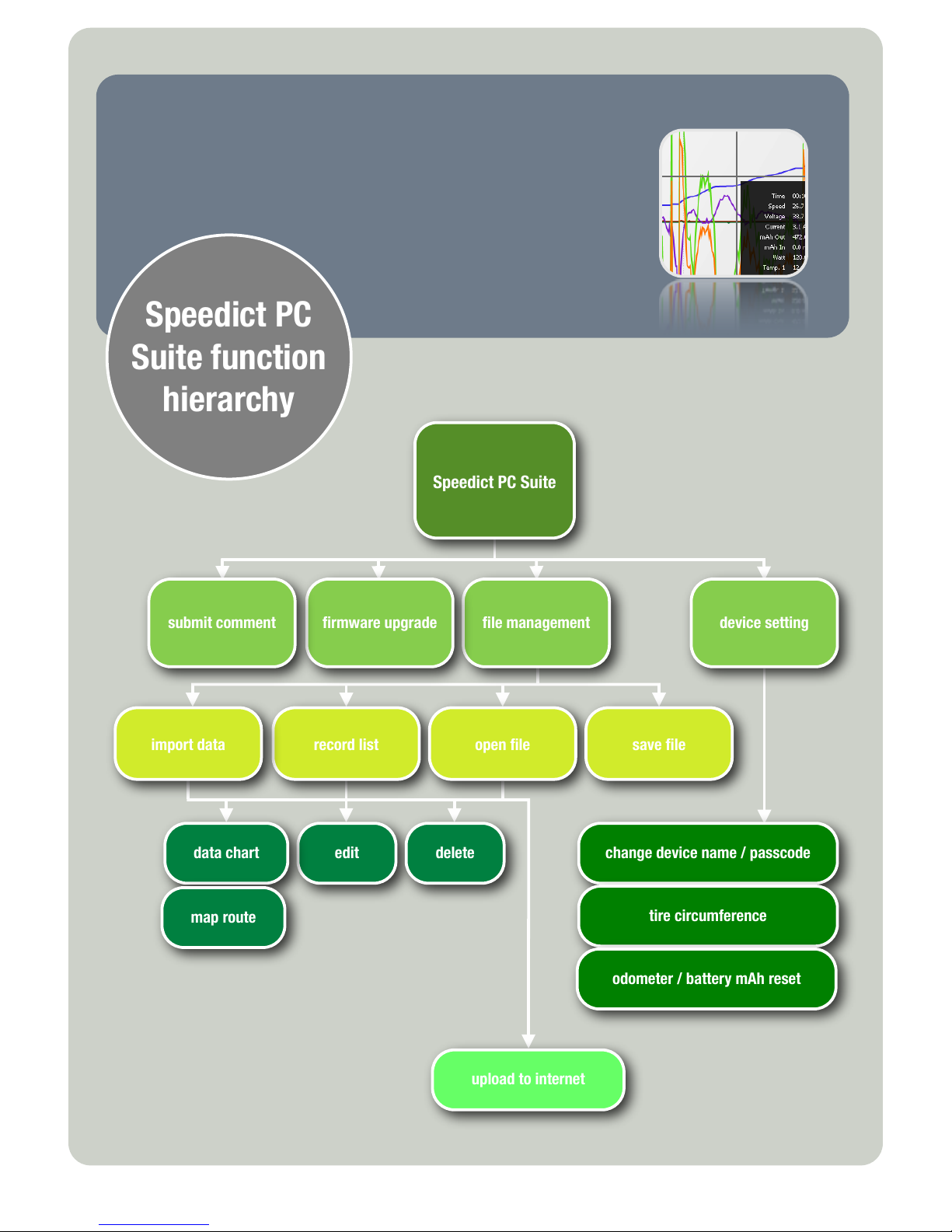

Speedict PC
Suite function
hierarchy
record list
open file
save file
import data
edit
delete
data chart
map route
device setting
file management
firmware upgrade
submit comment
Speedict PC Suite
change device name / passcode
tire circumference
odometer / battery mAh reset
upload to internet
[12]
download a n d u n z i p
speedict pc suite to your
desktop
connect a usb cable to
both ebik e and pc usb
p o r t , w i n d o w s w i l l
i m m e d i a t e l y p r o m p t
“found new hardware”
i n t h e f o u n d n e w
hardware wizard dialog
box, select “yes, this
tim e o nly” . w ind o ws
w i l l n o t a s k f o r
drivers next time when
the ebike is connected
select “ insta ll from a
list or specific location”,
a n d p r e s s t h e n e x t
button to continue ...
select “search for the
best driver in these
locations” and check
“include this location
in the search:”, press
the “browse” button
t o l o c a t e t h e
downloaded driver
the speedict usb driver is
installed. the pc suite
s o f t w a r e i s r e a d y t o
i m p o r t a n d m a n a g e
recorded data from ebike

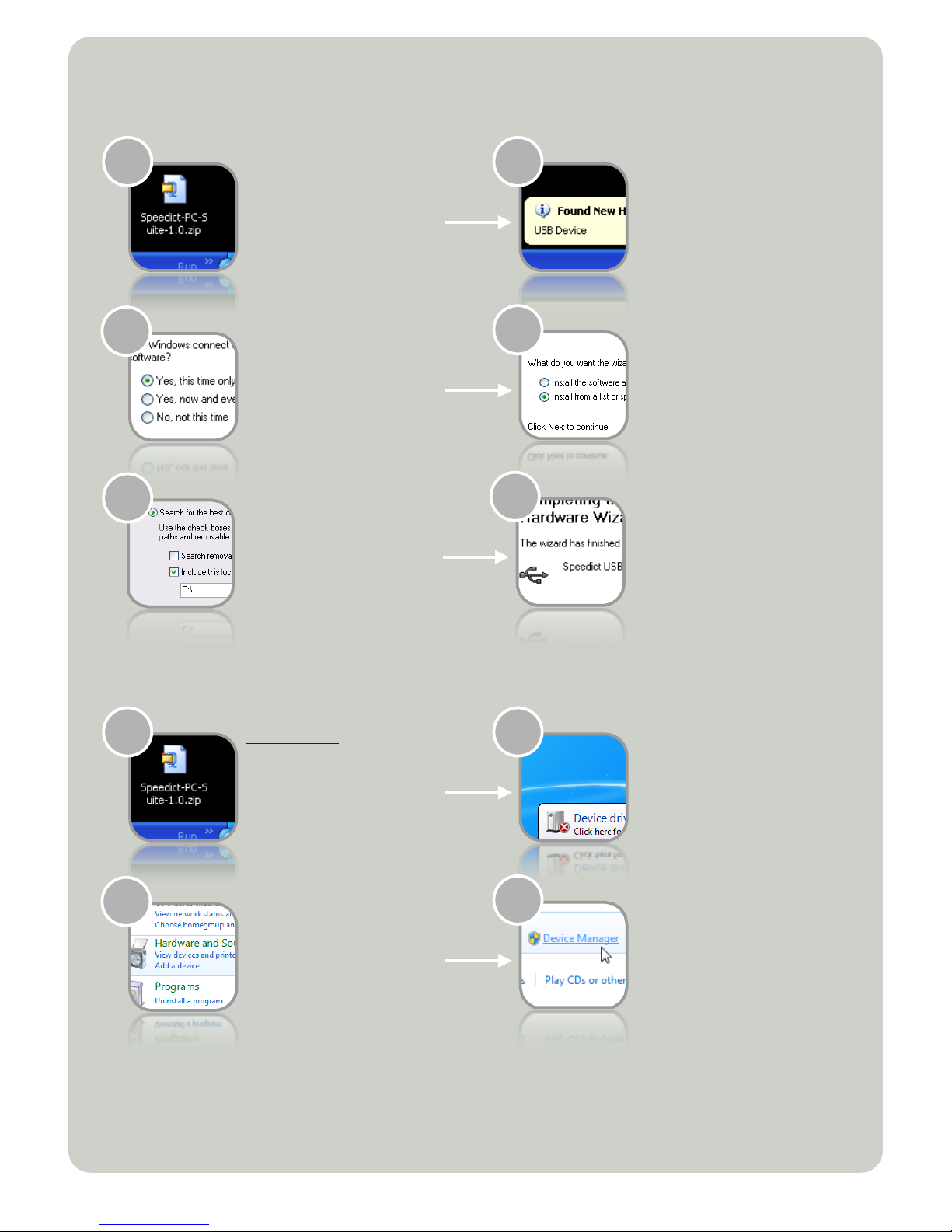

Step 1. Install speedict USB Driver
1.1 1.2
1.3
1.4
1.5
1.6
Step 1. Install speedict USB Driver (Windows 7)
download a n d u n z i p
speedict pc suite to your
desktop
connect a usb cable to
both ebik e and pc usb
p o r t , w i n d o w s 7 w i l l
pr omp t “de vic e dri ve r
s o f t w a r e w a s n o t
successfully installed”
op en con tr ol p an el,
click to the “hardware
and sound setting”
under the hardware and
sound setting, click to
the “device manager”
1.1 1.2
1.3
1.4
[13]
imported record(s) will
be listed with its record
date and time, you can
edit , d e l ete a n d v i e w
b o t h c h a r t a n d m a p
route
w h e n i m p o r t i s
compl e t e d , y ou c an
either press keep my
data button to leave
t h e r e c o r d s i n s i d e
ebike, or press erase
butto n t o e rase all
record inside ebike
2.42.3
with the usb cable is
s t i l l c o n n e c t e d t o
both pc and ebike, you
can run the speedict
pc suite application by
double click the
speedict-pc-suite.exe
pc suite will start import
r e c o r d s f r o m e b i k e
immediately when device
is detected (or manual
imp ort b y s el e ct d ata
import from menu), press
ok button to continuous
2.22.1
Step 2. Run speedict PC Suite and import your first record

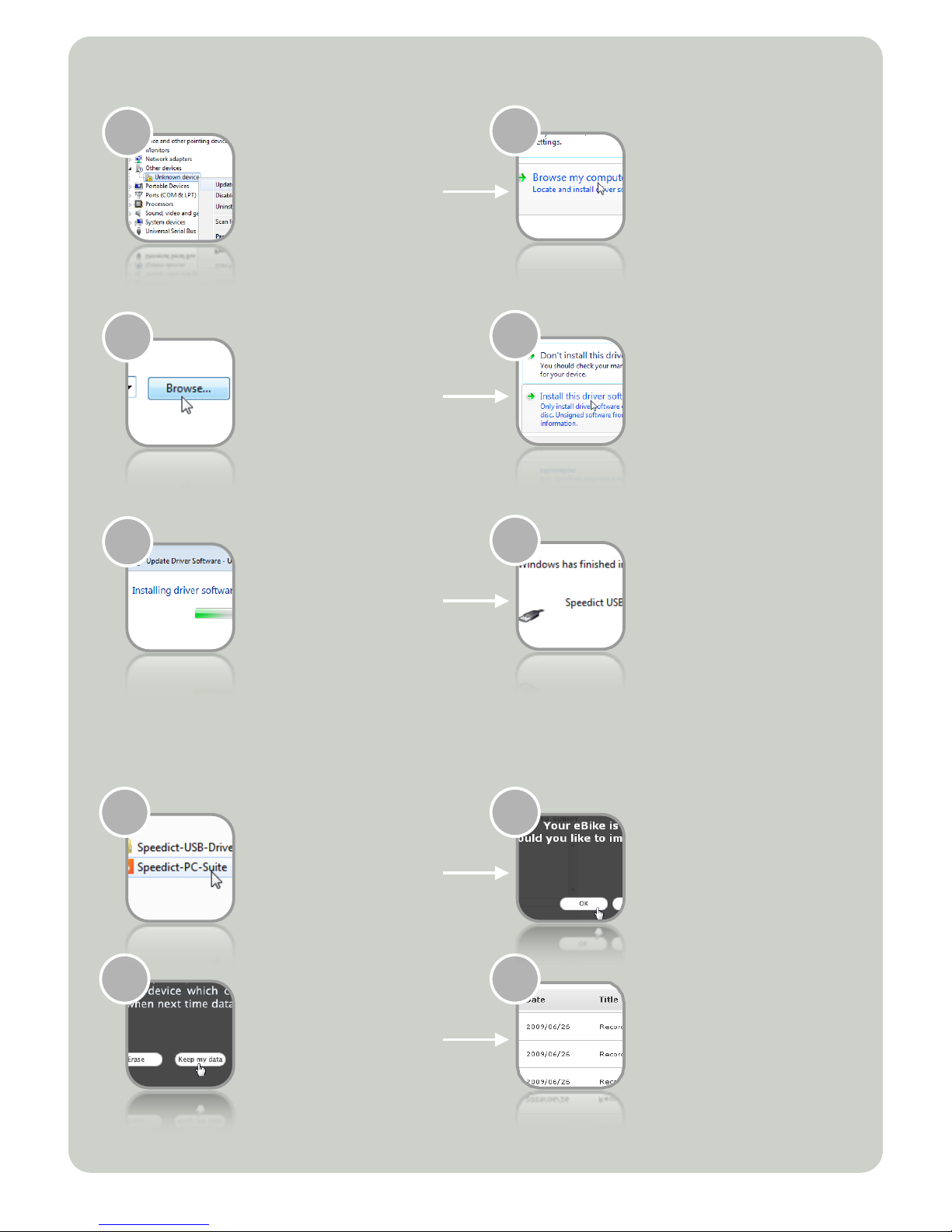

che ck to see i f any
unknown device under
other devic e s t y p e ,
then right click on it
a nd select “ u p d a t e
dri ver s oft war e . ..”
from menu
when prompt for driver
software location, click
t o t h e “ b r o w s e m y
c o m p u t e r f o r d r i v e r
software”
1.5
1.6
cl ick t o the b row se
button to locate the
downloaded driver
when prompt for verify
t h e d r i v e r s o f t w a r e ,
click to the “install this
driver software anyway”
1.7
1.8
no w w ai t fo r dr iv er
i n s t a l l a t i o n . . . . i s
completed
the speedict usb driver is
installed. the pc suite
s o f t w a r e i s r e a d y t o
i m p o r t a n d m a n a g e
recorded data from ebike
1.9
1.10
[14]

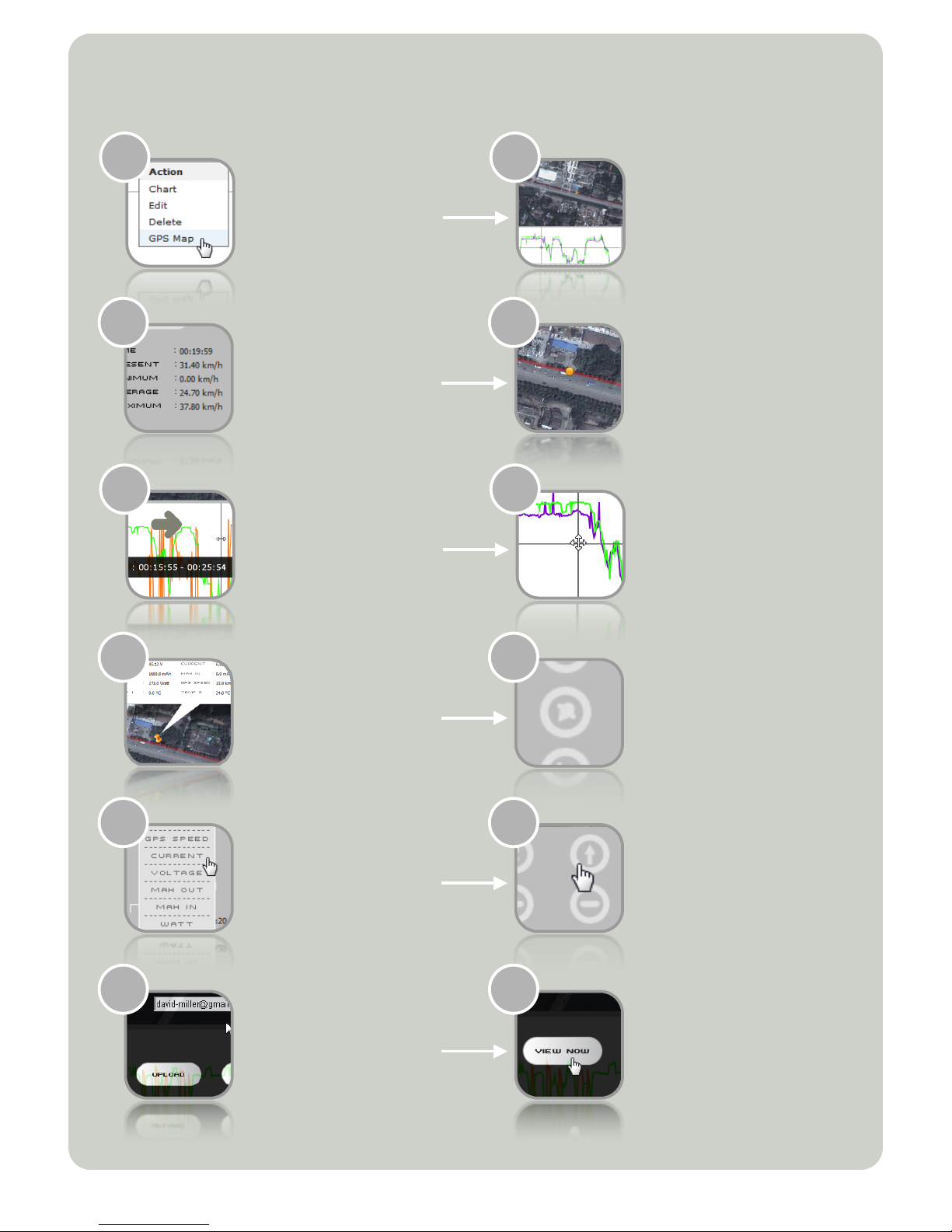

Step 3. View Map Route and Chart
on gps map windows, both
r e c o r d e d r o u t e a n d
mea s u red inf o r mat i o n
are shown on top an d
bottom window
cl ick o n any rec ord
and sel e c t g p s m a p
f r o m m e n u t o v i e w
c h a r t a n d loca t i o n
information
3.23.1
and the correspondence
location is displayed on
top map window
move cursor on bottom
c h a r t w i n d o w , i t s
detail information is
sh ow n on t he lower
right corner
3.43.3
double click on chart to
place pin on route with
detail information
drag and move cursor
to left or right for
next avail a b l e t i me
f r a m e , u s e m o u s e ’ s
scroll wheel for zoom
in and out
3.63.5
click to the remove pin
icon to remove all drop
pin(s) on route window
a l l s p e e d (sen s o r ) ,
v o l t a g e , c u r r e n t ,
capacity, watt, speed
( g p s m e a s u r e d ) a n d
t e m p e r a t u r e
information are shown
corresponded on time
3.83.7
click to the upload icon
to upload the current
record to the internet
click to view data icon
to view different data
in formati on s uch as
current, voltage, watt
etc.
3.103.9
write down the web log id
for later retrieve the
shared log, press view
now button to view the
uploaded chart
enter both verify code
a n d y o u r e m a i l
a d d r e s s, p r e s s t h e
u p l o a d b u t t o n t o
upload
3.123.11
[15]

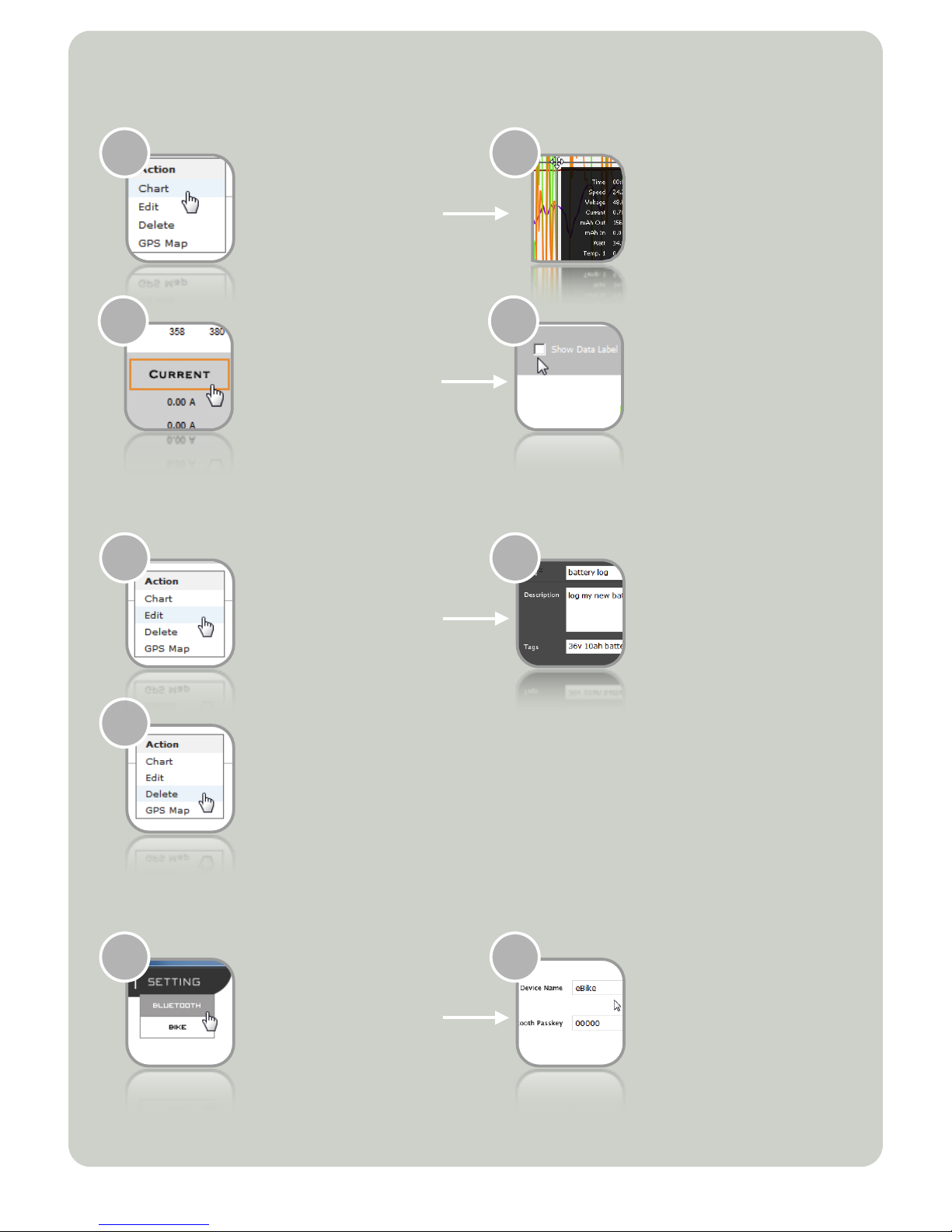

Step 4. View Data Chart
chart w i t h i t s d e t a i l
information is shown
o n t h e r e c o r d l i s t
p a g e , c l i c k o n a n y
r e c o r d a n d s e l e c t
chart item from menu
to view chart
4.24.1
check uncheck to show or
hide the data label
click on data label to
tog gle v iew or hi d e
particular data type
4.44.3
Step 5. Edit / Delete Record
t o d e l e t e r e c o r d ,
simply click on record
and select delete from
menu
5.3
to edit record, simply
cl ic k on r ec or d an d
select edit from menu
f i l l - i n d a t e , t i t l e ,
description and tag and
then press the update
button to update
5.25.1
Step 6. Change Device Setting
ebike’s bluetooth device
name and passkey can be
configured
de vice n ame is us e to
i d e n t i f y e b i k e , o n
searching, device name
will appear to cell phone
on speedict p c s uite
front pa ge, click on
bluetooth menu item
from setting menu for
e b i k e ’ s b l u e t o o t h
related setting
6.26.1
[16]

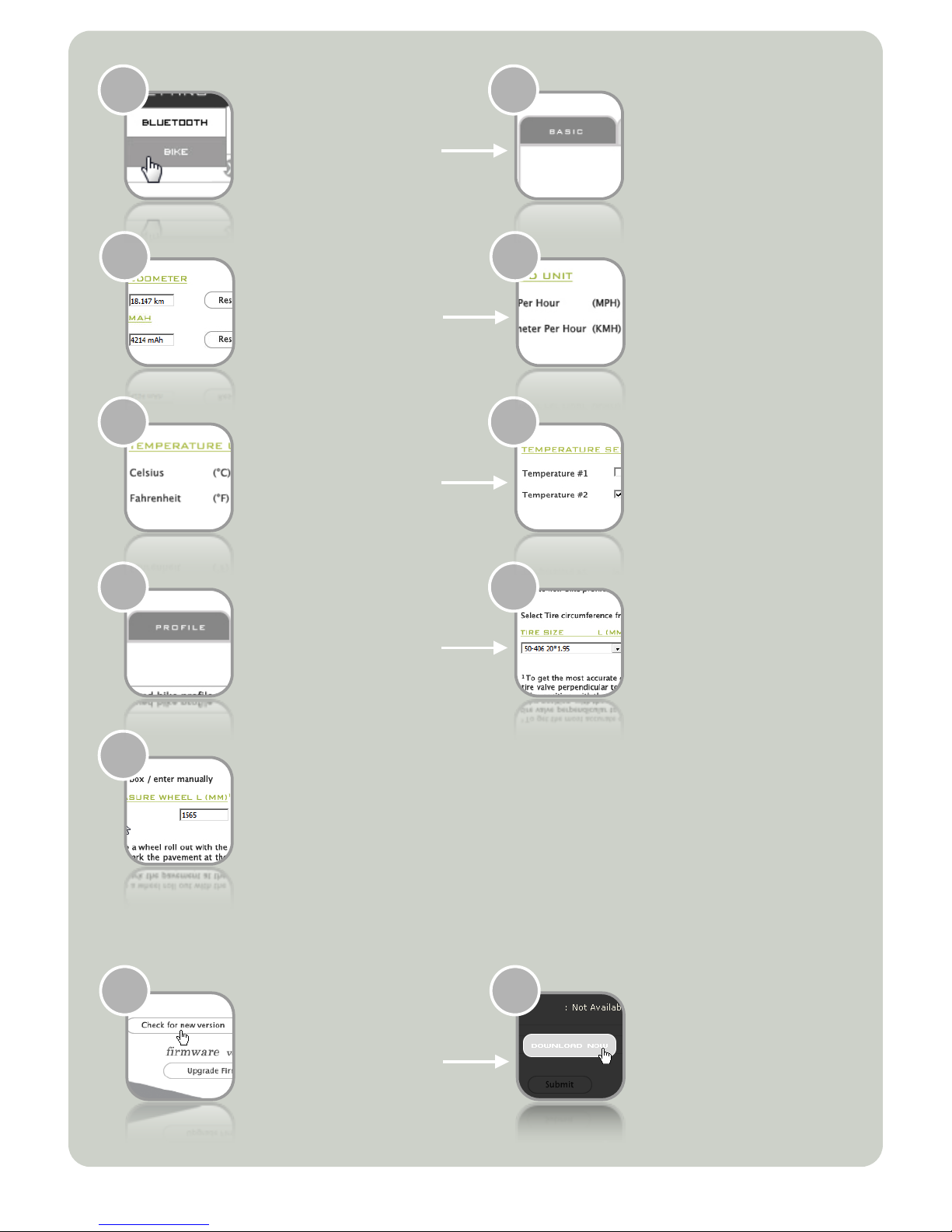

o r e n t e r v a l u e
manually ...
6.11
click on p rofile ta b
f o r b i k e ’ s p r o f i l e
setting
s e l e c t c o r r e c t t i r e
c i r c u m f e r e n c e v a l u e
from tire size list box
f o r s p e e d s e n s o r
measurement
6.9 6.10
click to enable or disable
temperature sensors
select either celsius
o r f a h r e n h e i t o n
temperature unit for
unit display on both
map route and chart
window
6.86.7
select either mph or kmh
on speed unit for unit
d i s p l a y o n b o t h m a p
route and chart window
b o t h o d o m e t e r a n d
accumulated mah can
be reset
6.66.5
click on basic tab for
bike’s basic setting
cl ick o n eb ike m en u
item from setting menu
for ebike’s setting
6.46.3
Step 7. PC client upgrade
click to the check for
new v ersion icon on
the home page to check
for available upgrade
cl ic k to t he d ownload
n o w b u t t o n u n d e r
speedict pc client section
to download new version
7.27.1
[17]
save the downloaded pc
client to ... e.g. desktop
wait for the software
download to complete
7.47.3

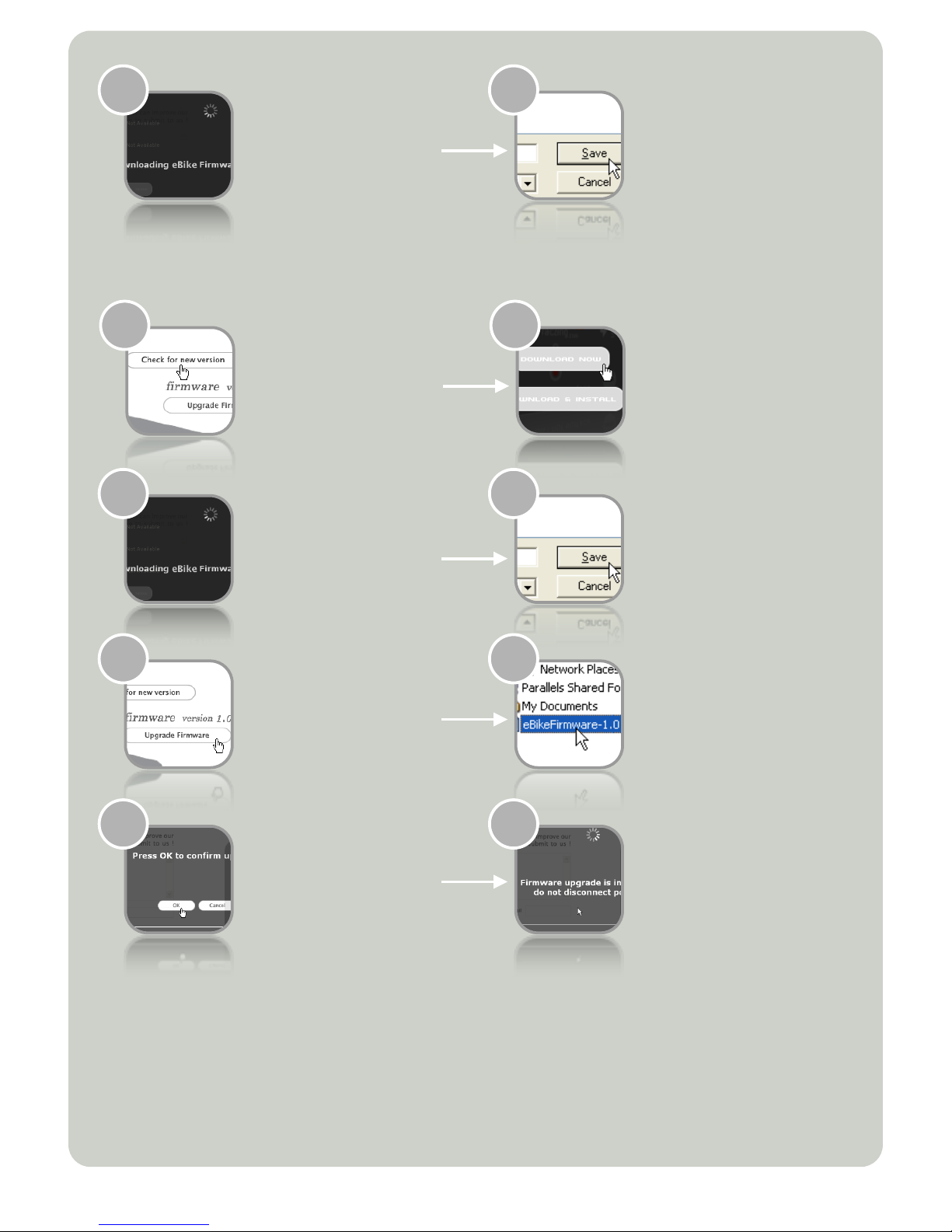

Step 8. Firmware upgrade (manual)
cl ic k to t he d ownload
n o w b u t t o n u n d e r
f i r m w a r e s e c t i o n t o
download new version
click to the check for
new v ersion icon on
the home page to check
f o r n e w a v a i l a b l e
upgrade
8.28.1
s a v e t h e d o wn l o a d e d
f i r m w a r e t o . . . e . g .
desktop
wait for the firmware
download to complete
8.48.3
click on the upgrade
fir mwa r e but t on o n
home page to install
t h e d o w n l o a d e d
firmware
note : button appears
when ebike is plugged
in and detected
s e l e c t p r e v i o u s l y
downloaded firmware e.g.
on your desktop
8.8
wait until the upgrade
process is completed, do
not disconnect power at
this time
press the ok button to
c o n f i r m f i r m w a r e
upgrade
8.68.5
8.7
[18]

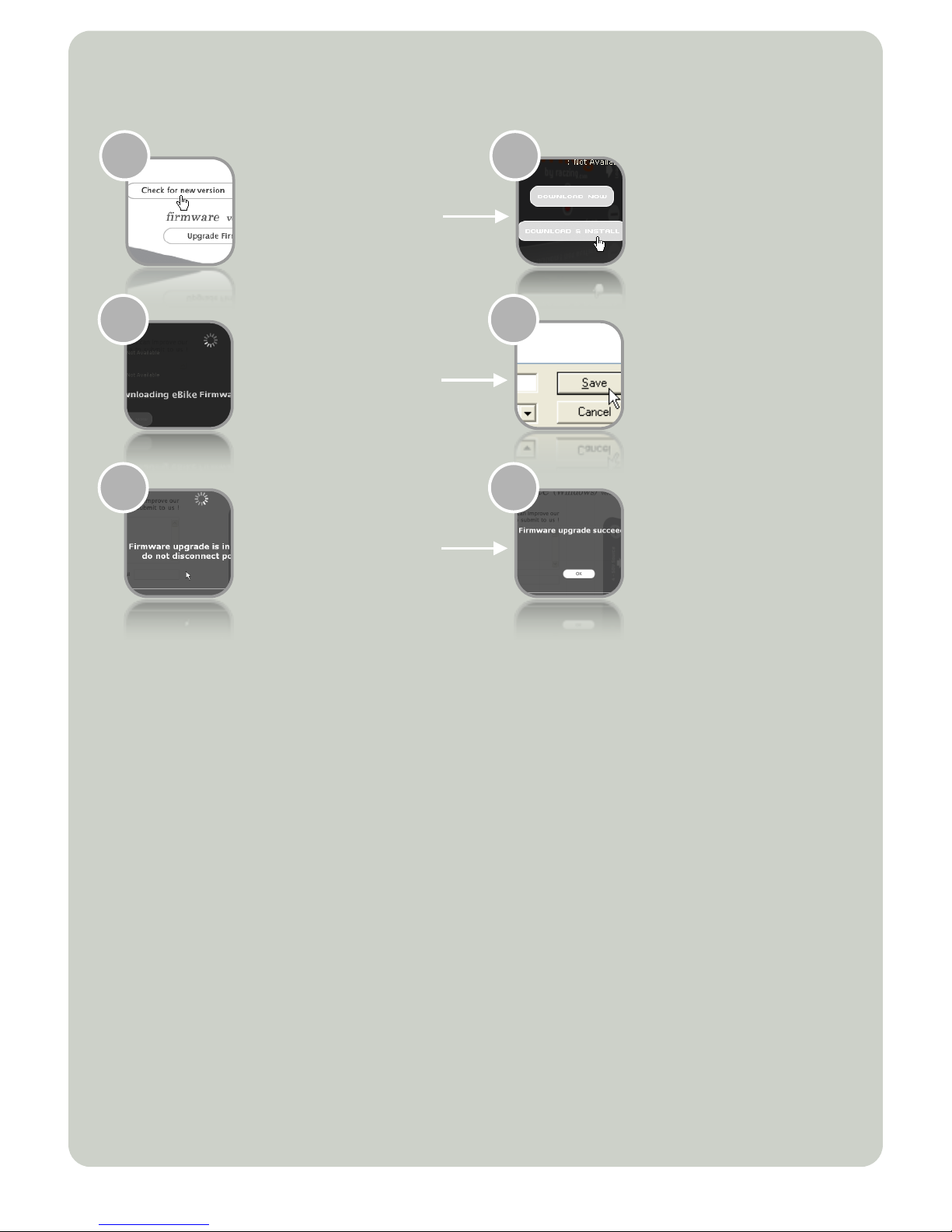

Step 9. Firmware upgrade (automatic)
cl ic k to t he d ownload
now & ins t all b u tton
under Firmware section
to download new version
and install
click to the check for
new v ersion icon on
the home page to check
f o r n e w a v a i l a b l e
upgrades
9.29.1
s a v e t h e d o wn l o a d e d
f i r m w a r e t o . . . e . g .
desktop
wait for the firmware
download to complete
9.49.3
wait until the upgrade
process is completed,
d o n o t d i s c o n n e c t
power at this time
f i r m w a r e u p g r a d e i s
completed
9.69.5
[19]
The eBike contains no user serviceable parts inside. It does not
require special care, just gentle wipe the eBike with a damp cloth if it gets dirty and it can
be stored anywhere other than an extreme environment or under direct sunlight for a
prolonged period of time.
Please visit out site www.speedict.com or email us at
support@speedict.com for more technical support if you are still having difficulties or
have questions that aren’t covered in this manual.
The eBike is guaranteed to be free from defects in materials
and workmanship for a period of one (1) year starting from the date of your original
purchase. Please refer to the Speedict product warranty page for detailed terms and
conditions as well as procedures for warranty claims.
! The material in this manual is for owners’ information only and
is subject to change without notice. While reasonable efforts have been made in the
preparation of this manual to ensure accuracy, Speedict assumes no liability resulting
from errors or omissions in this manual or from the use of information contained herein.
Speedict reserves the right to make changes in the product design without reservation and
without notification to users. Please check out our website www.speedict.com frequently
for the latest user manual.
! Copyright (c) 2010 by Speedict. All rights reserved. No part of
this manual may, without the written permission of Speedict be reproduced or transmitted
in any form or by an means, analog, digital, electronic or mechanical, including imaging,
photocopying and recording, for any purpose other than the owner’s personal use.
Caring Instruction
Technical Support
Warranty
Changes
Copyright
Loading...
