JGSTAT2 Instruction Manual
Instruction Manual
JGSTAT2W
(White)
JGSTAT2B
(Black)
Fixing screws
Box contents:
Contents
Icons used in this manual:
Safety
Important info
Your benefit
For latest PDF Instruction Manual please
go to www.speedfitUFH.co.uk
Instruction manual:
• Box contents
• Introduction
• Product compliance
• System options overview
• Installation
• Parameter settings
• Error codes
• User guide
• Installers notes
03
www.speedfitUFH.co.uk
Introduction. Thank you for purchasing
one of our Speedfit Aura 230V Thermostat
models. To use all of the Thermostat
features, the optional communications
cables is required.
The unit can be configured to be a
Programmable Room Thermostat (PRT),
Group Control Thermostat, Group
Thermostat or Hot Water Timer.
Communication between neighbouring
JGSTAT2 and JGSTAT1 Dial Thermostats is
possible via the JGWC Wiring Centre
(pictured below) and the optional
communications cables. More information
can be found on pages 9 and 10.
Safety Information. Use in
accordance with the regulations.
The Aura JGSTAT2 is to be used
for room control of heating and
hot water systems inside
buildings.
Product Compliance. This
product is CE compliant and
meets the following EC
Directives:
RoHS2 2011/65/EU, ElectroMagnetic Compatibility directive
2004/108/EC and Low voltage
directive 2006/95/EC.
Speedfit Aura Wiring Centre JGWC
We hope you enjoy this product...
Product Compliance & Safety Information
Emergency. Switch off the voltage
to the individual thermostat, wiring
centre or complete system.
Sources of danger. The
thermostat must be disconnected
from mains supply before removing
the cover.
For the installer. Please enter
any parameter changes in the
Installer Notes section (pages 72
- 75).
Installer parameter
settings. The Aura JGSTAT2
is equipped with an Installer
Parameter section (see page
40). This must only be entered
by the installer or a competent
person. Changing these
parameters can have a serious
effect on your heating system.
230v AC
Warning. This product must be
fitted by a competent person.
Installation must comply with the
guidance, standards and
regulations applicable to the
location where the product is
installed. Failure to comply with the
requirements of the relevant
guidance, standards and
regulations could lead to injury,
death or prosecution.
These instructions are applicable to the
Speedfit Aura model stated on the front cover
of this Instruction Manual only.
Warning. Always isolate the
AC Mains supply before
installing or working on any
components that require 230v
AC 50Hz supply.
04
JGSTAT2 Instruction Manual
Product Compliance & Safety Information
Programmable Room
Thermostat (PRT)
The unit can be
configured to either
one of the following.
UFH Manifold
Wiring Centre
Radiator
Boiler
Hot Water
Group Control
Thermostat
Group
Thermostat
Timer
05
www.speedfitUFH.co.uk
System Overview - Configuration Options
1
2
3
4
SYSTEM OVERVIEW
Programmable Room Thermostat (PRT). When configured for PRT (see page 31) the
Programmable Room Thermostat mainly works by itself and allows the user to have separate
Time and Temperature control of each zone on the wiring centre. Features like Holiday, Party and
Frost mode have to be set on each individual thermostat. The PRT can be configured for global
heat/cool system changeover if your system supports this. This is achieved from a switched input
from the Wiring Centre (see the Wiring Centre Instruction Manual). Communication Connection
(see page 13) is required to use heat/cool changeover function.
Group Control Thermostat. When configured as a Group Control Thermostat (see page 33),
the unit allows central control of up to 7 Group Thermostats (see below). There can be a
maximum of 2 groups per 8 zone wiring centre. Permanent temperature override, Holiday, Party
and Frost modes can be selected centrally from the Group Control Thermostat. Holiday mode
will also be applied to a timer if applicable. Communication connections (see page 13) are
required for grouping the Group Thermostats. Thermostats can be also globally changed from
heating to cooling thermostats if your system supports this by using the switched input
connection on the JGWC (see the Wiring Centre Instruction Manual) along with the
Communications connections mentioned above.
Group Thermostat. When configured as a Group Thermostat (see page 36), the unit will follow
the time schedule and override modes of the Group Control Thermostat. The Group Thermostat
can have its own programmed temperatures, Manual Override and also be removed from the
group temporarily or permanently. Communication connections are required (see page 13).
Timer. When configured as a Timer (see pages 32 and 34), the unit will operate without
temperature control. In this configuration, the unit can be used as a Hot Water Timer. The Timer
will also follow a Group Control Thermostat when Holiday mode has been activated (requires
communication connections).
06
JGSTAT2 Instruction Manual
System Overview - Configuration Options
Power and Switching cable – used to
power thermostats and drive output.
Grouping and Communication cable.
Communication cable can be used when units are used as individual PRT's for
heat/cool changeover. Please refer to page 13 and the Wiring Centre
Instruction Manual.
While the units can function as standalone PRTs or
Timers, installing this optional inexpensive
Communication cable allows the units to communicate
with each other. This allows a thermostat to assume
convenient remote control of a group. This brings
central control of features such as Time Control,
Holiday and Party functions as well as Frost Control.
The individual group members can leave or re-enter
group control at the push of a button.
Cable size 1.5mm 3 core for L,N,SL and 0.5mm twin for the communication.
07
www.speedfitUFH.co.uk
System Overview - Cables
SYSTEM OVERVIEW
Option 1 - Page 09. Unit is configured as individual PRT.
Option 2 - Page 10. Unit is configured as a Group Control Thermostat used to control
a group(s) of unit(s) configured as Group Thermostats.
Option 3 - Page 10. Unit is configured as a Group Control Thermostat used to control a
group(s) of Digital Stat(s) configured as Group Thermostats.
The systems below, although not exhaustive show the main
options. The maximum number of groups per JGWC Wiring
Centre is two. The group selection communication cable
must correspond to the group terminals on the JGWC Wiring
Centre. Please refer to the JGWC Instruction Manual.
All digital variants can be
configured from JGSTAT2. Groups
must have a Group Control
Thermostat. 1 or 2 groups can be
used per wiring centre. HW Timer
can be stand alone or part of a
group. If using HW Timer as part
of a group it must be in Group 1.
08
JGSTAT2 Instruction Manual
System Overview - Options
Group 1
Group 2
Group 1
Group 2
FUNCTION PRT USING COMMUNICATION
CONNECTION - PRT
Individual Room Control 44
Individual Holiday Function 44
Individual Party Function 44
Individual Heating Program 44
Individual Frost Function 44
Group Holiday including HW 66
Group Party 66
Group Heating Program 66
Group Permanent Override 66
Group Temporary Override 66
Heat/Cool changeover 6 4
Note: The communication connection is only used for heat/cool changeover when
using units configured to PRT’s and using the relevant connection on the JGWC
Wiring Centre. Please refer to the Wiring Centre Instruction Manual.
Option 1 - Page 31. All thermostats set as PRT.
09
www.speedfitUFH.co.uk
System Overview - Grouping and Communication
SYSTEM OVERVIEW
FUNCTION PRT USING COMMUNICATION
CONNECTION - GROUP CONTROL
Individual Room Control 44
Individual Holiday Function 44
Individual Party Function 44
Individual Heating Program 44
Individual Frost Function 44
Group Holiday including HW 6 4
Group Party 6 4
Group Heating Program 6 4
Group Permanent Override 6 4
Group Temporary Override 6 4
Heat/Cool changeover 6 4
Note: HW timer will only use HOLIDAY mode when the communication connection
is used. Also the HW Timer must be connected to GROUP 1 communication
terminals on the Wiring Centre. Please see the Wiring Centre Instruction Manual.
Option 2 - Page 33 Option 3 - Page 35
10
JGSTAT2 Instruction Manual
System Overview - Grouping and Communication
When the unit is configured as a Hot Water Timer (see page 34) there
are two methods of connecting the cylinder thermostat.
Unit configured to
Hot Water Timer.
Cylinder thermostat options:
Connected directly to JGWC (default).
Connected directly to JGSTAT2.
11
www.speedfitUFH.co.uk
System Overview - Hot Water Option
1
2
SYSTEM OVERVIEW
Connected direct to JGWC (default).
SL L N
12
+
SL L N
12
+
SL L N
12
+
SL L N
12
+
For convenience there is a unique built in option allowing the cylinder
thermostat to be connected to either the HW Timer or Wiring Centre.
12
JGSTAT2 Instruction Manual
System Overview - Hot Water Option
1 2
Please refer to the Wiring Centre Instruction Manual and page 18 for more information.
Connected direct to JGSTAT2 (requires
additional parameter change see page 40).
1 2 3
Understanding your terminal connections.
Rear of unit
Communication Terms
12v DC. Two wire twisted
pair can be used for
Grouping Functions between
Group Control Thermostat,
Group Thermostat and HW
Timer.
Power Terminals 230v
AC. Used for supplying
power to the unit and
switched output.
Sensor Terminals. Can
be used for external AIR or
Floor sensor when
configured as thermostat.
Can also be used for
cylinder thermostat when
configured for HW.
13
www.speedfitUFH.co.uk
Installation - Terminal Connections
1
3
2
INSTALLATION
Carefully remove the front housing.
60mm
14
JGSTAT2 Instruction Manual
Installation - Thermostat Mounting
1
2
3
Not to be positioned on an exterior wall.
Not
Do not insta
Only the te
Not
Do not insta
Only the te
Not
Do not insta
Only the te
Mounting position and installation. To ensure trouble free operation and efficient
control, the unit is best positioned in a draft free area and at 130cm from the
floor. Do not position the thermostat near any heat source, behind curtains, in
direct sunlight or an area of high humidity.
15
www.speedfitUFH.co.uk
Installation - Thermostat Mounting
130cm
INSTALLATION
SL N L
GROUP 2 GROUP 1
---- ++ ++
ZONE 1
SL N L SL N L SL N L SL N L SL N L SL N L SL N LSL N L
ZONE 2 ZONE 3 ZONE 4 ZONE 5
ZONE 6 ZONE 7
ZONE 8
5 x 20mm
5 x 20mm
While the thermostats can function as PRT or
Timers, installing this optional inexpensive
Communication Cable allows the thermostats to
communicate with each other. This allows the
thermostat to assume convenient remote control
of groups of thermostats bringing central control
of features such as Time Control, Holiday and
Party functions as well as Frost Control. The
individual group members can leave or re-enter
group control at the push of a button.
Optional
communication
connection 12v DC
For more detail refer to the Wiring Centre
Instruction Manual.
16
JGSTAT2 Instruction Manual
Installation - Thermostat Connections
Note: If you are using an External Sensor, the unit has to be
configured for External Air Sensor or Floor Protection Sensor.
Please see Device Parameter Setting on page 40.
Aura External Sensor (sold separately).
17
www.speedfitUFH.co.uk
Installation - Thermostat External Sensor
INSTALLATION
Power Connections 230v AC
If hot water is part
of a group then the
communication
connection must be
connected to group 1.
18
JGSTAT2 Instruction Manual
Installation - Hot Water Timer Wiring
ZONE 1
SL N L SL N L SL N L SL N L SL N L SL N L SL N LSL N L
ZONE 2 ZONE 3 ZONE 4 ZONE 5
ZONE 6 ZONE 7
ZONE 8
5 x 20mm
5 x 20mm
SL NL
GROUP 2 GROUP 1
---- ++ ++
Optional
communication
connection 12v DC
ZONE 1
SL N L SL N L SL N L SL N L SL N L SL N L SL N LSL N L
ZONE 2 ZONE 3 ZONE 4 ZONE 5
ZONE 6 ZONE 7
ZONE 8
5 x 20mm
5 x 20mm
ZONE 1
SL N L SL N L SL N L SL N L SL N L SL N L SL N LSL N L
ZONE 2 ZONE 3 ZONE 4 ZONE 5
ZONE 6 ZONE 7
ZONE 8
5 x 20mm
5 x 20mm
Note: Optional - The JGSTAT2 can be configured for a connection to a cylinder
thermostat. Please see Device Parameters on page 40. For additional wiring
centre information refer to the Wiring Centre Instruction Manual.
IN OUT
HW Timer connected
to cylinder thermostat.
Link must
be fitted
IN OUT
WC connected cylinder
to thermostat (Default).
Cylinder thermostat
19
www.speedfitUFH.co.uk
Installation - Hot Water Timer Cylinder Thermostat
INSTALLATION
Check that the wiring is completed for:
Please use the screws provided.
Ensure the orientation arrow is
pointing upwards.
You are ready to secure the rear housing to the wall box.
Power terminals.
Sensor terminals (if applicable).
Communication connections (optional but recommended).
20
JGSTAT2 Instruction Manual
Installation - Thermostat Mounting
1
2
3
Fit the front housing to the rear housing.
Align the front housing at
the bottom edge.
Lightly press until you
hear a positive click.
21
www.speedfitUFH.co.uk
Installation - Thermostat Mounting
1 2
Ensure the pin connections are aligned.
INSTALLATION
22
JGSTAT2 Instruction Manual
Installation - LCD Graphics
ICON FUNCTION
Box: Indicates selected mode e.g. means the current
setpoint is Hi temp, means the Hi temp is not selected.
Sunny: Hi comfortable temperature.
Cloudy: Middle comfortable temperature.
Moon: Low comfortable temperature.
Programmable Thermostat program mode indicator:
Indicates program is running, Auto On or Auto Off. For Group
Thermostat this indicates that it is a member of a group.
Party indicator: When Party Mode is active.
Holiday indicator: When Holiday Mode is active.
Frost protection indicator: Frost Protection is active, not
available
in Cooling Mode (if applicable).
ICON FUNCTION
Heat indicator: Indicates demand for heat.
Cool mode indicator: Indicates cooling is required
(if applicable).
Temperature indicator: Displays room temperature,
set temperature or other information.
Temporary manual override indicator: If the set
temperature is changed when in program mode,
the hand will appear until the next program start time.
Programs number indicator: Displayed in AUTO mode or
Temporary override. The number indicates which program
is running.
Day indication: 1 = Monday.
23
www.speedfitUFH.co.uk
Installation - LCD Graphics
INSTALLATION
24
JGSTAT2 Instruction Manual
Installation - LCD Graphics
ICON FUNCTION
Hot Water (HW) indicator: Unit operating as a hot water timer.
Hot Water (HW) indicator: Indicates demand for hot water.
HW Program mode indicator: Indicates program is running.
HW Mode indicator: Mode for 1 period of HW a day, from
Program 1 ON to Program 3 OFF.
HW Mode indicator: Hot water switched on (continuously).
HW Mode indicator: Hot water switched off (continuously).
HW Mode indicator: Indicates Boost +1hr override.
25
www.speedfitUFH.co.uk
Installation - LCD Graphics
ICON FUNCTION
Floor sensor probe indicator: Show only when Air + Floor
sensor is connected.
Setting indicator: Indicates the unit is in program
setting mode.
Keylock indicator: Keys have been de-activated.
INSTALLATION
ICON FUNCTION
1. Increase or decrease setpoint temperature.
2. Increase or decrease Day, Clock, Timer, Party, Holiday and Boost.
3. Select Installer Parameter value.
1. Mode selection.
2. Long press to return to home display without saving.
3. Short press to return to the previous screen when it is in
user/installer setting mode.
1. OK key: Short press to confirm selection.
2. Long press to save and exit.
3. Long press to enter the user settings.
Lock/Unlock.
Enter Installer Parameter settings.
Test mode.
Installation - User Interface
OR
+
++
LONG PRESS
LONG PRESS
LONG PRESS
+
OR
26
JGSTAT2 Instruction Manual
27
www.speedfitUFH.co.uk
Installation - First Power Up
INSTALLATION
You are now ready to configure the unit using the
System Parameter table below.
*S03 setting 1 is used for Control Group options 2 and 3 see pages 33 - 36,
communication connection must be used, global heat/cool changeover is also included
if applicable to your system.
**S03 setting 0 is used for option 1 (see page 31) when heat/cool changeover is
required for individual PRTs, communication connections must be used for this function.
S03 setting 0 is only available if setting 0 has been selected for S01. If no heat/cool
changeover is required when using PRTs only then select setting 2 for S03.
28
JGSTAT2 Instruction Manual
Installation - System Parameters
SX FUNCTION SYSTEM DEFINITION DEFAULT
SETTING
System Unit
0 Programmable Room Stat (PRT)
SO1
Type
1 Digital Thermostat 0
2 HW Timer
0** PRT only with communication*
System
1*
Group Control Thermostat and
S03
Communication
Group Thermostat communication 1
2
No Communication /
Grouping required
Option 1 - Page 31. Unit is configured as individual PRT.
Option 2 - Page 33. Unit is configured as a Group Control Thermostat used to
control a group(s) of Dial Stat(s).
Option 3 - Page 35.
Unit is configured as a Group Control Thermostat used to control
a group(s) of Digital Stat(s) configured as Group Thermostats.
An additional Hot Water Timer can be used with any of the above options.
29
www.speedfitUFH.co.uk
Installation - Options
Group 1
Group 2
Group 1
Group 2
INSTALLATION
Press once
Press x amount of times
Hold for five seconds
Flashing
xx
Short press to save and
long press to save and exit
Short press to back up
30
JGSTAT2 Instruction Manual
Installation - Graphics Key
OPTION 1
Long press to exit
to home screen
or continue to
change device
settings. Refer to
page 33.
Short press on
to back up.
Use to
change to 2.
PRT with no
communication
*
.
31
www.speedfitUFH.co.uk
Option 1 - Individual Programmable Thermostat Setup
*Select S03 setting 0 if communication is required for global heat/cool changeover.
Your system must support this and the communication connection must be used
(see page 13).
INSTALLATION
Long press to
exit to home
screen or
continue to
change device
settings. Refer
to page 40.
Hot water with no communication.
32
JGSTAT2 Instruction Manual
Option 1 - Hot Water Timer (Optional) Configuration
Use to
change to 2.
Use to
change to 2.
OPTION 2
Group Control Thermostat.
Long press to
exit to home
screen or
continue to
change device
settings. Refer
to page 40.
Communication
connection
required for this
setting.
33
www.speedfitUFH.co.uk
Option 2 - Thermostat Configuration
INSTALLATION
34
JGSTAT2 Instruction Manual
Option 2 - Hot Water Timer (Optional) Configuration
Long press to
exit to home
screen or
continue to
change device
settings. Refer
to page 40.
Communicatio
n connection
required for
this setting.
Use to
change to 2.
35
www.speedfitUFH.co.uk
Option 3 - Thermostat Configuration
Group Control Thermostat.
Long press to
exit to home
screen or
continue to
change device
settings. Refer
to page 40.
Communicatio
n connection
required for
this setting.
OPTION 3
INSTALLATION
36
JGSTAT2 Instruction Manual
Option 3 - Thermostat Configuration
Group Thermostat.
Long press to
exit to home
screen or
continue to
change device
settings. Refer
to page 40.
Communicatio
n connection
required for
this setting.
Use to
change to 1.
OPTION 3
37
www.speedfitUFH.co.uk
Option 3 - Hot Water Timer (Optional) Configuration
Long press to
exit to home
screen or
continue to
change device
settings. Refer
to page 40.
Communicatio
n connection
required for
this setting.
Use to
change to 2.
INSTALLATION
If you have made an error or need to change your System Parameters please follow
the steps below. This should only be done by your installer.
Press all three buttons
simultaneously.
38
JGSTAT2 Instruction Manual
Installation - System Parameters
Unit will follow
power up
sequence on
page 27.
You are now
ready to enter or
change your
System
Parameters.
Refer to page 28.
39
www.speedfitUFH.co.uk
Installation - System Parameters
INSTALLATION
Device Parameters
will follow System
Parameters on first
power up. If you
need to change
Device Parameters
follow the steps
below.
Please note, your
System Parameters
will be shown first
but cannot be
edited in this
section. To change
the System
Parameters please
refer to the previous
two pages.
Press all three
buttons
simultaneously.
40
JGSTAT2 Instruction Manual
Installation - Device Parameters
DX FUNCTION SYSTEM DEFINITION DEFAULT
SETTING
Heating
0 Pulse width modulation
D01
control
1 On-Off 0.5ºC +/- 0.25ºC 0
2 On-Off 1.0ºC +/- 0.5ºC
Room
-3.0ºC to
Temperature offset from
D02 temperature
3.0ºC
measured temperature to 0ºC
offset compensate for any error
Sensor probe or
0 Sensor/Cylinder stat not connected
D03 cylinder thermostat
1 Sensor/Cylinder stat connected
0
connection
D03 must be set to 1 then external
Sensor probe
0 sensor be used as Air sensor. There
D04
used as air sensor
will be no internal temp measurement
or floor sensor
D03 must be set to 1 then external
0
1 sensor used for floor protection.
Internal temp is measured by stat
D05 Cooling control
1 On-Off 0.5ºC +/- 0.25ºC
2
2 On-Off 1.0ºC +/- 0.5ºC
D06 Actuator type
0 NO normally open
1
1 NC normally closed
D07 Valve protection
0 Disable
1
1 Enable
41
www.speedfitUFH.co.uk
Installation - Device Parameters
INSTALLATION
Installation - Device Parameters continued
DX FUNCTION SYSTEM DEFINITION DEFAULT
SETTING
D08
Frost Set point
5ºC to 17ºC
Required temperature for Frost
5ºC
temperature Protection and Holiday Mode
D09
Hour format
0 12
1
1 24
D10 N/A N/A N/A N/A
D11
Daylight Saving 0 OFF
1
Time (DST) 1 ON
D12
Heating Set point 5ºC to 35ºC Maximum temp that can
35ºC
limit be set for heating
D13
Cooling Set point 5ºC to 40ºC Maximum temp that can
5ºC
limit be set for Cooling
Floor sensor high
Output relay will be switched off
D14
limit temperature
6ºC to 45ºC when temp is reached for 27ºC
floor protection
Floor sensor Low
Output relay will be switched on
D15
limit temperature
6ºC to 45ºC when temp is reached for 10ºC
floor protection
Floor sensor limit
Output relay will be switched off
D16
for cooling
6ºC to 45ºC when temp is reached for 6ºC
floor protection
42
JGSTAT2 Installation Manual
ERROR PROG NON-PROG HW
CODE
01 Comm Connection Comm Connection Comm Connection
link failure link failure link failure
02 Comm Connection Comm Connection Comm Connection
link failure link failure link failure
03 Floor sensor open Floor sensor open -
04 Floor sensor short Floor sensor short -
When an error exists within the system, the thermostat display will
cycle between the normal operating screen and an error page.
If there is more than 1 error, then on Error page, press UP to show
other error codes.
e.g. Err 03 05 ===> 3 errors Error code 05 (1st one).
Press Up to show Err 03 08 ===> 3 errors Error code 08 (2nd one).
Press Up again to show Err 03 09 ===> 3 errors Error code 09 (3rd
one).
Press Up again to show Err 03 05 again......
Press OK to exit Error page back to Home display.
43
www.speedfitUFH.co.uk
Installation - Error Codes
INSTALLATION
Model JGSTAT2W or JGSTAT2B
Type Electronic programmable room thermostat, digital room
thermostat and hot water timer designed for 230v AC applications
Programming Modes User selectable for 5/2, ALL and Individual day options
Program Number 1-6 Selectable
Modes Party, Vacation, Program and Frost
Override Permanent and temporary
Frost Protection 5ºC Adjustable.
Power Source 230v AC 50Hz
Rating 3 Amp
Communication Bus 12v DC
Temperature Scale 5ºC to 35ºC, tolerance 0.5ºC
Heat/Cool Global changeover using communication bus and external input
to the wiring centre
Sensor Air or floor protection. Cylinder thermostat when configured for
hot water timer
Device Parameters See page 41 - 42 for full list of functions
Operating Temperature 0ºC to 50ºC
Storage Temperature -20ºC to 60ºC
44
JGSTAT2 Instruction Manual
Installation - Technical Detail
PRT and Group Control Thermostat.
45
www.speedfitUFH.co.uk
User Guide - Setting Time and Date
USER GUIDE
Use Left to
select 12 hour
and right to
select 24 hour.
Adjust the time
using the up or
down arrow key.
PRT and Group Control Thermostat.
Hour
Minutes
46
JGSTAT2 Instruction Manual
User Guide - Setting Time and Date
Adjust the
year/month/d
ay using the
up or down
arrow key.
Month
Year
Day
47
www.speedfitUFH.co.uk
PRT and Group Control Thermostat.
User Guide - Setting Time and Date
USER GUIDE
Highest temperature typically used for
early morning and early evening.
Typically 21ºC.
Mid temperature typically used for times of
day when you are active around the home.
Typically 19ºC.
Lower temperature typically used for
unoccupied or sleep times.
Typically 17ºC for UFH or 15ºC for radiators.
Frost temperature typically used for
periods of long absence or holidays. Typically 5ºC.
Your thermostat comes preset for the above temperatures.
These can be adjusted please see page 53.
PRT, Group Control Thermostat and Group Thermostat.
48
JGSTAT2 Instruction Manual
User G
uide - U
nde
rstanding Tem
pera
ture L
ev
els Heating
Occupied temperature typically 22ºC.
Unoccupied temperature typically 40ºC. This avoids cooling
being active when the property is unoccupied.
Evening temperature typically 24ºC.
Your thermostat comes preset for the above temperatures. These can
be adjusted please see page 53.
Cooling is only available if your system supports this and the relevant
configurations and connections have been made to the unit.
PRT, Group Control Thermostat and Group Thermostat.
49
www.speedfitUFH.co.uk
User Guide - Understanding Temperature Levels Cooling
USER GUIDE
21
19
17
12.00 7.00 9.00 17.00 23.00
Monday to Friday
21
19
17
12.00 8.00 9.00 17.00 23.00
Saturday to Sunday
PRT and Group Control Thermostat.
If using grouping, the schedule from the Group Control
Thermostat will be applied to Group Members.
50
JGSTAT2 Instruction Manual
User Guide - Default Heating Schedule
22
40
24
Monday to Friday
22
40
24
Saturday to Sunday
51
www.speedfitUFH.co.uk
PRT and Group Control Thermostat.
User Guide - Default Cooling Schedule
12.00 7.00 9.00 17.00 23.00
12.00 8.00 9.00 17.00 23.00
If using grouping, the schedule from the Group Control
Thermostat will be applied to Group Members.
USER GUIDE
Press once
Press x amount of times
Hold for five seconds
Flashing
xx
Short press to save and
long press to save and exit
Short press to back up
52
JGSTAT2 Instruction Manual
User Guide - Graphics Key
By setting the
low temperature
the program
schedule will use
this as the low
setting.
The temperature
set is applicable
to the individual
thermostat.
PRT, Group Control Thermostat and Group Thermostat. Setting the low temperature.
53
www.speedfitUFH.co.uk
User Guide - Setting Required Temperature Levels
USER GUIDE
Repeat for
Move back to
once temperature levels
have been chosen.
By setting the
low temperature
the programs will
use this as the
low setting.
54
JGSTAT2 Instruction Manual
PRT, Group Control Thermostat and Group Thermostat.
User Guide - Setting Required Temperature Levels
The temperature
set is applicable
to the individual
thermostat.
Use right and left
to select the day
of the programs.
If using grouping,
the schedule from
the Group Control
Thermostat will be
applied to Group
Members.
5/2
7 Days
Individual
55
www.speedfitUFH.co.uk
User Guide - Setting the Temperature Schedule
USER GUIDE
Adjust the time
using the up or
down arrow key.
Use right and left
to select the
Hi/Mid or low
temp.
56
JGSTAT2 Instruction Manual
User Guide - Setting the Temperature Schedule
When you set the temperature the schedule will respond to
those temperatures. Please see page 53 on how to change
Repeat through to program 4.
If you require a 5th or 6th program enter a
time and select your temperature
To remove a program, set the time to --:--.
57
www.speedfitUFH.co.uk
User Guide - Setting the Temperature Schedule
USER GUIDE
Use the up or
down arrow key to
view your program
set temperature.
The Temporary
Override is applicable
to the thermostat
being changed only.
Use the up or
down arrow key to
adjust the
temperature to the
setting you desire.

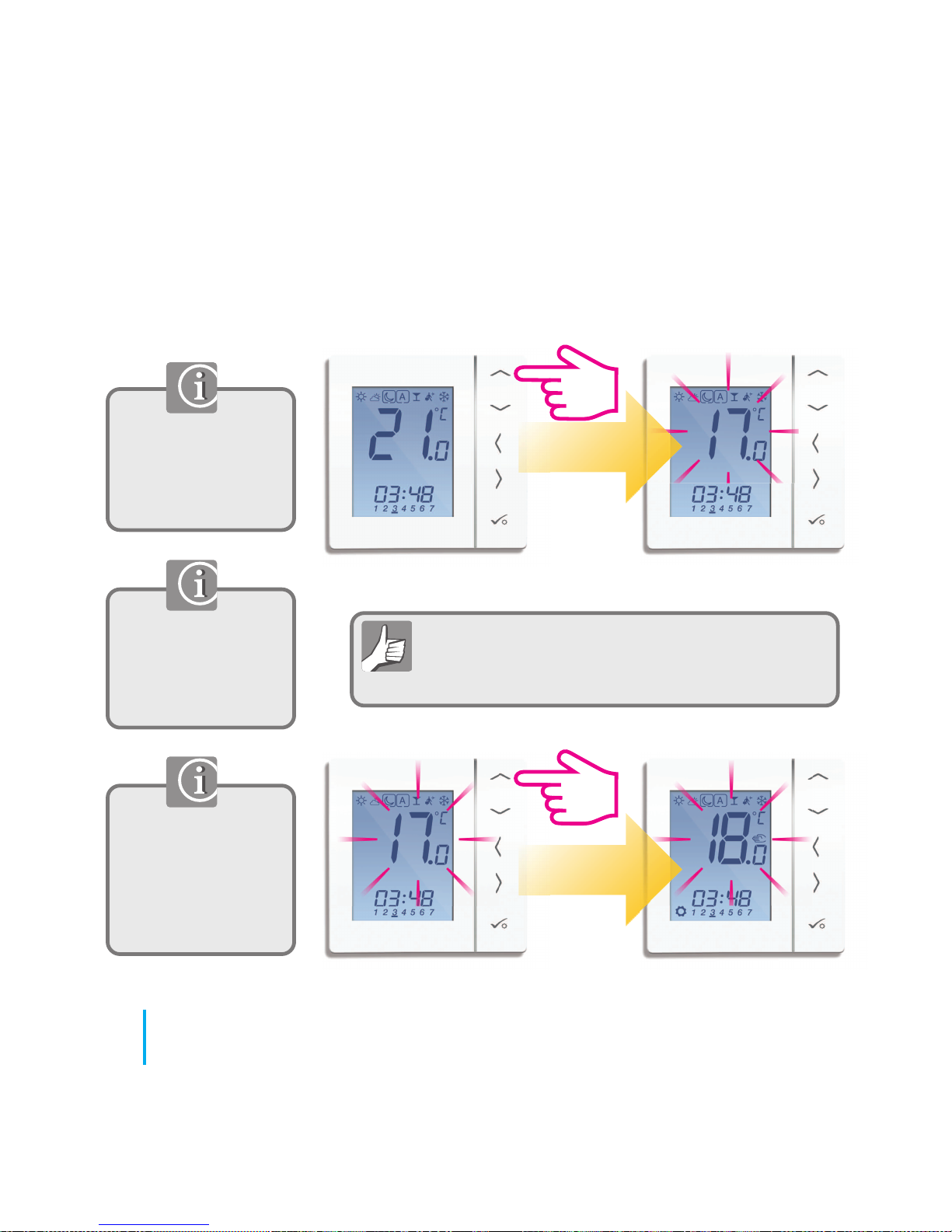

Temporary Override allows you to increase the
temperature or decrease it to the desired setting
until it reverts back on the next program time.
PRT, Group Control Thermostat and Group Thermostat.
58
JGSTAT2 Instruction Manual
User Guide - Temporary Override
To cancel temporary override press or
(see below).
Confirm the
temporary set
temperature.
59
www.speedfitUFH.co.uk
User Guide - Temporary Override
PRT, Group Control Thermostat and Group Thermostat.
USER GUIDE
To cancel Permanent Override select
See below.
Permanent Override of a Group Control Thermostat
will also affect the Group Thermostats unless they
are removed from the group. See page 64.
Move from to
Use the up or
down arrow
key to view
your set
temperature.
See page 58.
To adjust your
Permanent
Override
temperature,
follow the
steps on page
53.
Repeat for
if required
PRT and Group Control Thermostat. Setting permanent low temperature.
60
JGSTAT2 Instruction Manual
User Guide - Permanent Override
The Party Mode
is an option that
enables
temperature
for a period of
time (up to 9hr
50min).
Use the right
arrow to select
the Party Mode.
Use the up
arrow to select
the hr/min.
Press tick to
confirm and it
will start to
count down.
Party Mode set in
a Control Group
Thermostat will
also affect Group
Thermostats
unless they are
removed from
the group.
See page 64.
PRT and Group Control Thermostat.
61
www.speedfitUFH.co.uk
User Guide - Party Mode
USER GUIDE
Use the right
arrow to select
the Holiday
Mode.
Use the up
arrow to select
how many days
to be off for.
Press tick to
confirm and it
will start the
holiday count
down.
Holiday set in a
Group Control
Thermostat will
also affect Group
Thermostats
unless they are
removed from
the group.
See page 64.
Holiday mode
switches heating
to frost mode for
the set number
of days. Group
control (if used)
will also disable
the hot water.
62
JGSTAT2 Instruction Manual
User Guide - Holiday Mode
Use the right
arrow to select
the Frost Mode.
Use the up
arrow to select
the frost
protection
temperature.
Press tick to
confirm the
temperature
setting.
Frost protection
set in a Group
Control
Thermostat will
also affect Group
Thermostats
unless they are
removed from the
group.
See page 64.
Frost protection is
not available in
Cooling. Moving
the to this
position in
Cooling will
switch the
thermostat to off.
63
www.speedfitUFH.co.uk
User Guide - Frost Protection
USER GUIDE
When a Group Thermostat
is in it will follow the
Mode status of the Group
Control Thermostat.
When a Group
Thermostat is in
and the Group Control
Thermostat is in
or then the
Group Thermostat will
follow this mode.
or will be
displayed.
The Group Thermostat
has now left the group
and is in permanent
To adjust the set
temperature, please
refer to pages 53 - 54.
The Group Thermostat
has now left the group
and is in permanent
To adjust the set
temperature, please
refer to pages 53 - 54.
64
JGSTAT2 Instruction Manual
User Guide - Group Thermostat Overview
The Group Thermostat has
now left the group and is in
permanent
To adjust the set temperature,
please refer to pages 53 - 54.
The Group Thermostat has
now left the group and is in
permanent
To adjust the set temperature,
please refer to page 53 - 54.
The Group Thermostat has
been returned to
it will follow the mode status of
the Group Control Thermostat.
65
www.speedfitUFH.co.uk
User Guide - Group Thermostat Overview
USER GUIDE
2
3
Mode selection.
Hot water will
follow Holiday
Mode from the
Group Control
Thermostat.
will be
displayed.
When is
selected, the hot
water timer will
follow the program
schedule
(see page 68).
Hot water will be
on once per day.
Hot water will be
continuously on.
Hot water will be
continuously off.
66
JGSTAT2 Instruction Manual
User Guide - Hot Water (Optional) Mode Selection
67
www.speedfitUFH.co.uk
User Guide - Hot Water Boost
USER GUIDE
12.00 6.00 8.00 18.00 22.00
ON ON
OFFOFF OFF
12.00 6.00 8.00 18.00 22.00
Saturday and Sunday
Monday to Friday
ON ON
OFFOFF OFF
Your Hot Water Timer comes preset with the times below.
These can be adjusted (see next page).
68
JGSTAT2 Instruction Manual
User Guide - Setting Hot Water Times
5/2
7 Days
Individual
69
www.speedfitUFH.co.uk
User Guide - Setting Hot Water Times
USER GUIDE
70
JGSTAT2 Instruction Manual
Repeat these steps for
programs
User Guide - Setting Hot Water Times
Repeat these steps for
programs
71
www.speedfitUFH.co.uk
User Guide - Setting Hot Water Times
USER GUIDE
72
JGSTAT2 Instruction Manual
Installer Notes
73
www.speedfitUFH.co.uk
Installer Notes
74
JGSTAT2 Instruction Manual
Installer Notes
75
www.speedfitUFH.co.uk
Installer Notes
John Guest Speedfit Limited
Horton Road, West Drayton, Middlesex UB7 8JL, England.
Tel: 01895 449233
Fax: 01895 420321
www.speedfitUFH.co.uk
Technical Help Desk: 01895 425333
,
The above namestyles are all trademarks of John Guest International Limited.
©
John Guest International Limited 2014. All rights reserved.
Z2105/421/0814
and
Loading...
