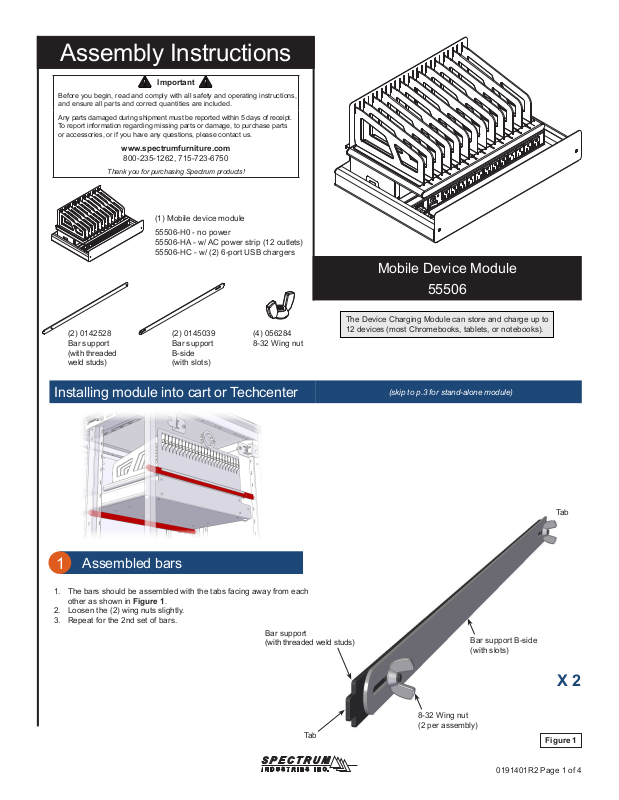

Assembly Instructions
Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts
or accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(1) Mobile device module
55506-H0 - no power
55506-HA - w/ AC power strip (12 outlets)
55506-HC - w/ (2) 6-port USB chargers
(2) 0142528
Bar support
(with threaded
weld studs)
(2) 0145039
Bar support
B-side
(with slots)
(4) 056284
8-32 Wing nut
Mobile Device Module
55506
The Device Charging Module can store and charge up to
12 devices (most Chromebooks, tablets, or notebooks).
Installing module into cart or Techcenter
Assembled bars
1
1. The bars should be assembled with the tabs facing away from each
other as shown in Figure 1.
2. Loosen the (2) wing nuts slightly.
3. Repeat for the 2nd set of bars.
Bar support
(with threaded weld studs)
(skip to p.3 for stand-alone module)
Tab
Bar support B-side
(with slots)
X 2
Tab
8-32 Wing nut
(2 per assembly)
Figure 1
0191401R2 Page 1 of 4
Installing bars
2
1. Determine the approximate location (height) you would like the
module to be mounted. The rear bar is (2) slots higher than the front.
2. Insert one tab into a slot in the left slotted upright. Figure 2.
3. Insert the opposite tab into the corresponding right slotted upright
and fully extend the bar assembly into place.
4. Lock the extended position of the bars by securely tightening the (2)
wingnuts. Be sure both wingnuts are tight.
5. Repeat for the 2nd set of bars.
Left slotted
uprights
Rear bar Assembly
Front bar Assembly
Note: When determining the location of the module, be sure the module
will clear any obstructions that may be inside the cabinet and enough
clearance (height) is provided for all module devices.
Right slotted
uprights
Figure 2
Installing module
3
1. Carefully set the empty module onto both sets of bars. Be sure the
rear channel “hooks” the rear set of bars fully. Figure 3.
Rear
channel
Bars
Bars
Device Module
Figure 3
0191401R2 Page 2 of 4
