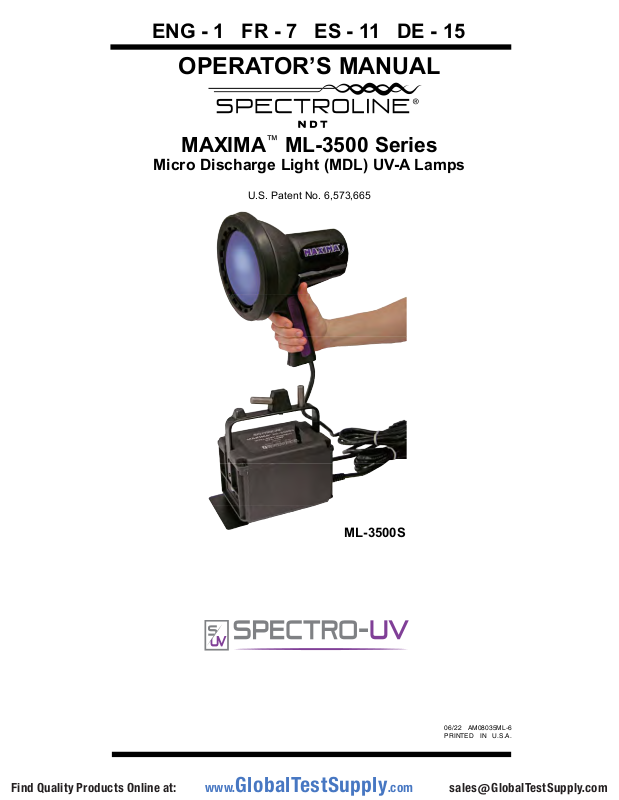

Page 1
ENG - 1 FR - 7 ES - 11 DE - 15
OPERATOR’S MANUAL
MAXIMA™ ML-3500 Series
Micro Discharge Light (MDL) UV-A Lamps
U.S. Patent No. 6,573,665
ML-3500S
06/22 AM08035ML-6
PRINTED IN U.S.A.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
English
MAXIMA™ ML-3500 Series
Micro Discharge Light (MDL) UV-A Lamps
U.S. Patent No. 6,573,665
INTRODUCTION
The MAXIMA
technology to make all inspections easier, safer and more reliable. The MAXIMA
available in three line-voltage models: ML-3500S, with a spot bulb;
range. All “M” model MAXIMA lamps operate in both alternating (AC) or direct current (DC). Each
volt, 7 amp/hr rechargeable battery that will operate the lamp for two hours and a battery charger
and carrying case. Each comes equipped with a detachable AC cord for the country of shipment
(120V, 230V, 240V, or 100V).
™
ML-3500 series ultra-high intensity UV lamps feature micro discharge light (MDL)
series lamps are
WARNING:
UV light emitted from this product.
Avoid eye and skin exposure to unshielded products.
FOR PROFESSIONAL EXAMINATION USE ONLY.
IMPORTANT SAFETY INSTRUCTIONS
1. Read all instructions.
2. Care must be taken, as burns can occur from touching hot parts.
3. Do not operate the lamp with a damaged cord or if the lamp has been damaged.
4. Wear UV-absorbing protective eyewear (such as the UVS-30 glasses provided) when operating
this or any UV lamp.
5. The filter lens will become hot during use. Never operate the lamp with the UV filter lens
removed.
6. Never use this equipment in any manner not specified in these instructions because the
protection provided by the equipment may be impaired.
NOTE: Due to the ultra-high UV-A intensity produced by this lamp, subject (penetrants,
metals, plastics) fluorescence may fade after a period of exposure. Therefore, this lamp
should not be left shining on any one area for an extended period.
ML-3500S AC OPERATION
1. Connect the plug to a power source that complies with the electrical requirements specified
on the lamp’s label. For best performance and durability, the power source should be
regulated, surge free and noise free. In those regions where mains may experience
fluctuations greater than ± 10%, an overvoltage protection device is available.
2. Press ON the BLACK ballast rocker switch.
ELECTRICAL SPECIFICATIONS—ML-3500S MODELS
MAXIMA
Model
Power Source
ML-3500S ML-3500S/F ML-3500S/FB ML-3500S/FA ML-3500/SJ
120V/60Hz/
1.00A
230V/50Hz/
0.75A
230V/50Hz/
0.75A
240V/50Hz/
0.75A
100V/50-60Hz/
1.00A
3
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 3
ML-3500MS AC/DC MODELS
FOR AC OPERATION
1. Align the top notch of the 7-pin plug on the AC cord to the notch in the ballast outlet; turn the
locking ring to the right over the plug to secure.
2. Press ON the BLACK ballast rocker switch.
3. Press ON the RED Inverter rocker switch.
FOR DC OPERATION
®
1. Connect the 12-volt plug to the Spectroline
BP-12A 12-volt battery pack or to a suitable DC
supply. The BP-12A must be fully charged before using! Refer to the BP-12A operating
instructions for full information.
2. Insert the plug into the receptacle on the battery pack.
3. Align the top notch of the 7-pin plug on the DC cord to the notch in the ballast outlet; turn the
locking ring to the right over the plug to secure.
4. Press ON the BLACK ballast rocker switch.
5. Press ON the RED Inverter rocker switch.
NOTE: The BP-12A battery pack includes a 12-volt battery, 120V/60Hz-charger, the BP-12A/F
has a 230V/50Hz charger, the BP-12A/FA has a 240V/50Hz charger and the BP-12A/J has a
100V/50-60Hz charger. All battery packs include a nylon carrying case. IMPORTANT: Disconnect
lamp cord plug from battery pack when the unit is not in use.
ELECTRICAL SPECIFICATIONS—ML-3500MS AC/DC MODELS
MAXIMA Model ML-3500MS ML-3500MS/F ML-3500MS/FA ML-3500MS/J
Power Source
BP-12A
Power Source
120V/60Hz/
1.00A
12VDC 12VDC 12VDC 12VDC
230V/50Hz/
0.75A
240V/50Hz/
0.75A
100V/50-60Hz/
1.00A
OPERATOR SERVICING
The following instructions are intended for limited servicing of the lamp. Do not perform
any servicing that is not covered in these instructions. Return the lamp to the factory for
maintenance not covered in this section.
HOUSING AND FILTER MAINTENANCE
CAUTION: Always shut off the switch on the ballast and unplug the ballast from the power
outlet before performing any maintenance or servicing. Allow the lamp to cool before
handling.
Clean the lamp and ballast housings with water and a mild detergent and wipe dry. Periodically
clean the filter with a glass cleaner and a soft cloth.
FILTER REPLACEMENT
The lamp is shipped with a 2F958 filter lens. This may be used with either the
BLE-35RA spot bulb or the BLE-35RAF flood bulb. The 2F350 filter lens may be ordered with
a BLE-35RA spot bulb (only) to produce a more diffused spot beam
that is not as wide as the flood beam.
1. Peel the silicone-rubber filter holder from around the circumference of the lamp housing. The
filter will remain inside the filter holder.
2. Press the existing filter out of the filter holder.
3. Press the new filter gently but firmly into the filter holder.
4. Reattach the filter holder by pressing it around the circumference of the lamp housing with the
heel of your hand. Be sure the groove in the filter holder seats over the rim of the housing.
4
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com

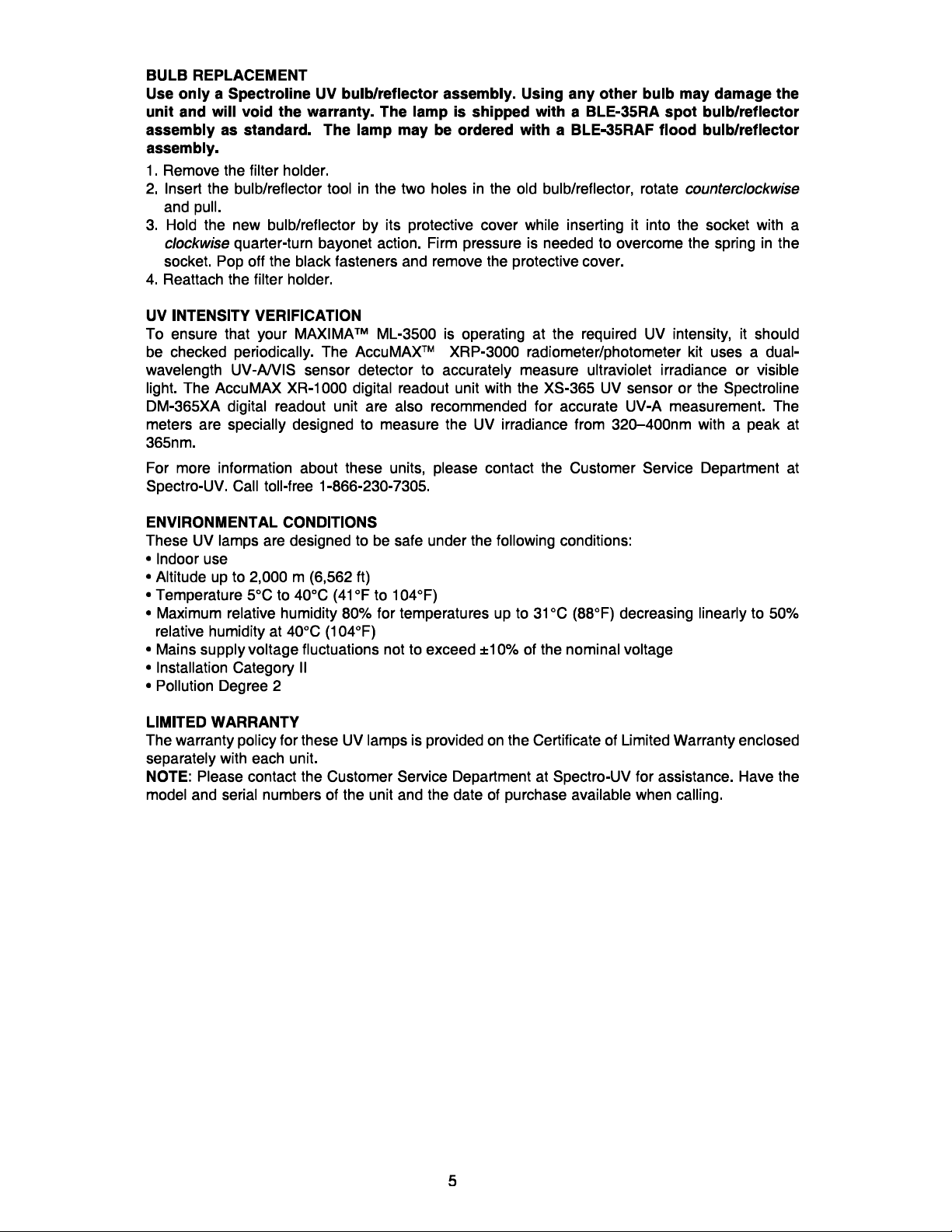

Page 4
Page 5
PARTS LIST
ITEM PART DESCRIPTION
1 122283 BULB REMOVAL TOOL
3 123604 FILTER HOLDER
2F958 FILTER, LENS
5 2F350 FILTER, LENS (DIFFUSING)
2F100C FILTER, LENS (CLEAR)
7
9 125060 IGNITER ASSEMBLY
9A 124863 ADAPTER
9B 125061 IGNITER
11 124736 LAMP HOUSING
13 100310 PISTOL GRIP
15 103976 STRAIN RELIEF
17 125943 CORD, SECONDARY, 8-FT
19 123666 BALLAST, HID, 35W, AC, ELECTRONIC ASSEMBLY (NOT SHOWN)
21 123667 INVERTER, 100W, 12V DC TO 120V AC (NOT SHOWN)
23 100253 BALLAST SWITCH, ROCKER
25*
BLE-35RA BULB/REFLECTOR ASSEMBLY, 35W SPOT
BLE-35RAF BULB/REFLECTOR ASSEMBLY, 35W FLOOD
119797 ML-3500S CORD, PRIMARY, 8-FT, AC, 120V, 100V (SEE 125462)
WC-0105 ML-3500S/F, AC, 230V
WC-0127 ML-3500S/FB. AC. 230V
WC-0144 ML-3500S/FA, AC 240V
124828 ML-3500MS CORD, 7-PIN, 8-FT, AC, 120V, 100V
27** 124827 CORD, 7-PIN 8-FT, AC, 230V
125186 CORD, 7-PIN, 8-FT, AC, 240V
29** 124826 CORD, 7-PIN, 2-FT, DC
31** BP-12A 12V DC BATTERY PACK
33 122122 INVERTER SWITCH, ROCKER
*Each of the primary cords in the ML-3500S series lamps is fitted with the appropriate plug
for the country of shipment.
**Each of the ML-3500MS series models are equipped with the AC/DC cords and battery
chargers appropriate for the country of shipment.
Caution (refer to accompanying documents)
6
