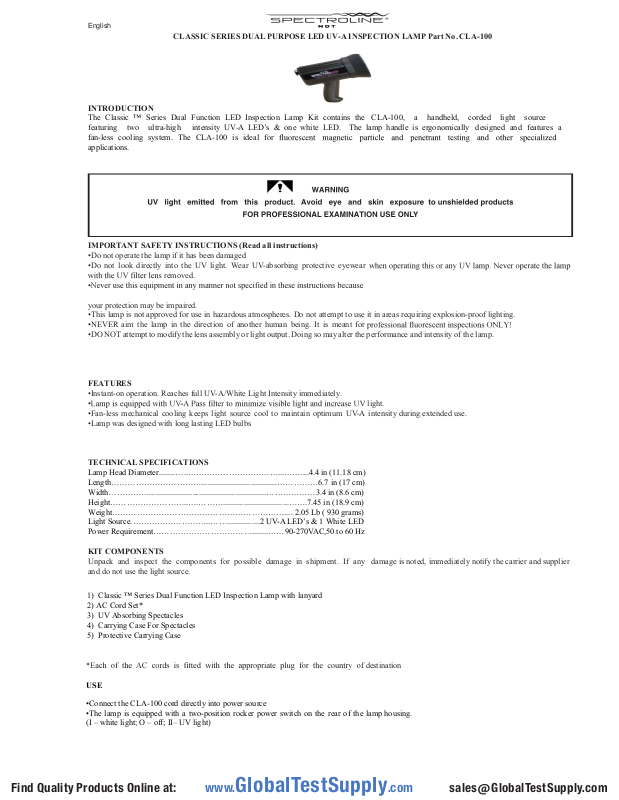

CLASSIC SERIES DUAL PURPOSE LED UV-A INSPECTION LAMP Part No. CLA-100
INTRODUCTION
The Classic ™ Series Dual Function LED Inspection Lamp Kit contains the CLA-100, a handheld, corded light source
featuring two ultra-high intensity UV-A LED’s & one white LED. The lamp handle is ergonomically designed and features a
fan-less cooling system. The CLA-100 is ideal for
applications.
IMPORTANT SAFETY INSTRUCTIONS (Read all instructions)
•Do not operate the lamp if it has been damaged
•Do not look directly into the UV light. Wear UV-absorbing protective eyewear
•
your protection may be impaired.
•This lamp is not approved for use in hazardous atmospheres. Do not attempt to use it in areas requiring explosion-proof lighting.
•NEVER aim the lamp in the direction of another human being. It is meant for
•DO NOT attempt to modify the lens assembly or light output. Doing so may alter the performance and intensity of the lamp.
removed.
FEATURES
•Instant-on operation. Reaches full UV-A/White Light Intensity immediately.
•
•Fan-less mechanical cooling keeps light source cool to maintain optimum UV-A intensity during extended use.
•Lamp was designed with long lasting LED bulbs
TECHNICAL SPECIFICATIONS
Lamp Head Diameter........…..……………………………...……....4.4 in (11.18 cm)
Length…………………………….....................................……………6.7 in (17 cm)
Width…………….........................................................………………3.4 in (8.6 cm)
Height………………………..….………................................…….7.45 in (18.9 cm)
Weight……………………………………………………….... 2.05 Lb ( 930 grams)
Light Source.………………………..……................2 UV-A LED’s & 1 White LED
Power Requirement………………………………........……90-270VAC,50 to 60 Hz
KIT COMPONENTS
Unpack and inspect the components for possible damage in shipment. If any damage is noted, immediately notify the carrier and supplier
and do not use the light source.
1) Classic ™ Series Dual Function LED Inspection Lamp with lanyard
2) AC Cord Set*
3) UV Absorbing Spectacles
4) Carrying Case For Spectacles
5) Protective Carrying Case
light.
destination
USE
•Connect the CLA-100 cord directly into power source
•The lamp is equipped with a two-position rocker power switch on the rear of the lamp housing.
(I – white light; O – off; II– UV light)
11/22 AM11302022
PRINTED IN U.S.A.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
UV INTENSITY VERIFICATION
To ensure that your Classic™ Series lamp is operating at the required UV
intensity, it should be checked periodically. The AccuMAX™ XRP-3000 radiometer/
photometer kit uses a UV-A sensor detector to accurately measure ultraviolet
irradiance and white light. For more information about these units, please
contact the Customer Service Department at Spectro-UV.
CARE AND MAINTENANCE OF LAMP
tissue, or non-dust cloth for cleaning.
•Be sure to use genuine Classic Series replacement parts. Using another
manufacturer’s parts could affect product performance and will void the lamp’s
warranty.
LIMITED WARRANTY
Limited Warranty enclosed separately with each unit
NOTE
For assistance of any kind, please contact the Customer Service Department at
Spectro- UV. Give the model and serial number of the unit and the date of
pu
rchase. The serial number is located on the left side of the lamp housing
