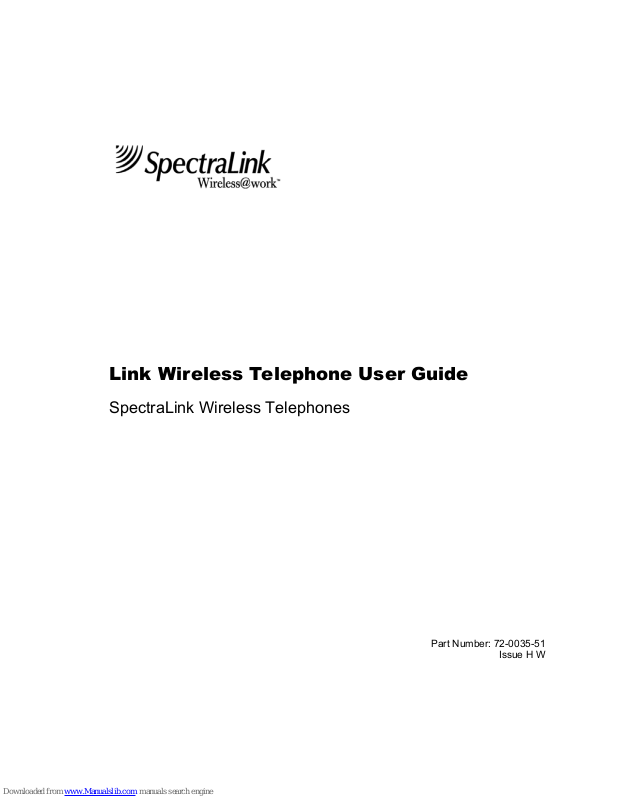

Link Wireless Telephone User Guide
SpectraLink Wireless Telephones
Part Number: 72-0035-51
Issue H W
SpectraLink Corporation Link Wireless Telephone User Guide
NOTICE
SpectraLink Corporation has prepared this document for use by SpectraLink personnel and clients. The
drawings and specifications contained herein are the property of SpectraLink and shall be neither
reproduced in whole or in part without the prior written approval of SpectraLink, nor be implied to grant
any license to make, use, or sell equipment manufactured in accordance herewith.
SpectraLink reserves the right to make changes in specifications and other information contained in this
document without prior notice, and the reader should in all cases consult SpectraLink to determine whether
any such changes have been made.
The terms and conditions governing the sale of SpectraLink hardware products and the licensing of
SpectraLink software consist solely of those set forth in the written contracts between SpectraLink and its
customers. No representation or other affirmation of fact contained in this document including but not
limited to statements regarding capacity, response-time performance, suitability for use, or performance of
products described herein shall be deemed to be a warranty by SpectraLink for any purpose, or give rise to
any liability of SpectraLink whatsoever.
In no event shall SpectraLink be liable for any incidental, indirect, special, or consequential damages
whatsoever (including but not limited to lost profits) arising out of or related to this document, or the
information contained in it, even if SpectraLink has been advised, knew, or should have known of the
possibility of such damages.
FCC INFORMATION:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Trademark Information
SpectraLink
LinkPlus
Link Wireless Telephone System
NetLink Wireless Telephone System
NetLink IP Wireless Telephone
NetLink SVP Server
SpectraLink Voice Priority
ccLink Wireless Telephone System
are trademarks and registered trademarks of SpectraLink Corporation.
All other trademarks used herein are the property of their respective owners.
Link Wireless Telephone User Guide
© 2001 SpectraLink Corporation
All Rights Reserved
Printed in the United States of America
SpectraLink Corporation
5755 Central Avenue
Boulder, CO 80301
303.440.5330 or
800.676.5465
www.spectralink.com
Part Number: 72003551H.doc Page ii
SpectraLink Corporation Link Wireless Telephone User Guide
Link Wireless Telephone User Guide
Turn the Wireless Telephone On
PWR
Press the
double chirp. Your extension will display. The
message will display briefly. When it goes out, you are
ready to make and receive calls.
Answer A Call
The Wireless Telephone will ring or vibrate to alert you.
Additionally, a line indicator on the display may flash, and
the display may show information about the call, such as
caller’s name and extension.
key for about one second. You will hear a
NO SVC
To answer a call, press the
START
key and hold the
earpiece to your ear.
If you are on a call and hear subdued ringing, a call is coming in on a second line. To
answer this call, put your first call on hold and press the line key then the line number of
the second call.
Place A Call
Press the
START
key, wait for dial tone, then dial the number. Dial calls with the
Wireless Telephone exactly as with your desk phone. Your telephone system may require
you to select a line by pressing the
To hang up when you’ve finished the call, press the
Do not use the
PWR
key to end a call, because that will turn your Wireless Telephone off
LINE
key, followed by a line number.
END
key.
and you will not receive calls until you turn the Wireless Telephone back on.
Turn the Wireless Telephone Off
Press the
PWR
key for about one second. You will hear a single chirp.
If you accidentally turn your Wireless Telephone off during a conversation, you can
restore your conversation by pressing the
PWR
key and then the
START
key, provided
the person you are talking to has not hung up.
Mute Microphone
To mute the microphone so you can hear but won’t be heard, press
MUTED
appears on the Wireless Telephone display. Press
voice pickup.
Access To Telephone System Features
To access the features of your telephone system from the Wireless Telephone, press
anytime while in a call to display a menu of available features. Press the key(s) for the
desired feature, or press
Part Number: 72003551H.doc Page 1
FCN
again to display more options. Select
FCN
then press 1.
FCN
then 1 again to restore
EXIT MENUS
FCN
to exit.
SpectraLink Corporation Link Wireless Telephone User Guide
If your telephone system supports softkeys, pressing
functions. You will need to press
FCN
twice to display the feature menu.
FCN
provides access to softkey
Because softkey and system features vary, your system administrator will explain them
for your telephone system.
Setting User Preferences
When the Wireless Telephone is on but not in use, press and briefly hold to display
menus. Check with your system administrator for specific features supported by your
Wireless Telephone.
Press
Press
Press
Press
Right
arrow
Left
arrow
Zero to select or change item.
FCN to return to previous menu level.
to display next menu item.
to display previous menu item.
Press
END to exit menus.
Menu Description User Entry
Volume
level
Ring Type
High Noise
Mode
Extension Sets extension number associated with your
Sets audio volume level. Use keypad to select a
level from 1 (softest) to 8
(loudest).
Select Telephone Ring to set the standard
ring on the Wireless Telephone. Normal is
factory default. Vibrator ring works only if your
Wireless Telephone has the optional vibrating
ringer.
Auxiliary Ring is used only by external
applications.
Adjusts the Wireless Telephone to account
for background noise.
Wireless Telephone.
Press 0 to select desired
ring type. The ring type
currently set displays with
an asterisk.
Select an option that
describes the noise in your
environment.
Use keypad to enter
extension number.
Language Sets the default language for Wireless
Telephone menus.
Part Number: 72003551H.doc Page 2
Select the language to be
used with your Wireless
Telephone.
SpectraLink Corporation Link Wireless Telephone User Guide
Switch Volume Levels
The Wireless Telephone has two volume levels, low and high. Set the low volume level
by pressing
8 (loudest). High volume is automatically set two levels higher than low volume. Toggle
between high and low volume by pressing the
FCN
until
VOLUME
displays. Use keypad to select a level from 1 (softest) to
VOL
key while in a call.
Headset
The Wireless Telephone Headset
SpectraLink offers optional headsets for
use in noisy environments or if you need to
have your hands free while talking on the
Wireless Telephone.
To use the headset, simply plug it into the
jack on the side of the Wireless Telephone.
The headset is specially designed to work
properly with The Link Wireless
Telephone. We do not recommend using
other headsets.
Ringing with Headset
To hear ringing through a headset, the ring
type must be set to
Answer A Call
To answer a call when your headset is plugged in, press any key except
Low Headset Volume
The volume level can be adjusted separately for headset use. Plug the headset in and
FCN
until
press
(softest) to 8 (highest). This sets the low volume. High volume is automatically set two
levels higher than low volume. Toggle between high and low volume by pressing the
VOL
key while in a call.
VOLUME
displays. Use the keypad to enter a volume level from 1
SOFT
.
PWR
or
END
.
Battery Packs
About Battery Packs
The Wireless Telephone will need to have its Battery Pack recharged periodically. The
Nickel Metal Hydride (NiMH) rechargeable Wireless Telephone Battery Pack gives you
four hours of talk time or 80 hours of stand-by time. Stand-by time is when the phone is
turned on, but you are not using it.
The Wireless Telephone also supports a Nickel-Cadmium (NiCd) Battery Pack, which
supports two hours talk time and 40 hours stand-by.
Part Number: 72003551H.doc Page 3
SpectraLink Corporation Link Wireless Telephone User Guide
Indications of Low Battery
The Wireless Telephone will notify you when the charge on the Battery Pack becomes
low. If the Wireless Telephone is in use, the
hear a soft beep through the earpiece every six seconds. You have two minutes to
complete the call or change the Battery Pack.
BATT
message will display and you will
The Battery Pack can be changed while the call is still in progress. Do not
press
END
.
Quickly remove the discharged Battery Pack and replace with a charged Battery Pack,
press
PWR
, and then press
If the Wireless Telephone is idle, you will hear a brief modulated ring signal and the
Battery
message will display. Your Wireless Telephone will not operate until you replace
START
to resume the call in progress.
Low
the Battery Pack.
Depending on the charging equipment you have purchased, you will either place the
Wireless Telephone in a Charging Stand to charge the Battery Pack, or you will remove
the Pack from the Wireless Telephone and install it in the Charger.
Removing and Replacing the Battery Pack on the Wireless
Telephone
To remove the Battery Pack, press down on the oval button above the Battery Pack on the
back of the Wireless Telephone. Slide the Pack toward the bottom of the Wireless
Telephone until it stops, then lift up.
To replace the Battery Pack, first properly align the top of the Battery Pack with the
arrows on the label on the back of the Wireless Telephone. Gently press and slide the
Pack toward the top of the Wireless Telephone until it snaps into place. You should not
have to force it against the Wireless Telephone.
Take care not to short the Battery contacts on the Pack with metal objects such as coins,
keys or paper clips. Shorting the contacts can cause permanent damage.
Part Number: 72003551H.doc Page 4
SpectraLink Corporation Link Wireless Telephone User Guide
Charging the Wireless Telephone
Chargers are shipped with the appropriate power supply for the site’s location. Connect
the Stand or Charger to an appropriate wall outlet via its power supply and it’s ready for
use. Chargers operate in a 50° to 85° F (10° to 30° C) environment. Do not expose them
to freezing temperatures or direct sunlight.
The Dual Charging Stand
The SpectraLink Dual Charging Stand is a two-slot desktop charger designed to charge
the Nickel Metal Hydride (NiMH) Battery Packs required to operate Wireless
Telephones. Full charging is accomplished in
approximately two hours.
Only NiMH Battery Packs with a YELLOW label on the
handset contact side may be charged in the Dual Charging
Stand. Nickel-Cadmium (NiCd) and older NiMH Battery
Packs with a GREEN label will not charge. If the indicator
light does not come on when a Wireless Telephone or
Battery Pack is first placed in the Charger, check to make
sure the Battery Pack has a YELLOW label.
Do not place anything in the Dual Charging Stand other
than the Wireless Telephone. You might damage the
contacts. Bent contacts can keep the Wireless Telephone
from charging.
Using the Dual Charging Stand
Place the Dual Charging Stand on a flat, horizontal surface.
The user must end any call in progress by pressing the
END
key on the Wireless
Telephone before placing the handset into the Charger. Place the Wireless Telephone in
the front compartment facing forward. It may be on or off during charging. A spare
Battery Pack may be placed in the rear slot. Either slot can be chosen to take priority.
The first Battery Pack placed into either slot is charged first.
There are two indicator lights, one for each charging slot. Verify that the light for the
corresponding slot comes on when a Wireless Telephone or Battery Pack is placed into a
charging slot. The light turns off when the Charger is finished charging or a short time
after a fully charged Battery Pack is placed in a slot. An indicator light will not come on
when the slot is empty, when a Battery Pack is improperly seated or is the wrong type, or
when the Charger has no power applied. A fast flash indicates the Battery Pack is not
charging and must be replaced.
Cleaning the Dual Charging Stand
Clean the Dual Charging Stand by wiping the surface with a clean, water-dampened cloth
or paper towel. A mild detergent solution may be used. Be sure to wipe away any
Part Number: 72003551H.doc Page 5
SpectraLink Corporation Link Wireless Telephone User Guide
detergent residue with a plain water dampened cloth.
CHARGING STAND IN WATER OR OTHER LIQUID.
DO NOT IMMERSE THE DUAL
The Battery Pack contacts may be cleaned with isopropyl (rubbing) alcohol applied with
a Q-tip, cloth, or paper towel. Do not push or pull the exposed Battery Pack contacts.
NOT POUR LIQUIDS INTO THE SLOTS.
DO
The Quick Charger
The Quick Charger holds a single Battery Pack and can charge it in approximately one
hour.
Using the Quick Charger
Place the Battery Pack on the charger by gently
sliding the Pack upward into the charger in a
manner similar to installing it on the Wireless
Telephone. If placed correctly, the light on the
Quick Charger will shine solid green. When the
Pack is fully charged, the green light will begin
to flash.
Every 11th charge the Quick Charger will
automatically recondition the Battery Pack, as
indicated by the flashing amber light. This may
take from three to six hours depending on the
state of the Battery Pack. To enter or exit the
reconditioning mode, press the
while the Battery Pack is on the Quick Charger.
MODE
button
Part Number: 72003551H.doc Page 6
SpectraLink Corporation Link Wireless Telephone User Guide
Link Wireless Telephone
Keypad & Indicators
Earpiece
HeadsetJack
LineIndicators
Power
PreviousMenu
Hold
Function
1
123456789
NOSVC BATT
PWR
START
21
GHI
PRS
5
8
4
7
0
ABC
JKL
TUV
MSG
MSG
LCDPanel
StatusIndicators
Start
END
3
DEF
6
MNO
9
WXY
#
LINEVOLFCNHOLD
End
NextMenu
Line
Volume
Microphone
Part Number: 72003551H.doc Page 7
SpectraLink Corporation Link Wireless Telephone User Guide
Link Wireless Telephone Functions
Function Button Action
Power on
Power off
Answer call
Hang up
Place call
Select line
Adjust volume
during call
Put call on hold
Mute/Unmute
microphone
Press and hold PWR until double chirp,
then release
Press and hold PWR until single chirp,
then release
Press START
Press END
Press START, dial number
Press START then press LINE , then
select line number (1-9)
Press VOL while you are talking to toggle
between base volume level and a louder
volume level
Press HOLD
Press FCN then 1
Status Indicators
Indicator Description
NO SVC The Wireless Telephone cannot receive or place calls.
You may be outside of the coverage area. Walk back into
the covered area.
BATT Your Battery Pack charge is low. You will also hear a beep
in the earpiece. Your Battery Pack needs to be recharged.
MSG You have a voice mail message.
Part Number: 72003551H.doc Page 8
SpectraLink Corporation Link Wireless Telephone User Guide
Maintenance
General Care of the Wireless Telephone and Chargers
This section applies to the Wireless Telephone, Dual Charging Stand and the Quick
Charger equally.
The Wireless Telephone and chargers have been designed to withstand the wear and tear
of normal use; however, avoid dropping the Wireless Telephone or knocking it against
hard surfaces. Carrying the Wireless Telephone in a holster or carrying case will help to
protect it.
There are no serviceable parts in the Wireless Telephone or Chargers. You should not
open the Wireless Telephone case nor disassemble the Chargers. Doing so will void your
warranty.
Turn off the Wireless Telephone and unplug the Charger before you clean them. Never
immerse either in water. Clean the exterior surfaces, including the charging contacts, with
a cloth that has been slightly moistened with water. Take care not to exert undue pressure
on the Charger electrical contacts while wiping.
Wiping the handset surface with a water-dampened cloth or paper towel will remove
most films or residues. If the soiling is too stubborn for plain water, a mild detergent
solution may be used. Be sure to wipe away any detergent residue with a clean waterdampened cloth.
The Wireless Telephone may be cleaned with any general-purpose household glass and
surface-type cleaner. DO NOT SPRAY THE HANDSET DIRECTLY! Isopropyl alcohol
may be used occasionally applied by a cloth or paper towel. When using alcohol, do not
rub the keypad characters vigorously. Doing so will significantly degrade legibility.
Do not use any chemical cleaners. They can harm the plastic shell. If necessary, a small
amount of mild surface or window cleaner can be applied to the cloth, but do not spray
the cleaner onto the Wireless Telephone or Charger.
Part Number: 72003551H.doc Page 9
SpectraLink Corporation Link Wireless Telephone User Guide
Tips For Use
Before you use the Wireless Telephone, the Battery Pack must be charged. See
Battery Packs.
You can only use the Wireless Telephone with your facility’s telephone system. It is
not a public cellular phone.
The
PWR
key turns the Wireless Telephone on and off. The
begin and end calls. When you finish a call, press the
END
key, not the
START
and
END
PWR
keys
key.
Keep the Wireless Telephone away from your ear when it is ringing.
The microphone is in the Wireless Telephone’s lower right corner. This is a sensitive
microphone that works well when the Wireless Telephone is correctly positioned on
your ear. There is no need to speak directly into the microphone, but do not cover it
with your hand or cheek when talking on the Wireless Telephone.
The Wireless Telephone’s LCD panel displays information about the status of your
Wireless Telephone and prompts you about features.
If the Wireless Telephone’s Battery Pack is low, you will hear a soft beep and see the
BATT
or
Low Battery
message in the display.
Improper disposal of Battery Packs can damage the environment. Dispose of batteries
properly.
You can control the Wireless Telephone’s volume level and the type of ring. See
Setting User Preferences.
To protect the Wireless Telephone, use a carrying case.
NOTE:
It is recommended that standard acceptance procedures be followed prior to operating
this equipment in proximity of life-support systems.
To minimize risk of interference, pacemaker users should not carry the Wireless
Telephone next to the pacemaker.
Warning: Earpiece may retain magnetic objects.
Operation of the Wireless Telephone may produce an audible noise noticeable to hearing
aid users. It is recommended that a SpectraLink headset be used by hearing aid users.
© 2001, SpectraLink Corporation
PN 72-0035-01 Rev. H
SpectraLink Corporation
Boulder, Colorado USA
www.spectralink.com
Part Number: 72003551H.doc Page 10
Loading...
