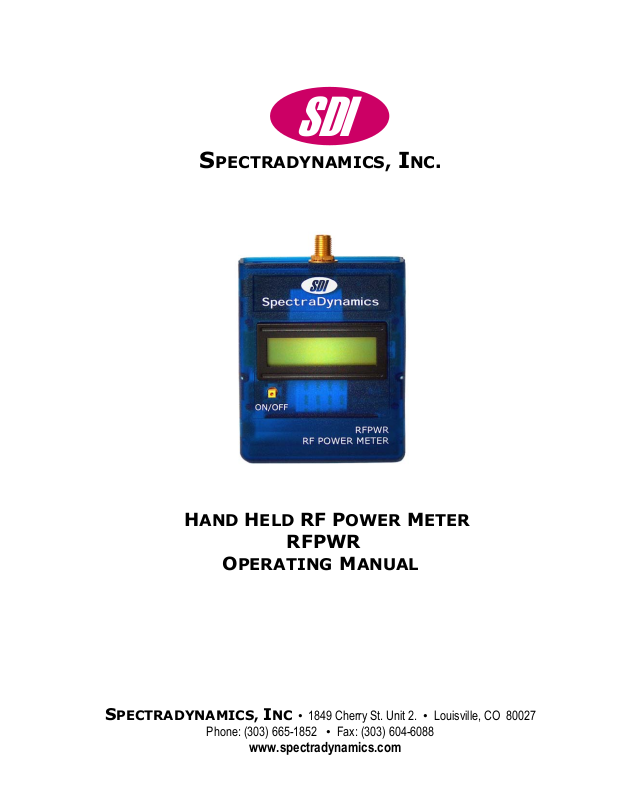

SpectraDynamics RFPWR Operating Manual

SDI

SPECTRADYNAMICS, INC.

HAND HELD RF POWER METER

RFPWR

OPERATING MANUAL

SPECTRADYNAMICS, INC • 1849 Cherry St. Unit 2. • Louisville, CO 80027

Phone: [phone] • Fax: [phone]

www.spectradynamics.com

RFPWR Features

SDI

*RF POWER range:

-25 TO +25 dBm

*Frequency range:

1MHz to 2GHz

*Accuracy:

± 0.5 dBm from 1MHz to 1GHz
± 1.0 dBm from 1GHz to 2GHz

*Absolute and relative RF power measurements

*Calibration option

SPECTRADYNAMICS, INC • 1849 Cherry St. Unit 2. • Louisville, CO 80027 • Phone: [phone] • Fax: [phone]

Se habla español

Copyright © SpectraDynamics, Inc. 2006

1

RFPWR Operating Instructions

SDI

The RFPWR is a hand-held RF Power Meter, that can be used to measure power from
–25 dBm to + 25 dBm in a frequency range from 1MHz to 2GHz. The RFPWR can
provide absolute power measurements as well as relative power measurements. All
functions are controlled with a multifunctional button, labeled ON/OFF.

To turn on the RFPWR, press the ON/OFF button once. The unit will turn on and start
an absolute power measurement (displays: RF POWER). Pressing the button again will
have the RFPWR display different options to be selected: OFF, REL MEASUREMENT,
HOLD. In order to select any of these options, press the button while the desired
function appears on the display.

Selecting the REL MEASUREMENT option allows the measurement of power relative to
a measured reference level. To measure the reference level connect the RFPWR and
press the button when ready. (displays: MEASURE REF). After the reference level is
measured the RFPWR will display the relative power measurements. Another button
press exits the REL MEASUREMENT mode.
Selecting the HOLD function stores the power level reading at the next button press. To
return to normal operation press the button again.

The RFPWR can be calibrated using a potentiometer accessible with a small
screwdriver from the back of the RFPWR. To calibrate the RFPWR connect it to a 0
dBm source (within the frequency range of operation) and adjust the potentiometer until
the value displayed is also 0 dBm.To turn off RFPWR simply press the button for about
3 seconds.

2

Copyright © SpectraDynamics, Inc. 2006

Battery

SDI

The RFPWR requires a size AA 3.6V battery for operation. The suggested battery is
Tadiran TL-2100. The battery cover is removed by sliding to the side of the unit.

Caution!

Inserting the battery backwards will damage the unit and void all warranties.

Copyright © SpectraDynamics, Inc. 2006

3

Warranty

SDISDI

The RFPWR is warranted to be free of defects under normal operating conditions,
as specified, for one year from date of original shipment from SpectraDynamics,
Inc (SDI). SDI’s obligation and liability under this warranty is expressly limited to
repairing or replacing, at SDI’s option, any product not meeting the said
specifications. This warranty shall be in effect for one (1) year from the date an
RFPWR is sold by SDI. SDI makes no other warranty, express or implied, and
makes no warranty of the fitness for any particular purpose. SDI’s obligation
under this warranty shall not include any transportation charges or costs of
installation or any liability for direct, indirect, or consequential damages or delay.
Any improper use, operation beyond capacity, substitution of parts not approved
by SDI, or any alteration or repair by others in such manner as in SDI’s
reasonable judgement affects the product materially and adversely shall void this
warranty. No employee or representative of SDI is authorized to change this
warranty in any way or grant any other warranty.

SPECTRADYNAMICS, INC • 1849 Cherry St. Unit 2. • Louisville, CO 80027 • Phone: [phone] • Fax: [phone]

4

Copyright © SpectraDynamics, Inc. 2006

Se habla español

RFPWR/R01
