Page 1
SecureSync
Time and Frequency
Synchronization System
®
User Reference Guide
Document Part No.: 1200-5000-0050
Revision: 23
Date: 2-Dec-2016
spectracom.com
Page 2
Page 3
© 2009-2016 Spectracom Corp. All rights reserved.
The information in this document has been carefully reviewed and is
believed to be accurate and up-to-date. Spectracom assumes no respons
ibility for any errors or omissions that may be contained in this document,
and makes no commitment to keep current the information in this manual, or
to notify any person or organization of updates. This User Reference Guide
is subject to change without notice. For the most current version of this doc
umentation, please see our web site at spectracom.com.
Spectracom reserves the right to make changes to the product described in
this document at any time and without notice. Any software that may be
provided with the product described in this document is furnished under a
license agreement or nondisclosure agreement. The software may be used
or copied only in accordance with the terms of those agreements.
No part of this publication may be reproduced, stored in a retrieval sys
tem, or transmitted in any form or any means electronic or mechanical,
including photocopying and recording for any purpose other than the pur
chaser's personal use without the written permission of Spectracom Corp.
Other products and companies referred to herein are trademarks or
registered trademarks of their respective companies or mark holders.
Spectracom Corp., a Business of the Orolia Group
• 1565 Jefferson Road, Suite 460, Rochester, NY 14623 USA
• Room 208,No. 3 Zhong Guan Village South Road, Hai Dian District, Beijing 100081, China
• 3, Avenue du Canada, 91974 LesUlis Cedex, France
Questions or comments regarding this User Reference Guide?
è E-mail: techpubs@spectracom.com
Warranty Information
For a copy of Spectracom's Limited Warranty policy, see the Spectracom
website: http://spectracom.com/support/warranty-information.
SecureSync User Reference Guide I
Page 4

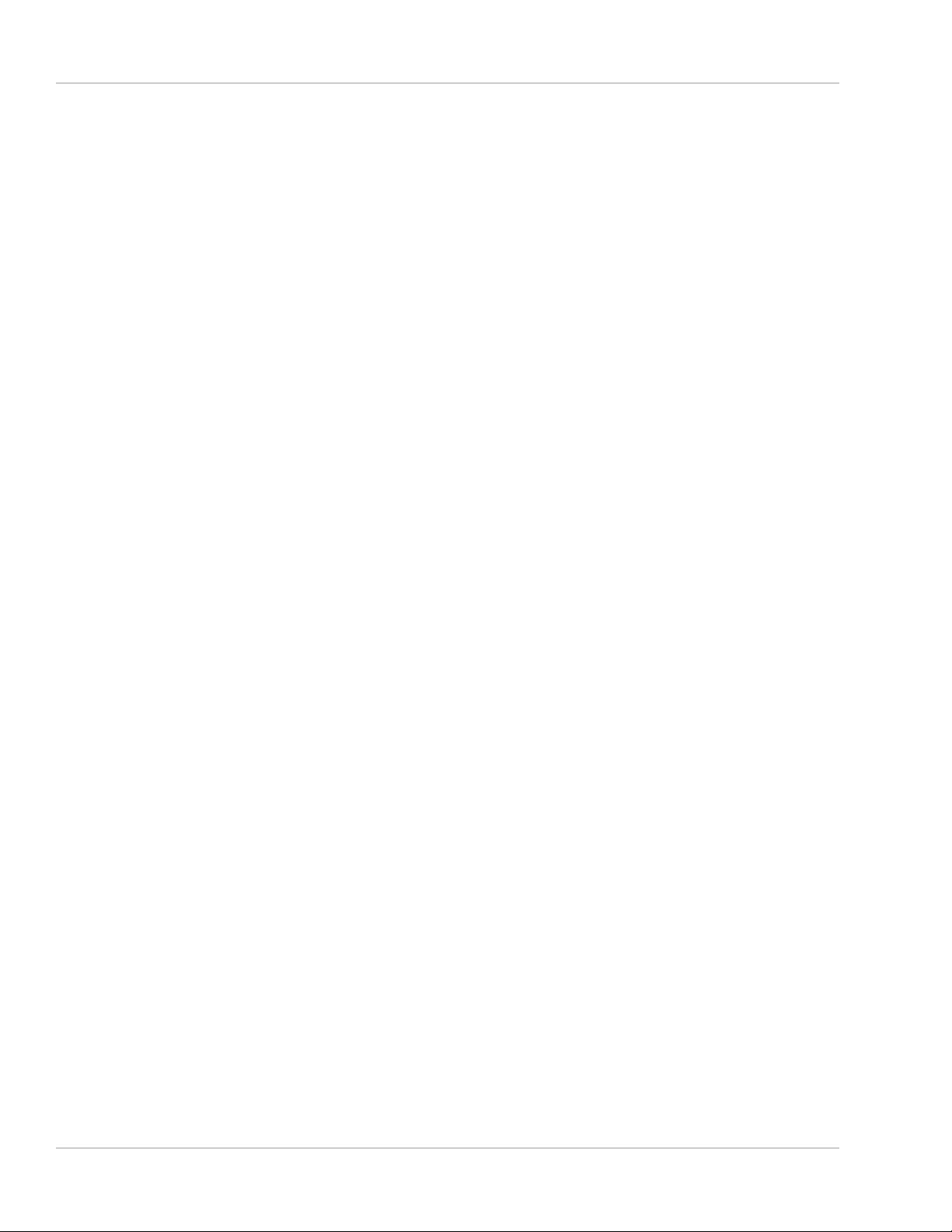

Blank page.
II SecureSync User Reference Guide
Page 5
CHAPTER 1
Product Description
1.1 Getting Started
1.2 SecureSync Introduction
1.2.1 SecureSync's Inputs and Outputs
1.3 SecureSync Front Panel
1.3.1 Keypad and Information Display
1.3.1.1 Keypad Operation

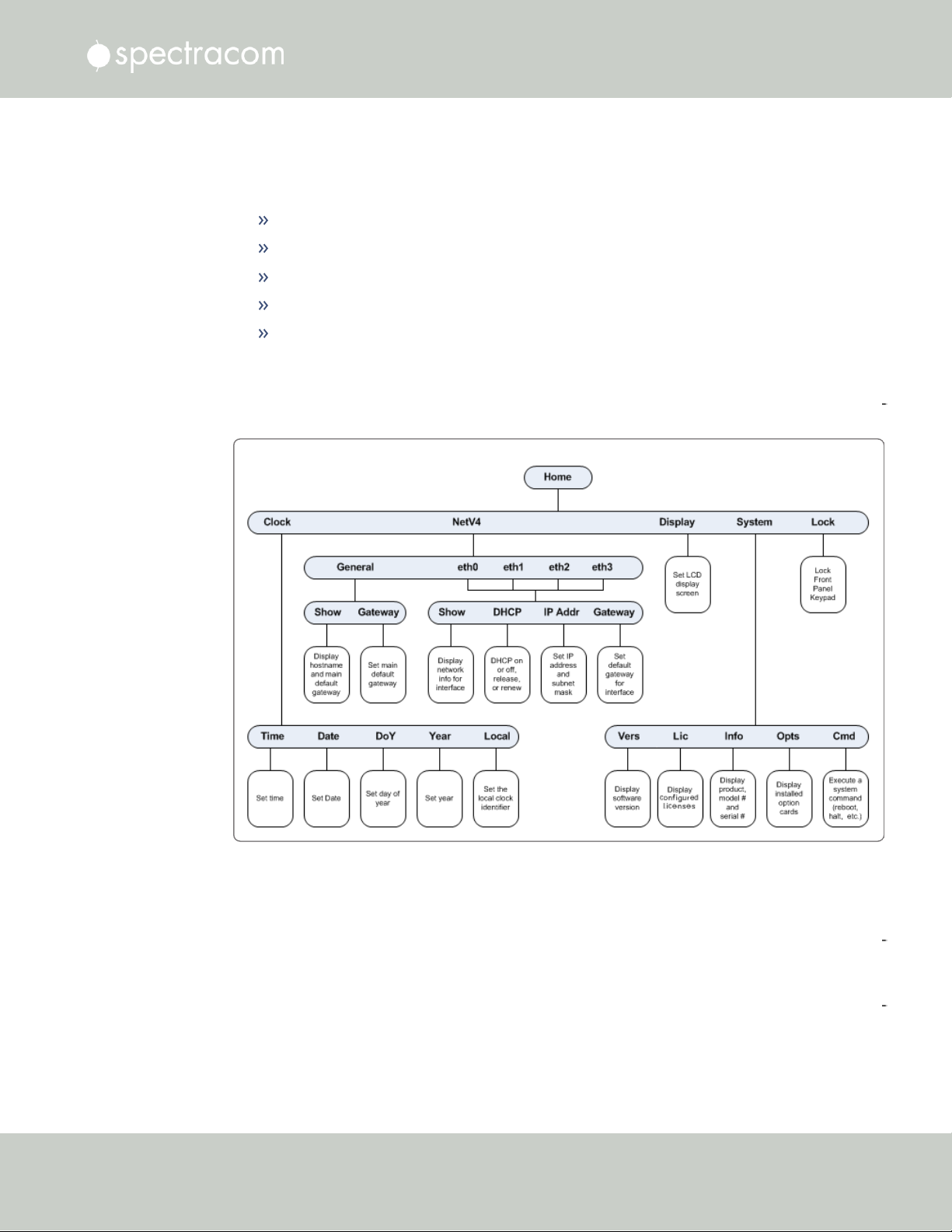

1.3.1.2 Navigating the Information Display
1.3.2 Status LEDs
1.4 Unit Rear Panel
1.5 Option Cards
1.5.1 Option Cards Overview
1.5.2 Option Card Identification
1.5.2.1 Option Card Identification by ID/Part Number
1.5.3 Option Card Connectors
1.6 The SecureSync Web UI
1.6.1 The Web UI HOME Screen
1.6.2 The INTERFACES Menu
1.6.3 The Configuration MANAGEMENT Menu
1.6.4 The TOOLS Menu
1
2
2
3
3
4
4
4
6
7
8
10
13
13
16
17
17
18
19
20
CONTENTS
SecureSync User Reference Guide • TABLE OF CONTENTS
1.7 Specifications
1.7.1 Input Power
1.7.1.1 Fuses
1.7.2 GNSS Receiver
1.7.3 RS-232 Serial Port (Front Panel)
1.7.4 10/100 Ethernet Port
1.7.5 Protocols Supported
1.7.6 1PPS Output
1.7.7 10MHz Output
1.7.7.1 10 MHz output — Oscillator Phase Noise (dBc/Hz)
21
21
21
22
23
23
23
23
24
25
III
Page 6
1.7.8 Mechanical and Environmental Specifications
26
1.8 Regulatory Compliance
CHAPTER 2
SETUP
2.1 Overview
2.1.1 Main Installation Steps
2.2 Unpacking and Inventory
2.3 Required Tools and Parts for Installation
2.4 Required GNSS Antenna Components
2.5 SAFETY

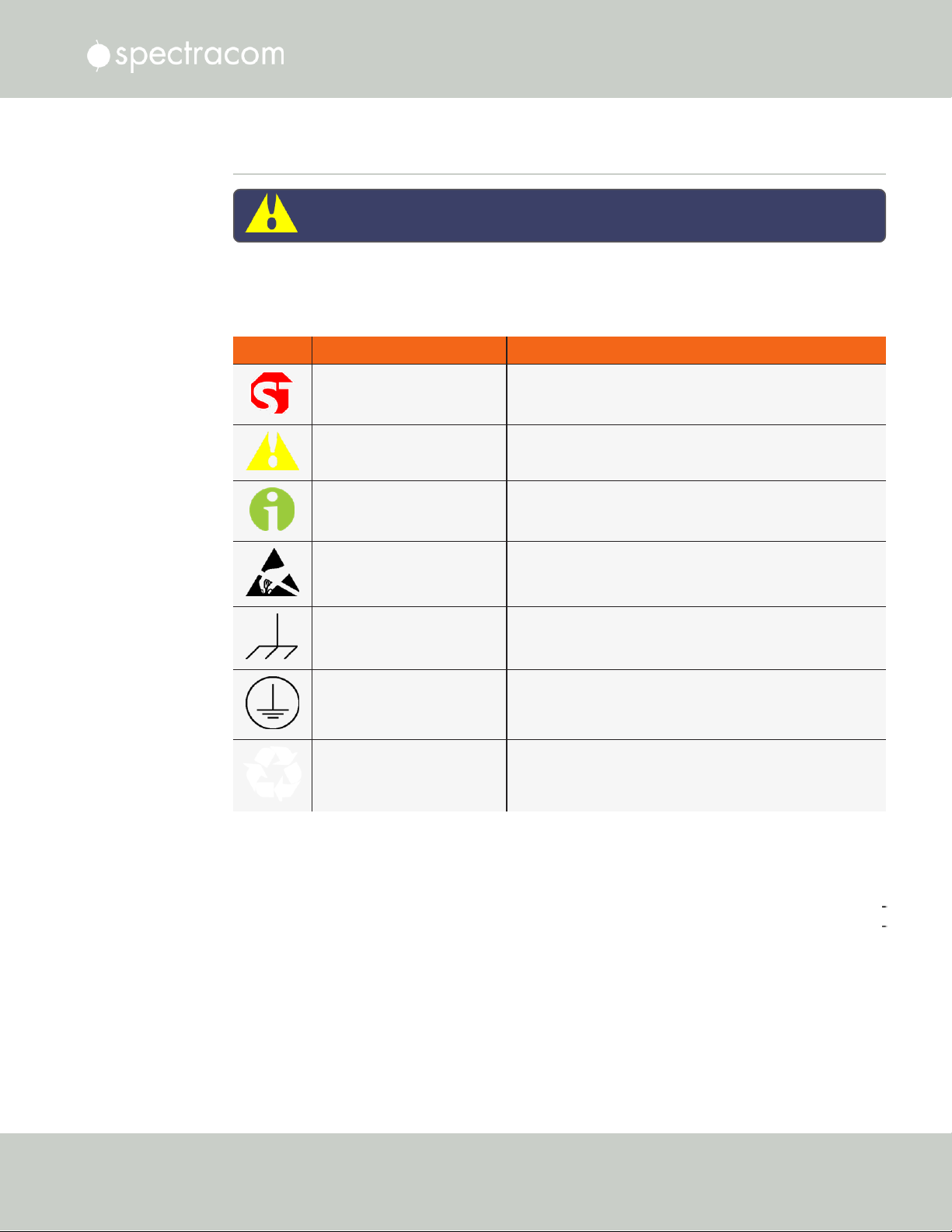

2.5.1 Safety: Symbols Used
2.5.2 SAFETY: Before You Begin Installation
2.5.3 SAFETY: User Responsibilities
2.5.4 SAFETY: Other Tips
2.6 Mounting the Unit
2.6.1 Rack Mounting
2.6.2 Desktop Operation
2.7 Connecting Supply Power
2.7.1 Power Source Selection
2.7.2 Using AC Input Power
2.7.3 Using DC Input Power
27
29
30
30
31
32
32
33
33
33
35
36
36
36
37
37
38
38
38
IV
2.8 Connecting the GNSS Input
2.9 Connecting Network Cables
2.10 Connecting Inputs and Outputs
2.11 Powering Up the Unit
2.12 Setting up an IP Address
2.12.1 Dynamic vs. Static IP Address
2.12.2 Assigning a Static IP Address
2.12.2.1 Assigning a New Static IP Address
2.12.2.2 Setting Up an IP Address via the Front Panel
2.12.2.3 Setting Up a Static IP Address via a DHCP Network
2.12.2.4 Setting Up an IP Address via the Serial Port
2.12.2.5 Setting up a Static IP Address via Ethernet Cable
SecureSync User Reference Guide • TABLE OF CONTENTS
40
41
42
42
43
44
45
45
47
49
50
51
Page 7
2.12.3 Subnet Mask Values
52
2.13 Accessing the WebUI
2.14 Configuring Network Settings
2.14.1 General Network Settings
2.14.2 Network Ports
2.14.3 Network Services
2.14.4 Static Routes
2.14.5 Access Rules
2.14.6 HTTPS
2.14.6.1 Accessing the HTTPS Setup Window
2.14.6.2 About HTTPS
2.14.6.3 Supported Certificate Format Types
2.14.6.4 Creating an HTTPS Certificate Request
2.14.6.5 Requesting an HTTPS Certificate
2.14.6.6 Uploading an X.509 PEM Certificate Text
2.14.6.7 Uploading an HTTPS Certificate File
2.14.7 SSH
2.14.8 SNMP
2.14.8.1 SNMP V1/V2c
2.14.8.2 SNMP V3
2.14.8.3 SNMP Traps
2.14.9 System Time Message
2.14.9.1 System Time Message Format
52
54
55
56
58
58
60
61
61
62
63
63
66
68
68
69
78
82
84
85
87
88
2.15 Configuring NTP
2.15.1 Checklist NTP Configuration
2.15.2 The NTP Setup Screen
2.15.3 Dis-/Enabling NTP
2.15.4 Viewing NTP Clients
2.15.5 Restoring the Default NTP Configuration
2.15.6 NTP Output Timescale
2.15.7 NTP Reference Configuration
2.15.7.1 The NTP Stratum Model
2.15.7.2 Configuring "NTP Stratum 1" Operation
2.15.7.3 Configuring "NTP Stratum Synchronization"
2.15.8 NTP Servers and Peers
2.15.8.1 The NTP Servers and NTP Peers Panels
SecureSync User Reference Guide • TABLE OF CONTENTS
89
90
90
93
94
95
95
97
97
97
98
99
101
V
Page 8
2.15.8.2 NTP Servers: Adding, Configuring, Removing
2.15.8.3 NTP Peers: Adding, Configuring, Removing
2.15.9 NTP Authentication
2.15.9.1 NTP Autokey
2.15.9.2 NTP: Symmetric Keys (MD5)
2.15.10 NTP Access Restrictions
2.15.11 Enabling/Disabling NTP Broadcasting
2.15.12 NTP over Anycast
2.15.12.1 Configuring NTP over Anycast (General Settings)
2.15.12.2 Configuring NTP over Anycast (OSPF IPv4)
2.15.12.3 Configuring NTP over Anycast (OSPF IPv6)
2.15.12.4 Configuring NTP over Anycast (BGP)
2.15.12.5 Configuring Anycast via NTP Expert Mode
2.15.12.6 Testing NTP over Anycast
2.15.13 NTP Orphan Mode
2.15.14 Host Disciplining
2.15.14.1 Enabling Host Disciplining
2.15.15 NTP Expert Mode
2.15.16 Spectracom Technical Support for NTP
102
104
106
106
112
114
116
117
118
119
120
121
122
125
125
126
127
127
130
2.16 Configuring Input References
2.17 Configuring Outputs
2.17.1 The Outputs Screen
2.17.2 The 1PPS and 10MHz Outputs
2.17.2.1 Configuring a 1PPS Output
2.17.2.2 Configuring the 10 MHz Output
2.17.3 Configuring Optional Outputs
2.17.4 Network Ports
2.17.5 Signature Control
2.17.5.1 Configuring Signature Control for an Output
CHAPTER 3
MANAGING TIME
3.1 The Time Management Screen
3.2 System Time
3.2.1 System Time
3.2.1.1 Configuring the System Time
3.2.1.2 Timescales
131
131
132
133
135
135
136
136
136
137
139
140
141
142
142
143
VI
SecureSync User Reference Guide • TABLE OF CONTENTS
Page 9
3.2.1.3 Manually Setting the Time
3.2.1.4 Using Battery Backed Time on Startup
3.2.2 Timescale Offset(s)
3.2.2.1 Configuring a Timescale Offset
3.2.3 Leap Seconds
3.2.3.1 Reasons for a Leap Second Correction
3.2.3.2 Leap Second Alert Notification
3.2.3.3 Leap Second Correction Sequence
3.2.3.4 Configuring a Leap Second
3.2.4 Local Clock(s), DST
3.2.4.1 Setting Up a Local Clock
3.2.4.2 DST Examples
3.2.4.3 DST and UTC, GMT
144
146
148
148
149
149
150
150
151
152
152
154
155
3.3 Managing References
3.3.1 Input Reference Priorities
3.3.1.1 Configuring Input Reference Priorities
3.3.1.2 The "Local System" Reference
3.3.1.3 The "User/User" Reference
3.3.1.4 Reference Priorities: EXAMPLES
3.3.2 The GNSS Reference
3.3.2.1 Reviewing the GNSS Reference Status
3.3.2.2 Determining Your GNSS Receiver Model
3.3.2.3 Selecting a GNSS Receiver Mode
3.3.2.4 Setting GNSS Receiver Dynamics
3.3.2.5 Performing a GNSS Receiver Survey
3.3.2.6 Configuring a GNSS Receiver Offset
3.3.2.7 Resetting the GNSS Receiver
3.3.2.8 Deleting the GNSS Receiver Position
3.3.2.9 Manually Setting the GNSS Position
3.3.2.10 GNSS Constellations
3.3.2.11 A-GPS
3.4 Holdover Mode
3.5 Managing the Oscillator
3.5.1 Oscillator Types
3.5.2 Configuring the Oscillator
3.5.2.1 About the "Time Figure of Merit (TFOM)"
3.5.2.2 About the "Phase Error Limit"
155
155
157
160
161
163
166
167
170
172
174
176
178
179
180
181
184
188
190
194
195
196
196
197
SecureSync User Reference Guide • TABLE OF CONTENTS
VII
Page 10
3.5.2.3 Configuring the Oscillator
3.5.3 Monitoring the Oscillator
3.5.4 Oscillator Logs
197
198
201
3.6 Managing TimeKeeper
3.6.1 What is TimeKeeper?
3.6.1.1 What can TimeKeeper do for me?
3.6.1.2 Using TimeKeeper – First Steps
3.6.2 Has TimeKeeper been activated?
3.6.3 Configuring a TimeKeeper PTP Master
3.6.4 Configuring TimeKeeper PTP Slaves
3.6.5 Configuring TimeKeeper as an NTP Time Server
3.6.6 En-/Disabling TimeKeeper
3.6.7 Status Monitoring with TimeKeeper
3.6.7.1 Enabling Status Monitoring
3.6.7.2 TKL "Status" Tab
3.6.7.3 TKL "Timing Quality" Tab
3.6.7.4 TKL "Time Map" Tab
CHAPTER 4
SYSTEM ADMINISTRATION
4.1 Powering Up/Shutting Down
4.1.1 Powering Up the Unit
4.1.2 Shutting Down the Unit
4.1.3 Issuing the HALT Command Before Removing Power
4.1.4 Rebooting the System
201
202
202
202
203
204
206
209
210
211
211
212
212
213
215
216
216
217
217
218
VIII
4.2 Notifications
4.2.1 Configuring Notifications
4.2.2 Notification Event Types
4.2.2.1 Timing Tab: Events
4.2.2.2 GPS Tab: Events
4.2.2.3 System Tab: Events
4.2.3 Configuring GPS Notification Alarm Thresholds
4.2.4 Setting Up SNMP Notifications
4.2.5 Setting Up Email Notifications
4.3 Managing Users and Security
4.3.1 Managing User Accounts
SecureSync User Reference Guide • TABLE OF CONTENTS
219
220
222
222
222
223
223
224
225
227
227
Page 11
4.3.1.1 Types of Accounts
4.3.1.2 Rules for Usernames
4.3.1.3 Adding/Deleting/Changing User Accounts
4.3.2 "user" Account Permissions
4.3.2.1 Account Differences, General
4.3.2.2 Account Differences, by Menu
4.3.3 Configuring Password Policies
4.3.3.1 The Administrator Login Password
4.3.3.2 Resetting the Administrator Password When Forgotten/Lost
4.3.4 LDAP Authentication
4.3.5 RADIUS Authentication
4.3.6 TACACS+ Authentication
4.3.6.1 Adding/Deleting a TACACS+ Server
4.3.6.2 Enabling/Disabling TACACS+
4.3.7 HTTPS Security Levels
4.3.8 Unlocking the Keypad via Keypad
4.3.9 If a Secure Unit Becomes Inaccessible
227
227
228
230
230
231
232
232
233
236
242
247
247
248
249
251
251
4.4 Miscellanous Typical Configuration Tasks
4.4.1 Web UI Timeout
4.4.2 Configuring the Front Panel
4.4.3 Displaying Local Time
4.4.4 Creating a Login Banner
4.4.5 Show Clock
4.4.6 Product Registration
4.4.7 Synchronizing Network PCs
4.4.8 Selecting the UI Language
4.5 Quality Management
4.5.1 System Monitoring
4.5.1.1 Status Monitoring via Front Panel
4.5.1.2 Status Monitoring via the Web UI
4.5.1.3 Status Monitoring of Input References
4.5.1.4 Reference Monitoring
4.5.1.5 Ethernet Monitoring
4.5.1.6 Outputs Status Monitoring
4.5.1.7 Monitoring the Oscillator
4.5.1.8 Monitoring the Status of Option Cards
4.5.1.9 NTP Status Monitoring
251
251
252
256
256
257
258
258
258
259
259
259
259
262
264
265
266
269
272
274
SecureSync User Reference Guide • TABLE OF CONTENTS
IX
Page 12
4.5.1.10 Temperature Management
4.5.2 Logs
4.5.2.1 Types of Logs
4.5.2.2 Local and Remote Logs
4.5.2.3 The Logs Screen
4.5.2.4 Displaying Individual Logs
4.5.2.5 Saving and Downloading Logs
4.5.2.6 Configuring Logs
4.5.2.7 Setting up a Remote Log Server
4.5.2.8 Restoring Log Configurations
4.5.2.9 Clearing All Logs
4.5.2.10 Clearing Selected Logs
281
287
288
292
292
294
295
297
299
301
301
302
4.6 Updates and Licenses
4.6.1 Software Updates
4.6.2 Applying a License File
4.7 Resetting the Unit to Factory Configuration
4.7.1 Resetting All Configurations to their Factory Defaults
4.7.2 Backing-up and Restoring Configuration Files
4.7.2.1 Accessing the System Configuration Screen
4.7.2.2 Saving the System Configuration Files
4.7.2.3 Uploading Configuration Files
4.7.2.4 Restoring the System Configuration
4.7.2.5 Restoring the Factory Defaults
4.7.3 Cleaning the Configuration Files and Halting the System
4.7.4 Default and Recommended Configurations
4.7.5 Sanitizing the Unit
4.7.5.1 Physically Removing the CF Card
4.7.5.2 Cleaning/Restoring
4.7.5.3 Removing other files from the CF Card
4.7.5.4 Further Reading
APPENDIX
302
302
304
305
306
306
307
308
309
310
311
311
311
312
313
313
314
314
Appendix
5.1 Troubleshooting
5.1.1 Troubleshooting Using the Status LEDs
5.1.2 Minor and Major Alarms
5.1.3 Troubleshooting: System Configuration
X
SecureSync User Reference Guide • TABLE OF CONTENTS
315
316
316
317
318
Page 13
5.1.3.1 System Troubleshooting: Browser Support
5.1.4 Troubleshooting – Unable to Open Web UI
5.1.5 Troubleshooting via Web UI Status Page
5.1.6 Troubleshooting GNSS Reception
5.1.7 Troubleshooting – Keypad Is Locked
5.1.8 Troubleshooting – 1PPS, 10 MHz Outputs
5.1.9 Troubleshooting – Blank Information Display
5.1.10 Troubleshooting the Front Panel Serial Port
5.1.11 Troubleshooting the Front Panel Cooling Fan
5.1.12 Troubleshooting – Network PCs Cannot Sync
5.1.13 Troubleshooting Software Update
319
319
320
322
323
323
324
325
326
326
327
5.2 Option Cards
5.2.1 Accessing Option Cards Settings via the WebUI
5.2.1.1 Web UI Navigation: Option Cards
5.2.1.2 Viewing Input/Output Configuration Settings
5.2.1.3 Configuring Option Card Inputs/Outputs
5.2.1.4 Viewing an Input/Output Signal State
5.2.1.5 Verifying the Validity of an Input Signal
5.2.2 Option Card Field Installation Instructions
5.2.2.1 Field Installation: Introduction
5.2.2.2 Outline of the Installation Procedure
5.2.2.3 Safety
5.2.2.4 [1]: Unpacking
5.2.2.5 [2]: Saving Refererence Priority Configuration
5.2.2.6 [3]: Determining the Installation Procedure
5.2.2.7 [4]: Bottom Slot Installation
5.2.2.8 [5]: Top Slot Installation, Bottom Slot Empty
5.2.2.9 [6]: Top Slot Installation, Bottom Slot Occupied
5.2.2.10 [7]: Frequency Output Cards: Wiring
5.2.2.11 [8]: Gb ETH Card Installation, Slot1 Empty
5.2.2.12 [9]: Gb ETH Card Installation, Slot1 Occupied
5.2.2.13 [10]: Alarm Relay Card, Cable Installation
5.2.2.14 [11]: Verifying HW Detection and SW Update
5.2.2.15 [12]: Restoring Reference Priority Configuration
5.2.3 Time and Frequency Option Cards
5.2.3.1 1PPS Out [1204-18, -19, -21, -2B]
5.2.3.2 1PPS In/Out [1204-28, -2A]
5.2.3.3 1PPS In/Out, 10MHz In [1204-01, -03]
328
328
328
329
330
331
332
333
333
334
334
335
335
336
337
338
340
342
343
345
346
347
349
349
349
354
360
SecureSync User Reference Guide • TABLE OF CONTENTS
XI
Page 14
5.2.3.4 Frequency Out [1204-08, -1C, -26, -38]
5.2.3.5 Programmable Frequency Out [1204-13, -2F, -30]
5.2.3.6 Programmable Square Wave Out [1204-17]
5.2.3.7 Simulcast (CTCSS/Data Clock) [1204-14]
5.2.4 Telecom Option Cards
5.2.4.1 T1/E1 Out [1204-09, -0A]
5.2.5 Time Code Option Cards
5.2.5.1 IRIG Out [1204-15, -1E, -22]
5.2.5.2 IRIG In/Out [1204-05, -27]
5.2.5.3 STANAG Out [1204-11, -25]
5.2.5.4 STANAG In [1204-1D, -24]
5.2.5.5 HAVE QUICK Out [1204-10, -1B]
5.2.5.6 HAVE QUICK In/Out [1204-29]
5.2.5.7 ASCII Time Code In/Out [1204-02, -04]
5.2.6 Network Interface Option Cards
5.2.6.1 Gigabit Ethernet [1204-06]
5.2.6.2 PTP Grandmaster [1204-32]
5.2.7 Miscellaneous Option Cards
5.2.7.1 Alarm Relay Out [1204-0F]
5.2.7.2 Revertive Selector Card [1204-2E]
5.2.7.3 Event Broadcast [1204-23]
5.2.7.4 Bi-Directional Communication, RS-485 [1204-0B]
368
371
377
380
388
388
394
394
400
413
421
429
436
443
454
454
456
472
472
477
479
487
5.3 Command-Line Interface
5.3.1 Setting up a Terminal Emulator
5.3.2 CLICommands
5.4 ASCIITime Code Data Formats
5.4.1 NMEAGGA Message
5.4.2 NMEARMC Message
5.4.3 NMEAZDA Message
5.4.4 Spectracom Format 0
5.4.5 Spectracom Format 1
5.4.6 Spectracom Format 1S
5.4.7 Spectracom Format 2
5.4.8 Spectracom Format 3
5.4.9 Spectracom Format 4
5.4.10 Spectracom Format 7
5.4.11 Spectracom Format 8
490
491
492
497
497
498
498
499
500
502
503
505
507
508
510
XII
SecureSync User Reference Guide • TABLE OF CONTENTS
Page 15
5.4.12 Spectracom Format 9
5.4.12.1 Format 9S
5.4.13 Spectracom Epsilon Formats
5.4.13.1 Spectracom Epsilon TOD1
5.4.13.2 Spectracom Epsilon TOD3
5.4.14 BBC Message Formats
5.4.14.1 Format BBC-01
5.4.14.2 Format BBC-02
5.4.14.3 Format BBC-03 PSTN
5.4.14.4 Format BBC-04
5.4.14.5 Format BBC-05 (NMEA RMC Message)
5.4.15 GSSIP Message Format
5.4.16 EndRun Formats
5.4.16.1 EndRun Time Format
5.4.16.2 EndRunX (Extended) Time Format
511
512
513
513
514
515
515
516
517
519
520
520
521
521
522
5.5 IRIG Standards and Specifications
5.5.1 About the IRIG Output Resolution
5.5.2 IRIG Carrier Frequencies
5.5.3 IRIG B Output
5.5.3.1 FAA IRIG B Code Description
5.5.4 IRIG E Output
5.5.5 IRIG Output Accuracy Specifications
5.6 Technical Support
5.6.1 Regional Contact
5.7 Return Shipments
5.8 License Notices
5.8.1 NTPv4.2.6p5
5.8.2 OpenSSH
5.8.3 OpenSSL
5.9 List of Tables
5.10 List of Images
5.11 Document Revision History
523
523
524
528
531
535
539
540
540
541
541
541
546
549
553
555
557
INDEX
SecureSync User Reference Guide • TABLE OF CONTENTS
XIII
Page 16
BLANK PAGE.
XIV
SecureSync User Reference Guide • TABLE OF CONTENTS
Page 17
Product Description
The Chapter presents an overview of the SecureSync Time and Fre
quency Synchronization System, its capabilities, main technical fea
tures and specifications.
The following topics are included in this Chapter:
1.1 Getting Started 2
1.2 SecureSync Introduction 2
1.3 SecureSync Front Panel 3
1.4 Unit Rear Panel 7
1.5 Option Cards 8
1.6 The SecureSync Web UI 17
1.7 Specifications 21
1.8 Regulatory Compliance 27
CHAPTER 1
CHAPTER 1 • SecureSync User Reference Guide
1
Page 18
1.1 Getting Started
1.1 Getting Started
Welcome to the SecureSync User Reference Guide.
Where to start:
First-time users: "SecureSync Introduction" below.
Users with some knowledge of Time and Frequency Servers: "Overview" on page30.
If your unit is up and running and you want to change a setting: "MANAGING TIME"
on page139, or "SYSTEM ADMINISTRATION" on page215.
1.2 SecureSync Introduction
SecureSync®is a security-hardened 1-rack unit network appliance designed to meet rigorous
network security standards and best practices. It ensures accurate timing through multiple ref
erences, tamper-proof management, and extensive logging. Robust network protocols are used
to allow for easy but secure configuration. Features can be enabled or disabled based on your
network policies. Installation is aided by DHCP (IPv4), AUTOCONF (IPv6), and a front-panel
keypad and LCD display.
The unit supports multi- constellation GNSS input (SAASM GPS receivers, supporting L1/L2,
available for authorized users and required for the US DoD are available), IRIG input and
other input references. The unit is powered by AC on an IEC60320 connector. DC power as
back-up to AC power, or as the primary input power source, is also available.
SecureSync combines Spectracom’s precision master clock technology and secure network-cent
ric approach with a compact modular hardware design to bring you a powerful time and fre
quency reference system at the lowest cost of ownership. Military and commercial applications
alike will benefit from its extreme reliability, security, and flexibility for synchronizing critical
operations.
An important advantage of SecureSync is its unique rugged and flexible modular chassis that
can be configured for your specific needs. Built-in time and frequency functions are extended
with up to six input/output modules.
You can choose from a variety of configurable option cards, each with an assortment of
input/output timing signal types and quantity, including additional 1PPS, 10 MHz, timecode
(IRIG, ASCII, HAVE QUICK), other frequencies (5MHz, 2.048MHz, 1.544MHz, 1MHz), Pre
cision Timing Protocol (PTP) input/output, multi-Gigabit Ethernet (10/100/1000Base-T),
2
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
Page 19
telecom T1/E1 data rates and multi-network NTP, allowing SecureSync to be customized for
your exact requirements.
A variety of internal oscillators is available, depending on your requirements for holdover cap
ability and phase noise.
Note: Some of the features described are not available on all SecureSync vari
ants.
1.2.1 SecureSync's Inputs and Outputs
SecureSync provides multiple outputs for use in networked devices and other synchronized
devices. A 1-Pulse-Per-Second (1PPS) output acts as a precise metronome, counting off seconds
of System Time in the selected timescale (such as UTC, TAI or GPS). A 10MHz frequency ref
erence provides a precise, disciplined signal for control systems and transmitters.
SecureSync's outputs are driven by its inputs – most notably, Global Navigation Satellite Sys
tem (GNSS), or IRIG signal generators and other available input references. GNSS-equipped
SecureSyncs can track up to 72 GNSS satellites simultaneously and synchronize to the satellite’s
atomic clocks. This enables SecureSync-equipped computer networks to synchronize anywhere
on the planet.
1.3 SecureSync Front Panel
1.3 SecureSync Front Panel
The front panel of a SecureSync unit consists of:
three separate illuminated status LEDs
a front panel control keypad
an LED time display
an LCD information display
an RS-232 serial interface
and a temperature controlled cooling fan.
The LCD information display is configurable using the SecureSync Web browser user interface
(also referred to as the “Web UI”) or the front panel controls. Display options include status or
position information, time, date, DOY (Day of Year), GNSS information, as well as network set
tings and SAASM key status (available with the SAASM GPS receiver option only). The RS-232
serial interface and the front panel controls provide a means of configuring the unit’s network
settings and perform other functions.
SecureSync units with the SAASM GPS receiver option module installed also have an encryp
tion key fill connector and key zeroize switch on the left-hand side of the front panel.
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
3
Page 20
1.3 SecureSync Front Panel
Figure 1-1: Front panel layout
1.3.1 Keypad and Information Display
To simplify operation and to allow local access to SecureSync, a keypad and LCD information
display are provided on the front panel of the unit.
Among other things, the keypad and information display can be used to carry out basic net
work configuration tasks, such as en-/disabling DHCP, or entering an IP address and subnet
mask.
Note: Should the keypad be locked, see "Troubleshooting – Keypad Is Locked"
on page323.
1.3.1.1 Keypad Operation
The functions of the six keys are:
tu arrow keys: Navigate to a menu option (will be highlighted)
pq arrow keys: Scroll through parameter values in edit displays
ü ENTER key: Select a menu option, or load a parameter when editing
Ò BACK key: Return to previous display or abort an edit process
1.3.1.2 Navigating the Information Display
After power initialization, press any key to go to the “Home” display. As shown in the illus
tration "Keypad menu tree" on the facing page, several status and setup displays are
4
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
Page 21
1.3 SecureSync Front Panel
accessible from the main “Home” menu. To navigate through the menus, use the arrow keys to
highlight a selection and then press the ENTER button.
The main menu options and their primary functions are as follows:
Display: Used to configure the information display
Clock:Displaying and setting of the current date and time
System:Displaying version info, system halt and reboot, reset spadmin password
Netv4:Network interface configuration
Lock: Locks the front panel keypad to prevent inadvertent operation.
Menu Tree
The front panel keypad and 4-line information display allow you to access the following func
tions:
Figure 1-2: Keypad menu tree
To modify a parameter, highlight the menu option and press the ENTER button. The “O” data is
the current old setting and the “N” data is the new setting. You can only change the “N” setting
in all menus. Use the UP and DOWN arrow keys to scroll through all possible parameter val
ues.
When editing a sequence of numbers, use the LEFT and RIGHT arrow keys to select other digits.
When the parameter is correct, press ENTER to load the new value. You will be asked to con
firm the setting change. Press ENTER to accept or BACK to cancel the parameter change. All
entered values are stored in memory and restored after a power cycle.
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
5
Page 22
LED Label Activity/Color Description
POWER
Off Both AC, and DC input power are disconnected.
OR: The unit's AC input switch is turned OFF, and DC input is not
present.
On/solid
green
AC and/or DC Power are supplied; the unit detects all power
inputs.
Red
The unit is configured for two power inputs, but detects only one
power input. OR:Detects a power configuration error.
Green
& blinking
orange
1/sec.
Power Error — general power configuration fault.
SYNC
Red
Time Sync Alarm:
1) The unit has powered up, but has not yet achieved syn
chronization with its inputs.
2) The unit was synchronized to its selected input references, but
has since lost all available inputs (or the inputs were declared
invalid) and the Holdover period has since expired.
Solid
green
The unit has valid time and 1PPS reference inputs present and is syn
chronized to its reference.
Orange
The unit is in Holdover Mode: It was synchronized to its selected
input references, but has since lost all available inputs (or the inputs
are not declared valid).The time and frequency outputs will remain
useable until the Holdover period expires.
1.3 SecureSync Front Panel
1.3.2 Status LEDs
Three Status LEDs (see "Front panel layout" on page4), located on the unit's front panel, indic
ate SecureSync's current operating status:
POWER: Green, always on while power is applied to the unit
SYNC: Tri-color LED indicates the time data accuracy
FAULT: Two-color, three-state LED, indicating if any alarms are present.
At power up, the unit automatically performs a brief LED test run during which all three LEDs
are temporarily lit.
Table 1-1:
Front panel status indications
6
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
Page 23
LED Label Activity/Color Description
FAULT
Off No alarm conditions are currently active.
Blinking
orange
A GNSS antenna alarm has been asserted and is currently active.
A short or open circuit has been detected in the GNSS antenna
cable. The light will automatically turn off once the alarm condition
clears.
To troubleshoot this condition, see
"Troubleshooting via Web
UI Status Page" on page320
.
Solid
orange
A Minor Alarm condition (other than an antenna problem alarm)
has been asserted and is currently active.
To troubleshoot this condition, see
"Minor and Major Alarms"
on page317
.
Red
A Major Alarm condition has been asserted and is currently active.
To troubleshoot this condition, see
"Minor and Major Alarms"
on page317
.
1.4 Unit Rear Panel
1.4 Unit Rear Panel
The SecureSync rear panel accommodates the connectors for all input and output references.
Optional AC connection for the power input
Optional DC power connector
Ethernet and USB connections
1PPS output
10 MHzoutput
Six bays for option cards
One optional antenna connector.
Figure 1-3: Standard rear panel
Typically, option cards will be installed at the factory. Should you purchase an extra option
card at a later point, you will need to populate the next vacant slot, observing the numerical
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
7
Page 24
LED State Meaning
Orange
On
Off
LAN Activity detected
No LAN traffic detected
Green
On
Off
LAN Link established, 10 or 100 Mbps
No link established
1.5 Option Cards
order shown above. However, not all cards can be installed in all slots. Your local Spectracom
Sales Office will gladly assist you with the optimal option cards selection for your application.
The DC Power port connector is only installed if your unit was ordered with a DC input power
option. Other optional input/output connectors depend on the installed option cards.
Note: DC input power does not have an ON/OFF switch.
The ACPower connector is the input for the ACpower and provides an ACpower
ON/OFF switch. This connector assembly is only installed if SecureSync was ordered
with AC input power option.
The Ethernet connector provides an interface to the network for NTP synchronization and
to obtain access to the SecureSync product Web UI for system management. It has two
small indicator lamps, “Good Link” (green LED), and “Activity” (orange LED). The “Good
Link” light indicates a connection to the network is present. The “Activity” light will illu
minate when network traffic is detected.
Table 1-2:
Ethernet status indicator lights
The USB connector is reserved for future expansion.
The 1PPS BNC connector offers a once-per-second square-wave output signal. The 1PPS
signal can be configured to have either its rising or falling edge to coincide with the sys
tem’s on-time point.
The 10 MHz BNC connector provides a 10 MHz sine-wave output signal.
The optional ANTENNA connector is a type “N” connector for the GNSS input from
your GNSS antenna via a coax cable. This connector will only be present if the stand
ard GNSS receiver, or the optional SAASM GPS receiver module are installed.
1.5 Option Cards
Option Cards are circuit boards that can be installed into a SecureSync unit in order to add
input and output functionality. Installation is normally done in the factory when the unit is built.
In many cases, however, Option Cards can also be added later by the customer (see "Option
Card Field Installation Instructions" on page333).
8
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
Page 25
Note: NEVER install an option card from the back of the unit, ALWAYS from the
top. It is therefore necessary to remove the top cover of the main chassis (hous
ing).
Input and outputs can be categorized by:
Communication direction:
Input
Output
Signal type:
Frequency: 1/5/10/[programmable]MHz
Wave form (square, sinus)
1PPS
TTS
1.5 Option Cards
CTCSS
Signal protocol:
ASCII time code
IRIG
STANAG
Have Quick
E1/T1 data
Telecom timing, etc.
Ethernet (NTP, PTP)
Time code I/O
Alarm out, etc.
Functionality:
Signal transmission
Networking card (incl. NTP, PTP)
Time code I/O
Alarm output
Special functionality e.g., revertive selector, bidirectional communication
Connector type:
BNC
DB-9/25
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
9
Page 26
Function Name used in Web UI Illustration ID* Inputs Outputs Conn.'s
Time and Frequency Cards
Quad 1PPS out
(TTL)
1PPS Out BNC
18
0 1PPS, TTL (4x) BNC
(4x)
Quad 1PPS out
(10 V)
1PPS Out 10V
19
0 1PPS, 10 V (4x) BNC
(4x)
1.5 Option Cards
Terminal block
RJ-12/45
SFP
ST fiber optic
To visually identify an option card installed in your unit, or to obtain an overview which option
cards are available for SecureSync, see "Option Cards Overview" below.
To obtain detailed information on a specific option card, using its ID number, see "Option
Card Identification" on page13.
To locate option card topics in this manual by their heading or functionality, see "Option
Cards" on page328. This Chapter also includes information on field installation and Web UI
functionality.
To visually identify a connector type, see "Option Card Connectors" on page16.
1.5.1 Option Cards Overview
The table below lists all SecureSync option cards available at the time of publication of this doc
ument, sorted by their function.
The table column (see table below) Name used in WebUI ["Web User Interface"] refers to the
names under which the cards installed in a SecureSync unit are listed in the INTERFACES >
OPTION CARDS drop-down menu.
The main purpose of the table below is to assist with the identification of the card(s), and to list
its key input/output specifications.
Detailed information on every card can be found in the APPENDIX. To quickly access the
APPENDIX topic for your option card(s), you may use the hyperlinks in table "Option cards lis
ted by their ID number" on page14.
Note: * Every option card has a unique 2-digit ID number that can be found on its
cover plate, and in the center column of the table below. The complete Spec
tracom Part Number for option cards is 1204-xx (e.g., 1204-18).
Table 1-3:
Option cards overview
10
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
Page 27
Function Name used in Web UI Illustration ID* Inputs Outputs Conn.'s
Quad 1PPS out
(RS-485)
1PPS Out, RS-485
21
0 1PPS, RS-485
(4x)
Terminal
block,
10-pin
Quad 1PPS out
(fiber optic)
1PPS Out, Fiber
2B
0 1PPS, F/O (4x) ST Fiber
optic
(4x)
1in/3out 1PPS
(TTL [BNC])
1PPS/Frequency RS485
28
1PPS
(1x)
1PPS (3x) BNC
(4x)
1in/2out
1PPS/freq
(fiber optic)
1PPS In/Out, Fiber
2A
1PPS
(1x)
1PPS (2) ST Fiber
optic
(3x)
5MHz out 5MHz Out
08
0 5MHz (3x) BNC
(3x)
10 MHz out 10 MHz Out
1C
0 10 MHz (3x) BNC
(3x)
10 MHz out 10 MHz Out
38
0 10 MHz (3x) TNC
(3x)
1MHz out 1MHz Out
26
0 1MHz (3x) BNC
(3x)
Progr. frequ.
out (Sine
Wave)
Prog Freq Out, Sine
13
0 progr. clock,
sine (4x)
BNC
(4x)
Progr. frequ out
(TTL)
Prog Freq Out, TTL
2F
0 progr. clock,
TTL/sq. (4x)
BNC
(4x)
Prog frequ out
(RS-485)
Prog Freq Out, RS-485
30
0 progr. clock, RS-
485 (4x)
Terminal
block,
10-pin
Square Wave
out
Square Wave Out,
BNC
17
0 square wave, TTL
(4x)
BNC
(4x)
1PPS in/out +
frequ. in
1PPS/Frequency BNC
01
Var.
frequ.
+
1PPS
1PPS (TTL) BNC
(3x)
1PPS in/out +
frequ. in
1PPS/Frequency RS485
03
10
MHz
+
1PPS
1PPS Terminal
block,
10-pin
CTCSS, Data
Sync/Clock
Simulcast
14
0 data clock,
CTCSS frequ.,
1PPS, 1alarm
(3x)
RJ-12 &
DB-9
Telecom Timing Cards
1.5 Option Cards
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
11
Page 28
Function Name used in Web UI Illustration ID* Inputs Outputs Conn.'s
E1/T1 data,
75Ω
E1/T1 Out BNC
09
0 1.544/2.048
MHz (1x) unbal.
E1/T1 (2x)
BNC
(3x)
E1/T1 data,
100/120Ω
E1/T1 Out Terminal
0A
0 1.544/2.048
MHz (1x) unbal.
E1/T1 (2x)
Terminal
block,
10-pin
Time Code Cards
ASCII Time
Code RS-232
ASCII Timecode RS232
02
1 RS-232 (1x) DB-9
(2x)
ASCII Time
Code RS-485
ASCII Timecode RS485
04
1 1 Terminal
block,
10-pin
IRIG BNC IRIG In/Out BNC
05
1 2 BNC
(3x)
IRIG Fiber
Optic
IRIG In/Out, Fiber
27
1 2 ST Fiber
optic
(3x)
IRIG out, BNC IRIGOut BNC
15
0 4 BNC
(4x)
IRIG out, fiber
optic
IRIG Out, Fiber
1E
0 4 ST Fiber
optic
(4x)
IRIG out, RS485
IRIGOut, RS-485
22
0 4 Terminal
block,
10-pin
STANAG input STANAG In
1D
2x 1x DB-25
(1x)
STANAG in,
isol.
STANAG In, Isolated
24
2x 1x DB-25
(1x)
STANAG out STANAG Out
11
0 2x STANAG, 1x
1PPS
DB-25
(1x)
STANAG out,
isol.
STANAG Out, Isolated
25
0 2x STANAG, 1x
1PPS
DB-25
(1x)
HAVE QUICK
out BNC
HAVE QUICK Out,
BNC
10
0 4 (TTL) BNC
(4x)
HAVE QUICK
out RS-485
HAVE QUICK Out, RS485
1B
0 4 Terminal
block,
10-pin
HAVE QUICK HAVE QUICK
29
1 3 BNC
(4x)
1.5 Option Cards
12
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
Page 29
Function Name used in Web UI Illustration ID* Inputs Outputs Conn.'s
Networking Cards
Gigabit Eth
ernet
Gb Ethernet
06
(3, OR
output)
(3, OR input) RJ-45
(3x)
1Gb PTP:
Master only
Gb PTP
32
0 1PPS (1x BNC),
SFP (1x)
BNC
(1x),
SFP (1x)
Communication and Specialty Cards
Event in, Broad
cast out
Event Broadcast
23
BNC:
Event
trigger
DB-9: Event
broadcast
DB-9 +
BNC
(1x
each)
Revertive
Selector ("Fail
over")
n/a
2E
Frequ.
or 1
PPS:
(2x)
Frequ. or 1PPS
(1x)
BNC
(3x)
Alarm Relay
Out
Relay Output
0F
0 Relay Out (3x) Terminal
block,
10-pin
Bidir. Com
munication
RS-485 Comm
0B
Yes Yes Terminal
block,
10-pin
1.5 Option Cards
1.5.2 Option Card Identification
There are several ways to identify which option card(s) are installed in your SecureSync unit:
a.
Using the Web UI, navigate to the INTERFACES > OPTION CARDS drop-down menu,
and compare the list displayed in your UI with the table "Option cards overview" on
page10.
1.5.2.1 Option Card Identification by ID/Part Number
b.
If you have physical access to your SecureSync unit, inspect its rear panel, and compare
the 2-digit ID number printed in the lower left-hand corner on each option card with the
table below.
If you are looking for information specific to a particular option card, the table below can help
you find this information in this User Reference Guide.
Note: * Every option card has a 2-digit identification (ID) number that can be
found in the corner of its cover plate, and in the table below. The ID number is
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
13
Page 30
Card
ID*
Card Name Name in UI See ...
01 1PPS/freq input (TTL levels) mod
ule
1PPS/Frequency
BNC
"1PPS In/Out, 10MHz In [1204-01, 03]" on page360
02 ASCII Time Code module (RS-
232)
ASCII Timecode
RS-232
"ASCII Time Code In/Out [1204-02, 04]" on page443
03 1PPS/freq input (RS-485 levels)
module
1PPS/Frequency
RS-485
"1PPS In/Out, 10MHz In [1204-01, 03]" on page360
04 ASCII Time Code module (RS-
485)
ASCIITimecode
RS-485
"ASCII Time Code In/Out [1204-02, 04]" on page443
05 IRIG module, BNC (1 input, 2
outputs)
IRIG In/Out
BNC
" IRIG In/Out [1204-05, -27]" on
page400
06 Gigabit Ethernet module (3 ports) Gb Ethernet
"Gigabit Ethernet [1204-06]" on
page454
08 5 MHz output module (3 outputs) 5 MHz Out
"Frequency Out [1204-08, -1C, -26, 38]" on page368
09 T1-1.544 (75 Ω) or E1-2.048 (75
Ω) module
E1/T1 Out BNC
"T1/E1 Out [1204-09, -0A]" on
page388
0A T1-1.544 (100 Ω) or E1-2.048
(120 Ω) module
E1/T1 Out Ter
minal
"T1/E1 Out [1204-09, -0A]" on
page388
0B Bidirectional Communication
module
RS-485 Comm
"Bi-Directional Communication, RS-485
[1204-0B]" on page487
0F Alarm module Relay Output
"Alarm Relay Out [1204-0F]" on
page472
10 HaveQuick output module (TTL) HAVE QUICK
Out, BNC
"HAVE QUICK Out [1204-10, -1B]" on
page429
11 STANAG output module STANAG Out
"STANAG Out [1204-11, -25]" on
page413
1.5 Option Cards
comprised of the two center digits of your option card's Spectracom Part Num
ber: 1204-0180-0600.
Figure 1-4: Option Card ID number
The table lists all option cards available at the publication date of this documentation, sorted
by their ID number. Locate the option card ID number on its cover plate, and follow the cor
responding hyperlink in the right-hand column.
Table 1-4:
Option cards listed by their ID number
14
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
Page 31
Card
ID*
Card Name Name in UI See ...
13 Programmable Frequency Out
put module (Sine Wave)
Prog Freq Out,
Sine
"Programmable Frequency Out [120413, -2F, -30]" on page371
14 CTCSS, Data Sync/Clock mod
ule ("Simulcast")
Simulcast
"Simulcast (CTCSS/Data Clock) [120414]" on page380
15 IRIG module, BNC (4 outputs) IRIG Out BNC
"IRIG Out [1204-15, -1E, -22]" on
page394
17 Square Wave (TTL) output mod
ule
Sq Wv Out,
BNC
"Programmable Square Wave Out
[1204-17]" on page377
18 Quad 1 PPS output module (TTL) 1PPS Out BNC
"1PPS Out [1204-18, -19, -21, -2B]" on
page349
19 Quad 1 PPS output module (10V)1PPS Out 10V
"1PPS Out [1204-18, -19, -21, -2B]" on
page349
1B HaveQuick output module (RS-
485)
HAVEQUICK
Out, RS-485
"HAVE QUICK Out [1204-10, -1B]" on
page429
1C 10 MHz output module (3 out
puts)
10 MHz Out
"Frequency Out [1204-08, -1C, -26, 38]" on page368
1D STANAG input module STANAG In
"STANAG In [1204-1D, -24]" on
page421
1E IRIG module, Fiber Optic (4 out
puts)
IRIGOut, Fiber
"IRIG Out [1204-15, -1E, -22]" on
page394
21 Quad 1 PPS output module (RS-
485 [terminal block])
1PPS Out, RS485
"1PPS Out [1204-18, -19, -21, -2B]" on
page349
22 IRIG module, RS-485 (4 outputs) IRIG Out, RS-
485
"IRIG Out [1204-15, -1E, -22]" on
page394
23 Event Broadcast module Event Broadcast
"Event Broadcast [1204-23]" on
page479
24 STANAG isolated input module STANAG In, Isol
ated
"STANAG In [1204-1D, -24]" on
page421
25 STANAG isolated output module STANAG Out,
Isolated
"STANAG Out [1204-11, -25]" on
page413
26 1 MHz output module (3 outputs) 1MHz Out
"Frequency Out [1204-08, -1C, -26, 38]" on page368
27 IRIG module, Fiber Optic (1
input, 1 outputs)
IRIG In/Out,
Fiber
" IRIG In/Out [1204-05, -27]" on
page400
28 1-in/3-out 1 PPS module (TTL
[BNC])
1PPS/Frequency
RS-485
"1PPS In/Out [1204-28, -2A]" on
page354
29 1-in/3-out HaveQuick module
(TTL [BNC])
HAVEQUICK
"HAVE QUICK In/Out [1204-29]" on
page436
1.5 Option Cards
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
15
Page 32
Card
ID*
Card Name Name in UI See ...
2A 1-in/3-out 1 PPS module (Fiber
Optic)
1PPS In/Out,
Fiber
"1PPS In/Out [1204-28, -2A]" on
page354
2B Quad 1 PPS output module
(Fiber Optic)
1PPS Out, Fiber
"1PPS Out [1204-18, -19, -21, -2B]" on
page349
2F Programmable Frequency Out
put module (TTL)
Prog Freq Out,
TTL
"Programmable Frequency Out [120413, -2F, -30]" on page371
2E Revertive Selector module ("Fail
over")
n/a
"Revertive Selector Card [1204-2E]" on
page477
30 Programmable Frequency Out
put module (RS-485)
Prog Freq Out,
RS-485
"Programmable Frequency Out [120413, -2F, -30]" on page371
32 1Gb PTP module Gb PTP
"PTP Grandmaster [1204-32]" on
page456
38 10 MHz output module (3 x TNC
outputs)
10 MHz Out
"Frequency Out [1204-08, -1C, -26, 38]" on page368

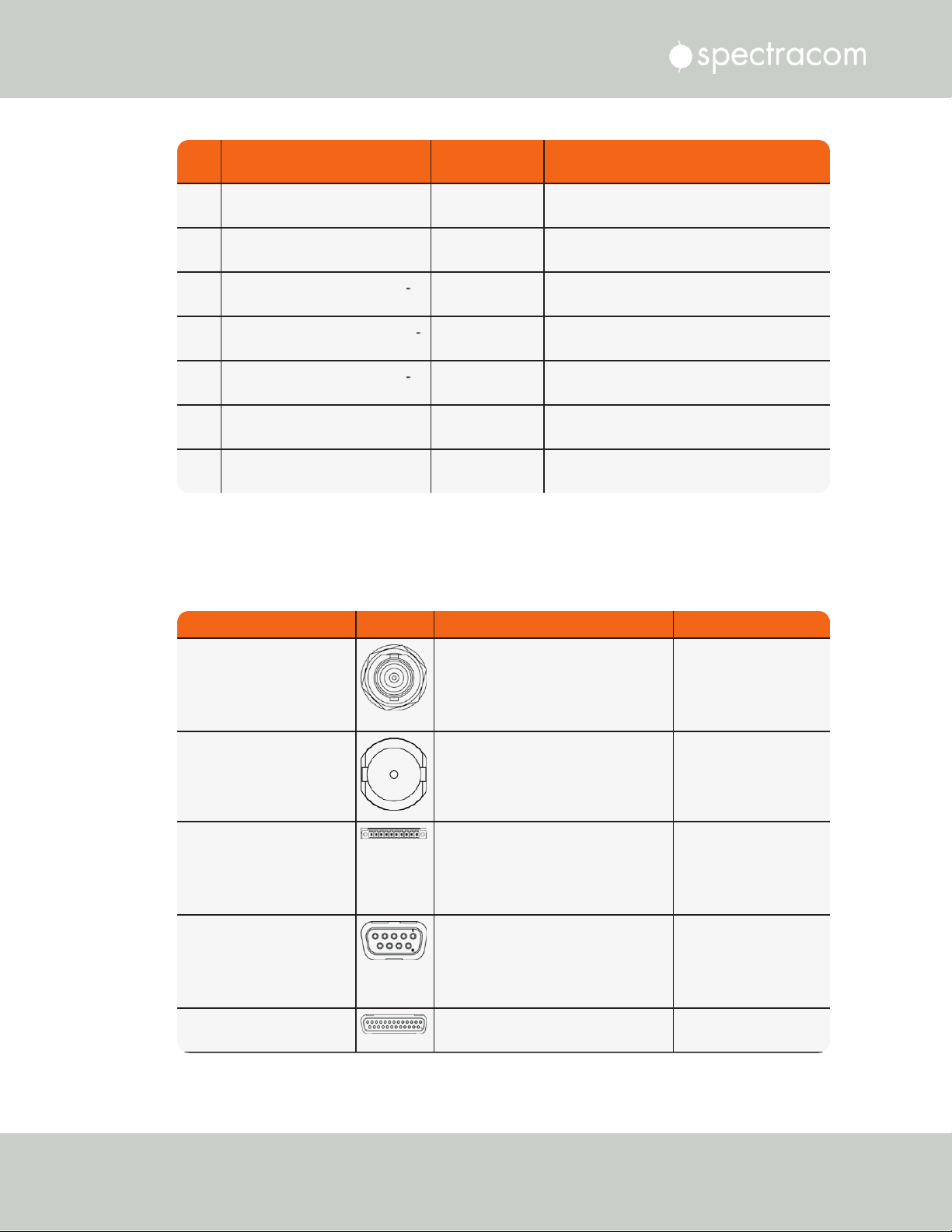

Connector Illustration Electr. Signals Timing signals
BNC Differential TTL xV,
sine wave, programm. square wave,
AM sine wave,
DCLS
1PPS,
frequency,
IRIG,
HAVE QUICK,
PTP
ST Fiber Optic AM sine wave,
DCLS
IRIG, 1PPS
Terminal Block
[Recommended mating
connector:
Phoenix Contact, part no.
1827787]
RS-485 1PPS,frequency,
ASCIItime code,
IRIG,HAVEQUICK,
Alarm, T1/E1
DB-9 RS-232,
RS-485
ASCIItime code,
GPS NMEA, data
clocks,
CTCSS frequency,
1PPS, Alarm signal
DB-25 Differential TTL xV,
RS-485
STANAG
1.5 Option Cards
1.5.3 Option Card Connectors
The table below lists the connector types used in SecureSync option cards.
Table 1-5:
16
Option card connectors
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
Page 33

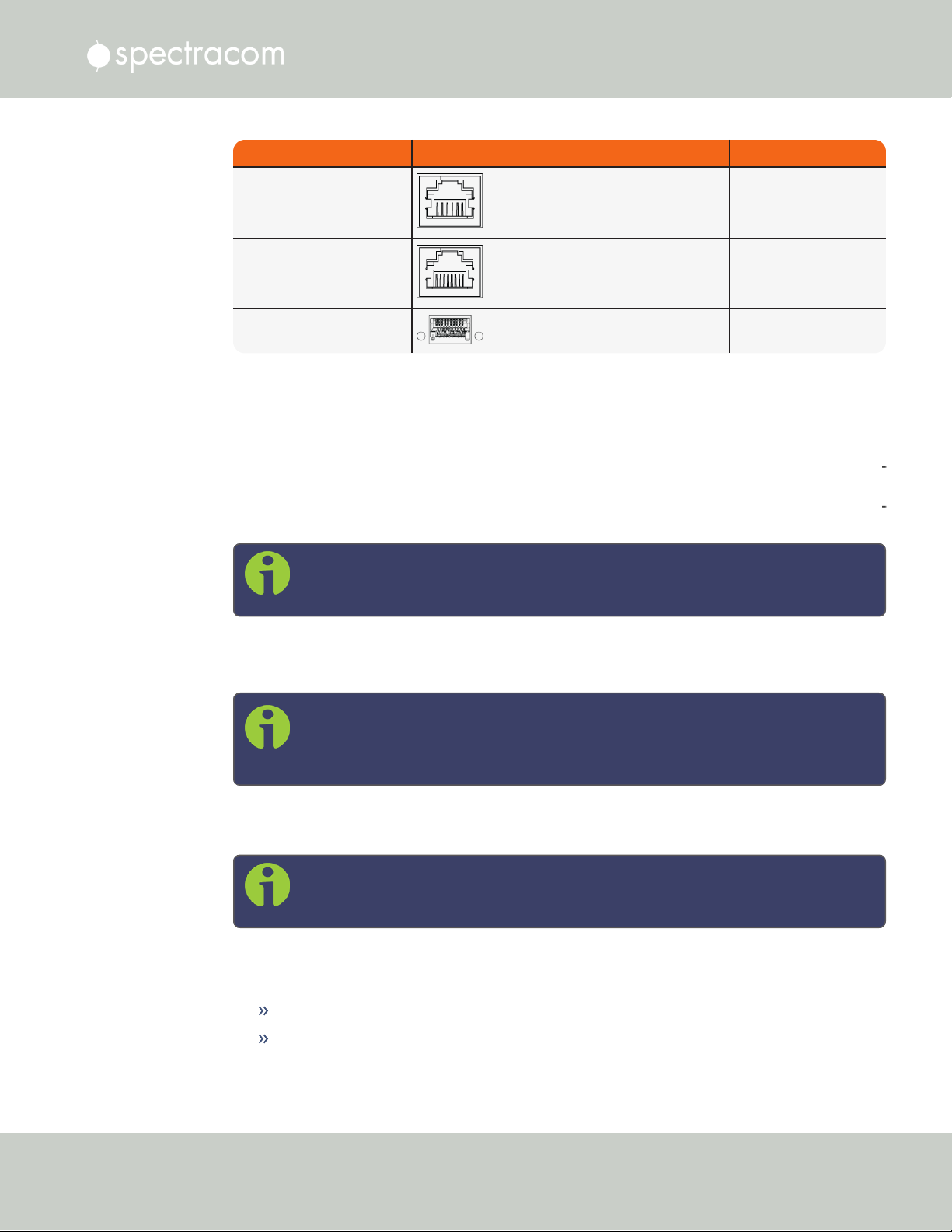

Connector Illustration Electr. Signals Timing signals
RJ-12 RS-485 data clock,
CTCSS frequency,
1PPS, Alarm
RJ-45 Gb-Ethernet PTP timing signal
SFP Ethernet PTP
1.6 The SecureSync Web UI
SecureSync has an integrated web user interface (referred to as "WebUI" throughout this doc
umentation) that can be accessed from a computer over a network connection, using a standard
web browser. The WebUI is used to configure the unit, and for status monitoring during every
day operation.
1.6 The SecureSync Web UI
Note: An integrated Command-Line Interpreter interface (CLI) allows the use of a
subset of commands that are integrated into the Web UI.
The minimum browser requirements for the Web UI are: Internet Explorer®9 or higher,
Firefox®, or Chrome
Note: Should it ever be necessary, you can restore SecureSync's configuration to
the factory settings at any time. See "Resetting the Unit to Factory Configuration"
on page305.
®
1.6.1 The Web UI HOME Screen
Note: Screens displayed in this manual are for illustrative purposes. Actual
screens may vary depending upon the configuration of your product.
The HOME screen of the SecureSync web user interface ("Web UI") provides comprehensive
status information at a glance, including:
vital system information
current status of the references
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
17
Page 34
1.6 The SecureSync Web UI
key performance/accuracy data
major log events.
The HOMEscreen can be accessed from anywhere in the Web UI, using the HOMEbutton in
the Primary Navigation Bar:
The Primary Navigation Bar provides access to all menus:
HOME: Return to the HOME screen (see above)
INTERFACES: Access the configuration pages for …
… references (e.g., GPS, NTP)
… outputs (e.g. 10 MHz, PPS, NTP) and
… installed option cards (e.g., GPS, PPS).
MANAGEMENT: Access the NETWORK setup screens, and OTHER setup screens e.g., to
configure Reference Priorities, System Time, and the Oscillator.
TOOLS: Opens a drop-down menu for access to the system maintenance screens and sys
tem logs.
HELP/MONITORING: Opens a drop-down menu for access to system help and inform
ation on how to contact Spectracom for further help. (If the optional TimeKeeper license
is installed, this button will open the TimeKeeper Monitoring menu. See also "Status Mon
itoring with TimeKeeper" on page211.)
1.6.2 The INTERFACES Menu
The INTERFACES menu on the Main screen provides access to SecureSync's:
18
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
Page 35
External REFERENCES e.g., the GNSS reference input
Detected OUTPUTS, such as 10 MHz and 1PPS
Installed OPTION CARDS.
1.6 The SecureSync Web UI
Clicking on any of the line items will open a status screen, providing real-time information on
the selected interface e.g., availability, performance data and events history.
To configure settings for the selected interface, click the GEAR icons or buttons provided on
most of the status screens. Icons like the INFO symbol provide access to more detailed status
information and history data.
Note: Many of the interfaces can be accessed through different menu items e.g.,
an optional output will be available under the OPTION CARDS menu and the
OUTPUTS menu.
The headings of each of the INTERFACES drop-down menus (white on orange) open overview
status screens for the respective menu items.
1.6.3 The Configuration MANAGEMENT Menu
The MANAGEMENT menu on the Web UI's Main screen provides access to SecureSync's con
figuration screens and settings:
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
19
Page 36
1.6 The SecureSync Web UI
On the left side, under NETWORK, the following standard setup screens can be found:
Network Setup
General Setup
HTTPS Setup
SSH Setup
SNMP Setup
NTP Setup
PeerD Setup.
Under OTHER, you can access non-network related screens:
Authentication: Manage user accounts, Security Policy, LDAP Setup, RADIUS setup,
Login Preference and Remote Servers. Change My Password is also available.
Reference Priority: Define the order of priority for timing inputs.
Notifications: Configure the notifications triggered by SecureSync’s events. A noti
fication can be a combination of a mask alarm and/or SNMP Trap and/or email.
Time Management: Manage the Local Clock, UTC Offset, DST Definition and Leap
Second information.
Front Panel: Configure the appearance of the SecureSync front panel display and
keypad.
Log Configuration: Manage the system logs.
Disciplining: Manage oscillator disciplining.
Change My Password: Configure the admin password.
1.6.4 The TOOLS Menu
The TOOLS menu on the Web UI's Main screen provides access to:
20
System and network monitoring screens
Log screens
Miscellaneous system administration screens.
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
Page 37
1.7 Specifications
The specifications listed below apply to the SecureSync standard model, i.e. not including any
option cards, and are based on “normal” operation, with SecureSync synchronized to valid
Time and 1PPS input references (in the case of GNSS input, this is with the GNSS receiver oper
ating in Stationary mode).
Specifications for the available option cards are provided in their corresponding topics;see
"Option Cards Overview" on page10.
1.7 Specifications
1.7.1 Input Power
AC power source:
100 to 240 VAC, 50/60 Hz, ±10 % and
100-120 VAC400 Hz, ±10% via an IEC 60320 connector (power cord included)
DC input (option):
12-17 VDC-15%, +20%, or
21-60 VDC-15%, +20%, secure locking device
Maximum power draw:
TCXO/OCXO oscillator installed: 40 W normal (50 W start-up)
Rubidium (Rb) oscillator installed: 50 W normal (80 W start-up)
Low-Phase Noise (LPN) Rubidium oscillator installed: 52 W normal (85 W start-up)
1.7.1.1 Fuses
Type: T 2A L 250V
Model:
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
21
Page 38
1.7 Specifications
Spectracom recommends: LITTELFUSE 0213002.MXP
[Spectracom part number: F010R-0002-000 E FUSE,2A,SB,IECSURGE,GLASS]
Number: 2 (two) per unit
SecureSync label on rear panel of unit:
"AC POWER/F 2A T 250V (2)"
LEGEND:
F = Fuse
2A = Current Rating: 2 Ampères
T = Speed: Time Delay (Slow-Blow)
L = Breaking Capacity: Low (Glass)
250V = Voltage Rating
(2) = Fuses used: 2 (two)
Caution: Before testing fuses, remove ACpower by disconnecting the AC power
cord.
Note: In the event that the unit does not power up with AC power, these fuses
should be tested.
1.7.2 GNSS Receiver
Compatible signals:
GPS L1 C/A Code transmissions at 1575.42 MHz
GLONASS L10F transmissions centered at 1602.0 MHz
QZSS L1-SAIF (1575.42 MHz)
BeiDou B1 (center frequency 1561.098 MHz)
Galileo-ready E1B/C (firmware upgrade required)
Satellites tracked: Up to 72 simultaneously
Update rate: up to 2Hz (concurrent)
Acquisition time: Typically <27seconds from cold start
Antenna requirements: Active antenna module, +5V, powered by SecureSync, 16dB gain min
imum
Antenna connector: Type N, female
22
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
Page 39
1.7.3 RS-232 Serial Port (Front Panel)
Function: Accepts commands to locally configure the IP network parameters via CLI for initial
unit configuration.
Connector: DB9F, pin assignments conform to EIA/TIA-574, data communication equipment
Character structure: ASCII, 9600 baud, 1 start, 8 data, 1 stop, no parity
1.7.4 10/100 Ethernet Port
Function : 10/100 Base- T, auto- sensing LAN connection for NTP/SNTP and remote man
agement and configuration, monitoring, diagnostics and upgrade
Connector: RJ-45, Network IEEE 802.3
1.7.5 Protocols Supported
NTP : NTP Version4 (Installed: Version 4.2.8p8). Provides MD5, Stratum1 through 15 (RFC
5905). Note that NTP Autokey is currently not supported, for more information, see
http://bugs.ntp.org/show_bug.cgi?id=3005.
NTP throughput: ETH0: 7000-7200 NTP requests per second; ETH1-ETH3 (1204-006-0600
GigabitEthernet option card 1-3): 8800-9000 NTP requests per second. For additional inform
ation, please contact Spectracom.
Clients supported: The number of users supported depends on the class of network and the sub
net mask for the network. A gateway greatly increases the number of users.
TCP/IP application protocols for browser-based configuration and monitoring: HTTP, HTTPS
FTP/SFTP: For remote upload of system logs and (RFC 959)
Syslog: Provides remote log storage (RFCs 3164 and 5424)
SNMP: Supports v1, v2c, and v3
Telnet/SSH: For limited remote configuration
Security features: Up to 32-character password, Telnet Disable, FTP Disable, Secure SNMP,
SNMP Disable, HTTPS/HTTP Disable, SCP, SSH, SFTP.
Authentication: LDAP v2 and v3, RADIUS, MD5 Passwords, NTP Autokey protocol.
1.7 Specifications
1.7.6 1PPS Output
Signal: One pulse-per-second square wave (ext. reference connected to GNSS receiver)
Signal level: TTL compatible, 4.3 V minimum, base-to-peak into 50 Ω
Pulse width: Configurable pulse width (200 ms by default)
Pulse width range: 20 ns to 900 ms
Rise time: <10 ns
Accuracy: Positive edge within ±50 ns of UTC when locked to a valid 1PPS input reference
Connector: BNC female
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
23
Page 40
Oscillator Type
Accuracy to UTC
(1 sigma locked to
GPS)
Holdover (constant temp. after 2weeks of GPS
lock)
After 4 hours After 24 hours
Low-phase noise Rubid
ium
±25 ns 0.2 μs 1μs
Rubidium ±25 ns 0.2 μs 1μs
Low-phase noise OCXO ±25 ns 0.5 μs 10 μs
OCXO ±50 ns 1μs 25 μs
TCXO ±50 ns 12 μs 450 μs
1.7 Specifications
Table 1-6:
1PPS Output accuracies
1.7.7 10 MHz Output
Signal: 10 MHz sine wave
Signal Level: +13 dBm ±2dB into 50 Ω
Harmonics: ˗40 dBc minimum
Spurious: ˗70 dBc minimum TCXO
Connector: BNC female
Signature Control: This configurable feature removes the output signal whenever a
major alarm condition or loss of time synchronization condition is present. The output
will be restored once the fault condition is corrected.
24
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
Page 41
Oscillator Type Accuracy
Low-phase noise Rubidium 1x10
-12
typical 24-hour average locked to GPS
1x10
-11
per day (5x10
-11
per month) typical aging unlocked
Rubidium 1x10
-12
typical 24-hour average locked to GPS
1x10
-11
per day (5x10
-11
per month) typical aging unlocked
Low-phase noise OCXO 1x10
-12
typical 24-hour average locked to GPS
2x10
-10
per day typical aging unlocked
OCXO 2x10
-12
typical 24-hour average locked to GPS
1x10-9per day typical aging unlocked
TCXO 1x10
-11
typical 24-hour average locked to GPS
1x10-8per day typical aging unlocked
Oscillator Type
Medium-Term Stability
(without GPS after 2 weeks of
GPS lock)
Short-Term Stability (Allan vari
ance)
Temperature
Stability
(p˗p)
1sec. 10sec.
100
sec.
Low-phase noise
Rubidium
5x10
-11
/month (3x10
-11
/month
typical)
5x10
-11
2x10
-11
5x10
-12
1x10
-10
Rubidium 5x10
-11
/month (3x10
-11
/month
typical)
2x10
-11
2x10
-12
2x10
-12
1x10
-10
Low-phase noise
OCXO
2x10
-10
/day 5x10
-11
2x10
-11
1x10
-11
1x10
-9
OCXO 5x10
-10
/day 5x10
-10
5x10
-11
1x10
-11
5x10
-9
TCXO 1x10-8/day 2x10
-9
1x10
-9
3x10
-10
1x10
-6
Oscillator Type @ 1Hz @ 10Hz @ 100Hz @ 1KHz @ 10KHz
Low-phase noise Rubidium ˗100 ˗128 ˗148 ˗153 ˗155
1.7 Specifications
Table 1-7:
10 MHz output — oscillator types and accuracies
Note: Oscillator accuracies are stated as fractional frequency (i.e. the relative fre
quency departure of a frequency source), and as such are dimensionless.
See also "Configuring the Oscillator" on page196.
Table 1-8:
10 MHz output — oscillator stability
1.7.7.1 10 MHz output — Oscillator Phase Noise (dBc/Hz)
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
25
Page 42
Oscillator Type @ 1Hz @ 10Hz @ 100Hz @ 1KHz @ 10KHz
Rubidium ˗80 ˗98 ˗120 ˗140 ˗140
Low-phase noise OCXO ˗100 ˗128 ˗148 ˗153 ˗155
OCXO ˗95 ˗123 ˗140 ˗145 ˗150
TCXO ./. ./. ˗110 ˗135 ˗140
1.7 Specifications
1.7.8 Mechanical and Environmental Specifications
Dimensions:
Designed for EIA 19” rack mount:
Housing w/o connectors and brackets:
16.75” W x 1.72” H [1U] x 14.33” D actual
(425 mm W x 44 mm H x 364 mm D)
Weight:
6.0 lbs (2.72 kg)
Temperature:
Operating:
Storage:
Humidity:
10% - 95% relative humidity, non-condensing @ 40°C
Altitude:
Operating:
Storage range:
Shock:
-20°C to +65°C
-40°C to +85°C
100-240 VAC: up to 6560 ft (2000 m)
100-120 VAC: up to 13123 ft (4000 m)
12-17 VDCand 21-60VDC: up to 13125 ft (4000 m)
up to 45000 ft (13700 m)
Operating: 15g/0.53 oz, 11ms, half sine wave
SAASM GPS storage shock specs: MRU 35g, GB-GRAM 40g
Storage: 50g/1.76 oz, 11ms, half sine wave
26
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
Page 43
Vibration:
Operating: 10-55 Hz @ 0.07g
Storage: 10-55 Hz @ 0.15g²/Hz; 55-500 Hz @ 2.0g²/Hz
MIL-STD-810F: 501.4, 502.4, 507.4, 500.4, 516.5, 514.5
1.8 Regulatory Compliance
This product has been found to be in conformance with the following regulatory publications.
FCC
This equipment has been tested and found to comply with the limits for a ClassA digital
device, pursuant to Part15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the user
documentation, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his/her own expense.
1.8 Regulatory Compliance
²
/Hz; 55-500 Hz @ 1.0g²/Hz
Safety
EN 60950-1:2006/A11:2009: Safety of Information Technology Equipment, including Elec
trical Business Equipment
This product has been tested and meets the requirements specified in:
UL 60950-1, 1st Edition
CSA C22.2 No. 60950-1-07, 2nd Edition
UL Listing no. E311040
EMC, CE:
EN 55022:2006/A1:2007: Class A: EC Emissions Standard
EN 55024:1998/A2:2003: EC Generic Immunity Standard
EN 61000-3-2:2006: Harmonic Current Emissions
EN 61000-3-3:1995/A2:2005: Voltage Fluctuations and Flicker
The product complies with the requirements of the Low Voltage Directive 2006/95/EC
and the EMC Directive 2004/108/EC.
Note: This is a Class A product. In a domestic environment this product
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
27
Page 44
1.8 Regulatory Compliance
EMC, ICES-003 and AS/NZS CISPR 22:
This Class (A) digital apparatus complies with Canadian ICES-003, Issue 4.
This Class (A) digital apparatus complies with AS/NZS CISPR 22 for radiated and con
ducted Emissions.
may cause radio interference in which case the user may be required to
take adequate measures.
28
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
Page 45
SETUP
The following topics are included in this Chapter:
2.1 Overview 30
2.2 Unpacking and Inventory 31
2.3 Required Tools and Partsfor Installation 32
2.4 Required GNSS Antenna Components 32
2.5 SAFETY 33
2.6 Mounting the Unit 36
2.7 Connecting Supply Power 37
2.8 Connecting the GNSS Input 40
2.9 Connecting Network Cables 41
2.10 Connecting Inputs and Outputs 42
2.11 Powering Up the Unit 42
2.12 Setting up an IP Address 43
2.13 Accessing the WebUI 52
2.14 Configuring Network Settings 54
2.15 Configuring NTP 89
2.16 Configuring Input References 131
2.17 Configuring Outputs 131
CHAPTER 2
CHAPTER 2 • SecureSync User Reference Guide
29
Page 46
2.1 Overview
2.1 Overview
This section provides an outline of the steps that need to be performed prior to putting
SecureSync into service. This includes:
The following factors determine which steps need to be taken:
a.
b.
c.
Installation: Hardware setup, mechanical installation, physical connections.
Setup: Establish basic access to the unit, so as to allow the use of the web user interface
("WebUI").
Configuration: Access the Web UI, configure the network, input and output references,
protocols (e.g., NTP), other settings.
The power source(s) your SecureSync is configured for.
Your existing infrastructure and how you plan on integrating SecureSync into it (for
example, integrating it into an existing Ethernet network, or setting-up a standalone
installation.)
How you would like to setup basic network configuration parameters:
Using the unit's front panel keypad and information display
Using a PC connected to SecureSync via serial cable
Using a PC connected to SecureSync via network cable.
You can connect your PC to SecureSync either…
…directly by means of a dedicated Ethernet cable, or
…indirectly, using your existing Ethernet network (using a network hub).
d.
The option cards configuration of your unit: Is your SecureSync equipped with any
option cards, such as additional input references, or additional signal distribution
cards? If so, they need to be configured separately via the SecureSync Web UI, once
the network configuration is complete.
2.1.1 Main Installation Steps
The following list is a recommendation. Deviations are possible, depending on the actual
application and system configuration.
1.
Unpack the unit, and take inventory: "Unpacking and Inventory" on the facing page.
2.
Obtain required tools and parts: "Required Tools and Parts for Installation" on page32.
3.
Mount the unit: .
4.
Read the Safety instructions: "SAFETY" on page33.
30
5.
Connect your power supply/-ies: "Connecting Supply Power" on page37.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 47
6.
Connect Input References such as your GNSS antenna, and network cable(s): "Con
necting the GNSS Input" on page40, and "Connecting Network Cables" on page41.
7.
Power up the unit: "Powering Up the Unit" on page216.
8.
Setup basic network connectivity…
i.
…via front panel keypad and information display: "Setting Up an IP Address via
the Front Panel" on page47
ii.
…or via serial port, using a PC with a CLI: "Setting Up an IP Address via the
Serial Port" on page50
iii.
…or via Ethernet, using a PC with a web browser, and the SecureSync Web UI:
"Accessing the WebUI" on page52.
9.
Register your product: "Product Registration" on page258.
2.2 Unpacking and Inventory
2.2 Unpacking and Inventory
Caution: Electronic equipment is sensitive to Electrostatic Discharge (ESD).
Observe all ESD precautions and safeguards when handling the unit.
Unpack the equipment and inspect it for damage. If any equipment has been damaged in
transit, or you experience any problems during installation and configuration of your Spec
tracom product, please contact Spectracom (see "Technical Support" on page540.)
Note: Retain all original packaging for use in return shipments if necessary.
The following items are included with your shipment:
SecureSync unit
QuickStart Guide (printed version), and CD "Timing Product Manuals"
Ancillary items (except for rack mounting items, the contents of this kit may vary based
on equipment configuration and/or regional requirements)
Purchased optional equipment; note that option cards listed on the purchase order will
be pre-installed in the unit. See "Option Card Identification" on page13 and "Option
Cards Overview" on page10.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
31
Page 48
2.3 Required Tools and Parts for Installation
2.3 Required Tools and Parts for Installation
Phillips screwdrivers to install the rack-mount ears, and to mount the unit in a 19"-rack
Ethernet cables (see "Connecting Network Cables" on page41)
If you plan on using DC power Spectracom recommends an external ON/OFF switch.
2.4 Required GNSS Antenna Components
Should you plan on using a GNSS reference with your SecureSync, you will also need:
Spectracom LMR-400 antenna cable with N connectors
Spectracom outdoor GNSS antenna with mounting bracket
Spectracom GNSS antenna surge suppressor (recommended)
Spectracom GNSS antenna inline amplifier (optional for short cable lengths)
For antenna installation guidelines, see the separate documentation shipped with the antenna
components.
32
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 49
2.5 SAFETY
Caution: Do not ignore the Safety Instructions!
2.5.1 Safety: Symbols Used
2.5 SAFETY
Table 2-1:
Symbol Signal word Definition
Safety symbols used in this document, or on the product
Potentially dangerous situation which may lead to personal
DANGER!
CAUTION!
NOTE
ESD
CHASSIS GROUND
Analog Ground
Recycle
injury or death! Follow the instructions closely.
Potential equipment damage or destruction!
Follow the instructions closely.
Tips and other useful or important information.
Risk of Electrostatic Discharge!
Avoid potential equipment damage by following ESD Best
Practices.
This symbol is used for identifying the functional ground of an
I/O signal. It is always connected to the instrument chassis.
Shows where the protective ground terminal is connected
inside the instrument. Never remove or loosen this screw!
Recycle the mentioned components at their end of life. Follow
local laws.
2.5.2 SAFETY: Before You Begin Installation
This product has been designed and built in accordance with state-of-the-art standards and the
recognized safety rules. Nevertheless, its use may constitute a risk to the operator or install
ation/maintenance personnel, if used under conditions that must be deemed unsafe, or for pur
poses other than the product's designated use, which is described in the introductory technical
chapters of this guide.
Before you begin installing and configuring your SecureSync unit, carefully read the following
important safety statements. Always ensure that you adhere to any and all applicable safety
warnings, guidelines, or precautions during the installation, operation, and maintenance of
your product.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
33
Page 50
2.5 SAFETY
DANGER! — INSTALLATION OF EQUIPMENT:
Installation of this product is to be done by authorized service personnel
only.This product is not to be installed by users/operators without legal author
isation.
Installation of the equipment must comply with local and national electrical codes.
DANGER! — DONOTOPENEQUIPMENT, UNLESSAUTHORIZED:
The interior of this equipment does not have any user serviceable parts. Contact
Spectracom Technical Support if this equipment needs to be serviced. Do not
open the equipment, except to retrofit option cards, or replacement of battery. Fol
low Spectracom Safety Instructions, and observe all local electrical regulatory
requirements.
IF THE EQUIPMENT MUST BE OPENED:
Never remove the cover or blank option card plates with power applied to this
equipment. Ensure all power sources are removed from the unit prior to installing
any option cards by removing both the AC and DC power cords connected to the
equipment.
This unit will contain more than one power source if both the AC and DC power
options are present. In this case, turning off the rear panel power switch will not
remove all power sources.
DANGER! — FUSING:
The equipment has Double Pole/Neutral Line Fusing on AC power.
For continued protection against risk of fire, replace fuses only with same type
and rating of fuse.
DANGER! — GROUNDING: This equipment must be EARTHGROUNDED. Never
defeat the ground connector or operate the equipment in the absence of a suit
ably installed earth ground connection. Contact the appropriate electrical inspec
tion authority or an electrician if you are uncertain that suitable grounding is
available.
34
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 51
2.5 SAFETY
The AC and DC power connectors of this equipment have a connection to the
earthed conductor of the AC and DC supply earthing conductor through the AC
and DC power cords. The AC source outlet must contain a protective earthing con
nection. This equipment shall be connected directly to the AC power outlet earth
ing pin or DC supply system earthing electrode conductor.
The DC supply source is to be located within the same premises as this equipment:
The equipment shall be located in the same immediate area (such as, adjacent
cabinets) as any other equipment that has a connection to the earthing conductor
of the same AC or DC supply circuit earthing conductor, and also the point of
earthing of the AC or DC system.The AC or DC system shall not be earthed else
where.
Switches or other disconnection devices shall not be in the earthed circuit con
ductor between the AC and DC source and the point of the connection of the
earthing electrode conductor to SecureSync’s AC and DC input power connectors
earthing pin.
DANGER! — BATTERY: Replace the battery only with the same or equivalent type
recommended by the manufacturer. Follow Spectracom Instructions — there is a
danger of a new battery exploding if it is incorrectly installed. Discard used bat
teries according to the manufacturer's instructions.
Caution: Electronic equipment is sensitive to Electrostatic Discharge (ESD).
Observe all ESD precautions and safeguards when handling Spectracom equip
ment.
2.5.3 SAFETY: User Responsibilities
The equipment must only be used in technically perfect condition. Check components for
damage prior to installation. Also check for loose or scorched cables on other nearby
equipment.
Make sure you possess the professional skills, and have received the training necessary
for the type of work you are about to perform.
Do not modify the equipment.
Use only spare parts authorized by Spectracom.
Always follow the instructions set out in this User Reference Guide, or in other Spec
tracom documentation for this product.
Observe generally applicable legal and other local mandatory regulations.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
35
Page 52
2.6 Mounting the Unit
2.5.4 SAFETY: Other Tips
Keep these instructions at hand, near the place of use.
Keep your workplace tidy.
Apply technical common sense: If you suspect that it is unsafe to use the product, do the
following:
Disconnect the supply voltage from the unit.
Clearly mark the equipment to prevent its further operation.
2.6 Mounting the Unit
2.6.1 Rack Mounting
If installing the unit in a rack, install the rack-mount ears on the two sides of the front panel and
mount the unit in a standard 19-inch rack cabinet. The unit is intended to be installed in one ori
entation only. The unit should be mounted so the front panel interface keys are to the left of the
display area.
The SecureSync unit will install into any EIA standard 19-inch rack. SecureSync occupies one
rack unit of space for installation, however, it is recommended to leave empty space of at least
one rack unit above and below the SecureSync unit to allow for best ventilation.
Rack mounting requirements:
The maximum ambient operating temperature must be observed. See "Mechanical and
Environmental Specifications" on page26 for the operating temperature range spe
cified for the type of oscillator installed in your SecureSync unit.
If the SecureSync unit is to be installed in a closed rack, or a rack with large amounts of
other equipment, a rack cooling fan or fans should be part of the rack mount install
ation.
Installation of the unit in a rack should be such that the amount of air flow required for
safe operation of the equipment is not compromised.
Follow the mounting directions described below to prevent uneven mechanical loading,
possibly resulting in a hazardous condition.
Do not overload power supply circuits. Use only supply circuits with adequate overload
protection. For power requirements, see "Input Power" on page21.
Reliable grounding of rack-mounted equipment must be maintained. Particular attention
must be given to supply connections other than direct connections to the branch circuit
(e.g., use of power strips).
The SecureSyncancillary kit contains the following parts needed for rack mounting:
36
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 53
2 each 1165-1000-0714 rack mounting brackets
2 each MP09-0003-0030 equipment rack handles
4 each H020-0832-0406 #8-32 flat head Phillips screws
6 each HM20R-04R7-0010 M4 flat head Phillips screws
The following customer supplied items are also needed:
4 each #10-32 pan head rack mount screws
1 each #2 Phillips head screwdriver
1 each 3/32" straight screwdriver
To rack mount the SecureSync unit:
1.
Attach an MP09-0003-0030 equipment rack handle to the front of each 1165-10000714 rack mounting bracket, using the holes nearest the right angle bend of the 11651000-0714 rack mounting bracket, with the #2 size Phillips screwdriver, using 2 each of
the H020-0832-0406 #8-32 flat head Phillips screws.
2.
Attach the 1165-1000-0714 rack mount brackets to the sides of the SecureSync with the
rack mounts ears facing outward, aligned with the front edge of the SecureSync front
panel. Use the #2 Phillips screwdrivers, using 3 each of the HM20R-04R7-0010 M4 flat
head Phillips screws.
2.7 Connecting Supply Power
3.
Secure the rack mount brackets to the rack using the #10-32 rack mount screws and #2
Phillips head screwdriver, 2 each per side of the rack.
Caution: For safety reasons, the SecureSync unit is intended to be operated in a
HORIZONTAL POSITION, RIGHT-SIDE-UP, that is with the keypad to the left side
and the 4-line information display and the time display on the right side.
2.6.2 Desktop Operation
SecureSync units can also be operated on a desktop in a HORIZONTAL, RIGHT-SIDE-UP pos
ition. The location needs to be well-ventilated, clean and accessible.
2.7 Connecting Supply Power
Depending on the equipment configuration at time of purchase, SecureSync can be powered
from an AC input, a DC input or with both AC, and DC input (DC input is an option). Sup
plying both AC and DC input power provides redundant and automatic power switchover in
case one or the other input power sources is lost.
Before connecting power to the unit, be sure that you have read all safety information detailed
in section "SAFETY" on page33.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
37
Page 54
2.7 Connecting Supply Power
2.7.1 Power Source Selection
If both an AC, and a DC power source are connected to the unit, the following rules apply:
If AC and DC power are both applied, AC power is used.
If DC power is applied, but AC power is not, then DC power will be used.
If AC and DC power are both present, but AC power is subsequently lost, SecureSync
will automatically switch to using the DC power input.
DANGER! — This unit will contain more than one power source if both the AC
and DC power options are present. Turning off the rear panel power switch will
NOT remove all power sources.
The following sections discuss AC and DC power input. Connect AC and/or DC power, as
required.
2.7.2 Using AC Input Power
Connect the AC power cord supplied in the SecureSync ancillary kit to the AC input on the rear
panel and the AC power source outlet. The AC input is fuse-protected with two fuses located in
the AC power entry module (line and neutral inputs are fused). The AC power entry module
also contains the main power switch for the AC power applied to the equipment.
Caution: This equipment has Double Pole/Neutral Line Fusing on AC power.
Note: Important! SecureSync is earth grounded through the AC power connector.
Ensure SecureSync is connected to an AC outlet that is connected to earth ground
via the grounding prong (do not use a two prong to three prong adapter to
apply AC power to SecureSync).
2.7.3 Using DC Input Power
If the rear panel DC port is present, connect DC power, per the voltage and current as called
out on the label that resides above the DC power connector.
Note: DC power is an option chosen at time of purchase. The rear panel DC
input port connector is only installed if the DC input option is available. Different
DC power input options are available (12 VDCwith a voltage range of 12 to 17V
at 7A maximum or 24/48VDCinput with a voltage range of 21 to 60V at 3A
maximum). Review the DC power requirement chosen, prior to connecting DC
38
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 55
2.7 Connecting Supply Power
power (when the DC port is installed, a label will be placed over the connector
indicating the allowable DC input voltage range and the required current).
DANGER! GROUNDING: SecureSync is earth grounded through the DC power
connector. Ensure that the unit is connected to a DC power source that is con
nected to earth ground via the grounding pin C of the SecureSync DC power
plug supplied in the ancillary kit.
Caution: The DC input port is both fuse and reverse polarity protected. Reversing
polarity with the 24/48VDCoption will not blow the fuse, but the equipment will
not power- up. Reversing polarity with the 12VDCoption will likely blow the
internal fuse.
A DC power connector to attach DC power to SecureSync is included in the ancillary kit
provided with the equipment. A cable of 6 feet or less, using 16AWG wire, with adequate insu
lation for the DC voltage source should be used with this connector. The cable clamp provided
with the DC power plug for strain relief of the DC power input cable should be used when DC
power is connected to SecureSync.
Note: Spectracom recommends to use a dedicated DC power supply switch to
energize/de-energize SecureSync externally.
DC power connector pin-out:
SecureSync units can be ordered in a DC version that includes the following DC plug on the
back panel: DC Plug, 3-pin, chassis mount: Amphenol P/N DL3102A10SL-3P
The DC ancillary kit includes, among other things, the following connector parts:
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
39
Page 56
2.8 Connecting the GNSS Input
Mating DC Connector, circular, 3-pin, solder socket, 16AWG,13A,300V: Amphenol
P/N DL3106A10SL-3S; (Spectracom part no. P240R-0032-002F)
Cable Clamp, circular: Amphenol part no. 97-3057-1004(621); (Spectracom part no.
Spectracom part no. MP06R-0004-0001)
Pinout description, DC connector
Pin B goes to the most positive DC voltage of the DC source. For +12V or +24/48V this would
be the positive output from the DC source. For a -12V or -24/48VDCsource this would be the
ground or return of the DC source.
Pin A goes to the most negative voltage of the DC source. For +12V or +24/48V this would
be the ground or return output from the DC source. For a -12V or - 24/48VDCsource this
would be the negative output from the DC source.
Pin C goes to the Earth ground of the DC source.
2.8 Connecting the GNSS Input
Typical installations include GNSS as an external reference input. If the GNSS receiver is not
installed or if the GNSS will not be used as a SecureSync reference, disregard the steps to
install the GNSS antenna and associated cabling.
1.
Install the GNSS antenna, surge suppressor, antenna cabling, and GNSS preamplifier
(if required). Refer to the documentation included with the GNSS antenna for additional
information regarding GNSS antenna installation.
2.
Connect the GNSS cable to the rear panel antenna input jack (see illustration under
"Unit Rear Panel" on page7).
In the event that NO antenna is connected to the rear panel jack, SecureSync will—once
it gets powered up (see "Powering Up the Unit" on page216)—activate the Antenna
40
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 57
Problem alarm, causing the front panel “Fault” light to be blinking orange (the Antenna
Problem alarm indicates an open or short exists in the antenna cable.)
Unless there is an open or short in the antenna cable, the "Fault" light should stop flash
ing orange once the GNSS antenna and coax cable are connected to the rear panel. If
the "Fault" light does not stop flashing after connecting the antenna, refer to
"Troubleshooting GNSS Reception" on page322.
Initial synchronization with GNSS input may take up to 5minutes (approximately) when used
in the default stationary GNSS operating mode. If using GNSS, verify that GNSS is the syn
chronization source by navigating to MANAGEMENT > OTHER: Reference Priority: Confirm
that GNSS is Enabled, and its Status for TIME and 1PPS is valid (green).
2.9 Connecting Network Cables
SecureSync provides a base 10/100 Ethernet port for full NTP functionality, as well as a com
prehensive web-based user interface ("Web UI") for configuration, monitoring and diagnostic
support. Additional network ports are available with the Gigabit Ethernet option card (1204-
06).
2.9 Connecting Network Cables
Before connecting the network cable(s), you need to decide which port(s) you want to use for
which purpose (e.g., ETH0 for configuration only, etc.), and how you want to configure basic
network connectivity e.g., the IP address:
a.
Configure SecureSync via the unit's front panel: See "Setting Up an IP Address via the
Front Panel" on page47.
b.
Configure SecureSync by means of a PC connected to an existing network.
When connecting to a hub, router, or network computer, use a straight-through
wired, shielded CAT 5, Cat 5E or CAT 6 cable with RJ-45 connectors. Connect
one end to the Ethernet port on the SecureSync rear panel, and the opposite end
of the cable to a network hub or switch.
c.
Configure SecureSync by connecting a stand-alone computer directly via a dedicated
network cable (standard-wired, or crossover cable):
When connecting directly to a stand-alone PC, use a network cable. Connect the
cable to the NIC card of the computer.
Since no DHCP server is available in this configuration both SecureSync, and the
PC must be configured with static IP addresses that are on the same subnet
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
41
Page 58
2.10 Connecting Inputs and Outputs
(10.1.100.1 and 10.1.100.2 with a subnet value of 255.255.255.0 on both
devices, for example).For more information on configuring static IP addresses,
see "Assigning a Static IP Address" on page45.
Once the unit is up and running, verify that the green link light on the Ethernet port is illu
minated. The amber “Activity” link light may periodically illuminate when network traffic is
present.
2.10 Connecting Inputs and Outputs
SecureSync can synchronize not only to an external GNSS reference signal, but also to other
optional external references such as IRIG, HAVEQUICK and ASCII inputs (in addition to net
work based references such as NTP and/or PTP).
At the same time, SecureSync can output timing and frequency signals for the consumption by
other devices via the same formats as listed above.
E X A M P L E :
With the available IRIG Input/Output option card module (Model 1204-05) installed in an option
bay, IRIG time code from an IRIG generator can also be applied as an external reference input (either
in addition to, or in lieu of GNSS, NTP, user set time and other available reference inputs).
To use e.g., an external IRIG reference, connect the IRIG time source to the BNC connector “J1”
on the optional IRIG Input/Output module. For additional information on optional connectivity,
such as pinout tables, signal levels and other specifications, see "Option Cards" on page328.
Note that some option cards offer both input and output functionality, while others offer only
one or the other.
2.11 Powering Up the Unit
1.
After installing your SecureSync unit, and connecting all references and network(s),
verify that power is connected, then turn ON the unit using the switch on the rear panel
(only if equipped with AC power input), and wait for the device to boot up.
Note: DC input power is not switched, so SecureSync will be powered up
with DC input connected, unless you installed an external power switch.
42
2.
Observe that all of the front panel LEDs momentarily illuminate (the Power LED will then
stay lit) and that the Information display LCD back light illuminates. The fan may or may
not run, depending on the model year of your SecureSync unit. For more information,
see "Temperature Management" on page281.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 59
2.12 Setting up an IP Address
The time display will reset and then start incrementing the time. About 10 seconds after
power-up, “Starting up SecureSync” will be displayed in the information display. After
approximately 2minutes, the information display will then show the current network set
tings.
By default, the 4-line information display shows the unit’s hostname, IPv4 address, mask,
and gateway.
The time display shows the current time: UTC (default), TAI, GPS or local timescale, as
configured.
Figure 2-1: SecureSync front panel
3.
Check the front panel status LED indicators:
The Power lamp should be solid green.
The Sync lamp will probably be red, since synchronization has not yet been
achieved.
The Fault lamp will be OFF, or solid orange, indicating a minor alarm, or solid
red, asserting a power-up frequency error alarm (until the disciplining state is
reached.)
For additional information, see "Status LEDs" on page6 and "Status Monitoring via Front
Panel" on page259.
2.12 Setting up an IP Address
In order for SecureSync to be accessible via your network, you need to assign an IP address to
SecureSync, as well as a subnet mask and gateway, unless you are using an address assigned
by a DHCP server.
There are several ways to setup an IP address, described below:
via the front panel keypad and information display
remotely …
…via serial cable
… via dedicated network cable
… via a DHCP network.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
43
Page 60
2.12 Setting up an IP Address
Before you continue …
… please obtain the following information from your network administrator:
Available static IP address
Subnet mask (for the network)
Gateway address
This is the unique address assigned to the SecureSync unit by the network admin
istrator. Make sure the chosen address is outside of the DHCP range of your
DHCP server.
Note: The default static IP address of the SecureSync unit is
10.10.201.x (x= dependent on ETH port).
The subnet mask defines the number of bits taken from the IP address that are used
in the network portion. The number of network bits used in the net mask can range
from 8 to 30bits.
The gateway (default router) address is needed if communication to the
SecureSync is made outside of the local network. By default, the gateway is dis
abled.
Note: Make sure you are assigning a static IP address to your SecureSync unit
that is outside of the DHCP range defined for the DHCP server. Your system
administrator will be able to tell you what this range is.
2.12.1 Dynamic vs. Static IP Address
On a DHCP network (Dynamic Host Configuration Protocol), SecureSync's IP address will be
assigned automatically once it is connected to the DHCP server. This negotiated address and
other network information are displayed on the unit front panel when the unit boots up.
If you plan on allowing your SecureSync to use this negotiated DHCP Address on a permanent
basis, you can skip the following topics about setting up an IP address, and instead proceed to
"Accessing the WebUI" on page52, in order to complete the SecureSync configuration pro
cess.
Please note:
Unless you are using DNS in conjunction with DHCP (with the client configured using
SecureSync's hostname instead of IP address), Spectracom recommends to disable DHCP for
SecureSync, and instead use a static IP address. Failure to do this can result in a loss of time
synchronization, should the DHCP server assign a new IPaddress to SecureSync.
44
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 61
2.12.2 Assigning a Static IP Address
Spectracom recommends assigning a static IP address to SecureSync, even if the unit is con
nected to a DHCP server.
This can be accomplished in several ways:
a.
Via the keypad and information display on the front panel of the unit, see "Setting Up
an IP Address via the Front Panel" on page47.
b.
By connecting the SecureSync to an existing DHCP network, temporarily using the
assigned DHCP address, see "Setting Up a Static IP Address via a DHCP Network" on
page49.
c.
By connecting a Personal Computer to SecureSync via a serial cable, see "Setting Up
an IP Address via the Serial Port" on page50.
d.
By connecting a Personal Computer directly to SecureSync via a dedicated Ethernet
cable, see "Setting up a Static IP Address via Ethernet Cable" on page51.
Note: For information on configuring routing tables, see "Static Routes" on
page58.
2.12 Setting up an IP Address
2.12.2.1 Assigning a New Static IP Address
To configure a SecureSync unit that has not yet been assigned a custom IP address (e.g.,
because your network does not support DHCP), there are two ways to enter the desired static IP
address, subnet mask, and gateway address:
The front panel keypad and its 4-line information display, or
a personal computer, connected to the SecureSync unit via a serial cable, or via a ded
icated Ethernet cable.
The keypad is the simplest method to configure the network settings. See "Keypad and Inform
ation Display" on page4 for information on using the keypad.
Note: Units are shipped with the default IP address of 10.10.201.1 with subnet
mask 255.255.255.0.
Setting Up an IP Address via Serial Cable
The serial port can be used to make configuration changes (such as the network settings),
retrieve operational data (e.g., GNSS receiver information) and log files, or to perform oper
ations such as resetting the admin password.
For this task, you will need a serial cable, and a Personal Computer (PC) with a command-line
user interface program (CLI) installed on it, such as TeraTerm®, PuTTY®, or similar.
To configure an IP address via the serial port:
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
45
Page 62
2.12 Setting up an IP Address
1.
Connect a pinned straight-thru standard DB9M to DB9F RS232 serial cable to a PC run
ning PuTTY, Tera Term, or HyperTerminal, and to your SecureSync.
Use the following protocol parameters:
For more information on using the serial port connection, see "Setting up a Terminal
Emulator" on page491.
2.
The serial port is account and password protected. Login to SecureSync with a user
account that has “admin” group rights, such as the default spadmin account (the
default password is admin123).
Bits per second: 9600
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
Note: Users with “administrative rights” can perform all available com
mands. Users with “user” permissions only can perform get commands to
retrieve data, but cannot perform any set commands or change/reset
any passwords.
Disable DHCP, type: dhcp4set 0 off <Enter>.
3.
Note: If your SecureSync is configured with an Ethernet option card, use
0, 1, 2, 3 for eth0 – eth3.
Note: For a list of CLI commands, type helpcli, or see "CLICommands"
on page492.
4.
Configure the IP address, subnet mask, and gateway (if needed):
ip4set 0 x.x.x.x y.y.y.y <Enter>
(where 0 is the desired interface, “x.x.x.x” is the desired IP address for
SecureSync, and “y.y.y.y” is the full subnet mask for the network (For a list of
subnet mask values, see "Subnet Mask Values" on page52.)
Enter gw4set 0 gw_address, using your gateway address gw_address.
5.
Once you have configured SecureSync's IP address, you can login to the WebUI by
entering the new address into a web browser‘s address bar.
46
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 63
2.12 Setting up an IP Address
Setting Up an IP Address via Ethernet Cable
Note: You may use an Ethernet crossover cable, but you do not have to.
Turn on the unit with NO cable plugged into the Ethernet port yet (Note: once you apply
power, it may take up to two minutes for the system to fully boot).
Configure your PC‘s network interface card (NIC) with an IP address on the same network as
the NetClock 9489‘s default IP address (10.10.201.1 ). For example, configure the IP
address of your PC‘s network interface card as 10.10.201.10 , with a subnet mask of
255.255.255.0.
Connect an Ethernet cable from your PC to the Ethernet port of the NetClock unit. Once con
nected via crossover cable, open a web browser and enter the NetClock‘s default IP address
(10.10.201.1) into the browser‘s address bar and login to the NetClock‘s WebUI as an
administrator. Once logged in, network settings for the NetClock can be configured under
MANAGEMENT > Network Setup > Actions: General Settings and under Ports: GEAR button.
2.12.2.2 Setting Up an IP Address via the Front Panel
Assigning an IP address to SecureSync, using the front panel keypad and information display
is a preferred way to provide network access to the unit, thus enabling you thereafter to com
plete the setup process via the WebUI.
Keypad Operation
The functions of the six keys are:
tu arrow keys: Navigate to a menu option (will be highlighted)
pq arrow keys: Scroll through parameter values in edit displays
ü ENTER key: Select a menu option, or load a parameter when editing
Ò BACK key: Return to previous display or abort an edit process
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
47
Page 64
2.12 Setting up an IP Address
Step-by-step instructions:
A.
First, disable DHCP:
1.
2.
3.
4.
5.
B.
Then, enter IP Address and Subnet Mask:
1.
Press the ü key.
Using the arrow key, select Netv4 from the menu.
(To select a menu item, highlight it using the arrow keys, then press the ü key.)
Select the Ethernet interface for which DHCP is to be disabled, such as eth0.
Select DHCP from the next menu. The display will show State=Enabled and
Action=Disabled.
(The State is the current DHCP setting and the Action is the action to take. You can
only change the Action setting.)
Press the ü key once to select the action, then again to apply it.
Still on the Home > Netv4 > eth[0-3] menu, select IP Address, and
change "N=010.010.201.001/16” to the value of the static IP address and
subnet mask/network bits to be assigned (for a list of subnet mask values refer to
the table "Subnet mask values" on page52).
2.
Press the ü key once to enter the setting, then again to apply the new setting.
C.
Lastly, enter the Gateway Address (if required)
Still on the Home > Netv4 menu, select the Gateway option (Home >
1.
Netv4 > eth0 > Gateway).
2.
Press the ü key once to enter the setting, then again to apply the new setting.
3.
The display will change, allowing you to input an address at
N=000.000.000.001. Enter the gateway address here.
The address entered must correspond to the same network IP address assigned to
SecureSync.
After all addresses are entered, press the x key three times to return to the main display. It
should now resemble the following example:
48
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 65
Note: Despite having entered an IP address, the information display will show
0.0.0.0 if SecureSync could not detect an active link on the corresponding net
work interface.
Note: About DNS: The Primary and Secondary DNS servers are set automatically
if using DHCP. If DHCP is not available, they can be configured manually in the
SecureSync WebUI via the Network/General Setup screen.
The remainder of the configuration settings will be performed via the Web UI (accessed via an
external workstation with a web browser such as Firefox®or Chrome®). For more information,
see "The Web UI HOME Screen" on page17.
2.12.2.3 Setting Up a Static IP Address via a DHCP Network
2.12 Setting up an IP Address
To setup a permanent static IP address, after connecting SecureSync to a DHCP network:
1.
Enter the IP address shown on the front panel information display of your SecureSync
unit into the address field of your browser (on a computer connected to the SecureSync
network). If the network supports DNS, the hostname may also be entered instead (the
default hostname is "Spectracom"). The start screen of the SecureSync Web UI will be
displayed.
2.
Log into the Web UI as an administrator. The factory-default user name and password
are:
Username: spadmin
Password: admin123
3.
Disable DHCP by navigating to MANAGEMENT > Network Setup. In the Ports panel on
the right, click the GEAR icon next to the Ethernet Port you are using. In the Edit Ethernet
Port Settings window, uncheck the Enable DHCPv4 field. Do NOT click Submit or Apply
yet.
4.
In the fields below the Enable DHCPv4 checkbox, enter the desired Static IP address, Net
mask, and Gateway address (if required). Click Submit.
For more information on network configuration, see: "Network Ports" on page56.
For subnet mask values, see "Subnet Mask Values" on page52.
5.
Verify on the front panel information display that the settings have been accepted by
SecureSync.
6.
Enter the static IP address into the address field of the browser, and again log into the
WebUI in order to continue with the configuration; see: "The Web UI HOME Screen"
on page17.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
49
Page 66
2.12 Setting up an IP Address
2.12.2.4 Setting Up an IP Address via the Serial Port
SecureSync's front panel serial port connector is a standard DB9 female connector. Com
munication with the serial port can be performed using a PC with a terminal emulator program
(such as PuTTY or TeraTerm) using a pinned straight-thru standard DB9M to DB9F serial cable.
The serial port can be used to make configuration changes (such as the network settings),
retrieve operational data (e.g., GNSS receiver information) and log files, or to perform oper
ations such as resetting the admin password.
The serial port is account and password protected. You can login via the serial port using the
same user names and passwords as would be used to log into the SecureSync WebUI. Users
with “administrative rights” can perform all available commands. Users with “user” permissions
only can perform “get” commands that retrieve data, but cannot perform any “set” commands
or change/reset any passwords.
To configure an IP address via the serial port:
1.
Connect a serial cable to a PC running PuTTY, Tera Term, or HyperTerminal, and to
your SecureSync. For detailed information on the serial port connection, see "Setting up
a Terminal Emulator" on page491
2.
Login to SecureSync with a user account that has “admin” group rights, such as the
default spadmin account (the default password is admin123).
Disable DHCP, type: dhcp4set 0 off <Enter>.
3.
Note: If your SecureSync is configured with an Ethernet option card, use
0, 1, 2, 3 for eth0 – eth3.
Note: For a list of CLI commands, type helpcli, or see "CLICommands"
on page492.
4.
Configure the IP address and subnet mask, type:
ip4set 0 x.x.x.x y.y.y.y <Enter>
(where 0 is the desired interface, “x.x.x.x” is the desired IP address for
SecureSync, and “y.y.y.y” is the full subnet mask for the network (For a list of
subnet mask values, see "Subnet Mask Values" on page52.)
Configure the gateway by typing gw4set 0 z.z.z.z<Enter>
5.
(where 0 indicates which interface routing table to add the default gateway for, and
“z.z.z.z” is the default gateway address).
50
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 67
Note: If your SecureSync is configured with an Ethernet option card, use
0, 1, 2, 3 for eth0 – eth3.
6.
Remove the serial cable, connect SecureSync to the network, and access the Web UI,
using the newly configured IP address. (For assistance, see "Accessing the WebUI" on
the next page)
The remainder of the configuration settings will be performed via the Web UI (accessed via an
external workstation with a web browser such as Firefox®or Chrome®).
2.12.2.5 Setting up a Static IP Address via Ethernet Cable
This procedure will allow you to configure SecureSync using the WebUI directly via the Eth
ernet port, if for some reason you prefer not to (or cannot) use a DHCP network.
1.
First, disable DHCP using the front panel keypad and information display:
a.
Press the ü key.
2.12 Setting up an IP Address
Using the arrow key, select Netv4 from the menu.
b.
(To select a menu item, highlight it using the arrow keys, then press the ü key.)
Select the Ethernet interface for which DHCP is to be disabled, such as eth0.
c.
Select DHCP from the next menu. The display will show State=Enabled and
d.
Action=Disabled.
(The State is the current DHCP setting and the Action is the action to take. You can
only change the Action setting.)
e.
Press the ü key once to select the action, then again to apply it.
The front panel will now display the default static IP address 10.10.201.1/16.
2.
3.
Change the workstation IP address to be on the same network as SecureSync.
4.
Connect workstation and SecureSync with an Ethernet cable.
Note: You may use an Ethernet crossover cable, but you do not have to.
The remainder of the configuration settings will be performed via the Web UI (accessed via an
external workstation with a web browser such as Firefox®or Chrome®). For more information,
see "The Web UI HOME Screen" on page17.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
51
Page 68
Network Bits Equivalent Netmask Network Bits Equivalent Netmask
30 255.255.255.252 18 255.255.192.0
29 255.255.255.248 17 255.255.128.0
28 255.255.255.240 16 255.255.0.0
27 255.255.255.224 15 255.254.0.0
26 255.255.255.192 14 255.252.0.0
25 255.255.255.128 13 255.248.0.0
24 255.255.255.0 12 255.240.0.0
23 255.255.254.0 11 255.224.0.0
22 255.255.252.0 10 255.192.0.0
21 255.255.248.0 9 255.128.0.0
20 255.255.240.0 8 255.0.0.0
19 255.255.224.0
2.13 Accessing the WebUI
2.12.3 Subnet Mask Values
Table 2-2:
Subnet mask values
2.13 Accessing the WebUI
SecureSync's WebUI is the recommended tool to interact with the device, since it provides
access to nearly all configurable settings, and obtain comprehensive status information without
having to use the Command Line Interpreter (CLI).
You can access the Web UI either by using the automatically assigned DHCP IP address, or by
using a manually set static IP address (see "Assigning a Static IP Address" on page45):
1.
On a computer connected to the SecureSync network, start a web browser, and enter the
IPaddress shown on the SecureSync front panel, or setup manually beforehand into the
web browser address.
2.
When first connecting to the Web UI, a warning about security certificates may be dis
played:
52
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 69
Select Continue....
Note: "Cookies" must be enabled. You will be notified if Cookies are dis
abled in your browser.
Note: HTTPS only: Depending on your browser, the certificate/security
pop-up window may continue to be displayed each time you open the
Web UI until you saved the certificate in your browser.
Note: Static IPaddress only: To prevent the security pop-up window from
opening each time, a new SSL Certificate needs to be created using the
assigned IP address of SecureSync during the certificate generation. See
"HTTPS" on page61 for more information on creating a new SSL cer
tificate.
2.13 Accessing the WebUI
3.
Log into the Web UI as an administrator. The factory-default administrator user name
and password are:
Username: spadmin
Password: admin123
Note: For security reasons, it is advisable to change the default credentials,
see: "The Administrator Login Password" on page232.
4.
Upon initial login, you will be asked to register your product. Spectracom recommends
to register SecureSync, so as to receive software updates and services notices. See also
"Product Registration" on page258.
Number of login attempts
The number of failed login attempts for ssh is hard-set to (4) four. This value is not customer-con
figurable.
The number of failed login attempts for the Web UI (HTTP/HTTPS) is hard-set to (5) five failed
login attempts, with a 60 second lock. These two values are not customer- configurable.
To continue with the configuration, see e.g., "The Web UI HOME Screen" on page17.
To learn more about setting up different types of user accounts, see "Managing User Accounts"
on page227.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
53
Page 70
2.14 Configuring Network Settings
2.14 Configuring Network Settings
Before configuring the network settings, you need to setup access to SecureSync web user inter
face ("Web UI"). This can be done by assigning a static IP address, or using a DHCP address.
For more information, see "Setting up an IP Address" on page43.
Once you have assigned the IP address, login to the Web UI. For more information, see
"Accessing the WebUI" on page52.
To configure network settings, or monitor your network, navigate to SecureSync's Network
Setup screen.
To access the Network Setup screen:
Navigate to MANAGEMENT > Network Setup. The Network Setup screen is divided
into three panels:
54
The Actions panel provides:
General Settings: Allows quick access to the primary network settings necessary to
connect SecureSync to a network. See "General Network Settings" on the facing
page.
Web Interface Settings:
Web interface timeout: Determines how long a user can stay logged on.
For more information, see "Web UI Timeout" on page251.
Access Control: Allows the configuration of access restrictions from assigned net
works/nodes.
Login Banner: Allows the administrator to configure a custom banner message to
be displayed on the SecureSync Web UI login page and the CLI (Note: There is a
2000 character size limit).
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 71
2.14 Configuring Network Settings
SSH: This button takes you to the SSH Setup window. For details on setting up
SSH, see "SSH" on page69.
HTTPS: This button takes you to the HTTPS Setup window. For details on setting
up HTTPS, see "HTTPS" on page61.
System Time Message : Setup a once-per-second time message to be sent to
receivers via multicast. For details, see "System Time Message" on page87.
The Network Services panel is used to enable (ON) and disable (OFF) network services,
as well as the Web UI display mode, details see: "Network Services" on page58.
The Ports panel not only displays STATUS information, but is used also to set up and man
age SecureSync’s network ports via three buttons:
INFO button: Displays the Ethernet port Status window for review purposes.
GEAR button: Displays the Ethernet port settings window for editing purposes.
TABLE button: Displays a window that allows adding, editing, and reviewing
Static Routes.
2.14.1 General Network Settings
To expedite network setup, SecureSync provides the General Settings window, allowing quick
access to the primary network settings.
To access the General Settings window:
1.
Navigate to MANAGEMENT > Network Setup. In the Actions Panel on the left, click
General Settings.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
55
Page 72
2.14 Configuring Network Settings
2.
Populate the fields:
Hostname: This is the server’s identity on the network or IP address.
Default Port: Unless you specify a specific Port to be used as Default Port, the fact
ory default port eth0 will be used as the gateway (default gateway).
The General Settings window also displays the IPv4 Address and default IPv4 Gateway.
2.14.2 Network Ports
Ports act as communication endpoints in a network. The hardware configuration of your unit
will determine which ports (e.g., Eth0, Eth1, ...) are available for use. Before using a port, it
needs to be enabled and configured.
To enable & configure, or view a network port:
1.
Navigate to MANAGEMENT > Network Setup.
2.
The Ports panel on the right side of the screen lists the available Ethernet ports, and their
connection status:
Green: CONNECTED (showing the connection speed)
Yellow: CABLE UNPLUGGED (the port is enabled but there is no cable attached)
Red: DISABLED.
Locate the port you want to configure and click the GEAR button to enable & con
figure the port, or the INFO button to view the port status.
Note: The eth0 port is the built-in SecureSync Ethernet port.
3.
If the port is not already enabled, in the Edit Ethernet Ports Settings window, click the
Enable check box. The Edit Ethernet Ports Settings window will expand to show the
options needed to complete the port setup.
Fill in the fields as required:
Domain: This is the domain name to be associated with this port.
Enable DHCPv4: Check this box to enable the delivery of IP addresses
from a DHCP Server using the DHCPv4 protocol. This box is checked by
default. Should you disable (uncheck) DHCPv4, the following fields will dis
play and must be completed:
56
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 73
ETH port
Default "static lease"
IP address
ETH0 10.10.201.1
ETH1 10.10.201.2
ETH2 10.10.201.3
ETH3 10.10.201.4
2.14 Configuring Network Settings
Static IPv4 Address: This is the unique address assigned by the net
work administrator. The default static IP address of the SecureSync
unit is 10.10.201.1. In the format “#.#.#.#” with no leading zer
oes or spaces, where each ‘#’ is a decimal integer from the range
[0,255].
Table 2-3:
Default IP addresses
The default subnet is: 255.255.0.0
Netmask: This is the network subnet mask assigned by the network
administrator. In the form “xxx.xxx.xxx.xxx.” See "Subnet
Mask Values" on page52 for a list of subnet mask values.
IPv4 Gateway: The gateway (default router) address is needed if
communication to the SecureSync is made outside of the local net
work. By default, the gateway is disabled.
DNS Primary: This is the primary DNS address to be used for this
port.
Depending on how your DHCP server is configured, this is set auto
matically once DHCP is enabled. Alternatively, you may configure
your DHCP server to NOT use a DNS address.
When DHCP is disabled, DNS Primary is set manually, using the
format "#.#.#.#" with no leading zeroes or spaces, where each
‘#’ is a decimal integer from the range [0,255].
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
57
Page 74
2.14 Configuring Network Settings
4.
To apply your changes, click Submit (the window will close), or Apply.
2.14.3 Network Services
Several standard network services can be enabled or disabled via the easily accessible Net
work Services Panel under MANAGEMENT > Network Setup:
The Network Services panel has ON/OFF toggle switches for the following daemons and fea
tures:
System Time Message: A once-per second Time Message sent out via Multicast; for
details, see "System Time Message" on page87.
DNS Secondary: This is the secondary DNS address to be used for
this port. Depending on how your DHCP server is configured, this is
set automatically once DHCP is enabled, or your DHCP server may
be configured NOT to set a DNS address.
When DHCP is disabled, DNS Secondary is set manually, using the
format “#.#.#.#” with no leading zeroes or spaces, where each
‘#’ is a decimal integer from the range [0,255].
Daytime Protocol, RFC-867: A standard Internet service, featuring an ASCII daytime rep
resentation, often used for diagnostic purposes.
Time Protocol, RFC-868: This protocol is used to provide a machine-readable, site-inde
pendent date and time.
Telnet: Remote configuration
FTP server: Access to logs
SSH: Secure Shell cryptographic network protocol for secure data communication
HTTP: Hypertext Transfer Protocol
Note: A listing of recommended and default network settings can be found under
"Default and Recommended Configurations" on page311.
2.14.4 Static Routes
Static routes are manually configured routes used by network data traffic, rather than solely
relying on routes chosen automatically by DHCP (Dynamic Host Configuration Protocol). With
statically configured networks, static routes are in fact the only possible way to route network
traffic.
To view, add, edit, or delete a static route:
58
1.
Navigate to the MANAGEMENT > Network Setup screen.
2.
The Ports panel displays the available Ethernet ports, and their connection status:
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 75
2.14 Configuring Network Settings
3.
To view all configured Static Routes for all Ethernet Ports, or delete one or more Static
Routes, click the TABLE icon in the top-right corner.
4.
To add a new Route, view or delete an existing Route for a specific Ethernet Port, locate
the Port listing you want to configure, and click the TABLE button next to it.
The Static Routes window for the chosen Port will open, displaying its Routing Table,
and an Add Route panel.
In the Add Route panel, populate these fields in order to assign a Static Route to
a Port:
Net Address: This is the address/subnet to route to.
Prefix: This is the subnet mask in prefix form e.g., "24". See also "Subnet
Mask Values" on page52.
Router Address: This is where you will go through to get there.
Click the Add Route button at the bottom of the screen.
Note: To set up a static route, the Ethernet connector must be phys
ically connected to the network.
Note: Do not use the same route for different Ethernet ports; a route
that has been used elsewhere will be rejected.
Note: The eth0 port is the default port for static routing. If a port is
not given its own static route, all packets from that port will be sent
through the default.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
59
Page 76
2.14 Configuring Network Settings
2.14.5 Access Rules
Network access rules restrict access to only those assigned networks or nodes defined. If no
access rules are defined, access will be granted to all networks and nodes.
Note: In order to configure Access Rules, you need ADMINISTRATORrights.
To configure a new, or delete an existing access rule:
1.
Navigate to the MANAGEMENT > Network Setup screen.
2.
In the Actions panel on the left, click on Access Control.
3.
The Network Access Rules window displays:
4.
In the Allow From field, enter a valid IP address. It is not possible, however, to add dir
ect IP addresses, but instead they must be input as blocks, i.e. you need to add /32 at
the end of an IP address to ensure that only that address is allowed.
Example: 10.2.100.29/32 will allow only 10.2.100.29 access.
I P a d d r e s s n o m e n c l a t u r e :
IPv4—10.10.0.0/16, where 10.10.0.0 is the IP address and 16 is the subnet
mask in prefix form. See the table "Subnet Mask Values" on page52 for a list of subnet
mask values.
5.
Click the Add button in the Action column to add the new rule.
6.
The established rule appears in the Network Access Rules window.
60
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 77
2.14.6 HTTPS
2.14 Configuring Network Settings
Click the Delete button next to an existing rule, if you want to delete it.
HTTPS stands for HyperText Transfer Protocol over SSL (Secure Socket Layer). This TCP/IP pro
tocol is used to transfer and display data securely by adding an encryption layer to protect the
integrity and privacy of data traffic. Certificates issued by trusted authorities are used for
sender/recipient authentication.
Note: In order to configure HTTPS, you need ADMINISTRATORrights.
Note that SecureSync supports two different modes of HTTPS operation: The Standard HTTPS
Level (default), and a High-Security Level. For more information, see "HTTPS Security Levels" on
page249.
2.14.6.1 Accessing the HTTPS Setup Window
1.
Navigate to MANAGEMENT > NETWORK: HTTPS Setup (or, navigate to MANAGEMENT
> Network Setup, and click HTTPS in the Actions panel on the left):
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
61
Page 78
2.14 Configuring Network Settings
The HTTPS Setup window has four tabs:
Create Certificate Request: This menu utilizes the OpenSSL library to generate cer
tificate Requests and self-signed certificates.
Certificate Request: A holder for the certificate request generated under the Create
Certificate Request tab. Copy and paste this Certificate text in order to send it to
your Certificate Authority.
Upload X509 PEM Certificate: Use the window under this tab to paste your X.509
certificate text and upload it to SecureSync.
Upload Certificate File: Use this tab to upload your certificate file returned by the
Certificate Authority. For more information on format types, see "Supported Cer
tificate Format Types" on the facing page.
Exit the HTTPS Setup window by clicking the X icon in the top right window corner, or by click
ing anywhere outside the window.
Should you exit the HTTPS Setup window while filling out the certificate request parameters
form
before
ing between tabs within the HTTPS Setup window, the information you have entered will be
retained.
clicking the Submit button, any information you entered will be lost. When switch
2.14.6.2 About HTTPS
HTTPS provides secure/encrypted, web-based management and configuration of SecureSync
from a PC. In order to establish a secure HTTPS connection, an SSL certificate must be stored
inside the SecureSync unit.
SecureSync uses the OpenSSL library to create certificate requests and self-signed certificates.
The OpenSSL library provides the encryption algorithms used for secure HTTP (HTTPS). The
OpenSSL package also provides tools and software for creating X.509 Certificate Requests,
Self Signed Certificates and Private/Public Keys. For more information on OpenSSL, please
see www.openssl.org.
62
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 79
2.14 Configuring Network Settings
Once you created a certificate request, submit the request to an external Certificate Authority
(CA) for the creation of a third party verifiable certificate. (It is also possible to use an internal
corporate Certificate Authority.)
If a Certificate Authority is not available, or while you are waiting for the certificate to be
issued, you can use the default Spectracom self-signed SSL certificate that comes with the unit
until it expires, or use your own self-signed certificate. The typical life span of a certificate (i.e.,
during which HTTPS is available for use) is about 10years.
Note: If deleted, the HTTPS certificate cannot be restored. A new certificate will
need to be generated.
Note: If the IP Address or Common Name (Host Name) is changed, you may wish
to regenerate the certificate. Otherwise you may receive security warnings from
your web browser each time you login.
2.14.6.3 Supported Certificate Format Types
SecureSync supports X.509 PEM and DER certificates, as well as PKCS#7 PEM and DER format
ted certificates.
You can create a unique X.509 self-signed certificate, an RSA private key and X.509 certificate
request using the WebUI. RSA private keys are supported because they are the most widely
accepted. At this time, DSA keys are not supported.
SecureSync supports two different modes of HTTPS operation: The Standard HTTPS Level
(default), and a High-Security Level. For more information, see "HTTPS Security Levels" on
page249.
2.14.6.4 Creating an HTTPS Certificate Request
To create an HTTPS Certificate Request:
1.
Navigate to MANAGEMENT > NETWORK:HTTPS Setup, or in the MANAGEMENT >
NETWORK Setup, Actions panel, select HTTPS:
2.
Click the Create Certificate Request tab (this is the default tab).
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
63
Page 80
2.14 Configuring Network Settings
3.
Fill in the available fields:
Create Self-Signed Certificate:
This checkbox serves as a security feature: Check this box before clicking Submit,
in order to confirm that you will be generating a new self- signed certificate,
thereby overwriting any previously generated (or the Spectracom default) cer
tificate. An invalid certificate may result in denial of access to SecureSync via the
Web UI! (If this occurs, see "If a Secure Unit Becomes Inaccessible" on
page251.)
Signature Algorithm: Choose the algorithm to be used from:
Caution: Spectracom recommends to check this box (if needed) after
you have filled out the form completely, before clicking Submit. This
will prevent inadvertent submission.
MD4
SHA1
SHA256
SHA512
Private Key Pass Phrase: This is the RSA decryption key. This must be at least
4characters long.
RSA Private Key Bit Length: 2048 bits is the default. Using a lower number may
compromise security and is not recommended.
Two-Letter Country Code: This code should match the ISO-3166-1 value for the
country in question.
State Or Province Name: From the address of the organization creating up the
certificate.
Locality Name: Locale of the organization creating the certificate.
Organization Name: The name of the organization creating the certificate.
Organization Unit Name: The applicable subdivision of the organization cre
ating the certificate.
Common Name (e.g. Hostname or IP): This is the name of the host being authen
ticated. The Common Name field in the X.509 certificate must match the host
name, IP address, or URL used to reach the host via HTTPS.
Email Address: This is the email address of the organization creating the cer
tificate.
64
Challenge Password: Valid response password to server challenge.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 81
2.14 Configuring Network Settings
Optional Organization Name: An optional name for the organization creating
the certificate.
Self-Signed Certificate Expiration (Days): How many days before the certificate
expires. The default is 7200.
You are required to select a signature algorithm, a private key passphrase of at least
4characters, a private key bit length, and the certificate expiration in days. The remain
ing fields are optional.
It is recommended that you consult your Certificate Authority for the required fields in
an X509-certificate request. Spectracom recommends all fields be filled out and match
the information given to your Certificate Authority. For example, use all abbreviations,
spellings, URLs, and company departments recognized by the Certificate Authority. This
helps to avoid problems the Certificate Authority might otherwise have reconciling cer
tificate request and company record information.
If necessary, consult your web browser vendor’s documentation and Certificate Authority
to see which key bit lengths and signature algorithms your web browser supports.
Spectracom recommends that when completing the Common Name field, the user
provide a static IP address, because DHCP-generated IP addresses can change. If the
hostname or IP address changes, the X.509 certificate must be regenerated.
It is recommended that the RSA Private Key Bit Length be a power of 2 or multiple of 2.
The key bit length chosen is typically 1024, but can range from 512 to 4096. Long key
bit lengths of up to 4096 are not recommended because they can take several hours to
generate. The most common key bit length is the value 1024.
Note: The default key bit length value is 2048.
When using a self-signed certificate, choose values based on your company’s security
policy.
4.
When the form is complete, check the box Create Self Signed Certificate at the top of
the window, then click Submit. Clicking the Submit button automatically generates the
Certificate Request in the proper format for subsequent submission to the Certificate
Authority.
Note: It may take several minutes for SecureSync to create the certificate
request and the private key (larger keys will require more time than small
keys). If the unit is rebooted during this time, the certificate will not be cre
ated.
To view the newly generated request, in the HTTPS Setup window, click the Certificate
Request tab.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
65
Page 82
2.14 Configuring Network Settings
When switching between tabs within the HTTPS Setup window, the information you
have entered will be retained. If you exit the HTTPS Setup window before clicking Sub
mit, the information will be lost.
2.14.6.5 Requesting an HTTPS Certificate
Before requesting an HTTPS Certificate from a third-party Certificate Authority, you need to cre
ate a Certificate Request:
1.
Navigate to MANAGEMENT > HTTPS Setup, or to MANAGEMENT > Network Setup >
Actions panel: HTTPS.
2.
In the HTTPS Setup window, under the Certificate Request Parameters tab, complete the
form as described under "Creating an HTTPS Certificate Request" on page63.
3.
Click Submit to generate your Certificate Request.
4.
You have now created a Certificate Request. Navigate to the Certificate Request tab to
view it:
66
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 83
2.14 Configuring Network Settings
5.
Copy the generated Certificate Request from the Certificate Request window, and paste
and submit it per the guidelines of your Certificate Authority. The Certificate Authority
will issue a verifiable, authenticable third-party certificate.
6.
OPTIONAL: While waiting for the certificate to be issued by the Certificate Authority,
you may use the certificate from the Certificate Request window as a self-signed cer
tificate (see below).
NOTE: Preventing accidental overwriting of an existing certificate:
If you plan on using a new Certificate Request, fill out a new form under the Certificate Request
Parameters tab. Be aware, though, that the newly generated Certificate Request will replace
the Certificate Request previously generated once you submit it. Therefore, if you wish to retain
your previously generated Certificate Request for any reason, copy its text, and paste it into a
separate text file. Save the file before generating a new request.
Using a Self-Signed Certificate
In the process of generating a Certificate Request, a self-signed certificate will automatically be
generated simultaneously. It will be displayed under the Certificate Request tab.
You may use your self-signed certificate (or the default Spectracom self-signed certificate that
comes with the unit) while waiting for the HTTPS certificate from the Certificate Authority, or – if
a Certificate Authority is not available – until it expires. The typical life span of a certificate is
about 10years.
NOTE: When accessing the SecureSync WebUI while using the self-signed certificate, your
Windows®web browser will ask you to confirm that you want to access this site via https with
only a self-signed certificate in place. Other operating systems may vary in how they install and
accept certificates. External Internet access may be required by your Certificate Authority to
verify your certificate.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
67
Page 84
2.14 Configuring Network Settings
2.14.6.6 Uploading an X.509 PEM Certificate Text
Many certificate authorities simply issue a certificate in the form of a plain text file. If your cer
tificate was provided in this manner, and the certificate is in the X.509 PEM format, follow the
procedure below to upload the certificate text by copying and pasting it into the WebUI.
Note: Only X.509 PEM certificates can be loaded in this manner. Certificates
issued in other formats must be uploaded via the Upload Certificate tab.
To upload an X.509 PEM certificate text to SecureSync:
1.
Navigate to MANAGEMENT > NETWORK: HTTPS Setup.
2.
Select the Upload X.509 PEM Certificate tab.
3.
Copy the text of the certificate that was issued to you by your Certificate Authority, and
paste it into the text field.
4.
Click Submit.to upload the certificate to SecureSync.
NOTE: The text inside the text field under the Edit X.509 PEM Certificate tab is editable.
However, changes should not be made to a certificate once it is imported; instead, a new cer
tificate should be requested. An invalid certificate may result in denial of access to the
SecureSync through the Web UI. If this occurs, see "If a Secure Unit Becomes Inaccessible" on
page251.
2.14.6.7 Uploading an HTTPS Certificate File
Once the HTTPS Certificate has been issued by your Certificate Authority, you have to upload
the certificate file to SecureSync, unless it is a X.509 PEM-format certificate: in this case you
may also upload the certificate text directly, see "Uploading an X.509 PEM Certificate Text"
above.
68
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 85
Note: For more information about certificate formats, see "Supported Certificate
Format Types" on page63.
To upload an HTTPS certificate file to SecureSync:
1.
Store the Public Keys File provided to you by the Certificate Authority in a location
accessible from the computer on which you are running the WebUI.
2.
In the WebUI, navigate to MANAGEMENT > NETWORK: HTTPS Setup.
3.
Select the tab Upload Certificate File.
2.14 Configuring Network Settings
4.
5.
6.
2.14.7 SSH
The SSH, or Secure Shell, protocol is a cryptographic network protocol, allowing secure
remote login by establishing a secure channel between an SSH client and an SSH server. SSH
uses host keys to uniquely identify each SSH server. Host keys are used for server authen
tication and identification. A secure unit permits users to create or delete RSA or DSA keys for
the SSH2 protocol.
Choose the Certificate Type for the HTTPS Certificate supplied by the Certificate Author
ity from the Certification Type drop-down menu:
PEM
DER
PKCS #7 PEM
PKCS #7 DER
Click the Browse… button and locate the Public Keys File provided by the Certificate
Authority in its location where you stored it in step 1.
Click Submit.
Note: SecureSync will automatically format the certificate into the X.509
PEM format.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
69
Page 86
2.14 Configuring Network Settings
Note: Only SSH2 is supported due to vulnerabilities in the SSH1 protocol.
The SSH tools supported by SecureSync are:
SSH: Secure Shell
SCP: Secure Copy
SFTP: Secure File Transfer Protocol
SecureSync implements the server components of SSH, SCP, and SFTP.
For more information on OpenSSH, please refer to www.openssh.org.
To configure SSH:
1.
Navigate to MANAGEMENT > NETWORK: SSH Setup. The SSH Setup window will dis
play.
70
The window contains two tabs:
Host Keys: SSH uses Host Keys to uniquely identify each SSH server. Host keys
are used for server authentication and identification.
Public Key: This is a text field interface that allows the user to edit the public key
files authorized_keys file.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 87
2.14 Configuring Network Settings
Note: Should you exit the SSH Setup window (by clicking X in the top right
corner of the window, or by clicking anywhere outside of the window),
while filling out the Certificate Request Parameters form before clicking
Submit, any information you entered will be lost. When switching between
tabs within the SSH Setup window, however, the information you have
entered will be retained.
Host Keys
You may choose to delete individual RSA or DSA host keys. Should you decide to delete the
RSA or DSA key, the SSH will function, but that form of server authentication will not be avail
able. Should you delete both the RSA and DSA keys, SSH will not function. In addition, if SSH
host keys are being generated at the time of deletion, the key generation processes are
stopped, any keys created will be deleted, and all key bit sizes are set to 0.
You may choose to delete existing keys and request the creation of new keys, but it is often sim
pler to make these requests separately.
You can create individual RSA and DSA Host Public/Private Key pairs. Host keys must first be
deleted before new Host Keys can be created.
SecureSync units have their initial host keys created at the factory. RSA host key sizes can vary
between 768 and 4096 bits. The recommended key size is 1024. Though many key sizes are
supported, it is recommended that users select key sizes that are powers of 2 or divisible by 2.
The most popular sizes are 768, 1024, and 2048. Large key sizes of up to 4096 are sup
ported, but may take 10 minutes or more to generate. DSA keys size support is limited to 1024
bits.
Host keys are generated in the background. Creating RSA and DSA keys, each with 1024 bits
length, typically takes about 30 seconds. Keys are created in the order of RSA, DSA, RSA.
When the keys are created you can successfully make SSH client connections. If the unit is
rebooted with host key creation in progress, or the unit is booted and no host keys exist the key
generation process is restarted. The key generation process uses either the previously specified
key sizes or if a key size is undefined, the default key bit length size used is 2048. A key with a
zero length or blank key size field is not created.
The SSH client utilities SSH, SCP, and SFTP allow for several modes of user authentication.
SSH allows you to remotely login or transfer files by identifying your account and the target
machine's IP address. As a user you can authenticate yourself by using your account password,
or by using a Public Private Key Pair.
It is advisable to keep your private key secret within your workstation or network user account,
and provide the SecureSync a copy of your public key. The modes of authentication supported
include:
Either Public Key with Passphrase or Login Account Password
Login Account Password only
Public Key with Passphrase only
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
71
Page 88
2.14 Configuring Network Settings
SSH using public/private key authentication is the most secure authenticating method for SSH,
SCP or SFTP sessions.
You are required to create private and public key pairs on your workstation or within a
private area in your network account. These keys may be RSA or DSA and may be any key bit
length as supported by the SSH client tool. These public keys are stored in a file in the .ssh
directory named authorized_keys. The file is to be formatted such that the key is followed
by the optional comment with only one key per line.
Note: The file format, line terminations, and other EOL or EOF characters should
correspond to UNIX conventions, not Windows.
Changing Key Length Values
You may change the key length of the RSA, DSA, ECDSA, and ED25519 type host keys.
To change the key length of a host key:
1.
Navigate to MANAGEMENT > NETWORK: SSH Setup. The SSH Setup window will
open to the Host Keys tab by default.
72
2.
Select the Key Length value for the key type you want to change.
Key sizes that are powers of 2 or divisible by 2 are recommended. The most popular
sizes are 768, 1024, and 2048. Large key sizes of up to 4096 are supported, but may
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 89
take 10 minutes or more to generate. DSA keys size support is limited to 1024 bits. The
key type ED25519 supports 256 bits.
3.
Check the Regenerate All Keys box.
4.
Click Submit. The new values will be saved.
Note: Changing the values and submitting them in this manner DOES NOT gen
erate new host public/private key pairs. See "Creating Host Public/Private Key
Pairs" below for information on how to create new host public/private key pairs.
Deleting Host Keys
You can delete individual host keys. To delete a key:
1.
Navigate to MANAGEMENT > NETWORK: SSH Setup. The window will open to the
Host Keys tab by default.
2.
Select Delete in the field for the key you wish to delete, and click Submit.
2.14 Configuring Network Settings
Creating Host Public/Private Key Pairs
You may create individualHost Public/Private Key pairs. Host keys must first be deleted before
new Host Keys can be created. To create a new set of host keys:
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
73
Page 90
2.14 Configuring Network Settings
1.
To access the SSH setup screen, navigate to MANAGEMENT > NETWORK: SSH Setup.
The window will open to the Host Keys tab by default.
2.
Should you want to change the key length of any host key, enter the desired length in the
text field corresponding to the length you wish to change.
3.
Check the Regenerate All Keys box.
4.
Click Submit.
The KeyType/Status/Action table will temporarily disappear while the SecureSync
regenerates the keys. The Host keys are generated in the background. Creating RSA and
DSA keys, each with 1024 bits length, typically takes about 30 seconds. Keys are cre
ated in the order of RSA, DSA, ECDSA, ED25519. SecureSync will generate all 4 host
keys, RSA, DSA, ECDSA, and ED25519.
5.
Delete any of the keys you do not want. See "Deleting Host Keys" on the previous page.
Note: If the unit is rebooted with host key creation in progress, or the unit
is booted and no host keys exist, the key generation process is restarted.
The key generation process uses the previously specified key sizes.
74
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 91
2.14 Configuring Network Settings
Note: If a key size is undefined, the default key bit length size used is
2048. A key with a zero length or blank key size field will not be created.
When you delete a host key and recreate a new one, SSH client sessions will warn you that the
host key has changed for this particular IP address. The user will then either have to:
1.
Override the warning and accept the new Public Host Key and start a new connection.
This is the default. This option allows users to login using either method. Whichever
mode works is allowed for logging in. If the Public Key is not correct or the Passphrase
is not valid the user is then prompted for the login account password.
2.
Remove the old Host Public Key from their client system and accept the new Host Public
Key. This option simply skips public/private key authentication and immediately prompts
the user for password over a secure encrypted session avoiding sending passwords in
the clear.
3.
Load a public key into SecureSync. This public key must match the private key found in
the users account and be accessible to the SSH, SCP, or SFTP client program. The user
must then enter the Passphrase after authentication of the keys to provide the second
factor for 2-factor authentication.
Please consult your specific SSH client’s software’s documentation.
Public Keys: Viewing, Editing, Loading
The authorized_keys file can be viewed and edited, so as to enable adding and delet
ing Public Keys. The user may also retrieve the authorized_keys file from the .ssh dir
ectory Using FTP, SCP, or SFTP.
If you want to completely control the public keys used for authentication, a correctly formatted
authorized_ keys file formatted as indicated in the OpenSSH web site can be loaded
onto SecureSync. You can transfer a new public key file using the Web UI.
To view and edit the authorized_keys file:
1.
Navigate to MANAGEMENT > NETWORK: SSH Setup. The SSH Setup window will
open to the Host Keys tab by default.
Select the Public Key tab. The authorized_keys file appears in the Public Keys File
2.
window:
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
75
Page 92
2.14 Configuring Network Settings
Edit the authorized_keys file as desired.
3.
4.
Click the Submit button or Apply button.
The file is to be formatted such that the key is followed by an optional comment, with only one
key per line. The file format, line terminations, and other EOL or EOF characters should cor
respond to UNIX conventions, not Windows.
Note: If you delete ALL Public Keys, Public/Private Key authentication is disabled.
If you have selected SSH authentication using the Public Key with Passphrase
option, login and file transfers will be forbidden. You must select a method allow
ing the use of account password authentication to enable login or file transfers
using SCP or SFTP.
Editing the "authorized_key" File via CLI
Secure shell sessions using an SSH client can be performed using the admin or a user-defined
account. The user may use Account Password or Public Key with Passphrase authentication. The
OpenSSH tool SSH-KEYGEN may be used to create RSA and DSA keys used to identify and
authenticate user login or file transfers.
The following command lines for OpenSSH SSH client tool are given as examples of how to
create an SSH session.
76
Creating an SSH session with Password Authentication for the admin account
ssh spadmin@10.10.200.5
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 93
2.14 Configuring Network Settings
spadmin@10.10.200.5's password: admin123
You are now presented with boot up text and/or a “>” prompt which allows the use of the
Spectracom command line interface.
Creating an SSH session using Public Key with Passphrase Authentication for the
admin account
You must first provide the secure Spectracom product a RSA public key found typically in the
OpenSSH id_rsa.pub file. Then you may attempt to create an SSH session.
ssh -i ./id_rsa spadmin@10.10.200.5
Enter passphrase for key './id_rsa': mysecretpassphrase
Please consult the SSH client tool’s documentation for specifics on how to use the tool, select
SSH protocols, and provide user private keys.
Secure File Transfer Using SCP and SFTP
SecureSync provides secure file transfer capabilities using the SSH client tools SCP and SFTP.
Authentication is performed using either Account Passwords or Public Key with Passphrase.
Example output from OpenSSH, SCP, and SFTP client commands are shown below.
Perform an SCP file transfer to the device using Account Password authentication
scp authorized_keys scp@10.10.200.5:.ssh
spadmin@10.10.200.135's password: admin123
publickeys 100%
|***************************************************| 5 00:00
Perform an SCP file transfer to the device using Public Key with Passphrase authen
tication.
scp -i ./id_rsa spadmin@10.10.200.5:.ssh
Enter passphrase for key './id_rsa': mysecretpassphrase
publickeys 100%
|***************************************************| 5 00:00
Perform an SFTP file transfer to the device using Account Password authentication.
sftp spadmin@10.10.200.5
spadmin@10.10.200.135's password: admin123
You will be presented with the SFTP prompt allowing interactive file transfer and directory nav
igation.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
77
Page 94
2.14 Configuring Network Settings
Perform an SFTP file transfer to the device using Public Key with Passphrase authen
tication
sftp -i ./id_rsa spadmin@10.10.200.5
Enter passphrase for key './id_rsa': mysecretpassphrase
You will be presented with the SFTP prompt allowing interactive file transfer and directory nav
igation.
Recommended SSH Client Tools
Spectracom does not make any recommendations for specific SSH clients, SCP clients, or SFTP
client tools. However, there are many SSH based tools available to the user at low cost or free.
Two good, free examples of SSH tool suites are the command line based tool OpenSSH run
ning on a Linux or OpenBSD x86 platform and the SSH tool suite PuTTY.
The OpenSSH tool suite in source code form is freely available at www.openssh.org though
you must also provide an OpenSSL library, which can be found at www.openssl.org.
PuTTY can be found at: http://www.chiark.greenend.org.uk/~sgtatham/putty/.
SSH Timeout
The keep-SSH alive timeout is hard-set to 7200 seconds. This value is not configurable.
2.14.8 SNMP
SNMP (Simple Network Management Protocol) is a widely used application-layer protocol for
managing and monitoring network elements. It has been defined by the Internet Architecture
Board under RFC-1157 for exchanging management information between network devices,
and is part of the TCP/IP protocol.
SNMP agents must be enabled and configured so that they can communicate with the network
management system (NMS). The agent is also responsible for controlling the database of con
trol variables defined in the Management Information Base (MIB).
SecureSync’s SNMP functionality supports SNMP versions V1, V2c and V3 (with SNMP
Version3 being a secure SNMP protocol).
To access the SNMP Setup screen:
1.
Navigate to MANAGEMENT > NETWORK: SNMP Setup. The SNMP screen will dis
play:
Note: In order to configure SNMP, you need ADMINISTRATORrights.
78
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 95
The SNMP screen is divided into 3 panels:
1.
The Main panel, which is subdivided into 3 displays:
SNMP V1/V2: This panel allows configuration of SNMP v1 and v2c com
munities (used to restrict or allow access to SNMP). This tab allows the con
figurations for SNMP v1 and v2c, including the protocols allowed,
permissions and Community names as well as the ability to permit or deny
access to portions of the network. Clicking on the “+” symbol in the topright corner opens the SNMP V1/V2c Settings for Access Screen. See
"SNMP V1/V2c" on page82.
2.14 Configuring Network Settings
SNMP V3: This panel allows configuration of SNMP v3 functionality,
including the user name, read/write permissions, authorization passwords
as well as privilege Types and Passphrases. Clicking on the “+” symbol in
the top-right corner opens the SNMP V3 Screen. See "SNMP V3" on
page84.
SNMP Traps: This panel allows you to define different SNMP Managers
that SNMP traps can be sent to over the network. This allows for SNMP
Managers in different geographical areas to receive the same SNMP traps
that Managers in other areas also receive. Clicking the PLUS icon in the
top-right corner opens the SNMP Traps Settings Screen. See also "SNMP
Traps" on page85 and "Setting Up SNMP Notifications" on page224.
2.
The Actions panel, which contains the Restore Default SNMP Configuration but
ton.
3.
The SNMP Status panel, which offers:
An SNMP ON/OFF switch.
An Authentication Error Trap ON/OFF switch.
SysObjID—The System Object ID number. This is editable in the SNMP
Status panel (see "Configuring the SNMP Status" on the next page).
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
79
Page 96
2.14 Configuring Network Settings
Restoring the Default SNMP Configuration
To restore the SecureSync to its default SNMP configuration:
1.
Navigate to the MANAGEMENT > NETWORK: SNMP Setup screen.
2.
In the Actions panel, click the Restore Default SNMP Configuration button.
3.
Confirm that you want to restore the default settings in the pop-up message.
Contact Information—The email to contact for service. This is editable in
the SNMP Status panel (see "Configuring the SNMP Status" below).
Location—The system location. This is editable in the SNMP Status panel
(see "Configuring the SNMP Status" below).
Description — A simple product description. This is not editable in the
SNMP Status.
Configuring the SNMP Status
The SNMP Status Settings are sysObjectID, sysContact, and sysLocation. To configure SNMP
Status Settings:
1.
Navigate to MANAGEMENT > NETWORK: SNMP Setup.
2.
In the SNMP Status panel on the left, click the GEARicon in the top-right corner of the
panel.
3.
The SNMP Status pop-up window will display:
80
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 97
2.14 Configuring Network Settings
The following settings can be configured in this window:
In the sysObjectID field, enter the SNMP system object ID.
In the sysContact field, enter the e- mail information for the system contact you
wish to use.
In the sysLocation field, enter the system location of your SecureSync unit.
4.
Click Submit, or cancel by clicking the X-icon in the top-right corner.
Accessing the SNMP Support MIB Files
Spectracom’s private enterprise MIB files can be extracted via File Transfer Protocol (FTP) from
SecureSync, using an FTP client such as FileZilla or any other shareware/freeware FTP pro
gram.
To obtain the MIB files from SecureSync via FTP/SFTP:
1.1.
Using an FTP program, log in as an administrator.
Through the FTP program, locate the Spectracom MIB files in the /home/spec-
2.
tracom/mibs directory.
3.
FTP the files to the desired location on your PC for later transfer to the SNMP Manager.
4.
Compile the MIB files onto the SNMP Manager.
Note: When compiling the MIB files, some SNMP Manager programs may
require the MIB files to be named something other than the current names
for the files. The MIB file names may be changed or edited as necessary to
meet the requirements of the SNMP Manager. Refer to the SNMP Manager
documentation for more information on these requirements.
Note: In addition to the Spectracom MIB files, there are also some net-
snmp MIB files provided. Net-snmp is the embedded SNMP agent that is
used in the SecureSync and it provides traps to notify the user when it
starts, restarts, or shuts down. These MIB files may also be compiled into
your SNMP manager, if they are not already present.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
81
Page 98
2.14 Configuring Network Settings
Spectracom’s private enterprise MIB files can be requested and obtained from the Spec
tracom Customer Service department via email at techsupport@spectracom.com.
2.14.8.1 SNMP V1/V2c
SNMP V1 is the first version of the SNMP protocol, as defined in the IETF (Internet Engineering
Task Force) RFCs (Request for Comments) number 1155 and 1157. SNMP V2c is the revised
protocol, but it also uses the V1 community based administration model.
Creating Communities
1.
Navigate to MANAGEMENT > NETWORK: SNMP Setup.
2.
In the SNMP V1/V2 panel click the PLUS icon in the top-right corner.
Note: By default, techsupport@spectracom.com is the address in the
sysContact field of the SNMP Status panel of the SNMP Setup page.
3.
The SNMP V1/V2c Settings for Access window will display:
4.
Enter the required information in the fields provided
The IP Version field provides a choice of IPv4, IPV6 or both IPv4 and IPv6 (=
default).
The choices offered below will change in context with the choice made in the IP
Version field.
82
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
Page 99
If no value is entered in the IPv4 and/or IPv6 field, SecureSync uses the system
default address.
SNMP Community names should be between 4 and 32 characters in length.
Permissions may be Read Only or Read/Write
The Version field provides a choice of V1 or V2c.
5.
Click Submit. The created communities will appear in the SNMP V1/V2 panel:
Editing and Deleting Communities
2.14 Configuring Network Settings
To edit or delete a community you have created:
1.
Navigate to MANAGEMENT > NETWORK: SNMP Setup.
2.
Click the row of the SNMP V1/V2 panel that displays the community you wish to edit or
delete. The cursor will change from an arrow icon to a pointing finger to indicate that
the entry is clickable.
3.
The SNMP V1/V2c Settings for Access window will display.
Note: The options available for editing in the SNMP V1/V2c Settings for
Access window will vary contextually according to the information in the
entry chosen.
4.
To edit the settings, enter the new details you want to edit and click Submit. OR: To
delete the entry, click Delete.
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
83
Page 100
2.14 Configuring Network Settings
2.14.8.2 SNMP V3
SNMP V3 utilizes a user-based security model which, among other things, offer enhanced secur
ity over SNMP V1 and V2.
Creating Users
1.
Navigate to MANAGEMENT > NETWORK: SNMP Setup.
2.
In the SNMP V3 panel, click the PLUS icon in the top-right corner.
3.
The SNMP V3 Settings window will display.
84
4.
Enter the required information in the fields provided.
SNMP User Names and passwords are independent of users that are configured
on the Tools/Users page.
User names are arbitrary. SNMP User Names should be between 1 and
31 characters in length.
The User Name must be the same on SecureSync and on the management
station.
The Auth Type field provides a choice between MD5 and SHA.
The Auth Password must be between 8 and 32 characters in length.
The Priv Type field provides a choice between AES and DES.
The Priv Passphrase must be between 8 and 32 characters in length.
The Permissions field provides a choice between Read/Write and Read Only.
5.
Click Submit. The created user will appear in the SNMP V3 panel:
CHAPTER 2 • SecureSync User Reference Guide Rev. 23
