Spectech T306 User Manual

WARNING
Please read and follow all of the instructions & safety precautions detailed below prior to using this
product. Failure to do so may result in serious personal injury and / or property damage.
Safety Precautions
Do not expose this product to heat sources (including open flame or direct sunlight)  Do not expose this product to water or liquids. If liquid enters the product, immediately unplug
Do not disassemble or modify the product  Avoid dropping this product (or any other heavy impact which might damage the internal
circuit)
In the unlikely event of any abnormalities (such as strange odor, overheating, leaking, color
change, etc.),discontinue use immediately.
Avoid cleaning this product using liquids or chemical substances (use dry cloth only)  Only use attachments/accessories specified by the manufacturer  Dispose of this item properly (do not dispose of it in trash receptacles and do not attempt to
incinerate it)
Do not leave this product unattended while it is in use or while it is being charged  This product is not a toy: KEEP AWAY FROM CHILDREN  Only re-charge this device using a USB port wall adapter (not included)
Do not re-charge via USB port on a computer  Do not use this product while it is being charged
When not being used for prolonged periods of time please charge every 3 months to avoid
damaging the battery
T306 User Manual
The T306 is a high quality Wireless 4.0 CSR HD Audio Headset which features ANC (Active Noise Cancelling), aptX® & a 3.5mm audio jack for manual connections. Please read below production specifications & user guide.
T306 Specifications
Battery Type: Lithium Polymer Battery Duration/Lifespan: 500 times Capacity: 300 mAh Power Input & Current: DC 5V/0.2A Sound Output: 10mW Sensitivity: 113 dB Frequency Response: 20Hz – 20KHz Distortion Rate: <1%@THD
Wireless Version: Wireless 4.0 CSR Range of Wireless Communication: 10 meters Charge Time (0-100%): 2 hours Playback Time: 10 hours (up to 100 hrs standby time) Accessories: AUX audio cable & Micro USB charging cable Product Size: 18x178x74 mm Net Weight: 238 g

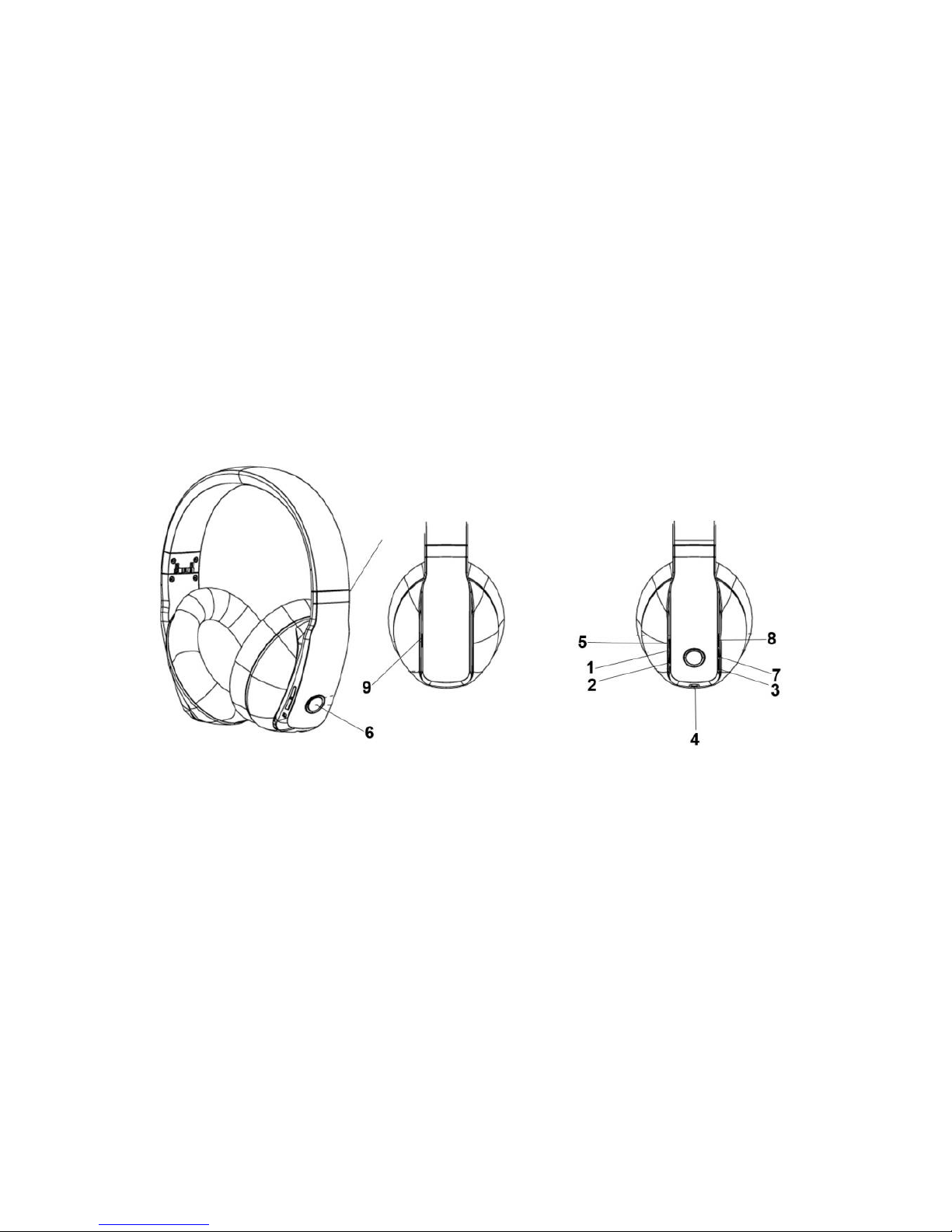

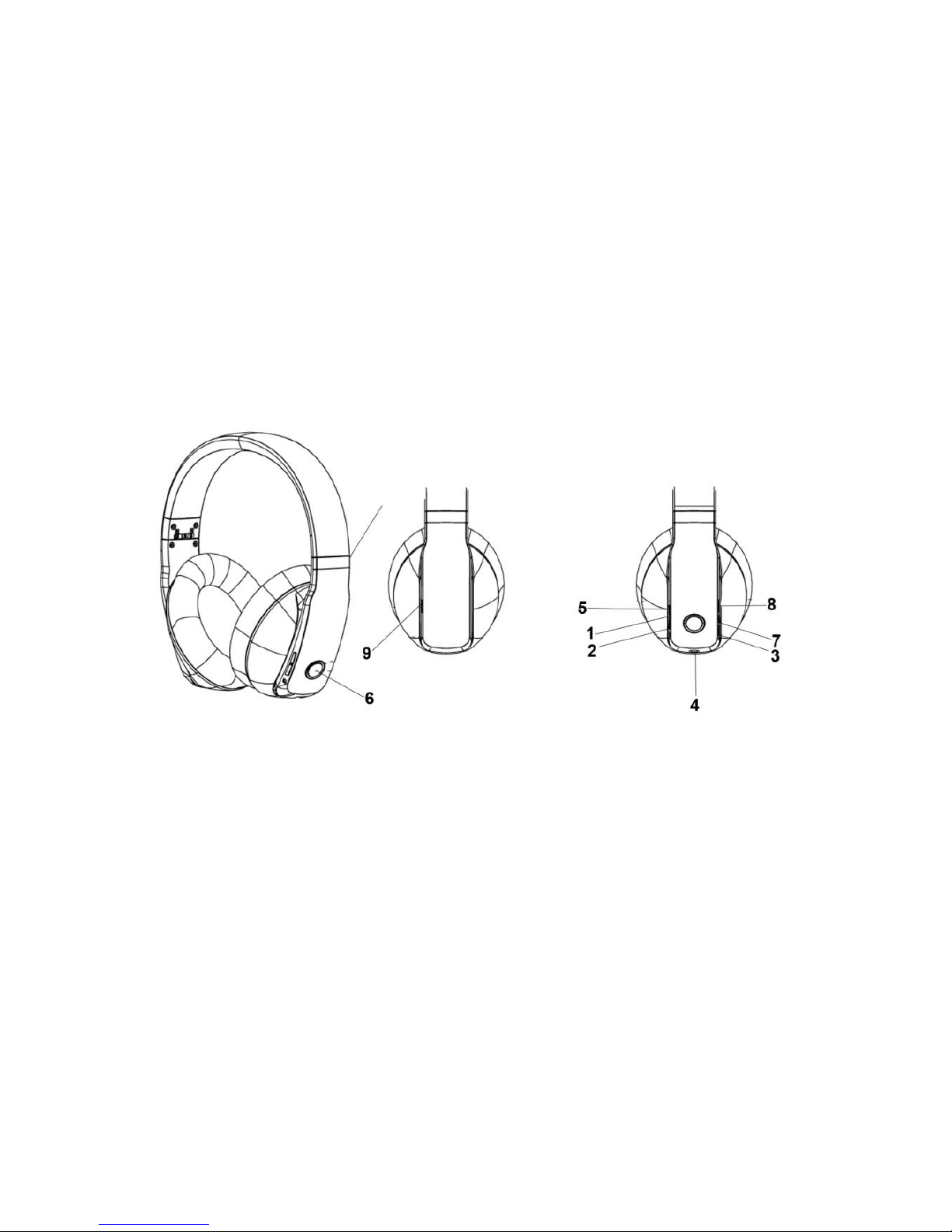

T306 Product Map
1. Volume Up
2. Volume Down
3. Micro USB Charging connector
4. Audio Cable Connector
5. Microphone location
6. Multi-Function Button and LED Indicator
7. Pair Button (c)
8. Power Switch
9. ANC (Active Noise Cancellation) Switch
T306 Operation
1. On: slide the power switch ON – blue LED will flash to indicate the headset has been turned on (in standby mode) NOTE: previously paired devices will automatically connect to the T306 headset
2. Off: slide the power switch OFF – red LED will flash to indicate the headset has been turned off
Wireless Pairing
1. Once T306 has been turned ON – hold down the pairing button (c) until LED flashes red & blue (to indicate headset is ready for Wireless pairing)
2. Enable Bluetooth function on your electronic device.
3. Search Bluetooth signal Spector T306 & pair your device (Blue LED will flash slowly when
the T306 is paired)
4. To DISCONNECT from Wireless mode: press & hold (c) until LED flashes red & blue again.
Wireless Mode
1. Play/Pause/Answer & End calll: press
2. Reject incoming call: press & hold
3. Redial last outgoing call: double press
4. Volume control: quick press +/- buttons
5. Skip songs: press & hold +/- buttons
NOTE: If the T306 is powered ON & connected but not used for 10 minutes consecutively, the headset will enter in Sleep Mode (power saving mode). Press to start using T306 again.
Voice Dialling
Note: the voice activation feature on your connected device must be enabled/activated in order for it to work using the T306
1. Press & hold the button for a few seconds until you hear a "beep" sound which indicates voice dialing is activate
2. Say whom you would like to call & your phone will begin dialing the number.
Aux Mode
1. NOTE: T306 does NOT require battery power when in AUX Mode (keep headset OFF in Aux mode in order to preserve the battery)
2. Plug in 3.5mm AUX audio cable into the T306 & into your audio device
3. Play/Pause/Skip Songs/Volume Control/Answer & End Calls: must be controlled directly on your audio device
ANC Activation
1. To activate Active Noise Cancelling feature (in Wireless or in Aux Mode) - slide the ANC power switch (White LED will remain lit to indicate ANC mode)
To Charge the T306
1. Insert micro USB into the T306 & connect the USB output to a wall adapter (not included)
2. Red LED indicates the device is charging (Red LED will turn off once fully charged)
3. Low battery indicator: flashing red LED & an audio alarm will prompt you to recharge the headset when the battery is low.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
