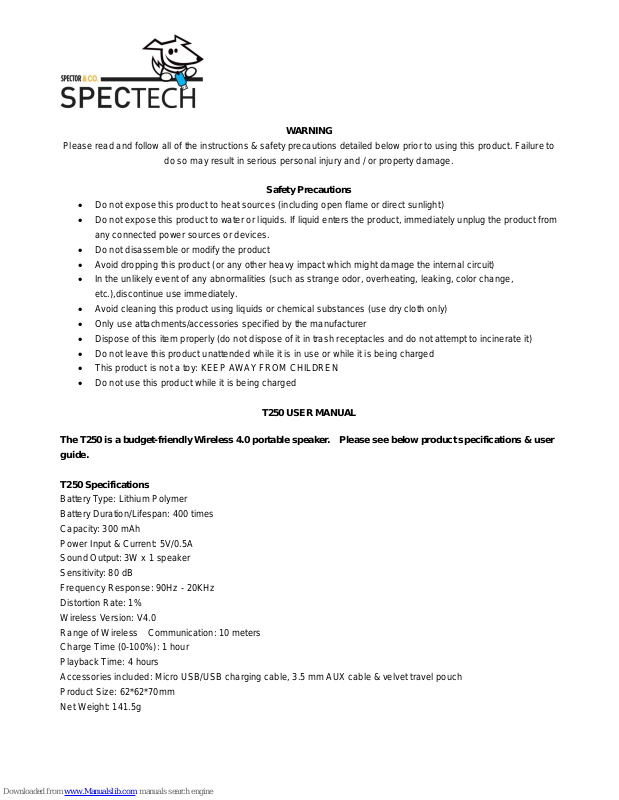

Spectech T250 User Manual

WARNING

Please read and follow all of the instructions & safety precautions detailed below prior to using this product. Failure to

do so may result in serious personal injury and / or property damage.

Safety Precautions

 Do not expose this product to heat sources (including open flame or direct sunlight)
 Do not expose this product to water or liquids. If liquid enters the product, immediately unplug the product from

any connected power sources or devices.

 Do not disassemble or modify the product
 Avoid dropping this product (or any other heavy impact which might damage the internal circuit)
 In the unlikely event of any abnormalities (such as strange odor, overheating, leaking, color change,

etc.),discontinue use immediately.

 Avoid cleaning this product using liquids or chemical substances (use dry cloth only)
 Only use attachments/accessories specified by the manufacturer
 Dispose of this item properly (do not dispose of it in trash receptacles and do not attempt to incinerate it)
 Do not leave this product unattended while it is in use or while it is being charged
 This product is not a toy: KEEP AWAY FROM CHILDREN
 Do not use this product while it is being charged

T250 USER MANUAL

The T250 is a budget-friendly Wireless 4.0 portable speaker. Please see below product specifications & user
guide.

T250 Specifications

Battery Type: Lithium Polymer
Battery Duration/Lifespan: 400 times
Capacity: 300 mAh
Power Input & Current: 5V/0.5A
Sound Output: 3W x 1 speaker
Sensitivity: 80 dB
Frequency Response: 90Hz - 20KHz
Distortion Rate: 1%
Wireless Version: V4.0
Range of Wireless Communication: 10 meters
Charge Time (0-100%): 1 hour
Playback Time: 4 hours
Accessories included: Micro USB/USB charging cable, 3.5 mm AUX cable & velvet travel pouch
Product Size: 62*62*70mm
Net Weight: 141.5g

T250 PRODUCT MAP

To charge the T250

1. Insert the micro USB tip of the charging cable into the T250 & connect USB output to a power source.

2. Red Led light indicates the speaker is in charging mode. Red Led will turn off when speaker is fully charged.

(charge time is approximately 1 hour)

Operation

1. Wireless Mode

Pairing the T250 with your audio device

a. Turn the T250 power switch ON (blue LED light will flash quickly to indicate the speaker is ready for

pairing)

b. Turn on the Bluetooth on your audio device
c. Device name is Spector T250 (no pairing password required)

d. Blue LED light will flash slowly once paired

NOTE:

 If your Bluetooth device has paired with the unit successfully once, when the T250 is activated they will connect

automatically.

 To DISCONNECT from Wireless mode: press & hold button (3 seconds)

Operation in Wireless mode

a.
Quick Press: Play next song

Long Press: Volume increase

b.
Quick Press: Play last song

Long Press: Volume decrease

c.

Music mode: Quick Press to Play/Pause
Call mode: Quick press to Answer/End a call/ Long press (hold for 2 seconds) to reject incoming call/ Double-quick
press to redial last number

NOTE:
After a call is terminated, the T250 will resume to previous working status.
Red LED light will flash to indicate low battery

AUX in Mode

PLAY/PAUSE/SKIP

SONGS/VOLUME CONTROL

MICRO USB PORT

3.5mm AUX OUTPUT

ON/Off Switch

1. Turn the T250 power switch ON & connect the AUX cable to the speaker & to your audio device (blue LED will
flash slowly when connected by audio cable)

2. When in AUX mode you can use your audio device to operate the speaker (play/pause skip songs/volume
control & answer/end phone calls)

3. OR, use & buttons to adjust volume & button to play/pause & answer calls
