Speco Technologies VL7038IRVF, VL7039IRVF User Manual
INSTRUCTION
MANUAL
DNR Bullet Day/Night
Weather-proof Camera
VL7038IRVF
VL7039IRVF
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Rev. 6/20/2012
Contents
◑
Contents ...................................................... 1
◑
Precautions ................................................. 2, 3
◑
Safety Instructions ...................................... 4
◑
Package Contents ....................................... 5
◑
Camera Installation ..................................... 6-8
◑
Specications .............................................. 9, 10
◑
Camera Dimension ..................................... 11
◑
Features ...................................................... 12
◑

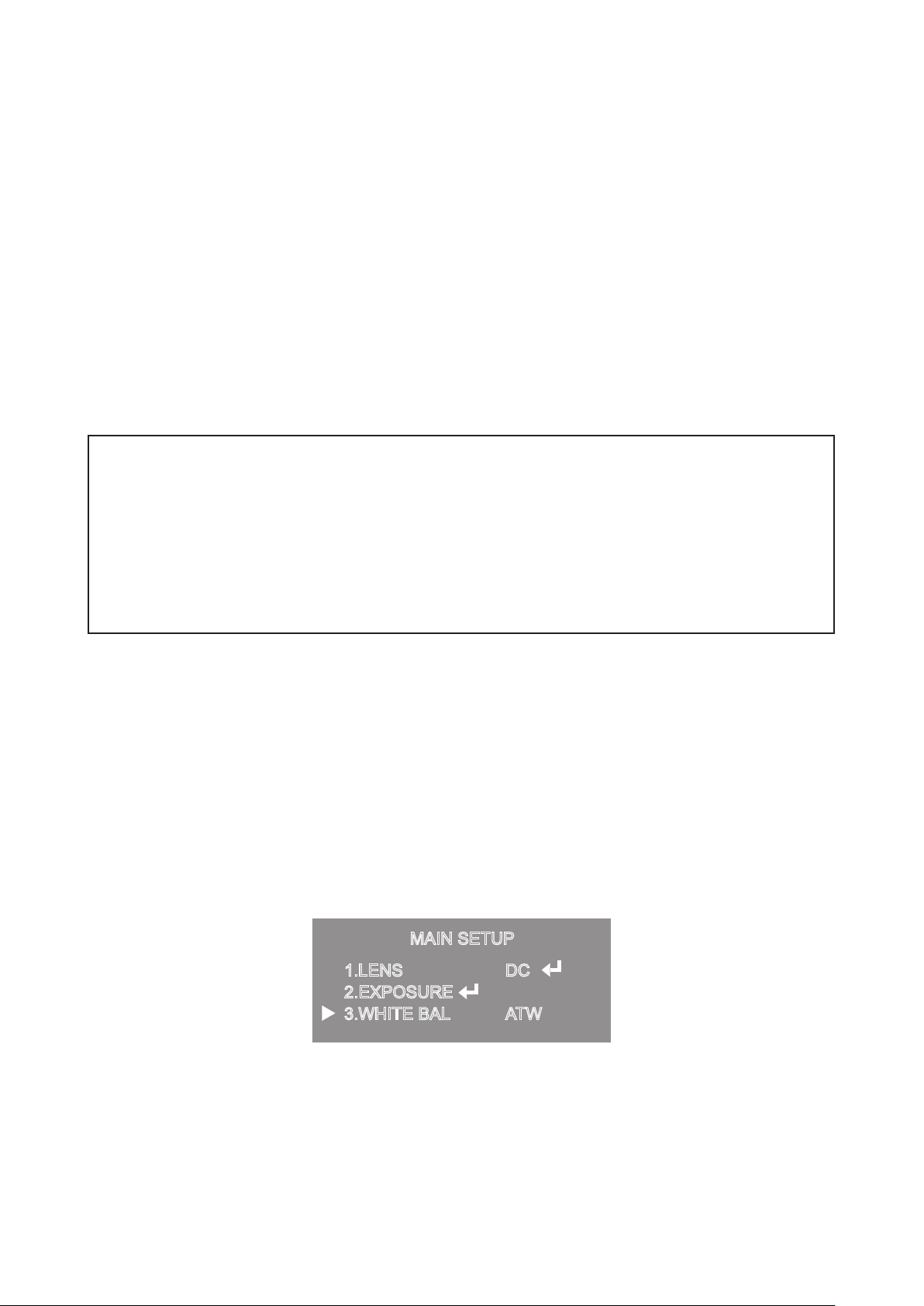

OSD Menu Details ...................................... 13-26
◑
Trouble Shooting ......................................... 27
1
Precautions
Do not install the camera in
extreme temperature conditions.
Only use the camera under conditions
where temperatures are between
-10°C and +50°C. Be especially careful to provide
ventilation when operating under high
temperatures.
Never keep the camera pointed
directly at strong light.
Do not install the camera under
unstable lighting conditions.
Severe lighting change or flicker can
cause the camera to work improperly.
Do not drop the camera or subject
it to physical shocks.
Do not touch the front lens of the
camera.
This is one of the most important parts of the
camera. Be careful not to leave
fingerprints on the lens cover.
Do not expose the camera to
radioactivity.
It can cause malfunctions to occur.
* If the camera is exposed to spotlight or object reflecting strong light,
smear or blooming may occur.
* please check that the power satisfies the normal specification before
connecting the camera.
Housing damage can compromise
wheatherproof ratings.
NOTE
If exposed to radioactivity the CCD
will fail.
2
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
their own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
☞Do NOT use power sources other than those specified.
This installation should be made by a qualified service person and
should conform to all local codes.
3
Safety Instructions
Precautions for use
◑
This camera should be installed by qualied personnel only
◑
There are no user serviceable parts inside
◑
Do not disassemble this camera other than to make initial adjustments
◑
Use a UL approved regulated 24 volt AC or 12 volt DC power supply
◑
Use appropriate low voltage power cable to prevent re or electrical shock
◑
Please insure that your installation area can support the weight of the camera
Please handle this camera carefully :
◑
Do not use a strong or abrasive detergent when cleaning the camera
◑
Do not install near cooling or heating device
4
Package Contents
Please make sure that the following items are included in the Package:
1) VL7038IRVF, VL7039IRVF
• 1 Video Test Connector, Power Jack
• 1 3Axis Bracket Round Base Adaptor
• 2 Wrenches
• Set Screw
- 4 Tapping Screws 4x25
- 4 Hexagon Socket Screws M5x15
5
CAMERA INSTALLATION
jvuulj{Gwv~lyGjhislG
XUG~oluG|zpunGXYG}vs{zGkjGOGG\WWGhPG
YUG~oluG|zpunGY[G}vs{zGhjGO[WG}GhP
ZUGjvuulj{G}pklvGjhislG
Tjvuulj{GiujGjhislG{vG{olGiujGqhjrUG
kjGXY}GwGz
wGpGaylk
jGaGORP
ishjraOTP
ylkORP
wGz
hjGY[}
6
Compatibility
1) VL7038IRVF, VL7039IRVF
CAMERA INSTALLATION
INTJBS INTCM
7
CAMERA INSTALLATION
1. VL7038IRVF, VL7039IRVF
3AXIS BRACKER ROUND BASE ADAPTOR
WALL
CAMERA ASSEMBLY
TAPPING SCREW 4X25, 4EA
HEXAGON SOCKET SCREW M5X15, 4EA
8

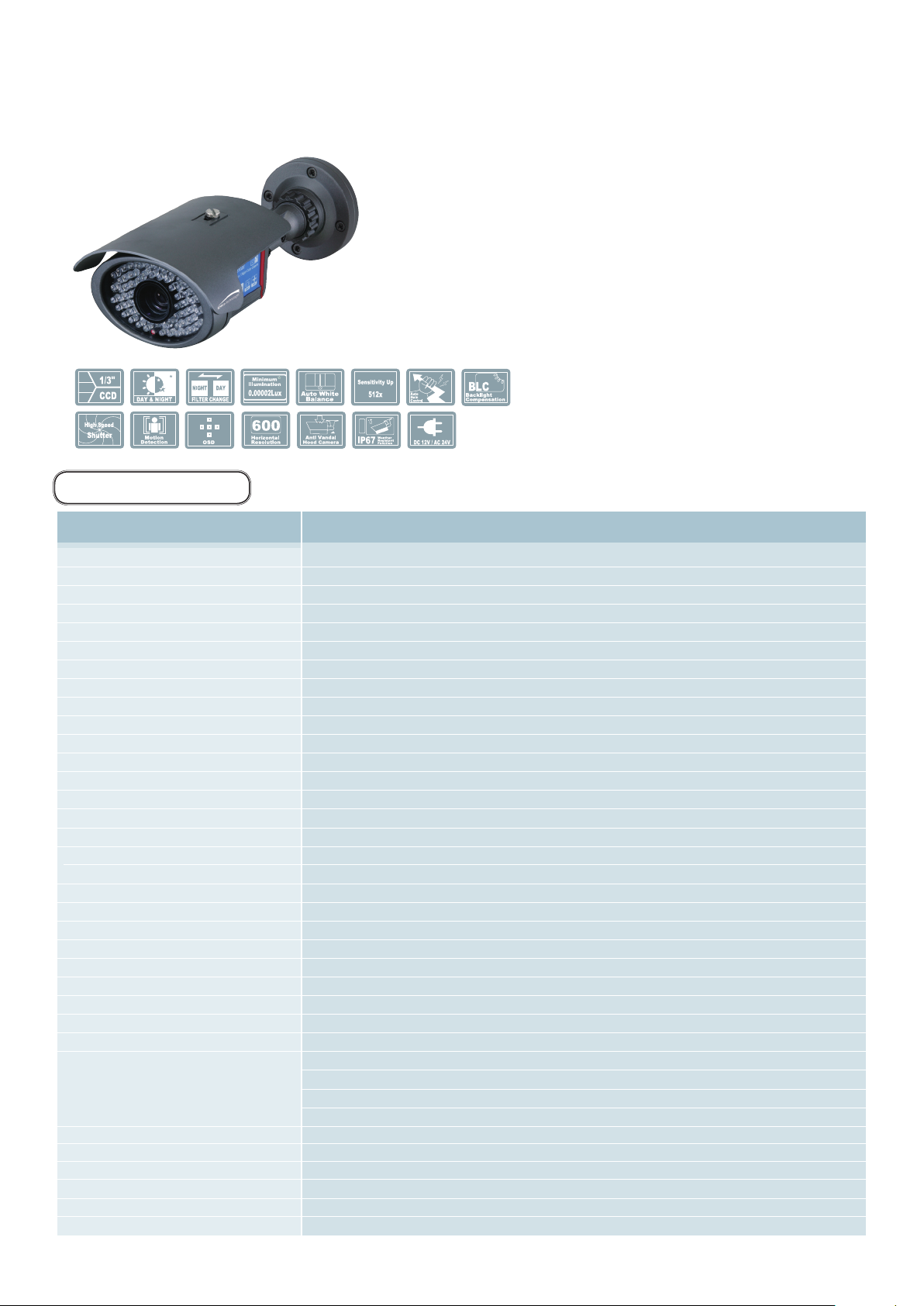

Day/Night Weather-proof Bullet Camera
DC Auto Iris Varifocal Lens(2.8mm-12mm) / IR LED Built-in 63pcs
■
VL7038IRVF
600TV Lines
DC Auto Iris Varifocal
Lens(2.8mm-12mm)
True Day/Night Capability
ICR-IR Cut Filter Removable
850nm IR LEDs * 63pcs
SPECIFICATIONS
MODEL
Image Pick-Up Device
TV System
Total Pixels
Effective Pixels
Scanning Frequency
Scanning System
Synchronization
Resolution
Minimum Illumination
S/N Ratio
Video Output
Electronic Shutter Speed
OSD
SSDR
BLC
Day & Night
Gain Control
White Balance
SENS-UP
Motion Detection
Privacy Masking
SSNR III (Digital Noise Reduction)
Digital Zoom
DIS (Digital Image Stabilizadion)
Sharpness
Filp / Mirror
Power Supply
Power Consumption
Lens
IR Distance
Operational Temp.
Storage Temp.
Dimension
Weight
VL7038IRVF
1/3” Sony Super HAD ll CCD
NTSC, PAL
NTSC=811(H) * 508(V) / PAL=795(H) * 596(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
NTSC=15.734KHz(H) & 59.94Hz(V) / PAL=15.625KHz(H) & 50.00Hz(V)
2:1 Interlace
Internal
600TV Lines
CDS OFF: 0.15 Lux, CDS ON: 0.00002 Lux
More than 52dB
CVBS: 1.0Vp-p / 75Ω
NTSC=(1/60sec~1/120,000sec) / PAL=(1/50sec~1/120,000sec)
Available
On / Off (Level adjustable)
BLC / HLC / OFF
Color / BW / AUTO / EXT
Low / High / Off
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Auto / Off (Selectable x2 ~ x512)
On / Off (8 Programmable Zones)
On / Off (12 Programmable Zones)
On / Off (Level adjustable)
On / Off (x1 ~ x16)
On / Off
On / Off (Level adjustable)
On / Off
DC 12V / AC24V(Dual Voltage)
DC 12V 220mA(CDS OFF) / 700mA(CDS ON)
Heater ON Adj:220~700mA
AC 24V 150mA(CDS OFF),450mA(CDSON)
Heater ON Adj:170~450mA
DC Auto Iris Varifocal Lens(2.8mm-12mm)
131 ft
-4˚F ~ +140˚F RH 95% Max.
-4˚F ~ +140˚F RH 95% Max.
5.31"(W) * 3.74"(H) * 11.57"(D)
3.96 lbs
9
