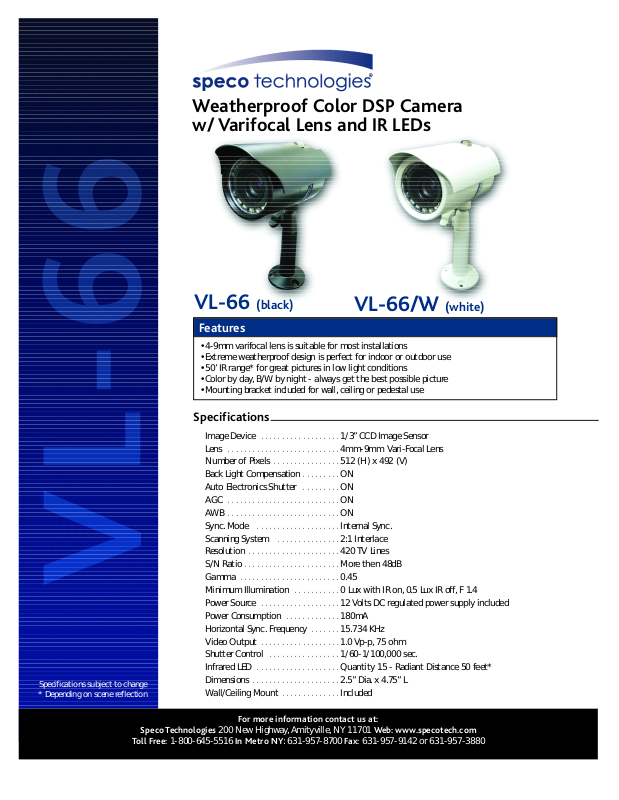

Speco Technologies VL-66 User Manual

Weatherproof Color DSP Camera w/ Varifocal Lens and IR LEDs

Specifications

Specifications subject to change * Depending on scene reflection

For more information contact us at:

Speco Technologies 200 New Highway,Amityville, NY 11701 Web: www.specotech.com

Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

Image Device . . . . . . . . . . . . . . . . . . . 1/3”CCD Image Sensor

Number of Pixels . . . . . . . . . . . . . . . . 512 (H) x 492 (V)

Back Light Compensation . . . . . . . . . ON

Auto Electronics Shutter . . . . . . . . . ON

AGC . . . . . . . . . . . . . . . . . . . . . . . . . . . ON

AWB . . . . . . . . . . . . . . . . . . . . . . . . . . . ON

Sync. Mode . . . . . . . . . . . . . . . . . . . . Internal Sync.

Scanning System . . . . . . . . . . . . . . . 2:1 Interlace

Resolution . . . . . . . . . . . . . . . . . . . . . . 420 TV Lines

S/N Ratio . . . . . . . . . . . . . . . . . . . . . . . More then 48dB

Gamma . . . . . . . . . . . . . . . . . . . . . . . . 0.45

Minimum Illumination . . . . . . . . . . . 0 Lux with IR on, 0.5 Lux IR off,F 1.4

Power Source . . . . . . . . . . . . . . . . . . . 12 Volts DC regulated power supply included

Power Consumption . . . . . . . . . . . . . 180mA

Horizontal Sync. Frequency . . . . . . . 15.734 KHz

Video Output . . . . . . . . . . . . . . . . . . . 1.0 Vp-p,75 ohm

Shutter Control . . . . . . . . . . . . . . . . . 1/60-1/100,000 sec.

Infrared LED . . . . . . . . . . . . . . . . . . . . Quantity 15 - Radiant Distance 50 feet*

Dimensions . . . . . . . . . . . . . . . . . . . . . 2.5” Dia. x 4.75” L

Wall/Ceiling Mount . . . . . . . . . . . . . . Included

Features

VL-66 (black)

• 4-9mm varifocal lens is suitable for most installations

• Extreme weatherproof design is perfect for indoor or outdoor use

• 50’ IR range* for great pictures in low light conditions

• Color by day, B/W by night - always get the best possible picture

• Mounting bracket included for wall, ceiling or pedestal use

VL-66/W (white)

Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . 4mm-9mm Vari-Focal Lens
