Tile Support for G86TG/G86TG
TTSS8
Thank you for your choice of Speco Technologies’ TS8 tile support bridge. This unit is designed and manufactured to provide an
economical solution for supporting your G86TG or G86TCG speakers in a drop ceiling. The steel construction and USA manufacturing
help ensure a long product lifespan. This unit should be used with the STH8 backcan.

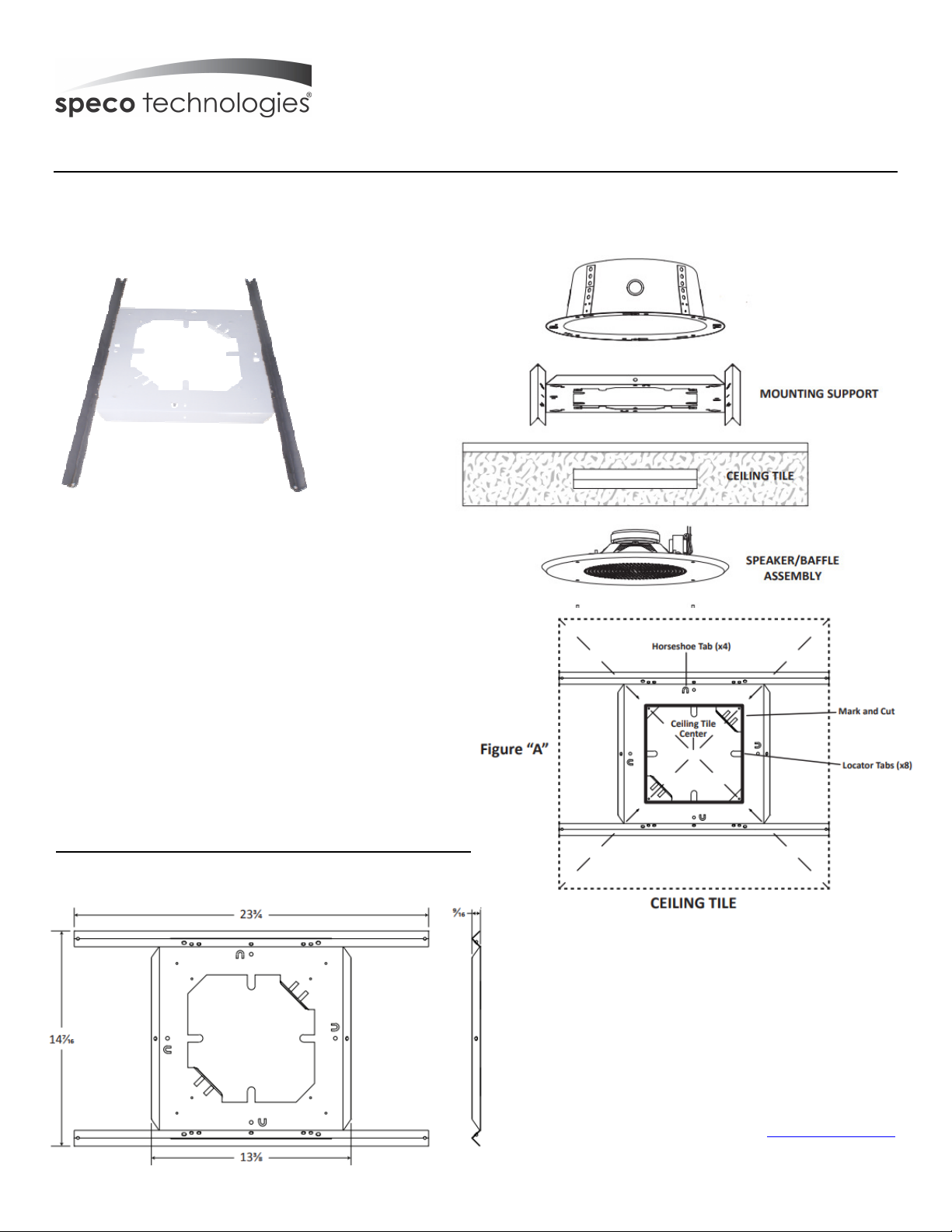

G86TG/G86TCG INSTALLATION INSTRUCTIONS:
1) Mark and cut 8-1/2” square hole in ceiling tile using TS8 as a
template as shown in Figure A.
2) If using STH8 backbox, bend up the (4) horseshoe tabs in TS8.
Refer to backbox instructions for details.
3) Position TS8 on plenum (back) side of ceiling tile with flat
side of TS8 next to ceiling tile.
4) Bend (8) locator tabs around opening in tile.
5) Install speaker/baffle from front side of ceiling tile and fasten
to TS8/tile assembly with (4) #8-32 screws provided with
speaker.
6) The TS8 can also be used with square baffle speakers. Ensure
mounting holes line up prior to installation.
TERMINATION
Feed supply cable through cable clamp or whip and terminate as shown
in specific wiring instructions. Refer to loudspeaker assembly magnet
label for termination options and wiring diagram information.
*Be sure to insulate all unused taps from each other, the enclosure, and electrical ground.
DIMENSIONS:
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications
without notice and without incurring any obligation.
Speco Technologies .
200 New Highway .
Amityville . NY . 11701 .
www.specotech.com
Rev. 04/23/20
