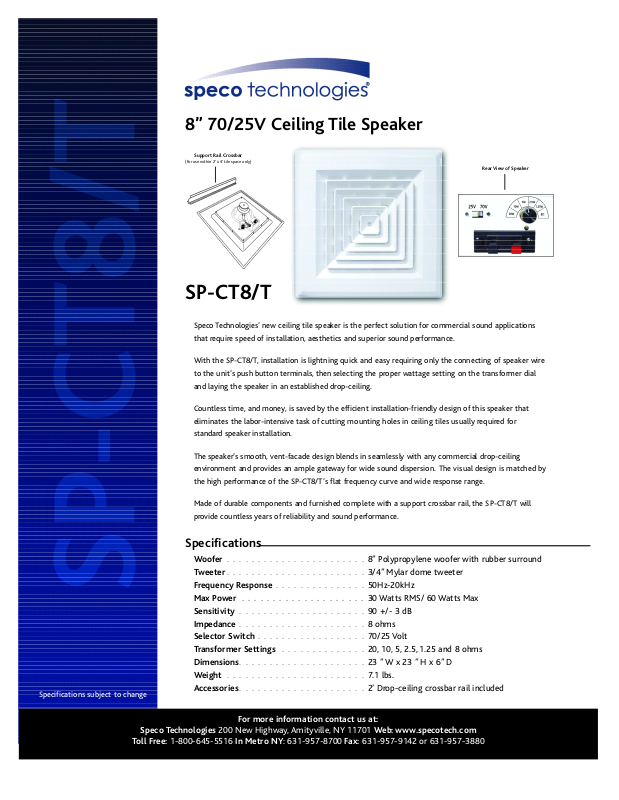

Speco Technologies SP-CT8-T User Manual

Specifications

Specifications subject to change

For more information contact us at:

Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com

Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

Woofer . . . . . . . . . . . . . . . . . . . . . . . 8” Polypropylene woofer with rubber surround

Tweeter . . . . . . . . . . . . . . . . . . . . . . . 3/4” Mylar dome tweeter

Frequency Response . . . . . . . . . . . . . . . 50Hz-20kHz

Max Power . . . . . . . . . . . . . . . . . . . . 30 Watts RMS/ 60 Watts Max

Sensitivity . . . . . . . . . . . . . . . . . . . . . 90 +/- 3 dB

Impedance . . . . . . . . . . . . . . . . . . . . . 8 ohms

Selector Switch . . . . . . . . . . . . . . . . . . 70/25 Volt

Transformer Settings . . . . . . . . . . . . . . 20, 10, 5, 2.5, 1.25 and 8 ohms

Dimensions. . . . . . . . . . . . . . . . . . . . . 23 ” W x 23 ” H x 6” D

Weight . . . . . . . . . . . . . . . . . . . . . . . 7.1 lbs.

Accessories. . . . . . . . . . . . . . . . . . . . . 2’ Drop-ceiling crossbar rail included

Speco Technologies’ new ceiling tile speaker is the perfect solution for commercial sound applications

that require speed of installation, aesthetics and superior sound performance.

With the SP-CT8/T, installation is lightning quick and easy requiring only the connecting of speaker wire to the unit’s push button terminals, then selecting the proper wattage setting on the transformer dial and laying the speaker in an established drop-ceiling.

Countless time, and money, is saved by the efficient installation-friendly design of this speaker that

eliminates the labor-intensive task of cutting mounting holes in ceiling tiles usually required for standard speaker installation.

The speaker’s smooth, vent-facade design blends in seamlessly with any commercial drop-ceiling environment and provides an ample gateway for wide sound dispersion. The visual design is matched by

the high performance of the SP-CT8/T’s flat frequency curve and wide response range.

Made of durable components and furnished complete with a support crossbar rail, the SP-CT8/T will provide countless years of reliability and sound performance.

SP-CT8/T

Rear View of Speaker

8” 70/25V Ceiling Tile Speaker

Support Rail Crossbar

(For use within 2’ x 4’ tile space only)
