1. FEATURES
1
1.1 Package
Package of Products is composed of the main body of the camera, Software CD (NVR
Program, Product Manual, NVR Manual), Quick Install Guide, Cross LAN Cable,
Accessory Pack, Power Lead Cable.
Please check before starting installation.
SIP/SIPMP Camera
Cross LAN Cable
Software CD
Quick Install Guide
Power Lead Cable Accessory Pack
1-1
1.2 Dimension and Connector Description
1.2.1 Dimensions
1. SIPB1 & SIPB2
① ② ③ ④ ⑤
1-2
⑥
⑦
⑧
2. SIPD3
① ② ③ ④ ⑤
⑥ ⑧
⑦
1-3
3. SIPD4
① ② ③ ④ ⑤
⑦
⑧
⑥
1-4
1-5
4. SIPT5
⑥
⑨
⑧
①
④
③
②
⑤
5. SIPSD10X
② ③
④
①
⑤
⑩
⑥
1-6
6. SIPMPB
① ② ③ ⑤
⑥
⑪
1-7
1-8
7. SIPMPD
① ② ③ ⑤
⑥
8. SIPMPT
②
⑫
⑤
⑨
③
⑥
①
1.2.2 Connector Description
① 12 Volts DC Power Input
② Audio Output
③ Audio Input : The SIP Camera supports one audio input and output
④ Video Output : The SIP Camera supports one analog video output with
BNC connector.(** Not available on the megapixel series)
⑤ Ethernet Port : Standard RJ45 connector. Supporting POE. (** Built-in
Power Over Ethernet except the SIPSD10X speed domes)
⑥ Reset Button (** Please open the case for the Bullet / Dome type camera )
1-9
Step 1 : Switch off SIP Camera by disconnecting the power cable.
Step 2 : Using a suitable pointed object, press and continue to hold the Reset
Button. While continuing to hold the reset button, reconnect the power cable.
Step 3 : Keep holding the reset button for 6 seconds, release the reset button.
The unit will start up with factory default settings.
⑦ Video test port : Second Video Test output

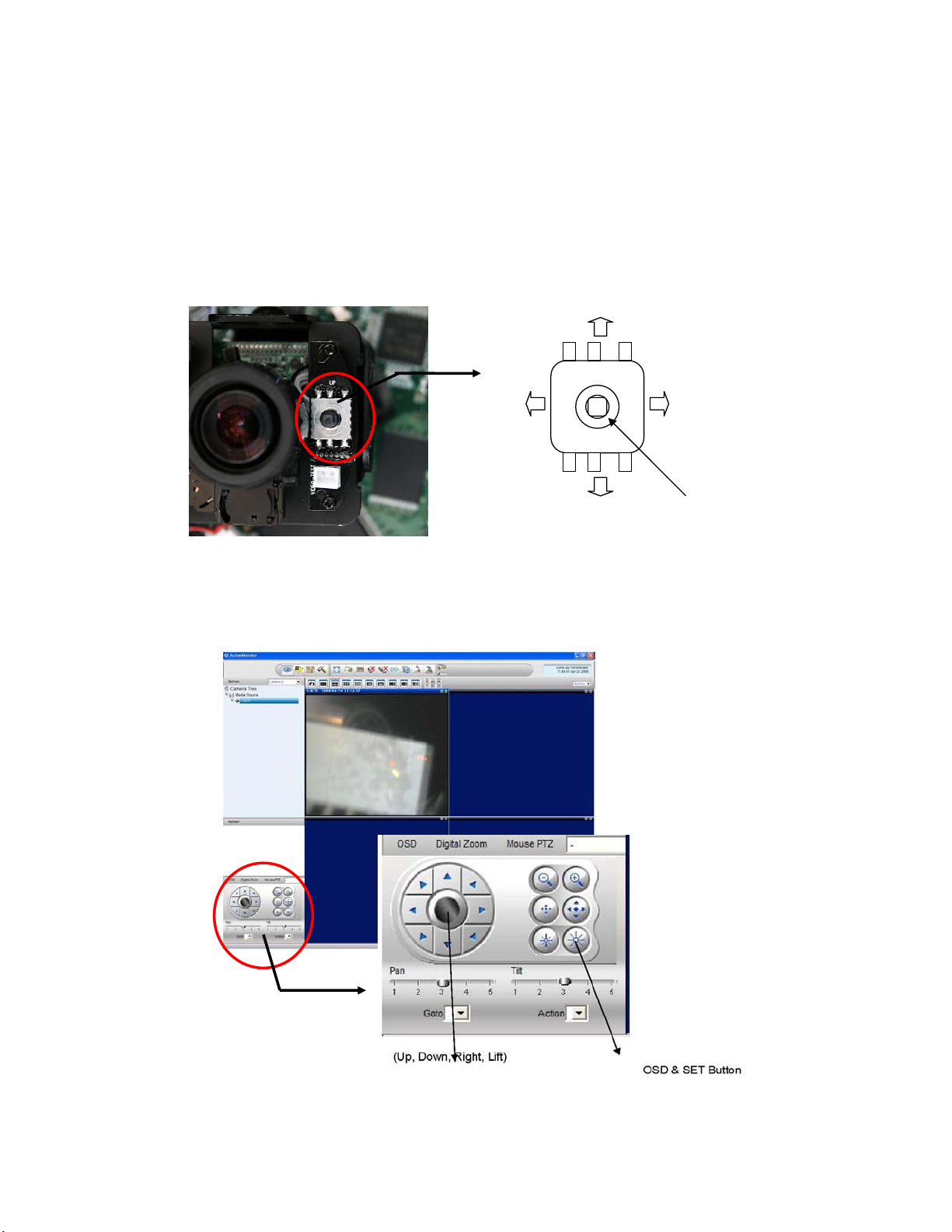

⑧ OSD control joystick
⑨ Action LED Indicator : The LED will light up after SIP Camera has
successfully completed the boot process.
⑩ DIP Switch (Baud rage & Address setting) :
Please refer to the 2.4.5 for more descriptions
⑪ LED Light level controller
⑫ Digital Input / Transistor Output
1-10
2. INSTALLATION
2
2.1 Minimum System Requirements
CPU
Hard Disk
Memory
Operating System
Video Resolution
Pentinum 4 2.4GHz and above
40 GB or above
256 MB or above
Windows XP with SP2 or above
SVGA or XGA with 1024x768 resolution
2-11
2.2 Preparation before setup
To configure your IP device, you have to use Internet Explorer to log in.
Before that, your PC’s network settings and the IP device’s IP address must
be set up. Make sure all the connections are connected correctly, and then
follow the procedures below.
1. Setup your PC network
You have to match your PC’s TCP/IP setting with the IP device’s
default settings before you can use IE browser to login it. This section
tells you how to setup your PC’s TCP/IP settings.
2. Setup IP device’s IP address
This IP device’s IP address can be setup manually or automatically by
network service (DHCP). If it acquires the IP address by using the
DHCP service, please use the IP utility software bundled in the product
CD to search all the IP devices’ IP address.
2.2.1 Setup your PC network
2-12
To set up the network of IP device via a PC, you have to change the TCP/IP
settings of the PC.
The following are the default network settings of IP device.
IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
To access the IP device, the IP address of the PC should match the address
below.
IP Address: 192.168.0.xxx
Subnet Mask: 255.255.255.0
NOTE: xxx should be a number from 1 to 254, but 100 is excepted.
The procedure below is the setup procedure of a PC using Windows XP as
its OS. When running an OS other than Windows XP, please refer to the
manual included with the OS.
z STEP 1
Start up your PC.
z STEP 2
Click the [Start] and select the "Control Panel"
2-13
z STEP 3
Double-click the "Network and Internet connections" icon.
z
STEP 4
2-14
Double-click the "Network connections" icon
z STEP 5
Click “Local Area Connections”, and then click “Change settings of
this connection” in the network Task menu.
z STEP 6
Click “Internet Protocol (TCP/IP)”, and then click the [Properties]
button.
2-15
z STEP 7
Click the “Use the following IP address” radio button and enter the IP
address and the subnet mask.
Please set the settings as below.
IP address: 192.168. 0.xxx
Subnet mask: 255.255.255. 0
(NOTE: xxx should be a number
from 1 to 254, but 100 is
excepted.)
z STEP 8
Click the [OK] button and the window dialog box closes.
2-16
2.3 Configuring the IP device
This section describes how to configure the IP device. The product
administrator has unlimited access to all setup windows and normal users
can only watch the live image. The IP device is configured under a
standard browser (Microsoft Internet Explorer 6.0 or above).
Follow the procedures below to configure the IP device.
z STEP 1: Open a browser
z STEP 2: Enter the IP address of the IP device.
The default IP address is “192.168.0.100”
The “Login Page” is now displayed as below.
2-17
z STEP 3: Enter the Account name (factory default: Admin) and the
Password (factory default: 123456).
NOTE: Internet Explorer of 6.0 or above is highly recommended. If you
don’t have the it, please download it from
http://www.microsoft.com/windows/ie/downloads/default.mspx
z STEP 4: Select the language of the IP device user interface. You can
select from English, Traditional Chinese, Simplified Chinese, Japanese,
Spanish, Italian, German, Portuguese,Czech and French. This user
interface setting will disappear once you log out, if you want to change
the default user interface language, please change the setting of [Host
setting] after login successed.
z STEP 5: Click the button to login or click the button
to re-enter again.
Once successfully login, the “Video Display page” will be displayed
as below.
2-18
2.3.1 Video Display
This section tells you how to view live images via Internet Explorer.
z STEP 1: Click the [Video Display] on the “Main Setup page”.
The “Video Display page” is displayed as below.
2-19
z STEP 2: Check the [MPEG4/MJPEG] to select the Compression
type. Once selected, the video server/IP camera will start to stream
with new compression type.
z STEP 3: Click the [Scale Down] checkbox to scale down the
SXGA(1280x1024)/720P(1280x720) to VGA resolution.
z STEP 4: Check the [Mute] checkbox to mute or display audio
from the video server/IP camera.
z STEP 5: Click the [Audio Out] checkbox to enable/disable audio
transmission from this PC to IP device’s audio out and change audio
out volume. Ex: while this function enabled you can talk to the people
at the IP device site.
z STEP 6: Click the [DO1] Button of trigger / dis-trigger DO
function by DO1.
z STEP 7: Click the [DO2] Button of trigger / dis-trigger DO
function by DO2.
z STEP 8: Click the [Quit] to exit the live view and return to “Main
Setup page”.
NOTE: If the streaming is disabled, you cannot see the live images
here.
NOTE: Be sure to set the Network Connections Type to Auto
Negotiation to respective apparatus connected to this IP device via
network. Otherwise, the maximum transmission performance might
not be achieved. This is because the IP device follows MII standard.
2-20
2.3.2 Host Setting
This section tells you how to setup IP device’s host settings and LAN
settings.
z STEP 1: Click the [Host Setting] on the “Main Setup page”.
The “Host setting page” is displayed as below.
2-21
z STEP 2: Configure these settings with reference to the table below. If you
are still unsure what to set, contact your system administrator.
■Host Setting
Parameters Description
Host name
Language
Enter a host name, and this host name will be shown when you
use the IP utility or the SDK to search for the IP device.
Select the language of default user-interface. Each user login
will see the default user-interface first.
■Network link speed & duplex
Parameters Description
This item lets you select the network transmission speed of
WAN port. You can select from
1. Auto detect (default setting)
WAN port
2. 100Mbps / Full duplex
3. 100Mbps / Half duplex
4. 10Mbps / Full duplex
5. 10Mbps / Half duplex
■Port Mapping
Parameters Description
TOS (type of
service)
TOS priority
Select whether to add the TOS tag onto the streaming data.
Streaming data with a higher priority TOS tag will be transmitted
first while compared with other data to be transmitted.
Select the TOS tag’s priority to be added onto the streaming.
You can select between
1. Normal-Service
2. Minimize-Cost
3. Maximize-Reliability
4. Maximize-throughout
5. Minimize-Delay
■ToS (Type of Service)
Parameters Description
HTTP port
Search server
port1
Search server
port2
z STEP 3: Click the [Apply] button of each setting to confirm the
settings or click the [Reset] button to re-enter the parameters.
Select the port for this IP device to use HTTP protocol.
Select the port1 for this IP device to support search function of
the application program (e.g. IP utility).
Select the port2 for this IP device to support search function of
the application program (e.g. IP utility).
2-22
NOTE: Once finished all settings, be sure to click the [Save Reboot]
button, otherwise, some settings won’t take effect.
NOTE: Check with your system administrator, if Client PC and IP device
are setting in different VLANs, please connect to WAN port.
NOTE: Be sure to set the Network Connections Type to Auto
Negotiation to respective apparatus connected to this IP device via
network. Otherwise, the maximum transmission performance might not
be achieved. This is because the IP device follows MII standard.
2.3.3 WAN Setting
This section tells you how to setup IP device’s WAN, DNS server and
DDNS server settings.
z STEP 1: Click the [WAN Setting] on the “Main Setup page”.
The “WAN setting page” is displayed as below
2-23
z STEP 2: Configure these settings with reference to the table below. If
you are still unsure what to set, contact your system administrator.
■WAN Setting
Parameters Description
Click this to enable IP device’s DHCP function.
Dynamic IP
address
Static IP
address
It will acquire its WAN port IP address from a DHCP server
within the same network. (You must have a DHCP server in
order to enable this function.)
Click this to manually enter the IP device WAN port IP
address.
IP address: Enter the WAN port IP address.
Subnet mask: Enter the subnet mask of WAN port. If
IP address is changed, adjust the subnet mask
accordingly.
PPPoE
■DNS server Setting
Parameters Description
Primary DNS
server
Secondary DNS
server
■DDNS server Setting
Parameters Description
DDNS type
Service ISP
Host name
User name
Password
Click this when you connect IP device directly to the xDSL
modem.
Note: You have to click the [Save Reboot] after you click the
[Apply button] to let this IP device start xDSL connections.
ISP gateway: Enter the IP address of the gateway
(the router).
User name: Enter the user name of your xDSL
account.
Password: Enter the password of your xDSL
account.
Defines the IP address of the primary DNS server. This is used
for identifying this computer by name instead of IP address.
The IP address of the secondary DNS server. It will be used
once the primary DNS server fails.
Click this to enable IP device’s DDNS function.
DDNS function enables user to connect to this IP device by
domain name even if its IP address is not static.
Click one of the DDNS service providers.
You can visit their website to get a DDNS service account for
this IP device.
Enter the host name of your DDNS service account. (ex:
xxxx.dyndns.org)
Enter the user name to login your DDNS service account.
Enter the password to login your DDNS service account.
2-24
z STEP 3: Click the [Apply] button of each setting to confirm the
settings or click the
NOTE: Check with your system administrator, if Client PC and IP
device are setting in different VLANs, please connect to WAN port.
NOTE: Once finished all settings, be sure to click the [Save Reboot]
button, otherwise, some settings won’t take effect.
NOTE: Be sure to set the Network Connections Type to Auto
Negotiation to respective apparatus connected to this IP device via
network. Otherwise, the maximum transmission performance might not
be achieved. This is because the IP device follows MII standard.
[Reset] button to re-enter the parameters.
2-25
2.3.4 Date Setting
This section tells you how to setup IP device’s date and time settings.
z STEP 1: Click the [Date Setting] on the “Main Setup page”.
The “Date setting page” is displayed as below
2-26
z STEP 2: Configure these settings with reference to the table below. If
you are still unsure what to set, contact your system administrator.
■Date Setting
Parameters Description
Click this to enable IP device’s SNTP/NTP function.
SNTP/NTP function enables this video to synchronize its time
settings with a SNTP/NTP server. You can use this function to
make sure all your IP devices’ time is the same. Additionally,
SNTP/NTP
server
Set manually
Time zone
Day Light Saving
with our embedded digital-time-code in the streaming, you can
tell the event sequence accurately.
Click this to manually setup the date & time.
Select the time zone offset for local settings
Select Type 1 to specify daylight saving time by week
IP address: Enter the IP address of the SNTP/NTP
server.
Sync time: Select the time interval for this IP device
to synchronize its time.
Date : Select the date
Time: Select the time
number in a month; select Type 2 to specify daylight saving
time by date.
Start Time : Select the daylight savings start time.
End Time : Select the daylight savings end time.
z STEP 3: Click the [Apply] button of each setting to confirm the
settings or click the
[Reset] button to re-enter the parameters.
NOTE: Once finished all settings, be sure to click the [Save Reboot]
button, otherwise, some settings won’t take effect.
Manually set date and time will be gone, if power off.
2-27
2.3.5 Video Setting
This section tells you how to setup IP device’s video and streaming settings.
z STEP 1: Click the [Video Setting] on the “Main Setup page”.
The “Video setting page” is displayed as below
2-28
■Video setting
Parameters Description
Camera name
Streaming Method
RTSP Authen
Enable
The camera name is reserved for customer use.
Select the streaming mode.
1. TCP only
2. Multicast only
3. RTP Over UDP
4. RTP Over Multicast
5. RTP Over UDP & Multicast
Checkbox to enable RTP streaming’s Account/Password
authentication.
2-29
RTP B2 Frame
Enable
Audio
Input Sensitivity
Multicast IP
Multicast TTL
IGMP
Resolution
Frame rate mode
Frame rate
Encoder Type
Video Bitrate
Mode
Video Maximum
Bitrate
Bitrate
Serial Port Baud
Rate
Serial Port Control
RTSP port
Video RTP Over
Multicast
Audio RTP Over
Multicast
Video control port
Video streaming
port (TCP Only)
Video multicast
port (Multicast
Checkbox to enable the B2 frame in RTP streaming
Select enable or disable the audio function.
Select HIGH or LOW of the audio input sensitivity
Select the multicast IP. Default settings is 228.5.6.1
Select the multicast TTL. Default setting is 255.
Select video type connected to the video-in of this IP
device. If you use an incorrect video type, some images
might be lost.
Select the video resolution of the IP device.
Select the frame rate mode.
Constant: The streaming’s frame rate remains
constant at all conditions.
Variable: The streaming’s frame rate will variants
according to the images variability to keep the
image quality good.
Select the frame rate of the video streaming.
Select the encoder’s compression type.
1. MPEG4
2. MJPEG
Select the video bitrate mode.
Constant Bit Rate: The streaming’s bitrate remains
constant at all conditions.
Variable Bit Rate: The streaming’s bitrate will
variants according to the images variability to keep the
image quality good.
Select the Maximum bitrate of the video straming.
Designating a limited bit rate may reduce frame
rate. Doing so will also disable Bit Rate setting below.
Select the bit rate of the video streaming. You can select
from 28Kbps to 3Mbps.
Note: Lower bit rate consumes less bandwidth but
delivers lower quality images.
High bit rate consumes more bandwidth but delivers
higher quality images.
Select the Baud Rate setting of serial port.
Select the Control setting of serial port.
Select the port for this IP device to support RTSP
Enable/disable the multicast video streaming via RTP
protocol
Enable/disable the multicast audio streaming via RTP
protocol
Select the port for this IP device to support video control
function of the application program.
Select the port for this IP device to support video
streaming function of the application program.
Select the port for this IP device to support video multicast
function of the application program.
Only)
STEP 3: Click the [Apply] button of each setting to confirm the
settings or click the
[Reset] button to re-enter the parameters.
2-30
2.3.6 Video Adjustment
This section tells you how to adjust the streaming video.
z STEP 1: Click the [Video Adjust] on the “Main Setup page”.
The “Video adjust page” is displayed as below
2-31
z STEP 2: Set the checkbox to enable motion detection function.
z STEP 3: Set the sensitivity of motion detection windows.
z STEP 4: Set the interval time of motion detection. . Within the
interval time after the motion event is triggered, no motion event will
be triggered.
z STEP 5: Set the trigger threshold of motion detection windows.
z STEP 6: In motion activity window , the bar shows the motion
activity status. You can also see the trigger threshold (Red line). When
the motion activity exceeds the trigger threshold, the bar would
become red to indicates an motion event is triggered. While viewing at
the motion activity window, you can adjust the motion sensitivity (for
more or less activities to be triggered) and the threshold (for how much
activity would trigger a motion event. If you are not sure, recommend
you to set
a. Sensitivity: 80, Threshold: 2~5 (for normal environment)
b. Sensitivity: 80, Threshold: 5~10 (for very noisy environment)
z STEP 7: When satisfied with the motion settings, click the
[Apply]
z STEP 8: Adjust the video by changing the value of “Brightness”,
“Saturation” and “Contrast”. See the images displayed above
for the effect of the current setting.
z STEP 9: When satisfied with the video settings, click the [Apply]
button of each setting to confirm the settings or click the
[Reset]
NOTE: Once finished all settings, be sure to click the [Save Reboot]
button, otherwise, some settings won’t take effect.
NOTE: You may find a support package for helping you on better
video quality adjustment. Please visit our web site, and get the
support document TS-00103.
2-32
2.3.7 Camera Setup
This section tells you how to adjust the camera.
z STEP 1: Click the [Camera Setup] on the “Main Setup page”.
The “Camera Setup page” is displayed as below
2-33
■Camera setting
Video Flipping
Video Mirror
Lens
Compensation
NightTime Gain
Threshold
White Balance
Mode
Parameters Description
Checkbox to flip the video.
Checkbox to mirror the video.
Checkbox to load the best video setting for bundled lens.
Select the nighttime gain threshold.
Select the white balance mode. After you set the
parameter, you need to wait for 5~10seconds to see the
final result.
1. AUTO : Auto white balance (default)
2. INDOOR1: Select the indoor white balance profile
R Gain
(Manual White balance
mode only)
B Gain
(Manual White balance
mode only)
Exposure mode
Exposure Gain
Shutter Speed
AGC Gain
(In auto Exposure
mode only)
Maximum Auto
Shutter Speed
(In auto Exposure
mode only)
Flickless Mode
1.
3. INDOOR2: Select the indoor white balance profile
2.
4. OUTDOOR1: Select the outdoor white balance
profile 1.
5. OUTDOOR2: Select the outdoor white balance
profile 2
6. HOLD CURRENT: Select this to let the IP
camera automatically obtain a best white balance
setting according to current environment. The IP
camera will use this setting to adjust color.
NOTE: This setting will be lost after you
reboot the camera.
7. MANUAL: Select this to enable manual setting of
the white balance. You will need to enter the R
Gain and B gain setting below.
Add or decrease redness to the video when under Manual
White Balance mode. (This function is only available in
Manual White balance mode.)
Add or decrease blueness to the video when under
Manual White Balance mode. (This function is only
available in Manual White balance mode.)
Select exposure mode to auto or manual.
- Auto: The IP camera will adjust the exposure
automatically.
- Manual: (In Manual White balance mode only)
Manually select the Exposure Gain and Shutter
Speed below.
Select the exposure Gain of the IP camera. The higher the
value = brighter images.
Increase or decrease the shutter speed. The closer the
number is to 1, the better nighttime performance is,
although this also causes motion blur to the video.
When exposure mode is auto, IP camera will adjust its
shutter speed according to AGC gain and the Maximum
auto shutter speed. Higher AGC gain = brighter images.
When exposure mode is auto, IP camera will adjust its
shutter speed according to AGC gain and the Maximum
auto shutter speed. This setting is to set the maximum
shutter speed range of this camera.
Change settings between 60Hz or 50Hz, depending on
the AC power type of your region.
2-34
STEP 2: Click the
[Apply] button of each setting to confirm the
settings or click the [Reset] button to re-enter the parameters.
2.3.8 Camera Setup (PTZ camera model)
This section tells you how to adjust the camera.
z STEP 1: Click the [Camera Setup] on the “Main Setup page”.
The “Camera Setup page” is displayed as below
2-35
■Camera setting
Video Flipping
Video Mirror
BLC
White Balance
Mode
Parameters Description
Checkbox to flip the video.
Checkbox to mirror the video.
Checkbox to enable/disable back light compensation.
Select the white balance mode. After you set the
parameter, you need to wait for 5~10seconds to see the
final result.
1. AUTO : Auto white balance (default)
2. HOLD CURRENT: Select this to let the IP
camera automatically obtain a best white balance
setting according to current environment. The IP
camera will use this setting to adjust color.
NOTE: This setting will be lost after you
reboot the camera.
3. MANUAL: Select this to enable manual setting of
the white balance.
Exposure mode
AGC Gain
Auto IRIS Level
Sense up Level
Light Sensor
Mode
NightTime Gain
Threshold
Select exposure mode.
- Auto: The IP camera will adjust the exposure
automatically.
- Shutter Priority: The IP camera will adjust the
exposure by shutter priority first.
- Iris Priority: The IP camera will adjust the
exposure by Iris priority first.
- Manual: Manually select the Exposure Gain and
Shutter Speed below.
When exposure mode is auto, IP camera will adjust its
shutter speed according to AGC gain and the Maximum
auto shutter speed. Higher AGC gain = brighter images.
Select the Iris level.
Select the sense up level.
Select light sensor mode.
- Auto: The IP camera will auto switch day or night
mode.
- Day: The IP camera will always day mode.
- Night: The IP camera will always night mode.
Select the nighttime gain threshold.
STEP 2: Click the
settings or click the
[Apply] button of each setting to confirm the
[Reset] button to re-enter the parameters.
2-36
2.3.9 PTZ (PT/TZ Camera only)
This section tells you how to adjust the camera.
z STEP 1: Click the [PTZ] on the “Main Setup page”.
The “PTZ page” is displayed as below
2-37
■Camera setting
Pan Speed
Tilt Speed
Home
Reset
PT Control
Zoom Speed
Zoom In
Zoom Out
Auto Focus
Focus In
Focus Out
Parameters Description
Select the pan speed.
Select the tilt speed.
Click the button of go to home function.
Click the button of reset the pan/tilt/zoom function.
Click the each button of pan and tilt control.
Select the zoom speed
Click the button of zoom in.
Click the button of zoom out.
Checkbox to enable/disable auto focus function.
Click the button of focus in.
Click the button of focus out.
Auto Pan Enable
Entry
Dwell
State
Add Preset
Del Preset
Checkbox to enable/disable auto pan function.
Select the preset number
Setting the delay time of auto pan function.
Preset state of enable or disable.
Click the button of add preset number.
Click the button of del preset number.
2-38
2.3.10 User Account Management
This section tells you how to setup accounts.
z STEP 1: Click the [User account] on the “Main Setup page”.
The “Account management page” is displayed as below
2-39
z STEP 2: Setup the account names and their respective passwords.
There are
1 root (administrator) account and 10 common user
accounts. Administrator account allows the user to watch the live view
and setup everything; but common user account allows user only to
watch the live image.
z STEP 3: Click the [Apply] button of each setting to confirm the
settings or click the
NOTE: Once finished all settings, be sure to click the [Save Reboot]
button, otherwise, some settings won’t take effect.
[Reset] button to re-enter the parameters.
2.3.11 System Info
This section tells you how to see the system information of this IP device
including system information, WAN status and system log.
z STEP 1: Click the [System info] on the “Main Setup page”.
The “System information page” is displayed as below
2-40
z STEP 2: View the information at the 3 columns. This information is
very useful to understand the IP device status and to resolve any
problem that might occur.
■System info
Column Description
System info
WAN status
System log
It shows the firmware version, MAC address, production ID, and
factory default type of IP device.
It shows the WAN port’s IP address, netmask, gateway, DNS
server, DDNS host and connection status.
It shows the system event. This column is very useful to as a
diagnostic tool.
z STEP 3: Click [Parameter List] where you may see all configurations
of the IP device.
z STEP 4: Click [Server Report] to export related information of the IP
device while reporting a support to your support channel.
2-41
2.3.12 Firmware Upgrade
This section tells you how to see update IP device’s firmware. You can
always visit our web site for the latest firmware.
z STEP 1: Click the [Firmware] on the “Main Setup page”.
The “Firmware upgrade page-1” is displayed as below
2-42

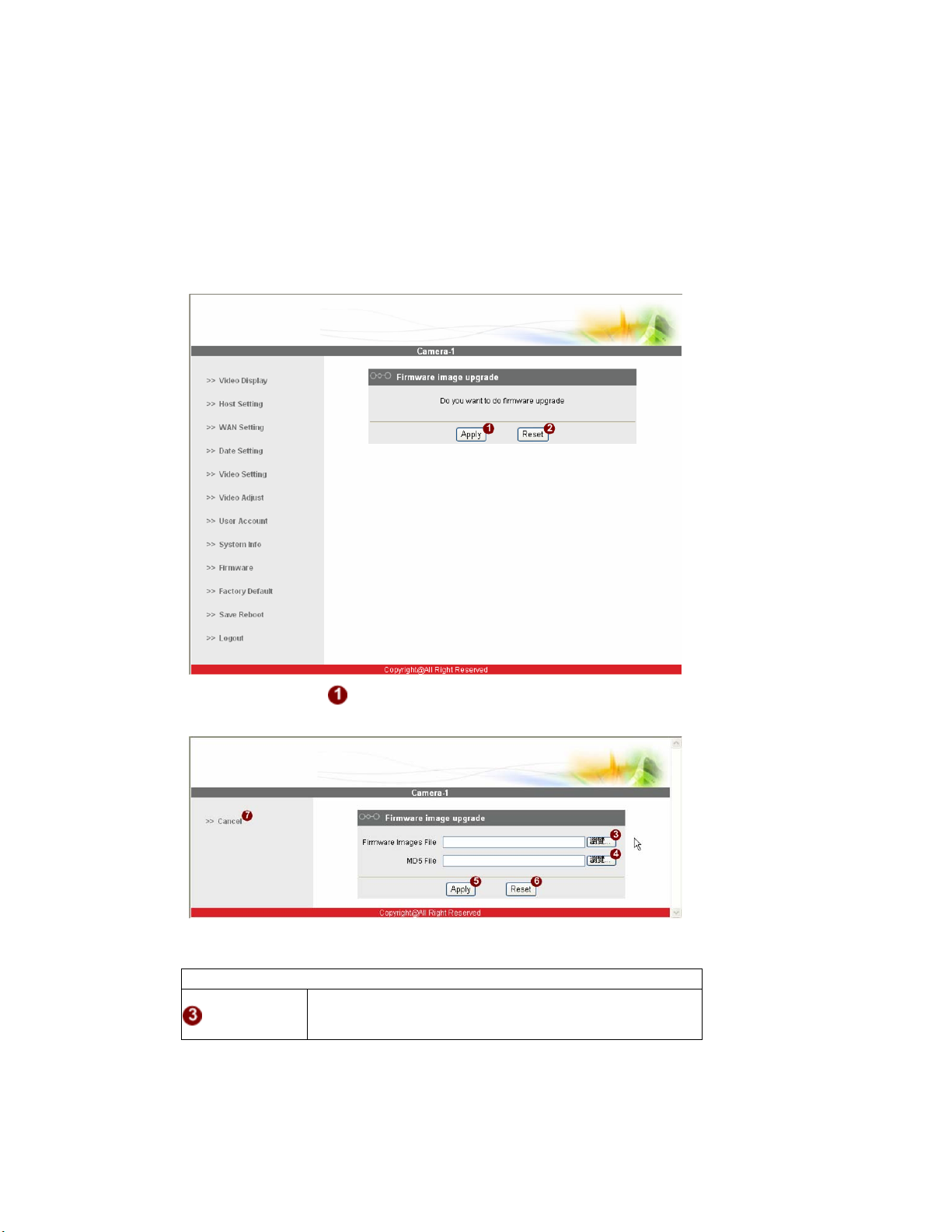

z STEP 2: Click [Apply] button. The ‘’firmware upgrade page-2”
will be displayed as below.
■Date Setting
Parameters Description
Firmware
images file
You can upload the firmware images here.
Click the [browse] to select the an image file and click the
[enter].
You can always get the latest version at our website.
You can upload the MD5 file here.
MD5 file
NOTE: The version of the firmware image and the MD5 file to be
uploaded must be the same, otherwise, the firmware upgrading will
fail and the IP device will continue using previous firmware version.
z
z STEP 3: Click the [Upload] button to start upgrading, or click the
Click the [browse] to select an MD5 file and click the [enter].
You can always get the latest version at our website.
[Reset] to re-select the files, or select to cancel the process.

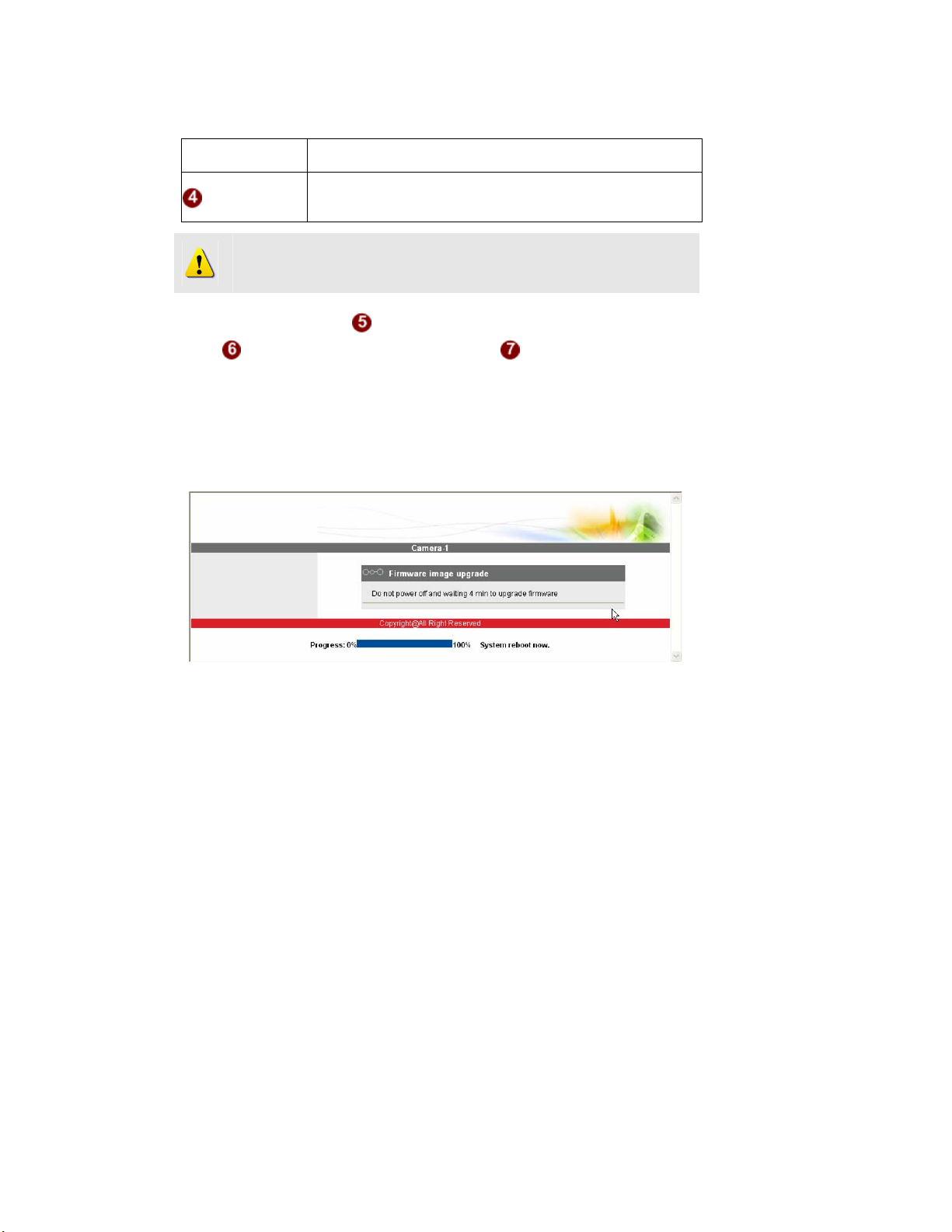

z STEP 4: The upgrade process window shows a progress bar indicating
upgrade status. When the upgrading is completed, the system will
reboot.
2-43
2.3.13 Factory Default
This section tells you how to see load IP device’s factory default setting.
z STEP 1: Click the [Factory Default] on the “Main Setup page”.
The “Factory default setting page” is displayed as below
2-44
z STEP 2: Click the [Apply] button to go to loading confirmation page
or click the [Reset] button to exit to previous page.
z STEP 3: A confirmation page will be displayed. Click the [Save
Reboot] button to start loading factory default settings.
2.3.14 Save Reboot
This section tells you how to save all the settings and reboot this IP device.
This is critical because some settings might not take effect before save and
reboot.
z STEP 1: Click the [Save and reboot] on the “Main Setup page”.
The “Save and reboot page” is displayed as below.
z STEP 2: The Action LED indicator will light down to indicate that the
IP device is rebooting. After around 30 seconds, the Action LED will
light up again to indicate that the reboot is completed.
2-45
2.3.15 Logout
This section tells you how to logout the IP device. Be sure to logout this IP
device once your setting is completed.
z STEP 1: Click the [Logout] on the “Main Setup page”.
You will logout and return to the “Login Page” displayed as below.
2-46
2.4 OSD Setting
2.4.1 Function

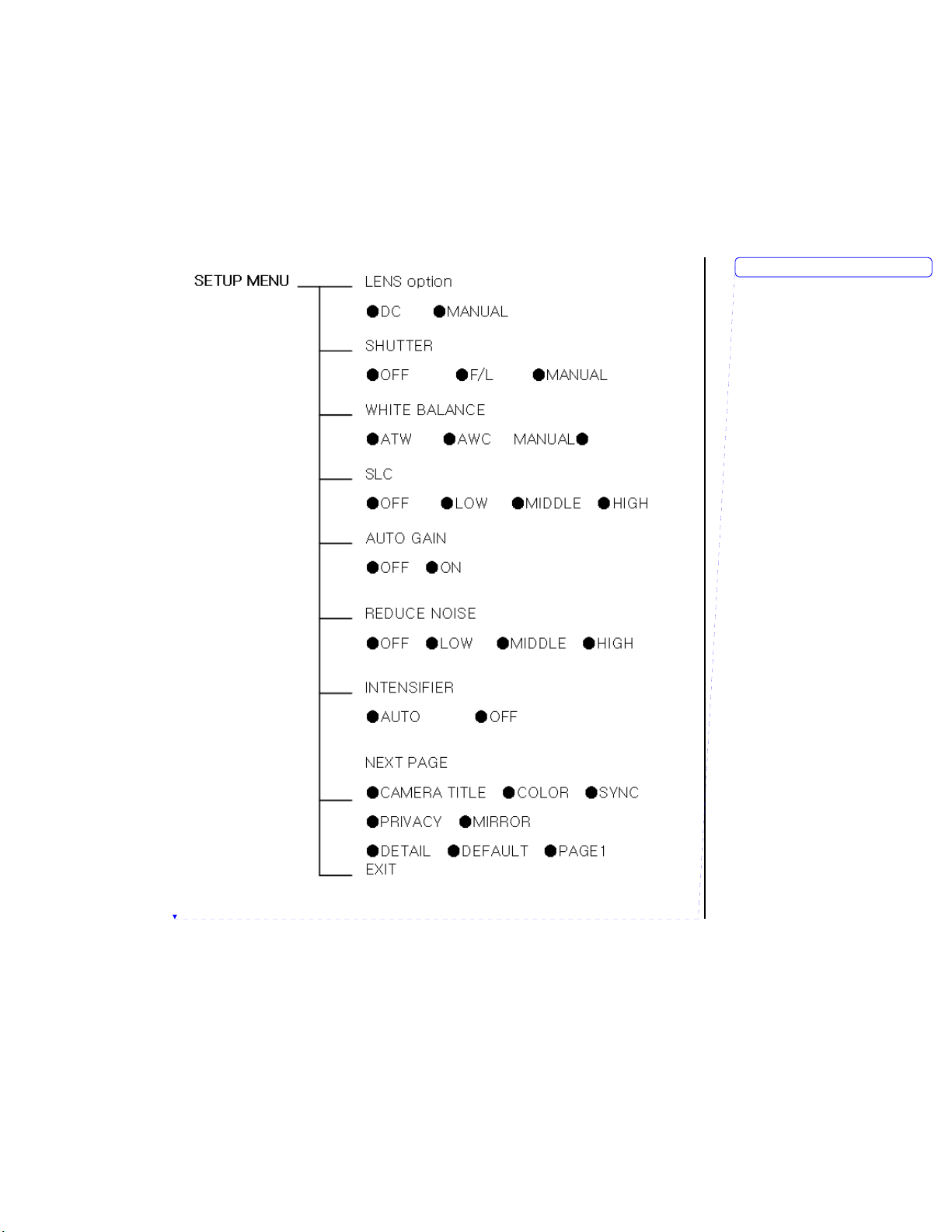

Deleted: <sp>¶
2-47
2.4.2 OSD Menu Setting
When you control the OSD by using joystick on the camera, refer to the
following (select models only)
UP
L
E
F
T
DOWN
When you control by the five keys on the NVR Software GUI refer to the
following
R
I
G
H
T
SETUP
2-48
2.4.3 Operating Camera OSD Menu

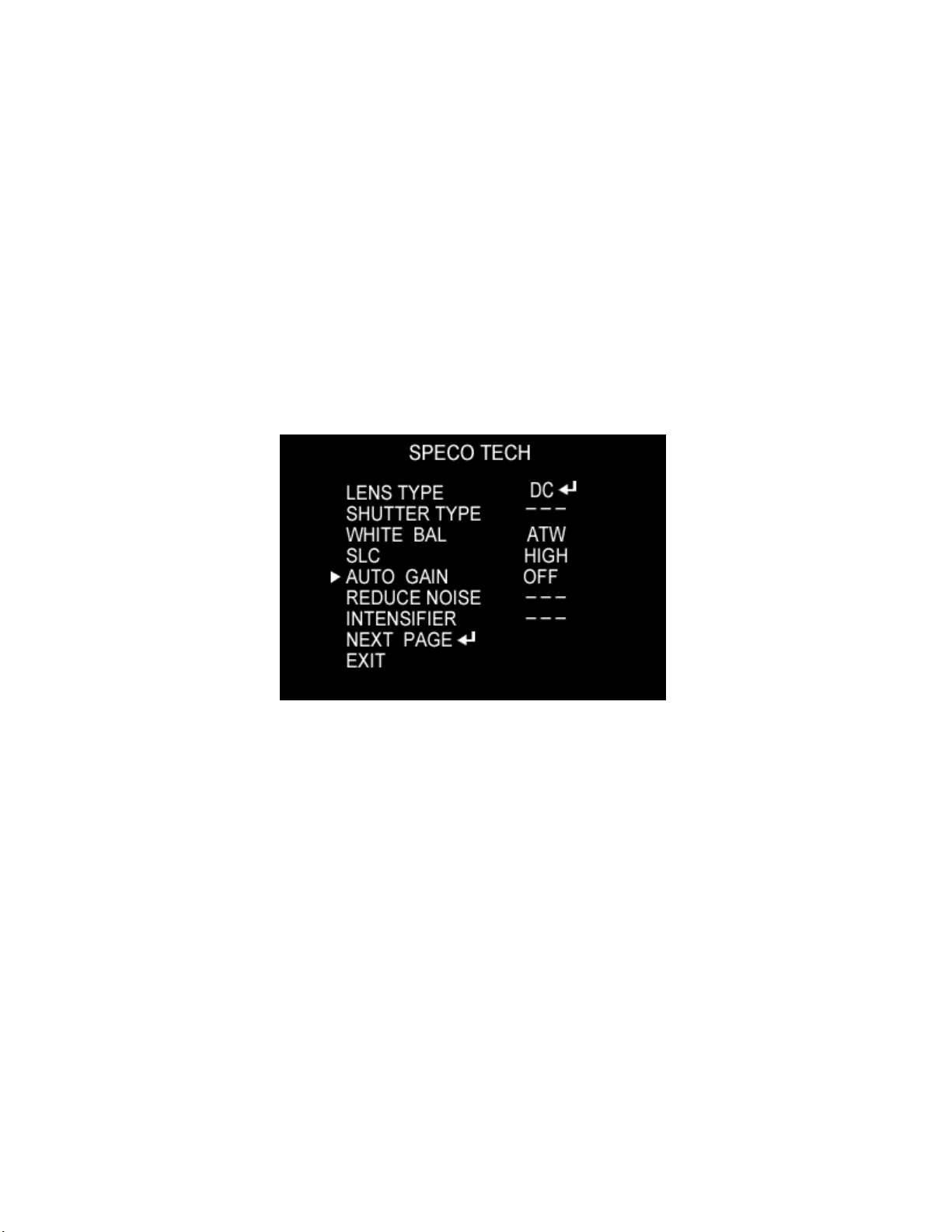

z STEP 1: Press the Set button to access the SETUP mode.
SETUP menu is displayed on the monitor screen.
z STEP 2: Select the desired feature using the UP or DOWN button.
2-49
Each time you press the UP or DOWN button, the arrow indicator
moves up or down.
Move the arrow indicator to the desired feature item.
z STEP 3: Change the status of the selected feature using the LEFT or
RIGHT button.
If you press RIGHT or LEFT button, it appears available status.
Press the button when gets desired feature.
z STEP 4: When competed, move the arrow indicator to ‘EXIT’ and
press the SET button.
NOTE: You can access submenu using SET button.
For the mode with ‘---‘, you may net access submenu.

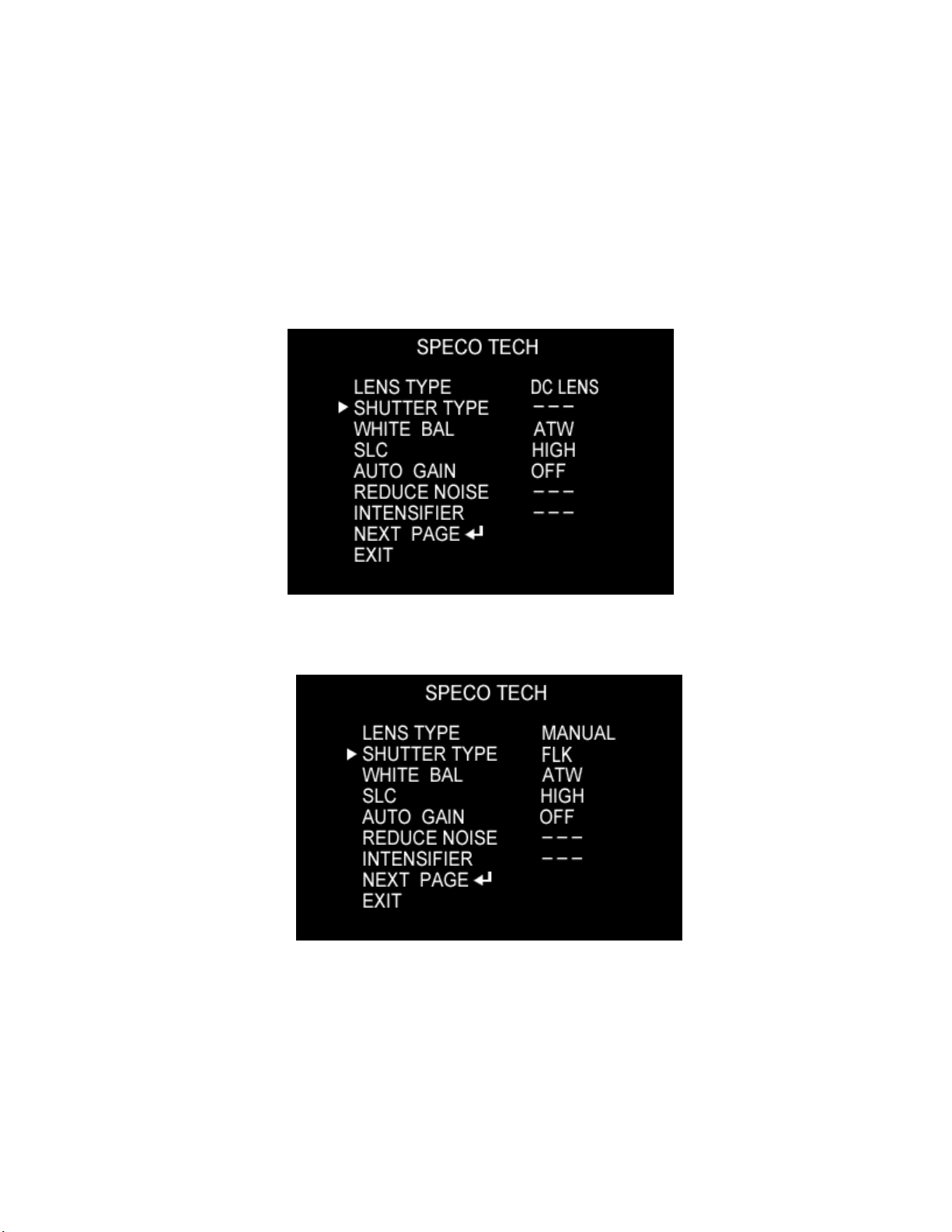

1. Setting up the LENS
Select the lens pressing the RIGHT button.
a. On the SETUP menu screen, move the arrow indicator to the
lens using the up or Down button.
b. Select the desired feature using the LEFT or RIGHT button.
2-50

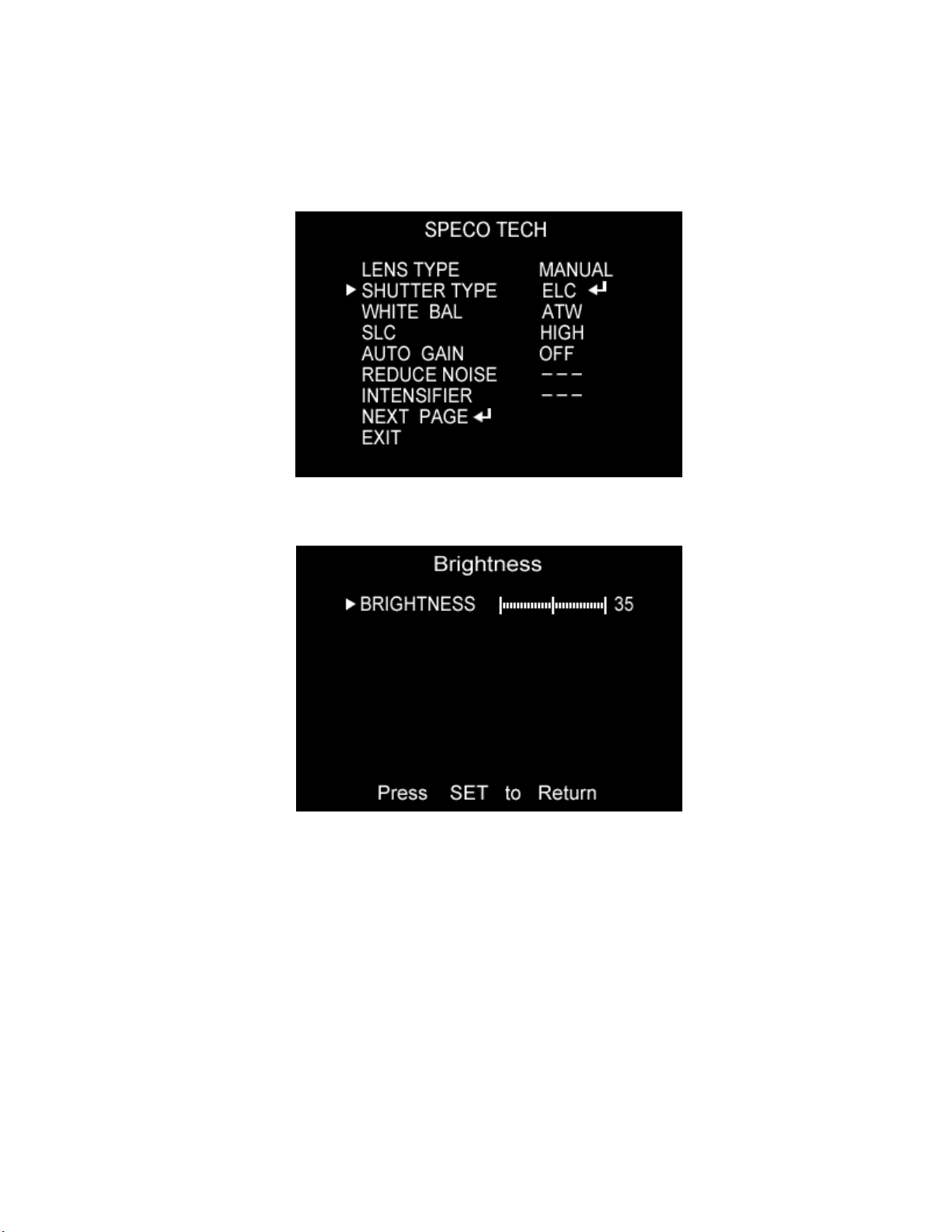

When DC LENS selected, press SET button to control the
BRIGHTNESS.
2-51
Shutter status and speed control
You can control brightness of the screen by the shutter speed.
a. Press the SET button to display the setup menu and move the
arrow indicator to ‘SHUTTER’ using the UP or DOWN
button.
b. Set ‘SHUTTER’ the desired mode using the LEFT or RIGHT
button.
OFF : Deactivation
FLK(1/100) : Flicker mode
(When WDR is on, the image can flicker a little)
2-52
Manual : When setting shutter speed manually.
(Only for LENS mode)
You can select speed from ‘1/60’ to ‘1/200,000’
2-53
ESC : You can control the BRIGHTNESS.
2-54
c. When completed, press ‘SET’
2. SLC ( Speco Light Compensation ) – BACKLIGHT
A built-in SR chip provides intelligent light level control to overcome
serve Backlight conditions.
a. Press the SET button to display the SETUP menu and move
arrow indicator to ‘BACKLIGHT’ using the UP or DOWN
button.
b. SET ‘BACKLIGHT’ to the desired mode using the LEFT or
RIGHT button.
OFF / LOW / MIDDLE / HIGH
2-55
2-56
AUTO GAIN CONTROL (AGC)
AGC is to get bright picture. Higher GAIN level, getting brighter
screen. However, you can get noise increase.
a. Press the SET button to display the SETUP menu and move
arrow indicator to ‘AGC’ using the UP or DOWN button.
b. SET ‘AGC’ to the desired mode using the LEFT or RIGHT
button.
OFF / ON

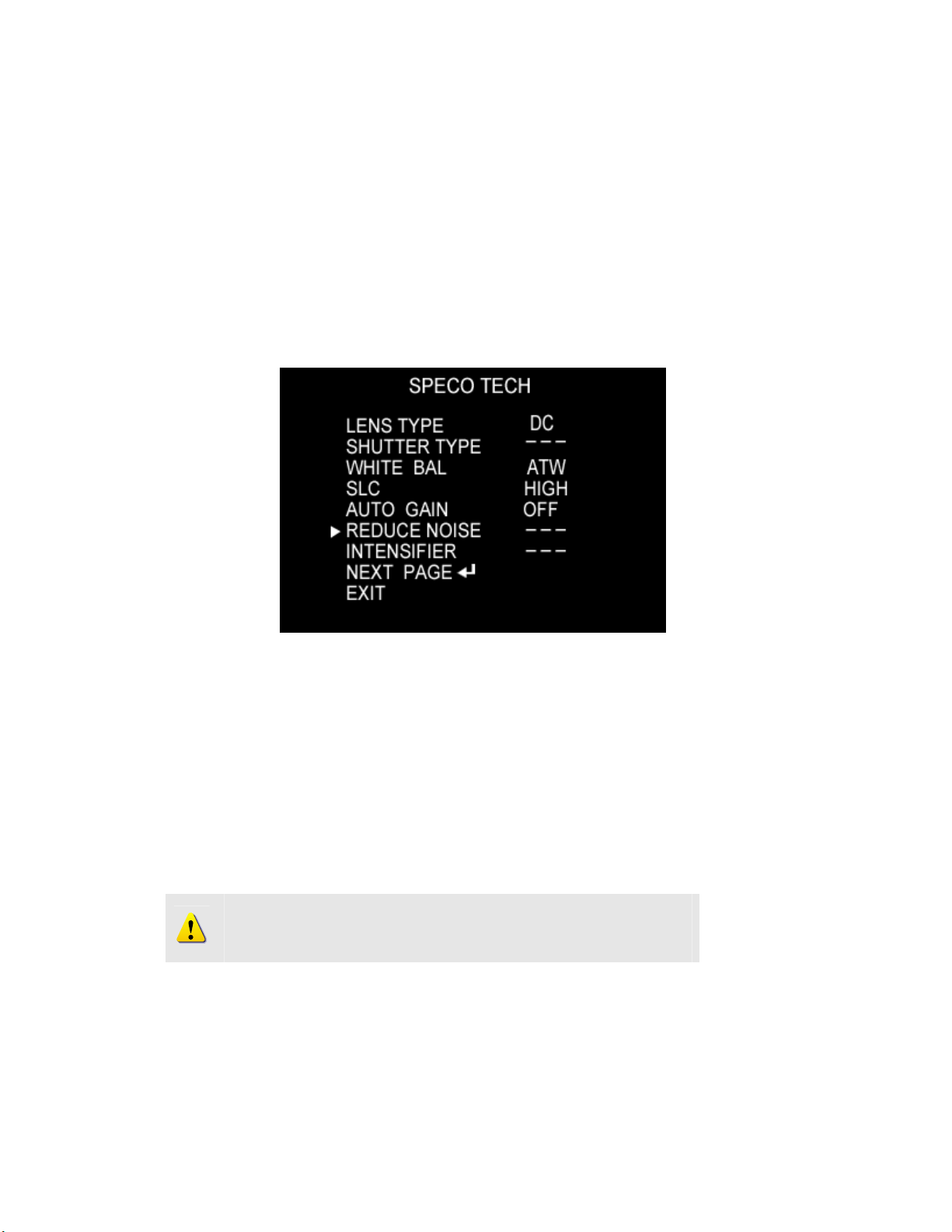

3. WHITE BALANCE (WITE BAL.)
For color control on the screen, use ‘WHITE BALANCE’ function.
a. Press the SET button to display the SETUP menu and move
arrow indicator to ‘
WHITE BALANCE’ using the UP or
DOWN button.
b. SET ‘
WHITE BALANCE’ to the desired mode using the LEFT
or RIGHT button.
ATW (Auto Tracking White Balance)
: When color temperature is 2400 ~ 12000K, select this mode.
(Ex. A fluorescent lamp, outdoor)
AWC (Auto White Balance Control)
: The white balance is automatically adjusted in a specific
environment. In order to obtain the best result, press the set
button while the camera focuses on white paper. If the
environment including the light source is changed, you have
to adjust the white balance again.
Manual : To fine adjust, select the Manual mode. You can
increase or decrease the red or blue factor while monitoring
the difference on the screen. Set to ‘Manual, mode and press
2-57
2-58
the SET button. Increase or decrease the value for
RED(R-Gain) and BLUE(B-Gain), watching the color of the
picture, and press the SET button when you obtain the best
color.
NOTE: Proper White Balance may not be obtained under the
following conditions in these cases select the AWC mode.
When the scene contains mostly high color temperature object, such
as a blue sky or sunset.
When the scene is dim.
If your camera faces fluorescent lamp directly or is installed in the
place of the changing illumination.
4. Digital Noise Reduction (Dynamic Noise Reduction)
DNR is to reduce the noise on the screen.
a. Press the SET button to display the SETUP menu and move
arrow indicator to ‘
DNR’ using the UP or DOWN button.
2-59
b. SET ‘
DNR’ to the desired mode using the LEFT or RIGHT
button.
OFF : Deactivation
LOW : Low reduction of the noise
MIDDLE : Middle reduction of the noise
HIGH : High reduction of the noise
NOTE: If you change the ‘GAIN’ menu from AGC-L to AGC-H
sensitivity is increased as well as noise on the screen.
When selected ‘GAIN’ menu OFF, DNR will not work.
5. INTENSIFIER
Allows you to get clear images with function under night or low light
conditions
a. Press the SET button to display the SETUP menu and move
arrow indicator to ‘
INTENSIFIER’ using the UP or DOWN
button.
b. SET ‘
INTENSIFIER’ to the desired mode using the LEFT or
RIGHT button.
AUTO : When your camera is under night or low-lighting
level, select this mode.
NOTE: If you press SETUP at ‘AUTO’ menu from AGC-L to AGC-H
sensitivity is increased as well as noise on the screen.
When selected ‘GAIN’ menu OFF, DNR will not work.
2-60

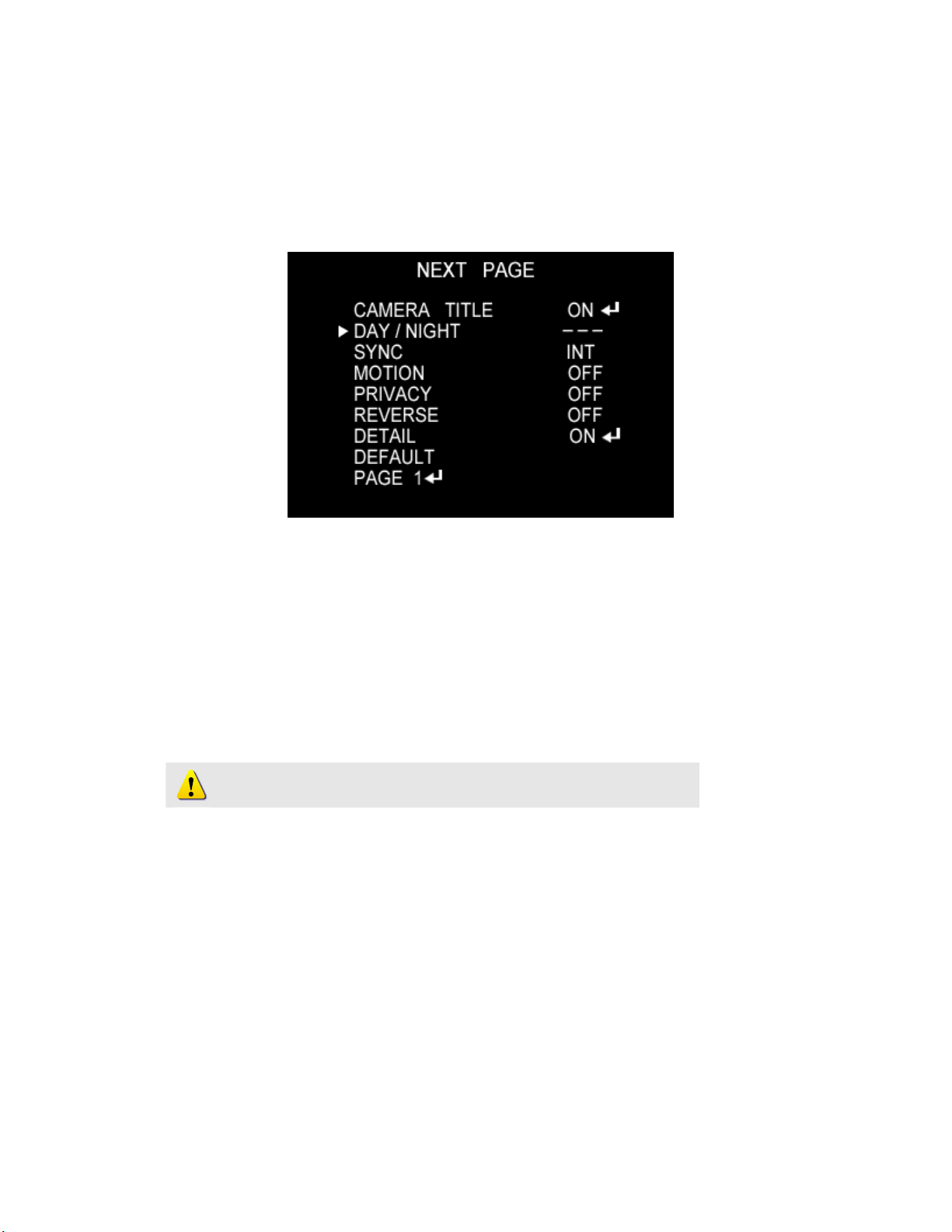

6. NEXT PAGE
a. Press the SET button to display the SETUP menu and move
arrow indicator to ‘
button.
NEXT PAGE’ using the UP or DOWN
b. SET ‘
NEXT PAGE’ to the desired mode using the LEFT or
RIGHT button.
2-61
CAMERA TITLE
a. Press the SET button to display the SETUP menu and move
arrow indicator to ‘
CAMERA TITLE’ using the UP or DOWN
button.
b. SET ‘
ON’ using the LEFT or RIGHT button.
NOTE: If the CAMERA ID feature is set to ‘OFF’, the name will not
displayed in the monitor.
2-62
c. Press the SET button to access tie SETUP mode.
d. You cam enter up to 15 characters.
① Move the cursor to character-enter location by using the
LEFT or RIGT button.
② Select the desired character by using the UP or DOWN
button.
③ Press Set button to confirm the blinking character. The first
character is saved and the cursor in the bottom of the screen
moves to the next position.
④ Repeat steps a,b and c until you create the foull name you
want.
2-63
⑤ Select the position at which the CAMERA TITKE will b
located on the screen.
NOTE: If the CAMERA feature is set to ‘OFF’, the name will not
displayed in the monitor.
After erasing the character from right to left, correct the character
again.
2-64
7. CAMERA TITLE
You can choose color and B/W mode electronically. (OPTION)
ON : Color mode
OFF : B/W mode
AUTO : generally color mode, B/W mode in low luminance.
NOTE: OSD Key may not work for 3 seconds when the color B/W
mode is changed.
8. SYNC
Two SYNCHRONIZATION modes are available… INTERNAL and
EXTERNAL LINE-LOCK. In LINE_LOCK mode, the camera sync to
the 60HZ phase.
a. Press the SET button to display the SETUP menu and move
arrow indicator to ‘
SYNC’ using the UP or DOWN button.
b. SET to the desired mode using the LEFT or RIGHT button.
INT : Internal synchronization
L/L : if you choose ‘L/L’, you can adjust the desired phase.
- Press the SET button.
- You can adjust the desired phase from 0 to 270.
NOTE: Line Lock is only available in the 24-volt AC mode of
operation.
In 12volts DC, the SYNC menu is always in the ‘ INTERNAL'; mode.
2-65
2-66
9. PRIVACY
To mask an area that you want to be private.
a. Press the SET button to display the SETUP menu and move
arrow indicator to ‘
PRIVACY’ using the UP or DOWN button.
b. SET ‘PRIVACY’ to the desired mode using the LEFT or
RIGHT button.
OFF : Deactivation
ON : PRIVACY mode activated
- Press the SET button.
- Move the arrow indicator to area you want to mask.
- Set ‘ON’ using LEFT or RIGHT button.
- Press the SET button and then set the area’ bounds with the
method like MOTIN DET. Set
2-67
10. REVERSE
a. Press the SET button to display the SETUP menu and move
arrow indicator to ‘
REVERSE’ using the UP or DOWN button.
b. SET ‘REVERSE’ to the desired mode using the LEFT or
RIGHT button.
OFF : Deactivation
ON : Make a reverse turn to RIGHT or LEFT.
2-68

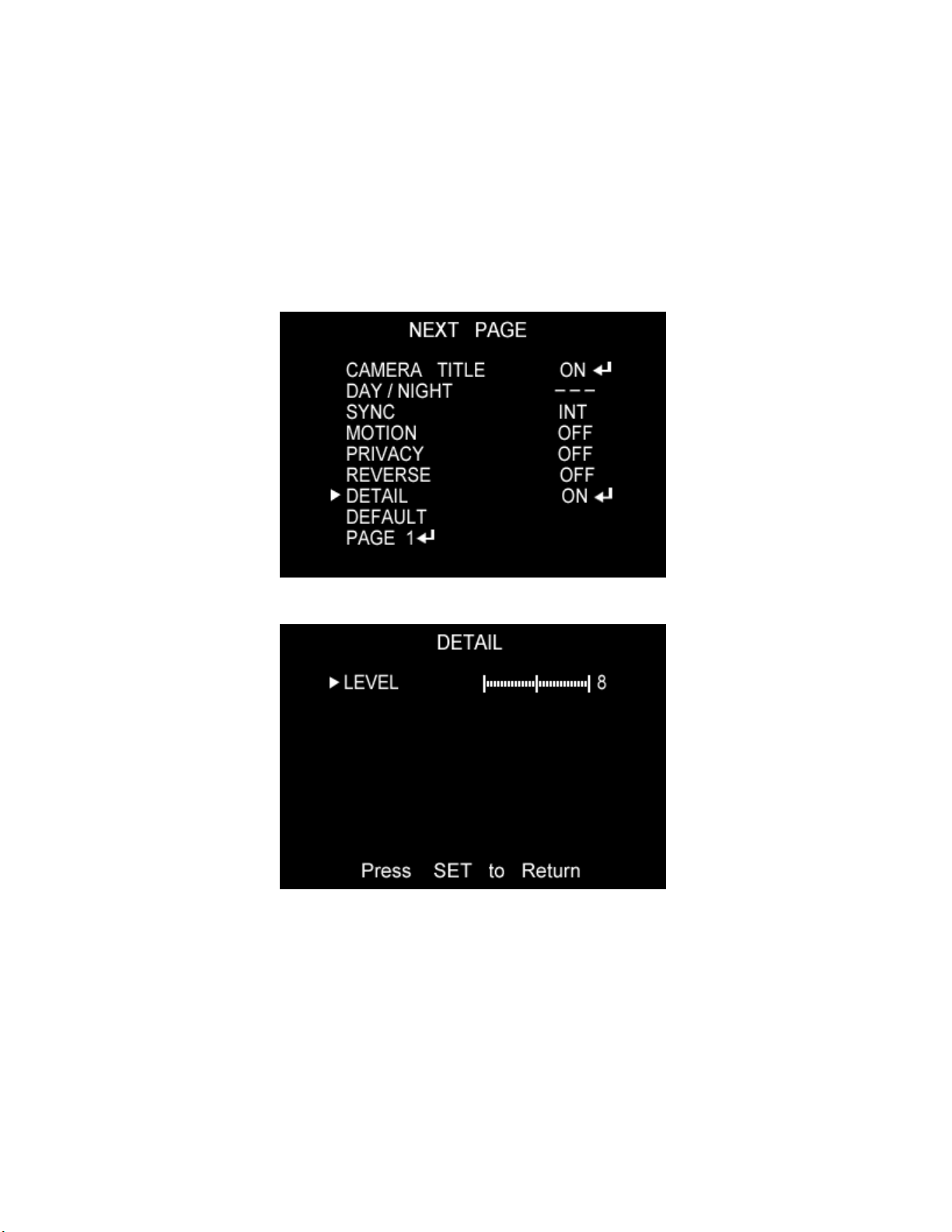

11. DETAIL
a. Press the SET button to display the SETUP menu and move
arrow indicator to ‘
DETAIL’ using the UP or DOWN button.
b. SET ‘DETAIL’ to the desired mode using the LEFT or
RIGHT button.
OFF : Deactivation
ON : DETAIL control mode (level 0~31)
When the level is up, the sharpness will increase.
Control this level to get your best picture quality.
If the level is too high, you can get an unnatural image with
video noise.
12. DEFAULT
Use to reset your camera to FACTORY DEFAULT SETTING.
13. PAGE1
PAGE 1 : Save the setting of NEXT PAGE function, and then
2-69
2.4.4 Operating Camera OSD Menu (SIPSD10X only)
* Use the the five keys on the WebViewer GUI “up down” to move
the position and “left right” to make selection
MAIN MENU
DOME SETUP
CAMERA SET
AUTO SCAN
TOUR
PRAVACY
PATTERN
ALARM
SECTOR
EXIT
2-70
A. Dome Setup
To enter Dome setup, use the five keys right to move when cursor on
dome setup.
DOME SET
CAMERA ID :
CAM1□□□□□□□□□□□□
RECOVER : OFF
MANUAL SPEED : 100°/ S
AUTO FLIP : OFF
ZOOM SPEED : FAST
ALARM : DISABLE
LANGUAGE : ENGLISH
[NEXT PAGE]
SAVE AND EXIT
EXIT
DEFAULT SETTING
A-1. DOME SET - CAMERA ID
To set camera ID, select up to 16 characters using five keys to the left or
right.
Press ZOOM TELE button to move to the next character from left to right
direction and
ZOOM WIDE button to move to the next character from right to left
direction (Space displays when appears)
A-2. DOME SET - RECOVER
This feature allows the dome to work from the last setting before you use
the dome manually
(Auto scan, group tour, preset, pattern or sectors) , after the set time,
even power shut down and it turns on again. Recover time can be
programmed from 15 second to 99 seconds. The default setting is OFF.
A-3. DOME SET - MANUAL SPEED
Manual Speed of Pan/Tilt is selectable from 100°/sec up to 150°/sec.
The default setting is 100°/sec
A-4. DOME SET - AUTO FLIP
Auto Flip is available and the default setting is OFF. Move five keys
2-71
“right or left” to select ON or OFF. The default setting is OFF.
A-5. DOME SET – ZOOM SPEED
Zoom speeds are selectable FAST or SLOW mode. Move five keys to
the right direction for selecting FAST or SLOW. The default setting is
FAST.
A-6. DOME SET – ALARM
All alarms are available after set as ENABLE Mode. Move five keys to
right or left direction for selecting ENABLE/DISABLE. The default setting
is DISABLE.
A-7. DOME SET – LANGUAGE
Multiple languages are selectable here including English, Italian and
Polish. Move five keys to the right or left direction to select language.
The default setting is ENGLISH.
A-8. DOME SET – [NEXT PAGE]
DOME SET
SYSTEM LOCK: : OFF
[PASS WORD]
[OSD DISPLAY]
[SYSTEM STATUS]
[INITIALIZATION]
[PREVIOUS PAGE]
DEFAULT SETTING
A-8-1. DOME SET – [NEXT PAGE] – SYSTEM LOCK
Password protection provides keeping memorized data. It cannot be
adjusted by anybody without password. In order to enter [PASS WORD]
page, system lock status is must set as ON. Move five keys to right or left
direction to select ON. The default setting is OFF.
A-8-2. DOME SET – [NEXT PAGE] – [PASSWORD]
To enter this page to set a password, move five keys to the right direction.
The password must be set by preset number from 001 to 255 (Default
99)
2-72
The default setting is BLANK.
ENTER PASSWORD
BY ENTERING PRESET CODE
PASSWORD ***
CONFIRM ***
Press any number from 001~255 with preset button on password blank
and again it on confirm blank. Then “CONFIRMED” is displayed on the
monitor and the menu will go back to the previous page automatically.
ENTER PASSWORD
BY ENTERING PRESET CODE
PASSWORD ***
CONFIRM ***CONFIRMED
ENTER PASSWORD
BY ENTERING PRESET CODE
PASSWORD ***
CONFIRM ***CANCELLED
<CONFIRMED> <CANCELLED>
If user presses wrong preset number between PASSWORD and
CONFIRM, “CANCELLED” is displayed on the monitor and if user failed 3
times, the menu will return to the previous page automatically * After
setting a Password, an operator must press memorized password in
order to enter OSD MAIN MENU, or to change the data which is
memorized originally.
* An operator must remember the password for the operation.
Manufacturer does not provide a memorized password.
A-8-3. DOME SET – [NEXT PAGE] – [OSD DISPLAY]
OSD ID displayed after set ON in here and it can be hiding if selected
OFF. Move five keys to the right or left direction in order to select
OFF/ON when the cursor is located each item.
2-73
OSD DISPLAY
CAMERA ID : OFF
PRESET ID : OFF
SECTOR ID : OFF
COORDINATE: ON
[PREVIOUS PAGE]
DEFAULT SETTING
A-8-4. DOME SET – [NEXT PAGE] – [SYSTEM STATUS]
This page shows the information of this camera.
PROTOCOL : PELCO D, P
BAUD RATE : 2400 BPS
FIRMWARE VER. : 2.00
UPGRADED DATE : 06.07,22
CAMERA MODULE : SDM100
[PREVIOUS PAGE]
SYSTEM STATUS
DEFAULT SETTING
- Protocol and baud rate are shown according to the dip switch setting
(Refer to page 29, 30 and 31)
- Firmware version and upgraded date will be changed if upgraded.
- Below camera modules can be set as follows.
SDM100 : SAMSUNG 10X ZOOM CAMERA MODULE.
EN300 : OPTICAL 3X MODULE (PAN FOCUS)
: Board Camera ( with Fixed Lens)
A-8-5. DOME SET – [NEXT PAGE] – [INITIALIZATION]
To clear all memorized data for tour, preset, sector, privacy or pattern,
move five keys to the right direction when the cursor is on
[INITIALIZATION]
2-74
[TOUR CLEAR]
[PRESET CLEAR]
[SECTOR CLEAR]
[PRIVACY CLEAR]
[PATTERN CLEAR]
[LOAD OPTIMIZED
DEFAULT]
[PREVIOUS PAGE]
INITIALIZATION
- To clear memorize any data, move five keys to the right direction when
cursor is on each item.
TOUR CLEAR
ARE YOU SURE? YES NO
TOUR CLEAR
Press FOCUS NEAR button when the cursor is at YES in order to clear
memorized data. Then flickered each item such as tour, preset, sector
and so on is displayed on the monitor about 2~3 seconds. After this
process, the menu is returned to the previous page.
* [PRESET CLEAR], [SECTOR CLEAR], [PRIVACY CLEAR], [PATTERN
CLEAR] are same as [TOUR CLEAR].
LOAD OPTIMIZED DEFAULT
ARE YOU SURE? YES NO
ALL DATA INITIALIZING
- To clear all data and wants returning to factory default, move five keys
to the right direction when cursor is at [LOAD OPTIMIZED DEFAULT] to
enter the above page.
- Move five keys to the right or left direction in order to select YES, press
FOCUS NEAR button.
- Then “ALL DATA INITIALIZING” is displayed about 5~7 seconds and
then the menu is returned to the previous page automatically.
2-75
A-9. DOME SET – [NEXT PAGE] – SAVE AND EXIT
To saving the memorized data and escape this page, move five keys to
the right direction when cursor is at SAVE AND EXIT.
A-10. DOME SET – [NEXT PAGE] – EXIT
In order not to save any data and wants to escape this page, move five
keys to the right direction when cursor is at EXIT
B. CAMERA SET
FLICKER : OFF
MIRROR : OFF
APERTURE : 10
D ZOOM : OFF
WB MODE : AWB MODE
PIC FLIP : OFF
BLC : OFF
D/N MODE : AUTO
DSS MODE : OFF
EXIT
CAMERA SET
CAMERA SET
FLICKER : OFF
BLC : OFF
EXIT
<TS-PTZ10X> < TS-PTZ3X >
B-1. CAMERA SET - FLICKERLESS
Flickerless feature is selected between 50Hz and 60Hz. The default
setting is OFF (NTSC: 60Hz / PAL: 50Hz). Set flicker mode ON when
power source is in discord with frequency. The default setting is OFF
B-2. CAMERA SET - MIRROR
This feature shows left and right exchanged picture image like mirror.
The default setting is OFF.
(10X Zoom)
B-3. CAMERA SET – APERTURE
Aperture enhances picture details by increasing gain of the caemra and
2-76
sharpens the edges in the picture. The default seeting is 10. (the
aperture level is from 01 ~ 15)
(10X Zoom)
B-4. CAMERA SET – D ZOOM
Move five keys to the right direction in order to set as ON, if Digital Zoom
is necessary at install field. The default setting is OFF.
(10X Zoom)
B-5. CAMERA SET – WB MODE
White balance functions have 4 modes according to the condition of
exterior lighting. The default setting is AWB and it may change the mode
option accoding to the lighting conditions as below.
AWB Mode – 3,200°K to 6, 000°K (10X Zoom)
z Indoor – up to 3,200°K
z Outdoor – up to 5,800°K
z ATW Mode - 2,000°K to 10, 000°K
B-6. CAMERA SET – PIC FLIP
Picture flip feature provides the top and down exchanged picture image
horizontally. Move five keys to the right or left direction to select OFF/ON.
The default setting is OFF.
(10X Zoom)
B-7. CAMERA SET – BLC (Back Light Compensation)
The default setting is OFF and BLC modes can be OFF/ON.
OFF – Backlight compensation is not activated.
ON – Back light compensation is activated.
B-8. CAMERA SET – D/N MODE
ICR filter is changeable according to the lighting, AUTO – NIGHT
MODE – DAY MODE.
The default setting is AUTO MODE.
(10X Zoom)
B-9. CAMERA SET – DSS MODE (DIGITAL SLOW SHUTTER)
2-77
If DSS turns on, digital slow shutter is working. Per second, the electronic
shutter will remain open to receive some more lighting.
(10X Zoom)
B-10. CAMERA SET – EXIT
To escape this page, move five keys to the right direction.
C. PRESET SET
To enter PRESET SET, move five keys to the right direction.
PRESET NO :001
PRESET
ID :PRESET001------PAN :XXX.XX TILT : XXX.XX
SAVE
EXIT
PRESET SET
DEFAULT SETTING
C-1. PRESET – PRESET NO.
Up to 165 numbers of preset positions are available. Move five keys to
the right or left direction to select preset no.
C-2. PRESET – PRESET ID
To set preset ID, select up to 16 characters using Five keys to the left or
right.
Press ZOOM TELE button moves to the next character from the left to
the right direction and ZOOM WIDE button moves to the next character
from the right to left direction
(Space displays when appears)
C-3. PRESET – PAN: XXX.X TILT: XX.X
Press FOCUS FAR button in order to set preset position then, use the
five keys to the position where memorized preset no. is needed. Then
2-78
press FOCUS FAR button again after setting a preset location.
C-4. PRESET – SAVE
Move five keys to the right direction when the cursor is at SAVE and then
the cursor will be located on Preset ID for the continuous preset No.
setting.
C-5. PRESET – EXIT
To escape this page, move five keys to the right direction.
D. AUTO SCAN SET
START ANGLE : XXX.X.XX.X
END ANGLE : XXX.X.XX.X
DIRECTION : CW
ENDLES : OFF
SPEED : 10°/S
DWELL TIME: 03
SAVE AND EXIT
EXIT
AUTO SCAN SET
DEFAULT SETTING
D-1. AUTO SCAN- START ANGLE
To set start angle, press FOCUS FAR button then move five keys to the
starting angle which is needed memorized. To press FOCUS FAR
button again is to escape.
D-2. AUTO SCAN- END ANGLE
To set end angle, press FOCUS FAR button then move five keys to the
starting angle which is needed memorized. To press FOCUS FAR
button again is to escape.
D-3. AUTO SCAN – DIRECTION
Auto Scan directions are available with two direction as CW or CCW by
five keys to the right or left direction
2-79
CW: Clock wise direction (Default)
CCW: Count Clock Wise Direction.
D-4. AUTO SCAN – ENDLESS
Auto Scan can use endless rotation, move five keys to the right direction
in order to select ON. Otherwise, the default setting is OFF.
D-5. AUTO SCAN – SPEED
User can use auto scan speed from 05°/S up to 35°/S and the default
setting is 10°/S
D-6. AUTO SCAN – DWELL TIME
To select dwell time, move five keys to the left or right direction in order to
adjust dwell time. Possible to set from 01 second to 30 seconds and the
default setting is 03 seconds.
D-7. AUTO SCAN – SAVE AND EXIT
To saving the memorized data and escape this page, move five keys to
the right direction when cursor is at SAVE AND EXIT.
D-8. AUTO SCAN – EXIT
To escape this page, move five keys to the right direction.
2-80
E. TOUR SET
8 Programmable tours can be set and each tour is available to set up to 64
preset steps.
TOUR NO : 01
TOUR TITLE :
TOUR01□□□□□□□□□□
TOUR STEP : 01
PRESET NO. : 01
DWELL TIME : 03
SPEED : 200°/S
SAVE
EXIT
TOUR SET
DEFAULT SETTING
E-1. TOUR SET – TOUR NO.
Max. 8 group tour no. set by the five keys are available.
E-2. TOUR SET – TOUR TITLE
To set tour title, select up to 16 characters using Five keys to left or
right.
Press ZOOM TELE button to move the next character from the left to the
right direction and ZOOM WIDE button to move the next character from
the right to left direction (Space displays when appears) Tour title is
not displayed on the monitor, but only for the reference of user.
E-3. TOUR SET – TOUR STEP
Each tour group consists of up to 60 preset steps with different dwell
time and speed. It is possible to match any preset # for each tour step.
E-4. TOUR SET – PRESET NO.
The decided tour step #1 ~64, it is possible to select any preset no. up to
64. The default setting is BLK
E-5. TOUR SET – DWELL TIME
Dwell time provides up to 99 seconds from 01 second. The default
2-81
setting is 03 seconds.
E-6. TOUR SET – SPEED
Each tour step can be set with different tour speed up to 200°/S and it is
selectable from 10°/S. Move five keys to the right or left direction to
select tour speed. The default setting is 200°/S.
E-7. TOUR SET – SAVE
To save the memorized data and escape this page, move five keys to the
right direction when cursor is at SAVE
E-8. TOUR SET – EXIT
To escape this page, move five keys to the right direction
F. PRIVACY SET
Privacy function is provided by (10X Zoom) only.
4 Privacy masking zones are available to block out areas of security.
PRIVACY SET
PRIVACY NO: 01
DISPLAY : OFF
ACTION : MOVE
SAVE
EXIT
DEFAULT SETTING
F-1. PRIVACY SET – PRIVACY NO.
Up to 4 privacy masking zones are available.
F-2. PRIVACY SET – DISPLAY
Move five keys to the right or left direction to set ON in order to show the
selectable block in the center of the monitor. This block appears as a
translucent square with blue color after set ON. The default setting is
OFF.
2-82
F-3. PRIVACY SET – ACTION(MOVE/ADJUST)
To set the blocking area, press FOCUS FAR button when the MOVE
MODE is appeared. Then use the five keys to the user defined area in
order to set blocking area. Then press FOCUS FAR button again to
escape from MOVE MODE.
To adjust size of blocking area, move five keys to the right or left direction
when the cursor is on ACTION. After move mode changed to ADJUST
MODE, press FOCUS FAR button in order to adjust the size of blocking
area. The size of blocking area can be adjustable by using five keys up
down or left right,. After adjusting size of blocking area, press FOCUS
FAR button to escape ADJUST mode.
z ADJUST: You can change the masking size by using five keys to the
left or right direction
z MOVE: You can move the masking area by using five keys to the left
or right direction (Default)
F-4. PRIVACY SET – SAVE
After setting the privacy masking zone, to save the data, move five keys
to the right direction when the cursor is on SAVE. After saving the data,
the cursor moves to PRIVACY NO.2 automatically to prepare the next
privacy masking zone.
F-5. PRIVACY SET – EXIT
To escape this page, move five keys to the right direction
G. PATTERN SET
8 programmable patterns are available with 16 characters of title.
2-83
PATT NO : 01
PATT TITLE: PATTERN01□□□□□□□
DATA FILL : 100%
SAVE
EXIT
PATTERN SET
DEFAULT SETTING
G-1. PATTERN SET – PATT NO.
Up to 8 programmable user-defined patterns set by the five keys on the
Webviewer GUI are available.
G-2. PATTERN SET – PATT TITLE
To set PATTERN TITLE, select up to 16 characters using Five keys to
the left or right.
Press ZOOM TELE button moves to the next character from the left to
the right direction and ZOOM WIDE button moves to the next character
from the right to left direction (Space displays when appears) Pattern
title is not displayed on the monitor, but only for the reference of user.
G-3. PATTERN SET – DATA FILL
To fill the programming data, press FOCUS FAR button in order to start
the data fill up. Filling data is programmed according to the the five keys on
the Webviewer GUI movement. Press FOCUS FAR button again in order
to escape.
G-4. PATTERN SET – SAVE
To saving the filling data, move five keys to the right direction when the
cursor is on SAVE. Then the cursor moves to the PATT NO.02 in order to
prepare next pattern no.
G-5. PATTERN SET – EXIT
To escape this page, move five keys to the right direction
2-84
H. ALARM SET
4 Alarm inputs are available and each alarm is activating to presets, group
tours or patterns.
ALARM NO : 01
ALARM INPUT: OFF
ALARM ACT : 001
SAVE
EXIT
ALARM SET
DEFAULT SETTING
H-1. ALARAM SET – ALARM NO.
Up to 4 alarms are selectable by using five keys to the right direction
when cursor is on ALARM NO.
H-2. ALARAM SET – ALARM INPUT
Input alarm ways provide two different ways as NC (Normal Close) or NO
(Normal Close)
The default setting is OFF
H-3. ALARAM SET – ALARM ACT
Alarm activates various surveillance modes with Preset number up to 165,
Group tour up to 8, Pattern up to 8. Move five keys to the right or left
direction to select any preset number, group tour no. or pattern no.
H-4. ALARAM SET – SAVE
After setting the alarm input ways and activation, to save the data, move
five keys to the right direction when the cursor is on SAVE. After saving
the data, the cursor moves to Alarm NO.2 automatically to prepare the
next alarm.
H-5. ALARAM SET – EXIT
To escape this page, move five keys to the right direction
* Before activating Alarm, user must set ALARM ENABLE at DOME
SET – ALARM – ENABLE (Refer to page 15)
2-85
I. SECTOR SET
Up to 8 programmable sectors are available with 16 characters.
This feature is useful to memory the certain location such as parking zone
or so on.
When camera goes through this area, it shows the letter you memorized.
SECTOR NO : 01
SECTOR ID : SECTOR01□□□□□□□□
SECTOR START: XXX.X.XX.X
SECTOR END : XXX.X.XX.X
SAVE
EXIT
SECTOR SET
Start Position
End Position
DEFAULT SETTING
I-1. SECTOR SET – SECTOR NO.
Up to 8 programmable sectors set by the five keys are available.
I-2. SECTOR SET – SECTOR ID
set SECTOR ID, select up to 16 characters by using five keys to the left
or right.
Press ZOOM TELE button to move to the next character from the left to
the right direction and ZOOM WIDE button to move to the next character
from the right to left direction (Space displays when appears)
I-3. SECTOR SET – SECTOR START
To set SECTOR START angle, press FOCUS FAR button then move five
keys to the left or right direction to set the position. To press FOCUS
FAR button again is to escape.
I-4. SECTOR SET – SECTOR END
To set SECTOR END angle, press FOCUS FAR button then move five
keys to the left or right direction to set the position. To press FOCUS FAR
button again is to escape.
2-86
I-5. SECTOR SET – SAVE
After setting the SECTOR position, to save the data, move five keys to
the right direction when the cursor is on SAVE. After saving the data, the
cursor moves to SECTOR NO.2 automatically to prepare the next
SECTOR.
I-6. SECTOR SET – EXIT
To escape this page, move five keys to the right direction
J. EXIT
To escape OSD Main Menu, move five keys to the right or left direction
then this camera is ready to operate.
2-87
2.4.5 DIP SW SETTING (SIPSD10X only)
Mini Speed Dome camera provides up to 63 camera ID and it’s adjustable
ID with 1
Open the camera case, set ID using DIP SW1.
* Factory default: Camera ID = 1, PELCO-D
st~6th
of Dip switch
Termination
Baud rate
Protocol
ID Set
2.4.6 ID SETTING (SIPSD10X only)
(1-ON, 0-OFF)(1Î10)
DIP SW ID VALUE DIP SW ID VALUE DIP SW ID VALUE
100000XXXX 1 111010XXXX 23 101101XXXX 45
010000XXXX 2 000110XXXX 24 011101XXXX 46
110000XXXX 3 100110XXXX 25 111101XXXX 47
001000XXXX 4 010110XXXX 26 100011XXXX 48
101000XXXX 5 110110XXXX 27 100011XXXX 49
011000XXXX 6 001110XXXX 28 010011XXXX 50
111000XXXX 7 101110XXXX 29 110011XXXX 51
000100XXXX 8 011110XXXX 30 001011XXXX 52
100100XXXX 9 111110XXXX 31 101011XXXX 53
2-88
Deleted: <sp>
010100XXXX 10 000001XXXX 32 011011XXXX 54
110100XXXX 11 100001XXXX 33 111011XXXX 55
001100XXXX 12 010001XXXX 34 000111XXXX 56
101100XXXX 13 110001XXXX 35 100111XXXX 57
011100XXXX 14 001001XXXX 36 010111XXXX 58
111100XXXX 15 101001XXXX 37 110111XXXX 59
000010XXXX 16 011001XXXX 38 001111XXXX 60
100010XXXX 17 111001XXXX 39 101111XXXX 61
010010XXXX 18 000101XXXX 40 011111XXXX 62
110010XXXX 19 100101XXXX 41 111111XXXX 63
001010XXXX 20 010101XXXX 42
101010XXXX 21 110101XXXX 43
011010XXXX 22 001101XXXX 44
2.4.7 PROTOCOL (SIPSD10X only)
7th~8th dip switches are used for Protocol Setting.
Factory Default: Pelco-D or Pelco-P ( Auto detection)
DIP SW1- 7 DIP SW1- 8
OFF OFF Pelco-D or Pelco-P
2.4.8 BAUD RATE SETTING (SIPSD10X only)
The 9th Dip Switch is used for BAUD RATE setting.
DIP SW can be changeable to 2400bps, 9600bps.
Factory Default: 9600bps.
DIP SW1 9th BAUD RATE
OFF 2400
ON 9600
2-89
3
3. APPENDIX
3.1 Specification
3.1.1 SIP Camera Series
* Network Spec.
Video Compression
Compression MPEG-4 SP
Full D1 (720x480 in NTSC, 720x576 in PAL)
Resolution
Bit Rate 28 K ~ 3 M bps
Image Framge Rate
Audio Input
Compression 8kHz, Mono, PCM
Audio Line Input Unbalanced, 1.4 Vp-p 1Vrms, terminal Block
Audio Output
Compression 8kHz, Mono, PCM
Audio Line Output Unbalanced, 1.4 Vp-p 1Vrms, terminal Block
External I/O
Reset Button Factory default
Joystick OSD Control
Network
Ethernet Ethernet(10/100 Base-T),RJ-45 connector
Protocol TCP, UDP ,IP, HTTP, DHCP, PPPoE, RTP, RTSP
Software
Web Browser MS Internet Explorer 6.0 or above
Security Password protection: configured by the administrator
Compatibility Most major 3rd party software suites
NVR Software Included at no additional charge
VGA (640x480 inNTSC, 640x480 in PAL)
CIF (352 x 240 in NTSC, 352x288 in PAL)
QCIF (176x120 in NTSC, 176x144 in PAL)
30 fps at full D1 resolution (NTSC)
25 fps at full D1 resolution (PAL)
3-90
* Camera Spec.
SIPB1
Image Sensor 1/3" Sony Super HAD CCD 410K
Horizontal Resolution 540 TV Lines
Total Pixels 811 x 508(NTSC)
Effective Pixels 768 x 494 (NTSC)
Electric Shutter
Min. Scene Illumination 0.002Lux (Intensifier), 0.3Lux (Shutter)
Lens Type DC Auto Iris Vari-Focal Lens f=2.8~11mm
Max. Aperture 1 : 1.3 ~ 2.0
Scanning System 2:1 Interlaced 525 Lines / 60Fields / 30
Synchronization Internal
S/N Ratio 50dB(Weight On)
Day/Night Software method
OSD (On Screen Display) Built-in
White Balance ATW / AWC / Manual
SLC (Speco Light Compensation) Off / Low / Middle / High
AGC Off / Low / Middle / High
Dynamic Noise Reduction (DNR) Off / Low / Middle / High
INTENSIFIER
Color Auto (Auto Day/Night) / On
Motion Detection Off /On
Privacy Off /On (4Programable Zone)
Video output
Power Source
Operational Temperature
Operational Humidity 30% ~90% RH
Dimensions(WxHxD) 92 mm x 88 mm x 296 mm
Weight 1.4kg
1/60 ~ 1/200,000sec (NTSC)
1/50 ~ 1/200,000sec (PAL)
Built-in(selectable Limit ~ X128)
Off / Low / Middle / High
1.0V [p-p] NTSC Composite, 75Ω / BNC
DC12V (300mA)
PoE (IEEE802.3af) with Class 3
-10℃ ~ +50℃ ( - 14℉ ~122℉ )
3-91
SIPB2
Image Sensor 1/3" Sony Super HAD CCD 410K
Horizontal Resolution 540 TV Lines
Total Pixels 811 x 508(NTSC)
Effective Pixels 768 x 494 (NTSC)
Electric Shutter
Min. Scene Illumination 0.002Lux (Intensifier), 0.3Lux (Shutter)
Lens Type DC Auto Iris Vari-Focal Lens f=5~50mm
Max. Aperture 1 : 1.3 ~ 2.0
Scanning System 2:1 Interlaced 525 Lines / 60Fields / 30
Synchronization Internal
S/N Ratio 50dB(Weight On)
Day/Night Software method
OSD (On Screen Display) Built-in
White Balance ATW / AWC / Manual
SLC (Speco Light Compensation) Off / Low / Middle / High
AGC Off / Low / Middle / High
Dynamic Noise Reduction (DNR) Off / Low / Middle / High
INTENSIFIER
Color Auto (Auto Day/Night) / On
Motion Detection Off /On
Privacy Off /On (4Programable Zone)
Video output
Power Source
Operational Temperature
Operational Humidity 30% ~90% RH
Dimensions(HxD) 92 mm x 88 mm x 296 mm
Weight 1.4kg
1/60 ~ 1/200,000sec (NTSC)
1/50 ~ 1/200,000sec (PAL)
Built-in(selectable Limit ~ X128)
Off / Low / Middle / High
1.0V [p-p] NTSC Composite, 75Ω / BNC
DC12V (300mA)
PoE (IEEE802.3af) with Class 3
-10℃ ~ +50℃ ( - 14℉ ~122℉ )
3-92
SIPD3
Image Sensor 1/3" Sony Super HAD CCD 410K
Horizontal Resolution 540 TV Lines
Total Pixels 811 x 508(NTSC)
Effective Pixels 768 x 494 (NTSC)
Electric Shutter
Min. Scene Illumination 0.002Lux (Intensifier), 0.3Lux (Shutter)
Lens Type DC Auto Iris Vari-Focal Lens f=2.8~11mm
Max. Aperture 1 : 1.3 ~ 2.0
Scanning System 2:1 Interlaced 525 Lines / 60Fields / 30
Synchronization Internal
S/N Ratio 50dB(Weight On)
Day/Night Software method
OSD (On Screen Display) Built-in
White Balance ATW / AWC / Manual
SLC (Speco Light Compensation) Off / Low / Middle / High
AGC Off / Low / Middle / High
Dynamic Noise Reduction (DNR) Off / Low / Middle / High
INTENSIFIER
Color Auto (Auto Day/Night) / On
Motion Detection Off /On
Privacy Off /On (4Programable Zone)
Video output
Power Source
Operational Temperature
Operational Humidity 30% ~90% RH
Dimensions(HxD)
Weight 1.4kg
1/60 ~ 1/200,000sec (NTSC)
1/50 ~ 1/200,000sec (PAL)
Built-in(selectable Limit ~ X128)
Off / Low / Middle / High
1.0V [p-p] NTSC Composite, 75Ω / BNC
DC12V (300mA)
PoE (IEEE802.3af) with Class 3
-10℃ ~ +50℃ ( - 14℉ ~122℉ )
132 ø x 120.85 mm
3-93
SIPD4
Image Sensor 1/3" Sony Super HAD CCD 410K
Horizontal Resolution 540 TV Lines
Total Pixels 811 x 508(NTSC)
Effective Pixels 768 x 494 (NTSC)
Electric Shutter
Min. Scene Illumination 0.002Lux (Intensifier), 0.3Lux (Shutter)
Lens Type DC Auto Iris Vari-Focal Lens f=5~50mm
Max. Aperture 1 : 1.3 ~ 2.0
Scanning System 2:1 Interlaced 525 Lines / 60Fields / 30
Synchronization Internal
S/N Ratio 50dB(Weight On)
Day/Night Software method
OSD (On Screen Display) Built-in
White Balance ATW / AWC / Manual
SLC (Speco Light Compensation) Off / Low / Middle / High
AGC Off / Low / Middle / High
Dynamic Noise Reduction (DNR) Off / Low / Middle / High
INTENSIFIER
Color Auto (Auto Day/Night) / On
Motion Detection Off /On
Privacy Off /On (4Programable Zone)
Video output
Power Source
Operational Temperature
Operational Humidity 30% ~90% RH
Dimensions(HxD)
Weight 1.4kg
1/60 ~ 1/200,000sec (NTSC)
1/50 ~ 1/200,000sec (PAL)
Built-in(selectable Limit ~ X128)
Off / Low / Middle / High
1.0V [p-p] NTSC Composite, 75Ω / BNC
DC12V (300mA)
PoE (IEEE802.3af) with Class 3
-10℃ ~ +50℃ ( - 14℉ ~122℉ )
180.00 ø x 134.20 mm
3-94
SIPT5
Image Sensor 1/3" Sony Super HAD CCD 410K
Horizontal Resolution 540 TV Lines
Total Pixels 811 x 508(NTSC)
Effective Pixels 768 x 494 (NTSC)
Electric Shutter
Min. Scene Illumination 0.002Lux (Intensifier), 0.3Lux (Shutter)
Lens Type C/CS Mount Lens selectable
Max. Aperture 1 : 1.3 ~ 2.0
Scanning System 2:1 Interlaced 525 Lines / 60Fields / 30
Synchronization Internal
S/N Ratio 50dB(Weight On)
Day/Night Software method
OSD (On Screen Display) Built-in
White Balance ATW / AWC / Manual
SLC (Speco Light Compensation) Off / Low / Middle / High
AGC Off / Low / Middle / High
Dynamic Noise Reduction (DNR) Off / Low / Middle / High
INTENSIFIER
Color Auto (Auto Day/Night) / On
Motion Detection Off /On
Privacy Off /On (4Programable Zone)
Video output
Power Source
Operational Temperature
Operational Humidity 30% ~90% RH
Dimensions(WxHxD) 64mm x 55.4 x 120 mm
Weight 0.7kg
1/60 ~ 1/200,000sec (NTSC)
1/50 ~ 1/200,000sec (PAL)
Built-in(selectable Limit ~ X128)
Off / Low / Middle / High
1.0V [p-p] NTSC Composite, 75Ω / BNC
DC12V (300mA)
PoE (IEEE802.3af) with Class 3
-10℃ ~ +50℃ ( - 14℉ ~122℉ )
3-95
SIPSD10X
Pan Rotation Angle 360˚ Endless
Pan Speed
Tilt Rotation Angle 0˚ ~ 90˚
Tilt Speed
System Accuracy 0.02˚
Presets
Group Tour
Auto scan Programmable Auto scan
Pattern 8 Programmable Patterns (total 400 seconds)
Privacy Zone 4 privacy zones
Sector 8 selectable Sectors with 16 characters
Password Protection Built-in
Auto Flip ON / OFF
Protocol Pelco D/P
Image Sensor 1/4" Sony Super HAD CCD 410K
Horizontal Resolution More Than 500 TV Lines
Total Pixels 811 x 508(NTSC)
Effective Pixels 768 x 494 (NTSC)
Min. Scene Illumination 0.02Lux (ICR On), 0.7Lux (50IRE)
Lens
Day & Night (ICR) Auto/ Day/ Night
Digital Slow Shutter 2/4/8/16/24/32/64/128/ OFF
S/N Ratio More Than 50dB
BLC ON / OFF
OSD (On Screen Display) Built-in
White Balance AWB/ATW/INDOOR/ OUTDOOR
Flickerless (NTSC) ON / OFF (1/120)
AGC Off / Low / Middle / High
Motion Detection Off /On
Video output
Power Source DC12V (750mA)
Operational Temperature
Operational Humidity 30% ~90% RH
Manual 10˚ ~ 200˚/sec
Preset Max 200˚ /sec
Manual 10˚ ~ 200˚/sec
Preset Max 200˚ /sec
164 positions with a 16-character label available for
each position with different speed steps
Max. 8 Programmable group tours (each one
consisting of up to 60 preset steps with different
steps)
Optical 10x Optical Zoom(F=3.8 to 38mm)
Digital 10x (100x with optical)
1.0V [p-p] NTSC 75Ω
-10℃ ~ +50℃ ( - 14℉ ~122℉ )
3-96
Loading...
