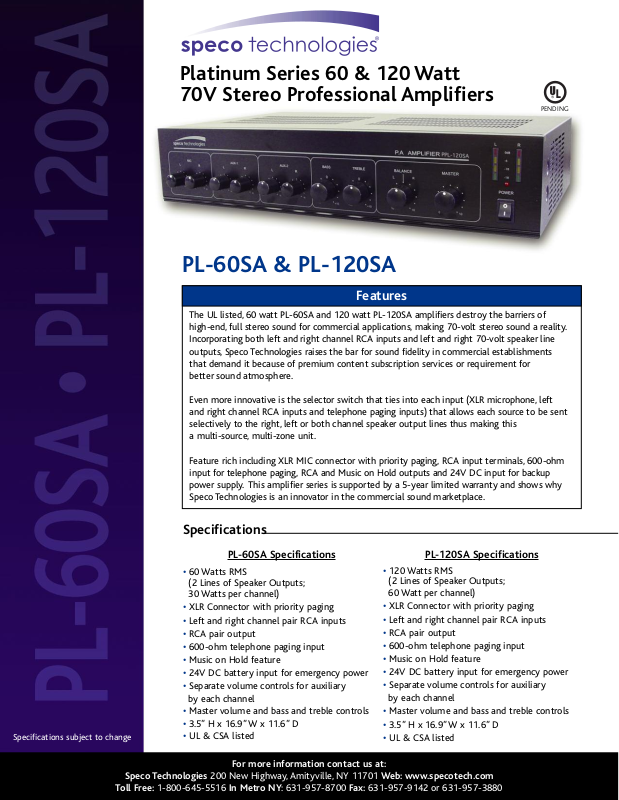

Platinum Series 60 & 120 Watt
70V Stereo Professional Amplifiers
PL-60SA & PL-120SA
Features
The UL listed, 60 watt PL-60SA and 120 watt PL-120SA amplifiers destroy the barriers of
high-end, full stereo sound for commercial applications, making 70-volt stereo sound a reality.
Incorporating both left and right channel RCA inputs and left and right 70-volt speaker line
outputs, Speco Technologies raises the bar for sound fidelity in commercial establishments
that demand it because of premium content subscription services or requirement for
better sound atmosphere.
ENDING
P
Specifications subject to change
Even more innovative is the selector switch that ties into each input (XLR microphone, left
and right channel RCA inputs and telephone paging inputs) that allows each source to be sent
selectively to the right, left or both channel speaker output lines thus making this
a multi-source, multi-zone unit.
Feature rich including XLR MIC connector with priority paging, RCA input terminals, 600-ohm
input for telephone paging, RCA and Music on Hold outputs and 24V DC input for backup
power supply. This amplifier series is supported by a 5-year limited warranty and shows why
Speco Technologies is an innovator in the commercial sound marketplace.
Specifications
PL-60SA Specifications
• 60 Watts RMS
(2 Lines of Speaker Outputs;
30 Watts per channel)
• XLR Connector with priority paging
• Left and right channel pair RCA inputs
• RCA pair output
• 600-ohm telephone paging input
• Music on Hold feature
• 24V DC battery input for emergency power
• Separate volume controls for auxiliary
by each channel
• Master volume and bass and treble controls
• 3.5” H x 16.9” W x 11.6” D
• UL & CSA listed
• 120 Watts RMS
(2 Lines of Speaker Outputs;
60 Watt per channel)
• XLR Connector with priority paging
• Left and right channel pair RCA inputs
• RCA pair output
• 600-ohm telephone paging input
• Music on Hold feature
• 24V DC battery input for emergency power
• Separate volume controls for auxiliary
by each channel
• Master volume and bass and treble controls
• 3.5” H x 16.9” W x 11.6” D
• UL & CSA listed
PL-120SA Specifications
