Speco Technologies LPRB922 User Manual

LPRB922 License Plate Capture Camera
Installation Guide
Speco Technologies is constantly developing product improvements We reserve the right to modify product design and specifications without notice and without incurring any obligation Rev. 3/15/10
Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com
1. Notice of Use
Follow all instructions. All requirements should be followed before using this camera.
SPECO TECHNOLOGIES is not responsible for any technical or typographical errors
and reserves the right to change this manual without notice.
Keep this document for future reference.
Please make sure the power source is 12V DC/24 V AC. Only connect to the camera to
these required power systems.
The camera must be installed on a solid mounting surface.
Store the camera and other accessories in a dry place.
SPECO TECHNOLOGIES is not responsible for any damage caused by inappropriate use.
Speco Technologies is constantly developing product improvements We reserve the right to modify product design and specifications without notice and without incurring any obligation Rev. 3/15/10
Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com
2. Product Overview
The LPRB922 is a high-performance plate-capture camera, equipped with a 1/3” SONY™ CCD.
Outfitted with powerful 850 nm IR, the LPRB922 works perfectly even in total darkness to deliver clear plate images. Its varifocal IR-corrected lens keeps it in focus day and night, optimizing performance even in very low light conditions. In short, the LPRB922 provides the kind of reliability and round-the-clock surveillance-and-capture capabilities crucial to maximizing the efficiency of LPR applications.
High Contrast Image
The LPRB922 features high-contrast imaging performance that delivers sharp, clear license­plate captures, even of vehicles moving at 55 MPH, in bad weather, and in low-light conditions.
Powerful IR Its powerful IR functionality and IR-corrected lens deliver perfect image captures and outstanding images all day long. It is also equipped with a high-power LED to help minimize energy usage.
Wide Range Capture
Its built-in 9-22mm lens captures a wide 10-27 ft. field.
Rain Guard/ Extendable Sunshield The camera’s rain guard and extendable sunshield minimize the effects of rain and sunlight on image quality.
Easy Installation The cable-management bracket enables easy installation in any location, including walls, surfaces, and ceilings.
Note: Because of the special nature of this camera, it will only show pictures of license plates. All other items in the camera's field of view will be blacked out.
Speco Technologies is constantly developing product improvements We reserve the right to modify product design and specifications without notice and without incurring any obligation Rev. 3/15/10
Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com
Camera Dimensions:
Speco Technologies is constantly developing product improvements We reserve the right to modify product design and specifications without notice and without incurring any obligation Rev. 3/15/10
Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

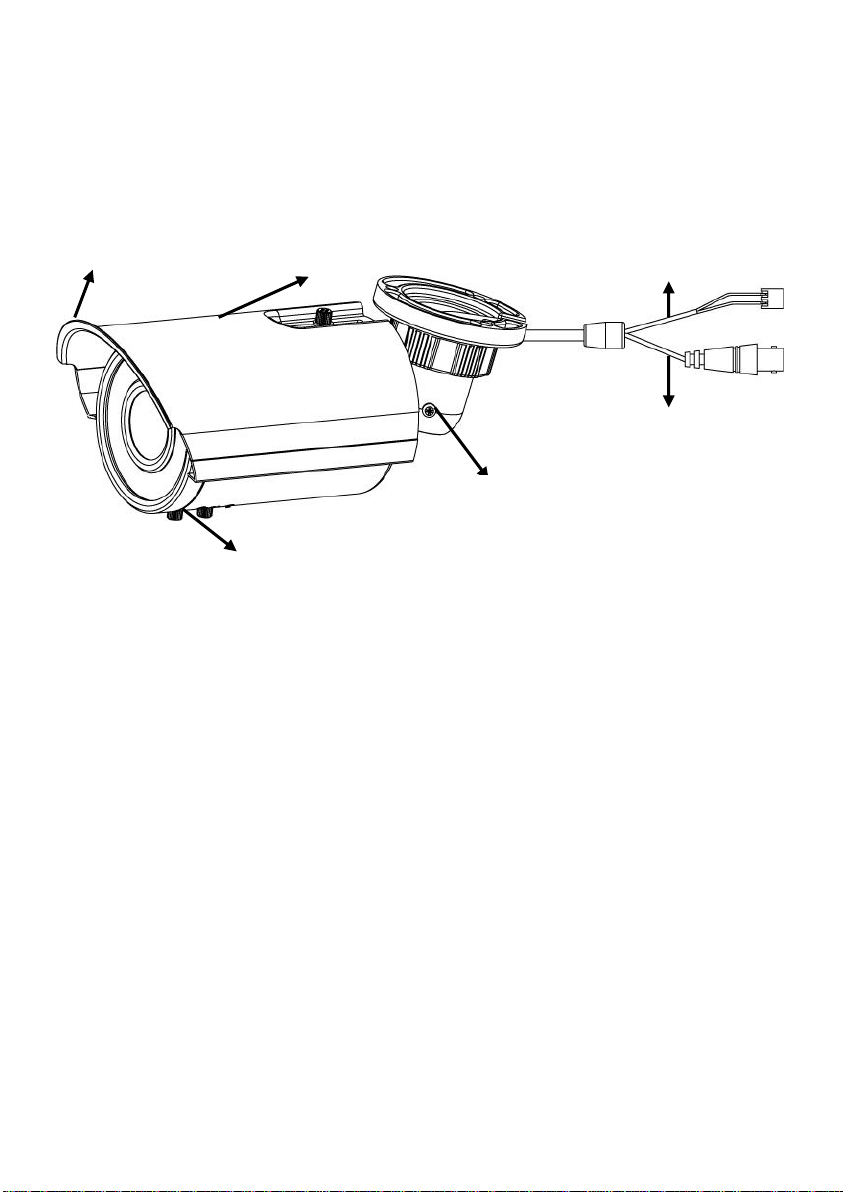

Extendable sunshield
Mount adjustment
BNC connector
Power connector
Rain guard
2.1 Camera Parts Definition
Tele/Wide adjustment screw Far/Near adjustment screw
Rain guard/extendable sunshield: minimize the effects of rain and sunlight on image quality
Tele/Wide and Far/Near adjustment screws: lens adjustment
Mount adjustment: easy to mount at different angles
BNC connector: video output
Power connector: 12V DC / 24V AC
Speco Technologies is constantly developing product improvements We reserve the right to modify product design and specifications without notice and without incurring any obligation Rev. 3/15/10
Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com
2.2 Specifications
Image system
Signal system
NTSC
Image Sensor
1/3" SONY CCD
Electric
Scanning system
H: 15.734KHz
Sync system
Internal
Horizontal resolution
600 TV lines
Built-in lens
f=9mm ~ 22mm, F1.4 DC iris varifocal IR-corrected lens
View angle Gamma correction
0.45
Minimum illumination
S/N ratio
More than 50dB (AGC off)
BLC
Video output
IR wavelength
850nm
IR distance
Capture range
Capture speed
LED life
Power supply
Power requirement
Power consumption
10W (max.)
Environment
Mechanism
Weight
Construction Protection class
Effective pixels
External adjustments (zoom and focus)
Horizontal: 32.1° (wide) ~ 13.1° (tele)
Vertical: 23.3° (wide) ~ 9.8° (tele)
IR LEDs 36 Super power LEDs
Operating Temp.
768 (H) x 494 (V)
2:1 Interlace V: 59.94Hz
0 Lux (IR LEDs ON)
Auto (Center Weighting)
1Vpp composite output, 75 Ohm
50 ft.
10~27 ft.
55 MPH
More than 10,000 hours (122)
Dual voltage: 12V DC / 24V AC
-14
~122
Dimensions
Sunshield; Cable management bracket
Compact die-cast aluminum; Tempered Glass
IP66 weatherproof rating; Vandal-resistant
Speco Technologies is constantly developing product improvements We reserve the right to modify product design and specifications without notice and without incurring any obligation Rev. 3/15/10
Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com
3.26" H x 8.09" W
1.35 lbs.
3. Mounting Specifications & Installation Instructions
Please follow the mounting specifications to install the LPRB922 camera.
3.1 Package Contents
Item Description
LPRB922 camera camera assembly rubber pad static electricity protection 3 insulation tubes static electricity protection
mounting templateguide pattern sticker fo
3 self-tapping screws 3 plastic anchor printed material
r mounting camera for cement ceiling mounting installation guide, notice card
3.2 Mounting Specifications
1. Use appropriate screws and select an appropriate location to install the camera.
2. Ensure the mounting surface can support the weight of the camera.
3. The width of the license plate should cover approximately 17-20% of the width of the screen.
4. The camera height should be more than 36 inches.
5. The vertical angle should be less than 40 degrees.
Speco Technologies is constantly developing product improvements We reserve the right to modify product design and specifications without notice and without incurring any obligation Rev. 3/15/10
Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com
6. The horizontal angle should be less than 40 degrees. This camera is designed to
Partial enlargement
cover only one lane (less than 3 meters).
7. If using with a DVR, make sure the DVR has the de-interlace feature and the frame rate is above 15 fps for optimal effect.
8. To ensure an optimal view, please adjust the lens under the conditions we suggest.
3.3 Camera Installation
1. Mark hole positions: use the mounting template to mark hole positions on the
desired location. If you want to mount the camera on a cement surface, insert the plastic anchors into holes which you've drilled into the cement first.
2. Adjust the mounting angle: Loosen the left and right screws and rotate the
mount adjustment counterclockwise to adjust a desired angle for mounting. Then, fasten the screws and rotate the mount adjustment clockwise to set desired angle.
Speco Technologies is constantly developing product improvements We reserve the right to modify product design and specifications without notice and without incurring any obligation Rev. 3/15/10
Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com
3. rotate the mount
adjustment
1. loosen the left
screw
self-trapping screw
2. loosen the right
screw
insulation tube rubber pad
3. Install the camera: Lock the 3 self-trapping screws to fasten the camera.
For static electricity protection, please use the rubber pad to cover the metal mount adjustment and put 3 insulation caps through the metal screws when locking the 3 self-trapping screws into the desired location.
Speco Technologies is constantly developing product improvements We reserve the right to modify product design and specifications without notice and without incurring any obligation Rev. 3/15/10
Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com
4. Adjust the lens: loosen the Tele/Wide or Far/Near screw counterclockwise and then
adjust it according to your needs. After adjustment, be sure to lock it tightly to prevent water leaking into the body of the camera.
Warning! To avoid damage to
Warning! To avoid water
leaking, do not loosen these 2 screws.
the lens, do not adjust the Tele/Wide or Far/Near screw beyond the marked lines.
5. Adjust the sunshield: loosen the screw counterclockwise, move the sunshield
forward or backward and then turn the screw clockwise to fix the position of the sunshield. Be sure to adjust the sunshield in coordination with the lens to avoid reflection problems.
move forward/backward
