Speco Technologies HTD8FFI, HTB11FFI, HT-7248FFI User Manual
INSTRUCTION
MANUAL
650Line Intensier3™ Series
Focus Free
HTD8FFI
(Weatherproof Color Dome Camera)
HTB11FFI
(Weatherproof Color Bullet Camera)
HT7248FFI
(Weatherproof Color Dome Camera)
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Rev. 6/9/10
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
their own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
☞Do NOT use power sources other than those specified.
This installation should be made by a qualified service person and
should conform to all local codes.
Precautions
Do not install the camera in
extreme temperature conditions.
Only use the camera under conditions
where temperatures are between
-10°C and +50°C. Be especially careful to provide
ventilation when operating under high
temperatures.
Never keep the camera pointed
directly at strong light.
Do not install the camera under
unstable lighting conditions.
Severe lighting change or flicker can
cause the camera to work improperly.
Do not drop the camera or subject
it to physical shocks.
Do not touch the front lens of the
camera.
This is one of the most important parts of the
camera. Be careful not to leave
fingerprints on the lens cover.
Do not expose the camera to
radioactivity.
It can cause malfunctions to occur.
* If the camera is exposed to
spotlight or object reflecting strong light, smear or blooming may occur.
* please check that the power satisfies the normal specification before
connecting the camera.
Severe lighting change or flicker can
cause the camera to work improperly.
NOTE
If exposed to radioactivity the CCD
will fail.
650 Line Intensifier3
(Weatherproof Color Dome Camera)
Focus free AI Motorized zoom Lens(2.8-10mm)
HTD8FFI
■
SPECIFICATIONS
Focus Free
MODEL
Image Pick-Up Device
TV System
Total Pixels
Effective Pixels
Scanning Frequency
Scanning System
Synchronization
Resolution
Minimum Illumination
S/N Ratio
Video Output
Electronic Shutter Speed
OSD
WDR
BLC
Day & Night
Gain Control
White Balance
Intensify
Motion Detection
Privacy Masking
SPECO DNR
Digital Zoom
DIS (Digital Image Stabilization)
Sharpness
Flip / Mirror
Power Supply
Power Consumption
Lens
RS485(Option)
Operational Temp.
Storage Temp.
Dimension
Weight
HTD8FFI
1/3” Sony Super HAD ll CCD
NTSC, PAL
NTSC=811(H) * 508(V) / PAL=795(H) * 596(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
NTSC=15.734KHz(H) & 59.94Hz(V) / PAL=15.625KHz(H) & 50.00Hz(V)
2:1 Interlace
Internal
650TV Lines
CDS OFF: 0.15 Lux, CDS ON: 0.00002 Lux
More than 52dB
CVBS: 1.0Vp-p / 75Ω
NTSC=(1/60sec~1/120,000sec) / PAL=(1/50sec~1/120,000sec)
Available
On / Off (Level adjustable)
BLC / HLC / OFF
Color / BW / AUTO
Low / High / Off
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Auto / Off (Selectable x2 ~ x512)
On / Off (8 Programmable Zones)
On / Off (12 Programmable Zones)
On / Off (Level adjustable)
On / Off (x1 ~ x16)
On / Off
On / Off (Level adjustable)
On / Off
DC 12V / AC24V(Dual Voltage)
DC 12V 250mA / AC24V 100mA
Focus free AI Motorized zoom Lens(2.8-10mm)
PELCO-D, PELCO-P, BOSCH, HONEYWELL, VICON, PANA, STW(SPD)
14~122ºF RH 95% Max
-4~140ºF RH 95% Max
5.51"(W) * 4.37"(H) * 5.51"(D)
3.08 lbs
650 Line Intensifier3
(Weatherproof Color Bullet Camera)
Focus free AI Motorized zoom Lens(2.8-10mm)
HTB11FFI
■
SPECIFICATIONS
Focus Free
MODEL
Image Pick-Up Device
TV System
Total Pixels
Effective Pixels
Scanning Frequency
Scanning System
Synchronization
Resolution
Minimum Illumination
S/N Ratio
Video Output
Electronic Shutter Speed
OSD
WDR
BLC
Day & Night
Gain Control
White Balance
Intensify
Motion Detection
Privacy Masking
SPECO DNR
Digital Zoom
DIS (Digital Image Stabilization)
Sharpness
Flip / Mirror
Power Supply
Power Consumption
Lens
RS485(Option)
Operational Temp.
Storage Temp.
Dimension
Weight
HTB11FFI
1/3” Sony Super HAD ll CCD
NTSC, PAL
NTSC=811(H) * 508(V) / PAL=795(H) * 596(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
NTSC=15.734KHz(H) & 59.94Hz(V) / PAL=15.625KHz(H) & 50.00Hz(V)
2:1 Interlace
Internal
650TV Lines
CDS OFF: 0.15 Lux, CDS ON: 0.00002 Lux
More than 52dB
CVBS: 1.0Vp-p / 75Ω
NTSC=(1/60sec~1/120,000sec) / PAL=(1/50sec~1/120,000sec)
Available
On / Off (Level adjustable)
BLC / HLC / OFF
Color / BW / AUTO
Low / High / Off
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Auto / Off (Selectable x2 ~ x512)
On / Off (8 Programmable Zones)
On / Off (12 Programmable Zones)
On / Off (Level adjustable)
On / Off (x1 ~ x16)
On / Off
On / Off (Level adjustable)
On / Off
DC 12V / AC24V(Dual Voltage)
DC 12V 250mA / AC24V 100mA
Focus free AI Motorized zoom Lens(2.8-10mm)
PELCO-D, PELCO-P, BOSCH, HONEYWELL, VICON, PANA, STW(SPD)
14~122ºF RH 95% Max
-4~140ºF RH 95% Max
3.46"(W) * 3.43"(H) * 11.22"(D)
3 lbs
650 Line Intensifier3
(Weatherproof Color Dome Camera)
Focus free AI Motorized zoom Lens(2.8-10mm)
HT7248FFI
■
SPECIFICATIONS
Focus Free
MODEL
Image Pick-Up Device
TV System
Total Pixels
Effective Pixels
Scanning Frequency
Scanning System
Synchronization
Resolution
Minimum Illumination
S/N Ratio
Video Output
Electronic Shutter Speed
OSD
WDR
BLC
Day & Night
Gain Control
White Balance
Intensify
Motion Detection
Privacy Masking
SPECO DNR
Digital Zoom
DIS (Digital Image Stabilization)
Sharpness
Flip / Mirror
Power Supply
Power Consumption
Lens
RS485(Option)
Operational Temp.
Storage Temp.
Dimension
Weight
HT7248FFI
1/3” Sony Super HAD ll CCD
NTSC, PAL
NTSC=811(H) * 508(V) / PAL=795(H) * 596(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
NTSC=15.734KHz(H) & 59.94Hz(V) / PAL=15.625KHz(H) & 50.00Hz(V)
2:1 Interlace
Internal
650TV Lines
CDS OFF: 0.15 Lux, CDS ON: 0.00002 Lux
More than 52dB
CVBS: 1.0Vp-p / 75Ω
NTSC=(1/60sec~1/120,000sec) / PAL=(1/50sec~1/120,000sec)
Available
On / Off (Level adjustable)
BLC / HLC / OFF
Color / BW / AUTO
Low / High / Off
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Auto / Off (Selectable x2 ~ x512)
On / Off (8 Programmable Zones)
On / Off (12 Programmable Zones)
On / Off (Level adjustable)
On / Off (x1 ~ x16)
On / Off
On / Off (Level adjustable)
On / Off
DC 12V / AC24V(Dual Voltage)
DC 12V 250mA / AC24V 100mA
Focus free AI Motorized zoom Lens(2.8-10mm)
PELCO-D, PELCO-P, BOSCH, HONEYWELL, VICON, PANA, STW(SPD)
14~122ºF RH 95% Max
-4~140ºF RH 95% Max
5.1" Dia * 3.1"H
1 lb
6
CAMERA INSTALLATION
jvuulj{Gwv~lyGjhislG
XUG~oluG|zpunGXYG}vs{zGkjGOGG\WWGhPG
wGpGaylk
jGaGORP
kjGXY}GwGz
YUG~oluG|zpunGY[G}vs{zGhjGO[WG}Gh P
ylkORP
hjGY[}
ishjraOTP
wGz
ZUGjvuulj{G}pklvGjhislG
Tjvuulj{GiujGjhislG{vG{olGiujGqhjrUG
[UGjvuulj{GhGGOyGP
TjGORGSGjvtPGGwGGGOTUGjvtPGG
uGGGlGhGkGGtG
kGG˄vu˅GGGU
hGvG
R
jvtG
T
wGhGkG
uGhGk
\UGjvuulj{GyzT[_\GjhislG
TjGY~GjGGG[_\GGGU
7
Contents
◑
Contents
◑
Safety Instructions
◑
FEATURES
◑
FEATURES
◑
Camera Menu Set Up
1. Preset Mode
2. Menu Set Up
3. Lens Setting
4. Exposure Setting
5. White Balance Setting
6. WDR Setting
1
2
3
4
5
5
5
5
6
7
8
7. Backlight Setting
8. SPECO DNR Setting
9. Day/Night Setting

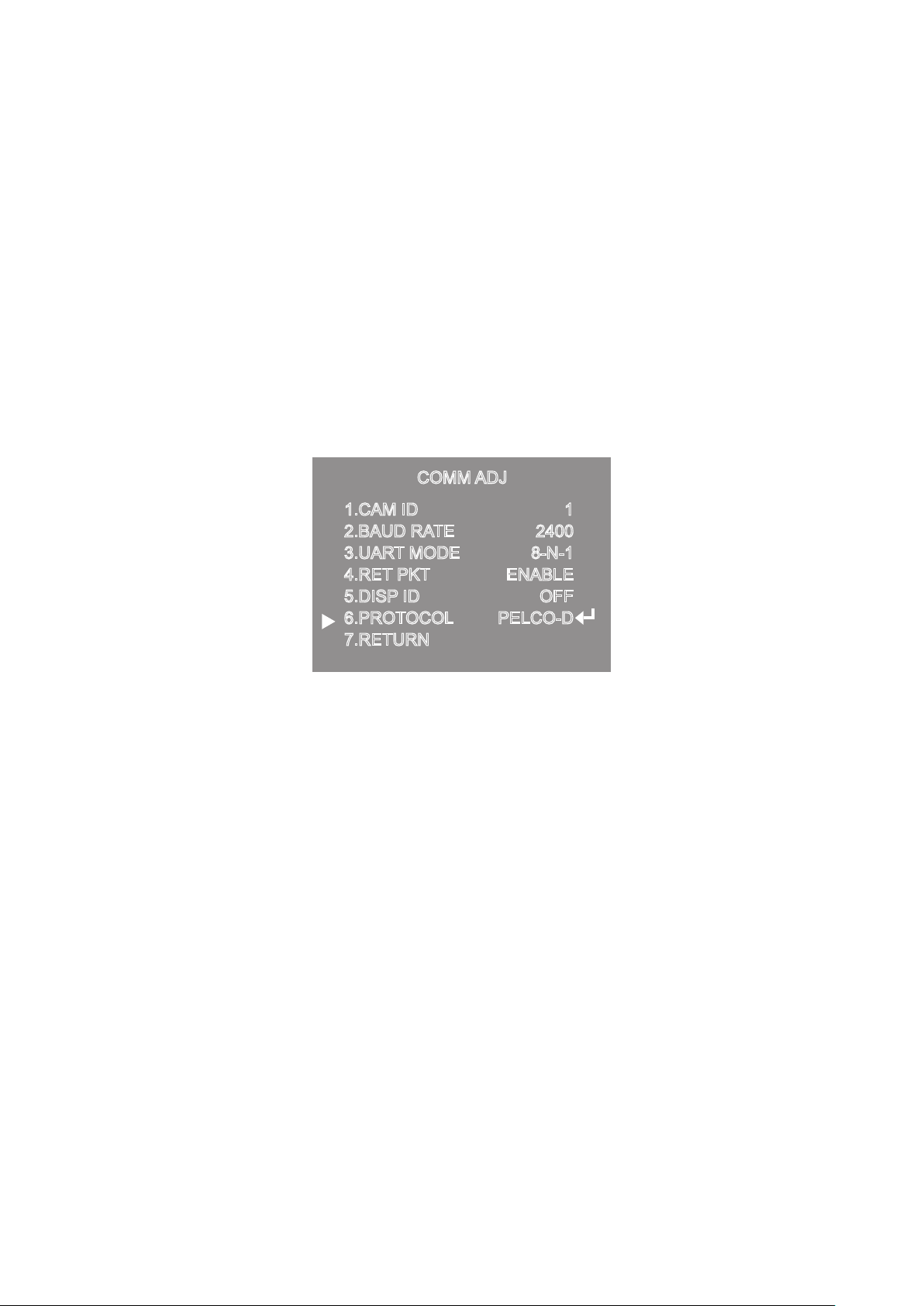

10. Special Setting
11. RETURN Setting
◑
Trouble Shooting
9
10
11
12
16
17
1
Safety Instructions
Precautions for use
◑
This camera should be installed by qualied personnel only
◑
There are no user serviceable parts inside
◑
Do not disassemble this camera other than to make initial adjustments
◑
Use a UL approved regulated 24 volt AC or 12 volt DC power supply
◑
Use appropriate low voltage power cable to prevent re or electrical shock
◑
Please insure that your installation area can support the weight of the camera
Please handle this camera carefully :
◑
Do not use a strong or abrasive detergent when cleaning the camera
◑
Do not install near cooling or heating device
2
